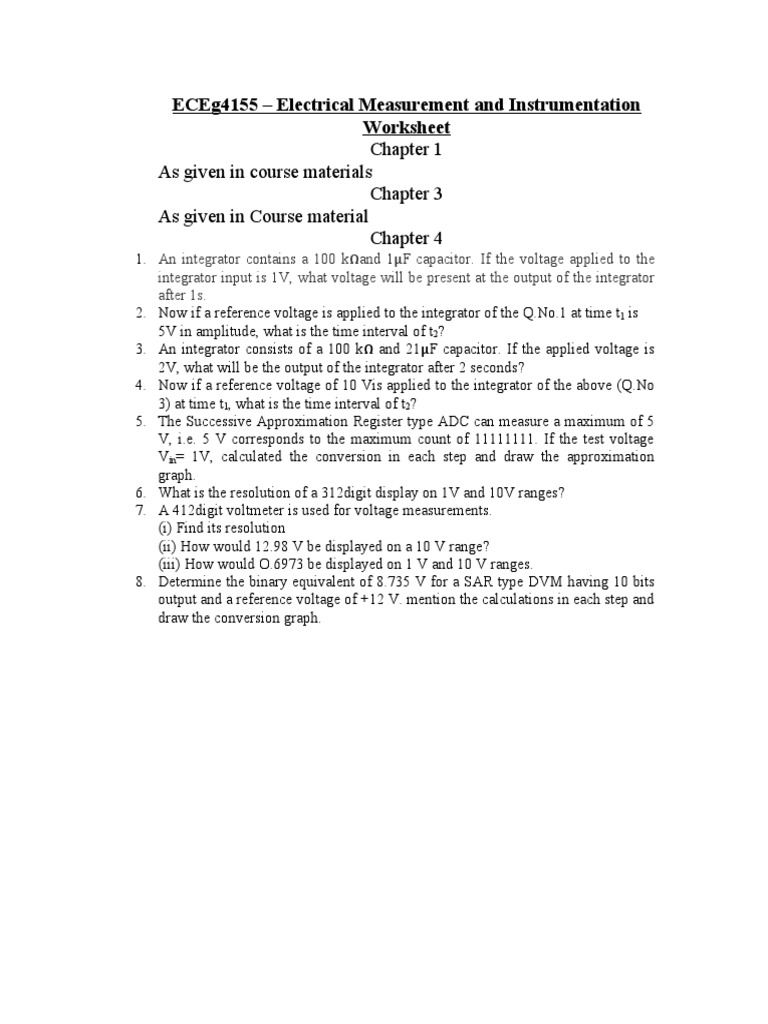

ECEg4155 – Electrical Measurement and Instrumentation

Worksheet
Chapter 1
As given in course materials
Chapter 3
As given in Course material
Chapter 4
1. An integrator contains a 100 kΩand 1μF capacitor. If the voltage applied to the
integrator input is 1V, what voltage will be present at the output of the integrator
after 1s.
2. Now if a reference voltage is applied to the integrator of the Q.No.1 at time t1 is
5V in amplitude, what is the time interval of t2?
3. An integrator consists of a 100 kΩ and 21μF capacitor. If the applied voltage is
2V, what will be the output of the integrator after 2 seconds?
4. Now if a reference voltage of 10 Vis applied to the integrator of the above (Q.No
3) at time t1, what is the time interval of t2?
5. The Successive Approximation Register type ADC can measure a maximum of 5
V, i.e. 5 V corresponds to the maximum count of 11111111. If the test voltage
Vin= 1V, calculated the conversion in each step and draw the approximation
graph.
6. What is the resolution of a 312digit display on 1V and 10V ranges?
7. A 412digit voltmeter is used for voltage measurements.
(i) Find its resolution
(ii) How would 12.98 V be displayed on a 10 V range?
(iii) How would O.6973 be displayed on 1 V and 10 V ranges.
8. Determine the binary equivalent of 8.735 V for a SAR type DVM having 10 bits
output and a reference voltage of +12 V. mention the calculations in each step and
draw the conversion graph.
