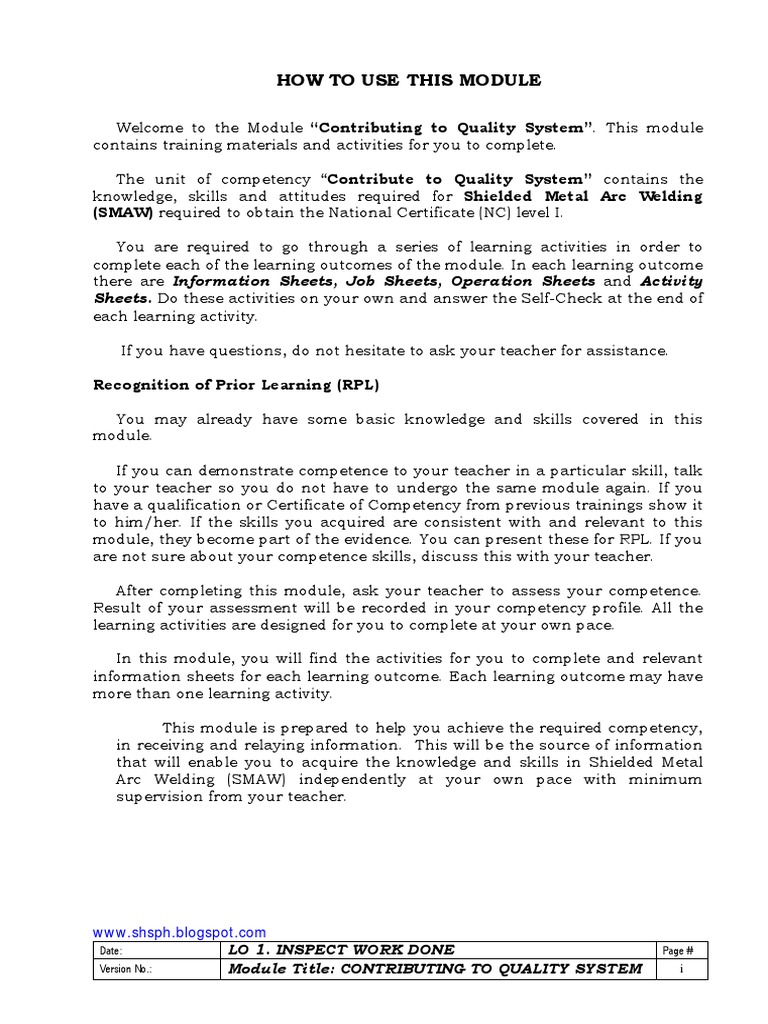

HOW TO USE THIS MODULE
Welcome to the Module “Contributing to Quality System”. This module

contains training materials and activities for you to complete.
The unit of competency “Contribute to Quality System” contains the

knowledge, skills and attitudes required for Shielded Metal Arc Welding
(SMAW) required to obtain the National Certificate (NC) level I.
You are required to go through a series of learning activities in order to

complete each of the learning outcomes of the module. In each learning outcome
there are Information Sheets, Job Sheets, Operation Sheets and Activity
Sheets. Do these activities on your own and answer the Self-Check at the end of
each learning activity.
If you have questions, do not hesitate to ask your teacher for assistance.
Recognition of Prior Learning (RPL)
You may already have some basic knowledge and skills covered in this
module.
If you can demonstrate competence to your teacher in a particular skill, talk

to your teacher so you do not have to undergo the same module again. If you
have a qualification or Certificate of Competency from previous trainings show it
to him/her. If the skills you acquired are consistent with and relevant to this
module, they become part of the evidence. You can present these for RPL. If you
are not sure about your competence skills, discuss this with your teacher.
After completing this module, ask your teacher to assess your competence.
Result of your assessment will be recorded in your competency profile. All the
learning activities are designed for you to complete at your own pace.
In this module, you will find the activities for you to complete and relevant
information sheets for each learning outcome. Each learning outcome may have
more than one learning activity.
This module is prepared to help you achieve the required competency,

in receiving and relaying information. This will be the source of information
that will enable you to acquire the knowledge and skills in Shielded Metal
Arc Welding (SMAW) independently at your own pace with minimum
supervision from your teacher.
www.shsph.blogspot.com
Date: LO 1. INSPECT WORK DONE Page #
Version No.: Module Title: CONTRIBUTING TO QUALITY SYSTEM i
Program/Course Shielded Metal Arc Welding (SMAW) NC-1
Unit of Competency Contribute to Quality System
Module Title: CONTRIBUTING TO QUALITY SYSTEM
INTRODUCTION:
This module contains information and suggested learning activities on

Contribution to Quality Sytem.
This module consists of three (3) learning outcomes. Each learning

outcome contains learning activities supported by instruction sheets. Before
you perform the activity, read the information sheets and answer the self-check
provided to as certain your competence, your teacher will assess what you have
acquired when the knowledge necessary to perform the skill portion of the what
particular learning outcome.
Upon completing this module, report to your competence teacher for

assessment to check your achievement of knowledge and skills requirements of
this module. If you pass the assessment, you will be given a certificate of
completion.
SUMMARY OF LEARNING OUTCOMES:
Upon completion of the module the students should be able to:
LO1 Inspect work done;

LO2 Apply Quality Standards to work;
LO3 Protect Company Property and Customer Interest.
ASSESSMENT CRITERIA:
Refer to assessment criteria of learning outcomes 1-4 of this module.
PREREQUISITE:
Version No.: Module Title: CONTRIBUTING TO QUALITY SYSTEM ii
TECHNICAL TERMS
Code is a body of Laws, as a nation, or a city, arranged systematically for easy

reference.
Standard is something that is established for use as a rule or basis of
comparison
Specification describe as detailed description of the parts of a whole statement
or enumeration of particulars, to actual or required size, quality,
performance, term, etc.
ISO International Organization for Standardization
ISO 900 a tool to provide a foundation for quality improvement and quality
management
WPS Welding Procedure Specification, a guide for welders and inspectors to
verify the welding procedures
Pre-qualification Test a test conducted in the shops for the purpose of
determining the procedures.
Quality Control a unit or department to organize and are responsible for the
quality of products or outputs.
Version No.: Module Title: CONTRIBUTING TO QUALITY SYSTEM iii
Program/Course: SHIELDED METAL ARC WELDING
Unit of Competency: CONTRIBUTE TO QUALITY SYSTEM
Module Title: CONTRIBUTING TO QUALITY SYSTEM
Learning Outcome 1:
Inspect Work Done
Assessment Criteria:
1. Appropriate inspection of work done are conducted.

2. Ensure that the company quality system and procedure are
maintained/followed
3. Job Specifications/Work order and quality standard are identified.
4. Faults/Defects are identified and rectified according to company
procedure.
REFERENCES:
Welding Technology
Second Edition
Gower A. Kennedy
Welding Inspection Technology

Education Department
American Welding Society, Inc
Welding Principles and Application

Larry Jeffus and Harold V. Johnson
Version No.: Module Title: CONTRIBUTING TO QUALITY SYSTEM 1
LEARNING EXPERIENCES/ACTIVITIES
Learning Outcome 1: Inspect Work Done
Learning Activities Special Instructions
1) Read the attached information  Answer the Self-check without

sheet 1 inspect work done looking at the information sheet
2) Answer the self-check No.1.1
3) Compare your answer on
answer key  Assignment sheet will be issued
4) If you failed to meet the 80% as advanced requirement prior
to learning the next information
requirement passing standard, sheet
go over again the information
sheet
Version No.: CONTRIBUTING TO QUALITY SYSTEM 2
Information Sheet # 1.1
INSPECT WORK DONE
The inspection of work relative to the welding is one of the requirements

for production. The various inspections are company’s concern in order to meet
the work standards as viewed in products and safety. Welding inspection
personnel may have specific skills and expertise for the tasks. To enumerate
the various inspection categories are as follows: Weld Visual Inspection,
Material Inspection, Dimensional Inspection and Non Destructive Testing (NDT)
Inspection. These inspectors discharge their duties in a separate functions and
no one could be placed at any capacity or assignment to do due to the
qualifications of a person.
Quality Systems and Procedures
Work Instructions
The work instructions are taken from jobs/projects to be made in the

work place. These are the package of instructions allocated in the various shops
of the company. These are sets of work instruction for production and another
set for quality control department. The specific duties and responsibilities of
each department to implement the program of works and activities and that are
formed in the contracts and agreement between the fabrication and the client.
Documents pertaining to contracts, work orders and specifications were

discussed and approved by both the Fabrication Company and the client. The
two parties assume their specific responsibilities in time of preparations and
implementation of the project. Some of the four reasons why do we keep records
intact and accessible anytime:
▪ Records serve as basis for future reference of information.
▪ Records and reports can be the basis for turn-over works in case of leave
of absence or shifting.
▪ Records will be the protection should question arise later.
▪ Records as pre-qualification test for welders, materials, procedures,

processes and NDT for future referral/review by both parties.
Welders and workers will have to respond positively on the cases of

quality record keeping and reporting as to maintain the standard operations in
the workplace.
Date: LO 2. APPLY QUALITY STANDARDS TO WORK Page #
Safe Work Procedures
It is the mandate that anyone in the company must observe and follow
the work safety. Safety practices must be observed in order to meet the
standard production operation in the shop.
Welding Quality Standard/ISO

ISO 9003 – A Model for Quality Assurance in Final Inspection and Test
To ensure the quality, reliability and strength of weldment, an inspection

program of the company is strictly observed and followed. The fabrication
details is reflected in the plan for the procedure has been developed based on
appropriate codes and standards. The Welding Procedure Specifications (WPS)
which considered the bible of welders is always made available. At any time,
and is placed in areas that are accessible to information. The products that are
subjected to inspection must be included in the quality program of the
production so that it will be easier to monitor and evaluate the flow of operation.
There are critical weld joints that must pass through intensive post-weld
inspection after welding. These category of weld joints fall under fabricated
structures such as Boilers, Reactors, Heat Exchanger and High Pressure
Vessels. Since these products calls for critical services, the weldments must
pass the inspection requirements and utmost must be approved and certified for
acceptability of the weld profile requirements.
Welding Codes and Standards/ISO
The selection of codes and standard to be used maybe based upon several
factors, including the following:
 Many government agencies (local, state, federal) require that a

specification code or standard should be followed.
 The manufacturers consider cost and reliability; that is, a stricter

standard is applied to the weld made, the cost of the weld
necessarily increases.
 The code and standard used is considered standard and the

industry has been use for sometime.
 The fitness of the service weld requirement as established through

testing.
The perfect welds are not required. The difference between what is
acceptable and fit for service, such perfection what is known as tolerance.
Agencies that issue codes and standard and each give the specific tolerance.
o American Bureau of Shipping

o American Petroleum Institute
o American Society of Mechanical Engineers (ASME)
o American Society for Testing Materials (ASTM)
o American
www.shsph.blogspot.com Welding Society (AWS)
o British Welding Institute (BWI)
o United State Government (USG)
Here are some of the noted American Welding Code Standards:
AWS D.1.1 – Structural Welding Code

ASME IX – Pressurized Vessels Welding Code
APII 1104 – Standard for Welding Pipeline and Related Facilities
Communication Process
Production managers, supervisors and quality inspectors are the

communicators of workers. Simple, concise and clear instructions will have to
promote better understanding on the part of the workers. This is possible
through the issuance of Office Memorandum, letter of instructions, work
procedures, observation and inspection reports as a routine communication
process.
SELF CHECK # 1.1
LO1 INSPECT WORK DONE
Direction: Encircle the letter of the correct answer.
1. The Welding Procedure Specification is considered?
A. Welding procedure for welder during welding

B. Document of pre-qualification test
C. Welding instructional guide
D. None of the above
2. What statement does not belong to quality control?
A. Welding Specification and Standard

B. Welding Inspection
C. Welding Process
D. Materials Coding and Specifications
3. How do you judge weldment that pass the quality requirements?
A. weld by experience welder

B. good appearance weld but w/o welding procedure
C. weld with approved welding procedure specification
D. all of the above
4. Something that is established for use as a rule of comparison in

measuring or judging capacity quantity extent, value, quality, etc.
A. specification
B. code
C. standard
D. agreement
5. ASME means
A. American Society of Mechanical Engineering

B. American Society of Mechanical Engineers
C. American Society of Manufacturing Engineering
D. American Society of Mining and Energy
Course Program : SHIELDED METAL ARC WELDING (SMAW) NC1
Unit of Competency : CONTRIBUTE TO QUALITY SYSTEM
Module Title : Contributing to Quality System
Learning Outcome 2
Apply Quality Standard to Work
1. Observation and visitation to industry are conducted to maintain quality

standard practices.
2. Appropriate quality standards applied through out the production

process.
3. All work activities are coordinated through out the workplace to ensure
efficient work outcomes.
References:

Education department
American Welding Society, Inc.
International Organization for Standardization

(ISO) Training Manual
Welding Technology
Second Edition
Gower A. Kennedy

Larry Jeffus
Harold Johnson
Learning Outcome 2: Apply Quality Standards to Work

sheet 2.1 apply quality looking at the information sheet
standards to work.
2) Answer the self-check No.2.1 to
test your knowledge on apply
quality standard to work.
answer key
4) If you failed to meet the 80%
requirement passing standard,
sheet
Information Sheet 2.1
LO2: Apply Quality Standards to Work
Once a code and standard in welding has been established and selected,
the quality control department will have to decide the methods for the pre-
qualifications procedures and processes applied to welding production.
Some of the pre-qualification testing that has to be done. These are pre-
qualifications of welders, procedures, materials, welding positions and welding
processes. These activities will have to be recorded and documented for the
formulation of future welding procedure specifications (WPS).
Certifying Companies/Agencies
ISO 9001 is an International Standard for Quality Management Systems

(QMS) issued by the International Organizations for Standardization. ISO is an
internationally recognized series of quality system standard that provides
quality management guidance, and identify generic quality system elements
necessary to achieve quality assurance.
 Has been widely used in commercial transactions whereby

suppliers and buyers agree on very clear guidelines for achieving
consistent product quality and customer satisfaction.
 Seventy-four (74) countries adapted these International Standards.
 Used as framework for continuous improvement.
ISO Certifying Companies here in the country use standards, norm,

regulations that are prescribed and recognized by the International Institutions
as they evaluate firm or a school for that matter, that demonstrated utmost level
of excellence and had completely satisfied all requirements necessary in the
performance of its duties. People’s perception of passing ISO standards means
you have threaded the eye of the needle.
There are ISO certifying companies operate all over the country, the
following are:
 Societe Generale de Surveillance Philippines Inc. (SGS)

 Det Norske Veritas (DNV)
 Anglo-Japanese American Registrar (AJA)
 United Kingdom Accreditation Scheme (UKAS)
Some of the aspects that the ISO Certifying Companies are concern are in
the Management System such as:
 Operations (Work Procedures material Specification etc.)
 Human resources (Qualification and Testing Requirements)
 Customer Service (Marketing and Product Promotions)
 Facilities (Standard Requirements of Building and Equipments)
 Environmental Policies (Physical and Human Safety)
Other Areas of Concerns
ISO Agencies in the Philippines
 Bureau of Products and Standards (National Accrediting Body)

 Certification no. series PNS 1000/ISO 9000
Workplace Visitation/Observation
Company visitation and observation tour in the welding production is at

routine works that the group of persons is doing periodically. The company may
invite guest and customer for job promotions and for future investment.
Another form of visitation and observations are team of inspectors. The

purpose of the visit is to assess the general update of the standard inspection
operations in the workplace. These officials, includes owners, Government
representatives, productions and in-house inspectors.
Three general categories into which the inspectors work function can be
grouped into:
 Overseer
 Specialist
 Combination of Overseer and Specialist
Record Maintenance
Keeping of records and documents in the welding production is essential.

There’s no such production of welds without a system of recordings because it’s
hard for the company to attract acceptance from the customers. The complete
recording and updating for processes in the workplace must always be a part
in favor for the client approval.
Most codes used by the manufacturer’s requires a binding agreement

between the contractors and the client. The welding qualification testing
document must be intact and accessible any time for future reference as the
works progresses in the shop.
Communication Process
Workers in the workplace must learn the communication requirements

adopted by the company. There are basic informations and messages commonly
applied from one office to another, familiarity with the verbal and written
instructions coming from co-workers and from the authorities.
The Management will provide desirable places in posting informations and
communications for conveying workers to comply of any task(s) relative to
productions, procedures and processes. Safety signs must be posted in places
accessible to read to avoid injuries and accidents..
Self Check 2.1
LO2: Apply Quality Standard to Work
Direction: Encircle the letter of the correct answer
1. Which certifying company operates only in the Philippines?
A. Societe General de Surveillance (SGS

B. Anglo-Japanese American Registrar (AJA)
C. United Kingdom Accreditation (UKA)
D. Bureau of Products and Standards (BPS)
2. What department or section responsible in monitoring and checking

quality of products/welds?
A. production department
B. quality control department
C. planning department
D. drawing department
3. A pre-qualification testing for welding as a requirements that focuses in

the following statement except one
A. Welders qualification test

B. Material qualification test
C. Welding procedure test
D. Welding inspection test
4. An appropriate reason for keeping the records and documents intact and
accessible anytime is for
A. For recording only

B. For future reference and review
C. To be checked the work
D. For office needs
5. Why safety signs and symbols must be posted in a readable corners?
A. everyone can read

B. everyone can follow directions
C. for safety
D. for structure display
Course Program : SHIELDED METAL ARC WELDING (SMAW) NC1
Unit of Competency : CONTRIBUTE TO QUALITY SYSTEM
Module Title : Contributing to Quality System
Learning Outcome 3
Protection of Company’s Property and Customers Interest
1. Possible damage to company’s property is avoided by adhering to

company’s Quality Procedure.
2. Quality of work is reviewed to ensure that the customer requirements and

company standard are met.
References:

Education department
American Welding Society, Inc.
International Organization for Standardization

(ISO) Training Manual
Welding Technology
Second Edition
Gower A. Kennedy

Larry Jeffus
Harold Johnson
Date: LO 3. PROTECTION OF COMPANY’S PROPERTY AND CUSTOMER’S INTEREST Page #
Learning Outcome 3: Protect Company’s Property and Customer’s

Interest

sheet 3.1 protections of looking at the information sheet
company’s property and
customer’s interest.
2) Answer the self-check No.3.1 to
test your knowledge on
protections of company’s
property and customer’s
interest.
answer key
4) If you failed to meet the 80%
requirement passing standard,
sheet
Information Sheet 3.1
Learning Outcome 3 Protection of Company’s Property and Customer

Interest
The company operates in the manner that the basic policies and
regulations has been formed by the Policy Making Body of the Organization.
The company aims to deliver the maximum quality service in terms of product,
output with customer’s satisfaction. Therefore the management will have to
initiate reforms after reviewing the existing status of the operations. The
assessment results will be the basis for improvement.
Company System, Processes and Quality Requirements
The Company manuals and procedure manuals are the documents that
provide all information regarding the company operations. These documents
include the abstract presentation of the sites, buildings, facilities, products, and
quality procedures.
The quality standard manuals and the inspection record manuals are of
separate documents that are kept in the quality control department. All
information and guidelines pertaining to the quality is in the manuals. The
inspection record manuals are specific instructions for all inspections activities.
These include material records, inspection records, processes involved and the
various sample forms of inspection reports. These inspection reports of all
finished products are registered in the manual of inspection for purposes
reference in the review of the production procedures.
Processes and Quality Requirements are both tailored based in the

contract between the client and the manufacturers. Each of the sectors has to
perform the specific function. These task(s) are focused to implement and
monitor the production and quality requirements.
Quality Assurance Principles
Quality assurance is a statement that also referred to the process of

products that is quality assured. This will be possible in producing products
that passed through a qualified or certified process and in compliance with he
standard requirements. The common practices of the production sector and the
quality control group well done assessment if all activities performed are in
compliance with the standard.
If we are going to focus on production of welding, we are assured of

quality if we realize the importance of welding inspectors. They don’t just look in
the finished weld, but looking back on how the weld is done; Section 4 of AWS
QC I standard in Qualification and Certification of Welding inspectors. From the
many responsibilities of welders and welding inspectors, it is proper to discuss
that both of them having separate jobs to do. Welders do follow the welding
production requirements and to note:
 Receive specific instruction from welding foreman/foremen regarding the
scope of work.
 Follow the welding Procedures and sequence by referring to (WPS)
 Perform Welding Production and with compliance.
 Apply safety assurance in the workplace.
Handling of Materials
The company/industry is assigning personnel responsible specifically for

materials, tools, and equipment. The skills of these workers to do the specific
functions are credible and appropriate because of basis for accepting them to
the position are their qualification.
In the welding production, materials are stocked and filed in the

stockyard in a very spacious area or location and that at the same time an office
for material control and maintenance. All of the materials and processes are
based on standard operations of receiving delivery and in the issuance of
materials to the production in-charge personnel and to quality inspector. There
are numerous ways and methods for controlling materials in the stockyard, and
this performed by personnel in-charge.
In many industries, one of the more important aspects of fabrication is

identification and traceability of materials. Some inspectors maybe required to
assist in the material control program as part of their regular duties. It is
therefore that the individual must be capable of properly identifying material
and that information related to documentation.
Materials for welded fabrication and often ordered with the stipulation
that they meet a particular specification. To demonstrate this compliance, the
supplier can furnish documentation which describes all important
characteristic of the materials. This documentation in metals sometimes
referred to as “MTR” which is an abbreviation in material (or MILL) Test Report.
This document is a statement by the manufacturer that the particular item
exhibit specific chemical and mechanical properties.
Handling of Tools and Equipments
Issued tools and equipments in the shop needs proper control and
maintenance. Regular or periodic inspections must be done in order not to
hamper the production outputs on the daily basis. Tools that are not fit for use
must be reported and marked defective for immediate replacement.
Malfunctioning machines and equipment must be repaired urgently to avoid
production output loses.
Self Check 3.1
LO3: Protect the Company’s and Customer’s Interest
Direction: Encircle the letter of the correct answer.
1. A document that provides information of company operations which

includes the abstract presentation of the sites, buildings, facilities,
products and quality procedures.
A. inspection manual
B. standard manual
C. company manual
D. record manual
2. Processes and quality requirements are both tailored in the agreement

between the.
A. manufacturer and client

B. company and workers
C. inspector and production
D. all of the above
3. Workers and welders while performing their duties in the production area
are prone to hazards. The protective device for them is
A. safety glass
B. gas mask
C. welding gloves
D. goggles
4. One of the four (4) reasons why do we keep records intact anytime
A. Records for pre-qualification test of welders. Procedures and non-

destructive test for future referral
B. For products file
C. Record purposes of quality control unit
D. All of the above
5. The department or section in the manufacturer that is in-charge for the

implementation of the program of works/activities for production
A. Quality Control Department

B. Production Department
C. Promotional Department
D. All of the above
ANSWER KEYS
Self Check # 1.1
1. A
2. C
3. C
4. C
5. B
Self Check # 2.1
1. D
2. B
3. B
4. D
5. B
Self Check # 3.1
1. C
2. A
3. A
4. A
5. B

Welding Module 2-1

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Welding Module 2-1

Uploaded by

Copyright:

Available Formats

HOW TO USE THIS MODULE

Welcome to the Module “Contributing to Quality System”. This module

The unit of competency “Contribute to Quality System” contains the

You are required to go through a series of learning activities in order to

Recognition of Prior Learning (RPL)

If you can demonstrate competence to your teacher in a particular skill, talk

This module is prepared to help you achieve the required competency,

Unit of Competency Contribute to Quality System

Module Title: CONTRIBUTING TO QUALITY SYSTEM

This module contains information and suggested learning activities on

This module consists of three (3) learning outcomes. Each learning

Upon completing this module, report to your competence teacher for

SUMMARY OF LEARNING OUTCOMES:

Upon completion of the module the students should be able to:

LO1 Inspect work done;

Refer to assessment criteria of learning outcomes 1-4 of this module.

Code is a body of Laws, as a nation, or a city, arranged systematically for easy

Inspect Work Done

1. Appropriate inspection of work done are conducted.

Welding Inspection Technology

Welding Principles and Application

Learning Outcome 1: Inspect Work Done

Learning Activities Special Instructions

1) Read the attached information  Answer the Self-check without

INSPECT WORK DONE

The inspection of work relative to the welding is one of the requirements

Quality Systems and Procedures

The work instructions are taken from jobs/projects to be made in the

Documents pertaining to contracts, work orders and specifications were

▪ Records serve as basis for future reference of information.

▪ Records will be the protection should question arise later.

▪ Records as pre-qualification test for welders, materials, procedures,

Welders and workers will have to respond positively on the cases of

Welding Quality Standard/ISO

To ensure the quality, reliability and strength of weldment, an inspection

Welding Codes and Standards/ISO

 Many government agencies (local, state, federal) require that a

 The manufacturers consider cost and reliability; that is, a stricter

 The code and standard used is considered standard and the

 The fitness of the service weld requirement as established through

o American Bureau of Shipping

AWS D.1.1 – Structural Welding Code

Production managers, supervisors and quality inspectors are the

LO1 INSPECT WORK DONE

Direction: Encircle the letter of the correct answer.

1. The Welding Procedure Specification is considered?

A. Welding procedure for welder during welding

2. What statement does not belong to quality control?

A. Welding Specification and Standard

3. How do you judge weldment that pass the quality requirements?

A. weld by experience welder

4. Something that is established for use as a rule of comparison in

A. American Society of Mechanical Engineering

Apply Quality Standard to Work

1. Observation and visitation to industry are conducted to maintain quality

2. Appropriate quality standards applied through out the production

Welding Inspection Technology

International Organization for Standardization

Welding Principles and Application

Learning Outcome 2: Apply Quality Standards to Work

Learning Activities Special Instructions

1) Read the attached information  Answer the Self-check without

LO2: Apply Quality Standards to Work

ISO 9001 is an International Standard for Quality Management Systems
