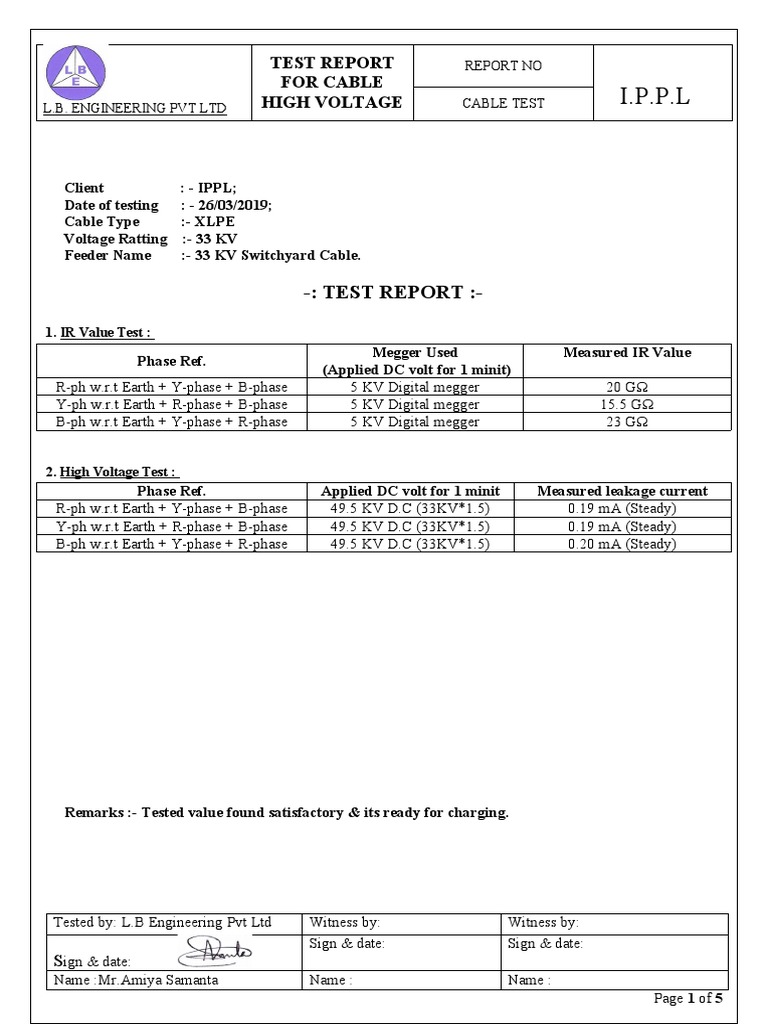

TEST REPORT REPORT NO

FOR CABLE
L.B. ENGINEERING PVT LTD HIGH VOLTAGE CABLE TEST I.P.P.L

Client : - IPPL;
Date of testing : - 26/03/2019;
Cable Type :- XLPE
Voltage Ratting :- 33 KV
Feeder Name :- 33 KV Switchyard Cable.

-: TEST REPORT :-

1. IR Value Test :
Megger Used Measured IR Value
Phase Ref.
(Applied DC volt for 1 minit)
R-ph w.r.t Earth + Y-phase + B-phase 5 KV Digital megger 20 GΩ
Y-ph w.r.t Earth + R-phase + B-phase 5 KV Digital megger 15.5 GΩ
B-ph w.r.t Earth + Y-phase + R-phase 5 KV Digital megger 23 GΩ

2. High Voltage Test :

Phase Ref. Applied DC volt for 1 minit Measured leakage current
R-ph w.r.t Earth + Y-phase + B-phase 49.5 KV D.C (33KV*1.5) 0.19 mA (Steady)
Y-ph w.r.t Earth + R-phase + B-phase 49.5 KV D.C (33KV*1.5) 0.19 mA (Steady)
B-ph w.r.t Earth + Y-phase + R-phase 49.5 KV D.C (33KV*1.5) 0.20 mA (Steady)

Remarks :- Tested value found satisfactory & its ready for charging.

Tested by: L.B Engineering Pvt Ltd Witness by: Witness by:
Sign & date: Sign & date:
Sign & date:
Name :Mr.Amiya Samanta Name : Name :
Page 1 of 5
 TEST REPORT REPORT NO
FOR CABLE
L.B. ENGINEERING PVT LTD HIGH VOLTAGE CABLE TEST I.P.P.L

Client : - IPPL;
Date of testing : - 26/03/2019;
Cable Type :- XLPE
Voltage Ratting :- 33 KV
Feeder Name :- 33 KV Cable for 3.5 MVA Transformer # 5

-: TEST REPORT :-

1. High Voltage Test :

Phase Ref. Applied DC volt for 1 minit Measured leakage current
R-ph w.r.t Earth + Y-phase + B-phase 49.5 KV D.C (33KV*1.5) 0.18 mA (Steady)
Y-ph w.r.t Earth + R-phase + B-phase 49.5 KV D.C (33KV*1.5) 0.19 mA (Steady)
B-ph w.r.t Earth + Y-phase + R-phase 49.5 KV D.C (33KV*1.5) 0.19 mA (Steady)

Remarks :- Tested value found satisfactory & its ready for charging.

Tested by: L.B Engineering Pvt Ltd Witness by: Witness by:
Sign & date: Sign & date:
Sign & date:
Name :Mr.Amiya Samanta Name : Name :
Page 2 of 5
 TEST REPORT REPORT NO
FOR CABLE
L.B. ENGINEERING PVT LTD HIGH VOLTAGE CABLE TEST I.P.P.L
Client : - IPPL;
Date of testing : - 26/03/2019;
Cable Type :- XLPE
Voltage Ratting :- 33 KV
Feeder Name :- 33 KV Cable for Schneider Panel (to NG # 04)

-: TEST REPORT :-

1. High Voltage Test :

Phase Ref. Applied DC volt for 1 minit Measured leakage current
R-ph w.r.t Earth + Y-phase + B-phase 49.5 KV D.C (33KV*1.5) 0.20 mA (Steady)
Y-ph w.r.t Earth + R-phase + B-phase 49.5 KV D.C (33KV*1.5) 0.22 mA (Steady)
B-ph w.r.t Earth + Y-phase + R-phase 49.5 KV D.C (33KV*1.5) 0.22 mA (Steady)

Remarks :- Tested value found satisfactory & its ready for charging.

Client : - IPPL;
Tested by: L.B Engineering Pvt Ltd Witness by: Witness by:
Sign & date: Sign & date:
Sign & date:
Name :Mr.Amiya Samanta Name : Name :
Page 3 of 5
 TEST REPORT REPORT NO
FOR CABLE
L.B. ENGINEERING PVT LTD HIGH VOLTAGE CABLE TEST I.P.P.L
Date of testing : - 26/03/2019;
Cable Type :- XLPE
Voltage Ratting :- 6.6 KV
Feeder Name :- 6.6 KV Cable # 1 for 3.5 MVA Transformer # 5

-: TEST REPORT :-

1. High Voltage Test :

Phase Ref. Applied DC volt for 1 minit Measured leakage current
R-ph w.r.t Earth + Y-phase + B-phase 9.9 KV D.C (6.6KV*1.5) 0.03 mA (Steady)
Y-ph w.r.t Earth + R-phase + B-phase 9.9 KV D.C (6.6KV*1.5) 0.03 mA (Steady)
B-ph w.r.t Earth + Y-phase + R-phase 9.9 KV D.C (6.6KV*1.5) 0.03 mA (Steady)

Remarks :- Tested value found satisfactory & its ready for charging.

Client : - IPPL;
Date of testing : - 26/03/2019;
Cable Type :- XLPE
Tested by: L.B Engineering Pvt Ltd Witness by: Witness by:
Sign & date: Sign & date:
Sign & date:
Name :Mr.Amiya Samanta Name : Name :
Page 4 of 5
 TEST REPORT REPORT NO
FOR CABLE
L.B. ENGINEERING PVT LTD HIGH VOLTAGE CABLE TEST I.P.P.L
Voltage Ratting :- 6.6 KV
Feeder Name :- 6.6 KV Cable # 2 for 3.5 MVA Transformer # 5

-: TEST REPORT :-

1. High Voltage Test :

Phase Ref. Applied DC volt for 1 minit Measured leakage current
R-ph w.r.t Earth + Y-phase + B-phase 9.9 KV D.C (6.6KV*1.5) 0.03 mA (Steady)
Y-ph w.r.t Earth + R-phase + B-phase 9.9 KV D.C (6.6KV*1.5) 0.04 mA (Steady)
B-ph w.r.t Earth + Y-phase + R-phase 9.9 KV D.C (6.6KV*1.5) 0.03 mA (Steady)

Remarks :- Tested value found satisfactory & its ready for charging.

Tested by: L.B Engineering Pvt Ltd Witness by: Witness by:
Sign & date: Sign & date:
Sign & date:
Name :Mr.Amiya Samanta Name : Name :
Page 5 of 5
