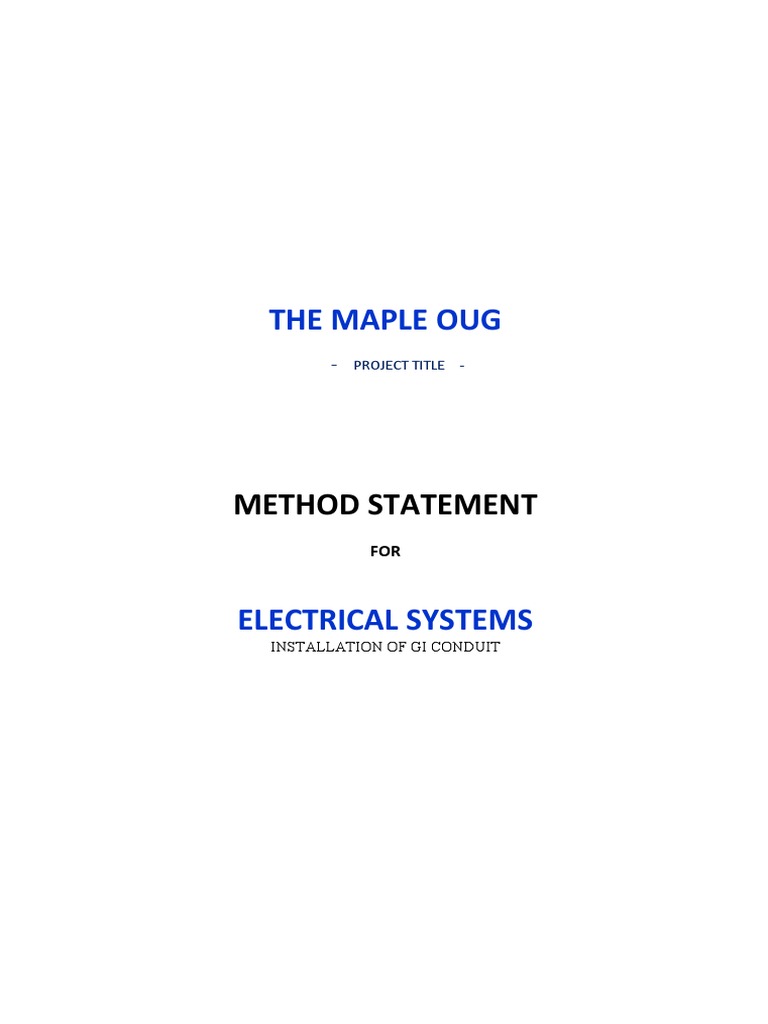

THE MAPLE OUG
- PROJECT TITLE -
METHOD STATEMENT
FOR
ELECTRICAL SYSTEMS
INSTALLATION OF GI CONDUIT
METHOD STATEMENT
Title : GI CONDUIT INSTALLATION
Ref : DRSB/0872/WEP/M&E/CEE/1.3.5(A)/
Revision No: 0 Revision Date: 24/12/2020 Page: 2 of 8
Project Name : THE MAPLE OUG
WORK METHOD STATEMENT PROPOSAL REVIEW SUMMARY
(To be reviewed and approved by the person(s) responsible for the work)
Type of work: Refer to title above
Contract Document No : Doc Ref.: DRSB/0872/WEP/M&E/CEE/1.3.5(A)/
Contract / Project Name: THE MAPLE OUG Date : 24/12/2020
NSC Contractor (if any): Circuitry Electrical Engineering Sdn Bhd
Does Not Remarks
List Of Compliance Requirements Comply
Comply (reference docs – e.g. specs, drgs, etc)
Proposed inspection / hold & witness pts : Acceptable / Not Acceptable (please circle and / or delete one)
Proposed inspection checklist(s) : Acceptable / Not Acceptable (please circle and / or delete one)
For non-complying items, state justifications for acceptance, if applicable (including cost implication):
Submitted By Reviewed and Approved By
Main Contractor
Consultant
Signature
(Name &
Date)
Company
Status
Denote:
A = Approved
B = Approved with Comment
C = Not Approved
METHOD STATEMENT
Title : GI CONDUIT INSTALLATION
Ref : DRSB/0872/WEP/M&E/CEE/1.3.5(A)/
Revision No: 0 Revision Date: 24/12/2020 Page: 3 of 8
Project Name : THE MAPLE OUG
TABLE OF CONTENTS
ITEM DESCRIPTION REMARKS
1.0 Objectives
2.0 Scope of Works
3.0 References
4.0 Key Milestone
5.0 Resources Planning
6.0 Handling and Storage
7.0 Submission and Approval
8.0 Work Methodology
9.0 Handover, Protection & Preservation of Work in Progress
10.0 Inspection and Test Plan ( ITP )
11.0 Health, Safety, Security and Environment ( HSSE )
12.0 Records
13.0 List of Attachment
METHOD STATEMENT
Title : GI CONDUIT INSTALLATION
Ref : DRSB/0872/WEP/M&E/CEE/1.3.5(A)/
Revision No: 0 Revision Date: 24/12/2020 Page: 4 of 8
Project Name : THE MAPLE OUG
AMENDMENT RECORD
No New Revision Revision Date Revision Details Remarks
Note:
a) Any copy of this Method Statement is valid for reference for construction works only after it has been:
i. completely signed off by both parties,
ii. stamped “CONTROLLED COPY”
b) Upon receipt of the latest controlled-copy, please ensure that the previous controlled copy is stamped / marked
“SUPERSEDED” or “OBSOLETE” immediately on all pages (including its attachments).
c) Photocopies of a Controlled Copy (apart from forms and checklists) should not be made. If additional controlled-
copies are required, please request to Main Contractor’s QAQC Dept.
d) In order to facilitate the task of Quality Control at the project site, the forms and checklists attached with the
latest revision of this Method Statement can be freely copied and used. Outdated / superseded forms and
checklists must not be used.
e) If there are any errors, outdated or incorrect information, missing or illegible pages, and/or any other concerns
about this Method Statement and/or its attachments; or if a complete replacement set is required, please inform
to Main Contractor’s QAQC Dept.
METHOD STATEMENT
Title : GI CONDUIT INSTALLATION
Ref : DRSB/0872/WEP/M&E/CEE/1.3.5(A)/
Revision No: 0 Revision Date: 24/12/2020 Page: 5 of 8
Project Name : THE MAPLE OUG
1.0 OBJECTIVE
The objective of this method statement is to outline the work sequence and quality plan for the
installation of GI CONDUIT at THE MAPLE OUG.
2.0 SCOPE OF WORKS
The scope of works mentioned in the following section shall apply to the installation of GI CONDUIT.
3.0 REFERENCES
a) Construction Drawings / Approved Shop Drawings.
b) Contract Document
4.0 KEY MILESTONES
No Description Commencement Date Completion Date
1
5.0 RESOURCES PLANNING
5.1 Material
Item Description Material Submission (Status)
1 GI CONDUIT A
2 GI CONDUIT ACCESSORIES A
Denote:
A = Proceed in accordance with the submission
B = Subject to consultant’s comments
C = Re-submission
METHOD STATEMENT
Title : GI CONDUIT INSTALLATION
Ref : DRSB/0872/WEP/M&E/CEE/1.3.5(A)/
Revision No: 0 Revision Date: 24/12/2020 Page: 6 of 8
Project Name : THE MAPLE OUG
5.2 Machinery / Tools / Equipment
Item Description
1 GI Bender
2 Reamer
3 Pliers
4 Screw driver
5 Power Drill
6 Ladder
7 Saddle and Nut
5.3 Manpower
Item Description Quantity (person)
1 Supervisor 1
2 Skilled Worker 1
3 General Worker 2
6.0 HANDLING AND STORAGE
All material should be handle with care and the workers are equipped with personal protective
equipment (PPE).
On delivery to Site, GI conduits and fittings shall be stored indoor, in a clean, dry and ventilated place.
Consignments of material should be arranged in a way that it is used in the order of delivery (First In First
Out – FIFO).
7.0 SUBMISSION AND APPROVAL
The relevant samples, certificates and records pertaining to the material used shall be submitted to
Architect/Engineer for approval.
METHOD STATEMENT
Title : GI CONDUIT INSTALLATION
Ref : DRSB/0872/WEP/M&E/CEE/1.3.5(A)/
Revision No: 0 Revision Date: 24/12/2020 Page: 7 of 8
Project Name : THE MAPLE OUG
8.0 WORK METHODOLOGY
8.1 Prior to conduit laying, check and determine the conduit routing, location and height as well as the
size of the conduits required and as per construction drawings.
8.2 The Site Coordinate will prepare a sketch, indicating the routes and conduit sizes to be installed.
8.3 Material Preparation and Routing Identification
a) For the area without ceiling, slab shall be under coated before conduit installation can be
started.
b) Route identification and marking work shall not be started until coordinated with the other
mechanical services.
c) Minor deviation from the approved shop drawing would be determined on site with the
consent of consultant site staff.
8.4 To ensure that the conduit is installed with adequate number of boxes to allow for easier draw in
/ out of cables.
8.5 All conduit size (20mm/25mm diameter) to be carefully sized and chosen to allow 40% space factor
according to I.E.E. Regulations.
8.6 Measure, cut conduit, make thread on the G.I. conduit accordingly.
8.7 Joints for the G.I. shall be smoothed by pliers/ reamer tools to ensure no sharp edges that could
damage cable during wiring work.
8.8 Wireman shall check all installed conduit for possible clogs.
9.0 HANDOVER, PROTECTION & PRESERVATION OF WORK-IN-PROGRESS (WIP)
The Contractor shall be responsible to manage and take measures to protect and preserve their work in
progress as well as work handovered as per requireemnts.
10.0 INSPECTION AND TEST PLAN
The Client Representative shall be informed via RFWI before proceeding with the work. The work shall not
proceed without approval from Client Representative. Contractor shall first inspect the work completed by
worker to its satisfactory prior request joint inspection from Client Representative.
Details of inspection activities shall be carried out as per ATTACHMENT A - Inspection Test Plan (ITP).
METHOD STATEMENT
Title : GI CONDUIT INSTALLATION
Ref : DRSB/0872/WEP/M&E/CEE/1.3.5(A)/
Revision No: 0 Revision Date: 24/12/2020 Page: 8 of 8
Project Name : THE MAPLE OUG
Checklists shall be implemented during inspection activities as per ATTACHMENT B – Inspection Checklist –
(ELECTRICAL SYSTEMS).
11.0 HEALTH, SAFETY, SECURITY AND ENVIRONMENT
All works on site shall adhere to the following:
1. Health, Safety and Environmental ( HSE ) Plan
2. Emergency Response Preparedness ( ERP )
3. HIRARC / Job Safety Analysis ( JSA )
4. Material Safe Data Sheet (MSDS) / Chemical Safe Data Sheet (CSDS)
12.0 RECORDS
12.1 Request For Work Inspection (RFWI)
13.0 LIST OF ATTACHMENT
ATTACHMENT A – Inspection & Test Plan (ITP)
ATTACHMENT B – Inspection Checklist (ELECTRICAL SYSTEMS)
