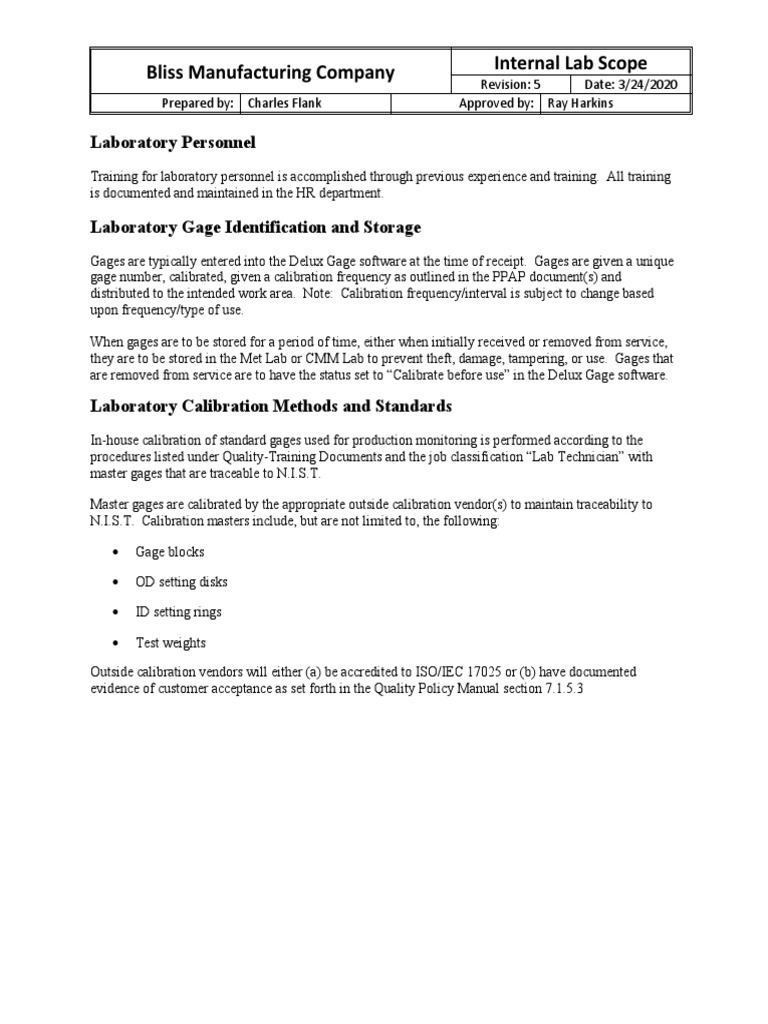

Bliss Manufacturing Company Internal Lab Scope

Revision: 5 Date: 3/24/2020

Prepared by: Charles Flank Approved by: Ray Harkins

Laboratory Personnel
Training for laboratory personnel is accomplished through previous experience and training. All training
is documented and maintained in the HR department.

Laboratory Gage Identification and Storage

Gages are typically entered into the Delux Gage software at the time of receipt. Gages are given a unique
gage number, calibrated, given a calibration frequency as outlined in the PPAP document(s) and
distributed to the intended work area. Note: Calibration frequency/interval is subject to change based
upon frequency/type of use.

When gages are to be stored for a period of time, either when initially received or removed from service,
they are to be stored in the Met Lab or CMM Lab to prevent theft, damage, tampering, or use. Gages that
are removed from service are to have the status set to “Calibrate before use” in the Delux Gage software.

Laboratory Calibration Methods and Standards

In-house calibration of standard gages used for production monitoring is performed according to the
procedures listed under Quality-Training Documents and the job classification “Lab Technician” with
master gages that are traceable to N.I.S.T.

Master gages are calibrated by the appropriate outside calibration vendor(s) to maintain traceability to
N.I.S.T. Calibration masters include, but are not limited to, the following:

 Gage blocks

 OD setting disks

 ID setting rings

 Test weights

Outside calibration vendors will either (a) be accredited to ISO/IEC 17025 or (b) have documented
evidence of customer acceptance as set forth in the Quality Policy Manual section 7.1.5.3
 Bliss Manufacturing Company Internal Lab Scope
Revision: 5 Date: 3/24/2020
Prepared by: Charles Flank Approved by: Ray Harkins

Tests or
Specification / Equipment / Measurement Qualified to
Properties
Method Used Range Uncertainty Calibrate
Measured

Caliper, Vernier;
Internal Work Instruction;
Dimensional ±0.1 mm Certified Lab Tech
WI 4.16-850
0 to 600 mm
Internal Work Instruction; Caliper, Digital;
Dimensional ±0.05 mm Certified Lab Tech
WI 4.16-850 0 to 450 mm
Depth Gage,
Internal Work Instruction;
Dimensional Digital; ±0.025 mm Certified Lab Tech
WI 4.16-853
0 to 150 mm
Internal Work Instruction; Dial Gage;
Dimensional ±0.025 mm Certified Lab Tech
WI 4.16-851 0 to 30 mm
Digital Height
Internal Work Instruction;
Dimensional Gage; ±0.051 mm Certified Lab Tech
WI 4.16-855
0 to 480 mm
Internal Work Instruction; Digital Indicator;
Dimensional ±0.041 mm Certified Lab Tech
WI 4.16-851 0 to 50.8 mm
Digital
Internal Work Instruction;
Dimensional Micrometer; ±0.002 mm Certified Lab Tech
WI 4.16-857
0 to 101.6 mm
Electronic ID
Internal Work Instruction;
Dimensional Caliper; ±0.03 mm Certified Lab Tech
WI 4.16-850
0 to 75 mm
ID Point Digital
Internal Work Instruction;
Dimensional Caliper; ±0.058 mm Certified Lab Tech
WI 4.16-850
0 to 150 mm
Maxum
Internal Work Instruction;
Dimensional Indicator; ±0.05 mm Certified Lab Tech
WI 4.16-852
0 to 1 mm

Internal Work Instruction; Radius Gage;

Dimensional ±0.051 mm Certified Lab Tech
WI 4.16-858 0.4 to 6 mm

Surface
Quick Reference Manual Surftest SJ-210 Roughness
Dimensional (2+2L/100) µm Certified Lab Tech
No. 99MBB123A Series No. 178 Tester;
0 to 17.5 mm
Internal Work Instruction; Snap Gage;
Dimensional ±0.003 mm Certified Lab Tech
WI 4.16-854 26 to 97 mm
Vernier Depth
Internal Work Instruction;
Dimensional Gage; ±0.05 mm Certified Lab Tech
WI 4.16-853
0 to 200 mm
Internal Work Instruction; Depth Gage,
Dimensional ±0.0023 mm Certified Lab Tech
WI 4.16-831 Go/NoGo;
Product Master;
Internal Work Instruction;
Dimensional 69.2 to 118.5 ±0.102mm Certified Lab Tech
WI 4.16-825 and WI 4.16-833
mm
Perpendicularity
Internal Work Instructions; and Blowout
Dimensional ±0.1 mm Certified Lab Tech
WI 4.16-831 and WI 4.16-832 Attribute gages;
44.3 to 45.1 mm
