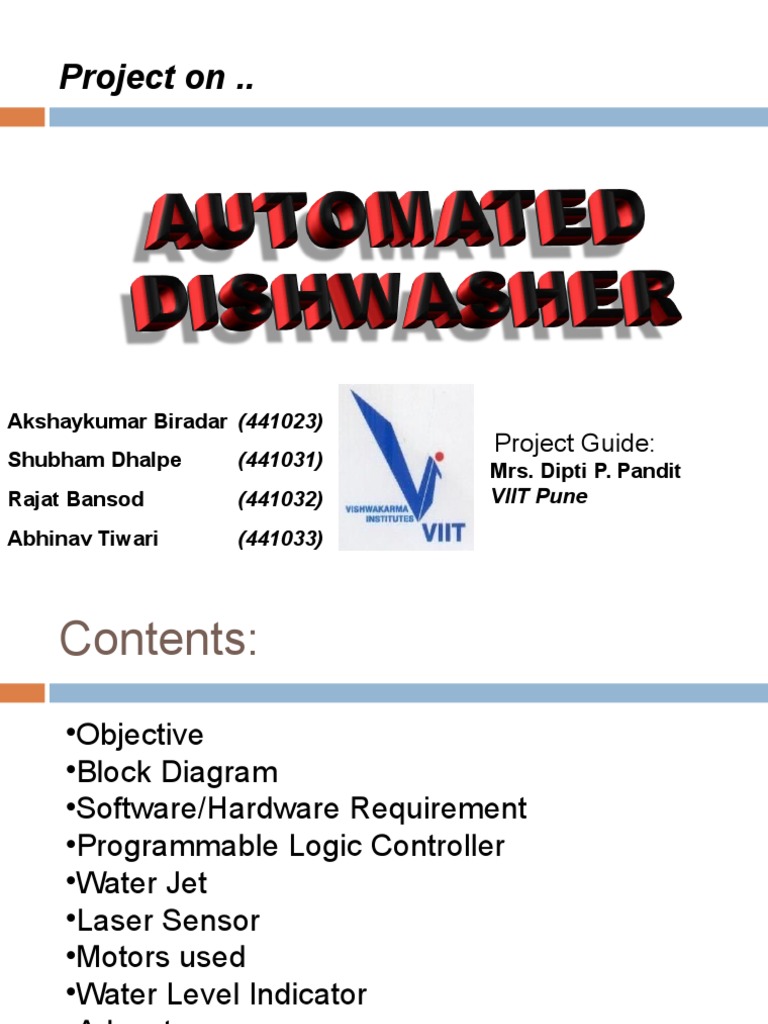

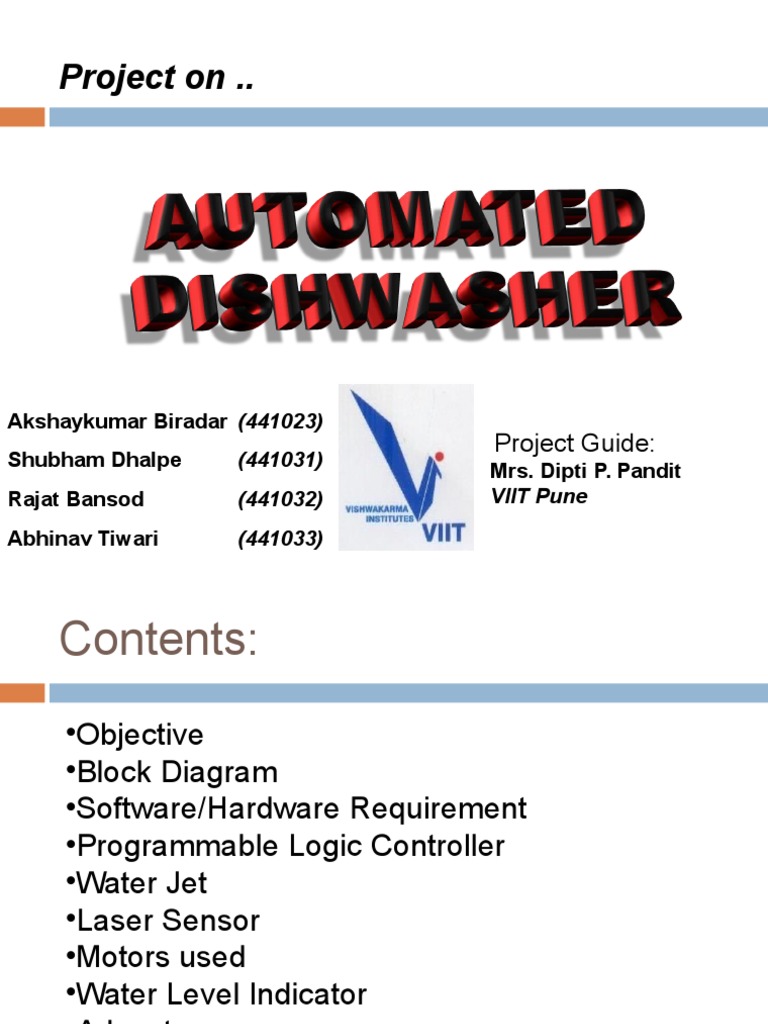

Project on ..

Akshaykumar Biradar (441023)

Project Guide:
Shubham Dhalpe (441031) Mrs. Dipti P. Pandit
Rajat Bansod (441032) VIIT Pune
Abhinav Tiwari (441033)
Contents:
•Objective
•Block Diagram
•Software/Hardware Requirement
•Programmable Logic Controller
•Water Jet
•Laser Sensor
•Motors used
•Water Level Indicator
•Advantages
•Disadvantages
•Application
Objective

“To minimize Human Effort in washing

a dish”
About Dishwasher

A dishwasher is an electrically
operated automated machine used
for washing, rinsing and drying the
dishes.
Block Diagram
Software and Hardware requirement

Hardware:
Programmable Logic Controller(PLC)
Water Jet
Stepper Motor
Laser Sensor
Water Level Indicator

Software:
WPL Software
Proteus
Altium
About PLC

Programmable Logic Controller (PLC) is a

digitally operating electronic apparatus that
uses a programmable memory for internal
storage of instructions for implementing
specific functions.
Advantages of PLC over uC

They are Proven Systems to work in

Industrial environments

Direct Interoperability to other industrial

devices

Very Rigid compared to microcontroller

No Programming background required

PLC used….

Model No- DVP32ES200R

Specifications of Delta DVP-ES2

MPU points: 16 / 20 / 24 / 32 / 40 / 60
Program capacity: 16k steps
Built-in with 3 COM ports:
1 RS-232 port and 2 RS-485 ports
Built in with 12-bit 4 A-D/2 D-A
Handy instructions for frequency inverter
16 Digital Input (24VDC sink/source) / 16
Digital Output
Water Jet
Formation of a High Pressure Water Jet:

A high pressure pump sucks water and

accelerates it strongly.

The accelerated water runs through the

pump system and gets to the high pressure
nozzle.

And then nozzle produces the high pressure

water jet.
Laser Break Beam Sensor
Sensing Distance: Up to 1m

Emitter: 1mW red laser diode

Operating Voltage:
DC 4.5 VDC - 5.5VDC

Operating Current: 25mA

Response Time: 2ms

Motor used for Conveyor Belt
Low-Speed Synchronous AC Motor

Motor rotates with speed proportional with the

frequency.

Fluctuation in load does not affects the rotation.

Can be driven in both the directions.

Long rated life of 10,000 hours.

Water Level Indicator
Water Level Indicator

There is no conductive
path between the
indicating probes and the
common probe so it
remains in cut off region.
Water Level Indicator

There is a conductive path

between the indicating
probes and the common
probe so BJT goes into
active region.
 Stationary Brushes
Utensil

Conveyor Belt

Water Jet
Sprinkler Motor Brushes
Advantages

Automated
Highly Reliable
Portable
Small size
Consumes less water
User friendly
Disadvantages

High cost
Wash-rate is low
Can only wash a specific size ranged utensils
No error detection system installed
Application:

Hotels and Restaurants

Home

Manufacturing industry
Thank You
