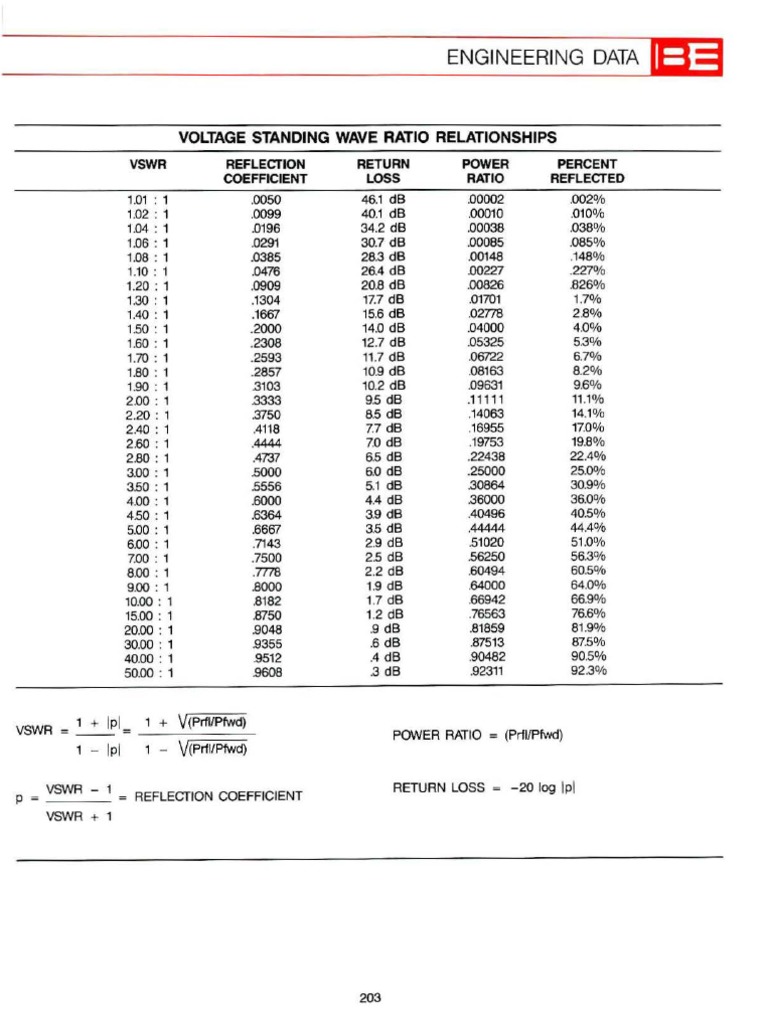

VOLTAGE STANDING WAVE RATIO RELATIONSHIPS

VSWR REFLECTION RETURN POWER PERCENT

COEFFICIENT LOSS RATIO REFLECTED
1.01 : 1 .0050 46.1 dB .00002 .002%
1.02 : 1 .0099 40.1 dB .00010 .010%
1.04 : 1 .0196 34.2 dB .00038 .038%
1.06 : 1 .0291 30.7 dB .00085 .085%
1.08 : 1 .0385 28.3 dB .00148 .148%
1.10 : 1 .0476 26.4 dB .00227 .227%
1.20 : 1 .0909 20.8 dB .00826 .826%
1.30 : 1 .1304 17.7 dB .01701 1.7%
1.40 : 1 .1667 15.6 dB .02ns 2.8%
1.50 : 1 .2000 14.0 dB .04000 4.0%
1.60 : 1 .2308 12.7 dB .05325 5.3%
1.70 : 1 .2593 11.7 dB .06722 6.7%
1.80 : 1 .2857 10.9 dB .08163 8.2%
1.90 : 1 .3103 10.2 dB .09631 9.6%
2.00 : 1 .3333 9.5 dB .11111 11.10/o
2.20 : 1 .3750 8.5 dB .14063 14.1%
2.40 : 1 .4118 7.7 dB .16955 17.0%
2.60 : 1 .4444 7.0 dB .19753 19.8%
2.80: 1 .4737 6.5 dB .22438 22.4%
3.00 : 1 .5000 6.0 dB .25000 25.0%
3.50 : 1 .5556 5.1 dB .30864 30.9%
4.00 : 1 .6000 4.4 dB .36000 36.0%
4.50 : 1 .6364 3.9 dB .40496 40.5%
5.00: 1 .6667 3.5 dB .44444 44.40/o
6.00 : 1 .7143 2.9 dB .51020 51 .00/o
7.00 : 1 .7500 2.5 dB .56250 56.3%
8.00 : 1 .?ns 2.2 dB .60494 60.5%
9.00 : 1 .8000 1.9 dB .64000 64.0%
10.00 : 1 .8182 1.7 dB .66942 66.9%
15.00 : 1 .8750 1.2 dB .76563 76.6%
20.00 : 1 .9048 .9 dB .81859 81 .9%
30.00 : 1 .9355 .6 dB .87513 87.5%
40.00 : 1 .9512 .4 dB .90482 90.5%
50.00 : 1 .9608 .3 dB .92311 92.3%

VSWR =~I= 1 + V(Prfl/Pfwd)

POWER RATIO = (Prfl/Pfwd)
1 - lPI 1 - V<Prfl/Pfwd)

VSWR - 1
= REFLECTION COEFFICIENT
RETURN LOSS = -20 log IPI
p =
VSWR + 1
