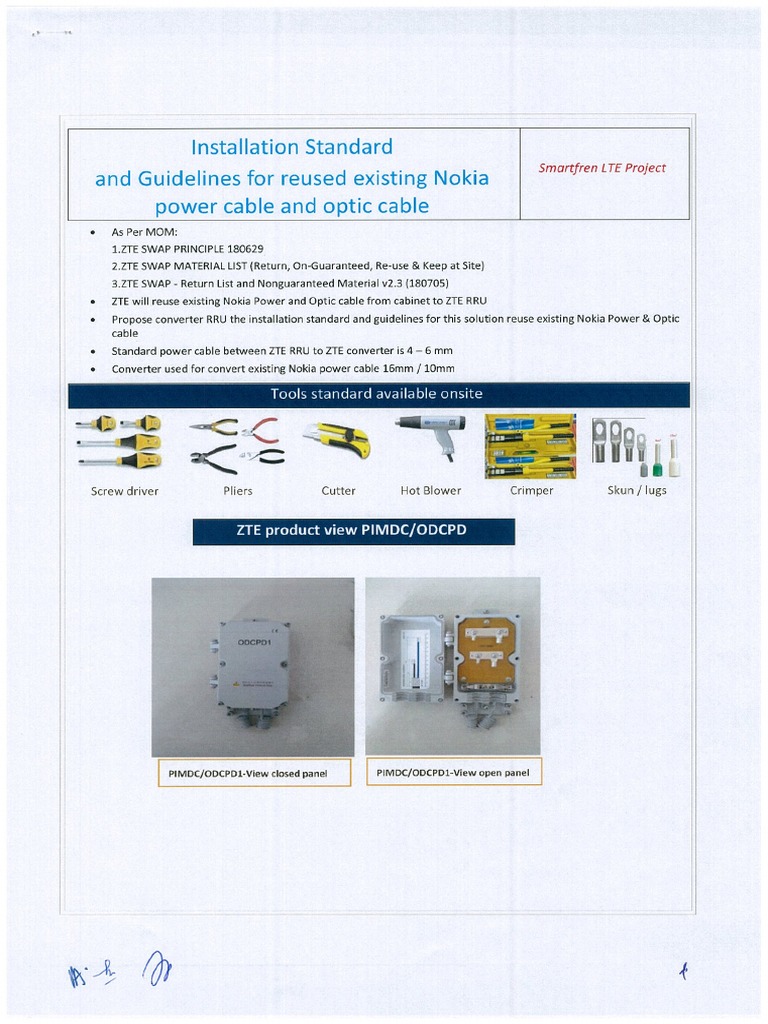

Installation Standard
and Guidelines for reused existing Nokia
power cable and optic cable
Smartfren LTE Project
“3 =<
© AsPer MOM
{ZTE SWAP PRINCIPLE 180628
2.2TE SWAP MATERIAL LIST (Return, On-Guaranteed, Re-use & Keep at Site)
3.27TE SWAP - Return List and Nonguaranteed Material v2.3 (180705)
‘© ZTE will reuse existing Nokia Power and Optic cable from cabinet to ZTE RRU
‘Propose converter RU the installation standard and guidelines for this solution reuse existing Nokia Power & Optic
cable
+ Standard power cable between ZTE RRU to ZTE converter is ~6 mm
‘Converter used for convert existing Nokia power cable 16mm / 10mm
Screw driver Pliers Cutter
== ~~ eo Titi)
Hot Blower Crimper Skun / lugs
ZTE product view PIMDC/ODCPD
PIMDC/ODCPOI-View closed pane!
PIMDC/ODCPDI-View open panel PPler ween Cire eee
Step installation mounting Plate ODCPD
‘Secure PIMDC installation plate to the RRU
using four screws.
* Install Panel PIMDC after secure plate to RRU,
then install two screws up and down
‘Step Installation mounting Plate ODCPD
‘© Secure PIMDC installation to the RRU using
two screws. Cer ane phen are ural)
2c Powar Cable
Inout Syston
sting Nokia
3, Make the cable go through the waterproof sheaths and
secure them the respective terminals.
3.a, Connection cable must be use scun required.
4. Close the cover plate of the PIMDC/ODCP1 Junction box
and evenly tighten the six waterproof screws around
Caution
righten the screws securely to avoid water
penetration Install RRU to ODCPDI and grounding cable from
ODCPD1 to grounding busbar complete with label tag.
From RRU grounding port connected to
PIMDC/ODCPD1 and then from PIMDC/ODCPD1
connected to ground bar + oy
Existing optical cable have cover of optical
connector (can’t open the cover)
Before we connect the Optical cable to Optical
ort of RRU, we need to slide down the cover
until it's enough space if we connect to Optical
ort of ZTE RRU
Make sure the existing optical cable good
condition
Installation optic cable must tighten and put
label
View connection optical existing Nokia to 8BU
View connection optical existing Nokia to RRU Document Name: Proposed ZTE e Node B Reused, Date Released: se...
‘Approved by SF
‘Approved by ZTE
