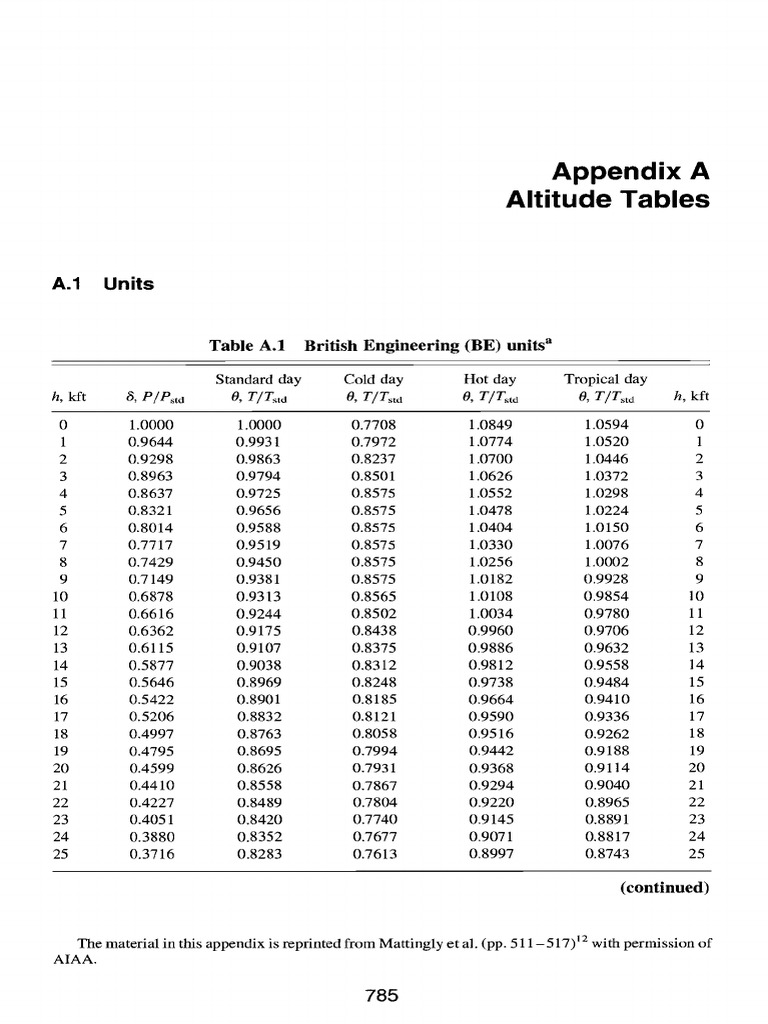

Appendix A

Altitude Tables

A.1 Units

Table A.1 British Engineering (BE) units a

Standard day Cold day Hot day Tropical day


h, kft 6, P/Pstd 0, T/Tstd O, T/Tstd O, T/Tstd O, Z/Tst d h, kft
0 1.0000 1.0000 0.7708 1.0849 1.0594 0
1 0.9644 0.993l 0.7972 1.0774 1.0520 l
2 0.9298 0.9863 0.8237 1.0700 1.0446 2
3 0.8963 0.9794 0.8501 1.0626 1.0372 3
4 0.8637 0.9725 0.8575 1.0552 1.0298 4
5 0.8321 0.9656 0.8575 1.0478 1.0224 5
6 0.8014 0.9588 0.8575 1.0404 1.0150 6
7 0.7717 0.9519 0.8575 1.0330 1.0076 7
8 0.7429 0.9450 0.8575 1.0256 1.0002 8
9 0.7149 0.9381 0.8575 1.0182 0.9928 9
10 0.6878 0.9313 0.8565 1.0108 0.9854 10
11 0.6616 0.9244 0.8502 1.0034 0.9780 11
12 0.6362 0.9175 0.8438 0.9960 0.9706 12
13 0.6115 0.9107 0.8375 0.9886 0.9632 13
14 0.5877 0.9038 0.8312 0.9812 0.9558 14
15 0.5646 0.8969 0.8248 0.9738 0.9484 15
16 0.5422 0.8901 0.8185 0.9664 0.9410 16
17 0.5206 0.8832 0.8121 0.9590 0.9336 17
18 0.4997 0.8763 0.8058 0.9516 0.9262 18
19 0.4795 0.8695 0.7994 0.9442 0.9188 19
20 0.4599 0.8626 0.7931 0.9368 0.9114 20
21 0.4410 0.8558 0.7867 0.9294 0.9040 21
22 0.4227 0.8489 0.7804 0.9220 0.8965 22
23 0.4051 0.8420 0.7740 0.9145 0.8891 23
24 0.3880 0.8352 0.7677 0.9071 0.8817 24
25 0.3716 0.8283 0.7613 0.8997 0.8743 25

(continued)

The material in this appendix is reprinted from Mattingly et al. (pp. 511-517) 12with permission of
AIAA.

785
786 ELEMENTS OF PROPULSION

Table A.1 British Engineering (BE) units a (continued)

Standard day Cold day Hot day Tropical day


h, kft 6, P/Pstd O, T/Tst d O, T/Tst d O, T/Tste, O, T/Tst d h, kft

30 0.2975 0.7940 0.7296 0.8627 0.8373 30


31 0.2843 0.7872 0.7233 0.8553 0.8299 31
32 0.2715 0.7803 0.7222 0.8479 0.8225 32
33 0.2592 0.7735 0.7222 0.8405 0.8151 33
34 0.2474 0.7666 0.7222 0.8331 0.8077 34
35 0.2360 0.7598 0.7222 0.8257 0.8003 35
36 0.2250 0.7529 0.7222 0.8183 0.7929 36
37 0.2145 0.7519 0.7222 0.8109 0.7855 37
38 0.2044 0.7519 0.7222 0.8035 0.7781 38
39 0.1949 0.7519 0.7222 0.7961 0.7707 39
40 0.1858 0.7519 0.7222 0.7939 0.7633 40
42 0.1688 0.7519 0.7222 0.7956 0.7485 42
44 0.1534 0.7519 0.7095 0.7973 0.7337 44
46 0.1394 0.7519 0.6907 0.7989 0.7188 46
48 0.1267 0.7519 0.6719 0.8006 0.7040 48
50 0.1151 0.7519 0.6532 0.8023 0.6892 50
52 0.1046 0.7519 0.6452 0.8040 0.6744 52
54 0.09507 0.7519 0.6452 0.8057 0.6768 54
56 0.08640 0.7519 0.6452 0.8074 0.6849 56
58 0.07852 0.7519 0.6452 0.8091 0.6929 58
60 0.07137 0.7519 0.6452 0.8108 0.7009 60
62 0.06486 0.7519 0.6514 0.8125 0.7090 62
64 0.05895 0.7519 0.6609 0.8142 0.7170 64
66 0.05358 0.7521 0.6704 0.8159 0.7251 66
68 0.04871 0.7542 0.6799 0.8166 0.7331 68
70 0.04429 0.7563 0.6894 0.8196 0.7396 70
72 0.04028 0.7584 0.6990 0.8226 0.7448 72
74 0.03665 0.7605 0.7075 0.8255 0.7501 74
76 0.03336 0.7626 0.7058 0.8285 0.7553 76
78 0.03036 0.7647 0.7042 0.8315 0.7606 78
80 0.02765 0.7668 0.7026 0.8344 0.7658 80
82 0.02518 0.7689 0.7009 0.8374 0.7711 82
84 0.02294 0.7710 0.6993 0.8403 0.7763 84
86 0.02091 0.7731 0.6976 0.8433 0.7816 86
88 0.01906 0.7752 0.6960 0.8463 0.7868 88
90 0.01738 0.7772 0.6944 0.8492 0.7921 90
92 0.01585 0.7793 0.6927 0.8522 0.7973 92
94 0.01446 0.7814 0.6911 0.8552 0.8026 94
96 0.01320 0.7835 0.6894 0.8581 0.8078 96
98 0.01204 0.7856 0.6878 0.8611 0.8130 98
100 0.01100 0.7877 0.6862 0.8640 0.8183 100

aDensity: P = Pstd o" = Pstd(~/O). Speed of sound: a = astd~/O.


Reference values: Pstd = 2116.2 lbf/ft2; T.td = 518.69°R; Pstd = 0.07647 lbm/ft3; a~td = 1116 ft/s.
APPENDIX A: ALTITUDE TABLES 787

Table A.2 Syst~me International (SI) unitsa

Standard day Cold day Hot day Tropical day


h, km 6, P/Pstd O, T/Tstd O, T/Tstd O, T/Tst d O, T/Tst d h, krn
0 1.0000 1.0000 0.7708 1.0849 1.0594 0
0.25 0.9707 0.9944 0.7925 1.0788 1.0534 0.25
0.50 0.9421 0.9887 0.8142 1.0727 1.0473 0.50
0.75 0.9142 0.9831 0.8358 1.0666 1.0412 0.75
1.00 0.8870 0.9774 0.8575 1.0606 1.0352 1.00
1.25 0.8604 0.9718 0.8575 1.0545 1.0291 1.25
1.50 0.8345 0.9662 0.8575 1.0484 1.0230 1.50
1.75 0.8093 0.9605 0.8575 1.0423 1.0169 1.75
2.00 0.7846 0.9549 0.8575 1.0363 1.0109 2.00
2.25 0.7606 0.9493 0.8575 1.0302 1.0048 2.25
2.50 0.7372 0.9436 0.8575 1.0241 0.9987 2.50
2.75 0.7143 0.9380 0.8575 1.0180 0.9926 2.75
3.00 0.6920 0.9324 0.8575 1.0120 0.9866 3.00
3.25 0.6703 0.9267 0.8523 1.0059 0.9805 3.25
3.50 0.6492 0.9211 0.8471 0.9998 0.9744 3.50
3.75 0.6286 0.9155 0.8419 0.9938 0.9683 3.75
4.00 0.6085 0.9098 0.8367 0.9877 0.9623 4.00
4.25 0.5890 0.9042 0.8315 0.9816 0.9562 4.25
4.50 0.5700 0.8986 0.8263 0.9755 0.9501 4.50
4.75 0.5514 0.8929 0.8211 0.9695 0.9441 4.75
5.00 0.5334 0.8873 0.8159 0.9634 0.9380 5.00
5.25 0.5159 0.8817 0.8107 0.9573 0.9319 5.25
5.50 0.4988 0.8760 0.8055 0.9512 0.9258 5.50
5.75 0.4822 0.8704 0.8003 0.9452 0.9198 5.75
6.00 0.4660 0.8648 0.7951 0.9391 0.9137 6.00
6.25 0.4503 0.8592 0.7899 0.9330 0.9076 6.25
6.50 0.4350 0.8535 0.7847 0.9269 0.9015 6.50
6.75 0.4201 0.8479 0.7795 0.9209 0.8955 6.75
7.00 0.4057 0.8423 0.7742 0.9148 0.8894 7.00
7.25 0.3916 0.8366 0.7690 0.9087 0.8833 7.25
7.50 0.3780 0.8310 0.7638 0.9027 0.8773 7.50
7.75 0.3647 0.8254 0.7586 0.8966 0.8712 7.75
8.00 0.3519 0.8198 0.7534 0.8905 0.8651 8.00
8.25 0.3393 0.8141 0.7482 0.8844 0.8590 8.25
8.50 0.3272 0.8085 0.7430 0.8784 0.8530 8.50
8.75 0.3154 0.8029 0.7378 0.8723 0.8469 8.75
9.00 0.3040 0.7973 0.7326 0.8662 0.8408 9.00
9.25 0.2929 0.7916 0.7274 0.8601 0.8347 9.25
9.50 0.2821 0.7860 0.7222 0.8541 0.8287 9.50
9.75 0.2717 0.7804 0.7222 0.8480 0.8226 9.75
10.00 0.2615 0.7748 0.7222 0.8419 0.8165 10.00
10.25 0.2517 0.7692 0.7222 0.8358 0.8104 10.25
10.50 0.2422 0.7635 0.7222 0.8298 0.8044 10.50
10.75 0.2330 0.7579 0.7222 0.8237 0.7983 10.75
11.00 0.2240 0.7523 0.7222 0.8176 0.7922 11.00

(continued)
788 ELEMENTS OF PROPULSION

Table A.2 Syst~me International (SI) units a (continued)

Standard day Cold day Hot day Tropical day


h, km 6, P/Pstd O, T/Tst a O, T/Tstd O, T/Tstd O, T/Tstd h, km

11.25 0.2154 0.7519 0.7222 0.8116 0.7862 11.25


11.50 0.2071 0.7519 0.7222 0.8055 0.7801 11.50
11.75 0.1991 0.7519 0.7222 0.7994 0.7740 11.75
12.00 0.1915 0.7519 0.7222 0.7933 0.7679 12.00
12.25 0.1841 0.7519 0.7222 0.7940 0.7619 12.25
12.50 0.1770 0.7519 0.7222 0.7947 0.7558 12.50
12.75 0.1702 0.7519 0.7222 0.7954 0.7497 12.75
13.00 0.1636 0.7519 0.7222 0.7961 0.7436 13.00
13.25 0.1573 0.7519 0.7145 0.7968 0.7376 13.25
13.50 0.1513 0.7519 0.7068 0.7975 0.7315 13.50
13.75 0.1454 0.7519 0.6991 0.7982 0.7254 13.75
14.00 0.1399 0.7519 0.6914 0.7989 0.7193 14.00
14.25 0.1345 0.7519 0.6837 0.7996 0.7133 14.25
14.50 0.1293 0.7519 0.6760 0.8003 0.7072 14.50
14.75 0.1243 0.7519 0.6683 0.8010 0.7011 14.75
15.00 0.1195 0.7519 0.6606 0.8017 0.6951 15.00
15.25 0.1149 0.7519 0.6529 0.8024 0.6890 15.25
15.50 0.1105 0.7519 0.6452 0.8031 0.6829 15.50
15.75 0.1063 0.7519 0.6452 0.8037 0.6768 15.75
16.0 0.1022 0.7519 0.6452 0.8044 0.6708 16.0
16.5 0.09447 0.7519 0.6452 0.8058 0.6774 16.5
17.0 0.08734 0.7519 0.6452 0.8072 0.6839 17.0
17.5 0.08075 0.7519 0.6452 0.8086 0.6905 17.5
18.0 0.07466 0.7519 0.6452 0.8100 0.6971 18.0
18.5 0.06903 0.7519 0.6452 0.8114 0.7037 18.5
19.0 0.06383 0.7519 0.6531 0.8128 0.7103 19.0
19.5 0.05902 0.7519 0.6611 0.8142 0.7169 19.5
20.0 0.05457 0.7519 0.6691 0.8155 0.7235 20.0
20.5 0.05046 0.7534 0.6771 0.8169 0.7301 20.5
21.0 0.04667 0.7551 0.6851 0.8180 0.7367 21.0
21.5 0.04317 0.7568 0.6930 0.8204 0.7410 21.5
22.0 0.03995 0.7585 0.7010 0.8228 0.7453 22.0
23 0.03422 0.7620 0.7063 0.8277 0.7539 23
24 0.02933 0.7654 0.7036 0.8326 0.7625 24
25 0.02516 0.7689 0.7009 0.8374 0.7711 25
26 0.02160 0.7723 0.6982 0.8423 0.7797 26
27 0.01855 0.7758 0.6955 0.8471 0.7883 27
28 0.01595 0.7792 0.6928 0.8520 0.7969 28
29 0.01372 0.7826 0.6901 0.8568 0.8056 29
30 0.01181 0.7861 0.6874 0.8617 0.8142 30

~Density: p = Pstd o" = Pstd(~/O). Speed of sound: a = astdVf0.


Reference values: Pstd = 101,325 N/m2; T,td = 288.15 K; Pstd = 1.225 kg/m3; astd = 340.3 m/s.
