Process Control

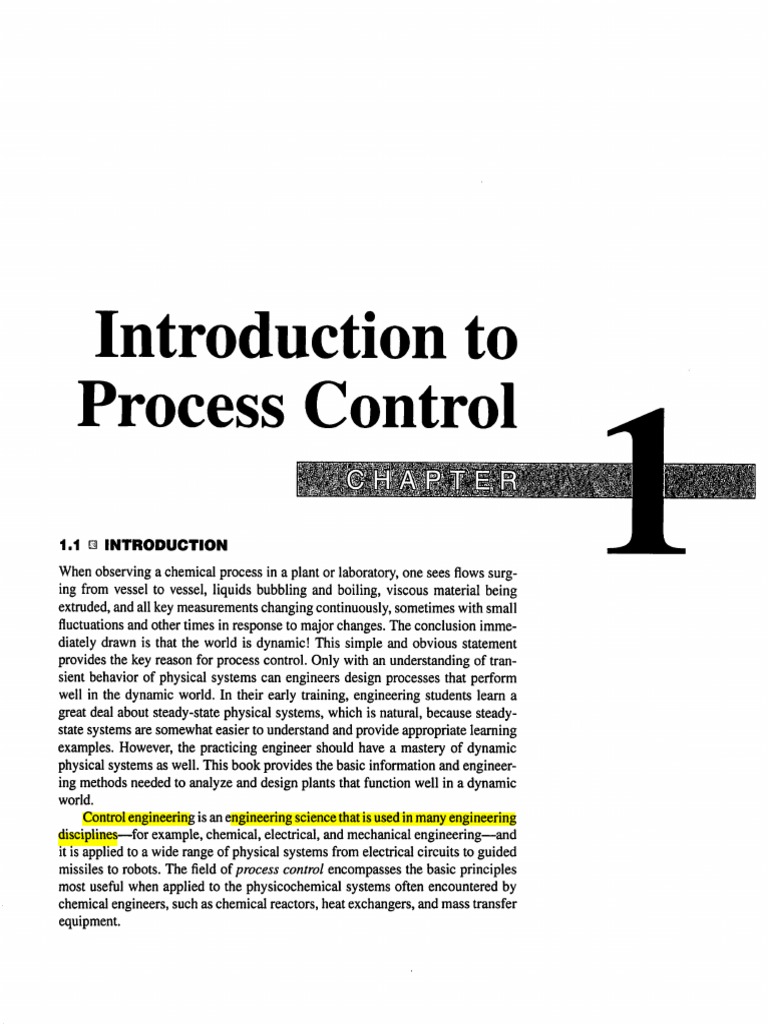

1.1 ® INTRODUCTION
When observing a chemical process in a plant or laboratory, one sees flows surg
ing from vessel to vessel, liquids bubbling and boiling, viscous material being
extruded, and all key measurements changing continuously, sometimes with small
fluctuations and other times in response to major changes. The conclusion imme
diately drawn is that the world is dynamic! This simple and obvious statement
provides the key reason for process control. Only with an understanding of tran
sient behavior of physical systems can engineers design processes that perform
well in the dynamic world. In their early training, engineering students learn a
great deal about steady-state physical systems, which is natural, because steady-
state systems are somewhat easier to understand and provide appropriate learning
examples. However, the practicing engineer should have a mastery of dynamic
physical systems as well. This book provides the basic information and engineer
ing methods needed to analyze and design plants that function well in a dynamic
world.
Control engineering is an engineering science that is used in many engineering
disciplines—for example, chemical, electrical, and mechanical engineering—and
it is applied to a wide range of physical systems from electrical circuits to guided
missiles to robots. The field of process control encompasses the basic principles
most useful when applied to the physicochemical systems often encountered by
chemical engineers, such as chemical reactors, heat exchangers, and mass transfer
equipment.
Since the principles covered in this book are basic to most tasks performed by
chemical engineers, control engineering is not a narrow specialty but an essential
CHAPTER 1 topic for all chemical engineers. For example, plant designers must consider the
Introduction to dynamic operation of all equipment, because the plant will never operate at steady
Process Control state (with time derivatives exactly equal to zero). Engineers charged with oper
ating plants must ensure that the proper response is made to the ever-occurring
disturbances so that operation is safe and profitable. Finally, engineers perform
ing experiments must control their equipment to obtain the conditions prescribed
by their experimental designs. In summary, the task of engineers is to design,
construct, and operate a physical system to behave in a desired manner, and an
essential element of this activity is sustained maintenance of the system at the
desired conditions—which is process control engineering.
As you might expect, process control engineering involves a vast body of ma
terial, including mathematical analysis and engineering practice. However, before
Control we can begin learning the specific principles and calculations, we must understand
calculation the goals of process control and how it complements other aspects of chemi
cal engineering. This chapter introduces these issues by addressing the following
questions:
Sensor
• What does a control system do?
• Why is control necessary?
• Why is control possible?
• How is control done?
• Where is control implemented?
• What does control engineering "engineer"?
• How is process control documented?
• What are some sample control strategies?
Final element
1.2 m WHAT DOES A CONTROL SYSTEM DO?
FIGURE 1.1
Example of feedback control for steering First, we will discuss two examples of control systems encountered in everyday
an automobile. life. Then, we will discuss the features of these systems that are common to most
control systems and are generalized in definitions of the terms control andfeedback
control.
The first example of a control system is a person driving an automobile, as
j (sensor) shown in Figure 1.1. The driver must have a goal or objective; normally, this would
be to stay in a specific lane. First, the driver must determine the location of the
Thermostat Controller
automobile, which she does by using her eyes to see the position of the automobile
on the road. Then, the driver must determine or calculate the change required to
maintain the automobile at its desired position on the road. Finally, the driver must
change the position of the steering wheel by the amount calculated to bring about
the necessary correction. By continuously performing these three functions, the
Furnace Fuel Flow driver can maintain the automobile very close to its desired position as disturbances
like bumps and curves in the road are encountered.
(final element) The second example is the simple heating system shown in Figure 1.2. The
FIGURE 1.2 house, in a cold climate, can be maintained near a desired temperature by circulat
Example of feedback control for ing hot water through a heat exchanger. The temperature in the room is determined
controlling room temperature. by a thermostat, which compares the measured value of the room temperature to
a desired range, say 18 to 22°C. If the temperature is below 18°C, the furnace and
pump are turned on, and if the temperature is above 22°C, the furnace and pump
are turned off. If the temperature is between 18 and 22°C, the furnace and pump What Does a Control
statuses remain unchanged. A typical temperature history in a houseisin given in System Do?
Figure 1.3, which shows how the temperature slowly drifts between the upper and
lower limits. It also exceeds the limits, because the furnace and heat exchanger
Controlled
cannot respond immediately. This approach is termed "on/off" control and can variable:
be used when precise control at the desired value is not required. We will cover Room
better control methods, which can maintain important variables much closer to temperature
their desired values, later in this book. Manipulated
Now that we have briefly analyzed two control systems, we shall identify variable:
Furnace
some common features. The first is that each uses a specific value (or range) as a fuel
desired value for the controlled variable. When we cover control calculations in Time
Part HI, we will use the term set point for the desired value. Second, the conditions FIGURE 1.3
of the system are measured; that is, all control systems use sensors to measure
Typical dynamic response of the room
the physical variables that are to be maintained near their desired values. Third, temperature when controlled by on/off
each system has a control calculation, or algorithm, which uses the measured and feedback control.
the desired values to determine a correction to the process operation. The control
calculation for the room heater is very simple (on/off), whereas the calculation
used by the driver may be very complex. Finally, the results of the calculation
are implemented by adjusting some item of equipment in the system, which is
termed the final control element, such as the steering wheel or the furnace and
pump switches. These key features are shown schematically in Figure 1.4, which
can be used to represent many control systems.
Now that we have discussed some common control systems and identified key
features, we shall define the term control. The dictionary provides the definition
for the verb control as "to exercise directing influence." We will use a similar
Desired
va ue
<
Controller
Sensor
Final
element
Process CIther
Other
inputs on tputs
FIGURE 1.4
For example, the temperature of the room is used, through the thermostat on/off
decision, to influence the hot water flow to the exchanger. When feedback is em
ployed to reduce the magnitude of the difference between the actual and desired
values, it is termed "negative feedback." Unless stated otherwise, we will always
be discussing negative feedback and will not use the modifier negative. In the so
cial sciences and general vernacular, the phrase "negative feedback" indicates an
undesirable change, because most people do not enjoy receiving a signal that tells
them to correct an error. Most people would rather receive "positive feedback,"
a signal telling them to continue a tendency to approach the desired condition.
This difference in terminology is unfortunate; we will use the terminology for
automatic control, with "negative" indicating a change that tends to approach the
desired value, throughout this book without exception.
The importance of feedback in control systems can be seen by considering the
alternative without feedback. For example, an alternative approach for achieving
the desired room temperature would set the hot water flow based on the measured
outside temperature and a model of the heat loss of the house. (This type of predic
tive approach, termedfeedforward, will be encountered later in the book, where its
use in combination with feedback will be explained.) The strategy without feedback
would not maintain the room near the desired value if the model had errors—as
it always would. Some causes of model error might be changes in external wind
velocity and direction or inflows of air through open windows. On the other hand,
feedback control can continually manipulate the final element to achieve the de
sired value. Thus, feedback provides the powerful feature of enabling a control
system to maintain the measured value near its desired value without requiring an
exact plant model.
Before we complete this section, the terms input and output are clarified.
When used in discussing control systems, they do not necessarily refer to material
moving into and out of the system. Here, the term input refers to a variable that
causes an output. In the steering example, the input is the steering wheel position,
and the output is the position of the automobile. In the room heating example, the
input is the fuel to the furnace, and the output is the room temperature. It is essential
to recognize that the input causes the output and that this relationship cannot be
inverted. The causal relationship inherent in the physical process forces us to select
the input as the manipulated variable and the output as the measured variable. Why Is Control
Numerous examples with selections of controlled and manipulated variables are Possible?
presented in subsequent chapters.
Therefore, the answer to the first question about the function of control is, "A
feedback control system maintains specific variables near their desired values by Feed Temperature
applying the four basic features shown in Figure 1.4." Understanding and designing
u
feedback control systems is a major emphasis of this book.
Product
1.3 B WHY IS CONTROL NECESSARY?
A natural second question involves the need for control. There are two major
reasons for control, which are discussed with respect to the simple stirred-tank
heat exchanger shown in Figure 1.5. The process fluid flows into the tank from a
pipe and flows out of the tank by overflow. Thus, the volume of the tank is constant.
The heating fluid flow can be changed by adjusting the opening of the valve in the
heating medium line. The temperature in the tank is to be controlled.
f
Heating medium
The first reason for control is to maintain the temperature at its desired value FIGURE 1.5
when disturbances occur. Some typical disturbances for this process occur in the Schematic drawing of a stirred-tank
following variables: inlet process fluid flow rate and temperature, heating fluid heating process.
temperature, and pressure of the heating fluid upstream of the valve. As an exercise,
you should determine how the valve should be adjusted (opened or closed) in
response to an increase in each of these disturbance variables.
The second reason for control is to respond to changes in the desired value. For
example, if the desired temperature in the stirred-tank heat exchanger is increased,
the heating valve percent opening would be increased. The desired values are
based on a thorough analysis of the plant operation and objectives. This analysis
is discussed in Chapter 2, where the main issues are arranged in seven categories:
1. Safety
2. Environmental protection
3. Equipment protection
4. Smooth plant operation and production rate
5. Product quality
6. Profit optimization
7. Monitoring and diagnosis
Chemical plants are physically large and complex. The people responsible for op
erating the plant on a minute-to-minute basis must have information from much of
the plant available to them at a central location. The most common arrangement of
control equipment to accommodate this need is shown in Figure l .6. Naturally, the
sensors and valves are located in the process. Signals, usually electronic, commu
nicate with the control room, where all information is displayed to the operating
personnel and where control calculations are performed. Distances between the
process and central control room range from a few hundred feet to a mile or more.
Some control is performed many miles from the process; for example, a remote oil
well can have no human present and would rely on remote automation for proper
operation.
In the control room, an individual is responsible for monitoring and operating
a section of a large, complex plant, containing up to 100 controlled variables and
400 other measured variables. Generally, the plant never operates on "automatic
pilot"; a person is always present to perform tasks not automated, to optimize
operations, and to intervene in case an unusual or dangerous situation occurs,
such as an equipment failure. Naturally, other people are present at the process
equipment, usually referred to as "in the field," to monitor the equipment and
to perform functions requiring manual intervention, such as backwashing filters.
Thus, well-automated chemical plants involve considerable interaction between
people and control calculations.
Local
10
CHAPTER 1
Introduction to Central control
manipulation
o Local
display
\~r
Cables potentially
hundreds of meters
long
Calculations
and display
FIGURE 1.6
Schematic representation of a typical control system showing both local
and centralized control equipment.
Other control configurations are possible and are used when appropriate. For
example, small panels with instrumentation can be placed near a critical piece of
process equipment when the operator needs to have access to the control system
while introducing some process adjustments. This arrangement would not prevent
the remainder of the plant from being controlled from a central facility. Also, many
sensors provide a visual display of the measured value, which can be seen by the
local operator, as well as a signal transmitted to the central control room. Thus,
the local operator can determine the operating conditions of a unit, but the indi
vidual local displays are distributed about the plant, not collected in a single place
for the local operator.
The short answer to the location question is
It is worth noting that increased use of digital computing makes the distribution
of the control calculation to the sensor locations practical; however, all controllers
would be connected to a computing network that would function like a single
computer for the purposes of the material in this book.
Measurements
Naturally, a key decision is the selection and location of sensors, because one can
control only what is measured! The engineer should select sensors that measure
important variables rapidly and with sufficient accuracy. In this book, we will
concentrate on the process analysis related to variable selection and to determining
response time and accuracy needs. Details of a few common sensors are also
presented as needed in exercises; a full review of sensor technology and commercial
equipment is available in the references at the end of this chapter.
Final Elements
The engineer must provide handles—manipulated variables that can be adjusted by
the control calculation. For example, if there were no valve on the heating fluid in
Figure 1.5, it would not be possible to control the process fluid outlet temperature.
This book concentrates on the process analysis related to final element location.
We will typically be considering control valves as the final elements, with the
percentage opening of these valves determined by a signal sent to the valve from a
controller. Specific details about the best final element to regulate flow of various
fluids—liquids, steam, slurries, and so forth—are provided by references noted at
the end of this chapter. These references also present other final elements, such as
motor speed, that are used in the process industries.
Control Structure
The engineer must decide some very basic issues in designing a control system. For
example, which valve should be manipulated to control which measurement? As
an everyday example, one could adjust either the hot or cold water valve opening
to control the temperature of water in a shower. These topics are presented in later
chapters, after a sound basis of understanding in dynamics and feedback control
principles has been built.
Control Calculations
After the variables and control structure have been selected, equation(s) are cho
sen that use the measurement and desired values in calculating the manipulated
variable. As we shall learn, only a few equations are sufficient to provide good
12 control for many types of plants. After the control equations' structure is defined,
parameters that appear in the equations are adjusted to achieve the desired control
CHAPTER 1 performance for the particular process.
Introduction to
Process Control
As with all activities in chemical engineering, the results are documented in many
forms. The most common are equipment specifications and sizing, operating man
uals, and technical documentation of plant experiments and control equations. In
addition, control engineering makes extensive use of drawings that concisely and
unequivocally represent many design decisions. These drawings are used for many
purposes, including designing plants, purchasing equipment, and reviewing oper
ations and safety procedures. Therefore, many people use them, and to avoid mis
understandings standard symbols have been developed by the Instrument Society
of America for use throughout the world. We shall adhere to a reduced version of
this excellent standard in this book because of its simplicity and wide application.
Sample drawings are shown in Figure 1.7. All process equipment—piping,
vessels, valves, and so forth—is drawn in solid lines. The symbols for equipment
items such as pumps, tanks, drums, and valves are simple and easily recognized.
Sensors are designated by a circle or "bubble" connected to the point in the process
where they are located. The first letter in the instrumentation symbol indicates the
type of variable measured; for example, "T" corresponds to temperature. Some of
the more common designations are the following:
Note that the symbol does not indicate the physical principle used by the sensor.
Backup tabular documentation is required to determine such details.
The communication to the sensor is shown as a solid line. If the signal is used
only for display to the operator, the second letter in the symbol is "I" for indicator.
Often, the "I" is not used, so that a single letter refers to a measurement used for
monitoring only, not for control.
If the signal is used in a calculation, it is also shown in a circle. The second letter
in the symbol indicates the type of calculation. We consider only two possibilities
in this book: "C" for feedback control and "Y" for any other calculation, such
as addition or square root. The types of control calculations are covered later in
the book. A noncontrol calculation might use the measured flow and temperatures
around a heat exchanger to calculate the duty; that is, Q = pCpF{Tm — Toul). For
controllers, the communication to the final element is shown as a dashed line when
it is electrical, which is the mode communication considered in designs for most
of this book.
The basic symbols with their meanings are documented in Appendix A. This
simplified version of the Instrument Society of America standards is sufficient for
Feed
13
I"®-
■$ $
Heating medium ©
(a) (b)
Feed A FeedB
-t^-
^E3—i—*- Product
/-H&— CD
tJ
(c) id)
FIGURE 1.7
(a) Continuous stirred-tank reactor with composition control, (b) Flow controller.
(c) Tank level with controller, id) Mixing process with composition control.
this textbook and will provide an adequate background for more complex drawings.
While using the standards may seem like additional work in the beginning, it should
be considered a small investment leading to accurate communication, like learning
grammar and vocabulary, used by all chemical engineers.
CHAPTER 1
Introduction to
Process Control
separator, heat exchangers, and associated piping. Note that a control design en
gineer must select from a large number of possible measurements and valves to
determine controller connections from an enormous number of possibilities! In
Chapter 25 you will design a control system for this process that controls the
key variables, such as reactor level and separator temperature, based on specified
control objectives.
1.10 m CONCLUSIONS
The material in this chapter has presented a qualitative introduction to process
control. You have learned the key features of feedback control along with the types
of equipment (instruments and computers) required to apply process control. The
importance of the process design on control was discussed several times in the
chapter.
Based on this introduction, we are prepared to discuss more carefully the
goals of process control in Chapter 2. Understanding the process control goals is
essential to selecting the type of analysis used in control engineering.
REFERENCES
ISA, ISA-S5.3, Graphic Symbols for Distributed Control/Shared Display In
strumentation, Logic and Computer Systems, Instrument Society of Amer
ica, Research Triangle Park, NC, 1983.
ISA, ISA-S5.1, Instrumentation Symbols and Identification, Instrument Soci
ety of America, Research Triangle Park, NC, 1984.
ISA, ISA-S5.5, Graphic Symbols for Process Displays, Instrument Society of 15
America, Research Triangle Park, NC, 1985. \Ms^m§^mmmmmmm
ISA, ISA-S5.4-I989, Instrument Loop Diagrams, Instrument Society of Amer- Additional Resources
ica, Research Triangle Park, NC, July, 1989.
Mayer, Otto, Origins of Feedback Control, MIT Press, 1970.
ADDITIONAL RESOURCES
Process and control engineers need to refer to books for details on process control
equipment. The following references provide an introduction to the resources on
this specialized information.
QUESTIONS
1.1. Describe the four necessary components of a feedback control system.
1.2. Review the equipment sketches in Figure Ql 2a and b and explain whether
each is or is not a level feedback control system. In particular, identify the
four necessary components of feedback control, if they exist.
(a) The flow in is a function of the connecting rod position.
(b) The flow out is a function of the level (pressure at the bottom of the
tank) and the resistance to flow.
Flow out
varies, cannot
be adjusted
1.3. Give some examples of feedback control systems in your everyday life,
government, biology, and management. The control calculations may be
automated or performed by people.
1.4. Discuss the advantages of having a centralized control facility. Can you
think of any disadvantages?
1.5. Review the processes sketched in Figure 1.7a through d in which the con
trolled variable is to be maintained at its desired value.
(a) From your chemical engineering background, suggest the physical
principle used by the sensor.
(b) Explain the causal relationship between the manipulated and controlled 17
variables.
(c) Explain whether the control valve should be opened or closed to in Questions
crease the value of the controlled variable.
(d) Identify possible disturbances that could influence the controlled vari
able. Also, describe how the process equipment would have to be sized
to account for the disturbances.
1.6. The preliminary process designs have been prepared for the systems in
Figure Ql .6. The key variables to be controlled for the systems are (a) flow
rate, temperature, composition, and pressure for the flash system and (b)
composition, temperature, and liquid level for the continuous-flow stirred-
tank chemical reactor. For both processes, disturbances occur in the feed
temperature and composition. Answer the following questions for both
processes.
(a) Determine which sensors and final elements are required so that the
important variables can be controlled. Sketch them on the figure where
they should be located.
(b) Describe how the equipment capacities should be determined.
(c) Select controller pairings; that is, select which measured variable should
be controlled by adjusting which manipulated variable.
(These examples will be reconsidered after quantitative methods have been
introduced.)
Heat exchangers
Vapor
r~\
G O Drum
C?
-»- Liquid
Pump
(a)
Solvent
■€ 7 T
Reactant
do
£F ( T O
& ~
Cooling
(b)
FIGURE Q1.6
18 1.7. Consider any of the control systems shown in Figure 1.7a through d. Sug
gest a feedback control calculation that can be used to determine the proper
CHAPTER 1 value of the manipulated valve position. The only values available for the
Introduction to calculation are the desired value and the measured value of the controlled
Process Control
variable. (Do the best you can at this point. Control algorithms for feedback
control are presented in Part III.)
1.8. Feedback control uses measurement of a system output variable to deter
mine the value of a system input variable. Suggest an alternative control
approach that uses a measured (disturbance) input variable to determine
the value of a different (manipulated) input variable, with the goal of main
taining a system output variable at its desired value. Apply your approach
to one of the systems in Figure 1.7. Can you suggest a name for your
approach?
1.9. Evaluate the potential feedback control designs in Figure Ql .9. Determine
whether each is a feedback control system. Explain why or why not, and
explain whether the control system will function correctly as shown for
disturbances and changes in desired value.
U&
do
-C&r
iron
Cooling
Solvent ^ medium
+
component
oo
-t^T
(c) Composition control without (d) Temperature control
chemical reaction
FIGURE Q1.9
Control
Objectives and
Benefits
2.1 □ INTRODUCTION
The first chapter provided an overview of process control in which the close asso
ciation between process control and plant operation was noted. As a consequence,
control objectives are closely tied to process goals, and control benefits are closely
tied to attaining these goals. In this chapter the control objectives and benefits
are discussed thoroughly, and several process examples are presented. The control
objectives provide the basis for all technology and design methods presented in
subsequent chapters of the book.
While this book emphasizes the contribution made by automatic control, con Safe,
trol is only one of many factors that must be considered in improving process Profitable
Plant
performance. Three of the most important factors are shown in Figure 2.1, which
Operation
indicates that proper equipment design, operating conditions, and process control
should all be achieved simultaneously to attain safe and profitable plant operation.
Clearly, equipment should be designed to provide good dynamic responses in addi
tion to high steady-state profit and efficiency, as covered in process design courses
and books. Also, the plant operating conditions, as well as achieving steady-state
plant objectives, should provide flexibility for dynamic operation. Thus, achiev
ing excellence in plant operation requires consideration of all factors. This book FIGURE 2.1
addresses all three factors; it gives guidance on how to design processes and select Schematic representation of three
operating conditions favoring good dynamic performance, and it presents automa critical elements for achieving excellent
tion methods to adjust the manipulated variables. plant performance.
20 2.2 B CONTROL OBJECTIVES
The seven major categories of control objectives were introduced in Chapter 1.
CHAPTER 2
Control Objectives They are discussed in detail here, with an explanation of how each influences the
and Benefits control design for the example process shown in Figure 2.2. The process separates
two components based on their different vapor pressures. The liquid feed stream,
consisting of components A and B, is heated by two exchangers in series. Then
Control Objectives the stream flows through a valve to a vessel at a lower pressure. As a result of
the higher temperature and lower pressure, the material forms two phases, with
1. Safety most of the A in the vapor and most of the B in the liquid. The exact compositions
2. Environmental Protection can be determined from an equilibrium flash calculation, which simultaneously
3. Equipment Protection
solves the material, energy, and equilibrium expressions. Both streams leave the
4. Smooth Operation
and Production Rate vessel for further processing, the vapor stream through the overhead line and
5. Product Quality the liquid stream out from the bottom of the vessel. Although a simple process,
6. Profit the heat exchanger with flash drum provides examples of all control objectives,
7. Monitoring and Diagnosis and this process is analyzed quantitatively with control in Chapter 24.
A control strategy is also shown in Figure 2.2. Since we have not yet studied
the calculations used by feedback controllers, you should interpret the controller as
a linkage between a measurement and a valve. Thus, you can think of the feedback
pressure control (PC) system as a system that measures the pressure and maintains
the pressure close to its desired value by adjusting the opening of the valve in the
overhead vapor pipe. The type of control calculation, which will be covered in
depth in later chapters, is not critical for the discussions in this chapter.
Safety
The safety of people in the plant and in the surrounding community is of paramount
importance. While no human activity is without risk, the typical goal is that working
at an industrial plant should involve much less risk than any other activity in a
person's life. No compromise with sound equipment and control safety practices
is acceptable.
Plants are designed to operate safely at expected temperatures and pressures;
however, improper operation can lead to equipment failure and release of poten
tially hazardous materials. Therefore, the process control strategies contribute to
the overall plant safety by maintaining key variables near their desired values.
Since these control strategies are important, they are automated to ensure rapid
and complete implementation. In Figure 2.2, the equipment could operate at high
pressures under normal conditions. If the pressure were allowed to increase too
far beyond the normal value, the vessel might burst, resulting in injuries or death.
Therefore, the control strategy includes a controller labelled "PC-1" that controls
the pressure by adjusting the valve position (i.e., percent opening) in the vapor line.
Another consideration in plant safety is the proper response to major incidents,
such as equipment failures and excursions of variables outside of their acceptable
bounds. Feedback strategies cannot guarantee safe operation; a very large distur
bance could lead to an unsafe condition. Therefore, an additional layer of control,
termed an emergency system, is applied to enforce bounds on key variables. Typ
ically, this layer involves either safely diverting the flow of material or shutting
down the process when unacceptable conditions occur. The control strategies are
usually not complicated; for example, an emergency control might stop the feed
to a vessel when the liquid level is nearly overflowing. Proper design of these
Safety
To 21
Valve
Containment
Control Objectives
(pah)—
E-101 E-102
Vapor
* # - +
©--tfv-i
D-105
Feed
Liquid
Process Steam
Fluid
FIGURE 2.2
Flash separation process with control strategy.
Environmental Protection
Protection of the environment is critically important. This objective is mostly a pro
cess design issue; that is, the process must have the capacity to convert potentially
toxic components to benign material. Again, control can contribute to the proper
operation of these units, resulting in consistently low effluent concentrations. In
addition, control systems can divert effluent to containment vessels should any
22 extreme disturbance occur. The stored material could be processed at a later time
when normal operation has been restored.
CHAPTER 2 In Figure 2.2, the environment is protected by containing the material within
Control Objectives the process equipment. Note that the safety release system directs the material for
and Benefits
containment and subsequent "neutralization," which could involve recycling to the
process or combusting to benign compounds. For example, a release system might
divert a gaseous hydrocarbon to a flare for combustion, and it might divert a water-
based stream to a holding pond for subsequent purification through biological
treatment before release to a water system.
Equipment Protection
Much of the equipment in a plant is expensive and difficult to replace without
costly delays. Therefore, operating conditions must be maintained within bounds
to prevent damage. The types of control strategies for equipment protection are
similar to those for personnel protection, that is, controls to maintain conditions
near desired values and emergency controls to stop operation safely when the
process reaches boundary values.
In Figure 2.2, the equipment is protected by maintaining the operating con
ditions within the expected temperatures and pressures. In addition, the pump
could be damaged if no liquid were flowing through it. Therefore, the liquid level
controller, by ensuring a reservoir of liquid in the bottom of the vessel, protects
the pump from damage. Additional equipment protection could be provided by
adding an emergency controller that would shut off the pump motor when the
level decreased below a specified value.
Product Quality
The final products from the plant must meet demanding quality specifications set
by purchasers. The specifications may be expressed as compositions (e.g., percent
of each component), physical properties (e.g., density), performance properties
(e.g., octane number or tensile strength), or a combination of all three. Process
control contributes to good plant operation by maintaining the operating condi
tions required for excellent product quality. Improving product quality control is a
major economic factor in the application of digital computers and advanced control
algorithms for automation in the process industries.
In Figure 2.2, the amount of component A, the material with the higher vapor
pressure, is to be controlled in the liquid stream. Based on our knowledge of
thermodynamics, we know that this value can be controlled by adjusting the flash
temperature or, equivalently, the heat exchanged. Therefore, a control strategy
would be designed to measure the composition in real time and adjust the heating
medium flows that exchange heat with the feed.
Profit
Naturally, the typical goal of the plant is to return a profit. In the case of a utility such
as water purification, in which no income from sales is involved, the equivalent
goal is to provide the product at lowest cost. Before achieving the profit-oriented
goal, selected independent variables are adjusted to satisfy the first five higher-
priority control objectives. Often, some independent operating variables are not
specified after the higher objectives (that is, including product quality but excepting
profit) have been satisfied. When additional variables (degrees of freedom) exist,
the control strategy can increase profit while satisfying all other objectives.
In Figure 2.2 all other control objectives can be satisfied by using exchanger
E-101, exchanger E-102, or a combination of the two, to heat the inlet stream.
Therefore, the control strategy can select the correct exchanger based on the cost
of the two heating fluids. For example, if the process fluid used in E-101 were less
costly, the control strategy would use the process stream for heating preferentially
and use steam only when required for additional heating. How the control strat
egy would implement this policy, based on a selection hierarchy defined by the
engineer, is covered in Chapter 22.
TC-l
Flash
1. Safety
2. Environmental Protection
All seven categories of control objectives must be achieved simultaneously; failure 3. Equipment Protection
to do so leads to unprofitable or, worse, dangerous plant operation. 4. Smooth Operation
and Production Rate
5. Product Quality
In this section, instances of all seven goals were identified in the simple heater 6. Profit
7. Monitoring and Diagnosis
and flash separator. The analysis of more complex process plants in terms of the
goals is a challenging task, enabling engineers to apply all of their chemical engi
neering skills. Often a team of engineers and operators, each with special experi
ences and insights, performs this analysis. Again, we see that control engineering
skills are needed by all chemical engineers in industrial practice.
max
8 \
E \
■><
"
\
8.
CO
<U
\
ft.g
s
Temperature
Fuel
FIGURE 2.5
Example of operating window for fired-heater temperature.
Flue gas Unsafe 27
Determining Plant
Operating Conditions
0 2 4
Excess oxygen (%)
FIGURE 2.6
fer. Therefore, the highest efficiency and most profitable operation are near the
stoichiometric ratio. (Actually, the best value is usually somewhat above the stoi
chiometric ratio because of imperfect mixing, leakage, and complex combustion
chemistry.) The maximum air flow is determined by the air compressor and is
usually not a limitation, but a large excess of air leads to extremely high fuel costs.
Therefore, the best plant operation is at the peak of the efficiency curve. An effec
tive control strategy results in a small variation in the excess oxygen in the flue
gas, allowing operation near the peak.
However, a more important factor is safety, which provides another reason
for controlling the excess air. A deficiency of oxygen could lead to a dangerous
condition because of unreacted fuel in the boiler combustion chamber. Should this
situation occur, the fuel could mix with other air (that leaks into the furnace cham
ber) and explode. Therefore, the air flow should never fall below the stoichiometric
value. Note that the control sketch in Figure 2.6 is much simpler than actual control
designs for combustion systems (for example, API, 1977).
Finally, a third example demonstrates that this analysis can be extended to
more than one dimension. We now consider the chemical reactor in Figure 2.5
with two variables: temperature and product flow. The temperature bounds are the
same, and the product flow has a maximum limitation because of erosion of the
pipe at the exit of the fired heater. The profit function, which would be calculated
based on an analysis of the entire plant, is given as contours in the operating
window in Figure 2.7. In this example, the maximum profit occurs outside the
operating window and therefore cannot be achieved. The best operation inside the
window would be at the maximum temperature and flow, which are found at the
upper right-hand corner of the operating window. As we know, the plant cannot
be operated exactly at this point because of unavoidable disturbances in variables
such as feed pressure and fuel composition (which affects heat of combustion).
However, good control designs can reduce the variation of temperature and flow
so that desired values can be selected that nearly maximize the achievable profit
while not violating the constraints. This situation is shown in Figure 2.7, where
28
CHAPTER 2
Control Objectives
and Benefits
1 r v
i
i '
' Max profit \
i
i
■
• • i
i ' \
i » »
/
/ •• • 3: /
/
o
/
U. / \
Targeted
/ conditions \
/ ^ .-
/ \
Temperature
FIGURE 2.7
a circle defines the variation expected about the desired values (Perkins, 1990;
Narraway and Perkins, 1993). When control provides small variation, that is, a
circle of small radius, the operation can be maintained closer to the best operation.
All of these examples demonstrate that
Process control improves plant performance by reducing the variation of key vari
ables. When the variation has been reduced, the desired value of the controlled
variable can be adjusted to increase profit.
Note that simply reducing the variation does not always improve plant op
eration. The profit contours within the operating window must be analyzed to
determine the best operating conditions that take advantage of the reduced varia
tion. Also, it is important to recognize that the theoretical maximum profit cannot
usually be achieved because of inevitable variation due to disturbances. This situ
ation should be included in the economic analysis of all process designs.
Plot of
data versus
Data time
measurement
vvA
c^ (HZD
* ^ ^ - t ^ 3
-c£}»
J Frequency
distribution
of data
cSd—^
Plant
FIGURE 2.8
Schematic presentation of the method for representing the
variability in plant data.
30 equations:
1 "
Mean = Y = - ^ Yt (2.1)
CHAPTER 2
Control Objectives «=i
and Benefits
Standard deviation = sy =
EIUM-r)2 (2.2)
n - l
where F,- = measured value of variable
sY = variance
n = number of data points
When the experimental distribution can be characterized by the standard nor
mal distribution, the variation about the mean is characterized by the standard
deviation as is shown in Figure 2.9. (Application of the central limit theorem to
data whose underlying distribution is not normal often results in the valid use
of the normal distribution.) When the number of data in the sample are large,
- 2 - 1 0 1 2 3
Deviation from mean the estimated (sample) standard deviation is approximately equal to the popula
(in multiples of the standard deviation) tion standard deviation, and the following relationships are valid for the normally
FIGURE 2.9 distributed variable:
Normal distribution. About 68.2% of the variable values are within ±s of mean.
About 95.4% of the variable values are within ±2s of mean.
About 99.7% of the variable values are within ±3s of mean.
In all control performance and benefits analysis, the mean and standard de
viation can be used in place of the frequency distribution when the distribution is
normal. As is apparent, a narrow distribution is equivalent to a small standard devia
tion. Although the process data can often be characterized by a normal distribution,
the method for calculating benefits does not depend on the normal distribution,
which was introduced here to relate the benefits method to statistical terms often
used to describe the variability of data.
The empirical histogram provides how often—that is, what percentage of the
time—a variable has a certain value, with the value for each histogram entry taken
as the center of the variable interval. The performance of plant operation at each
variable value can be determined from the performance function. Depending on
the plant, the performance function could be reactor conversion, efficiency, pro
duction rate, profit, or other variable that characterizes the quality of operation.
The average performance for a set of representative data (that is, frequency dis
tribution) is calculated by combining the histogram and profit function according
to the following equation (Bozenhardt and Dybeck, 1986; Marlin et al., 1991; and
Stout and Cline, 1976).
M
Pm = J2fjpj <23)
where Pave = average process performance
Fj = fraction of data in interval j = Nj/Nj
Nj = number of data points in interval j
Nt = total number of data points
Pj = performance measured at the midpoint of interval j
M = number of intervals in the frequency distribution
31
Plot of
Data data versus Benefits for Control
measurement time
© Wv^
f*\ (U_D
^ — L - ^
D&K
{&r—
Plant
Process
variable
FIGURE 2.10
Schematic presentation of the method for calculating the
average process performance from plant data.
EXAMPLE 2.1.
This example presents data for a reactor of the type shown in Figure 2.5. The
reaction taking place is the pyrolysis of ethane to a wide range of products, one
of which is the desired product, ethylene. The goal for this example is to maximize
the conversion of feed ethane. This could be achieved by increasing the reactor
temperature, but a hard constraint, the maximum temperature of 864°C, must not
be exceeded, or damage will occur to the furnace. Control performance data is
provided in Table 2.1.
In calculating benefits for control improvement, the calculation is performed
twice. The first calculation uses the base case distribution, which represents the
plant performance with poor control. The base case reactor temperature, shown as
the top graph in Figure 2.11, might result from control via the plant operator occa
sionally adjusting the fuel flow. The second calculation uses the tighter distribution
shown in the middle graph, which results from improved control using methods de-
32 scribed in Parts III and IV. The process performance correlation, which is required
to relate the temperature to conversion, is given in the bottom graph. The data for
CHAPTER 2 the graphs, along with the calculations for the averages, are given in Table 2.1.
Control Objectives The difference between the two average performances, a conversion increase
and Benefits of 4.4 percent, is the benefit for improved control. Note that the benefit is achieved
by reducing the variance and increasing the average temperature. Both are re
quired in this example; simply reducing variance with the same mean would not
be a worthwhile achievement! Naturally, this benefit must be related to dollars
and compared with the costs for equipment and personnel time when deciding
whether this investment is justified. The economic benefit would be calculated as
follows:
EXAMPLE 2.2.
A second example is given for the boiler excess oxygen shown in Figure 2.6. The
discussion in the previous section demonstrated that the profit is maximized when
the excess oxygen is maintained slightly above the stoichiometric ratio, where
the efficiency is at its maximum. Again, the process performance function, here
efficiency, is used to evaluate each operating value, and frequency distributions
are used to characterize the variation in performance.
The performance is calculated for the base case and an improved control
case, and the benefit is calculated as shown in Figure 2.12 for an example with
TABLE 2.1
Frequency data for Example 2.1
Data with
Initial data improved control
Temperature midpoint Conversion P.-
(°C) (%) *7 Pj*Fj Fj P,*F,
842 50 0 0 0 0
844 51 0.0666 3.4 0 0
846 52 0.111 5.778 0 0
848 53 0.111 5.889 0 0
850 54 0.156 8.4 0 0
852 55 0.244 13.44 0 0
854 56 0.133 7.467 0 0
856 57 0.111 6.333 0 0
858 58 0.044 2.578 0.25 14.5
860 59 0.022 1.311 0.50 29.5
862 60 0 0 0.25 15
Average conversion (%) = ■ E P j *Fj = 54.6 59
0.25 0.25
33
0.20
Benefits for Control
.2 0.15
e 0.10
fc 0.05
0.00 0.00
842 846 850 854 858 862 0.25 1.25 2.25 3.25 4.25 5.25
Temperature Oxygen (mol %)
0, 0.50
Hm
co
0.
0,
0.45
0.40 1I
i1i1
•ao 0, 0.35
=
i
>
a
cu
0.
0,
0.30
0.25 1i
i11 1
0. 0.20
3
£
0.
0.
0.15
0.10 1
i §1
0. 0.05
0. 0.00 M i l l in i i i i
842 846 850 854 858 862 0.25 1.25 2.25 3.25 4.25 5.25
Temperature Oxygen (mol %)
0.60
o
o
•s
842 846 850 854 858 862 0.25 1.25 2.25 3.25 4.25 5.25
Temperature Oxygen (mol %)
FIGURE 2.11 FIGURE 2.12
Data for Example 2.1 in which the Data for Example 2.2 in which the
benefits of reduced variation and closer benefits of reducing the variation of
approach to the maximum temperature excess oxygen in boiler flue gas are
limit in a chemical reactor are calculated. calculated.
realistic data. The data for the graphs, along with the calculations for the averages,
are given in Table 2.2. The average efficiency increased by almost 1 percent with
better control and would be related to profit as follows:
Aprofit = (A efficiency/100) (steam flow) (A#vap) ($/energy) (2.5)
This improvement would result in fuel savings worth tens of thousands of dollars
per year in a typical industrial boiler. In this case, the average of the process
variable (excess oxygen) is the same for the initial and improved operations, be
cause the improvement is due entirely to the reduction in the variance of the excess
34 oxygen. The difference between the chemical reactor and the boiler results from
the different process performance curves. Note that the improved control case has
CHAPTER 2 its desired value at an excess oxygen value slightly greater than where the maxi
Control Objectives mum profit occurs, so that the chance of a dangerous condition is negligibly small.
and Benefits
TABLE 2.2
The analysis method presented in this section demonstrates that information on the
variability of key variables is required for evaluating the performance of a process-
average values of process variables are not adequate.
Control Is Possible
The plant must be designed with control strategies in mind so that the appropriate
measurements and manipulated variables exist. Control of the composition of the
liquid product from the flash drum in Figure 2.2 requires the flexibility to adjust
the valves in the heating streams. Even if the valve can be adjusted, the total heat
exchanger areas and utility flows must be large enough to satisfy the demands of
the flash process. Thus, the chemical engineer is responsible for ensuring that the
process equipment and control equipment provide sufficient flexibility.
Equipment for process control involves considerable cost and must be selected
carefully to avoid wasteful excess equipment. Information on equipment cost can
be obtained from the references in Chapter 1.
EXAMPLE 2.3.
Control performance depends on process and control equipment design. The
plant section in Figure 2.13a and b includes different designs for a packed-bed
chemical reactor and two distillation towers. The feed to the plant section experi
ences composition variation, which results in variation in the product composition,
which should be maintained as constant as possible.
The lower-cost plant design in Figure 2.13a has no extra tankage and a low-
cost analyzer that must be placed after the distillation towers. The more costly
design has a feed tank, to reduce the effects of the feed compositions through
mixing, and a more expensive analyzer located at the outlet of the reactor for faster
sensing. Thus, the design in Figure 2.13b has smaller disturbances to the reactor
and faster control. The dynamic responses show that the control performance of
the more costly plant is much better. Whether the investment is justified requires an
economic analysis of the entire plant. As this example demonstrates, good control
engineering involves proper equipment design as well as control calculations.
EXAMPLE 2.4.
Control contributes to safety by maintaining process variables near their desired
values. The chemical reactor with highly exothermic reaction in Figure 2.14 demon
strates two examples of safety through control. Many input variables, such as feed
composition, feed temperature, and cooling temperature, can vary, which could
lead to dangerous overflow of the liquid and large temperature excursions (run
away). The control design shown in Figure 2.14 maintains the level near its desired
value by adjusting the outlet flow rate, and it maintains the temperature near its
desired value by adjusting the coolant flow rate. If required, these controls could
be supplemented with emergency control systems.
EXAMPLE 2.5.
The type of control calculation can affect the dynamic performance of the process.
Consider the system in Figure 2.15a through c, which has three different control
designs, each giving a different control performance. The process involves mixing
two streams to achieve a desired concentration in the exit stream by adjusting one
of the inlet streams. The first design, in Figure 2.15a, gives the result of a very sim
ple feedback control calculation, which keeps the controlled variable from varying
too far from but does not return the controlled variable to the desired value; this
deviation is termed offset and is generally undesirable. The second design, in
Figure 2.156, uses a more complex feedback control calculation, which provides*'
37
f t *
■A—
3_
V / / / / / Maximum
Al
(a)
Time
Feed
compostition
f t *
A—
a. f t *
1
^ ^ ^^ / </| Maximum
Al
(6)
Time
FIGURE 2.13
response to disturbances that returns the controlled variable to its desired value.
Since the second design relies on feedback principles, the controlled variable ex
periences a rather large initial deviation, which cannot be reduced by improved
(rc)-
feedback calculations. The third design combines feedback with a predicted cor OD
rection based on a measurement of the disturbance, which is called feedforward. C&1—-
The third design provides even better performance by reducing the magnitude
of the initial response along with a return to the desired value. The calculations
used for these designs, along with criteria for selecting among possible designs,
are covered in later chapters. This example simply demonstrates that the type of
calculation can substantially affect the dynamic response of a control system.
4 FIGURE 2.14
Control for stirred-tank reactor.
Feed compostition Feed composition
38
AC-1 AC-1
CHAPTER 2
Control Objectives
and Benefits nu Offset
Time
nu Time
\Ua
li-U u
f°~- £-D-i
(«) (6)
Feed composition
AC-1
u Time
U
^ D * . k
HgH
Predictive + + Feedback
(c)
FIGURE 2.15
2.6 m CONCLUSIONS
Good control design addresses a hierarchy of control objectives, ranging from
safety to product quality and profit, which depend on the operating objectives for
the plant. The objectives are determined by both steady-state and dynamic analysis
of the plant performance. The steady-state feasible operating region is defined by
the operating window; plant operation should remain within the window, because
constraint violations involve severe penalties. Within the operating window, the
condition that results in the highest profit is theoretically the best operation. How
ever, because the plant cannot be maintained at an exact value of each variable due
to disturbances, variation must be considered in selecting an operating point that
does not result in (unacceptably frequent) constraint violations yet still achieves a
high profit. Process control reduces the variation and results in consistently high
product quality and close approach to the theoretical maximum profit. Methods
for quantitatively analyzing these factors are presented in this chapter.
As we have learned, good performance provides "tight" control of key vari
ables; that is, the variables vary only slightly from their desired values. Clearly,
understanding the dynamic behavior of processes is essential in designing control
strategies. Therefore, the next part of the book addresses process dynamics and
modelling. Only with a thorough knowledge of the process dynamics can we design
control calculations that meet demanding objectives and yield large benefits.
REFERENCES 39
API, American Petroleum Institute Recommended Practice 550 (2nd ed.),
Manual on Installation of Refining Instruments and Control Systems: Additional Resources
Fired Heaters and Inert Gas Generators, API, Washington, DC, 1977.
Bethea, R., and R. Rhinehart, Applied Engineering Statistics, Marcel Dekker,
New York, 1991.
Battelle Laboratory, Guidelines for Hazard Evaluation Procedures, American
Institute for Chemical Engineering (AIChE), New York, 1985.
Bozenhardt, H., and M. Dybeck, "Estimating Savings from Upgrading Process
Control," Chem. Engr., 99-102 (Feb. 3, 1986).
Gorzinski, E., "Development of Alkylation Process Model," European Confi
on Chem. Eng„ 1983, pp. 1.89-1.96.
Marlin, T., J. Perkins, G. Barton, and M. Brisk, "Process Control Benefits,
A Report on a Joint Industry-University Study," Process Control, I, pp.
68-83(1991).
Narraway, L., and J. Perkins, "Selection of Process Control Structure Based
on Linear Dynamic Economics," IEC Res., 32, pp. 2681-2692 (1993).
Perkins, J., "Interactions between Process Design and Process Control," in
J. Rijnsdorp et al. (ed.), DYCORD+ 1990, International Federation of
Automatic Control, Pergamon Press, Maastricht, Netherlands, pp. 195-
203 (1989).
Snedecor, G., and W. Cochran, Statistical Methods, Iowa State University
Press, Ames, IA, 1980.
Stout, T., and R. Cline, "Control System Justification," Instrument. Tech., Sept.
1976,51-58.
Warren Centre, Major Industrial Hazards, Technical Papers, University of
Sydney, Australia, 1986.
ADDITIONAL RESOURCES
The following references provide guidance on performing benefits studies in in
dustrial plants, and Marlin et al. (1987) gives details on studies in seven industrial
plants.
For further examples of operating windows and how they are used in setting process
operating policies, see
QUESTIONS
2.1. For each of the following processes, identify at least one control objective in
each of the seven categories introduced in Section 2.2. Describe a feedback
approach appropriate for achieving each objective.
(a) The reactor-separator system in Figure 1.8
(b) The boiler in Figure 14.17
(c) The distillation column in Figure 15.18
(d) The fired heater in Figure 17.17
2.2. The best distribution of variable values depends strongly on the perfor
mance function of the process. Three different performance functions are
given in Figure Q2.2. In each case, the average value of the variable (xave)
must remain at the specified value, although the distribution around the av
erage is not specified. The performance function, P, can be assumed to be
A
T
Average
Process variable
Average
Process variable
Average
Process variable
FIGURE Q2.2
a quadratic function of the variable, x, in every segment of the distribution.
For each of the cases in Figure Q2.2, discuss the relationship between the
distribution and the average profit, and determine the distribution that will
maximize the average performance function. Provide quantitative justifi
cation for your result.
2.3. The fired heater example in Figure 2.11 had a hard constraint.
(a) Sketch the performance function for this situation, including the per
formance when violations occur, on the figure.
(b) Assume that the distribution of the temperature would have 0.005 frac
tion of its operation exceeding the limit of 864°C and that each time
the limit is exceeded, the plant incurs a cost of $1,000 to restart the
equipment. Can you calculate the total cost per year for exceeding the
limit?
(c) Make any additional assumptions and complete the calculation.
2.4. Sometimes there is no active hard constraint. Assume that the fired heater
in Figure 2.11 has no hard constraint, but that a side reaction forming
undesired products begins to occur significantly at 850°C. This side reaction
has an activation energy with larger magnitude than the product reaction.
Sketch the shape of the performance function for this situation. How would
you determine the best desired (average) value of the temperature and the
best temperature distribution?
2.5. Sometimes engineers use a shortcut method for determining the average
process performance. In this shortcut, the average variable value is used,
rather than the full distribution, in calculating the performance. Discuss the
assumptions implicit in this shortcut and when it is and is not appropriate.
2.6. A chemical plant produces vinyl chloride monomer for subsequent produc
tion of polyvinyl chloride. This plant can sell all monomer it can produce
within quality specifications. Analysis indicates that the plant can produce
175 tons/day of monomer with perfect operation. A two-month production
record is given in Figure Q2.6. Calculate the profit lost by not operating
at the highest value possible. Discuss why the plant production might not
always be at the highest possible value.
2.7. A blending process, shown in Figure Q2.7, mixes component A into a
stream. The objective is to maximize the amount of A in the stream without
exceeding the upper limit of the concentration of A, which is 2.2 mole/m3.
The current operation is "open-loop," with the operator occasionally look
ing at the analyzer value and changing the flow of A. The flow during the
period that the data was collected was essentially constant at 1053 m3/h.
How much more A could have been blended into the stream with perfect
control, that is, if the concentration of A had been maintained exactly at its
maximum? What would be the improvement if the new distribution were
normal with a standard deviation of 0.075 mole/m3?
42
CHAPTER 2
Control Objectives
and Benefits
167.00
166.00
Time (months)
FIGURE Q2.6
Pure A
Solvent Blended
"stream
,—Limiting
Historical data 1' value
0.3
/
0.25 /
fr 0.2 ■.~
il i f
1 IV
§ 0.15 ■i f
£I i'-*\ /
o.i
,"T1 1yt ^1 '■' ••:|t f
0.05 ?
i:-"''\i ij'.'H '■"<
;I -,=•:■'',
0 i 1 1 f-"'' :' 1 1 1
1.5 1.6 1.7 1.8 1.9 2.0 2.1
Concentration of A in blend, moles/m3
FIGURE Q2.7
2.8. The performance function for a distillation tower is given in Figure Q2.8
in terms of lost profit from the best operation as a function of the bottoms
impurity, *B (Stout and Cline, 1978). Calculate the average performance
for the four distributions (A through D) given in Table Q2.8 along with
the average and standard deviation of the concentration, x&. Discuss the
relationship between the distributions and the average performance.
0.00 TABLE Q2.8 43
XB A B C D
0.25 0 0 0 0
0.5 0.25 0.05 0 0
0.75 0.50 0.05 0 0
1.0 0.25 0.10 0 0
°" -60.00 -
1.5 0 0.20 0 0.333
-70.00 2.0 0 0.30 0 0.333
2.00 3.00 4.00 6.00 3.0 0 0.20 0.25 0.333
Bottoms impurity, xB 4.0 0 0.10 0.50 0
5.0 0 0 0.25 0
FIGURE Q2.8
6.0 0 0 0 0
(Reprinted by permission. Copyright ©1976, Instrument maammmmmm^mmmmmummmmummmmam
Society of America. From Stout, T., and R. Cline,
"Control Systems Justification." Instr. Techn.,
September 1976, pp. 51-58.)
2.9. Profit contours similar to those in Figure Q2.9 have been reported by
Profit as %
Gorzinski (1983) for a distillation tower separating normal butane and
of maximum
isobutane in an alkylation process for a petroleum refinery. Based on the
shape of the profit contours, discuss the selection of desired values for the
distillate and bottoms impurity variables to be used in an automation strat
egy. (Recall that some variation about the desired values is inevitable.) If
only one product purity can be controlled tightly to its desired value, which
would be the one you would select to control tightly?
P5
I 3
1 2 3
Light key in bottoms (mole %)
FIGURE Q2.9
Surname, Given Name Middle Initial: Cabarloc, Anjela Waine C.
Submission Button: Day 1 Assignment about Introduction to Process Control and Control Objectives and Benefits
Pledge of Honor
“I affirm that I shall not give or receive any unauthorized help on this assignment and that this work is my own.”
Table 1. Terminologies
No. Term Definition
1 Control engineering It is an engineering science that's applied in a wide range of engineering
disciplines.
2 Control To maintain desired conditions in a physical system by adjusting selected
variables in the system.
3 Control Calculation It uses the measured and the desired values to determine a correction to the
process operation.
4 Feedback control It is to make use of an output of a system to influence an input to the same
system.
5 Input It refers to a variable that causes an output.
6 Hard Constraints Violation of critical bounds.
7 Soft Constraints Violation of some of the limits.
8 Operating Window The region that satisfies all bounds is termed the feasible operating region.
9 Negative Feedback It is the term used when the feedback is employed to reduce the magnitude
of the difference between the actual and desired values.
10 Positive Feedback A signal telling them to continue a tendency to approach the desired
condition.
11 Feedforward An alternative approach for achieving the desired room temperature would be
to set the hot water flow based on the measured outside temperature and a
model of the heat loss of the house.
12 Feedback Feedback provides the powerful feature of enabling a control system to
maintain the measured value near its desired value without requiring an
exact plant model.
13 Disturbances The interruption of a settled and peaceful condition
14 Desired Value The value of the controlled condition which the operator desires to obtain.
15 Set Point The target value of the process that is desired
16 Algorithm A controlled calculation which uses the desired values to determine a
correction to the process operation.
17 Final Control Element Results of the calculation are implemented by adjusting some item of
equipment in the system.
18 Output Effect of Input
19 Control Room Where all information is displayed to the operating personnel and where
control calculations are performed.
20 Sensor In a control and automation system is to detect and measure some physical
effect, providing this information to the control system
21 In the field Term used to define people that are present in the process equipment
22 Responsive Means that the controlled variable responds quickly to adjustments in the
manipulated variable.
23 Handles Manipulated variables that can be adjusted by the control calculation.
24 Process Design A key factor wherein a good process design will help controlling the process
well
25 PC-1 that controls the pressure by adjusting the valve position (i.e., percent
opening) in the vapor line.
26 PC it maintains the pressure at or near its desired value
27 Process Control Is the ability to monitor and adjust a process to give a desired output.
28 Plant Operation Is the managing and controlling the equipment, facilities, systems, or plants
in industrial and manufacturing processes to produce desired products that
ensures the effective implementation and efficient, safety, and reliable
process operation.
29 Control Objectives Provide the basis for all technology and design methods
30 Emergency System It is an additional layer of control to shut down the process or divert the flow
of material when something inappropriate circumstance occur.
31 Environmental Protection It is a protection for the environment that contains material within the process
equipment.
32 Equipment Protection It is a protection for the equipment by maintaining the operating conditions
within the expected pressure and temperature.
33 Smooth Operation and a process that is desirable in a chemical plant that includes a complete
Production Rate network of interacting processes because of its result in few disturbances to
all integrated units.
34 Control Variables it experiences a rather large initial deviation, which cannot be reduced by
improved feedback calculations.
35 Manipulated Variables are variables that are smoothly adjusted by automation methods for desired
value.
36 E-102 another unit in the plant must respond by generating more steam.
37 Product Quality It is the product specifications, the product should be in an excellent
condition.
38 Composition the arrangement, type, and ratio of atoms in molecules of chemical
substances
39 Physical Properties is a characteristic of matter that is not associated with a change in its
chemical composition.
40 Performance Properties a description of some common mechanical and physical properties will
provide information that product designers could consider in selecting
materials for a given application.
41 Profit It is the revenue from sales
42 Control Strategy It can be designed to measure the composition in real time and adjust the
heating medium flows that exchange heat with the feed.
43 Transmitter It is a device that converts the signal produced by a sensor into a standard
instrumentation signal representing a process variable being measured and
controlled.
44 Transducer It is a device which provides a usable output in response to the
corresponding input.
45 Automatic Pilot It is a system that controls the plant without someone directly operating the
controls
Table 2. Enumerated Data
No. Enumerated Term Enumerated Data
1 Values of Variables 1. Temperature
2. Pressures
3. Flows
2 Control objectives 1. Safety
2. Environmental Protection
3. Equipment Protection
4. Smooth Operation and Production rate
5. Product Quality
6. Profit
7. Monitoring and Diagnosis
3 Engineering decisions 1. Process Design
2. Measurements
3. Final Elements
4. Control Structure
5. Control Calculations
4 Major reasons for control 1. To maintain the temperature at its desired value when disturbances
occur.
2. To respond to changes in the desired value.
5 Important Factors in Plant 1. Control
Design 2. Dynamic
6 Basic Process Variables 1. Flow
2. Temperature
3. Pressure
4. Level
7 Physical Properties 1. Density
2. Viscosity
3. Heat of Combustion
8 Quality Specification Set 1. Composition
2. Physical Properties
3. Performance Properties
9 Factors that limit the possible 1. Physical Properties
operation 2. Safety, environmental, and equipment protection
3. Equipment Capacity
4. Product Quality
10 Safe, Profitable Plant 1. Equipment Design
Operation 2. Operating Conditions
3. Process Control
Table 3. Formulas
No. Name of the Formula Enumerated Data
1 Mean 1
𝑛
𝑌= 𝑁
∑ 𝑌𝑖
𝑖=1
where:
𝑌𝑖 = 𝑚𝑒𝑎𝑠𝑢𝑟𝑒𝑑 𝑣𝑎𝑙𝑢𝑒 𝑜𝑓 𝑣𝑎𝑟𝑖𝑎𝑏𝑙𝑒
𝑛 = 𝑛𝑢𝑚𝑏𝑒𝑟 𝑜𝑓 𝑑𝑎𝑡𝑎 𝑝𝑜𝑖𝑛𝑡𝑠
𝑌=
2 Standard Deviation ⅀
𝑛
(𝑌𝑖 −𝑌)
2
S= ץ 𝑖=1
𝑛−1
where:
𝑌𝑖 = 𝑚𝑒𝑎𝑠𝑢𝑟𝑒𝑑 𝑣𝑎𝑙𝑢𝑒 𝑜𝑓 𝑣𝑎𝑟𝑖𝑎𝑏𝑙𝑒
2
𝑆𝑌 = 𝑣𝑎𝑟𝑖𝑎𝑛𝑐𝑒
𝑛 = 𝑛𝑢𝑚𝑏𝑒𝑟 𝑜𝑓 𝑑𝑎𝑡𝑎 𝑝𝑜𝑖𝑛𝑡𝑠
"I affirm that I shall not give or receive any unauthorized help on this exam and that all my work
shall be my own”
1
Laboratory Exercise No. 1
Standard Instrumentation Symbols and Identification in a Simplified Control Design Drawings
1. Objective:
The activity aims to understand the basic concepts of drawings in process control.
2. Intended Learning Outcomes (ILOs):
The students shall be able to:
2.1 Draw simple visual representation of process designs and automation approaches.
2.2 Enumerate several typical levels of drawings in process control.
2.3 To use abbreviation of a few letters to identify the type of measurement and calculations performed
using measured values
2.4 To sketch the process in simple manner
2.5 Understand the process drawing with instrumentation
2.6 Identify and graphically depict measurement and control equipment and systems.
2.7 Use graphic symbols to construct instrumentation schematic diagrams of the instruments, devices,
and functions required for monitoring and control loops.
3. Discussion:
The design of control systems is a specific example of engineering design. The goal of control
engineering design is to obtain the configuration, specifications, and identification of the key parameters of a
proposed system to meet an actual need.
Modern control design aims not only to stabilize processes in normal operating conditions, but also to
control them successfully in abnormal situations.
A control drawing is a type of technical drawing used to fully and clearly define requirements for
engineered items that details the allowed interconnections between the intrinsically safe and associated
apparatus provided by the manufacturer. The Control Drawing presents the functions and performance
requirements for the acquisition of commercial items and vendor-developed items from specialized segments
of industry without disclosing details of designs.
ANSI standard establishes a uniform means of depicting and identifying instruments or devices and
their inherent functions, instrumentation systems and functions, and application software functions used for
measurement, monitoring, and control, by presenting a designation system that includes identification
schemes and graphic symbols.
4. Resources:
American National Standards Instrumentation Symbols and Identification
Control System Identification: Applying Symbols and Identification
5. Procedure:
1. Define the different terminologies in Process Control. Use Table 1 for the different terms.
2. Abbreviations of a few letters are used to identify the measurement types and calculations performed
using measured values. Each abbreviation is located in a circle or "bubble," which indicates the
location of the sensor in the process. The abbreviations usually consist of two to three letters, with
the first letter indicating the variable type and the subsequent letter(s) giving some information about
the function performed. Complete the table of some common abbreviations. Use Table 2.
2
3. The values of measurements or results of calculations must be transmitted between elements in a
control system and ultimately to the final control element to influence the process. Many types of
signals are used in a plant, and the two most common are shown in Table 3. Complete Table 3.
4. The predominant final element in the process industries is the diaphragm-actuated control valve.
Three failure positions are fail open, closed, and locked (unchanged). These positions are selected
for safety. The typical control valve has a relatively large unrecoverable pressure drop; thus, a
butterfly valve or damper is sometimes used for control. Complete Table 4 for final control element
symbols.
5. Control design drawings also include a simplified sketch of the process, which is included to clarify
the control strategy but not to provide sufficient detail to build the process equipment. Complete
Table 5 for process schematic symbols.
6. An example of process drawing with instrumentation is shown below:
Enumerate all the symbols and identify each of them. Create a table (Table 6) for your answers.
3
Course: CHE417 Laboratory Exercise No.: 1
Group No.: 2 Section: CHE41S1
Group Members: Date Performed: October 15, 2021
1. CABALLERO, JERALD Date Submitted: October 17, 2021
2. CABARLOC, ANJELA WAINE Instructor: Engr. Crispulo G. Maranan
3. CAPELLAN, SETH CHRISTIAN
4. CAPUYAN, MICHAELLA REIN
5. CASTRO, PATRICIA IVONNE
6. Data and Results:
1.
4
Process Variable It is a process parameter that is measured by a
sensor or instrument in the field. It is an input to
the controller.
Sensor It is a device to detect and measure some
physical effect, providing this information to the
control system
Setpoint It is used for the desired value.
Transducer It is a device which provides a usable output in
response to the corresponding input.
Transmitter It is a device that converts the signal produced
by a sensor into a standard instrumentation
signal representing a process variable being
measured and controlled.
2.
Table 2. Identification letters
Letter First letter Succeeding letter
A Analyzer Alarm
F Flow Ratio (fraction)
H Hand (manual operation) High
L Level Low
P Pressure
S Speed Switch
T Temperature Transmitter
FC Flow control calculation
PIC Pressure measurement indicated (displayed) for the operating
personnel and used in control calculation
LAH Level measurement used for signalling an alarm to operating
personnel when the level exceeds a high limit
TS Temperature measurement used to open/close a switch that
could shut down plant operation on a dangerous condition
AC Analyzer control calculation; the specific analysis is usually
indicated just outside the bubble (e.g., ρ for density)
3.
Table 3. Line symbols: instrument-to-instrument connections
Line Symbol Signal Type
Pneumatic
Electric
4.
Table 4. Final control element symbols
FCE symbol Description
Fail to open position
5
Fail to closed position
Butterfly Valve
Angle Valve
5.
Table 5. Process Schematic Symbols
Symbol Description
Shell (A) and tube (B) heat exchanger
Centrifugal pump
Horizontal drum
Vapor-liquid separator
Packed bed
6
Turbine or expander
Compressor or fan
6.
Symbol Description
Flow
Control valve
7
Horizontal drum
Level
Control valve
Temperature
Analyzer
Temperature
Shell-and-tube heat
exchanger
Flow
Temperature
Packed bed
Analyzer control
calculation
7. Conclusion:
In this laboratory exercise, we were able to fully understand, enumerate and draw several basic concepts of
process designs and automation approaches. We are also able to learn how to utilize graphic symbols in
constructing instrumentation schematic diagrams of the instruments, devices, and functions required for
monitoring and control loops.
8
8. Further Readings:
Seborg Dale E., Edgar, Thomas F., and Mellichamp Duncan A. (2004). Process Dynamics and
Control. Singapore: Wiley.
Wiley.
Knopf, F. C. (2012). Modeling, analysis and optimization of process and energy systems.Hoboken,
New Jersey: John Wiley and Sons.
Velten, K. (2009). Mathematical modeling and simulation: introduction for scientists and engineers.
Singapore: Wiley-VCH.
9
9. Assessment (Rubric for Laboratory Performance):
TECHNOLOGICAL INSTITUTE OF THE PHILIPPINES
RUBRIC FOR MODERN TOOL USAGE
(Engineering Programs)
Student Outcome (e): Use the techniques, skills, and modern engineering tools necessary for engineering
practice in complex engineering activities.
Program: Chemical Engineering Course: CHE417 Section: CHE41S1 1st Sem SY 2021-2022
Performance Unsatisfactory Developing Satisfactory Very Satisfactory Score
Indicators 1 2 3 4
1. Apply Fails to identify Identifies Identifies modern Recognizes the
appropriate any modern modern techniques and is benefits and
techniques, techniques to techniques able to apply constraints of
skills, and perform but fails to these in modern
modern tools discipline- apply these performing engineering tools
to perform a specific in performing discipline-specific and shows
discipline- engineering discipline- engineering task. intention to apply
specific task. specific them for
engineering engineering engineering
task. task. practice.
2. Demonstrate Fails to apply Attempts to Shows ability to Shows ability to
skills in any modern apply apply fundamental apply the most
applying tools to solve modern tools procedures in appropriate and
different engineering but has using modern effective modern
techniques problems. difficulties to tools when solving tools to solve
and modern solve engineering engineering
tools to solve engineering problems. problems.
engineering problems.
problems.
3. Recognize Does not Recognizes Recognizes the Recognizes the
the benefits recognize the some benefits and need for benefits
and benefits and benefits and constraints of and constraints of
constraints of constraints of constraints modern modern
modern modern of modern engineering tools engineering tools
engineering engineering engineering and shows and makes good
tools. tools. tools. intention to apply use of them for
them for engineering
engineering practice.
practice.
Total Score
Mean Score = (Total Score / 3)
Percentage Rating = (Total Score / 12) x 100%
Evaluated by: Engr. Crispulo G. Maranan October 17, 2021
Printed Name and Signature of Faculty Member Date
10
Mathematical
Modelling
Principles
3.1 El INTRODUCTION
The models addressed in this chapter are based on fundamental theories or laws,
such as the conservations of mass, energy, and momentum. Of many approaches to
understanding physical systems, engineers tend to favor fundamental models for
several reasons. One reason is the amazingly small number of principles that can
be used to explain a wide range of physical systems; thus, fundamental principles
simplify our view of nature. A second reason is the broad range of applicability
of fundamental models, which allow extrapolation (with caution) beyond regions
of immediate empirical experience; this enables engineers to evaluate potential
changes in operating conditions and equipment and to design new plants. Perhaps
the most important reason for using fundamental models in process control is the
analytical expressions they provide relating key features of the physical system
(flows, volumes, temperatures, and so forth) to its dynamic behavior. Since chemi
cal engineers design the process, these relationships can be used to design processes
that are as easy to control as possible, so that a problem created through poor pro
cess design need not be partially solved through sophisticated control calculations.
The presentation in this chapter assumes that the reader has previously studied
the principles of modelling material and energy balances, with emphasis on steady-
state systems. Those unsure of the principles should refer to one of the many
introductory textbooks in the area (e.g., Felder and Rousseau, 1986; Himmelblau,
1982). In this chapter, a step-by-step procedure for developing fundamental models
is presented that emphasizes dynamic models used to analyze the transient behavior
50 of processes and control systems. The procedure begins with a definition of the
goals and proceeds through formulation, solution, results analysis, and validation.
CHAPTER 3 Analytical solutions will be restricted to the simple integrating factor for this
Mathematical chapter and will be extended to Laplace transforms in the next chapter.
Modelling Principles
Experience has shown that the beginning engineer is advised to follow this
procedure closely, because it provides a road map for the sequence of steps and a
checklist of issues to be addressed at each step. Based on this strong recommen
dation, the engineer who closely follows the procedure might expect a guarantee
of reaching a satisfactory result. Unfortunately, no such guarantee can be given,
because a good model depends on the insight of the engineer as well as the pro
cedure followed. In particular, several types of models of the same process might
be used for different purposes; thus, the model formulation and solution should
be matched with the problem goals. In this chapter, the modelling procedure is
applied to several process examples, with each example having a goal that would
be important in its own right and leads to insights for the later discussions of
control engineering. This approach will enable us to complete the modelling pro
cedure, including the important step of results analysis, and learn a great deal of
useful information about the relationships between design, operating conditions,
and dynamic behavior.
TABLE 3.1
Outline of fundamental modelling procedure
1. Define goals 5. Analyze results
a. Specific design decisions a. Check results for correctness
b. Numerical values 1. Limiting and approximate answers
c. Functional relationships 2. Accuracy of numerical method
d. Required accuracy b. Interpret results
2. Prepare information 1. Plot solution
a. Sketch process and identify system 2. Characteristic behavior like
b. Identify variables of interest oscillations or extrema
c. State assumptions and data 3. Relate results to data and assumptions
3. Formulate model 4. Evaluate sensitivity
a. Conservation balances 5. Answer "what if" questions
b. Constitutive equations 6. Validate model
c. Rationalize (combine equations a. Select key values for validation
and collect terms) b. Compare with experimental results
d. Check degrees of freedom c. Compare with results from more complex
e. Dimensionless form model
4. Determine solution
a. Analytical
b. Numerical
particular problems. It is worth noting that the steps could be divided into two 51
categories: steps 1 to 3 (model development) and steps 4 to 6 (model solution
or simulation), because several solution methods could be applied to a particular A Modelling
model. All steps are grouped together here as an integrated modelling procedure, Procedure
because this represents the vernacular use of the term modelling and stresses the
need for the model and solution technique to be selected in conjunction to satisfy
the stated goal successfully. Also, while the procedure is presented in a linear
manner from step 1 to step 6, the reality is that the engineer often has to iterate to
solve the problem at hand. Only experience can teach us how to "look ahead" so that
decisions at earlier steps are made in a manner that facilitate the execution of later
steps. Each step in the procedure is discussed in this section and is demonstrated
for a simple stirred-tank mixing process.
Define Goals
Perhaps the most demanding aspect of modelling is judging the type of model
needed to solve the engineering problem at hand. This judgment, summarized in
the goal statement, is a critical element of the modelling task. The goals should
be specific concerning the type of information needed. A specific numerical value
may be needed; for example, "At what time will the liquid in the tank overflow?"
In addition to specific numerical values, the engineer would like to determine
semi-quantitative information about the characteristics of the system's behavior;
for example, "Will the level increase monotonically or will it oscillate?" Finally,
the engineer would like to have further insight requiring functional relationships;
for example, "How would the flow rate and tank volume influence the time that
the overflow will occur?"
Another important factor in setting modelling goals is the accuracy of a model
and the effects of estimated inaccuracy on the results. This factor is perhaps not
emphasized sufficiently in engineering education—a situation that may lead to
the false impression that all models have great accuracy over large ranges. The
modelling and analysis methods in this book consider accuracy by recognizing
likely errors in assumptions and data at the outset and tracing their effects through
the modelling and later analysis steps. It is only through this careful analysis that
we can be assured that designs will function properly in realistic situations.
EXAMPLE 3.1.
Goal. The dynamic response of the mixing tank in Figure 3.1 to a step change
in the inlet concentration is to be determined, along with the way the speed and
shape of response depend on the volume and flow rate. In this example, the outlet
stream cannot be used for further production until 90% of the change in outlet con
'AO
centration has occurred; therefore, a specific goal of the example is to determine
how long after the step change the outlet stream reaches this composition.
-W
Prepare Information
do
The first step is to identify the system. This is usually facilitated by sketching the
FIGURE 3.1
process, identifying the key variables, and defining the boundaries of the system
for which the balances will be formulated. Continuous-flow stirred tank.
52
The system, or control volume, must be a volume within which the important prop
CHAPTER 3 erties do not vary with position.
Mathematical
Modelling Principles
Note that the inlet concentration, CAo. remains constant after the step change has
been introduced to this two-component system.
Formulate the Model 53
First, the important variables, whose behavior is to be predicted, are selected. Then A Modelling
the equations are derived based on fundamental principles, which usually can Procedure
be divided into two categories: conservation and constitutive. The conservation
balances are relationships that are obeyed by all physical systems under common
assumptions valid for chemical processes. The conservation equations most often W
used in process control are the conservations of material (overall and component), /
energy, and momentum.
These conservation balances are often written in the following general form H
>
for a system shown in Figure 3.2:
Accumulation = in — out + generation (3.1)
-HX do
For a well-mixed system, this balance will result in an ordinary differential equation
when the accumulation term is nonzero and in an algebraic equation when the
accumulation term is zero. General statements of this balance for the conservation
\
of material and energy follow.
FIGURE 3.2
OVERALL MATERIAL BALANCE. General lumped-parameter system.
ENERGY BALANCE.
Naturally, the model may be developed to predict the behavior of several dependent
variables; thus, models involving several balances are common.
In fact, the engineer should seek to predict the behavior of all important de
pendent variables using only fundamental balances. However, we often find that
an insufficient number of balances exist to determine all variables. When this is the
case, additional constitutive equations are included to provide sufficient equations
for a completely specified model. Some examples of constitutive equations follow:
The constitutive equations provide relationships that are not universally applicable
but are selected to be sufficiently accurate for the specific system being studied.
The applicability of a constitutive equation is problem-specific and is the topic of
a major segment of the chemical engineering curriculum.
An important issue in deriving the defining model equations is "How many
equations are appropriate?" By that we mean the proper number of equations to
predict the dependent variables. The proper number of equations can be determined
from the recognition that the model is correctly formulated when the system's
behavior can be predicted from the model; thus, a well-posed problem should
have no degrees of freedom. The number of degrees of freedom for a system is
defined as
DOF = NV - NE (3.6)
with DOF equal to the number of degrees of freedom, NV equal to the number of
dependent variables, and NE equal to the number of independent equations. Not
every symbol appearing in the equations represents a dependent variable; some
are parameters that have known constant values. Other symbols represent external
variables (also called exogenous variables); these are variables whose values are
not dependent on the behavior of the system being studied. External variables may
be constant or vary with time in response to conditions external to the system,
such as a valve that is opened according to a specified function (e.g., a step). The
value of each external variable must be known. NV in equation (3.6) represents
the number of variables that depend on the behavior of the system and are to be
evaluated through the model equations.
It is important to recognize that the equations used to evaluate NE must be 55
independent; additional dependent equations, although valid in that they also de- i;;v;^h;^^a^^^^^,'<^^;,:'..i
scribe the system, are not to be considered in the degrees-of-freedom analysis, A Modelling
because they are redundant and provide no independent information. This point is Procedure
reinforced in several examples throughout the book. The three possible results in
the degrees-of-freedom analysis are summarized in Table 3.2.
After the initial, valid model has been derived, a rationalization should be
considered. First, equations can sometimes be combined to simplify the overall
model. Also, some terms can be combined to form more meaningful groupings
in the resulting equations. Combining terms can establish the key parameters that
affect the behavior of the system; for example, control engineering often uses
parameters like the time constant of a process, which can be affected by flows,
volumes, temperatures, and compositions in a process. By grouping terms, many
physical systems can be shown to have one of a small number of mathematical
model structures, enabling engineers to understand the key aspects of these physical
systems quickly. This is an important step in modelling and will be demonstrated
through many examples.
A potential final modification in this step would be to transform the equation
into dimensionless form. A dimensionless formulation has the advantages of (1)
developing a general solution in the dimensionless variables, (2) providing a ratio
nale for identifying terms that might be negligible, and (3) simplifying the repeated
solution of problems of the same form. A potential disadvantage is some decrease
in the ease of understanding. Most of the modelling in this book retains problem
symbols and dimensions for ease of interpretation; however, a few general results
are developed in dimensionless form.
EXAMPLE 3.1.
Formulation. Since this problem involves concentrations, overall and compo
nent material balances will be prepared. The overall material balance for a time
TABLE 3.2
Summary of degrees-of-freedom analysis
DOF = NV-NE
DOF = 0 The system is exactly specified, and the solution of the model can proceed.
DOF < 0 The system is overspecified, and in general, no solution to the model exists
(unless all external variables and parameters take values that fortuitously satisfy
the model equations). This is a symptom of an error in the formulation. The likely
cause is either (1) improperly designating a variable(s) as a parameter or
external variable or (2) including an extra, dependent equation(s) in the model.
The model must be corrected to achieve zero degrees of freedom.
DOF > 0 The system is underspecified, and an infinite number of solutions to the model
exists. The likely cause is either (1) improperly designating a parameter or external
variable as a variable or (2) not including in the model all equations that determine
the system's behavior. The model must be corrected to achieve zero degrees
of freedom.
56 increment At is
{Accumulation of mass} = {mass in} - {mass out} (3.7)
CHAPTER 3 (3.8)
Mathematical (pV)0+At) - (pV)w = FopAt - FxPAt
Modelling Principles with p = density. Dividing by At and taking the limit as At -*■ 0 gives
d{pV) dp dV
(3.9)
dt
The flow in, F0, is an external variable, because it does not depend on the
behavior of the system. Because there is one equation and two variables (V and
F\) at this point, a constitutive expression is required for the flow out. Since the
liquid exits by overflow, the flow out is related to the liquid level according to a weir
equation, an example of which is given below (Foust et al., 1980).
Fj = kFy/L - Lw for L > Lw (3.10)
with kF - constant, L - V/A, and Lw = level of the overflow weir. In this problem,
the level is never below the overflow, and the height above the overflow, L- Lw,
is very small compared with the height of liquid in the tank, L. Therefore, we will
assume that the liquid level in the tank is approximately constant, and the flows in
and out are equal, F0 = Fx = F
This result, stated as an assumption hereafter, will be used for all tanks with
overflow, as shown in Figure 3.1.
The next step is to formulate a material balance on component A. Since the
tank is well-mixed, the tank and outlet concentrations are the same:
componentof
(Accumulation
ofU,
l 1Aj _ jJI component
A A Ao u
out
t ]}If +generation
( Ai nin J1J [ (component [ lo of
f A J1 ,„{6Ad)
^ 0>.
(MWaVCa),+a, - (MWaVCa), = (MWaFCao -MWAFCA)Af (3.13)
with CA being moles/volume of component A and MWA being its molecular weight,
and the generation term being zero, because there is no chemical reaction. Divid
ing by At and taking the limit as At -> 0 gives
,dCA = MWaF(CAo-Ca)
MWaV- (3.14)
dt
One might initially believe that another balance on the only other component,
solvent S, could be included in the model:
Variables: CA and Fi
External variables: Fo and CAo DOF = NV-NE = 2-2 = 0
Equations: (3.11) and (3.14)
Note that the variable / representing time must be specified to use the model
for predicting the concentration at a particular time.
The model is formulated assuming that parameters do not change with time,
which is not exactly correct but can be essentially true when the parameters change
slowly and with small magnitude during the time considered in the dynamic mod
elling problem. What constitutes a "small" change depends on the problem, and
a brief sensitivity analysis is included in the results analysis of this example to
determine how changes in the volume and flow would affect the answer to this
example.
Mathematical Solution
dCA
—- + -Ca1 = 1-Cao. . withV — 2=. 1: m= 3 24.7„ „ min„ = .r = time constant
dt t x F 0.085 m3/min
(3.16)
The parameter r is termed the time constant of the system and will appear in many
models. The equation can be converted into separable form by multiplying both
sides by the integrating factor, and the resulting equation can be solved directly:
58 Integrating factor = IF = exp ( / -dt J = e,/x
CHAPTER 3
Mathematical f r ( d C * ± l r \ - J b d C * 4 . r d e ' / T - d ^ I X C t ^ = = ^£A^O/ *e , / z (317)
Modelling Principles \dT + TA)-e ~oT + Ca dt - dt
jd(CAe,r)=jc^:dt=c^jet/T
- l / X
CA = Cao + le
Note that the integration was simplified by the fact that CAo is constant after the
step change (i.e., for t > 0). The initial condition is CA(0 = CAi„it at f = 0, which
can be used to evaluate the constant of integration, /.This formulation implies that
the time t is measured from the introduction of the step change.
I = CAinit 'AO .'. CA = CA0 + (CAinit - Cad)*-"* (3.18)
)
(CA - CAinit) = [Cao - (Cao)ui](1 - e~t/xx)
The final equation has used the extra relationship that (CAo)inh = Caml- Sub
stituting the numerical values gives
CA - 0.925 = (CAo - 0.925)(1 - e"'/24J)
Two important aspects of the dynamic behavior can be determined from equa
tion (3.18). The first is the "speed" of the dynamic response, which is characterized
by the time constant, t. The second is the steady-state gain, which is defined as
A output _ ACa
Steady-state gain — Kp — A input = 1.0
ACao
Note that in this example the time constant depends on the equipment (V)
and operation of the process (F), and the steady-state gain is independent of
these design and operating variables. These values are not generally applicable
to other processes.
Results Analysis
The first phase of the results analysis is to evaluate whether the solution is correct,
at least to the extent that it satisfies the formulation. This can be partially verified by
ensuring that the solution obeys some limiting criteria that are more easily derived
than the solution itself. For example, the result
Next, the engineer should "interrogate" the mathematical solution to elicit the
information needed to achieve the original modelling goals. Determining specific
numerical values is a major part of the results analysis, because engineers need
to make quantitative decisions on equipment size, operating conditions, and so
forth. However, results analysis should involve more extensive interpretation of 59
the solution. When meaningful, results should be plotted, so that key features like
oscillations or extrema (maximum or minimum) will become apparent. Important A Modelling
features should be related to specific parameters or groups of parameters to assist Procedure
in understanding the behavior. Also, the sensitivity of the result to changes in
assumptions or data should be evaluated. Sometimes this is referred to as what-if
analysis, where the engineer determines what happens if a parameter changes by a
specified amount. A thorough results analysis enables the engineer to understand
the result of the formulation and solution steps.
EXAMPLE 3.1.
The specific quantitative question posed in the goal statement involves deter
mining the time until 90 percent of the change in outlet concentration has occurred.
This time can be calculated by setting CA = CAimt + 0.9(CAo - CAmit) in equation
(3.18), which on rearrangement gives
= _r ln /0.1[(CA)init-CAo]\ = — (24.7)(-2.30) = 56.8 min
\ (CaW
(CaW — Cao Cao /
Note that this is time from the introduction of the step change, which, since the step
is introduced at t = 10, becomes 66.8 in Figure 3.3. One should ask how important
the specification is; if it is critical, a sensitivity analysis should be performed. For
example, if the volume and flow are not known exactly but can change within
± 5 percent of their base values, the time calculated above is not exact. The range
for this time can be estimated from the bounds on the parameters that influence
the time constant:
(2.1)0.05)
Maximum t — — (-2.30) = 62.8 min
(0.085) (0.95)
(2.1)(0.95)
Minimum t — — (-2.30) = 51.4 min
(0.085)(1.05)
Given the estimated inaccuracy in the data, one should wait at least 62.8 (not 56.8)
60
CHAPTER 3
Mathematical § 1.5 -
Modelling Principles
60
Time (min)
FIGURE 3.3
minutes after the step to be sure that 90 percent of the concentration change has
occurred.
Validation. The mixing tank was built, the experiment was performed, and sam
ples of the outlet material were analyzed. The data points are plotted in Figure 3.4
along with the model prediction. By visual evaluation and considering the accuracy
of each data point, one would accept the model as "valid" (or, more accurately,
not invalid) for most engineering applications.
^^-"""5^
0.8
c
.2 0.7
§
§
u 0.6
co
2 0.5
.rt
"w
:so.4
E
.*-o>
o 0.3 /
OO
cfl
£0.2
0.1
' i i
n i i i i i
10 20 30 40 50 60 70 80
Time from input step (min)
FIGURE 3.4
Comparison of empirical data (squares) and model (line) for
Example 3.1.
62 rigorous model or more accurate data. Thus, the procedure contains the essential
opportunity for evaluation and improvement.
CHAPTER 3
Mathematical
Modelling Principles 3.3 □ MODELLING EXAMPLES
Most people learn modelling by doing modelling, not observing results of others!
The problems at the end of the chapter, along with many solved and unsolved
problems in the references and resources, provide the reader with ample opportu
nity to develop modelling skills. To assist the reader in applying the procedure to
a variety of problems, this section includes a few more solved example problems
with solutions. In all examples, steps 1 to 5 are performed, but validation is not.
EXAMPLE 3.2. Isothermal CSTR
The dynamic response of a continuous-flow, stirred-tank chemical reactor (CSTR)
will be determined in this example and compared with the stirred-tank mixer in
'AO
Example 3.1.
U Goal. Determine the dynamic response of a CSTR to a step in the inlet concen
tration. Also, the reactant concentration should never go above 0.85 mole/m3. If
an alarm sounds when the concentration reaches 0.83 mole/m3, would a person
do have enough time to respond? What would a correct response be?
Information. The process is the same as shown in Figure 3.1, and therefore, the
system is the liquid in the tank. The important variable is the reactant concentration
in the reactor.
Formulation. Based on the model of the stirred-tank mixer, the overall material
balance again yields F0 = Fi = F. To determine the concentration of reactant, a
component material balance is required, which is different from that of the mixing
tank because there is a (negative) generation of component A as a result of the
chemical reaction.
(Accumulation
component Aof i-i component
A in
component 1 f generation 1
A out } + l of A J (3.19)
d(CAe«*) F t/r
dt = vCMe
CA = ^CA0 + /^/r
The data give the initial condition of the inlet concentration of 0.925 mole/m3
at the time of the step, t = 0. The initial steady-state reactor concentration can be
determined from the data and equation (3.21) with dCA/dt = 0.
_ F
(CA)init = j- , T/i (CAo)init
F + Vk
°-m 0.925 = 0.465 m°,e
0.085+ (2.1) (0.040) m3
The constant of integration can be evaluated to be
A =FFCA0
+ Vk_ F
F(ACaq)
+ Vk6_l/r
(3.23)
= (CA)i„it + —itt[Cao - (CA0)init](l - e"'/T)
F+Vk
This can be rearranged with Kp = F/(F + Vk) to give the change in reactor
concentration.
Ca - (Ca),* = Kp ACA0(1 - e"'/r)
ACA = (0.503)(0.925)(1 - e~l/t)
Again, the time constant determines the "speed" of the response. Note that in this
example, the time constant depends on the equipment (V), the operation (F), and
the chemical reaction (k), and that by comparing equations (3.16) and (3.21) the
time constant for the chemical reactor is always shorter than the time constant for
the mixer, using the same values for F and V. Their numerical values are
V 2.1 .
X ~ F + VK ~ 0.085 + 2.1(0.040) ~ * ' """
- F - 0-085 _ mole/m3
p~ F + VK ~ 0.085 + 2.1(0.04) ~ ' mole/m3
Thus, the steady-state gain and time constant in this example depend on equip
ment design and operating conditions.
Results analysis. First, the result from equation (3.23) is calculated and plot
ted. As shown in Figure 3.5a, the reactant concentration increases as an expo
nential function to its final value without overshoot or oscillation. In this case, the
64 concentration exceeds its maximum limit; therefore, a corrective action will be
evaluated. The concentration reaches the alarm limit in 19.6 minutes after the step
CHAPTER 3 (29.6 minutes in the figure) and exceeds the maximum limit after 22.5 minutes.
Mathematical The sensitivity of this result can be evaluated from the analytical solution; in partic
Modelling Principles ular, the dependence of the time constant on variables and parameters is given in
equation (3.21). The time difference between the alarm and the dangerous condi
tion is too short for a person to respond reliably, because other important events
may be occurring simultaneously.
Since a response is required, the safety response should be automated; safety
systems are discussed in Chapter 24. A proper response can be determined by
considering equation (3.21). The goal is to ensure that the reactor concentration
decreases immediately when the corrective manipulation has been introduced.
One manner (for this, but not all processes) would be to decrease the inlet con
centration to its initial value, so that the rate of change of CA would be negative
without delay. The transient response obtained by implementing this strategy when
the alarm value is reached is shown in Figure 3.5b. The model for the response
after the alarm value has been reached, 29.6 minutes, is of the same form as
equation (3.23), with the same time constant and gain.
Goal. The same as that of Example 3.2, with the important concentration be
ing in the second reactor. Determine the time when this concentration exceeds
0.85 mole/m3.
30 40 50 30 40 50
Time (min) Time (min)
Modelling Examples
-W 'Al
db b F ■
'A2
Ob
FIGURE 3.6
Two CSTRs in series.
Information. The two systems are the liquid in each tank. The data is the same
as in Example 3.2, except that V\ = V2 = 1.05 m3.
Formulation. Again, due to the assumptions for the overflow tanks, the volumes
in the two tanks can be taken to be constant, and all flows are constant and equal.
The value of the concentration in the second tank is desired, but it depends on the
concentration in the first tank. Therefore, the component balances on both tanks
are formulated.
The choice of the system is not correct, because a balance on component A (CA2)
must have a constant concentration of component A that is independent of location
within the system. This condition is satisfied by the second tank, but not by both
tanks. Also, the reaction rate depends on the concentration, which is different for
the two tanks. Therefore, the correct model includes two component balances, one
for each tank. Note that the correct model includes a balance for an intermediate
variable, CM, that is not a goal of the modelling but is required to determine CA2-
66 Solution. In equations (3.24) and (3.25), the balance on the first tank does not in
volve the concentration in the second tank and thus can be solved independently
CHAPTER 3 from the equation representing the second reactor. (More general methods for
Mathematical solving simultaneous linear differential equations, using Laplace transforms, are
Modelling Principles presented in the next chapter.) The solution for the first balance can be seen to be
exactly the same form as the result for Example 3.2, equation (3.23). The analytical
expression for the concentration at the outlet of the first tank can be substituted into
equation (3.25) to give the model which must be solved. In this solution, the sub
script V designates the initial steady-state value of the variable before the step,
and no subscript indicates the variable after the step; also, ACAo = CAo - CAOs.
Therefore, the model for Ca2 after the substitution of equation (3.23) is
t^ at
+ CA2 = *CA, = K[KCAOs + KACAQ(\ - e~t/x)] (3.26)
Since the two reactors are identical (and linear), the steady-state gains and time
constant for both are identical, i.e.,
K = Fi/(F, + Vik) = F2/{F2 + V2k) = 0.669 (outlet mole/m3) /(inlet mole/m3)
T = W(Fi + Vxk) = V2/(F2 + V2k) = 8.25 min
(3.27)
Equation (3.26) can be solved by applying the integrating factor method.
20 40 d{ChfX)
dt = K[KCAOs + KACA0(l - xe~xlx)\— (3.28)
Time (min)
CA2 = K2(£f[ J* dt + ^f-f e«x dt - ^ j e^e^ dt\ e^x
i 1
Substituting the expression for the integration constant into equation (3.28) gives
the final expression for the concentration in the second reactor.
GM
co
•c Ca2 Cao* + ACaoO - e~'/x) - ACao (3.29)
2 1.5 - [ ■
The data can be substituted into equation (3.29) to give
5* Ca2 = 0.414 + 0.414(1 - e-'/s-25) - 0.050*<T'/8-25 (3.30)
Results analysis. The shape of the transient of the concentration in the second
0.5 of two reactors in Figure 3.7 is very different from the transient for one reactor in
0 20 40 60
Time (min) Figure 3.3. The second-order response for this example has a sigmoidal or "S"
FIGURE 3.7
shape, with a derivative that goes through a maximum at an inflection point and
reduces to zero at the new steady state. Also, the total conversion of reactant
Dynamic responses for Example 3.3. is different from Example 3.2, although the total reactor volume is the same in
both cases. The increased conversion in the two-reactor system is due to the 67
higher concentration of the reactant in the first reactor. In fact, the concentration i^mmmmmsm^mmi
of the second reactor does not reach the alarm or limiting values after the step Modelling Examples
change for the parameters specified, although the close approach to the alarm
value indicates that a slight change could lead to an alarm.
The action upon exceeding the alarm limit in the second reactor would not be
as easily determined for this process, since equation (3.25) shows that decreas
ing the inlet concentration to the first reactor does not ensure that the derivative
of the second reactor's concentration will be negative. The system has "momen
tum," which makes it more difficult to influence the output of the second reactor
immediately.
Assumptions.
1. The air in the room is well mixed.
2. No transfer of material to or from the dwelling occurs.
3. The heat transferred depends only on the temperature difference between the
room and the outside environment.
4. No heat is transferred from the floor or ceiling.
5. Effects of kinetic and potential energies are negligible.
Data.
1. The heat capacity of the air Cv is 0.17 cal/(g°C), density is 1190 g/m3.
2. The overall heat transfer coefficient, UA = 45 x 103 cal/(°C h).
3. The size of the dwelling is 5 m by 5 m by 3 m high.
4. The furnace heating capacity Qh is either 0 (off) or 1.5 x 106 (on) cal/h.
5. The furnace heating switches instantaneously at the values of 17°C (on) and
23°C (off).
6. The initial room temperature is 20°C and the initial furnace status is "off."
7. The outside temperature Ta is 10°C.
Formulation. The system is defined as the air inside the house. To determine the
temperature, an energy balance should be formulated, and since no material is
transferred, no material balance is required. The application of the energy balance
in equation (3.5) to this system gives
pVCv^r (3.33)
dt = -UA(T-Ta) + Qh
The degrees of freedom for this formulation is zero since the model has two equa
tions, two variables (T and Qh), four parameters (UA, Cv, V, and p), and one exter
nal variable {Ta). Thus, the system is exactly specified with equation (3.33), when
the status of the heating has been defined by equation (3.32).
Solution. Rearranging equation (3.33) gives the following linear ordinary differ
ential equation:
d T 1 U ATa + Q h V p C v
h - T = w i t h r = — — —■ (3.34)
dt x VpCv UA
Equation (3.34) is a linear differential equation when the value of heat transferred,
Qh, is constant. As described in the example data, Qh has one of two constant
values, depending on the status of the furnace heating. Thus, the equation can be
solved using the integrating factor with one value of Qh until the switching value
of temperature is reached; then, the equation is solved with the appropriate value
of Qh until the next switch occurs. The solution for equation (3.34) is given in the
following:
T - 7i„it = (rfinal - Tm){\ - e~'lx) (3.35)
where t = time from step in Qh
x = time constant = 0.34 h
rfinai = final value of T as t -+ oo = Ta + Qh/UA
= 10°C when Qh = 0
= 43.3°C when Qh = 1.5 x 106
7jnit = the value of T when a step in Qh occurs
Results analysis. First, the numerical result is determined and plotted in Figure
3.8. From the initial condition with the furnace off, the temperature decreases
according to equation (3.35) until the switch value of 17°C is reached. Then, the
furnace heating begins instantaneously (Qh changes from 0 to 1.5 x 106), and
since the system is first-order with no "momentum," the temperature immediately
begins to increase. This procedure is repeated as the room temperature follows a
periodic trajectory between 17 and 23°C.
The analytical solution provides insight into how to alter the behavior of the
system. The time constant is proportional to the mass in the room, which seems
reasonable. Also, it is inversely proportional to the heat transfer coefficient, since
the faster the heat transfer, the more quickly the system reaches an equilibrium
with its surroundings; therefore, insulating the house will decrease UA and increase
the time constant. Finally, the time constant does not depend on the heating by
the furnace, which is the forcing function of the system; therefore, increasing the
capacity of the furnace will not affect the time constant, although it will affect the
time between switches.
69
Linearization
O)
a i -
L I I I I I I I I
0
0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
Time (hr)
FIGURE 3.8
Dynamic response for Example 3.4.
The goals of the modelling exercise have been satisfied. The temperature has
been determined as a function of time, and the switching frequency of the furnace
has been determined to be over 3 minutes; that is, longer than the minimum limit.
However, a switch could occur much faster due to a sudden change in outside
temperature or to a disturbance such as a door being opened, which would allow
a rapid exchange of warm and cold air. Therefore, a special safety system would
be included to ensure that the furnace would not be restarted until a safe time
period after shutting off.
Building heating and air conditioning have been studied intensively, and more
accurate data and models are available (McQuiston and Parker, 1988). Also, some
extensions to this simple example are suggested in question 3.9 at the end of the
chapter (adding capacitance, changing UA, and including ventilation).
This example is the first quantitative analysis of a continuous feedback con
trol system. The simplicity of the model and the on/off control approach facilitated
the solution while retaining the essential characteristics of the behavior. For most
industrial processes, the oscillations associated with on/off control are unaccept
able, and more complex feedback control approaches, introduced in Part III, are
required to achieve acceptable dynamic performance.
3.4 a LINEARIZATION
The models in the previous sections were easily solved because they involved
linear equations, which were a natural result of the conservation balances and con
stitutive relationships for the specific physical systems. However, the conservation
and constitutive equations are nonlinear for most systems, and general methods for
70 developing analytical solutions for nonlinear models are not available. An alter
native is numerical simulation, covered later in this chapter, which can provide
CHAPTER 3 accurate solutions for specific numerical values but usually offers much less un
Mathematical derstanding. Fortunately, methods exist for obtaining approximate linearized so
Modelling Principles lutions to nonlinear systems, and experience over decades has demonstrated that
linearized methods of control systems analysis provide very useful results for many
(but not all) realistic processes. Therefore, this section introduces the important
method for developing approximate linear models.
First, the concept of linearity needs to be formally defined. This will be done
using the concept of an operator, which transforms an input variable into an output
variable.
We can test any term in a model using equation (3.36) to determine whether it is
linear. A few examples are given in the following table.
f ( x ) = k x k ( a x \ + b x 2 ) = k a x \ + k b x 2 Ye s
Fix) = kx{!2 k{axx + bx2)x'2 = Hax^2 + k(bx2)l/2 No
w^&z^MmsMmmm&imsmmm^wm^
by the small region of operation of a process when under control. Although the h.
uncontrolled system might operate over a large region because of disturbances in c
0
so
input variables, the controlled process variables should operate over a much smaller -
10 0
range, where the linear approximation often is adequate. Note that the accuracy of
the linearization would in general depend on the normal operating point xs. 3
(-0
Several modelling examples of linearized models are now given, with the
linearized results compared with the nonlinear results. In all cases, the models 1 1 "
will be expressed in deviation variables, such as x — xs, where the subscript s 20 40 60
Time (min)
represents the steady-state value of the variable. The deviation variable will always
be designated with a prime ('). (c)
FIGURE 3.10
CHAPTER 3
Mathematical
Modelling Principles
A deviation variable simply translates the variable value (x) by a constant, and
the value of the variable (x) is easily recovered by adding the initial steady-state
value xs to its deviation value, xf. The use of deviation variables is not necessary
and provides no advantage at this point in our analysis. However, expressing a
model in deviation variables will be shown in Chapter 4 to provide a significant
simplification in the analysis of dynamic systems; therefore, we will begin to use
them here for all linear or linearized systems.
do Information. The process equipment and flow are the same as shown in Figure
3.1. The important variable is the reactant concentration in the reactor.
Data. The same as in Example 3.2 except the chemical reaction rate is second-
order, with rA = -kC\ and k = 0.5[(mole/m3) min]-1.
(2.1)~1
dt = (0.085)0.85 - CA) - (2.1)(0.50)CA
The only nonlinear term in the equation is the second-order concentration term in
the rate expression. This term can be linearized by expressing it as a Taylor series
and retaining only the linear terms:
C2A^C2As+2CAsiCA-CAs) (3.41)
Recall that C^ is evaluated by setting the derivative to zero in equation (3.40)
and solving for CA, with CA0 having its initial value before the input perturbation,
because the linearization is about the initial steady state. The approximation is
now substituted in the process model:
V dC,
__a = f(Cao - CA) - 2VkCAsC'A (3.44)
dt
The resulting model is a first-order, linear ordinary differential equation, which can
be rearranged into the standard form:
dC \ F V
^f + 7c; = ?c;0 wi,hr = ?TI^-= 3.62mm (3.45)
Solution. Since the input forcing function is again a simple step, the analytical
solution can be derived by a straightforward application of the integrating factor:
Kp =F +^-lVkCto
= 0.146 and ACA0 = 0.925 mole/m3 (3.46)
CA = (0.925)(0.146)(1 - <r'/3-62)
Results Analysis. The linearized solution from equation (3.46) is plotted in Fig
ure 3.12 in comparison with the solution to the original nonlinear differential
equation, equation (3.40). The linear solution can be seen to give a good semi
quantitative description of the true process response.
Deviation
74
variables
CHAPTER 3
Mathematical
Modelling Principles
3
o
Time (min)
, i =l 1 1 1 1
•—:
.5
CA0
1_ - 0
■ i i i i i i
0 2 4 6 8 10 12 14
Time (min)
FIGURE 3.12
TABLE 3.4
Assumptions.
1. The density is constant.
2. The cross-sectional area of the tank, A, does not change with height.
Data.
Pa
1. The initial steady-state conditions are (i) flows = F0 = Fx = 100 m3/h and (ii)
level = L — 7.0 m. FIGURE 3.13
2. The cross-sectional area is 7 m2. Level in draining tank for Example 3.6.
Formulation. The level depends on the total amount of liquid in the tank; thus,
the conservation equation selected is an overall material balance on the system.
1. The system is at quasi-steady state, since the dynamics of the pipe flow will
be fast with respect to the dynamics of the level.
2. The total pressure drop is due to the restriction.
3. Conventional macroscopic flow equations, using relationships for friction fac
tors and restrictions, can relate the flow to the pressure driving force (Foust
et al., 1980; Bird, Stewart, and Lightfoot, 1960).
With these assumptions, which relate the flow out to the liquid level in the tank, the
balance becomes
0.5 0.5
Fx = fiFx)iPa+pL-Pa)™ = kFXL (3.48)
with Pa constant. The system with equations (3.47) and (3.48) and with two vari
ables, Fx and L, is exactly specified. After the equations are combined, the system
can be described by a single first-order differential equation:
To more clearly evaluate the model for linearity, the values for all constants (flow,
area, and kFX = 37.8) can be substituted into equation (3.49), giving the following:
2/ssI^+/e-'/' (3.53)
The initial condition is that V = 0 at t = 0, with time measured from the input step;
thus, / = -xAFq/A. Substitution gives
L' = I^£(1_e-</<)
(3.54)
= AFQKpi\-e-"x)
-l/z> with K, = - = Q _0>5
U
EXAMPLE 3.7. Stirred-tank heat exchanger
do To provide another simple example of an energy balance, the stirred-tank heat
exchanger in Figure 3.9 is considered.
Goaf. The dynamic response of the tank temperature to a step change in the
rx «. n t coolant flow is to be determined.
'rout
Information. The system is the liquid in the tank.
Deviation 11
variables
■ i i i i i i i 1
Linearization
5
0 - -7
1 1 1 1 1 1 1 i i
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
Time (hr)
100 - 0
I ;
50 -50
1 1 1 —1 1 I ■ ' '
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
Time (hr)
id)
Deviation
variables
i i -j - -■- i -i 1— ■ i i
oo 0
o
w
fl
50 - -50
" i i i i i i ■ i
() O . i5 1 1.5 2 2.5 3 3.5 4 4.5 i
Time (hr)
ib)
FIGURE 3.14
Dynamic responses for Example 3.6: (a) for a small input change
(linearized and nonlinear essentially the same curve); ib) for a
large input change.
Assumptions.
1. The tank is well insulated, so that negligible heat is transferred to the sur
roundings.
2. The accumulation of energy in the tank walls and cooling coil is negligible
compared with the accumulation in the liquid.
78 3. The tank is well mixed.
4. Physical properties are constant.
CHAPTER 3 5. The system is initially at steady state.
Mathematical
Modelling Principles Data. F=0.085 m3/min; V = 2.1 rc\2,Ts = S5A°C;p = 106 g/m3;Cp = l cal/(g°C);
T0 = 150°C; rd„ = 25°C; Fcs = 0.50 m3/min; Cpc = 1 cal/( g°C); pc = 106 g/m3;
a = 1.41 x 105 cal/min°C; b = 0.50.
Formulation. Overall material and energy balances on the system are required
to determine the flow and temperature from the tank. The overall material balance
is the same as for the mixing tank, with the result that the level is approximately
constant and F0 = Fx- F. For this system, the kinetic and potential energy ac
cumulation terms are zero, and their input and output terms cancel if they are not
zero. The energy balance is as follows:
^- (3.55)
dt = {H0}-{HX} + Q-WS
Also, it is assumed (and could be verified by calculations) that the shaft work is
negligible. Now, the goal is to express the internal energy and enthalpy in measur
able variables. This can be done using the following thermodynamic relationships
(Smith and Van Ness, 1987):
dU/dt = pVCv dT/dt « pVCp dT/dt (3.56)
H^pCpFiiTi-T^) (3.57)
Note that the heat capacity at constant volume is approximated as the heat capac
ity at constant pressure, which is acceptable for this liquid system. Substituting
the relationships in equations (3.56) and (3.57) into (3.55) gives
(3.58)
pVCp^- = pCPF[iT0 - 7/rcf) - (r, - Tref)] + Q
This is the basic energy balance on the tank, which is one equation with two
variables, T and Q. To complete the model, the heat transferred must be related
to the tank temperature and the external variables (coolant flow and temperature).
Thus, a subproblem involving the energy balance on the liquid in the cooling coils
is now defined and solved (Douglas, 1972). The assumptions are
The subscript c refers to the coolant fluid. Now, two constitutive relationships are
employed to complete the model. The heat transferred can be expressed as
iT - Tdn) + iT - Tcout)l
Q = -UAiAT) m
! (3.60)
-ua[-
The heat transfer coefficient would depend on both film coefficients and the wall
resistance. For many designs the outer film resistance in the stirred tank and
the wall resistance would be small compared with the inner film resistance; thus,
UA t*i hmA. The inner film coefficient can be related to the flow by an empirical 79
relationship of the form (Foust et al., 1980)
UA = aF* Linearization
(3.61)
Equations (3.59) to (3.61) can be combined to eliminate Tcoat and UA to give
the following expression for the heat transferred:
aF*+l
Q = - aF* (T-Tcia) (3.62)
Fc +
2pcCpc
This solution to the subproblem expresses the heat transferred in terms of the
specified, external variables (Fc and Tdn) and the tank temperature, which is the
dependent variable to be determined. Equation (3.62) can be substituted into
equation (3.58) to give the final model for the stirred-tank exchanger.
dT aF^x
VpCp— = CppFiT0-T)- aF* i T- Tc i n ) (3.63)
Fc +
2pcClpc
The degrees-of-freedom analysis results in one variable (7"), one equation
(3.63), four external variables (7^, 7b, and F are assumed constant, and Fc can
change with time), and seven parameters. Thus, the model is exactly specified.
To evaluate the linearity of the model, all constants (for this example) are
substituted into equation (3.63) to give the following:
at 1 41 x 105F05
(2.1 x 10')- = (0.85 x 10«)(150 - T) - p'+ ^faV - 25)
The model is nonlinear because of the Fc terms and the product of Fc times T.
Therefore, the second term in equation (3.63) must be linearized using the Taylor
series in two variables, which yields the following result:
80 =1-5.0
10 15 20 25 30 35
Time (min)
1 1 1 1 1 1 1 1 1
n* 0.1
a
n
o
tw
flC
o
l <
o - 0.0
i i I I I I 1 1 1
0 10 15 20 25 30 35 40 45 50
Time (min)
FIGURE 3.15
Dynamic response for Example 3.7.
For a step change in the coolant flow rate at t = 0 and 7"(0) = 0, the solution is
given by
KFcx = -33.9
Kp = 11.9 min
VpCp m3/min \V VpCp)
Results analysis. The solution gives an exponential relationship between time
and the variable of interest. The approximate linearized response is plotted in
Figure 3.15 along with the solution to the nonlinear model. For the magnitude of the
step change considered, the linearized approximation provides a good estimate
of the true response.
The analytical linearized approximation provides relationships between the
transient response and process design and operation. For example, since UA* > O,
equation (3.67) demonstrates that the time constant for the heat exchanger is
always smaller than the time constant for the same stirred tank without a heat
exchanger, for which r = V/F.
81
Linearization
V
FIGURE 3.16
Simplified schematic of flow through valve.
F = Cvvl^—^- (3.69)
The procedure for linearization in this section has applied classical methods to
be performed by the engineer. Software systems can perform algebra and calculus;
therefore, linearization can be performed via special software. One well-known
software system for analytical calculations is Maple™. We will continue to use
the "hand" method because of the simplicity of the models. Whether the models
are linearized by hand or using software, the engineer should always thoroughly
understand the effects of design and operating variables on the gains, time constant,
and dead time.
82 The examples in this section have demonstrated the ease with which lineariza
tion can be applied to dynamic process models. As shown in equation (3.37), the
CHAPTER 3 second-order term in the Taylor series gives insight into the accuracy of the linear
Mathematical approximation. However, there is no simple manner for evaluating whether a linear
Modelling Principles
approximation is appropriate, since the sensitivity of the modelling results depends
on the formulation, input variables, parameters, and, perhaps most importantly, the
goals of the modelling task. An analytical method for estimating the effects of the
second-order terms in the Taylor series on the results of the dynamic model is
available (Douglas, 1972); however, it requires more effort than the numerical so
lution of the original nonlinear equations. Therefore, the analytical method using
higher-order terms in the Taylor series is not often used, although it might find
application for a model solved frequently.
One quick check on the accuracy of the linearized model is to compare the
final values, as time goes to infinity, of the nonlinear and linearized models. If
they differ by too much, with this value specific to the problem, then the linearized
model would be deemed to be of insufficient accuracy. If the final values are close
enough, the dynamic responses could still differ and would have to be evaluated.
Also, values of the time constants and gain at the initial and final conditions can be
determined; if they are significantly different, the linearized model is not likely to
provide adequate accuracy. The reader will be assisted in making these decisions by
numerous examples in this book that evaluate linearized control methods applied
to nonlinear processes.
The predictions from a linearized dynamic model are sufficiently accurate for most
control system design calculations if the values of steady-state gain and time con
stants) are similar throughout the transient, i.e., from the initial to final conditions.
The more complete approach for checking accuracy is to compare results from
the linearized and full nonlinear models, with the nonlinear model solved using
numerical methods, as discussed in the next section. Fundamental models can
require considerable engineering effort to develop and solve for complex processes,
so this approach is usually reserved for processes that are poorly understood or
known to be highly nonlinear. In practice, engineers often learn by experience
which processes in their plants can be analyzed using linearized models.
Again, this experience indicates that in the majority of cases, linear models
are adequate for process control. An additional advantage of approximate linear
models is the insight they provide into how process parameters and operating
conditions affect the transient response.
V;+i « y/ +
UI fo+1 - ti) (3.72)
w i t h m x - fi y i , t i )
/ At At\
m2 = f I y, + —mx, U + —\
J At AA
m = f ( v/ + Y™2, tl + ~2)
m = /(y,- + Arm3, tj + At)
All numerical methods introduce an error at each step, due to the loss of
the higher-order terms in the Taylor series, and these errors accumulate as the
integration proceeds. Since the accumulated error depends on how well the function
is approximated, the Euler and Runge-Kutta methods have different accumulated
errors. The Euler accumulated error is proportional to the step size; the Runge-
Kutta error in equation (3.73) depends on the step size to the fourth power. Thus,
the Euler method requires a smaller step size for the same accuracy as Runge-
Kutta; this is partially offset by fewer calculations per step required for the Euler
84 method. Since the errors from both methods increase with increasing step size, a
very small step size might be selected for good accuracy, but a very small step size
CHAPTER 3 has two disadvantages. First, it requires a large number of steps and, therefore,
Mathematical long computing times to complete the entire simulation. Second, the use of too
Modelling Principles small a step size results in a very small change in y, perhaps so small as to be lost
due to round-off. Therefore, an intermediate range of step sizes exists, in which
the approximate numerical solution typically provides the best accuracy.
The engineer must choose the step size At to be the proper size to provide
adequate accuracy. The proper step size is relative to the dynamics of the solution;
thus, a key parameter is At/x, with x being the smallest time constant appearing
in a linear(ized) model. As a very rough initial estimate, this parameter could be
taken to be approximately 0.01. Then, solutions can be determined at different step
sizes; the region in which the solution does not change significantly, as compared
with the accuracy needed to achieve the modelling goal, indicates the proper range
of step size. There are numerical methods that monitor the error during the problem
solution and adjust the step size during the solution to achieve a specified accuracy
(Maron and Lopez, 1991).
Some higher-order systems have time constants that differ greatly (e.g., x\ = 1
and T2 = 5000); these systems are referred to as stiff. When explicit numerical
methods such as Euler and Runge-Kutta are used for these systems, the step size
must be small relative to the smallest time constant for good accuracy (and sta
bility), but the total interval must be sufficient for the longest time constant to
respond. Thus, the total number of time steps can be extremely large, and com
puter resources can be exorbitant. One solution method is to approximate part of
the system as a quasi-steady state; this was done in several of the previous exam
ples in this chapter, such as Example 3.7, where the coolant energy balance was
modelled as a steady-state process. When this is not possible, the explicit numeri
cal methods described above are not appropriate, and implicit numerical methods,
which involve iterative calculations at each step, are recommended (Maron and
Lopez, 1991).
Either the Euler or the Runge-Kutta method should be sufficient for the prob
lems encountered in this book, but not for all realistic process control simulations.
Recommendations on algorithm selection are available in the references already
noted, and various techniques have been evaluated (Enwright and Hull, 1976). The
numerical methods are demonstrated by application to examples.
do G
CA,+i = CA/ + At -(Cao/ - CA/) + kC
--)
(3.74)
v cA
An appropriate step size was found by trial and error to be 0.05. (Note that
At/x = 0.014.) The numerical solution is shown in Figure 3.12 as the result from
the nonlinear model.
In summary, numerical methods provide the capability of solving complex, 85
nonlinear ordinary differential equations. Thus, the engineer can formulate a model R* ·rt
to satisfy the modelling goals without undue concern for determining an analyt- The Nonisothermal
ical solution. This power in developing specific solutions is achieved at a loss in Chemical Reactor
engineering insight, so that the linearized solutions are often derived to establish
relationships.
CHAPTER 3
Mathematical
Modelling Principles
Time (min)
0 12 3 4 5 6
Time (min)
FIGURE 3.18
3.7 □ CONCLUSIONS
The procedure in Table 3.1 provides a road map for developing, solving, and
interpreting mathematical models based on fundamental principles. In addition
to predicting specific behavior, these models provide considerable insight into the
relationship between the process equipment and operating conditions and dynamic
behavior. A thorough analysis of results is recommended in all cases so that the
sensitivity of the solution to assumptions and data can be evaluated.
Perhaps the most important concept is
The models used in process control are developed to relate each input variable
(cause) to the output variable (effect). The modelling approach enables us to reach
this goal by (1) developing the fundamental model and (2) deriving the linearized
models for each input output dynamic response. The approach can be demonstrated 87
by repeating the model for the isothermal CSTR with first-order kinetics derived
in Example 3.2. Conclusions
Parameter S y m b o l D e fi n i t i o n Units
Steady-state gain K Output/input (Aoutput/Ainput)ss
Time constant X Multiplies derivative Time
in standard model form
88 The values of these parameters can be used to estimate the magnitude and
speed of the effects of the input changes on the output variable. This modelling
CHAPTER 3 procedure enables the engineer to relate the dynamic behavior of a process to
Mathematical the equipment sizes, physical properties, rate processes, and operating conditions.
Modelling Principles For example, the steady-state effect of the flow disturbance (F) depends on its
gain (£», which is affected by the equipment (V), chemistry (k), and operating
conditions (F, CAo, and C^). Recall that we are compromising accuracy through
linearization to achieve these insights.
The engineer should interpret linearized models to determine the factors influencing
dynamic behavior, i.e., influencing the gains and time constants.
REFERENCES
Bird, R., W. Stewart, and E. Lightfoot, Transport Phenomena, Wiley, New
York, 1960.
Carnahan, B., H. Luther, and J. Wilkes, Applied Numerical Methods, Wiley,
New York, 1969.
Douglas, J., Process Dynamics and Control, Volume I, Analysis of Dynamic
Systems, Prentice-Hall, Englewood Cliffs, NJ, 1972.
Enwright, W, and T. Hull, SI AM J. Numer. Anal., 13, 6, 944-961 (1976).
Felder, R., and R. Rousseau, Elementary Principles of Chemical Processes
(2nd ed.), Wiley, New York, 1986.
Foust, A., L. Wenzel, C. Clump, L. Maus, and L. Andersen, Principles of Unit
Operations, Wiley, New York, 1980.
Himmelblau, D., Basic Principles and Calculations in Chemical Engineering,
Prentice-Hall, Englewood Cliffs, NJ, 1982.
Hutchinson, J. (ed.), ISA Handbook of Control Valves (2nd ed.), Instrument
Society of America, Research Triangle Park, NC, 1976.
Levenspiel, O., Chemical Reaction Engineering, Wiley, New York, 1972.
Maron, M., and R. Lopez, Numerical Analysis, A Practical Approach (3rd
ed.), Wadsworth, Belmont, CA, 1991.
M c Q u i s t o n , F, a n d J . P a r k e r, H e a t i n g , Ve n t i l a t i o n , a n d A i r C o n d i t i o n i n g ( 3 r d 8 9
ed.), W i l e y, New Yo r k , 1988. [m^mSM^^mms^mm
Smith, J., and H. Van Ness, Introduction to Chemical Engineering Thermo- Additional Resources
dynamics (4th ed.), McGraw-Hill, New York, 1987.
ADDITIONAL RESOURCES
The following references, in addition to Douglas (1972), discuss goals and meth
ods of fundamental modelling for steady-state and dynamic systems in chemical
engineering.
Leis, J., and M. Kramer, "The Simultaneous Solution and Sensitivity Analysis
of Systems Described by Ordinary Differential Equations," ACM Trans.
on Math. Software, 14, 1,45-60 (1988).
Tomovic, R., and M. Vokobratovic, General Sensitivity Theory, Elsevier, New
York, 1972.
Stirred tanks are applied often in chemical engineering. Details on their design
and performance can be found in the following reference.
QUESTIONS
3.1. The chemical reactor in Example 3.2 is to be modelled, with the goal of
determining the concentration of the product Cr as a function of time for the
same input change. Extend the analytical solution to answer this question.
3.2. The series of two tanks in Example 3.3 are to be modelled with V\ + V2 =
2.1 and Vi = 2V2. Repeat the analysis and solution for this situation.
3.3. The step input is changed to an impulse for Example 3.3. An impulse is a
"spike" with a (nearly) instantaneous duration and nonzero integral; phys
ically, an impulse would be achieved by rapidly dumping extra component
A into the first tank. Solve for the outlet concentration of the second tank
after an impulse of M moles of A is put into the first tank.
3.4. A batch reactor with the parameters in Example 3.2 is initially empty and
is filled at the inlet flow rate, with the outlet flow being zero. Determine
the concentration of A in the tank during the filling process. After the tank
is full, the outlet flow is set equal to the inlet flow; that is, the reactor is
operated like a continuous-flow CSTR. Determine the concentration of A
to the steady state.
3.5. The system in Example 3.1 has an input concentration that varies as a sine
with amplitude A and frequency co. Determine the outlet concentration for
this input.
3.6. The level-flow system is Figure Q3.6 is to be analyzed. The flow Fo is
constant. The flow F3 depends on the valve opening but not on the levels,
whereas flows Fj and F2 depend on the varying pressures (i.e., levels).
The system is initially at steady state, and a step increase in F3 is made by
adjusting the valve. Determine the dynamic response of the levels and flows
using an approximate linear model. Without specific numerical values,
sketch the approximate dynamic behavior of the variables.
3.7. The behavior of the single CSTR with the kinetics shown below is consid
ered in this question. The goal is to control the concentration of product D
in the effluent. Your supervisor proposes the feed concentration of reactant
91
Linearization
FIGURE Q3.6
In answering this question, you may use the following information: (1)
the tank is well mixed and has a constant volume and temperature; (2)
all components have the same molecular weights and densities; (3) all
reactions are elementary; thus, in this case they are all first-order; (4) the
volumetric feed flow is constant (F) and contains only component A (Cao).
(a) Starting with fundamental balances, derive the model (differential
equations) that must be solved to determine the behavior of the con
centration of component D.
ib) Express the equations from part id) in linear(ized) deviation variables
and define the time constants and gains. p\
ic) Does a causal relationship exist between Cao and Co? ■J&J—-
3.8. The level-flow system in Figure Q3.8 is to be analyzed. The flow into the
system, Fo, is independent of the system pressures. The feed is entirely
liquid, and the first vessel is closed and has a nonsoluble gas in the space
above the nonvolatile liquid. The flows F\ and F2 depend only on the
pressure drops, because the restrictions in the pipes are fixed. Derive the
linearized model for this system in response to a step change in F0, solve h.
the equations, and, without specific numerical values, sketch the dynamic
responses. FIGURE Q3.8
3.9. The room heating Example 3.4 is reconsidered; for the following situations,
each representing a single change from the base case, reformulate the model
as needed and determine the dynamic behavior of the temperature and
heating status.
92 (a) Due to leaks, a constant flow into and out of the room exists. Assume
wwM^^^msm^ that the volume of air in the room is changed every hour with entering
CHAPTER 3 air at the outside temperature.
Mathematical ib) A mass of material (e.g., furniture) is present in the room. Assume
Modelling Principles mat mis mass is aiways jn equilibrium with the air; that is, the heat
exchange is at quasi-steady state. The mass is equivalent to 200 kg of
wood.
(c) The ambient temperature decreases to — 10°C.
id) The duty of the furnace is reduced to 0.50 x 106 when on.
ie) The heat transferred to the room does not change instantaneously when
the furnace status changes. The relationship between the heat generated
in the furnace (<2/), which changes immediately when the switch is
activated, and the heat to the room ((2/.) is
A^-
dt = F0- F, (5)(2) = 10
When Fo is constant, this model has two equations and two unknown
variables, L and F\. Explain why this model does not satisfy the
degrees-of-freedom analysis and provide a mathematical test that can
be applied to potential equation sets.
id) Is it possible for a model to be linear for one external input perturbation
and nonlinear for another? Explain and give examples.
ie) Give the equations to be solved at every time step for an Euler integra
tion of the nonisothermal chemical reactor model in equations (3.75)
and (3.76).
3.14. The chemical reactor in Example 3.3 is considered in this question. The only
change to the problem is the input function; here, the inlet concentration is
returned to its initial value in a step 5 minutes after the initial step increase.
id) Determine the dynamic response of the concentration of both tanks.
ib) Compare your answer to the shape of the plot in Figure 3.5/? and explain
similarities and differences,
(c) Based on your results in id) and ib), discuss how you would design
an emergency system to prevent the concentration of A in the second
tank from exceeding a specified maximum value. Discuss the variables
F and Cao as potential manipulated variables, and select the value to
which the manipulated variable should be set when the action limit
is reached. Also, discuss how you would determine the value of the
action limit.
3.15. The dynamic response of the CSTR shown in Figure 3.1 is to be determined
as follows.
Assumptions: (i) well mixed, (ii) isothermal, (iii) constant density, and (iv)
constant volume.
Data: V = 2 m3; F = 1 m3/h; CAo(0) = 0.5 mole/m3.
Reaction: A ->• Products
id) Formulate the model for the dynamic response of the concentration of
A.
ib) Linearize the equation in id).
(c) Analytically solve the linearized equation for a step change in the inlet
concentration of A, Cao-
id) Give the equation(s) for the numerical solution of the "exact" nonlin
ear equation derived in id). You may use any of the common numerical
methods for solving ordinary differential equations.
ie) Calculate the transients for the (analytical) linearized and (numerical)
nonlinear models. Graph the results for both the nonlinear and lin
earized predictions for two cases, both of which start from the initial
conditions given above and have the magnitudes (1) ACao = 0.5 and
(2) ACao = 4.0. Provide an annotated listing of your program or
spreadsheet.
if) Discuss the accuracy of the linearized solutions compared with solu
tions to the "exact" nonlinear equations for these two cases.
94 3.16. Discuss whether linearized dynamic models would provide accurate rep
resentations of the dynamic results for
CHAPTER 3 id) Example 3.2 with ACAo = -0.925 moles/m3
Mathematical
Modelling Principles
(h) Example 3.7 for AFC = -9.25 m3/min
3.17. A stirred-tank mixer has two input streams: Fa which is pure component
A, and Fn, which has no A. The system is initially at steady state, and
the flow Fa is constant. The flow of B changes according to the following
description: From time 0 -» t\, F^it) = at (a ramp from the initial condi
tion); and from time t\ -▶ oo, F^it) = at\ (constant at the value reached
at t\). The following assumptions may be used:
(1) The densities of the two streams are constant and equal, and there
is no density change on mixing.
(2) The volume of the liquid in the tank is constant.
(3) The tank is well mixed.
id) Sketch the process, define the system, and derive the basic balance for
the weight fraction of A in the exit stream, Xa.
ib) Derive the linearized balance in deviation variables,
(c) Solve the equation for the forcing function, Fg (f), defined above. (Hint:
You may want to develop two solutions, first from 0 -> t\ and then
t\ -▶ oo.)
id) Sketch the dynamic behavior of Fg(r) and X'Ait).
3.18. In the tank system in Figure 3.13, the outflow drains through the outlet
pipe with a restriction as in Example 3.6, and in this question, a first-order
-Al
chemical reaction occurs in the tank. Given the following data, plot the
u -A3
operating window, i.e., the range of possible steady-state operating condi
tions, with coordinates of level and concentration of A. Discuss the effect
of changing reactor temperature on the operating window, if any.
Design parameters: Cross-sectional area = 0.30 m2, maximum
level = 4.0 m. The chemical reaction is first-order with ko = 2.28 x 107
cA5 (h_1) and E/R = 5000 K. The base-case conditions can be used to
back-calculate required parameters. The base case data are T = 330 K,
'A2 L - 3.33 m, F = 10 m3/h, and CA =0.313 mole/m3. The external vari
ables can be adjusted over the following ranges: 0.20 < Cao < 0.70 and
-U 3.0 < F < 12.5.
-A4
3.19. A system of well-mixed tanks and blending is shown in Figure Q3.19. The
delays in the pipes are negligible, the flow rates are constant, and the streams
have the same density. Step changes are introduced in Cai at t\ and Ca2 at
FIGURE Q3.19 t2, with t2 > t\. Determine the transient responses of Ca3, Ca4, and Cas.
3.20. Determining the sensitivity of modelling results to parameters is a key
aspect of results analysis. For the result from Example 3.2,
id) Determine analytical expressions for the sensitivity of the output vari
able CA to small (differential) changes in the parameters, Kp,x, fore-
ing function magnitude ACao, and initial steady state, CAinit- These 95
sensitivity expressions should be functions of time. »iiBifc&*M«^^
ib) For each result in (0), plot the sensitivities over their trajectories and Linearization
discuss whether the answer makes sense physically.
3.21. Another experiment was performed to validate the fact that the vessel in
Example 3.1 was well mixed. In this experiment, the vessel was well insu
lated and brought to steady state. Then a step change was introduced to the
inlet temperature. The following data represents the operating conditions,
and the dynamic data is given in Table Q3.21.
Data: V = 2.7 m3, F = 0.71 m3/min, roinit = 103.5°C, T0 = 68°C.
id) Formulate the energy balance for this system, and solve for the ex
pected dynamic response of the tank temperature.
ib) Compare your prediction with the data.
(c) Given the two experimental results in Figure 3.4 and this question for
the same equipment, discuss your conclusions on the assumption that
the system is well mixed.
id) Is there additional information that would help you in (c)?
3.22. The dynamic response of the reactant concentration in the reactor, Ca, to a
change in the inlet concentration, Cao, for an isothermal, constant-volume,
constant-density CSTR with a single chemical reaction is to be evaluated.
The reaction rate is modelled by
r A _~ \ +k k[ C
2CAA
Ti m e Te m p e r a t u r e
0 103.5
.4 102
1.2 96
1.9 91
2.7 87
3.4 84
4.2 81
5.0 79
6.5 76
8.5 73
l l i « M i « i i i i W i « i i M
Modelling and
Analysis for
Process Control
4.1 ra INTRODUCTION
In the previous chapter, solutions to fundamental dynamic models were developed
using analytical and numerical methods. The analytical integrating factor method
was limited to sets of first-order linear differential equations that could be solved
sequentially. In this chapter, an additional analytical method is introduced that
expands the types of models that can be analyzed. The methods introduced in this
chapter are tailored to the analysis of process control systems and provide the
following capabilities:
Before examples are presented, a few important properties and conventions are
stated.
1. Only the behavior of the time-domain function for times equal to or greater
than zero is considered. The value of the time-domain function is taken to be
zero for t < 0.
2. A Laplace transform does not exist for all functions. Sufficient conditions for
the Laplace transform to exist are (i) the function fit) is piecewise continuous
and (ii) the integral in equation (4.1) has a finite value; that is, the function /(/)
does not increase with time faster than e~st decreases with time. Functions typ
ically encountered in the study of process control are Laplace-transformable
and are not checked. Further discussion of the existence of Laplace transforms
is available (Boyce and Diprima, 1986).
3. The Laplace transform converts a function in the time domain to a function
in the "5-domain," in which s can take complex values. Recall that a complex
number x can be expressed in Cartesian form as A + Bj or in polar form as
Re*7" with
6. Tables of Laplace transforms are available, so the engineer does not have to
apply equation (4.1) for many commonly occurring functions. Also, these
tables provide the inverse Laplace transform,
—i
C~l[fis)) = fit) fort >0 (4.4)
Since the Laplace transform is defined only for single-valued functions, the
transform and its inverse are unique.
Constant
For/(0 = C,
C
C(C) Ce~st dt = - —e - S t (4.5)
Jo s s
Since the variable is assumed to have a zero value for time less than zero, the
Laplace transforms for the constant and step are identical.
Exponential
For fit) = e~at,
oo j
Cieat)
-L at „-st -
ea'e-sl dt =
a—s
,-(.v-a)/|°°
lo s—a
(4.7)
TABLE 4.1
100
Laplace transforms
CHAPTER 4 No. f{t) Ms)
Modelling and
Analysis for Process 1 8, unit impulse l
Control
2 Uit),
i t unit step or constant 1A
t"*n-\
3 \/sn
in - 1)!
1
4
x TJ + 1
as + 1
5 l + ^-^e-"
X 7(t7+T)
1 tn-le-'/T 1
6
xn in - 1)! JxTTiy
as + 1
7
(w +1)2
as + l
8 1 + (^-,)e-
sixs + l)2
xx—a T2"a Ci/W flj + 1
9 ,-'/ri _
Ti(r, -x2) 72(T| - r2) (riJ -I- l)(r2s + 1)
as + \
10 1+ T'-V'/t, _ X2~a --/»
T2-Ti t2-ri sixxs + l)ix2s + 1)
11 sin i(ot) co/is2 + co2)
12 cos ioot) s/is2 + co2)
s+a
13 e~a' cos (o>f)
is + a)2 + C02
O
C
14 e~a' sin icot)
(s + a)2 + C02
as +1
15 £e-^sin[>/EI!r
t \ r +0 x2s2 + 2$xs + 1
cj*:* + l j - - -l /_ *si^
\-p
a>re ,/r sin (art + cp) C
O
16 +
\+C02X2 y/\+(02X2 ixs + l)is2+co2)
<f> = tan_I(—(*>x)
17 1 -
1 , - Wr sin 'VT^? ■t + 4> 1
VT=? six2s2 + 2l-xs + \)
'y/T^
<j> = tan-1
fi t - a ) t > a
18 /(0 = e-"sfis)
0 t <a
a, co, and t,- are real and distinct, 0 < £ < 1, n = integer
Sine 101
For fit) = sin (cot),
The Laplace
r<x> roo /jot _ p-j(ot \
Transform
£(sin (at)) = / sin (a>t)e-st dt = / ( T j e~st dt
_ J _ [ e - e( -s( s- -Jj ( o ) t
)
e-(s+ja)t-I00
dt
C
O
(4.8)
Pulse
For f(t) = C[UiO) - Uitp)] = C/tp for t = 0 to tp, and = 0 for t > tp, as
graphed in Figure 4.1,
FIGURE 4.1
ftp Q /.OO
C(f(t)) = / -e-st dt + / Oe~st dt Pulse function.
Jo h Jtn
(4.9)
C(\- e~stp)
An impulse function, which has zero width and total integral equal to C, is a
special case of the pulse. Its Laplace transform can be determined by taking the
limit of equation (4.9) as tp -> 0 (and applying L'Hospital's rule) to give
C (1 - e~st")
Y(s)\t.0 = lim
tP-+o tp s
(4.10)
=r » -lim-c(-^)=c
>0 s
(4.11)
This equation can be integrated by parts to give
m-'
by parts several times to give
f(s)
J
in-1
- (sn- /(OUo + s n-2 df(t) fit)
dt
+ ...+ dtn~]
t=0
(4.13)
102 Integral
n
By similar application of integration by parts the Laplace transform of an integral
CHAPTER 4
of a function can be shown to be
Modelling and
Analysis for Process
Control C (j* f(t') dA = j™ Qf f(t') dA e~st dt
(4.14)
= f°° —fit) dt + \( f f(t) dt) —1 = - f(s)
Jo s l\Jo ) s J/=o s
Differential Equations
One of the main applications for Laplace transforms is in the analytical solution
of ordinary differential equations. The key aspect of Laplace transforms in this
application is demonstrated in equation (4.13), which shows that the transform of
a derivative is an algebraic term. Thus, a differential equation is transformed into an
algebraic equation, which can be easily solved using rules of algebra. The challenge
is to determine the inverse Laplace transform to achieve an analytical solution in
the time domain. In some cases, determining the inverse transform can be complex
or impossible; however, methods shown in this section provide a general approach
for many systems of interest in process control. First, the solutions of a few simple
models involving differential equations, some already formulated in Chapter 3, are
presented.
EXAMPLE 4.1.
The continuous stirred-tank mixing model formulated in Example 3.1 is solved
'AO
here. The fundamental model in deviation variables is
dC
V-A = F(CAQ-CA) (4.15)
■ b '■ The Laplace transform is taken of each term in the model:
V [sC'Ais) - C'Ait)\tJ = F [C'AQis) - C'Ais)] (4.16)
do The initial value of the tank concentration, expressed as a deviation variable, is
zero, and the deviation of the inlet concentration is constant at the step value for
t > 0; that is, CA0(O = ACAoA- Substituting these values and rearranging equation
(4.16) gives
ACAO 1
CA(0 = with x = — = 24.7 min (4.17)
S X s + 1
The inverse transform of the expression in equation (4.17) can be determined from
entry 5 of Table 4.1 to give the same expression as derived in Example 3.1.
CA(0 = ACAO(l-<r'/r) (4.18)
'AO
EXAMPLE 4.2.
The model for the two chemical reactors in Example 3.3 is considered here, and
'Al the time-domain response to a step change is to be determined. The linear com
CD ponent material balances derived in Example 3.3 are repeated below in deviation
b variables.
'A2
CO Al
Vi = F i C ' - C ' ) - V k C' 'A l (3.24)
dt
103
V2—A- = F(CA1 - C^) - VkCA2 (3.25) hmwhibwii—I
ai The Laplace
The Laplace transforms of the component material balances in deviation variables, Transform
noting that the initial conditions are zero, are
sVC'Alis) = F(C'AOis) - C'AXis)) - VkC'Alis) (4.19)
sVC'^is) = F (CAlis) - C'A2is)) - VkC'^is) (4.20)
These equations can be combined into one equation by eliminating C'A]is) from
the second equation. First, solve for C'AXis) in equation (4.19):
KF + Vk)^
C»= „ + 1 Cao (4-21)
This expression can be substituted into equation (4.20) along with the input step
disturbance, CAOis) = ACA0/s, to give
KpACAp
C«W = ^= (4-22)
sixs + l)2
V mole
with x = -——- = 8.25 min ACA0 = 0.925 —r
2 mole
K^(-dvk)=0m C„.-0AU mJ
The inverse transform can be determined from entry 8 of Table 4.1 to give the
resulting time-domain expression for the concentration in the second reactor.
c ^ 4 V, [ i - ( . + i ) ^ ] ( 4 2 3 )
CA2(0 = 0.414 + 0.414(1 - <?-'/8-25) - 0.050f<r'/8-25
This is the same result as obtained in Example 3.3.
\—e—\
1 1 1 T 1 1 1 i i
m
ite
0 Length 1"O 0.5 // \\
FIGURE 4.2 2 / \ /—S^
O 0
Schematic of plug flow process. is
>< i i
V ^y " ^i i i i i i i
0 12 3 4 5 6 7 10
Time
FIGURE 4.3
Input and output for dead time (0) of one time unit.
EXAMPLE 4.3.
The dynamic behavior of turbulent fluid flow in a pipe approximates plug flow, with
the fluid properties like concentration and temperature progressing down the pipe
as a front. The dead time is 6 - L/v, i.e., the length divided by the fluid velocity.
The inlet concentration to the pipe in Figure 4.2 is X, and the outlet concentration
is Y. For ideal plug flow,
Yit) = Xit - 6) (4.25)
The Laplace transform of this model can be evaluated using the results in equation
(4.24) to give
Yis) = Xis)e~9s (4.26)
The effect of a dead time for an arbitrary input concentration is shown in Figure 4.3.
u
:
as s -» 0.
,0° dfit)
lim -stdt\ = \\m[sf(s)-f(t)]t=0 (4.27)
dt
Changing the order of the limit and the integral gives
,0° dfit)
. dt = \im\sfis) - fit)]
/Jo at 5->o t=0
/(oo) = s-*0
lim sfis)
Equation (4.28) provides an easy manner for finding the final value of a variable; 105
however, one should recognize that a simpler method would be to formulate and
solve the steady-state model directly. The final value theorem finds use because the The Laplace
dynamic models are required for process control, and the final value can be easily Transform
determined from the Laplace transform without further modelling effort. Also, it
is important to recall that the final value is exact only for a truly linear process and
is approximate when based on a linearized model of a nonlinear process.
EXAMPLE 4.4.
Find the final value of the reactor concentration, expressed as a deviation from 'AO
the initial value, for the CSTRs in Example 4.2. The Laplace transform for the U-
concentration in response to a step in the inlet concentration is given in equation 'Al
The engineer must recognize a limitation when applying the final value the
orem. The foregoing derivation is not valid for a Laplace transform fis) that is
not continuous for all values of s > 0 (Churchill, 1972). If the transform has a
discontinuity for s > 0, the time function fit) does not reach a final steady-state
value, as will be demonstrated in the discussion of partial fractions. Therefore, the
final value theorem cannot be applied to unstable systems.
EXAMPLE 4.5.
Find the final value for the following system.
K
Yis) = (AX) with r > 0
sixs — 1)
This transfer function has a discontinuity at s = 1/r > 0; therefore, the final value
theorem does not apply. The analytical expression for Yit) is
EXAMPLE 4.7.
Using Laplace transforms, determine the response of the level in the draining tank
(Example 3.6) to two different changes to the inlet flow, (a) a step and (b) an
impulse.
Data. Cross-section area A = 7 m2, initial flows in and out, = 100 m3/min, initial
level = 7 m, kFX = 37.8 (m3/h)/(m-°-5). The model for the draining tank level is
based on an overall material balance of liquid in the tank depending on the flow
in (Fo)andout(Fi).
dL
pA— - pF0 - pFx (4.36)
The tank cross-sectional area is A. The flow out depends on the level in the tank
through a nonlinear relationship, and after linearization, the level model is
F<J(0 dt = M m3 (4.40)
/
The Laplace transform of the impulse, F^is) = M, can be introduced into
equation (4.38) to give
xs + \
The inverse Laplace transform can be evaluated using entry 4 in Table 4.1,
which gives [substituting the definition of the gain Kp = x/iA)] the following
result:
L ' i t ) =x h E e - tAh = M e _ t l x ( 4 4 1 )
The dynamic response of the draining tank level to an impulse of M = 20 m3 is
shown in Figure 4.4. For the parameters in the example, the levels calculated
using the nonlinear and linearized models are nearly identical. The level im
mediately increases in response to the addition of liquid. Since the inlet flow
returns to its initial value after the impulse, the level slowly returns to its initial
value.
Partial Fractions
The Laplace transform method for solving differential equations could be limited
by the entries in Table 4.1, and with so few entries, it would seem that most models
could not be solved. However, many complex Laplace transforms can be expressed
as a linear combination of a few simple transforms through the use of partial fraction
expansion. Once the Laplace transform can be expressed as a sum of simpler
elements, each can be inverted individually using the entries in Table 4.1, thus
greatly increasing the number of equations that can be solved. More importantly,
the application of partial fractions provides very useful generalizations about the
forms of solutions to a wide range of differential equation models, and these
generalizations enable us to establish important characteristics about a system's
time-domain behavior without determining the complete transient solution. The
partial fractions method is summarized here and presented in detail in Appendix H.
108 10 1 1 1 r i i i i i
9.5
CHAPTER 4
Modelling and 9 \ -
Analysis for Process
Control 8.5 - \^ -
8_ >v -
E
- ^\^^ -
£7.5
3 7
6.5 — -
-
6-
5.5 -
1 1 1 1 1 1 _l 1 J
0 0.5 1.5 2 2.5 3 3.5 4.5
Time (h)
FIGURE 4.4
The reader may have noticed that nearly all Laplace transforms encountered to
this point are ratios of polynomials in the Laplace variable s. The partial fractions
method can be used to express a ratio of polynomials as a sum of simpler terms.
For example, if the roots of the denominator are distinct, a ratio of higher-order
numerator and denominator polynomials can be expressed as the sum of terms, all
of which have constant numerators and first-order denominators, as given below.
This equation includes distinct (a\), repeated real (ap), and complex roots (aq), not
all of which may appear in a specific solution, in which case some of the constants
(A, B, or C) will be zero. Two important conclusions can be drawn:
1. Stability. The real parts of the roots of the characteristic polynomial, Dis),
determine the exponents (a's) in the solution. These exponents determine
whether the function approaches a constant value after a long time. For exam
ple, when all real parts of the roots, i.e., all Re(a,), are negative, all terms on
the right of equation (4.43) approach a constant value after an initial transient;
a system which tends toward a constant final value is termed stable. If any
Re(a,) is greater than zero, the function Yit) will increase (or decrease) in an
unbounded manner as time increases; this is termed unstable.
We must look carefully at the case of roots with a value of zero. If one
distinct root has a value of zero, the system is stable, while if repeated roots
have values of zero, the system is unstable. This result is summarized in the
following.
Number of
z e r o r o o t s Te r m s i n s o l u t i o n I s t h e s y s t e m s t a b l e ?
Only one Axe° = Ax — constant Yes
Two (or more) (Bx + B2t)e° = (Bx + B2t) No, this term increases in
magnitude without limit
These two results enable the engineer to determine key features of the dynamic
performance of systems without evaluating the complete dynamic transient via
inverse Laplace transform. The simplification is enormous!
Certainly, a process would be easier to operate when it is stable so that vari ables
rapidly approach constant values and no variables tend to increase or decrease
without limit (based on a linearized model). Also, while oscillations are not usually
completely avoided, oscillations of large magnitude are generally undesirable.
Thus, the nature of the roots of the characteristic polynomial and how process
design and control algorithms affect these roots are important factors in designing
good processes and controls. These issues will be investigated thoroughly in Part
III on feedback control by evaluating the roots of the characteristic polynomial, and
the partial fraction method provides the mathematical foundation for this important
analysis.
110 EXAMPLE 4.8.
Determine whether the concentration in the second reactor in Example 4.6 is stable
CHAPTER 4 and underdamped without solving for the concentration.
Modelling and The roots of the denominator of the Laplace transform can be evaluated to
Analysis for Process determine these key aspects of the dynamic behavior. The Laplace transform is
Control
repeated below.
KPACAQ
C'(s) = (4.44)
s(xxs + l)(x2s + 1)
'AO The roots of the denominator, which are the exponents, are -1/ti, -1/t2, and 0.0.
Since both nonzero time constants are positive, the roots are less than zero; also,
'Al only one zero root exists. Therefore, the concentration reaches a constant value
CD and is stable. Also, since the roots are real, the concentration is overdamped. Natu
'A2
do rally, these conclusions are consistent with the equation defining the time-varying
concentration derived in Example 4.5; however, the conclusions were reached
here with minimal effort and can be determined for more complex Laplace trans
forms that do not appear in Table 4.1.
The transfer function of a system is defined as the Laplace transform of the output
variable, 7(0, divided by the Laplace transform of the input variable, Xit), with all
initial conditions equal to zero.
Yjs)
Transfer function = Gis) = (4.45)
Xis)
The assumptions of Y (0) = 0 and X(0) = 0 are easily achieved by expressing the
variables in the transfer function as deviations from the initial conditions. Thus, all
transfer functions involve variables that are expressed as deviations from an initial
steady state. All derivatives are zero if the initial conditions are at steady state.
(Systems having all zero initial conditions are sometimes referred to as "relaxed.")
These zero initial conditions are assumed for all systems represented by transfer
functions used in this book; therefore, the prime symbol"'" for deviation variables
is redundant and is not used here when dealing with transfer functions. Transfer
functions will be represented by Gis), with subscripts to denote the particular
input-output relationship when more than one input-output relationship exists.
Before proceeding with further discussion of transfer functions, a few examples
are given.
EXAMPLE 4.9.
Derive the transfer functions for the systems in Examples 4.1 and 4.2. The Laplace
transform of the model in Example 4.1 is in equation (4.16). This can be rearranged
to give the transfer function for this system:
CA(0 1 V
Example 4.1: with x = — (4.46)
CaoOO xs + 1 F
The Laplace transform for the model in Example 4.2 can be rearranged to give
the transfer function for this system:
CA2js) = Kr
Example 4.2: (4.47)
CAOis) ixs +1)2
with x=
F+Vk
F
Kp =
\F + Vk)
The models from the previous examples could be used to form transfer functions,
because they were in terms of deviation variables with zero initial conditions.
Note that the transfer function relates one output to one input variable. If
more than one input or output exists, an individual transfer function is defined for
each input-output relationship. Since the transfer function is a linear operator (as
112 a result of the zero initial conditions), the effects of several inputs can be summed
to determine the net effect on the output.
CHAPTER4 EXAMPLE 4.10.
Modelling and
Analysis for Process Derive the transfer functions for the single CSTR with the first-order reaction in
Control Example 3.2 for changes in the inlet concentration and the feed flow rate.
The two linear models for each input change can be determined by assuming
that all other inputs are constant. The basic model was derived in Example 3.2 and
is repeated below.
'AO
V^£ (4.48)
at = FiCM-CA)-VkCA
U To determine whether the model is linear or not, the constant values are substituted
(noting that the flow and inlet concentrations are now variables) to give
do <2.1)^r
V CA dt = F(Ca° - Ca> - (2.D(0.040)CA
The model is nonlinear because of the products of flow times concentrations.
Two linearized models can be derived from equation (4.48), one for each input
(assuming the other input constant), to give
dC\
tca-
dt
+ CA = KCACA0
withT«=Grrw) *«=GnW(4'49)
tf^+C'a = KfF'
Taking the Laplace transforms and rearranging yields the two transfer functions,
one for each input.
CAjs) = GcAis) = &CA
(4.51)
CaoCO tCAs +1
The transfer function clearly shows some important properties of the system
briefly discussed below.
Order
The order of the system is the highest derivative of the output variable in the
defining differential equation, when expressed as a combination of all individ
ual equations. For transfer functions of physical systems, the order can be easily
determined to be the highest power of s in the denominator.
Pole
A pole is defined as a root of the denominator of the transfer function; thus, it is
the same as a root of the characteristic polynomial. Important information on the
dynamic behavior of the system can be obtained by analyzing the poles, such as
The analysis of poles is an important topic in Part III on feedback systems, since
feedback control affects the poles.
Zero
A zero is a root of the numerator of the transfer function. Zeros do not influence
the exponents (Re(a)), but they influence the constants in equation (4.43). This
can most easily be seen by considering a system with n distinct poles subject to an
impulse input of unity. The expression for the output, since the Laplace transform
of the unity input impulse is 1, is
N(s) Mi(s)
Y(s) = G(s)X(s) = G(s) = for i = 1, n (4.53)
D(s) s — a,-
For a system with no zeros, the numerator would be equal to a constant, N(s) = K,
and the constant associated with each root is
With no zeros " U(*)/,«, (4.54)
Dt (s) is the denominator, with (s — a,) factored out. For a system with one or more
zeros, the constant associated with each root is
With zeros 1 V Aco/,=_ff, (4.55)
Thus, the numerator changes the weight placed on the various exponential terms.
This demonstrates that the numerator of the transfer function cannot affect the
stability of the system modelled by the transfer function, but it can have a strong
influence on the trajectory followed by variables from their initial to final values.
A simple, but less general, example to demonstrate the effect of numerator zeros
is seen in the following transfer function.
Gw( s(3s
) + 1)(2.5j
= +^ i1)
i 2.5^_ + 1 1 (4.56)
The numerator zero cancelled one of the poles, with the result that the second-order
system behaves like a first-order system. Important examples of how zeros occur
in chemical processes and how they influence dynamic behavior are presented in
the next chapter, Section 5.4.
Steady-State Gain
The steady-state gain is the steady-state value of A Y/ AX for all systems whose
outputs attain steady state after an input perturbation AX. The steady-state gain is
normally represented by K, often with a subscript, and can be evaluated by setting
s = 0 in the (stable) transfer function. This is exact for linear systems and gives
the linearized approximation for nonlinear systems.
EXAMPLE 4.11.
Determine the stability and damping of the outlet concentration leaving the last of
'AO two isothermal CSTRs in Examples 4.2 and 4.9.
The transfer function for this system was derived in Example 4.9 and is re
-W- 'Al peated below.
do ■W CA2(Q = G() _ KP
'A2 (4.57)
db CaoCO (w + D2
The order of the system is the highest power of s in the denominator, 2. This indi
cates that the process can be modelled using two ordinary differential equations.
The poles are the roots of the polynomial in the denominator; they are repeated
roots, a = -1/t = -1/8.25 min-1 = -0.1212 min"1. The dynamic behavior is non-
periodic (overdamped), because the poles are real and not complex. Also, the
poles are negative, indicating that the process is stable.
For a stable process, the steady-state gain can be determined by setting
s = 0 in the transfer function.
Steady-state gain: iGis))s=0 = Kp
Also, the final value of the reactant concentration in the second reactor can be
evaluated using the fi n a l value theorem. 11 5
The block diagram provides the method for combining individual transfer
functions into an overall transfer function. The three allowable manipulations in
a block diagram are shown in Figure 4.5a through c. The first is the transform
of an input variable to an output variable using the transfer function; this is just
a schematic representation of the relationship introduced in equation (4.45) and
discussed in the previous section. The second is the sum (or difference) of two
variables; the third is splitting a variable for use in more than one relationship.
These three manipulations can be used in any sequence for combining individual
models. A more comprehensive set of rules based on these three can be developed
(Distephano et al., 1976), but these three are usually adequate.
To clarify, a few illegal manipulations, which are sometimes mistakenly used,
are shown in Figure A.5d through /. The first two are not allowed because the
Allowed Not Allowed
116
id) -<MW
CHAPTER 4 "
Yis)
Modelling and
Analysis for Process X2is)—* G{s) —^Yis)
Control
ie)
*(*)—•* Gis) —+- Yxis)
X3is)
X2(s)
—▶ Y2is)
Xxis) + X2is) = X3is)
transfer function is defined for a single input and output, and the third is not
allowed because the block diagram is limited to linear operations.
The block diagram can be prepared based on linearized models (transfer func
tions) of individual units and the knowledge of their interconnections. Then an
input-output model can be derived through the application of block diagram alge
bra, which uses the three operations in Figure 4.5a through c. The model reduction
steps normally followed are
1. Define the input and output variables desired for the overall transfer function.
2. Express the output variable as a function of all variables directly affecting it
in the block diagram. This amounts to working in the direction opposite to the
cause-effect relationships (arrows) in the diagram.
3. Eliminate intermediate variables by this procedure until only the output and
one or more inputs appear in the equation. This is the input-output equation
for the system.
4. If a transfer function is desired, set all but one input to zero in the equation
from step 3 and solve for the output divided by the single remaining input.
This step may be repeated to form a transfer function for each input.
ib) 2
F
CA0is) CA2is)
.F+Vk
[TS + I]2
FIGURE 4.6
Block diagrams for Example 4.12.
CMjs) K>
Gxis) = with r = K, = (4.58)
CAOis) xs + \ F + Vk F + Vk
CA2is) K2 V F
G2is) = with x = Kj = (4.59)
Cai(j) xs + \ F + Vk '"' F + Vk
Block diagram manipulations can be performed to develop the overall input
output relationship for the system.
CA2 = G2is) CaiCs) = G2is) [Giis) CAOis)] = G2is) Gxis)CAOis)
KXK2 (4.60)
;CAOis)
ixs + l)2
This can be rearranged to give the transfer function and the block diagram in
Figure 4.6b.
Ca2(*) = = KXK2
(4.61)
CAOis) {S) ixs +1)2
EXAMPLE 4.13.
Derive the overall transfer functions for the systems in Figure 4.7. The system in
part (a) is a series of transfer functions, for which the overall transfer function is
the product of the individual transfer functions.
X„is) = Gnis) Xn-iis) = GM G„_,(j) X._2(j)
= G„is) Ga-iis) Gn.2is) -Giis) Xois) (4.62)
Xnjs) = Y\G'^
Xois) i=i
The system in part (b) involves a parallel structure of transfer functions, and
the overall transfer function can be derived as
X3is) = X, is) + X2is) = G, is) X0is) + G2is) XQis) (4.63)
X3is) = Gxis) + G2is)
Xois)
118 (a)
X0is) Xj(i) X2is) Xnis)
Gxis) G2 G3is) Gnis)
CHAPTER 4
Modelling and
Analysis for Process
Control
(b)
Xxis)
1 * ■ Gxis) *•
<
Xois)- C
<§>—+~X3is)
X2is)
▶
» G2is) »•
(c)
Xxis) X2is)
X0is)-+-®—*- Gxis)
X3is) ^
G2is)
FIGURE 4.7
Three common block diagram structures considered in Example 4.13.
The system in part (c) involves a recycle structure of transfer functions, and
the overall transfer function can be derived as
It is perhaps worth noting that the block diagram is entirely equivalent to and
provides no fundamental advantage over algebraic solution of the system's linear
algebraic equations (in the s domain). Either algebraic or block diagram manipu
lations for eliminating intermediate variables to give the input-output relationship
will result in the same overall transfer function. However, as demonstrated by the
examples, the block diagram manipulations are easily performed.
Two further features of block diagrams militate for their extensive use. The
first is the helpful visual representation of the integrated system provided by the
block diagram. For example, the block diagram in Figure 4.7c clearly indicates a
recycle in the system, a characteristic that might be overlooked when working with
a set of equations. The second feature of the diagrams is the clear representation
of the cause-effect relationship. The arrows present the direction of these rela
tionships and enable the engineer to identify the input variables that influence the
output variables. As a result, block diagrams are widely used and will be applied 119
extensively in the remainder of this book.
Frequency Response
4.5 m FREQUENCY RESPONSE*
An important aspect of process (and control system) dynamic behavior is the
Upstream Downstream
response to periodic input changes, most often disturbances. The range of possible
plant plant
dynamic behavior can be determined by considering cases (in thought experiments)
at different input frequencies for an example system, such as the mixing tank
in Figure 4.8. If an input variation is slow, with a period of once per year, the
output response would be essentially at its steady-state value (the same as the
input), with the transient response being insignificant. If the input changed very FIGURE 4.8
rapidly, say every nanosecond, the output would not be significantly influenced; Intermediate inventory to attenuate
that is, its output amplitude would be insignificant. Finally, if the input varies at variation.
some intermediate frequency near the response time of the process, the output will
fluctuate continuously at values significantly different from its mean value. The
behavior at extreme frequencies is easily determined in this thought experiment,
but the method for determining the system behavior at intermediate frequencies is
not obvious and is useful for the design process equipment, selection of operating
conditions, and formulation of control algorithms to give desired performance.
Before presenting a simplified method for evaluating the effects of frequency, a
process equipment design example is solved by determining the complete transient
response to a periodic input.
EXAMPLE 4.14.
The feed composition to a reactor varies with an amplitude larger than acceptable
for the reactor. It is not possible to alter the upstream process to reduce the os
cillation in the feed; therefore, a drum is located before the reactor to reduce the
feed composition variation, as shown in Figure 4.8. What is the minimum volume
of the tank required to maintain the variation at the inlet to the reactor (outlet of the
tank) less than or equal to ± 20 g/m3?
Assumptions. The assumptions include a constant well-mixed volume of liq
uid in the tank, constant density, constant flow rate in, and the input variation in
concentration is well represented by a sine. Also, the system is initially at steady
state.
Data.
1. F = 1 m3/min.
2. CA0 is a sine with amplitude of 200 g/m3 and period of 5 minutes about an
average value of 200 g/m3.
Solution. The model for this stirred-tank mixer was derived in Example 3.1 and
applied in several subsequent examples. The difference in this example is that the
input concentration is characterized as a sine rather than a step, CA0 = A sin icot).
Thus, the model for the tank is
dC
V—-AL = FiA sin icot)) - FC'AX (4.65)
dt
To more clearly evaluate the model for linearity, the values for all constants (in this
*The reader may choose to cover this material when reading Chapter 10.
120 example) can be substituted into equation (4.65), giving the following:
CHAPTER 4
dCtAl = (l)[(200)sin(27r/5)]-(l)CA1
Modelling and dt
Analysis for Process
Control Since V is a constant to be determined, the equation is linear, and we can proceed
without linearization. Equation (4.65) could be solved by using either the integrat
ing factor or Laplace transforms. Here, the Laplace transform of equation (4.65)
is taken to give, after some rearrangement,
CUs) = ' K)
Aco 1
is2 + co2)
with x = —
v
(4.66)
Acox
C'AX(t) =
,-'/* + sin icot + <f>) (4.67)
1 + x2co2 VT+ x2co2
Results analysis. The first term in equation (4.67) tends to zero as time in
creases; thus, the response of the process after a long time of operation (about
four time constants) is not affected by this term. The second term describes the
"long-time" behavior of the concentration in response to a sine input. It is periodic,
with the same frequency as the input forcing and an amplitude that depends on
the input amplitude and frequency, as well as process design parameters. For
this example, the output amplitude must be less than or equal to 20; by setting
the amplitude equal to the limit, the time constant, and thus the volume, can be
calculated.
'Allmax — = 20 (4.68)
x/l + r V
200 y
Note that the analytical solution provides valuable sensitivity information, such
as the amount the size of the vessel must be increased if the input frequency
decreases.
For the system in Figure 4.9 the amplitude ratio = B/A, and the phase angle
= —2niP'/P) radians. Note that P' is the time difference between the input and
its effect at the output and can be greater than P.
The usefulness of the amplitude ratio was demonstrated in Example 4.14, and
the importance of the phase angle, while not apparent yet, will be shown to be very
important in the analysis of feedback systems. Recalling that feedback systems
adjust an input based on the behavior of an output, it is reasonable that the time
(or phase) delay between these variables would affect the feedback system. The
analysis of feedback systems using frequency response methods is introduced in
Chapter 10 and used in many subsequent chapters.
Example 4.14 demonstrates that the frequency response of linear systems
can be determined by the direct solution of the ordinary differential equations.
However, this approach is time-consuming for complex systems. Also, the solution
of the entire transient response provides information not needed, because only
the behavior after the initial transient is desired. Now a simpler approach for
1 1 , 1 1 1
E
«
VI
> x
Vi
/ B \^ / \
E
n / \ / \
£ V / k \ /
o
s ^« ■ <^ i ^»—^
o
^ i i ! i i i
P'-
!-* p - \>
oE
s$\ i 1
f x '
VI
>>
v>
O / ; \ / \
o
c \ /
\ /
X
1 X. S , \/
Time
FIGURE 4.9
(4.73)
^ . ^ ^ ■ - ^ ; ^ ^ ( ^ g )
It is important to recognize that the frequency ico) must be expressed as radians/time.
Thus, the frequency response can be determined by substituting jco for s in the
transfer function and evaluating the magnitude and angle of the resulting complex
number! This is significantly simpler than solving the differential equation.
Note that the frequency response is entirely determined by the transfer func
tion. This is logical because the initial conditions do not influence the long-time
behavior of the system. Also, the derivation of the equations (4.72) and (4.73)
clearly indicates that they are appropriate only for stable systems. If the system
were unstable (i.e., if Re(a,) > 0 for any i), the output would increase without
limit (for the linear approximation). Also, this analysis demonstrates that the out
put of a linear system forced with a sine approaches a sine after a sufficiently long
time. How "long" this time is depends on all other terms; for most of the transient
to have died out (i.e., e~at < 0.02), the time should satisfy at = t/x > 4. Thus,
a long time can usually be taken to be about four times the longest time constant,
or the smallest a.
EXAMPLE 4.15.
Repeat the frequency response calculations for the mixing tank in Example 4.14
and Figure 4.8, this time using the direct method based on the transfer function.
The frequency response is determined by substituting jco for s in the first-order
transfer function with x = 7.9.
Gis) = 1
xs + \
1 1 1 — xcoj 1 — xcoj
Gijco) = (4.74)
xcoj + 1 xcoj + 1 1 — xcoj 1 -I- x2co2
AR = |GO)| =
a/IT x2co2 1 1
1 + x2co2 VI + x2co2 Vl+62.4a>2
Frequency Response
Output
cA(t) <W^ WVN
1 I I i i i i 11 l 1 l l I I i 11 1 1—i i i i i i
do AT]
EXAMPLE 4.16. ~k 'Al
The two isothermal series CSTRs in Examples 3.3 and 4.2 rely on upstream pro do
cesses for the feed of reactant A. The upstream process producing A does not
124 operate exactly at steady state. Based on an analysis of the data, the feed con
centration to the first reactor varies around its nominal value in a manner that can
CHAPTER 4 be approximated by a sine with an amplitude of 0.10 mol/m3 and frequency of
Modelling and 0.20 rad/min. Would the second reactor concentration deviate from its steady-
Analysis for Process state value by more than 0.05 mol/m3? Variation greater than this amount is not
Control acceptable to the customer.
To answer this question, the frequency response must be evaluated. The im
portant behaviors can be stated as
CAoit) = CMss + A sin icot) or CAOit) = Asm icot)
Ca2 (0 = Cfi&s + B sin icot + <f>) or C'A2it) = B sin icot+ $)
with A = 0.10 mole/m3, co = 0.20 rad/min, and B the unknown amplitude to be
evaluated and compared with its maximum allowable variation magnitude. The
transfer function based on component material balances for the two tanks was
derived in Example 4.9 and is repeated below.
CA2js) = Kf
(4.76)
CAOis) ixs + \)2
The gain is 0.448, and the time constants are both 8.25 minutes. The results in
equations (4.71) to (4.73) demonstrate that the amplitude of the output variable can
be evaluated by setting s = jco and evaluating the magnitude. The expressions for
the frequency responses for many common transfer functions are provided later
in the book (e.g., Table 10.2), so the results of the algebraic manipulations are
summarized here without intermediate derivations being shown.
KB
\GiJco)\ = (4.77)
(l+a>2r2) A
The magnitude of the output concentration is the product of the input magnitude
and the amplitude ratio. Therefore,
B = * ' — A
(l-ra>2r2)' (4.78)
= (0.12)(0.10 mol/m3) = 0.012 mol/m3 < 0.050 mol/m3
Since the outlet concentration magnitude is lower than the maximum allowed, the
operation would be considered acceptable, but good engineering would call for
continued efforts to reduce all variation in product quality. Note that in this case, no
control correction is required. We are seldom so fortunate, and we usually have to
introduce corrective control actions through process control to maintain consistent
product quality.
The algebraic manipulations required to evaluate the amplitude ratio and phase
angle can be tedious. However, relationships to ease hand calculations are provided
in Chapter 10 for the commonly occurring series combinations of individual units.
For more complex structures the frequency response can be easily evaluated using
computer technology, because the amplitude ratio is the magnitude of the properly
defined function of a complex variable; likewise, the phase angle is the argument
of a complex variable. Many programming languages provide standard evaluations
of these functions.
In conclusion, the frequency response of a linear system can be easily deter
mined from the transfer function using equations (4.72) and (4.73). The frequency
response gives useful information concerning how the process behaves for various
input frequencies, and these results can be used for determining equipment de
sign parameters, such as the size of a drum to attenuate fluctuations. The general
frequency responses for some common systems are given in the next chapter for
several common systems, such as first- and second-order, and important applica
tions of frequency response to the analysis of feedback control systems are covered
in Part III.
4.6 - CONCLUSIONS
The methods in Chapters 3 and 4 can be combined in an approach, shown in
Figure 4.11, designed to provide models in the format most useful for the analysis
of process control systems. The initial steps involve the modelling procedure based
on fundamental principles summarized in Table 3.1. This procedure can be applied
to each process in a complex plant. Then the transfer function of each system is
determined by taking the Laplace transform of the linearized model. The block
diagram can be constructed to present the interactions among the individual transfer
functions, and the overall transfer function for the integrated system can be derived
through block diagram manipulation.
The overall transfer functions can be used to determine some important prop
erties of the system without solving the defining differential equations. These prop
erties include
Determining this information without the entire dynamic response has two advan
tages:
Naturally, information about the entire transient is not obtained by analyzing the
poles of the transfer function or by the frequency response calculations. The com
plete transient response can be obtained if needed from analytical or numerical
solution of the algebraic and differential equations.
As noted in the previous chapter, many different processes—heat exchangers,
reactors, and so forth—behave in similar ways. The transfer function method pre
sented in this chapter gives us a useful way to compare models for processes and
recognize similarities and differences, which is the topic of the next chapter.
REFERENCES
Boyce, W., and R. Diprima, Elementary Differential Equations, Wiley, New
York, 1986.
Caldwell, W., G. Coon, and L. Zoss, Frequency Response for Process Control,
McGraw-Hill, New York, 1959.
~ ^ ~ Formulate Model Based on Conservation Balances and Constitutive Relationships
V.F=constant • "Exact" dynamic behavior described by model
Steps in developing models for process control with sample results for a chemical reactor.
Churchill, R., Operational Mathematics, McGraw-Hill, New York, 1972. 127
Distephano, S., A. Stubbard, and I. Williams, Feedback Control Systems,
McGraw-Hill, New York, 1976. Questions
Jensen, V., and G. Jeffreys, Mathematical Methods in Chemical Engineering,
Academic Press, London, 1963.
Ogata, K., Modern Control Engineering, Prentice-Hall, Englewood Cliffs, NJ,
1990.
ADDITIONAL RESOURCES
The following references provide background on Laplace transforms and provide
extensive tables.
For additional discussions on the solution of dynamic problems for other types
of physical systems, see Ogata, 1990 (in the References) and
Ogata, K., System Dynamics (2nd ed.), Wiley, New York, 1992.
Tyner, M., and F. May, Process Control Engineering, The Ronald Press, New
York, 1968.
All of the questions in Chapter 3 relating to dynamics can be solved using methods in
this chapter; thus, returning to those questions provides additional exercises. Also,
when solving the questions in this chapter, it is recommended that the results be
analyzed to determine
QUESTIONS
4.1. Several of the example systems considered in this chapter are analyzed
concerning the violation of safety limits. A potential strategy for a safety
128 system would be to monitor the value of the critical variable and when the
MMdMBbmMmm^m variable approaches the safety limit (i.e., it exceeds a preset "action" value),
CHAPTER 4 a response is implemented to ensure safe operation. Three responses are
Modelling and proposed in this question to prevent the critical variable from exceeding a
Analysis for Process maximum-value safety limit, and it is proposed that each could be initiated
when the measured variable reaches the action value. Critically evaluate
each of the proposals, and if the proposal is appropriate, state the value of
the action limit compared to the safety limit.
The proposed responses are
(i) Set the concentration in the feed (CAo) to zero.
(ii) Set the inlet flow to zero,
(iii) Introduce an inhibitor that stops the chemical reaction (for b).
The critical variables and systems are
id) Ca in the mixer in Example 4.1
(b) Ca2 in the series of two chemical reactors in Example 4.2
4.2. Solve the following models for the time-domain values of the dependent
variables using Laplace transforms.
(a) Example 3.2
(b) Example 3.2 with an impulse input and with a ramp input, C'A0(t) = at
for t > 0 (with a an arbitrary constant)
(c) Example 3.3 with an impulse input
4.3. The room heating Example 3.4 is to be reconsidered. In this question, a
mass of material is present in the room and exchanges heat with the air
according to the equation Q = UAm(T - Tm), in which UAm is an overall
heat transfer coefficient between the mass and the room air, and Tm is the
uniform temperature of the mass.
(a) Derive models for the temperatures of the air in the room and the mass.
Combine them into one differential equation describing T.
(b) Explain how this system would behave with an on-off control and note
differences, if any, with the result in Example 3.4.
4.4. An impulse of a component could be introduced into a continuous-flow
mixing tank.
(a) Describe how the experiment could be performed; specifically, how
could the impulse be implemented in the experiment?
(b) Derive a model for the component concentration in the tank, and solve
for the concentration of the component in the tank after the impulse.
(c) Discuss useful information that could be determined from this exper
iment.
4.5. A CSTR has constant volume and temperature and is well mixed. The
reaction A -+ B is first-order and irreversible. The feed can contain an
impurity which serves as an inhibitor to the reaction; the rate of reaction
of A is /"a = -koe~E/RTC\/(\ + k\C\) where C\ is the concentration
of inhibitor. The reactor is initially at steady state and experiences a step
change in the inhibitor concentration. Determine the dynamic response of
the concentration of reactant A after the step based on a linearized model.
(Hint: You must determine the concentration of inhibitor first.)
4.6. For the following systems, (a) apply the final value theorem and (b) calcu 129
late the frequency response.
(i) Example 3.2 Questions
(ii) Example 3.3
(Hi) A level system with L(s)/Fm(s) = l/As, with Fm(s) = AF[n/s and
A = cross-sectional area [see equation (5.15)].
For each case, state whether the result is correct, and if not, why.
4.7. The process shown in Figure Q4.7 is to be modelled and analyzed. It con
sists of a mixing tank, mixing pipe, and CSTR. Information for modelling
is given below.
(i) Both tanks are well mixed and have constant volume and temperature,
(ii) All pipes are short and contribute negligible transportation delay,
(iii) All flows are constant, and all densities are constant,
(iv) The first tank is a mixing tank.
(v) The mixing pipe has no accumulation, and the concentration Ca3 is
constant,
(vi) The second tank is a CSTR with A -> products and ta = —kCA .
(a) Derive a linear(ized) model (algebraic or differential equation) relating
C'A2(t) to C'A0(t).
ib) Derive a linear(ized) model (algebraic or differential equation) relating
CA4(OtoCA2(0.
(c) Derive a linear(ized) model (algebraic or differential equation) relating
cA5(otocA4(o.
id) Combine the models in parts (i) to (iii) into one equation relating CA5 to
CA0 using Laplace transforms. Is the response unstable? Is the response
periodic?
mixing
CAo / pipe
\CtA2 -A4
'A3
mixing tank
'A5
stirred-tank reactor
FIGURE Q4.7
FIGURE Q4.9
4.10. For each of the block diagrams in Figure Q4.10, derive the overall input-
output transfer function Xi (s)/Xq(s). (Note that they are two of the most
commonly occurring and important block diagrams used in feedback con
trol.)
4.11. The isothermal chemical reactor in Figure Q4.11 includes a liquid inventory
in which the turbulent flow out depends on the liquid level. The chemical
reaction is first-order with negligible heat of reaction, A -» B, and it occurs
only in the tank, not in the pipe. The system is initially at steady state and
experiences a step change in the inlet flow rate, with the inlet concentration
constant.
id) Derive the overall and component material balances.
ib) Linearize the equations and take the Laplace transforms.
(c) Determine the transfer function for Ca(s)/F0(s).
ia) 131
X0is) GAs) G2is) G3is) G4(s) Xx(s)
Questions
ib) + 'AO
L C*
FIGURE Q4.10
A±>B
which is first-order with the forward and reverse rate constants k\ and k2,
respectively. Only component A appears in the feed. The system is initially
at steady state and experiences a step in the concentration of A in the feed.
Formulate a model to describe this system, and solve for the concentrations
of A and B in the reactor.
4.14. Answer the following questions.
id) The initial value of a variable can be determined in a manner similar
to the final value. Derive the general expression for the initial value.
ib) The transfer function in equation (4.46) can be inverted to give
CAq(s) _ xs + 1
CAis) " Kp
Discuss whether this is also a transfer function describing the process,
(c) The transfer function is sometimes referred to as the impulse response
of the (linear) system. Demonstrate why this statement is true.
id) If only the input-output relationship is required, why are all equations
for the system included in the model, rather than only those equations
involving the input and output variables?
132 4.15. A heat exchanger would be difficult to model, because of the complex
fluid mechanics in the shell side. To develop a simple model, consider the
CHAPTER4 two stirred tanks in Figure Q4.15, in which heat is transferred through the
Modelling and common wall, with Q = UAiAT) and UA being constant.
Analysis for Process
Control id) Using typical assumptions for the stirred tanks and ignoring energy
accumulation effects of the walls, derive an unsteady-state energy bal
ance for the temperatures in both tanks.
ib) Solve for the analytical expression for both temperatures in response
to a step in 7/,o.
Th0
■1
TCQ (c) Is it possible for this system to have periodic behavior?
'
n | T1c 4.16. For the series of isothermal CSTRs in Example 3.3:
vh vc id) Derive the transfer function for CA2(s)/Fis).
ib) Use this result to determine the response of Ca2 to an impulse in the
FIGURE Q4.15 feed rate F.
4.17. The system in Figure Q4.17 has a flow of pure A to and from a draining
tank (without reaction) and a constant flow of B. Both of these flows go
to an isothermal, well-mixed, constant-volume reactor with A + B ->
products and rA = rB = -£CaCb. Make any additional assumptions
in determining analytical expressions for the dynamic responses from an
initial steady state.
id) Determine the flow of A to the chemical reactor in response to a flow
step into the draining tank.
ib) Determine the concentration of A in the chemical reactor in response
to id).
® ®
FIGURE Q4.17
4.18. The process in Figure Q4.18 involves a continuous-flow stirred tank with 133
a mass of solid material. The assumptions for the system are: H f f l f a M M I —■
Table 1. Terminologies
No. Term Definition
1 Modelling It is a task that requires creativity and problem-solving skills.
2 Lumped-Parameter It is a system with no spatial variation in important variables.
3 Distributed-parameter It is a system with significant variation in one or more directions.
4 Forcing functions The external variables that are inputs to the system.
5 Conservation Balances relationships that are obeyed by all physical systems under common
assumptions valid for chemical processes.
6 Constitutive Equations It provides relationships that are not universally applicable but are selected to
be sufficiently accurate for the specific system being studied.
7 Exogenous variables variables whose values are not dependent on the behavior of the system
being studied.
8 Parameter It is termed the time constant of the system and will appear in many models
9 Interrogate It is to elicit the information needed to achieve the original modelling goals in
the mathematical solution.
10 Specific numerical values to make quantitative decisions on equipment size, operating conditions, and
so on.
11 Validation involves determining whether the results of step 1 through 5 truly represent
the physical process with the required fidelity for the specified range of
conditions.
12 Sigmoidal “S” with a derivative that goes through a maximum at an inflection point reduces
to zero at the new steady state.
13 Operator 𝓕 is linear if it satisfies the properties of additivity and proportionality, which are
included in the following superposition.
14 Linearized model can be developed by approximating each nonlinear term with its linear
approximation.
15 Nonlinear term can be approximated by a Taylor series expansion to the nth order about a
point if derivatives up to nth order exist at the point.
16 Numerical method it provides a set of points that are close to the true solution of the differential
equation.
17 Numerical solutions It is to use an initial value (or values) of a variable and an approximation of
the derivative over a single step to determine the variable after the step.
18 Stiff high-order systems that have time constants differ greatly .
19 Goals It is a critical element of the modelling task and should be specific concerning
the type of information needed.
20 System or Control Volume It is a volume within which the important properties do not vary with position.
21 Good comparisons Demonstrate that the model has not been invalidated by the data; another
experiment could still find data that is not properly explained by the model.
22 R It is the remainder and depends on the order of the series.
23 Process Control Models These are developed to relate each input variable (cause) to the output
variable (effect).
24 Key Dependent Variables variable whose behavior will be predicted within the defined system
25 DOF = 0 the system is exactly specified, and the solution of the model can proceed.
26 DOF<0 the system is overspecified, and in general, no solution to the model exists.
27 DOF>0 system is underspecified, and an infinite number of solutions to the model
exists.
28 Euler Integration Method This procedure can be repeated for any number of steps to yield the
approximate solution over a time interval.
29 Euler accumulated error This is proportional to the step size.
30 Runge-Kutta Error This depends on the step size to the fourth power.
31 Implicit numerical method numerical method which involves iterative calculations at each step.
32 Chemical Reactor One of the most important processes for the engineer because of its strong
influence on product quality and profit.
33 Dynamic Behaviors of These vary from quite straightforward to highly complex.
Chemical Reactors
34 Time Constant Multiplies derivatives in standard model form.
35 Conservation of Mass It is a principle which states that a mass can be created or destroyed
36 Conservation of Energy t is one of the principles in physics which states that the total energy of an
the isolated system remains constant.
37 Momentum It is the product of the mass of the particle and its velocity.
38 Physical Systems It is the portion of the physical universe that is being utilized for an analysis.
39 Fundamental Models It is the standard material model utilized in process control.
40 Process Control It is the ability to monitor and adjust a process to come up to the desired
output.
41 Analytical Expression It is a form of mathematical expressions which consists of well-known
operations and was made ready for any calculation.
42 Flow rate It is the measure of the amount of fluid that flows in a given time.
43 Volume It is the amount of space that an object occupies.
44 Temperatures It is the measure of hotness and coldness which can be expressed in terms
of any several scales like kelvin or fahrenheit.
45 Energy Balance It is the process of determining the energy input, output, and consumption or
generation on a process unit.
46 Steady-state system It is a stable condition that does not change overtime and in which all state
variables are constant.
47 Integrating factor It is a function by which an ordinary differential equation can be multiplied for
it to be integrable.
48 Accuracy A degree which is free from error.
49 Speed A scalar quantity that tells on how fast an object is moving.
50 Constant A value that doesn’t change , it is already fixed.
51 Concentration It is the amount of substance in a mixture.
52 Quasi-Steady state It is a situation that happens to be changing so fast it can be considered as
constant.
53 Density The mass of a unit volume of a substance.
54 Fluid flow It is the motion on how the fluids move that is subjected to an unbalanced
force.
55 Solvent It is usually a liquid capable of dissolving another substance.
56 Analysis Detailed examination of something complex in order to fully understand it
57 Phase equilibrium It is the state of a thermodynamic system in which the distinct phases of a
substances with shared boundary surfaces do not alter quantitatively.
58 Independent Variable It is a variable that is not affected by other variables.
59 Numerical solution It is a trial-and-error approach that is more time consuming and yields
approximate results.
59 Modelling of Systems via It is the type of modelling required for processes in which product quality
Partial Differential Equations varies with position.
60 Distributed Models It is the type of modelling required for processes like paper and metal
production processes.
61 Assumptions It is the collection of choices, premises, conventions and specifications on
which mathematical models will be based. If such assumptions are nor
properly set-up, the problem cannot be solved appropriately.
62 Modelling Goals It expresses the relationship between the system and its environment. It
identifies what are we supposed to do in the system and what are the
problems that need to be resolved.
63 External Variables These are the inputs to the system. It is also described as the changes to
operating variables introduced by a person in an associated process or
changes to the behavior of the system.
64 Material Balance It essentially tells how much material (concentration or number of moles) is
available for each species.
65 Heat Transfer It is defined as the flow of heat due to temperature changes and subsequent
temperature distribution.
66 Chemical Reaction Rate It is the speed at which a chemical reaction will proceed.
67 Equation of State It is an equation that describes the relationship between pressure, volume,
and temperature of a particular substance or matter.
68 Degrees of Freedom It is the maximum number of logically independent variables.
Table 3. Formulas
No. Name of the Formula Enumerated Data
1 Enthalpy ℎ = 𝑈 + 𝑝𝑣
where:
h = enthalpy
U = internal energy
p = Pressure
v = volume
2 Heat transfer 𝑄 = ℎ𝐴(∆𝑇)
where:
Q = heat transfer
h = enthalpy
A= area of surface
∆𝑇= temperature difference
3 Chemical reaction rate 𝑟𝐴 = 𝑘0𝑒
−𝐸/𝑅𝑇
𝐶𝐴
4 Equation of State 𝑃𝑉 = 𝑛𝑅𝑇
where:
P = pressure
V = volume
n = mole
R = ideal gas constant
T= temperature
5 Fluid flow 𝐹 = 𝐶𝑣(∆𝑃/ρ)
1/2
where:
DOF = Degrees of freedom
NV = number of dependent variables
NE = number of independent equations
8 Overall Material Balance {Accumulation of mass} = {mass in} - {mass out}
9 Component Material Balance {Accumulation of component mass} = {component mass in} — {component
mass out} + {generation of component mass}
10 Conservation Balances Accumulation = in - out + generation
11 Energy Balance {Accumulation of U + PE + KE} = {U + PE + KE in due to convection} - {U +
PE + KE out due to convection} + Q-W
where:
H = U + pv = enthalpy
KE = kinetic energy
PE = potential energy
pv = pressure times specific volume (referred to as flow work)
Q = heat transferred to the system from the surroundings
U = internal energy
W = work done by the system on the surroundings
Ws = shaft work done by the system on the surroundings
12 Deviation Variable (X-Xs) = X’
where:
Xs ~ steady-state value
13 First Order Chemical Reaction rA = -kCA
where:
rA ~ reaction rate
k ~ rate constant
14 Isothermal CSTR Time 𝑣
τ= 𝐹 + 𝑉𝑘
Constant
where:
V = volume of the reactor
F = feed flow rate
15 Weir Equation 𝐹1 = 𝑘𝐹 𝐿 − 𝐿𝑊 for 𝐿 > 𝐿𝑊
where:
kf = constant
L = V/A
Lw = level of the overflow weir
16 Integrating Factor
where:
IF = integrating factor
τ = time constant
17 Liquid Level in the Tank is 𝑑𝑉
= 𝐹0 − 𝐹1 = 0
𝑑𝑡
approximately Constant
Assumption
where:
V = volume ; constant
𝐹0 = flow in
𝐹1 = flow out
18 Material Balance on (𝑀𝑊𝐴𝑉𝐶𝐴)𝑡+∆𝑡 − (𝑀𝑊𝐴𝑉𝐶𝐴)𝑡 = (𝑀𝑊𝐴𝐹𝐶𝐴0 − 𝑀𝑊𝐴𝐹𝐶𝐴) ∆𝑡
component A for a time
increment ∆𝑡 where:
MWA = molecular weight of component A
V = volume
CA0 = inlet concentration of component A
CA = outlet concentration of component A
F = flow
t = time
19 Energy Balance with Constant {Accumulation of U + PE + KE} = {H + PE + KE in due to convection} - {H +
Volume PE + KE out due to convection} + Q - Ws
where:
H = enthalpy = U + pv
pv = flow work = pressure times specific volume
U = internal energy
PE = potential energy
KE = kinetic energy
Q = heat transferred to the system from the surroundings
Ws = shaft work done by the system on the surroundings
20 Heat Transfer Coefficient ℎ=
𝑞
∆𝑇
where:
h = heat transfer coefficient, W/m2-K
∆𝑇= difference in temperature, K
21 Material Balance on 𝑑𝐶𝐴
(𝑀𝑊𝐴)𝑉 = 𝑀𝑊𝐴𝐹(𝐶𝐴0 − 𝐶 )
component A for a time 𝑑𝑡
𝐴
increment ∆𝑡, dividing by
∆𝑡 and taking the limit as where:
∆𝑡 → 0 MWA = molecular weight of component A
V = volume
CA0 = inlet concentration of component A
CA = outlet concentration of component A
F = flow
22 Equation of State PV = nRT
where:
P = pressure, atm
V = volume, L
n = number of moles, mol
R = universal gas constant, L-atm/mol-K
T = temperature, K
23 Standard Form of First-Order 𝑑𝐶𝐴 1 1
= 𝐶𝐴 = 𝐶𝐴0
Ordinary Differential Equation 𝑑𝑡 τ τ
where:
CA0 = inlet concentration of component A
CA = outlet concentration of component A
τ = time constant
24 Separable First-Order Ordinary 𝑡/τ 𝑑𝐶𝐴 1 𝑡/τ 𝑑𝐶𝐴 𝑑𝑒
𝑡/τ
𝑡/τ
𝑑(𝑒 𝐶𝐴) 𝐶𝐴0 𝑡/τ
Differential Equation through 𝑒 ( 𝑑𝑡 + τ
𝐶𝐴) = 𝑒 𝑑𝑡
+ 𝐶𝐴 𝑑𝑡 = 𝑑𝑡
= τ
𝑒
Multiplying by the Integrating
Factor where:
𝑡/τ
𝑒 = integrating factor
CA0 = inlet concentration of component A
CA = outlet concentration of component A
τ = time constant
t = time
25 Phase equilibrium 𝑦𝑖 = 𝐾𝑖𝑥𝑖
where:
𝑦𝑖 = vapor-phase mole fraction
𝑥𝑖 = liquid-phase mole fraction
𝐾𝑖 = Raoult’s Law
26 Raoult’s Law 𝑃𝑖
𝑠𝑎𝑡
𝐾𝑖 = 𝑃
where:
𝐾𝑖 = Raoult’s Law
𝑠𝑎𝑡
𝑃𝑖 = saturated Pressure
P = pressure
27 Final Reactor Concentration 𝐹𝐶𝐴0 𝐹(∆𝐶𝐴0) −𝑡/τ
𝐶𝐴 = 𝐹+𝑉𝑘
− 𝐹+𝑉𝑘
𝑒
Where:
F = Volumetric Flow Rate
Ca = Final Concentration
Cao = Initial Concentration
I = Constant of Integration
𝝉 = time constant
t = time
28 Final Reactor Concentration 𝐶𝐴 = (𝐶𝐴)𝑖𝑛𝑖𝑡 +
𝐹
[𝐶𝐴0 − (𝐶𝐴0)𝑖𝑛𝑖𝑡](1 − 𝑒
−𝑡/τ
)
𝐹+𝑉𝑘
Where:
F = Volumetric Flow Rate
𝝉 = time constant
t = time
Ca(init) = Concentration at initial condition
Cao(init) = Inlet concentration at initial condition
Where:
Ca = Final Concentration
Cao = Initial Concentration
I = Constant of Integration
t = time
𝝉 = time constant
33 Steady-State Gain (Isothermal 𝐾𝑃 =
𝐹
𝐹+𝑉𝑘
CSTR)
Where:
Kp = steady-state gain
V = Volume
F = Molar flow rate
k = constant
34 Material Balance of Component {Accumulation of Component A} = {Component A in }-{Component A
A in a Well-mixed Tank out}+{Generation of A}
(𝑀𝑊𝐴𝑉𝐶𝐴)(𝑡+Δ𝑡) − (𝑀𝑊𝐴𝑉𝐶𝐴)𝑡 = (𝑀𝑊𝐴𝐹𝐶𝐴𝑂 − 𝑀𝑊𝐴𝐹𝐶𝐴)Δ𝑡
Where:
Ca = Molar Concentration of Component A
MWa = Molecular Weight of Component A
V = Volume
F = Flow rate
Δt = time increment
35 Solvent Balance in a 𝑑𝐶𝐴
𝑀𝑊𝑆𝑉 = 𝑀𝑊𝑆𝐹(𝐶𝑆0 − 𝐶𝑆)
Well-Mixed Tank 𝑑𝑡
Where:
Cs = Molar Concentration of the Solvent
MWs = Molecular Weight of the Solvent
36 Concentration 𝐶𝐴 = 𝐶𝐴0 + 𝐼𝑒
−𝑡/τ
Where:
Ca = Final Concentration
Cao = Initial Concentration
I = Constant of Integration
𝝉 = time constant
t = time
37 Constant of Integration 𝐼 = 𝐶𝐴𝑖𝑛𝑖𝑡 − 𝐶𝐴0
Where:
I = Constant of Integration
Ca(init) = Concentration at initial condition
38 Concentration of a Reactant in 𝐶𝐴 =
𝐹τ
𝐶𝐴0 + 𝐼𝑒
−𝑡/τ
𝑉
a Stirred-Tank Mixer
Where:
F = Volumetric Flow Rate
Ca = Final Concentration
Cao = Initial Concentration
I = Constant of Integration
𝝉 = time constant
t = time
39 Initial Steady-State Reactor (𝐶𝐴)𝑖𝑛𝑖𝑡 =
𝐹
(𝐶𝐴𝑂)𝑖𝑛𝑖𝑡
𝐹+𝑉𝑘
Concentration
Where:
Ca(init) = Concentration at initial condition
Cao(init) = Inlet concentration at initial condition
F = Volumetric Flow Rate
V = Volume
k = Rate constant
Where:
F = Operator
x,xs = variables
R = Constant
50 Taylor Series for functions of 𝐹(𝑥1, 𝑥2) = 𝐹(𝑥1𝑠, 𝑥2𝑠) +
𝑑𝐹
| (𝑥1 − 𝑥1𝑠) +
𝑑𝐹
| +
𝑑𝑥1 𝑥 ,𝑥 𝑑𝑥2 𝑥 ,𝑥
Two Variables 1𝑠 2𝑠 1𝑠 2𝑠
2 2
1𝑑 𝐹 2 1𝑑 𝐹 2
2 | (𝑥1 − 𝑥1𝑠) + 2 |𝑥 (𝑥1 − 𝑥1𝑠) +
2! 𝑑𝑥1 𝑥
1𝑠
,𝑥2𝑠 2! 𝑑𝑥2 1𝑠
,𝑥2𝑠
2
𝑑𝐹
|
𝑑𝑥1𝑑𝑥2 𝑥 ,𝑥
(𝑥1 − 𝑥1𝑠)(𝑥2 − 𝑥2𝑠) + 𝑅
1𝑠 2𝑠
Where:
F = Operator
x1,x2,xs = variables
R = Constant
Surname, Given Name Middle Initial : Cabarloc, Anjela Waine C.
Submission Button : Day 7 Assignment about Laplace Transform, and Block Diagram
Pledge of Honor
“I affirm that I shall not give or receive any unauthorized help on this assignment and that this work is my own.”
Table 1. Terminologies
No. Term Definition
1 Laplace transform It provides the engineer with a powerful method for analyzing process control
systems.
2 Impulse function It has zero width and total integral equal to C, is a special case of the pulse
3 Transfer Function defined as the Laplace transform of the output variable, Y(t), divided by the
Laplace transform of the input variable, X(t), with all initial conditions equal to
zero.
4 Order It is the highest derivative of the output variable in the defining differential
equation, when expressed as a combination of all individual equations.
5 Pole defined as a root of the denominator of the transfer function; thus, it is the
same as a root of the characteristic polynomial.
6 Zero It is a root of the numerator of the transfer function.
7 Steady-State Gain the steady-state value of A Y/ AX for all systems whose outputs attain steady
state after an input perturbation AX.
8 Steady-State systems with zero time derivatives.
9 Frequency Response defines the output behavior of a system to a sine input after a long enough
time that output is periodic.
10 Phase Angles phases differences between the input and output.
11 Stability The real parts of the roots of the characteristic polynomial, D(s),
determine the exponents (a's) in the solution.
12 Damping The nature of the roots of the characteristic polynomial determines whether
the dynamic response will experience periodic behavior for nonperiodic
inputs.
13 Relaxed Systems having all zero initial conditions
14 Dead time Is used often in process modelling to represent behavior in which the output
variable does not respond immediately to a change in the input variable.
15 Final value theorem finds use because the dynamic models are required for process control, and
the final value can be easily determined from the Laplace transform without
further modelling effort.
16 Unstable if any Re(∝𝑖) is greater than zero, the function Y(t) will increase ( or
decrease) in an unbounded manner as time increases,
17 Compressing can be achieved by first grouping variables into three categories: input
(causes), output (effects), and intermediate.
18 Linear dynamic models used in process control to eliminate intermediate variables analytically to
yield an input-output model, so that intermediate variables are considered in
the model even though they are not explicitly calculated.
19 Direction is presented in the transfer function by identifying the variable in the
denominator as input (cause) and in the numerator as an output (effect).
20 Strictly proper the order of the denominator is greater than of the numerator, and the value
of the transfer function as s →∞ is equal to 0.
21 Noncausal (physically models that cannot represent a real physical system.
realizable)
22 Block diagram provides the method for combining individual transfer functions into an overall
transfer function.
23 Second feature is the clear representation of the cause-effect relationship.
24 Arrow present the direction of these relationships and enable the engineer to
identify the input variables that influence the output variables.
25 Stable A system’s behavior wherein it achieves a steady-state value after a step
input; usually tends toward a constant final value.
26 Input/Cause The variable chosen to be adjusted.
27 Output/Effect The variable being measured and controlled.
28 Amplitude Ratio The ratio of the input and output magnitude of the system; magnitude of the
properly defined function of a complex variable.
29 Phase Angle Phase difference between the input and the output; argument of a complex
variable.
30 Overall Transfer Functions Used to determine some important properties of the system without solving
the defining differential equations.
Table 3. Formulas
No. Name of the Formula Enumerated Data
1 Amplitude ratio 𝑎𝑚𝑝𝑙𝑖𝑡𝑢𝑑𝑒 𝑟𝑎𝑡𝑖𝑜 =
𝑜𝑢𝑡𝑝𝑢𝑡 𝑚𝑎𝑔𝑛𝑖𝑡𝑢𝑑𝑒 |𝑌'(𝑡)|𝑚𝑎𝑥
= |𝑋'(𝑡)|𝑚𝑎𝑥
𝑖𝑛𝑝𝑢𝑡 𝑚𝑎𝑔𝑛𝑖𝑡𝑢𝑑𝑒
2 Dead time θ=
𝐿
𝑣
where:
L = length
V = Fluid velocity
3 Laplace transform 𝑌(𝑠) = 𝑁(𝑆)/𝐷(𝑠) = 𝐶1/(𝑠 − α1) + 𝐶2/(𝑠 − α2) +...
where:
Before examples are presented, a few important properties and conventions are
stated.
1. Only the behavior of the time-domain function for times equal to or greater
than zero is considered. The value of the time-domain function is taken to be
zero for t < 0.
2. A Laplace transform does not exist for all functions. Sufficient conditions for
the Laplace transform to exist are (i) the function fit) is piecewise continuous
and (ii) the integral in equation (4.1) has a finite value; that is, the function /(/)
does not increase with time faster than e~st decreases with time. Functions typ
ically encountered in the study of process control are Laplace-transformable
and are not checked. Further discussion of the existence of Laplace transforms
is available (Boyce and Diprima, 1986).
3. The Laplace transform converts a function in the time domain to a function
in the "5-domain," in which s can take complex values. Recall that a complex
number x can be expressed in Cartesian form as A + Bj or in polar form as
Re*7" with
6. Tables of Laplace transforms are available, so the engineer does not have to
apply equation (4.1) for many commonly occurring functions. Also, these
tables provide the inverse Laplace transform,
—i
C~l[fis)) = fit) fort >0 (4.4)
Since the Laplace transform is defined only for single-valued functions, the
transform and its inverse are unique.
Constant
For/(0 = C,
C
C(C) Ce~st dt = - —e - S t (4.5)
Jo s s
Since the variable is assumed to have a zero value for time less than zero, the
Laplace transforms for the constant and step are identical.
Exponential
For fit) = e~at,
oo j
Cieat)
-L at „-st -
ea'e-sl dt =
a—s
,-(.v-a)/|°°
lo s—a
(4.7)
TABLE 4.1
100
Laplace transforms
CHAPTER 4 No. f{t) Ms)
Modelling and
Analysis for Process 1 8, unit impulse l
Control
2 Uit),
i t unit step or constant 1A
t"*n-\
3 \/sn
in - 1)!
1
4
x TJ + 1
as + 1
5 l + ^-^e-"
X 7(t7+T)
1 tn-le-'/T 1
6
xn in - 1)! JxTTiy
as + 1
7
(w +1)2
as + l
8 1 + (^-,)e-
sixs + l)2
xx—a T2"a Ci/W flj + 1
9 ,-'/ri _
Ti(r, -x2) 72(T| - r2) (riJ -I- l)(r2s + 1)
as + \
10 1+ T'-V'/t, _ X2~a --/»
T2-Ti t2-ri sixxs + l)ix2s + 1)
11 sin i(ot) co/is2 + co2)
12 cos ioot) s/is2 + co2)
s+a
13 e~a' cos (o>f)
is + a)2 + C02
O
C
14 e~a' sin icot)
(s + a)2 + C02
as +1
15 £e-^sin[>/EI!r
t \ r +0 x2s2 + 2$xs + 1
cj*:* + l j - - -l /_ *si^
\-p
a>re ,/r sin (art + cp) C
O
16 +
\+C02X2 y/\+(02X2 ixs + l)is2+co2)
<f> = tan_I(—(*>x)
17 1 -
1 , - Wr sin 'VT^? ■t + 4> 1
VT=? six2s2 + 2l-xs + \)
'y/T^
<j> = tan-1
fi t - a ) t > a
18 /(0 = e-"sfis)
0 t <a
a, co, and t,- are real and distinct, 0 < £ < 1, n = integer
Sine 101
For fit) = sin (cot),
The Laplace
r<x> roo /jot _ p-j(ot \
Transform
£(sin (at)) = / sin (a>t)e-st dt = / ( T j e~st dt
_ J _ [ e - e( -s( s- -Jj ( o ) t
)
e-(s+ja)t-I00
dt
C
O
(4.8)
Pulse
For f(t) = C[UiO) - Uitp)] = C/tp for t = 0 to tp, and = 0 for t > tp, as
graphed in Figure 4.1,
FIGURE 4.1
ftp Q /.OO
C(f(t)) = / -e-st dt + / Oe~st dt Pulse function.
Jo h Jtn
(4.9)
C(\- e~stp)
An impulse function, which has zero width and total integral equal to C, is a
special case of the pulse. Its Laplace transform can be determined by taking the
limit of equation (4.9) as tp -> 0 (and applying L'Hospital's rule) to give
C (1 - e~st")
Y(s)\t.0 = lim
tP-+o tp s
(4.10)
=r » -lim-c(-^)=c
>0 s
(4.11)
This equation can be integrated by parts to give
m-'
by parts several times to give
f(s)
J
in-1
- (sn- /(OUo + s n-2 df(t) fit)
dt
+ ...+ dtn~]
t=0
(4.13)
102 Integral
n
By similar application of integration by parts the Laplace transform of an integral
CHAPTER 4
of a function can be shown to be
Modelling and
Analysis for Process
Control C (j* f(t') dA = j™ Qf f(t') dA e~st dt
(4.14)
= f°° —fit) dt + \( f f(t) dt) —1 = - f(s)
Jo s l\Jo ) s J/=o s
Differential Equations
One of the main applications for Laplace transforms is in the analytical solution
of ordinary differential equations. The key aspect of Laplace transforms in this
application is demonstrated in equation (4.13), which shows that the transform of
a derivative is an algebraic term. Thus, a differential equation is transformed into an
algebraic equation, which can be easily solved using rules of algebra. The challenge
is to determine the inverse Laplace transform to achieve an analytical solution in
the time domain. In some cases, determining the inverse transform can be complex
or impossible; however, methods shown in this section provide a general approach
for many systems of interest in process control. First, the solutions of a few simple
models involving differential equations, some already formulated in Chapter 3, are
presented.
EXAMPLE 4.1.
The continuous stirred-tank mixing model formulated in Example 3.1 is solved
'AO
here. The fundamental model in deviation variables is
dC
V-A = F(CAQ-CA) (4.15)
■ b '■ The Laplace transform is taken of each term in the model:
V [sC'Ais) - C'Ait)\tJ = F [C'AQis) - C'Ais)] (4.16)
do The initial value of the tank concentration, expressed as a deviation variable, is
zero, and the deviation of the inlet concentration is constant at the step value for
t > 0; that is, CA0(O = ACAoA- Substituting these values and rearranging equation
(4.16) gives
ACAO 1
CA(0 = with x = — = 24.7 min (4.17)
S X s + 1
The inverse transform of the expression in equation (4.17) can be determined from
entry 5 of Table 4.1 to give the same expression as derived in Example 3.1.
CA(0 = ACAO(l-<r'/r) (4.18)
'AO
EXAMPLE 4.2.
The model for the two chemical reactors in Example 3.3 is considered here, and
'Al the time-domain response to a step change is to be determined. The linear com
CD ponent material balances derived in Example 3.3 are repeated below in deviation
b variables.
'A2
CO Al
Vi = F i C ' - C ' ) - V k C' 'A l (3.24)
dt
103
V2—A- = F(CA1 - C^) - VkCA2 (3.25) hmwhibwii—I
ai The Laplace
The Laplace transforms of the component material balances in deviation variables, Transform
noting that the initial conditions are zero, are
sVC'Alis) = F(C'AOis) - C'AXis)) - VkC'Alis) (4.19)
sVC'^is) = F (CAlis) - C'A2is)) - VkC'^is) (4.20)
These equations can be combined into one equation by eliminating C'A]is) from
the second equation. First, solve for C'AXis) in equation (4.19):
KF + Vk)^
C»= „ + 1 Cao (4-21)
This expression can be substituted into equation (4.20) along with the input step
disturbance, CAOis) = ACA0/s, to give
KpACAp
C«W = ^= (4-22)
sixs + l)2
V mole
with x = -——- = 8.25 min ACA0 = 0.925 —r
2 mole
K^(-dvk)=0m C„.-0AU mJ
The inverse transform can be determined from entry 8 of Table 4.1 to give the
resulting time-domain expression for the concentration in the second reactor.
c ^ 4 V, [ i - ( . + i ) ^ ] ( 4 2 3 )
CA2(0 = 0.414 + 0.414(1 - <?-'/8-25) - 0.050f<r'/8-25
This is the same result as obtained in Example 3.3.
\—e—\
1 1 1 T 1 1 1 i i
m
ite
0 Length 1"O 0.5 // \\
FIGURE 4.2 2 / \ /—S^
O 0
Schematic of plug flow process. is
>< i i
V ^y " ^i i i i i i i
0 12 3 4 5 6 7 10
Time
FIGURE 4.3
Input and output for dead time (0) of one time unit.
EXAMPLE 4.3.
The dynamic behavior of turbulent fluid flow in a pipe approximates plug flow, with
the fluid properties like concentration and temperature progressing down the pipe
as a front. The dead time is 6 - L/v, i.e., the length divided by the fluid velocity.
The inlet concentration to the pipe in Figure 4.2 is X, and the outlet concentration
is Y. For ideal plug flow,
Yit) = Xit - 6) (4.25)
The Laplace transform of this model can be evaluated using the results in equation
(4.24) to give
Yis) = Xis)e~9s (4.26)
The effect of a dead time for an arbitrary input concentration is shown in Figure 4.3.
u
:
as s -» 0.
,0° dfit)
lim -stdt\ = \\m[sf(s)-f(t)]t=0 (4.27)
dt
Changing the order of the limit and the integral gives
,0° dfit)
. dt = \im\sfis) - fit)]
/Jo at 5->o t=0
/(oo) = s-*0
lim sfis)
Equation (4.28) provides an easy manner for finding the final value of a variable; 105
however, one should recognize that a simpler method would be to formulate and
solve the steady-state model directly. The final value theorem finds use because the The Laplace
dynamic models are required for process control, and the final value can be easily Transform
determined from the Laplace transform without further modelling effort. Also, it
is important to recall that the final value is exact only for a truly linear process and
is approximate when based on a linearized model of a nonlinear process.
EXAMPLE 4.4.
Find the final value of the reactor concentration, expressed as a deviation from 'AO
the initial value, for the CSTRs in Example 4.2. The Laplace transform for the U-
concentration in response to a step in the inlet concentration is given in equation 'Al
The engineer must recognize a limitation when applying the final value the
orem. The foregoing derivation is not valid for a Laplace transform fis) that is
not continuous for all values of s > 0 (Churchill, 1972). If the transform has a
discontinuity for s > 0, the time function fit) does not reach a final steady-state
value, as will be demonstrated in the discussion of partial fractions. Therefore, the
final value theorem cannot be applied to unstable systems.
EXAMPLE 4.5.
Find the final value for the following system.
K
Yis) = (AX) with r > 0
sixs — 1)
This transfer function has a discontinuity at s = 1/r > 0; therefore, the final value
theorem does not apply. The analytical expression for Yit) is
EXAMPLE 4.7.
Using Laplace transforms, determine the response of the level in the draining tank
(Example 3.6) to two different changes to the inlet flow, (a) a step and (b) an
impulse.
Data. Cross-section area A = 7 m2, initial flows in and out, = 100 m3/min, initial
level = 7 m, kFX = 37.8 (m3/h)/(m-°-5). The model for the draining tank level is
based on an overall material balance of liquid in the tank depending on the flow
in (Fo)andout(Fi).
dL
pA— - pF0 - pFx (4.36)
The tank cross-sectional area is A. The flow out depends on the level in the tank
through a nonlinear relationship, and after linearization, the level model is
F<J(0 dt = M m3 (4.40)
/
The Laplace transform of the impulse, F^is) = M, can be introduced into
equation (4.38) to give
xs + \
The inverse Laplace transform can be evaluated using entry 4 in Table 4.1,
which gives [substituting the definition of the gain Kp = x/iA)] the following
result:
L ' i t ) =x h E e - tAh = M e _ t l x ( 4 4 1 )
The dynamic response of the draining tank level to an impulse of M = 20 m3 is
shown in Figure 4.4. For the parameters in the example, the levels calculated
using the nonlinear and linearized models are nearly identical. The level im
mediately increases in response to the addition of liquid. Since the inlet flow
returns to its initial value after the impulse, the level slowly returns to its initial
value.
Partial Fractions
The Laplace transform method for solving differential equations could be limited
by the entries in Table 4.1, and with so few entries, it would seem that most models
could not be solved. However, many complex Laplace transforms can be expressed
as a linear combination of a few simple transforms through the use of partial fraction
expansion. Once the Laplace transform can be expressed as a sum of simpler
elements, each can be inverted individually using the entries in Table 4.1, thus
greatly increasing the number of equations that can be solved. More importantly,
the application of partial fractions provides very useful generalizations about the
forms of solutions to a wide range of differential equation models, and these
generalizations enable us to establish important characteristics about a system's
time-domain behavior without determining the complete transient solution. The
partial fractions method is summarized here and presented in detail in Appendix H.
108 10 1 1 1 r i i i i i
9.5
CHAPTER 4
Modelling and 9 \ -
Analysis for Process
Control 8.5 - \^ -
8_ >v -
E
- ^\^^ -
£7.5
3 7
6.5 — -
-
6-
5.5 -
1 1 1 1 1 1 _l 1 J
0 0.5 1.5 2 2.5 3 3.5 4.5
Time (h)
FIGURE 4.4
The reader may have noticed that nearly all Laplace transforms encountered to
this point are ratios of polynomials in the Laplace variable s. The partial fractions
method can be used to express a ratio of polynomials as a sum of simpler terms.
For example, if the roots of the denominator are distinct, a ratio of higher-order
numerator and denominator polynomials can be expressed as the sum of terms, all
of which have constant numerators and first-order denominators, as given below.
This equation includes distinct (a\), repeated real (ap), and complex roots (aq), not
all of which may appear in a specific solution, in which case some of the constants
(A, B, or C) will be zero. Two important conclusions can be drawn:
1. Stability. The real parts of the roots of the characteristic polynomial, Dis),
determine the exponents (a's) in the solution. These exponents determine
whether the function approaches a constant value after a long time. For exam
ple, when all real parts of the roots, i.e., all Re(a,), are negative, all terms on
the right of equation (4.43) approach a constant value after an initial transient;
a system which tends toward a constant final value is termed stable. If any
Re(a,) is greater than zero, the function Yit) will increase (or decrease) in an
unbounded manner as time increases; this is termed unstable.
We must look carefully at the case of roots with a value of zero. If one
distinct root has a value of zero, the system is stable, while if repeated roots
have values of zero, the system is unstable. This result is summarized in the
following.
Number of
z e r o r o o t s Te r m s i n s o l u t i o n I s t h e s y s t e m s t a b l e ?
Only one Axe° = Ax — constant Yes
Two (or more) (Bx + B2t)e° = (Bx + B2t) No, this term increases in
magnitude without limit
These two results enable the engineer to determine key features of the dynamic
performance of systems without evaluating the complete dynamic transient via
inverse Laplace transform. The simplification is enormous!
Certainly, a process would be easier to operate when it is stable so that vari ables
rapidly approach constant values and no variables tend to increase or decrease
without limit (based on a linearized model). Also, while oscillations are not usually
completely avoided, oscillations of large magnitude are generally undesirable.
Thus, the nature of the roots of the characteristic polynomial and how process
design and control algorithms affect these roots are important factors in designing
good processes and controls. These issues will be investigated thoroughly in Part
III on feedback control by evaluating the roots of the characteristic polynomial, and
the partial fraction method provides the mathematical foundation for this important
analysis.
110 EXAMPLE 4.8.
Determine whether the concentration in the second reactor in Example 4.6 is stable
CHAPTER 4 and underdamped without solving for the concentration.
Modelling and The roots of the denominator of the Laplace transform can be evaluated to
Analysis for Process determine these key aspects of the dynamic behavior. The Laplace transform is
Control
repeated below.
KPACAQ
C'(s) = (4.44)
s(xxs + l)(x2s + 1)
'AO The roots of the denominator, which are the exponents, are -1/ti, -1/t2, and 0.0.
Since both nonzero time constants are positive, the roots are less than zero; also,
'Al only one zero root exists. Therefore, the concentration reaches a constant value
CD and is stable. Also, since the roots are real, the concentration is overdamped. Natu
'A2
do rally, these conclusions are consistent with the equation defining the time-varying
concentration derived in Example 4.5; however, the conclusions were reached
here with minimal effort and can be determined for more complex Laplace trans
forms that do not appear in Table 4.1.
The transfer function of a system is defined as the Laplace transform of the output
variable, 7(0, divided by the Laplace transform of the input variable, Xit), with all
initial conditions equal to zero.
Yjs)
Transfer function = Gis) = (4.45)
Xis)
The assumptions of Y (0) = 0 and X(0) = 0 are easily achieved by expressing the
variables in the transfer function as deviations from the initial conditions. Thus, all
transfer functions involve variables that are expressed as deviations from an initial
steady state. All derivatives are zero if the initial conditions are at steady state.
(Systems having all zero initial conditions are sometimes referred to as "relaxed.")
These zero initial conditions are assumed for all systems represented by transfer
functions used in this book; therefore, the prime symbol"'" for deviation variables
is redundant and is not used here when dealing with transfer functions. Transfer
functions will be represented by Gis), with subscripts to denote the particular
input-output relationship when more than one input-output relationship exists.
Before proceeding with further discussion of transfer functions, a few examples
are given.
EXAMPLE 4.9.
Derive the transfer functions for the systems in Examples 4.1 and 4.2. The Laplace
transform of the model in Example 4.1 is in equation (4.16). This can be rearranged
to give the transfer function for this system:
CA(0 1 V
Example 4.1: with x = — (4.46)
CaoOO xs + 1 F
The Laplace transform for the model in Example 4.2 can be rearranged to give
the transfer function for this system:
CA2js) = Kr
Example 4.2: (4.47)
CAOis) ixs +1)2
with x=
F+Vk
F
Kp =
\F + Vk)
The models from the previous examples could be used to form transfer functions,
because they were in terms of deviation variables with zero initial conditions.
Note that the transfer function relates one output to one input variable. If
more than one input or output exists, an individual transfer function is defined for
each input-output relationship. Since the transfer function is a linear operator (as
112 a result of the zero initial conditions), the effects of several inputs can be summed
to determine the net effect on the output.
CHAPTER4 EXAMPLE 4.10.
Modelling and
Analysis for Process Derive the transfer functions for the single CSTR with the first-order reaction in
Control Example 3.2 for changes in the inlet concentration and the feed flow rate.
The two linear models for each input change can be determined by assuming
that all other inputs are constant. The basic model was derived in Example 3.2 and
is repeated below.
'AO
V^£ (4.48)
at = FiCM-CA)-VkCA
U To determine whether the model is linear or not, the constant values are substituted
(noting that the flow and inlet concentrations are now variables) to give
do <2.1)^r
V CA dt = F(Ca° - Ca> - (2.D(0.040)CA
The model is nonlinear because of the products of flow times concentrations.
Two linearized models can be derived from equation (4.48), one for each input
(assuming the other input constant), to give
dC\
tca-
dt
+ CA = KCACA0
withT«=Grrw) *«=GnW(4'49)
tf^+C'a = KfF'
Taking the Laplace transforms and rearranging yields the two transfer functions,
one for each input.
CAjs) = GcAis) = &CA
(4.51)
CaoCO tCAs +1
The transfer function clearly shows some important properties of the system
briefly discussed below.
Order
The order of the system is the highest derivative of the output variable in the
defining differential equation, when expressed as a combination of all individ
ual equations. For transfer functions of physical systems, the order can be easily
determined to be the highest power of s in the denominator.
Pole
A pole is defined as a root of the denominator of the transfer function; thus, it is
the same as a root of the characteristic polynomial. Important information on the
dynamic behavior of the system can be obtained by analyzing the poles, such as
The analysis of poles is an important topic in Part III on feedback systems, since
feedback control affects the poles.
Zero
A zero is a root of the numerator of the transfer function. Zeros do not influence
the exponents (Re(a)), but they influence the constants in equation (4.43). This
can most easily be seen by considering a system with n distinct poles subject to an
impulse input of unity. The expression for the output, since the Laplace transform
of the unity input impulse is 1, is
N(s) Mi(s)
Y(s) = G(s)X(s) = G(s) = for i = 1, n (4.53)
D(s) s — a,-
For a system with no zeros, the numerator would be equal to a constant, N(s) = K,
and the constant associated with each root is
With no zeros " U(*)/,«, (4.54)
Dt (s) is the denominator, with (s — a,) factored out. For a system with one or more
zeros, the constant associated with each root is
With zeros 1 V Aco/,=_ff, (4.55)
Thus, the numerator changes the weight placed on the various exponential terms.
This demonstrates that the numerator of the transfer function cannot affect the
stability of the system modelled by the transfer function, but it can have a strong
influence on the trajectory followed by variables from their initial to final values.
A simple, but less general, example to demonstrate the effect of numerator zeros
is seen in the following transfer function.
Gw( s(3s
) + 1)(2.5j
= +^ i1)
i 2.5^_ + 1 1 (4.56)
The numerator zero cancelled one of the poles, with the result that the second-order
system behaves like a first-order system. Important examples of how zeros occur
in chemical processes and how they influence dynamic behavior are presented in
the next chapter, Section 5.4.
Steady-State Gain
The steady-state gain is the steady-state value of A Y/ AX for all systems whose
outputs attain steady state after an input perturbation AX. The steady-state gain is
normally represented by K, often with a subscript, and can be evaluated by setting
s = 0 in the (stable) transfer function. This is exact for linear systems and gives
the linearized approximation for nonlinear systems.
EXAMPLE 4.11.
Determine the stability and damping of the outlet concentration leaving the last of
'AO two isothermal CSTRs in Examples 4.2 and 4.9.
The transfer function for this system was derived in Example 4.9 and is re
-W- 'Al peated below.
do ■W CA2(Q = G() _ KP
'A2 (4.57)
db CaoCO (w + D2
The order of the system is the highest power of s in the denominator, 2. This indi
cates that the process can be modelled using two ordinary differential equations.
The poles are the roots of the polynomial in the denominator; they are repeated
roots, a = -1/t = -1/8.25 min-1 = -0.1212 min"1. The dynamic behavior is non-
periodic (overdamped), because the poles are real and not complex. Also, the
poles are negative, indicating that the process is stable.
For a stable process, the steady-state gain can be determined by setting
s = 0 in the transfer function.
Steady-state gain: iGis))s=0 = Kp
Also, the final value of the reactant concentration in the second reactor can be
evaluated using the fi n a l value theorem. 11 5
The block diagram provides the method for combining individual transfer
functions into an overall transfer function. The three allowable manipulations in
a block diagram are shown in Figure 4.5a through c. The first is the transform
of an input variable to an output variable using the transfer function; this is just
a schematic representation of the relationship introduced in equation (4.45) and
discussed in the previous section. The second is the sum (or difference) of two
variables; the third is splitting a variable for use in more than one relationship.
These three manipulations can be used in any sequence for combining individual
models. A more comprehensive set of rules based on these three can be developed
(Distephano et al., 1976), but these three are usually adequate.
To clarify, a few illegal manipulations, which are sometimes mistakenly used,
are shown in Figure A.5d through /. The first two are not allowed because the
Allowed Not Allowed
116
id) -<MW
CHAPTER 4 "
Yis)
Modelling and
Analysis for Process X2is)—* G{s) —^Yis)
Control
ie)
*(*)—•* Gis) —+- Yxis)
X3is)
X2(s)
—▶ Y2is)
Xxis) + X2is) = X3is)
transfer function is defined for a single input and output, and the third is not
allowed because the block diagram is limited to linear operations.
The block diagram can be prepared based on linearized models (transfer func
tions) of individual units and the knowledge of their interconnections. Then an
input-output model can be derived through the application of block diagram alge
bra, which uses the three operations in Figure 4.5a through c. The model reduction
steps normally followed are
1. Define the input and output variables desired for the overall transfer function.
2. Express the output variable as a function of all variables directly affecting it
in the block diagram. This amounts to working in the direction opposite to the
cause-effect relationships (arrows) in the diagram.
3. Eliminate intermediate variables by this procedure until only the output and
one or more inputs appear in the equation. This is the input-output equation
for the system.
4. If a transfer function is desired, set all but one input to zero in the equation
from step 3 and solve for the output divided by the single remaining input.
This step may be repeated to form a transfer function for each input.
ib) 2
F
CA0is) CA2is)
.F+Vk
[TS + I]2
FIGURE 4.6
Block diagrams for Example 4.12.
CMjs) K>
Gxis) = with r = K, = (4.58)
CAOis) xs + \ F + Vk F + Vk
CA2is) K2 V F
G2is) = with x = Kj = (4.59)
Cai(j) xs + \ F + Vk '"' F + Vk
Block diagram manipulations can be performed to develop the overall input
output relationship for the system.
CA2 = G2is) CaiCs) = G2is) [Giis) CAOis)] = G2is) Gxis)CAOis)
KXK2 (4.60)
;CAOis)
ixs + l)2
This can be rearranged to give the transfer function and the block diagram in
Figure 4.6b.
Ca2(*) = = KXK2
(4.61)
CAOis) {S) ixs +1)2
EXAMPLE 4.13.
Derive the overall transfer functions for the systems in Figure 4.7. The system in
part (a) is a series of transfer functions, for which the overall transfer function is
the product of the individual transfer functions.
X„is) = Gnis) Xn-iis) = GM G„_,(j) X._2(j)
= G„is) Ga-iis) Gn.2is) -Giis) Xois) (4.62)
Xnjs) = Y\G'^
Xois) i=i
The system in part (b) involves a parallel structure of transfer functions, and
the overall transfer function can be derived as
X3is) = X, is) + X2is) = G, is) X0is) + G2is) XQis) (4.63)
X3is) = Gxis) + G2is)
Xois)
118 (a)
X0is) Xj(i) X2is) Xnis)
Gxis) G2 G3is) Gnis)
CHAPTER 4
Modelling and
Analysis for Process
Control
(b)
Xxis)
1 * ■ Gxis) *•
<
Xois)- C
<§>—+~X3is)
X2is)
▶
» G2is) »•
(c)
Xxis) X2is)
X0is)-+-®—*- Gxis)
X3is) ^
G2is)
FIGURE 4.7
Three common block diagram structures considered in Example 4.13.
The system in part (c) involves a recycle structure of transfer functions, and
the overall transfer function can be derived as
It is perhaps worth noting that the block diagram is entirely equivalent to and
provides no fundamental advantage over algebraic solution of the system's linear
algebraic equations (in the s domain). Either algebraic or block diagram manipu
lations for eliminating intermediate variables to give the input-output relationship
will result in the same overall transfer function. However, as demonstrated by the
examples, the block diagram manipulations are easily performed.
Two further features of block diagrams militate for their extensive use. The
first is the helpful visual representation of the integrated system provided by the
block diagram. For example, the block diagram in Figure 4.7c clearly indicates a
recycle in the system, a characteristic that might be overlooked when working with
a set of equations. The second feature of the diagrams is the clear representation
of the cause-effect relationship. The arrows present the direction of these rela
tionships and enable the engineer to identify the input variables that influence the
output variables. As a result, block diagrams are widely used and will be applied 119
extensively in the remainder of this book.
Frequency Response
4.5 m FREQUENCY RESPONSE*
An important aspect of process (and control system) dynamic behavior is the
Upstream Downstream
response to periodic input changes, most often disturbances. The range of possible
plant plant
dynamic behavior can be determined by considering cases (in thought experiments)
at different input frequencies for an example system, such as the mixing tank
in Figure 4.8. If an input variation is slow, with a period of once per year, the
output response would be essentially at its steady-state value (the same as the
input), with the transient response being insignificant. If the input changed very FIGURE 4.8
rapidly, say every nanosecond, the output would not be significantly influenced; Intermediate inventory to attenuate
that is, its output amplitude would be insignificant. Finally, if the input varies at variation.
some intermediate frequency near the response time of the process, the output will
fluctuate continuously at values significantly different from its mean value. The
behavior at extreme frequencies is easily determined in this thought experiment,
but the method for determining the system behavior at intermediate frequencies is
not obvious and is useful for the design process equipment, selection of operating
conditions, and formulation of control algorithms to give desired performance.
Before presenting a simplified method for evaluating the effects of frequency, a
process equipment design example is solved by determining the complete transient
response to a periodic input.
EXAMPLE 4.14.
The feed composition to a reactor varies with an amplitude larger than acceptable
for the reactor. It is not possible to alter the upstream process to reduce the os
cillation in the feed; therefore, a drum is located before the reactor to reduce the
feed composition variation, as shown in Figure 4.8. What is the minimum volume
of the tank required to maintain the variation at the inlet to the reactor (outlet of the
tank) less than or equal to ± 20 g/m3?
Assumptions. The assumptions include a constant well-mixed volume of liq
uid in the tank, constant density, constant flow rate in, and the input variation in
concentration is well represented by a sine. Also, the system is initially at steady
state.
Data.
1. F = 1 m3/min.
2. CA0 is a sine with amplitude of 200 g/m3 and period of 5 minutes about an
average value of 200 g/m3.
Solution. The model for this stirred-tank mixer was derived in Example 3.1 and
applied in several subsequent examples. The difference in this example is that the
input concentration is characterized as a sine rather than a step, CA0 = A sin icot).
Thus, the model for the tank is
dC
V—-AL = FiA sin icot)) - FC'AX (4.65)
dt
To more clearly evaluate the model for linearity, the values for all constants (in this
*The reader may choose to cover this material when reading Chapter 10.
120 example) can be substituted into equation (4.65), giving the following:
CHAPTER 4
dCtAl = (l)[(200)sin(27r/5)]-(l)CA1
Modelling and dt
Analysis for Process
Control Since V is a constant to be determined, the equation is linear, and we can proceed
without linearization. Equation (4.65) could be solved by using either the integrat
ing factor or Laplace transforms. Here, the Laplace transform of equation (4.65)
is taken to give, after some rearrangement,
CUs) = ' K)
Aco 1
is2 + co2)
with x = —
v
(4.66)
Acox
C'AX(t) =
,-'/* + sin icot + <f>) (4.67)
1 + x2co2 VT+ x2co2
Results analysis. The first term in equation (4.67) tends to zero as time in
creases; thus, the response of the process after a long time of operation (about
four time constants) is not affected by this term. The second term describes the
"long-time" behavior of the concentration in response to a sine input. It is periodic,
with the same frequency as the input forcing and an amplitude that depends on
the input amplitude and frequency, as well as process design parameters. For
this example, the output amplitude must be less than or equal to 20; by setting
the amplitude equal to the limit, the time constant, and thus the volume, can be
calculated.
'Allmax — = 20 (4.68)
x/l + r V
200 y
Note that the analytical solution provides valuable sensitivity information, such
as the amount the size of the vessel must be increased if the input frequency
decreases.
For the system in Figure 4.9 the amplitude ratio = B/A, and the phase angle
= —2niP'/P) radians. Note that P' is the time difference between the input and
its effect at the output and can be greater than P.
The usefulness of the amplitude ratio was demonstrated in Example 4.14, and
the importance of the phase angle, while not apparent yet, will be shown to be very
important in the analysis of feedback systems. Recalling that feedback systems
adjust an input based on the behavior of an output, it is reasonable that the time
(or phase) delay between these variables would affect the feedback system. The
analysis of feedback systems using frequency response methods is introduced in
Chapter 10 and used in many subsequent chapters.
Example 4.14 demonstrates that the frequency response of linear systems
can be determined by the direct solution of the ordinary differential equations.
However, this approach is time-consuming for complex systems. Also, the solution
of the entire transient response provides information not needed, because only
the behavior after the initial transient is desired. Now a simpler approach for
1 1 , 1 1 1
E
«
VI
> x
Vi
/ B \^ / \
E
n / \ / \
£ V / k \ /
o
s ^« ■ <^ i ^»—^
o
^ i i ! i i i
P'-
!-* p - \>
oE
s$\ i 1
f x '
VI
>>
v>
O / ; \ / \
o
c \ /
\ /
X
1 X. S , \/
Time
FIGURE 4.9
(4.73)
^ . ^ ^ ■ - ^ ; ^ ^ ( ^ g )
It is important to recognize that the frequency ico) must be expressed as radians/time.
Thus, the frequency response can be determined by substituting jco for s in the
transfer function and evaluating the magnitude and angle of the resulting complex
number! This is significantly simpler than solving the differential equation.
Note that the frequency response is entirely determined by the transfer func
tion. This is logical because the initial conditions do not influence the long-time
behavior of the system. Also, the derivation of the equations (4.72) and (4.73)
clearly indicates that they are appropriate only for stable systems. If the system
were unstable (i.e., if Re(a,) > 0 for any i), the output would increase without
limit (for the linear approximation). Also, this analysis demonstrates that the out
put of a linear system forced with a sine approaches a sine after a sufficiently long
time. How "long" this time is depends on all other terms; for most of the transient
to have died out (i.e., e~at < 0.02), the time should satisfy at = t/x > 4. Thus,
a long time can usually be taken to be about four times the longest time constant,
or the smallest a.
EXAMPLE 4.15.
Repeat the frequency response calculations for the mixing tank in Example 4.14
and Figure 4.8, this time using the direct method based on the transfer function.
The frequency response is determined by substituting jco for s in the first-order
transfer function with x = 7.9.
Gis) = 1
xs + \
1 1 1 — xcoj 1 — xcoj
Gijco) = (4.74)
xcoj + 1 xcoj + 1 1 — xcoj 1 -I- x2co2
AR = |GO)| =
a/IT x2co2 1 1
1 + x2co2 VI + x2co2 Vl+62.4a>2
Frequency Response
Output
cA(t) <W^ WVN
1 I I i i i i 11 l 1 l l I I i 11 1 1—i i i i i i
do AT]
EXAMPLE 4.16. ~k 'Al
The two isothermal series CSTRs in Examples 3.3 and 4.2 rely on upstream pro do
cesses for the feed of reactant A. The upstream process producing A does not
124 operate exactly at steady state. Based on an analysis of the data, the feed con
centration to the first reactor varies around its nominal value in a manner that can
CHAPTER 4 be approximated by a sine with an amplitude of 0.10 mol/m3 and frequency of
Modelling and 0.20 rad/min. Would the second reactor concentration deviate from its steady-
Analysis for Process state value by more than 0.05 mol/m3? Variation greater than this amount is not
Control acceptable to the customer.
To answer this question, the frequency response must be evaluated. The im
portant behaviors can be stated as
CAoit) = CMss + A sin icot) or CAOit) = Asm icot)
Ca2 (0 = Cfi&s + B sin icot + <f>) or C'A2it) = B sin icot+ $)
with A = 0.10 mole/m3, co = 0.20 rad/min, and B the unknown amplitude to be
evaluated and compared with its maximum allowable variation magnitude. The
transfer function based on component material balances for the two tanks was
derived in Example 4.9 and is repeated below.
CA2js) = Kf
(4.76)
CAOis) ixs + \)2
The gain is 0.448, and the time constants are both 8.25 minutes. The results in
equations (4.71) to (4.73) demonstrate that the amplitude of the output variable can
be evaluated by setting s = jco and evaluating the magnitude. The expressions for
the frequency responses for many common transfer functions are provided later
in the book (e.g., Table 10.2), so the results of the algebraic manipulations are
summarized here without intermediate derivations being shown.
KB
\GiJco)\ = (4.77)
(l+a>2r2) A
The magnitude of the output concentration is the product of the input magnitude
and the amplitude ratio. Therefore,
B = * ' — A
(l-ra>2r2)' (4.78)
= (0.12)(0.10 mol/m3) = 0.012 mol/m3 < 0.050 mol/m3
Since the outlet concentration magnitude is lower than the maximum allowed, the
operation would be considered acceptable, but good engineering would call for
continued efforts to reduce all variation in product quality. Note that in this case, no
control correction is required. We are seldom so fortunate, and we usually have to
introduce corrective control actions through process control to maintain consistent
product quality.
The algebraic manipulations required to evaluate the amplitude ratio and phase
angle can be tedious. However, relationships to ease hand calculations are provided
in Chapter 10 for the commonly occurring series combinations of individual units.
For more complex structures the frequency response can be easily evaluated using
computer technology, because the amplitude ratio is the magnitude of the properly
defined function of a complex variable; likewise, the phase angle is the argument
of a complex variable. Many programming languages provide standard evaluations
of these functions.
In conclusion, the frequency response of a linear system can be easily deter
mined from the transfer function using equations (4.72) and (4.73). The frequency
response gives useful information concerning how the process behaves for various
input frequencies, and these results can be used for determining equipment de
sign parameters, such as the size of a drum to attenuate fluctuations. The general
frequency responses for some common systems are given in the next chapter for
several common systems, such as first- and second-order, and important applica
tions of frequency response to the analysis of feedback control systems are covered
in Part III.
4.6 - CONCLUSIONS
The methods in Chapters 3 and 4 can be combined in an approach, shown in
Figure 4.11, designed to provide models in the format most useful for the analysis
of process control systems. The initial steps involve the modelling procedure based
on fundamental principles summarized in Table 3.1. This procedure can be applied
to each process in a complex plant. Then the transfer function of each system is
determined by taking the Laplace transform of the linearized model. The block
diagram can be constructed to present the interactions among the individual transfer
functions, and the overall transfer function for the integrated system can be derived
through block diagram manipulation.
The overall transfer functions can be used to determine some important prop
erties of the system without solving the defining differential equations. These prop
erties include
Determining this information without the entire dynamic response has two advan
tages:
Naturally, information about the entire transient is not obtained by analyzing the
poles of the transfer function or by the frequency response calculations. The com
plete transient response can be obtained if needed from analytical or numerical
solution of the algebraic and differential equations.
As noted in the previous chapter, many different processes—heat exchangers,
reactors, and so forth—behave in similar ways. The transfer function method pre
sented in this chapter gives us a useful way to compare models for processes and
recognize similarities and differences, which is the topic of the next chapter.
REFERENCES
Boyce, W., and R. Diprima, Elementary Differential Equations, Wiley, New
York, 1986.
Caldwell, W., G. Coon, and L. Zoss, Frequency Response for Process Control,
McGraw-Hill, New York, 1959.
~ ^ ~ Formulate Model Based on Conservation Balances and Constitutive Relationships
V.F=constant • "Exact" dynamic behavior described by model
Steps in developing models for process control with sample results for a chemical reactor.
Churchill, R., Operational Mathematics, McGraw-Hill, New York, 1972. 127
Distephano, S., A. Stubbard, and I. Williams, Feedback Control Systems,
McGraw-Hill, New York, 1976. Questions
Jensen, V., and G. Jeffreys, Mathematical Methods in Chemical Engineering,
Academic Press, London, 1963.
Ogata, K., Modern Control Engineering, Prentice-Hall, Englewood Cliffs, NJ,
1990.
ADDITIONAL RESOURCES
The following references provide background on Laplace transforms and provide
extensive tables.
For additional discussions on the solution of dynamic problems for other types
of physical systems, see Ogata, 1990 (in the References) and
Ogata, K., System Dynamics (2nd ed.), Wiley, New York, 1992.
Tyner, M., and F. May, Process Control Engineering, The Ronald Press, New
York, 1968.
All of the questions in Chapter 3 relating to dynamics can be solved using methods in
this chapter; thus, returning to those questions provides additional exercises. Also,
when solving the questions in this chapter, it is recommended that the results be
analyzed to determine
QUESTIONS
4.1. Several of the example systems considered in this chapter are analyzed
concerning the violation of safety limits. A potential strategy for a safety
128 system would be to monitor the value of the critical variable and when the
MMdMBbmMmm^m variable approaches the safety limit (i.e., it exceeds a preset "action" value),
CHAPTER 4 a response is implemented to ensure safe operation. Three responses are
Modelling and proposed in this question to prevent the critical variable from exceeding a
Analysis for Process maximum-value safety limit, and it is proposed that each could be initiated
when the measured variable reaches the action value. Critically evaluate
each of the proposals, and if the proposal is appropriate, state the value of
the action limit compared to the safety limit.
The proposed responses are
(i) Set the concentration in the feed (CAo) to zero.
(ii) Set the inlet flow to zero,
(iii) Introduce an inhibitor that stops the chemical reaction (for b).
The critical variables and systems are
id) Ca in the mixer in Example 4.1
(b) Ca2 in the series of two chemical reactors in Example 4.2
4.2. Solve the following models for the time-domain values of the dependent
variables using Laplace transforms.
(a) Example 3.2
(b) Example 3.2 with an impulse input and with a ramp input, C'A0(t) = at
for t > 0 (with a an arbitrary constant)
(c) Example 3.3 with an impulse input
4.3. The room heating Example 3.4 is to be reconsidered. In this question, a
mass of material is present in the room and exchanges heat with the air
according to the equation Q = UAm(T - Tm), in which UAm is an overall
heat transfer coefficient between the mass and the room air, and Tm is the
uniform temperature of the mass.
(a) Derive models for the temperatures of the air in the room and the mass.
Combine them into one differential equation describing T.
(b) Explain how this system would behave with an on-off control and note
differences, if any, with the result in Example 3.4.
4.4. An impulse of a component could be introduced into a continuous-flow
mixing tank.
(a) Describe how the experiment could be performed; specifically, how
could the impulse be implemented in the experiment?
(b) Derive a model for the component concentration in the tank, and solve
for the concentration of the component in the tank after the impulse.
(c) Discuss useful information that could be determined from this exper
iment.
4.5. A CSTR has constant volume and temperature and is well mixed. The
reaction A -+ B is first-order and irreversible. The feed can contain an
impurity which serves as an inhibitor to the reaction; the rate of reaction
of A is /"a = -koe~E/RTC\/(\ + k\C\) where C\ is the concentration
of inhibitor. The reactor is initially at steady state and experiences a step
change in the inhibitor concentration. Determine the dynamic response of
the concentration of reactant A after the step based on a linearized model.
(Hint: You must determine the concentration of inhibitor first.)
4.6. For the following systems, (a) apply the final value theorem and (b) calcu 129
late the frequency response.
(i) Example 3.2 Questions
(ii) Example 3.3
(Hi) A level system with L(s)/Fm(s) = l/As, with Fm(s) = AF[n/s and
A = cross-sectional area [see equation (5.15)].
For each case, state whether the result is correct, and if not, why.
4.7. The process shown in Figure Q4.7 is to be modelled and analyzed. It con
sists of a mixing tank, mixing pipe, and CSTR. Information for modelling
is given below.
(i) Both tanks are well mixed and have constant volume and temperature,
(ii) All pipes are short and contribute negligible transportation delay,
(iii) All flows are constant, and all densities are constant,
(iv) The first tank is a mixing tank.
(v) The mixing pipe has no accumulation, and the concentration Ca3 is
constant,
(vi) The second tank is a CSTR with A -> products and ta = —kCA .
(a) Derive a linear(ized) model (algebraic or differential equation) relating
C'A2(t) to C'A0(t).
ib) Derive a linear(ized) model (algebraic or differential equation) relating
CA4(OtoCA2(0.
(c) Derive a linear(ized) model (algebraic or differential equation) relating
cA5(otocA4(o.
id) Combine the models in parts (i) to (iii) into one equation relating CA5 to
CA0 using Laplace transforms. Is the response unstable? Is the response
periodic?
mixing
CAo / pipe
\CtA2 -A4
'A3
mixing tank
'A5
stirred-tank reactor
FIGURE Q4.7
FIGURE Q4.9
4.10. For each of the block diagrams in Figure Q4.10, derive the overall input-
output transfer function Xi (s)/Xq(s). (Note that they are two of the most
commonly occurring and important block diagrams used in feedback con
trol.)
4.11. The isothermal chemical reactor in Figure Q4.11 includes a liquid inventory
in which the turbulent flow out depends on the liquid level. The chemical
reaction is first-order with negligible heat of reaction, A -» B, and it occurs
only in the tank, not in the pipe. The system is initially at steady state and
experiences a step change in the inlet flow rate, with the inlet concentration
constant.
id) Derive the overall and component material balances.
ib) Linearize the equations and take the Laplace transforms.
(c) Determine the transfer function for Ca(s)/F0(s).
ia) 131
X0is) GAs) G2is) G3is) G4(s) Xx(s)
Questions
ib) + 'AO
L C*
FIGURE Q4.10
A±>B
which is first-order with the forward and reverse rate constants k\ and k2,
respectively. Only component A appears in the feed. The system is initially
at steady state and experiences a step in the concentration of A in the feed.
Formulate a model to describe this system, and solve for the concentrations
of A and B in the reactor.
4.14. Answer the following questions.
id) The initial value of a variable can be determined in a manner similar
to the final value. Derive the general expression for the initial value.
ib) The transfer function in equation (4.46) can be inverted to give
CAq(s) _ xs + 1
CAis) " Kp
Discuss whether this is also a transfer function describing the process,
(c) The transfer function is sometimes referred to as the impulse response
of the (linear) system. Demonstrate why this statement is true.
id) If only the input-output relationship is required, why are all equations
for the system included in the model, rather than only those equations
involving the input and output variables?
132 4.15. A heat exchanger would be difficult to model, because of the complex
fluid mechanics in the shell side. To develop a simple model, consider the
CHAPTER4 two stirred tanks in Figure Q4.15, in which heat is transferred through the
Modelling and common wall, with Q = UAiAT) and UA being constant.
Analysis for Process
Control id) Using typical assumptions for the stirred tanks and ignoring energy
accumulation effects of the walls, derive an unsteady-state energy bal
ance for the temperatures in both tanks.
ib) Solve for the analytical expression for both temperatures in response
to a step in 7/,o.
Th0
■1
TCQ (c) Is it possible for this system to have periodic behavior?
'
n | T1c 4.16. For the series of isothermal CSTRs in Example 3.3:
vh vc id) Derive the transfer function for CA2(s)/Fis).
ib) Use this result to determine the response of Ca2 to an impulse in the
FIGURE Q4.15 feed rate F.
4.17. The system in Figure Q4.17 has a flow of pure A to and from a draining
tank (without reaction) and a constant flow of B. Both of these flows go
to an isothermal, well-mixed, constant-volume reactor with A + B ->
products and rA = rB = -£CaCb. Make any additional assumptions
in determining analytical expressions for the dynamic responses from an
initial steady state.
id) Determine the flow of A to the chemical reactor in response to a flow
step into the draining tank.
ib) Determine the concentration of A in the chemical reactor in response
to id).
® ®
FIGURE Q4.17
4.18. The process in Figure Q4.18 involves a continuous-flow stirred tank with 133
a mass of solid material. The assumptions for the system are: H f f l f a M M I —■
