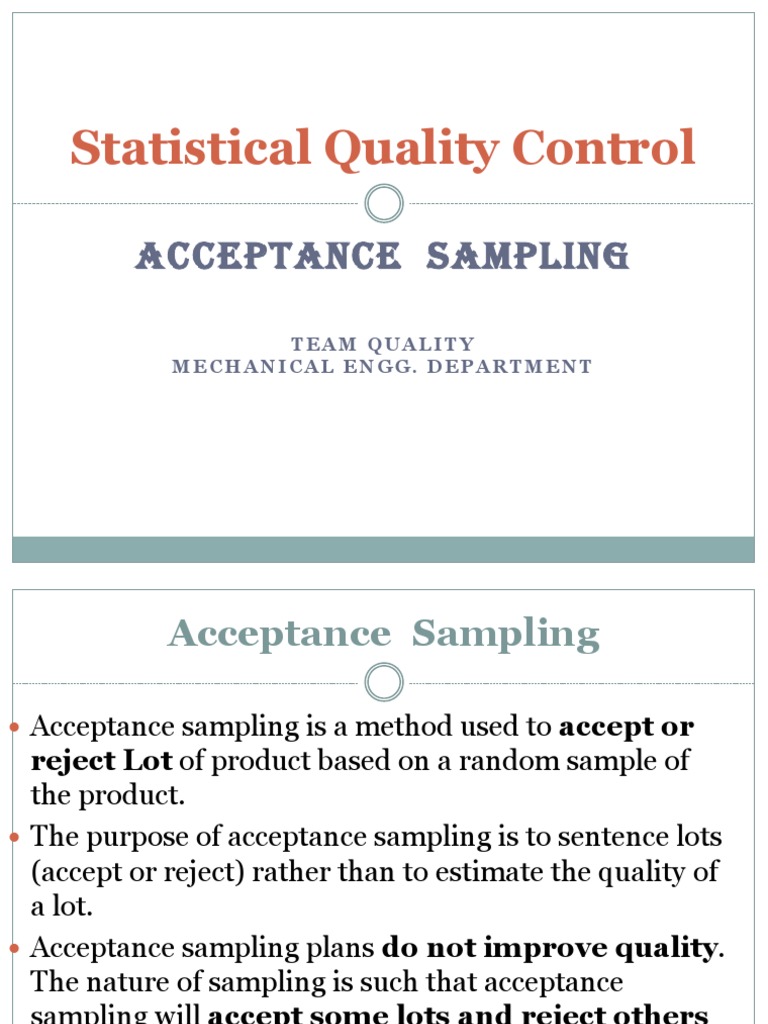

Statistical Quality Control

ACCEPTANCE SAMPLING

TEAM QUALITY
MECHANICAL ENGG. DEPARTMENT
 Acceptance Sampling

 Acceptance sampling is a method used to accept or

reject Lot of product based on a random sample of
the product.
 The purpose of acceptance sampling is to sentence lots
(accept or reject) rather than to estimate the quality of
a lot.
 Acceptance sampling plans do not improve quality.
The nature of sampling is such that acceptance
sampling will accept some lots and reject others
even though they are of the same quality.
When this tool be used in your organization?

•When developing new products.

•When dealing with new suppliers.
•When a supplier’s product has
had excellent quality in the past.
•Large numbers of items must be processed in a short
amount of time.
•When product testing is, Expensive & time consuming

➢Purposes
• Determine quality level.
• Ensure quality is within predetermined level.
 Advantages and Disadvantages of Sampling

Advantages Disadvantages
 Producer risk - can reject
 Less expensive because of less
“good” lots (Type I Error)
inspection
 Consumers Risk- can accept
 Rejection on entire lot motivates
“bad” lots.(Type II Error)
quality improvement for
suppliers  Sample provides less
information than 100-percent
 There is less handling damage of
inspection.
the product
 Fewer personnel are involved in
inspection activities.
 It often greatly reduces the
amount of inspection error
 Inspection

 Inspection:
a. no inspection – all products are accepted.
b. 100% inspection
accepts good & rejects bad,
uneconomical for large size of lot,
time consuming, more man power.
c. Acceptance sampling
reduces the inspection.
verify quality level of lot.
OC Curve (Operating characteristic curve)

Ideal OC Curve
 Parameters of OC Curve
Consumer risk- bad lot is accepted.
Producer risk- good lot rejected. This risk should
kept as low as possible. Rejection can be avoided by
producing better quality than AQL.
AQL- It is the max. %defective or max. no. of
defect/hundred for purpose of sampling inspection.
Producer risk should be less or equal to AQL.
RQL- Level of defectiveness so rejected by
sampling plan. Consumer risk is 0.10.
AQL & RQL level decided by
negotiation between customer &
producer.
IQL- quality level between
AQL & RQL. Probability of
acceptance is 50%.
AOQL(Avg. outgoing quality limit)-
quality of lot after acceptance. It is lowest quality
level of lot that will generally accepted.
RQL also called as LTPD- lot tolerance % defective
 AOQ (Avg. outgoing quality)- quality that leaves the inspection.
Pd = true percent defective of the lot
Pa = probability of accepting the lot
N = number of items in the lot
n = number of items in the sample
 Acceptance Number (c)- it is a permissible number of defective units in
a selected sample size.
 Characteristics of OC Curve
 Changing Lot size- larger lot size will have better characteristic as, it
reduce the risk of error. Lot size increases, sample size also increases.
If everything is const. then lot size have no effect on probability of
acceptance.

•Changing sample size-

larger the number items in the
sample, more is the possibility of
finding defects.
 Changing acceptance number- acceptance number
increases, probability of acceptance also increases.
 Sampling Plan Methods

 Sampling Plans specify the lot size, sample size,

number of samples and acceptance/rejection criteria.
 Sampling plans involve:
❑ Single sampling Plan
❑ Double sampling Plan
❑ Multiple sampling Plan
Random
Lot
sample
 Single sampling Plan

 Single Sampling Plan

N = lot size
n = sample size
 C=acceptance number
 Eachitem in the sample is examined and classified
as good/defective.
 If
c or less non-conforming units are found in the
sample, the lot is accepted, else it is rejected.
 Double Sampling Plan

 A Double Sampling Plan allows to take a second

sample if the results of the original sample are
inconclusive.
❑ Specifies the lot size, size of the initial sample, the
accept/reject/inconclusive criteria for the initial sample
(N, n1, c1 , r1)
❑ Specifies the size of the second sample and the acceptance
rejection criteria based on the total number of defective
observed in both the first and second sample (n2,c2,r2)
 Double Sampling Plan

Lot First Random

sample

First sample inconclusive,

Accept Lot Reject Lot
take second sample

C1 r1
Compare number of defective found in the first random sample to C1
and r1 and make appropriate decision.
 Double Sampling Plan
Lot First Random sample

Second Random sample

Accept Lot Reject Lot

C2
Compare the total number of defective in both samples to C2 and make
the appropriate decision
• A double sampling plan is associated with four
numbers: n1, n2 , c1 and c2
• The interpretation of the numbers is shown by an
example: Let n1 = 20, n2 = 10, c1 = 3, c2 = 5
 1. Inspect a sample of size 20
 2. If the sample contains 3 or less defectives, accept
the lot
 3. If the sample contains more than 5 defectives,
reject the lot.
 If the sample contains more than 3 and less than or
equal to 5 defectives (i.e., 4 or 5 defectives), then
inspect a second sample of size 10
 5. If the cumulative number of defectives in the
combined sample of 30 is not more than 5, then
accept the lot.
 6. Reject the lot if there are more than 5 defectives
in the combined sample of 30.
 Multiple sampling Plan

 A Multiple Sampling Plan is similar to the double sampling

plan in which successive trials are made, each of which has
acceptance, rejection and inconclusive options.
 Steps for problem solution
For Single sampling plan:-
 Step 1 Sample size,

 Step 2 Average Outgoing Quality AOQ,

For double sampling plan:-

 No. of defectives articles= Lot size × percent defective = N × P’
 No. of non defectives articles= Lot size – no. of defective article=N-(N × P’)
 Total no. of defective in first sample, say x=(n × P’)I
the lot is accepted if, (n × P’)≤C1, C1=acceptance no. of 1st sample.
 For 2nd sample, if no. of defectives >C1 then take 2nd sample for inspection.
if defect ≤ C2 then 2nd lot is accepted. C2=acceptance no. of 2nd sample.
 If defects are greater than C2 lot is rejected.
 No. of defective in 2nd sample say y=(n × P’) II

 Probability of acceptance for 2nd sample,

lot can be accepted if
Max. defects=C1 (for 1st ) &
Max. defects=(C2-C1) (for 2nd )

 Total probability of acceptance,

 Average Outgoing Quality AOQ,

 Comparison between Single & Double Sampling Plan
Single Sampling Plan
 No. of samples one.
 Decision of acceptance &
rejection depend on sample
taken.
 Sample size is large.
 Amount of record keeping is
least
 Chance/probability of acceptance
of lot is less.
Double Sampling Plan
 No. of samples two.
 Decision of acceptance &
rejection depend on first &
second sample taken.
 First sample size is about half of
single sampling.
 1st sample & 2nd sample results
are noted.
 Chance/probability of acceptance
of lot is more.
 Table for solving the Problem

nP’ 0.6 0.7 0.8 0.9 1.0

c
0 0.549(0.549) 0.819(0.819) 0.499(0.499) 0.406(0.406) 0.368(0.368)

1 0.329(0.878) 0.164(0.983) 0.359(0.808) 0.366(0.772) 0.368(0.736)

2 0.099(0.977) 0.016(0.999) 0.144(0.952) 0.166(0.938) 0.184(0.92)

Statistical Quality Control
 SQC

 It is the collection, analysis & interpretation of data

to solve a particular problem.
 Products of uniform acceptable quality are
manufactured.
 Statistical concept

 Data:- collected for quality control purpose.

Classified as,
 Variables- These are quality characteristics that
are measured. e.g. weight- in KG, diameter in mm.

 Attributes- These are those quality characteristics

that are classified as either conforming or non-
conforming to specification. e.g. Go-No Go gauge
inspection, presence of crack in welding.
 Frequency Diagram

 1. Manufacturing variability-
No parts can be produced with identical measurements. Their
will be variation due to manufacturing process or measuring
equipment.
 Histogram
3.5
3
2.5
Freq. 2
1.5
1
0.5
0
1.6 1.7 1.8 1.9 2
Dia. Of pins in mm
• Frequency Distribution
join top point of each
histogram rectangle by line, the
obtained graph is known as
frequency polygon.

If we join these points by

smooth curve, obtained graph is
called as frequency distribution.
 Concept of variation
 No two items are exactly alike.

 Some sort of variations in the two items is bound to be

there. In fact it is an integral part of any manufacturing
process.

 This difference in characteristics known as variation.

 This variation may be due to substandard quality of raw

material, carelessness on the part of operator, fault in
machinery system etc.
Types Of Variations
29
 30
Variation due to chance causes
30

 Variation occurred due to chance.

 This variation is NOT due to defect in machine, Raw
material or any other factors.
 Variation due to slight vibration in machine, raw material,
failure of power supply.
 Behave in “random manner”.
 Negligible but Inevitable
 The process is said to be under the state of statistical
control.
 31
Variation due to Assignable causes
31

Non – random causes

like:

 Difference in quality of raw material

 Difference in machines

 Difference in operators

 Difference of time
 Control Charts
 Graph of sample data plotted over time
Assignable
Cause Variation

UCL
Process
Mean
Average 

LCL
Random
Variation
 Mean, Median & Mode
 Mean- Average of measured reading.

or if frequency of data is given then,

 Median- if set of reading is given

2,4,8,9,10 ----median is 8 i.e. central value
2,4,7,8,9,10-----median is avg. of central two
values i.e. 7 & 8 i.e.(7.5)
For calculating median arrange the reading in ascending order.
 Mode- value which occurs more time.
or value having higher position in graph. (last example
mode is 1.8)
 Range & Standard Deviation

 Range- Difference between highest & lowest reading.

 Standard Deviation-

X1, X2,….,Xn are individual reading

is mean
 Control charts
 The control chart is a statistical quality control tool used in the monitoring
variation in the characteristics of a product or service
 Data collected from a control chart may form the basis for process improvement.
 UCL = Process Average + 3 Standard Deviations
 LCL = Process Average - 3 Standard Deviations
X
UCL

+ 3
Process Average

- 3
LCL

TIME
 X-chart

 It is used to monitor changes in the mean of a process.

 To construct a mean chart we first need to construct the center line
of the chart
 It is used to monitor changes in the mean of a process.
 Step 1 calculate mean
 Step 2 calculate Grant mean
 Step 3 standard deviation of the distributed sample means

 Step 4 calculate control limits

 Step 5 plot graph

 Control charts for variable

 X-chart & R-chart

 A quality control inspector at the Cocoa Fizz soft drink company
has taken 5 samples with four observations each of the volume of
bottles filled. The data and the computed means are shown in the
table. If the standard deviation of the bottling operation is 0.14
ounces, use this information to develop control limits of three
standard deviations for the bottling operation.
