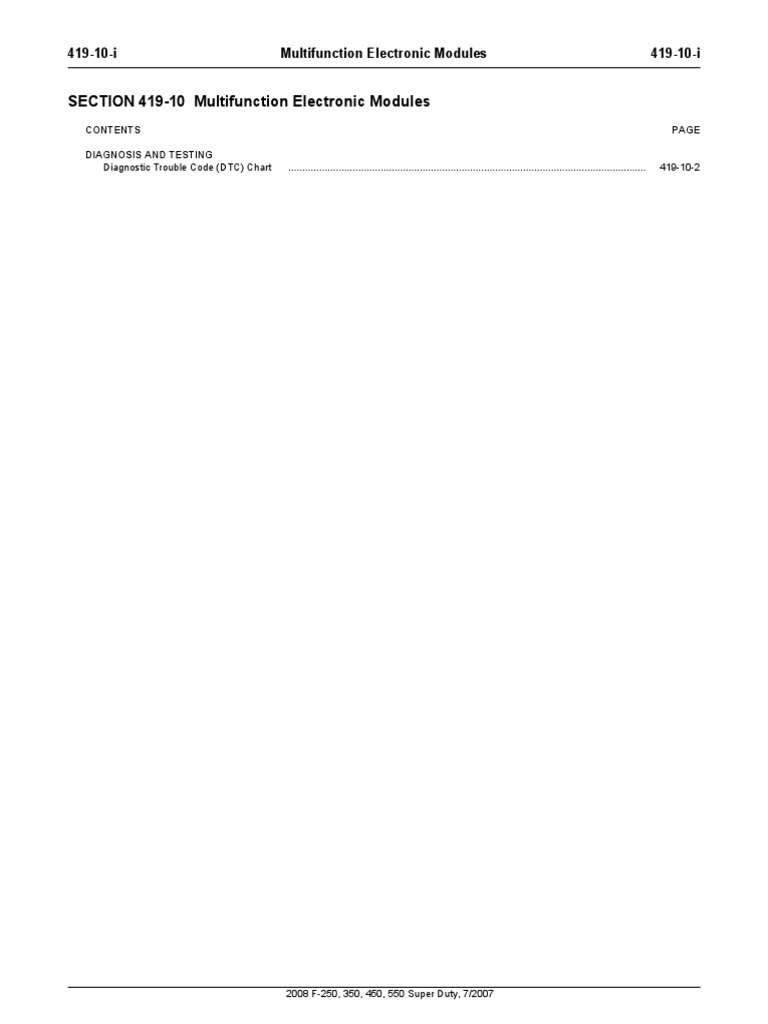

419-10-i Multifunction Electronic Modules 419-10-i

SECTION 419-10 Multifunction Electronic Modules

CONTENTS PAGE

DIAGNOSIS AND TESTING

Diagnostic Trouble Code (DTC) Chart ................................................................................................................................ 419-10-2

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-2 Multifunction Electronic Modules 419-10-2

DIAGNOSIS AND TESTING

Diagnostic Trouble Code (DTC) Chart

NOTE:
Most powertrain (P-code) DTCs are diagnosed in the Powertrain Control/Emissions Diagnosis (PC/ED) manual. If the P-code retrieved is not listed below,
refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual to continue diagnostics.

NOTE:
The smart junction box (SJB) is also known as the generic electronic module (GEM).

DTC Description Source Action

B1003 Mode Door Circuit Failure Heating REFER to Section 412-00.
Ventilation Air
Conditioning
(HVAC) Module
B1010 Parking Aid Module Switch Not Connected Parking Aid REFER to Section 413-13.
Module (PAM)
B1015 CEI Unconfigured Instrument REFER to Section 419-01.
Cluster (IC)
B1031 SDARS Satellite Antenna Open Satellite Digital REFER to Section 415-00.
Audio Receiver
System
(SDARS)
Module
B1032 SDARS Satellite Antenna Short SDARS Module REFER to Section 415-00.
B1048 Passenger Side Airbag Cross Link to Another Firing Restraints REFER to Section 501-20B.
Loop Control Module
(RCM)
B1049 Passenger Seatbelt Pretensioner Cross Link to Another RCM REFER to Section 501-20B.
Firing Loop
B1054 Driver Seatbelt Pretensioner Cross Link to Another RCM REFER to Section 501-20B.
Firing Loop
B1065 Radio Volume Cutback Circuit Short to Battery PAM REFER to Section 413-13.
B1066 Radio Volume Cutback Circuit Failure PAM REFER to Section 413-13.
B106A TPMS Sensor Pressure Range Bit Incorrect State Smart Junction REFER to Section 204-04.
Box (SJB)
B106B Tire Pressure Sensor Low Battery SJB REFER to Section 204-04.
B106C Tire Pressure Monitor System (TPMS) Low Frequency SJB REFER to Section 204-04.
Subsystem Fault
B106D Tire Pressure Monitor System (TPMS) Initiators Not SJB REFER to Section 204-04.
Configured
B106E Solid State Driver Disabled Due to Short Circuit SJB REFER to Smart Junction Box (SJB) in this section.
B106F Module Disabled Due to External Fault SJB REFER to Smart Junction Box (SJB) in this section.
B1117 Audio Steering Wheel Button Stuck Audio Control REFER to Section 415-00.
Module (ACM)
B1119 Audio Disc DVD Player Thermal Shutdown ACM REFER to Section 415-00.
B1119 Audio Disc DVD Player Thermal Shutdown Rear REFER to Section 415-00.
Entertainment
Module (RETM)
B111F LCD Thermal Shutdown RETM REFER to Section 415-00.
B1136 Audio Steering Wheel Switch #2 Circuit Failure ACM REFER to Section 415-00.
B1140 Map Disk Invalid ACM REFER to Section 415-00.
B1154 Subwoofer #1 Short to Ground ACM REFER to Section 415-00.
B1155 Subwoofer #1 Short to Battery ACM REFER to Section 415-00.
B1200 Climate Control Pushbutton Circuit Failure HVAC Module REFER to Section 412-00.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-3 Multifunction Electronic Modules 419-10-3
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
B1202 Fuel Sender Circuit Open IC REFER to Section 413-01.
B1204 Fuel Sender Circuit Short to Ground IC REFER to Section 413-01.
B1205 EIC Switch-1 Assembly Circuit Failure IC REFER to Section 413-01.
B1206 EIC Switch-1 Assembly Circuit Open IC REFER to Section 413-01.
B1208 EIC Switch-1 Assembly Circuit Short To Ground IC REFER to Section 413-01.
B1209 EIC Switch-2 Assembly Circuit Failure IC REFER to Section 413-01.
B1213 Anti-Theft Number Of Programmed Keys Is Below IC REFER to Section 419-01.
Minimum
B1231 Event Threshold Exceeded RCM REFER to Section 501-20B.
B1234 Mirror Switch Invalid Code Driver Seat REFER to Section 501-09.
Module (DSM)
B1242 Air Flow Recirculation Door Driver Circuit Failure HVAC Module REFER to Section 412-00.
B1251 Air Temperature Internal Sensor Circuit Open HVAC Module REFER to Section 412-00.
B1253 Air Temperature Internal Sensor Short to Ground HVAC Module REFER to Section 412-00.
B1255 Air Temperature External Sensor Circuit Open HVAC Module REFER to Section 412-00.
B1257 Air Temperature External Sensor Circuit Short to HVAC Module REFER to Section 412-00.
Ground
B1299 Power Supply Sensor Circuit Short to Ground PAM REFER to Section 413-13.
B1302 Accessory Delay Relay Coil Circuit Failure SJB REFER to Section 501-11.
B1304 Accessory Delay Relay Coil Circuit Short To Battery SJB REFER to Section 501-11.
B1317 Battery Voltage High 4X4 Control REFER to Section 414-00.
Module
B1317 Battery Voltage High ABS Module REFER to Section 206-09.
B1317 Battery Voltage High Auxiliary Heater REFER to Section 412-00 (diesel engine only).
Control Module
(AHCM)
B1317 Battery Voltage High DSM REFER to Section 414-00.
B1317 Battery Voltage High IC REFER to Section 414-00.
B1317 Battery Voltage High RCM REFER to Section 414-00.
B1317 Battery Voltage High RETM REFER to Section 414-00.
B1317 Battery Voltage High SJB REFER to Section 414-00.
B1317 Battery Voltage High Trailer Brake REFER to Section 206-10.
Control (TBC)
Module
B1318 Battery Voltage Low 4X4 Control REFER to Section 414-00.
Module
B1318 Battery Voltage Low ABS Module REFER to Section 206-09.
B1318 Battery Voltage Low ACM REFER to Section 414-00.
B1318 Battery Voltage Low AHCM REFER to Section 412-00 (diesel engine only).
B1318 Battery Voltage Low DSM REFER to Section 414-00.
B1318 Battery Voltage Low IC REFER to Section 413-01.
B1318 Battery Voltage Low RCM REFER to Section 414-00.
B1318 Battery Voltage Low RETM REFER to Section 414-00.
B1318 Battery Voltage Low SDARS Module REFER to Section 415-00.
B1318 Battery Voltage Low SJB REFER to Section 414-00.
B1318 Battery Voltage Low TBC Module REFER to Section 206-10.
B1320 Driver Door Ajar Circuit Open SJB REFER to Section 413-01.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-4 Multifunction Electronic Modules 419-10-4
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
B1328 Passenger Door Ajar Circuit Open SJB REFER to Section 417-02.
B1331 Decklid Ajar Rear Door Circuit Failure SJB REFER to Section 417-02.
B1336 Door Ajar RR Circuit Open SJB REFER to Section 417-02.
B1342 ECU Is Faulted 4X4 Control CLEAR the DTCs. REPEAT the self-test. If DTC
Module B1342 is retrieved again, INSTALL a new 4X4 control
module. REFER to Section 308-07A.
B1342 ECU Is Faulted ABS Module CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new ABS
module. REFER to Section 206-09.
B1342 ECU Is Faulted ACM CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new ACM.
REFER to Section 415-00.
B1342 ECU Is Faulted AHCM CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new AHCM.
REFER to Section 412-00 (diesel engine only).
B1342 ECU Is Faulted Circuit CLEAR the DTCs. REPEAT the self-test. If DTC
Deactivation B1342 is retrieved again, INSTALL a new CDIM.
Ignition Module REFER to Section 211-05.
(CDIM)
B1342 ECU Is Faulted DSM CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new DSM.
REFER to Section 501-10.
B1342 ECU Is Faulted HVAC Module REFER to Section 412-00.
B1342 ECU Is Faulted IC CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new IC. REFER
to Section 413-01.
B1342 ECU Is Faulted PAM CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new PAM.
REFER to Section 413-13.
B1342 ECU Is Faulted PCM CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new PCM.
REFER to Section 303-14A or Section 303-14B.
B1342 ECU Is Faulted RCM CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new RCM.
REFER to Section 501-20B.
B1342 ECU Is Faulted RETM CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new RETM.
REFER to Section 415-00.
B1342 ECU Is Faulted SDARS Module REFER to Section 415-00.
B1342 ECU Is Faulted SJB CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new SJB. REFER
to Smart Junction Box (SJB) in this section.
B1342 ECU Is Faulted TBC Module CLEAR the DTCs. REPEAT the self-test. If DTC
B1342 is retrieved again, INSTALL a new TBC
module. REFER to Section 206-10.
B1352 Ignition Key-In Circuit Failure SJB REFER to Section 211-05.
B1355 Ignition RUN Circuit Failure 4X4 Control REFER to Section 308-07A.
Module
B1355 Ignition RUN Circuit Failure CDIM REFER to Section 211-05.
B1359 Ignition RUN/ACC Circuit Failure 4X4 Control REFER to Section 308-07A.
Module
B1359 Ignition RUN/ACC Circuit Failure CDIM REFER to Section 211-05.
B1366 Ignition START Circuit Short to Ground 4X4 Control REFER to Section 308-07A.
Module
B1472 Lamp Headlamp Input Circuit Short To Ground SJB REFER to Section 417-01.
B1483 Brake Pedal Input Circuit Failure 4X4 Control REFER to Section 417-01.
Module

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-5 Multifunction Electronic Modules 419-10-5
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
B1485 Brake Pedal Input Circuit Short to Battery 4X4 Control REFER to Section 417-01.
Module
B1485 Brake Pedal Input Circuit Short to Battery SJB REFER to Section 417-01.
B1510 Flash To Pass Switch Circuit Short To Ground SJB REFER to Section 417-01.
B1530 Memory Set Switch Circuit Short To Ground DSM REFER to Section 501-10.
B1534 Memory 1 Switch Circuit Short To Ground DSM REFER to Section 501-10.
B1538 Memory 2 Switch Circuit Short To Ground DSM REFER to Section 501-10.
B1555 Ignition Run/Start Circuit Failure IC REFER to Section 211-05.
B1572 Door Ajar LR Circuit Open SJB REFER to Section 417-02.
B1578 Lamp Park Input Circuit Short To Ground SJB REFER to Section 417-01.
B1600 PATS Ignition Key Transponder Signal Is Not Received IC REFER to Section 419-01.
B1601 PATS Received Incorrect Key-Code From Ignition Key IC REFER to Section 419-01.
Transponder
B1602 PATS Received Invalid Format Of Key-Code From IC REFER to Section 419-01.
Ignition Key Transponder
B1624 Lamp Keypad Output Open Circuit SJB REFER to Section 501-14.
B1626 Lamp Keypad Output Short Circuit To Ground SJB REFER to Section 501-14.
B1663 Seat Driver Front Up/Down Motor Stalled DSM REFER to Section 501-10.
B1664 Seat Driver Rear Up/Down Motor Stalled DSM REFER to Section 501-10.
B1665 Seat Driver Forward/Backward Motor Stalled DSM REFER to Section 501-10.
B1666 Seat Driver Recline Motor Stalled DSM REFER to Section 501-10.
B1667 Mirror Driver Up/Down Motor Stalled DSM REFER to Section 501-09.
B1668 Mirror Driver Right/Left Motor Stalled DSM REFER to Section 501-09.
B1669 Mirror Passenger Up/Down Motor Stalled DSM REFER to Section 501-09.
B1670 Mirror Passenger Right/Left Motor Stalled DSM REFER to Section 501-09.
B1676 Battery Voltage Out Of Range HVAC Module REFER to Section 414-00.
B1681 PATS Transceiver Module Signal Is Not Received IC REFER to Section 419-01.
B1685 Lamp Dome Input Circuit Failure SJB REFER to Section 417-02.
B1688 Lamp Dome Input Circuit Short To Ground SJB REFER to Section 417-02.
B1696 Autolamp On Circuit Short To Ground SJB REFER to Section 417-01.
B1703 Seat Driver Recline Forward Switch Circuit Short To DSM REFER to Section 501-10.
Battery
B1707 Seat Driver Recline Rearward Switch Circuit Short To DSM REFER to Section 501-10.
Battery
B1711 Seat Driver Front Up Switch Circuit Short To Battery DSM REFER to Section 501-10.
B1715 Seat Driver Front Down Switch Circuit Short To Battery DSM REFER to Section 501-10.
B1719 Seat Driver Forward Switch Circuit Short To Battery DSM REFER to Section 501-10.
B1723 Seat Driver Rearward Switch Circuit Short To Battery DSM REFER to Section 501-10.
B1727 Seat Driver Rear Up Switch Circuit Short To Battery DSM REFER to Section 501-10.
B1731 Seat Driver Rear Down Switch Circuit Short To Battery DSM REFER to Section 501-10.
B1733 Mirror Driver Vertical Switch Circuit Failure DSM REFER to Section 501-09.
B1737 Mirror Driver Horizontal Switch Circuit Failure DSM REFER to Section 501-09.
B1741 Mirror Passenger Vertical Switch Circuit Failure DSM REFER to Section 501-09.
1745 Mirror Passenger Horizontal Switch Circuit Failure DSM REFER to Section 501-09.
B1791 Autolamp Sensor Input Circuit Open SJB REFER to Section 417-01.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-6 Multifunction Electronic Modules 419-10-6
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
B1793 Autolamp Sensor Input Circuit Short to Ground SJB REFER to Section 417-01.
B1863 Ground ECU Circuit Open TBC Module REFER to Section 206-10.
B1868 Lamp Air Bag Warning Indicator Circuit Failure IC REFER to Section 413-01.
B1871 Passenger Air Bag Disable Module Fault RCM REFER to Section 501-20B.
B1884 PAD Warning Lamp Circuit Failure RCM REFER to Section 501-20B.
B1890 PAD Warning Lamp Circuit Short to Battery RCM REFER to Section 501-20B.
B1952 Seat Rear Up/Down Position Feedback Circuit Short To DSM REFER to Section 501-10.
Battery
B1953 Seat Rear Up/Down Position Feedback Circuit Short To DSM REFER to Section 501-10.
Ground
B1956 Seat Front Up/Down Position Feedback Circuit Short To DSM REFER to Section 501-10.
Battery
B1957 Seat Front Up/Down Position Feedback Circuit Short To DSM REFER to Section 501-10.
Ground
B1960 Seat Recline Forward/Backward Position Feedback DSM REFER to Section 501-10.
Circuit Short To Battery
B1961 Seat Recline Forward/Backward Position Feedback DSM REFER to Section 501-10.
Circuit Short To Ground
B1964 Seat Horizontal Forward/Rearward Position Feedback DSM REFER to Section 501-10.
Circuit Short To Battery
B1965 Seat Horizontal Forward/Rearward Position Feedback DSM REFER to Section 501-10.
Circuit Short To Ground
B1987 Pedal Forward / Rearward Motor Stalled DSM REFER to Section 206-00.
B1988 Pedal Position Forward Switch Circuit Short to Battery DSM REFER to Section 206-00.
B1989 Pedal Position Rearward Switch Circuit Short to Battery DSM REFER to Section 206-00.
B2008 Wipers On Signal Circuit Short to Ground SJB REFER to Section 501-16.
B2031 Left Corner Lamp Output Circuit Failure SJB REFER to Section 417-01.
B2032 Right Corner Lamp Output Circuit Failure SJB REFER to Section 417-01.
B2044 Left Rear Stop Lamp Circuit Short to Ground SJB REFER to Section 417-01.
B2045 Left Rear Stop Lamp Circuit Open SJB REFER to Section 417-01.
B2046 Right Rear Stop Lamp Circuit Short to Ground SJB REFER to Section 417-01.
B2047 Right Rear Stop Lamp Circuit Open SJB REFER to Section 417-01.
B2048 Left Rear Turn Lamp Circuit Short to Ground SJB REFER to Smart Junction Box (SJB) in this section.
B2049 Left Rear Turn Lamp Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2050 Right Rear Turn Lamp Circuit Short to Ground SJB REFER to Smart Junction Box (SJB) in this section.
B2051 Right Rear Turn Lamp Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. CLEAR the DTCs. REPEAT the self-test.
B2084 Memory Set Indicator Short to Ground DSM REFER to Section 501-10.
B2097 Compass Module Failure IC REFER to Section 413-01.
B2103 Antenna Not Connected ACM REFER to Section 415-00.
B2103 Antenna Not Connected IC REFER to Section 419-01.
B2141 NVM Configuration Failure IC REFER to Section 419-01.
B2143 NVM Memory Failure DSM REFER to Section 501-10.
B2143 NVM Memory Failure IC REFER to Section 413-01.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-7 Multifunction Electronic Modules 419-10-7
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
B2204 GPS Antenna Connection Open or Short ACM REFER to Section 415-00.
B2212 Panel Dim Switch Out Of Range SJB REFER to Section 413-00.
B2223 Mirror Driver Drive Circuit Failure DSM REFER to Section 501-09.
B2224 Mirror Passenger Drive Circuit Failure DSM REFER to Section 501-09.
B2254 Front Fog Lamp Switch Failure SJB REFER to Section 417-01.
B2266 Blend Door Circuit Failure HVAC Module REFER to Section 412-00.
B2267 Right Side Blend Door Circuit Failure HVAC Module REFER to Section 412-00.
B2274 Phone Transceiver Active Circuit Failure ACM REFER to Section 415-00.
B2276 Less Than 2 Transmitters Programmed SJB REFER to Section 501-14.
B2281 Right Turn Switch Short to Ground SJB REFER to Section 417-01.
B2282 Left Turn Switch Short to Ground SJB REFER to Section 417-01.
B2292 Restraint System - Seatbelt Pretensioner Fault RCM REFER to Section 501-20B.
B2293 Restraint System - Airbag Fault RCM REFER to Section 501-20B.
B2296 Restraint System - Impact Sensor Fault RCM REFER to Section 501-20B.
B2312 Mirror Passenger Horizontal Feedback Potentiometer DSM REFER to Section 501-09.
Circuit Failure
B2314 Mirror Passenger Horizontal Feedback Potentiometer DSM REFER to Section 501-09.
Circuit Short to Battery
B2316 Mirror Passenger Vertical Feedback Potentiometer DSM REFER to Section 501-09.
Circuit Failure
B2318 Mirror Passenger Vertical Feedback Potentiometer DSM REFER to Section 501-09.
Circuit Short to Battery
B2320 Mirror Driver Horizontal Feedback Potentiometer DSM REFER to Section 501-09.
Circuit Failure
B2322 Mirror Driver Horizontal Feedback Potentiometer DSM REFER to Section 501-09.
Circuit Short to Battery
B2324 Mirror Driver Vertical Feedback Potentiometer Circuit DSM REFER to Section 501-09.
Failure
B2326 Mirror Driver Vertical Feedback Potentiometer Circuit DSM REFER to Section 501-09.
Short to Battery
B2373 LED #1 Circuit Short to Battery PAM REFER to Section 413-13.
B2384 Audio Reverse Aid Mute Input Ckt. Failure ACM REFER to Section 415-00.
B2404 Audio Steering Wheel Switch Circuit Fault ACM REFER to Section 415-00.
B2405 Audio Disc CD Player Thermal Shutdown Fault ACM REFER to Section 415-00.
B2406 Audio Disc CD Player Internal Fault ACM REFER to Section 415-00.
B2425 Remote Keyless Entry Out Of Synchronization SJB REFER to Section 501-14.
B2426 Passenger Solar Radiation Sensor Circuit Open HVAC Module REFER to Section 412-00.
B2427 Passenger Solar Radiation Sensor Circuit Short to HVAC Module REFER to Section 412-00.
Ground
B2431 Transponder Programming Failed IC REFER to Section 419-01.
B2434 Drivers Seat Belt Buckle Switch Circuit Short to RCM REFER to Section 501-20B.
Ground
B2435 Drivers Seat Belt Buckle Switch Resistance Out Of RCM REFER to Section 501-20B.
Range
B2477 Module Configuration Failure 4X4 Control REFER to Section 418-01.
Module
B2477 Module Configuration Failure ABS Module REFER to Section 418-01.
B2477 Module Configuration Failure ACM REFER to Section 418-01.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-8 Multifunction Electronic Modules 419-10-8
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
B2477 Module Configuration Failure CDIM REFER to Section 211-05.
B2477 Module Configuration Failure DSM REFER to Section 418-01.
B2477 Module Configuration Failure IC REFER to Section 418-01.
B2477 Module Configuration Failure PAM REFER to Section 418-01.
B2477 Module Configuration Failure RCM REFER to Section 418-01.
B2477 Module Configuration Failure RETM REFER to Section 418-01.
B2477 Module Configuration Failure SDARS Module REFER to Section 415-00.
B2477 Module Configuration Failure SJB REFER to Section 418-01.
B2479 Park Brake Switch Circuit Short to Ground SJB REFER to Section 413-01.
B2572 Brake Shift Interlock Output Circuit Failure SJB REFER to Section 307-05.
B2607 Harness/Configuration Mismatch RCM REFER to Section 501-20B.
B2627 Fuel Sender Circuit Open #2 IC REFER to Section 413-01.
B2628 Fuel Sender Circuit Short to Ground #2 IC REFER to Section 413-01.
B2633 Driver-Front Microphone Circuit Failure ACM REFER to Section 415-00.
B2656 DVD (Digital Versatile Disk) Error ACM REFER to Section 415-00.
B2656 DVD (Digital Versatile Disk) Error RETM REFER to Section 415-00.
B2658 Wait to Start Warning Indicator Circuit Open IC REFER to Section 413-01.
B2691 Seat Belt Buckle Switch Circuit Fault, Front Driver's RCM REFER to Section 501-20B.
Side
B2783 Interior Humidity Sensor to DATC Short Circuit HVAC Module REFER to Section 412-00.
B2784 Interior Humidity Sensor to DATC Open Circuit HVAC Module REFER to Section 412-00.
B2795 Driver Solar Radiation Sensor Circuit Short to Ground HVAC Module REFER to Section 412-00.
B2796 Driver Solar Radiation Sensor Circuit Open HVAC Module REFER to Section 412-00.
B2826 Front Evaporator Temp Sensor Circuit Failure HVAC Module REFER to Section 412-00.
B2827 Front Evaporator Temp Sensor Short to Ground HVAC Module REFER to Section 412-00.
B2844 Ignition Fault SJB REFER to Section 211-05.
B2868 Left Front Tire Pressure Sensor Fault SJB DTC B2868 is only present when a new SJB is installed,
the SJB is reprogrammed, or the SJB is reconfigured.
REFER to Section 204-04 to CARRY OUT TPMS
sensor training in order to CLEAR the DTC.
B2869 Right Front Tire Pressure Sensor Fault SJB DTC B2869 is only present when a new SJB is installed,
the SJB is reprogrammed, or the SJB is reconfigured.
REFER to Section 204-04 to CARRY OUT TPMS
sensor training in order to CLEAR the DTC.
B2870 Right Rear Tire Pressure Sensor Fault SJB DTC B2870 is only present when a new SJB is installed,
the SJB is reprogrammed, or the SJB is reconfigured.
REFER to Section 204-04 to CARRY OUT TPMS
sensor training in order to CLEAR the DTC.
B2871 Left Rear Tire Pressure Sensor Fault SJB DTC B2871 is only present when a new SJB is installed,
the SJB is reprogrammed, or the SJB is reconfigured.
REFER to Section 204-04 to CARRY OUT TPMS
sensor training in order to CLEAR the DTC.
B2872 Tire Pressure Sensor Fault SJB REFER to Section 204-04.
B287A Tire Pressure System Fault SJB REFER to Section 204-04.
B2900 VIN Mismatch ABS Module REFER to Section 418-01.
B2913 Audio Subwoofer Not Connected ACM REFER to Section 415-00.
B2916 Rear Blend Door Circuit Failure HVAC Module REFER to Section 412-00.
B2917 Rear Mode Door Circuit Failure HVAC Module REFER to Section 412-00.
B2918 Aux Temp Blend Input Circuit Failure HVAC Module REFER to Section 412-00.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-9 Multifunction Electronic Modules 419-10-9
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
B2919 Aux Blower Motor Speed Input Circuit Failure HVAC Module REFER to Section 412-00.
B2924 Audio Button Stuck ACM REFER to Section 415-00.
B2924 Audio Button Stuck RETM REFER to Section 415-00.
B2949 Global Opening/Closing Circuit Short To Battery SJB REFER to Smart Junction Box (SJB) in this section.
B2965 Audio System Speaker Circuit Fault ACM REFER to Section 415-00.
B2971 Pedal Position Input Short to Ground DSM REFER to Section 206-00.
B2972 Pedal Position Input Short to Battery DSM REFER to Section 206-00.
B2999 Restraint Event Notification Signal Fault RCM REFER to Section 501-20B.
B29B7 White Lighting Output Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. CLEAR the DTCs. REPEAT the self-test.
B29B8 White Lighting Output Circuit Short to Ground SJB REFER to Section 417-02.
B2A20 Ignition stuck in START IC REFER to Section 211-05.
B2A20 Ignition stuck in START SJB REFER to Section 413-01.
B2A21 One or More Configuration Files Missing or Corrupt SJB REFER to Section 418-01.
B2A22 Headlamp OFF Circuit Open SJB REFER to Section 417-01.
B2A23 High Beam Input Circuit Short To Ground SJB REFER to Section 417-01.
B2A24 Turn Signal Input Circuit Failure SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A25 Trim Panel Lock Switch Circuit Failure SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A26 Keypad Switch Circuit Failure SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A27 Right Front Turn Lamp Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A28 Right Front Turn Lamp Circuit Short to Ground SJB REFER to Section 417-01.
B2A29 Left Front Turn Lamp Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A2A Left Front Turn Lamp Circuit Short to Ground SJB REFER to Section 417-01.
B2A2B Left Corner Lamp Output Circuit Short to Ground SJB REFER to Smart Junction Box (SJB) in this section.
B2A2C Right Corner Lamp Output Circuit Short to Ground SJB REFER to Smart Junction Box (SJB) in this section.
B2A2D 3rd Row Power Fold Circuit Short to Ground SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A2E Right Front Lamp Low Beam Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-10 Multifunction Electronic Modules 419-10-10
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
B2A2F Right Front Lamp Low Beam Circuit Short to Ground SJB REFER to Section 417-01.
B2A30 Left Front Lamp Low Beam Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A31 Left Front Lamp Low Beam Circuit Short to Ground SJB REFER to Section 417-01.
B2A32 LED Backlighting Output Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A33 LED Backlighting Output Circuit Short to Ground SJB REFER to Section 413-00.
B2A35 Interior Lighting Output Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A36 Interior Lighting Output Circuit Short to Ground SJB REFER to Section 417-02.
B2A37 Floor Lamp Output Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A38 Floor Lamp Output Circuit Short to Ground SJB REFER to Smart Junction Box (SJB) in this section.
B2A39 Puddle Lamp Output Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A3A Puddle Lamp Output Circuit Short to Ground SJB REFER to Section 417-02.
B2A3B TPMS Initiator Left (1) Output Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A3C TPMS Initiator Left (1) Output Circuit Short to Ground SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A3D TPMS Initiator Right (2) Output Circuit Open SJB DISREGARD the DTC. It is not applicable to this
vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
B2A3E TPMS Initiator Right (2) Output Circuit Short to SJB DISREGARD the DTC. It is not applicable to this
Ground vehicle. The SJB may be incorrectly configured or the
SJB may be at fault. CHECK the configuration of the
SJB. REFER to Section 418-01. CLEAR the DTCs.
REPEAT the self-test.
C1095 ABS Hydraulic Pump Motor Circuit Failure ABS Module REFER to Section 206-09.
C1096 ABS Hydraulic Pump Motor Circuit Open ABS Module REFER to Section 206-09.
C110A ABS Active Circuit Short to Battery ABS Module REFER to Section 206-09.
C1115 ABS Power Relay Output Short to Battery ABS Module REFER to Section 206-09.
C1125 Brake Fluid Level Sensor Input Circuit Failure SJB REFER to Section 413-01.
C1145 Wheel Speed Sensor RF Input Circuit Failure ABS Module REFER to Section 206-09.
C1155 Wheel Speed Sensor LF Input Circuit Failure ABS Module REFER to Section 206-09.
C1170 PRNDL Switch Circuit Failure IC REFER to Section 413-01.
C1175 Speed Wheel Sensor LR Input Circuit Failure ABS Module REFER to Section 206-09.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-11 Multifunction Electronic Modules 419-10-11
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
C1185 ABS Power Relay Output Circuit Failure ABS Module REFER to Section 206-09.
C1194 ABS Outlet Valve Coil LF Circuit Failure ABS Module REFER to Section 206-09.
C1198 ABS Inlet Valve Coil LF Circuit Failure ABS Module REFER to Section 206-09.
C1210 ABS Outlet Valve Coil RF Circuit Failure ABS Module REFER to Section 206-09.
C1214 ABS Inlet Valve Coil RF Circuit Failure ABS Module REFER to Section 206-09.
C1222 Wheel Speed Mismatch ABS Module REFER to Section 206-09.
C1233 Wheel Speed LF Input Signal Missing ABS Module REFER to Section 206-09.
C1234 Wheel Speed RF Input Signal Missing ABS Module REFER to Section 206-09.
C1236 Speed Wheel LR Input Signal Missing ABS Module REFER to Section 206-09.
C1242 ABS Outlet Valve Coil LR Circuit Failure ABS Module REFER to Section 206-09.
C1246 ABS Outlet Valve Coil RR Circuit Failure ABS Module REFER to Section 206-09.
C1250 ABS Inlet Valve Coil LR Circuit Failure ABS Module REFER to Section 206-09.
C1254 ABS Inlet Valve Coil RR Circuit Failure ABS Module REFER to Section 206-09.
C1329 ABS Outlet Valve Coil RF Circuit Excessive ABS Module REFER to Section 206-09.
Temperature
C1330 ABS Outlet Valve Coil LR Circuit Excessive ABS Module REFER to Section 206-09.
Temperature
C1331 ABS Outlet Valve Coil RR Circuit Excessive ABS Module REFER to Section 206-09.
Temperature
C1332 ABS Outlet Valve Coil LF Circuit Excessive ABS Module REFER to Section 206-09.
Temperature
C1333 ABS Inlet Valve Coil LR Circuit Excessive ABS Module REFER to Section 206-09.
Temperature
C1334 ABS Inlet Valve Coil LF Circuit Excessive Temperature ABS Module REFER to Section 206-09.
C1335 ABS Inlet Valve Coil RF Circuit Excessive Temperature ABS Module REFER to Section 206-09.
C1336 ABS Inlet Valve Coil RR Circuit Excessive ABS Module REFER to Section 206-09.
Temperature
C1414 Incorrect Module Design Level RCM REFER to Section 501-20B.
C1415 Incorrect Module Configuration IC REFER to Section 418-01.
C1446 Brake Switch Circuit Failure ABS Module REFER to Section 206-09.
C1699 Left Rear Sensor Circuit Short to Vbat PAM REFER to Section 413-13.
C1700 Left Rear Sensor Circuit Failure or Blockage PAM REFER to Section 413-13.
C1701 Left Rear Sensor Circuit Fault PAM REFER to Section 413-13.
C1702 Right Rear Sensor Circuit Short to Vbat PAM REFER to Section 413-13.
C1703 Right Rear Sensor Circuit Failure or Blockage PAM REFER to Section 413-13.
C1704 Right Rear Sensor Circuit Fault PAM REFER to Section 413-13.
C1705 Left Rear Center Sensor Circuit Short to Vbat PAM REFER to Section 413-13.
C1706 Left Rear Center Sensor Circuit Failure PAM REFER to Section 413-13.
C1707 Left Rear Center Sensor Circuit Fault PAM REFER to Section 413-13.
C1708 Right Rear Center Sensor Circuit Short to Vbat PAM REFER to Section 413-13.
C1709 Right Rear Center Sensor Circuit Failure PAM REFER to Section 413-13.
C1710 Right Rear Center Sensor Circuit Fault PAM REFER to Section 413-13.
C1728 Transfer Case Unable to Transition Between 2H and 4H 4X4 Control REFER to Section 308-07A.
Module
C1729 Transfer Case Unable to Transition Between 4H and 4L 4X4 Control REFER to Section 308-07A.
Module
C1742 Rear Sounder Circuit Failure PAM REFER to Section 413-13.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-12 Multifunction Electronic Modules 419-10-12
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
C1743 Rear Sounder Circuit Short to Vbatt PAM REFER to Section 413-13.
C1748 Switch Input Circuit Short to Gnd PAM REFER to Section 413-13.
C1920 Led #1 Circuit Failure PAM REFER to Section 413-13.
C197A 4x4 Low Input Short to Ground IC REFER to Section 413-01.
C197B 4x4 High Input Short to Ground IC REFER to Section 413-01.
C1992 Vehicle Speed Circuit Failure ACM REFER to Section 415-00.
C2780 ECU in Manufacturer Sub-State SJB DTC C2780 is only present when a new SJB is installed,
the SJB is reprogrammed, or the SJB is configured.
REFER to Section 204-04 to CARRY OUT the TPMS
sensor training in order to CLEAR this DTC.
C2797 Brake Pressure Transducer Supply Short to Battery TBC Module REFER to Section 206-10.
C2798 Brake Pressure Transducer Supply Short to Ground TBC Module REFER to Section 206-10.
C2800 Brake Pressure Transducer Sense Circuit Open TBC Module REFER to Section 206-10.
C2801 Brake Pressure Transducer Sense Short to Ground TBC Module REFER to Section 206-10.
C2803 Brake Pressure Transducer Sense Circuit Failure TBC Module REFER to Section 206-10.
C2806 Trailer Brake Output Circuit Short to Vbatt TBC Module REFER to Section 206-10.
C2807 Trailer Brakes Wiring Circuit Short to Ground TBC Module REFER to Section 206-10.
P0457 Evaporative Emission System Leak Detected (Fuel Cap PCM REFER to Section 413-01.
Loose/Off)
P0500 Vehicle Speed Sensor Malfunction 4X4 Control REFER to Section 308-07A.
Module
P0512 Starter Request Circuit PCM REFER to Section 303-06A for gas engines and Section
303-06B for diesel engines.
P0565 Cruise Control ON Signal PCM REFER to Section 310-03.
P0566 Cruise Control OFF Signal PCM REFER to Section 310-03.
P0567 Cruise Control RESUME Signal PCM REFER to Section 310-03.
P0568 Cruise Control SET Signal PCM REFER to Section 310-03.
P0569 Cruise Control COAST Signal PCM REFER to Section 310-03.
P0578 Cruise Control Multi-function Input A Circuit Stuck PCM REFER to Section 310-03.
P0579 Cruise Control Multi-function Input A Circuit Range/ PCM REFER to Section 310-03.
Performance
P0581 Cruise Control Multi-function Input A Circuit High PCM REFER to Section 310-03.
P0603 Internal Control Module Keep Alive Memory (KAM) Transmission REFER to Section 307-01 (diesel engine only).
Error Control Module
(TCM)
P0604 Internal Control Module Random Access Memory TCM REFER to Section 307-01 (diesel engine only).
(RAM) Error
P0605 Internal Control Module Read Only Memory (ROM) TCM REFER to Section 307-01 (diesel engine only).
Error
P0607 Control Module Performance TCM REFER to Section 307-01 (diesel engine only).
P062F Internal Control Module EEPROM Error SJB INSTALL a new SJB. REFER to Smart Junction Box
(SJB) in this section.
P0645 A/C Clutch Relay Control Circuit PCM REFER to Section 412-00.
P0646 A/C Clutch Relay Control Circuit Low PCM REFER to Section 412-00.
P0647 A/C Clutch Relay Control Circuit High PCM REFER to Section 412-00.
P0657 Actuator Supply Voltage A Circuit / Open TCM REFER to Section 307-01 (diesel engine only).
P0706 Transmission Range Sensor A Circuit Range/ TCM REFER to Section 307-01 (diesel engine only).
Performance
P0707 Transmission Range Sensor A Circuit Low TCM REFER to Section 307-01 (diesel engine only).

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-13 Multifunction Electronic Modules 419-10-13
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
P0708 Transmission Range Sensor A Circuit High TCM REFER to Section 307-01 (diesel engine only).
P0710 Transmission Fluid Temperature Sensor A Circuit TCM REFER to Section 307-01 (diesel engine only).
P0711 Transmission Fluid Temperature Sensor A Circuit TCM REFER to Section 307-01 (diesel engine only).
Range/Performance
P0712 Transmission Fluid Temperature Sensor A Circuit Low TCM REFER to Section 307-01 (diesel engine only).
P0713 Transmission Fluid Temperature Sensor A Circuit High TCM REFER to Section 307-01 (diesel engine only).
P0715 Turbine/Input Shaft Speed Sensor A Circuit TCM REFER to Section 307-01 (diesel engine only).
P0717 Turbine/Input Shaft Speed Sensor A Circuit No Signal TCM REFER to Section 307-01 (diesel engine only).
P0718 Turbine/Input Shaft Speed Sensor A Circuit Intermittent TCM REFER to Section 307-01 (diesel engine only).
P0720 Output Shaft Speed Sensor Circuit TCM REFER to Section 307-01 (diesel engine only).
P0721 Output Shaft Speed Sensor Circuit Range/Performance TCM REFER to Section 307-01 (diesel engine only).
P0722 Output Shaft Speed Sensor Circuit No Signal TCM REFER to Section 307-01 (diesel engine only).
P0730 Incorrect Gear Ratio TCM REFER to Section 307-01 (diesel engine only).
P0740 Torque Converter Clutch Solenoid Circuit / Open TCM REFER to Section 307-01 (diesel engine only).
P0741 Torque Converter Clutch Solenoid Circuit Performance TCM REFER to Section 307-01 (diesel engine only).
Or Stuck Off
P0742 Torque Converter Clutch Solenoid Circuit Stuck On TCM REFER to Section 307-01 (diesel engine only).
P0743 Torque Converter Clutch Solenoid Circuit Electrical TCM REFER to Section 307-01 (diesel engine only).
P0744 Torque Converter Clutch Solenoid Circuit Intermittent TCM REFER to Section 307-01 (diesel engine only).
P0748 Pressure Control Solenoid A Electrical TCM REFER to Section 307-01 (diesel engine only).
P0750 Shift Solenoid A TCM REFER to Section 307-01 (diesel engine only).
P0751 Shift Solenoid A Performance or Stuck Off TCM REFER to Section 307-01 (diesel engine only).
P0752 Shift Solenoid A Stuck On TCM REFER to Section 307-01 (diesel engine only).
P0753 Shift Solenoid A Electrical TCM REFER to Section 307-01 (diesel engine only).
P0755 Shift Solenoid B TCM REFER to Section 307-01 (diesel engine only).
P0756 Shift Solenoid B Performance or Stuck Off TCM REFER to Section 307-01 (diesel engine only).
P0757 Shift Solenoid B Stuck On TCM REFER to Section 307-01 (diesel engine only).
P0758 Shift Solenoid B Electrical TCM REFER to Section 307-01 (diesel engine only).
P0760 Shift Solenoid C TCM REFER to Section 307-01 (diesel engine only).
P0761 Shift Solenoid C Performance or Stuck Off TCM REFER to Section 307-01 (diesel engine only).
P0762 Shift Solenoid C Stuck On TCM REFER to Section 307-01 (diesel engine only).
P0763 Shift Solenoid C Electrical TCM REFER to Section 307-01 (diesel engine only).
P0765 Shift Solenoid D TCM REFER to Section 307-01 (diesel engine only).
P0766 Shift Solenoid D Performance or Stuck Off TCM REFER to Section 307-01 (diesel engine only).
P0767 Shift Solenoid D Stuck On TCM REFER to Section 307-01 (diesel engine only).
P0768 Shift Solenoid D Electrical TCM REFER to Section 307-01 (diesel engine only).
P0770 Shift Solenoid E TCM REFER to Section 307-01 (diesel engine only).
P0771 Shift Solenoid E Performance or Stuck Off TCM REFER to Section 307-01 (diesel engine only).
P0772 Shift Solenoid E Stuck On TCM REFER to Section 307-01 (diesel engine only).
P0773 Shift Solenoid E Electrical TCM REFER to Section 307-01 (diesel engine only).
P0791 Intermediate Shaft Speed Sensor A Circuit TCM REFER to Section 307-01 (diesel engine only).
P0793 Intermediate Shaft Speed Sensor A Circuit No Signal TCM REFER to Section 307-01 (diesel engine only).
P0794 Intermediate Shaft Speed Sensor A Circuit Intermittent TCM REFER to Section 307-01 (diesel engine only).
P0812 Reverse Input Circuit ACM REFER to Section 415-00.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-14 Multifunction Electronic Modules 419-10-14
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
P0960 Pressure Control Solenoid A Control Circuit / Open TCM REFER to Section 307-01 (diesel engine only).
P0962 Pressure Control Solenoid A Control Circuit Low TCM REFER to Section 307-01 (diesel engine only).
P0963 Pressure Control Solenoid A Control Circuit High TCM REFER to Section 307-01 (diesel engine only).
P0973 Shift Solenoid A Control Circuit Low TCM REFER to Section 307-01 (diesel engine only).
P0974 Shift Solenoid A Control Circuit High TCM REFER to Section 307-01 (diesel engine only).
P0976 Shift Solenoid B Control Circuit Low TCM REFER to Section 307-01 (diesel engine only).
P0977 Shift Solenoid B Control Circuit High TCM REFER to Section 307-01 (diesel engine only).
P0979 Shift Solenoid C Control Circuit Low TCM REFER to Section 307-01 (diesel engine only).
P0980 Shift Solenoid C Control Circuit High TCM REFER to Section 307-01 (diesel engine only).
P0982 Shift Solenoid D Control Circuit Low TCM REFER to Section 307-01 (diesel engine only).
P0983 Shift Solenoid D Control Circuit High TCM REFER to Section 307-01 (diesel engine only).
P0985 Shift Solenoid E Control Circuit Low TCM REFER to Section 307-01 (diesel engine only).
P0986 Shift Solenoid E Control Circuit High TCM REFER to Section 307-01 (diesel engine only).
P1001 KOER Not Able to Complete, KOER Aborted TCM REFER to Section 307-01 (diesel engine only).
P1260 Theft Detected, Vehicle Immobilized PCM REFER to Section 419-01.
P1397 System Voltage Out Of Self Test Range TCM REFER to Section 307-01 (diesel engine only).
P1464 A/C Demand Out Of Self Test Range PCM REFER to Section 412-00.
P1501 Vehicle Speed Sensor Out Of Self Test Range TCM REFER to Section 307-01 (diesel engine only).
P1572 Brake Pedal Switch Circuit PCM REFER to Section 310-03.
P1633 Keep Alive Power Voltage Too Low TCM REFER to Section 307-01 (diesel engine only).
P1635 Tire/Axle Out Of Acceptable Range TCM REFER to Section 418-01 (diesel engine only).
P167F Non-OEM Calibration Detected TCM REFER to Section 307-01 (diesel engine only).
P1702 Transmission Range Sensor Circuit Intermittent TCM REFER to Section 307-01 (diesel engine only).
P1703 Brake Switch Out Of Self-Test Range PCM REFER to Section 310-03.
P1705 Transmission Range Circuit Not Indicating Park/Neutral TCM REFER to Section 307-01 (diesel engine only).
During Self Test
P1711 Transmission Fluid Temperature Sensor Out Of Self TCM REFER to Section 307-01 (diesel engine only).
Test Range
P1744 Torque Converter Clutch Solenoid Circuit Performance TCM REFER to Section 307-01 (diesel engine only).
P1780 Transmission Control Switch (O/D Cancel) Circuit Out TCM REFER to Section 307-01 (diesel engine only).
Of Self Test Range
P1783 Transmission Overtemperature Condition TCM REFER to Section 307-01 (diesel engine only).
P1812 4-Wheel Drive Mode Select Circuit Failure 4X4 Control REFER to Section 308-07A.
Module
P1815 Transmission 4-Wheel Drive Mode Select Short Circuit 4X4 Control REFER to Section 308-07A.
To Ground Module
P1819 Transmission Neutral Safety Switch Short Circuit to 4X4 Control REFER to Section 308-07A.
Ground Module
P1820 Transmission Transfer Case Clockwise Shift Relay Coil 4X4 Control REFER to Section 308-07A.
Circuit Failure Module
P1822 Transmission Transfer Case Clockwise Shift Relay Coil 4X4 Control REFER to Section 308-07A.
Short Circuit To Battery Module
P1828 Transmission Transfer Case Counterclockwise Shift 4X4 Control REFER to Section 308-07A.
Relay Coil Circuit Failure Module
P1830 Transmission Transfer Case Counterclockwise Shift 4X4 Control REFER to Section 308-07A.
Relay Coil Short Circuit To Battery Module
P1832 Transmission Transfer Case Differential Lock-Up 4X4 Control REFER to Section 308-07A.
Solenoid Circuit Failure Module

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-15 Multifunction Electronic Modules 419-10-15
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
P1834 Transmission Transfer Case Differential Lock-Up 4X4 Control REFER to Section 308-07A.
Solenoid Short Circuit To Battery Module
P1865 Transmission Transfer Case Contact Plate Power Short 4X4 Control REFER to Section 308-07A.
To Ground Module
P1866 Transmission Transfer Case System Concern Servicing 4X4 Control REFER to Section 308-07A.
Required Module
P1867 Transmission Transfer Case Contact Plate General 4X4 Control REFER to Section 308-07A.
Circuit Failure Module
P1876 Transmission Transfer Case 2-Wheel Drive Solenoid 4X4 Control REFER to Section 308-07A.
Circuit Failure Module
P1877 Transmission Transfer Case 2-Wheel Drive Solenoid 4X4 Control REFER to Section 308-07A.
Circuit Short To Battery Module
P1910 Reverse Lamp Control Circuit / Open TCM REFER to Section 307-01 (diesel engine only).
P2700 Transmission Friction Element A Apply Time Range/ TCM REFER to Section 307-01 (diesel engine only).
Performance
P2701 Transmission Friction Element B Apply Time Range/ TCM REFER to Section 307-01 (diesel engine only).
Performance
P2702 Transmission Friction Element C Apply Time Range/ TCM REFER to Section 307-01 (diesel engine only).
Performance
P2703 Transmission Friction Element D Apply Time Range/ TCM REFER to Section 307-01 (diesel engine only).
Performance
P2704 Transmission Friction Element E Apply Time Range/ TCM REFER to Section 307-01 (diesel engine only).
Performance
PXXXX All other DTCs PCM REFER to Powertrain Control/Emissions Diagnosis
(PC/ED) manual.
U0073 Control Module Communication Bus A Off ABS Module REFER to Section 418-00.
U0073 Control Module Communication Bus A Off HVAC Module REFER to Section 418-00.
U0073 Control Module Communication Bus A Off IC REFER to Section 418-00.
U0074 Control Module Communication Bus B Off IC REFER to Section 418-00.
U0100 Lost Communication With ECM/PCM IC REFER to Section 413-01.
U0100 Lost Communication With ECM/PCM AHCM REFER to Section 418-00 (diesel engine only).
U0100 Lost Communication With ECM/PCM RCM REFER to Section 418-00.
U0100 Lost Communication With ECM/PCM TCM REFER to Section 418-00 (diesel engine only).
U0101 Lost Communication with TCM IC REFER to Section 413-01 (diesel engine only).
U0115 Lost Communication With ECM/PCM - Secondary ABS Module REFER to Section 418-00.
(SPCM)
U0115 Lost Communication With ECM/PCM - Secondary TBC Module REFER to Section 418-00.
(SPCM)
U0121 Lost Communication With Anti-Lock Brake System IC REFER to Section 413-01.
(ABS) Control Module
U0137 Lost Communication With Trailer Brake Control IC REFER to Section 413-01.
Module
U0140 Lost Communication With Body Control Module ACM REFER to Section 415-00.
(GEM)
U0140 Lost Communication With Body Control Module DSM REFER to Section 418-00.
(GEM)
U0140 Lost Communication With Body Control Module IC REFER to Section 413-01.
(GEM)
U0140 Lost Communication With Body Control Module RETM REFER to Section 415-00.
(GEM)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-16 Multifunction Electronic Modules 419-10-16
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
U0151 Lost Communication With Restraints Control Module IC REPEAT the self-test. CLEAR the DTCs. If DTC
B1318 is present, REFER to Section 414-00 to diagnose
the charging system. If DTC U0151 returns, REFER to
Section 418-00 to diagnose no communication with the
RCM.
U0155 Lost Communication With Instrument Panel Cluster ABS Module REFER to Section 418-00.
(IC) Control Module
U0155 Lost Communication With Instrument Panel Cluster ACM REFER to Section 415-00.
(IC) Control Module
U0155 Lost Communication With Instrument Panel Cluster AHCM REFER to Section 418-00 (diesel engine only).
(IC) Control Module
U0155 Lost Communication With Instrument Panel Cluster DSM REFER to Section 418-00.
(IC) Control Module
U0155 Lost Communication With Instrument Panel Cluster SJB REFER to Smart Junction Box (SJB) in this section.
(IC) Control Module
U0155 Lost Communication With Instrument Panel Cluster TCM REFER to Section 418-00 (diesel engine only).
(IC) Control Module
U0159 Lost Communication With Parking Assist Control ACM REFER to Section 415-00.
Module (PAM)
U0164 Lost Communication With HVAC Control Module IC REFER to Section 418-00.
(HVAC)
U0166 Lost Communication With Auxiliary Heater Control IC REFER to Section 418-00 (diesel engine only).
Module
U0184 Lost Communication With Radio (ACM) RETM REFER to Section 415-00.
U0184 Lost Communication With Radio (ACM) SDARS Module REFER to Section 415-00.
U0193 Lost Communication With Digital Audio Control ACM REFER to Section 415-00.
Module (SDARS)
U0193 Lost Communication With Digital Audio Control RETM REFER to Section 415-00.
Module (SDARS)
U0196 Lost Communication With Entertainment Control ACM REFER to Section 415-00.
Module - Rear (AUX)
U0196 Lost Communication With Entertainment Control SDARS Module REFER to Section 415-00.
Module - Rear (AUX)
U0197 Lost Communication With Telephone Control Module ACM REFER to Section 415-00.
U0197 Lost Communication With Telephone Control Module SDARS Module REFER to Section 415-00.
U0238 Lost Communication With Digital Audio Control ACM REFER to Section 415-00.
Module "D" (DSP)
U0249 Lost Communication With Entertainment Control ACM REFER to Section 415-00.
Module - Rear "B" (RCU)
U0249 Lost Communication With Entertainment Control SDARS Module REFER to Section 415-00.
Module - Rear "B" (RCU)
U2011 Module Transmitted Invalid Data (Non SCP) ABS Module An incorrect module has been installed on the vehicle.
INSTALL the correct ABS module. REFER to Section
206-09.
U2013 Compass Module Is Not Responding IC REFER to Section 413-01.
U2023 Fault Received From External Node IC U2023 is set when a module receives invalid network
data from another module with a faulted input.
RETRIEVE and REPAIR all non-network DTCs in the
other modules on the network. REFER to Diagnostic
Trouble Code (DTC) Chart in this section for a list of all
DTCs.
U2023 Fault Received From External Node RCM U2023 is set when a module receives invalid network
data from another module with a faulted input.
RETRIEVE and REPAIR all non-network DTCs in the
other modules on the network. REFER to Diagnostic
Trouble Code (DTC) Chart in this section for a list of all
DTCs.
U2050 No Application Present ABS Module REFER to Section 418-01.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

419-10-17 Multifunction Electronic Modules 419-10-17
DIAGNOSIS AND TESTING (Continued)
(Continued)
DTC Description Source Action
U2050 No Application Present ACM REFER to Section 415-00.
U2050 No Application Present CDIM REFER to Section 211-05.
U2050 No Application Present DSM REFER to Section 418-01.
U2050 No Application Present HVAC Module REFER to Section 412-00.
U2050 No Application Present IC REFER to Section 418-01.
U2050 No Application Present RCM REFER to Section 501-20B.
U2050 No Application Present SDARS Module REFER to Section 418-01.
U2050 No Application Present SJB REFER to Smart Junction Box (SJB) in this section.
U2051 1 or More Calibration Files Missing/Corrupt ABS Module REFER to Section 418-01.
U2051 1 or More Calibration Files Missing/Corrupt ACM REFER to Section 415-00.
U2472 Unexpected Ignition State IC REFER to Section 413-01.
U2472 Unexpected Ignition State SJB DIAGNOSE other DTCs first. DTC U2472 will set if
ignition is not in ON or is unknown during self-test. If
still present, REFER to Section 211-05.
U2473 Unexpected Vehicle Speed (VSS) ACM DTC U2473 will set if vehicle speed exceeds 5 km/h (3
mph) during the self-test. REFER to Section 415-00.
U2473 Unexpected Vehicle Speed (VSS) SJB DTC U2473 will set if vehicle speed exceeds 5 km/h (3
mph) during the self-test. REFER to Section 418-01.
U2510 CAN - Invalid Data for Vehicle Security IC REFER to Section 419-01.
U2511 CAN - Data Mis-Match (Receive Data Does Not Match IC REFER to Section 419-01.
Expected)

2008 F-250, 350, 450, 550 Super Duty, 7/2007
