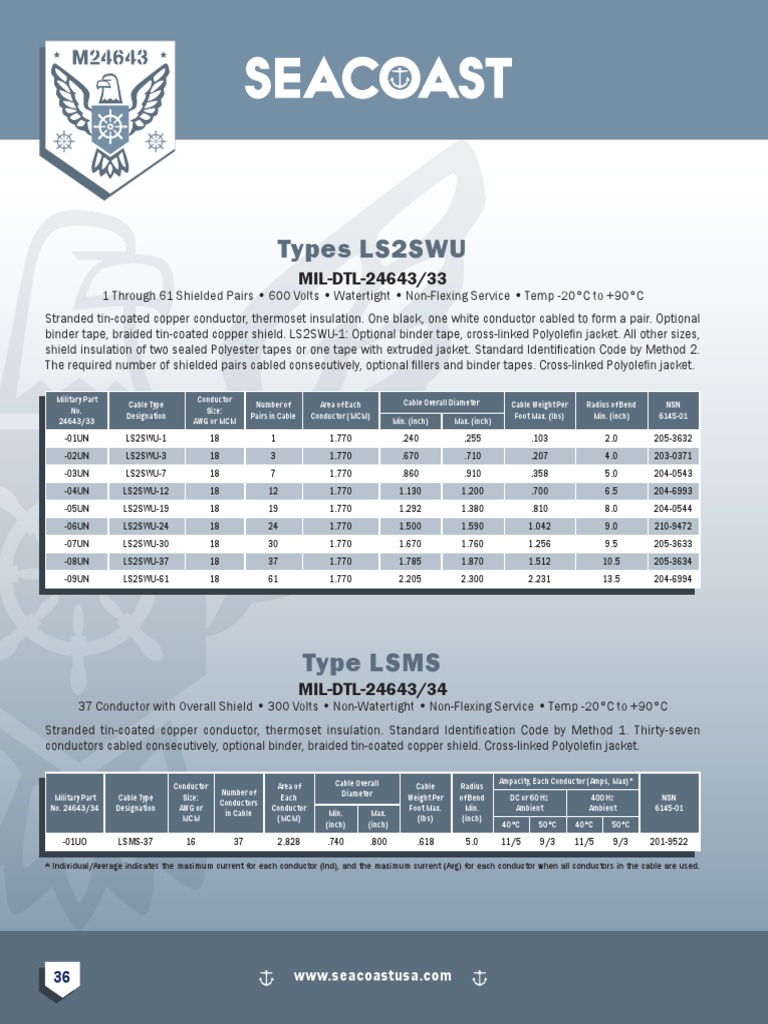

Types LS2SWU

MIL-DTL-24643/33
1 Through 61 Shielded Pairs • 600 Volts • Watertight • Non-Flexing Service • Temp -20°C to +90°C
Stranded tin-coated copper conductor, thermoset insulation. One black, one white conductor cabled to form a pair. Optional
binder tape, braided tin-coated copper shield. LS2SWU-1: Optional binder tape, cross-linked Polyolefin jacket. All other sizes,
shield insulation of two sealed Polyester tapes or one tape with extruded jacket. Standard Identification Code by Method 2.
The required number of shielded pairs cabled consecutively, optional fillers and binder tapes. Cross-linked Polyolefin jacket.

Military Part Conductor Cable Overall Diameter

Cable Type Number of Area of Each Cable Weight Per Radius of Bend NSN
No. Size:
Designation Pairs in Cable Conductor (MCM) Foot Max. (lbs) Min. (inch) 6145-01
24643/33 AWG or MCM Min. (inch) Max. (inch)
-01UN LS2SWU-1 18 1 1.770 .240 .255 .103 2.0 205-3632
-02UN LS2SWU-3 18 3 1.770 .670 .710 .207 4.0 203-0371
-03UN LS2SWU-7 18 7 1.770 .860 .910 .358 5.0 204-0543
-04UN LS2SWU-12 18 12 1.770 1.130 1.200 .700 6.5 204-6993
-05UN LS2SWU-19 18 19 1.770 1.292 1.380 .810 8.0 204-0544
-06UN LS2SWU-24 18 24 1.770 1.500 1.590 1.042 9.0 210-9472
-07UN LS2SWU-30 18 30 1.770 1.670 1.760 1.256 9.5 205-3633
-08UN LS2SWU-37 18 37 1.770 1.785 1.870 1.512 10.5 205-3634
-09UN LS2SWU-61 18 61 1.770 2.205 2.300 2.231 13.5 204-6994

Type LSMS
MIL-DTL-24643/34
37 Conductor with Overall Shield • 300 Volts • Non-Watertight • Non-Flexing Service • Temp -20°C to +90°C
Stranded tin-coated copper conductor, thermoset insulation. Standard Identification Code by Method 1. Thirty-seven
conductors cabled consecutively, optional binder, braided tin-coated copper shield. Cross-linked Polyolefin jacket.

Cable Overall Ampacity, Each Conductor (Amps, Max)*

Conductor Area of Cable Radius
Number of Diameter
Military Part Cable Type Size: Each Weight Per of Bend DC or 60 Hz 400 Hz NSN
Conductors
No. 24643/34 Designation AWG or Conductor Foot Max. Min. Ambient Ambient 6145-01
in Cable Min. Max.
MCM (MCM) (lbs) (inch)
(inch) (inch) 40°C 50°C 40°C 50°C
-01UO LSMS-37 16 37 2.828 .740 .800 .618 5.0 11/5 9/3 11/5 9/3 201-9522

* Individual/Average indicates the maximum current for each conductor (Ind), and the maximum current (Avg) for each conductor when all conductors in the cable are used.
