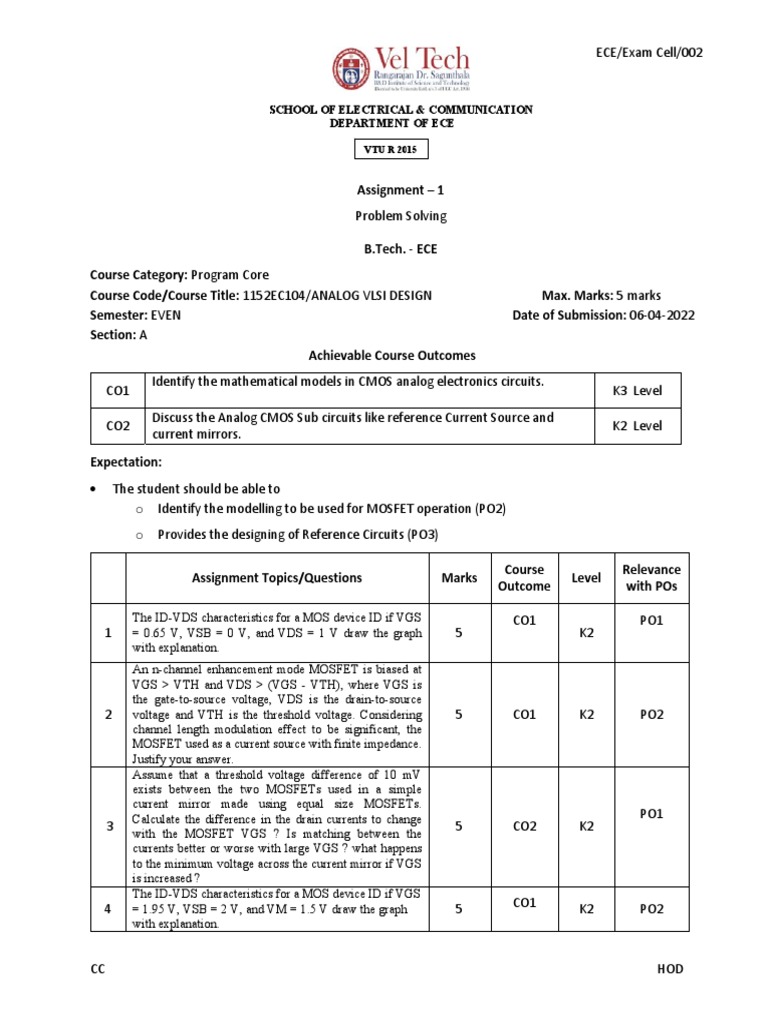

ECE/Exam

Cell/002


SCHOOL OF ELECTRICAL & COMMUNICATION

DEPARTMENT OF ECE

VTU R 2015

Assignment – 1
Problem Solving

B.Tech. ‐ ECE
Course Category: Program Core
Course Code/Course Title: 1152EC104/ANALOG VLSI DESIGN      Max. Marks: 5 marks
Semester: EVEN                   Date of Submission: 06‐04‐2022
Section: A
    Achievable Course Outcomes
Identify the mathematical models in CMOS analog electronics circuits.
CO1  K3  Level

Discuss the Analog CMOS Sub circuits like reference Current Source and
CO2  K2  Level
current mirrors.


Expectation:
 The student should be able to
o Identify the modelling to be used for MOSFET operation (PO2)
o Provides the designing of Reference Circuits (PO3)

Course  Relevance
Assignment Topics/Questions  Marks  Level
Outcome  with POs

The ID-VDS characteristics for a MOS device ID if VGS CO1   PO1

1  = 0.65 V, VSB = 0 V, and VDS = 1 V draw the graph 5  K2
with explanation.
An n-channel enhancement mode MOSFET is biased at
VGS > VTH and VDS > (VGS - VTH), where VGS is
the gate-to-source voltage, VDS is the drain-to-source
2  voltage and VTH is the threshold voltage. Considering 5  CO1   K2  PO2
channel length modulation effect to be significant, the
MOSFET used as a current source with finite impedance.
Justify your answer.
Assume that a threshold voltage difference of 10 mV
exists between the two MOSFETs used in a simple
current mirror made using equal size MOSFETs.
Calculate the difference in the drain currents to change PO1
 3  with the MOSFET VGS ? Is matching between the
5  CO2  K2

currents better or worse with large VGS ? what happens
to the minimum voltage across the current mirror if VGS
is increased ?
The ID-VDS characteristics for a MOS device ID if VGS
4  = 1.95 V, VSB = 2 V, and VM = 1.5 V draw the graph 5  CO1  K2  PO2
with explanation.

CC                                                                                                                                                                                 HOD
 ECE/Exam Cell/002


SCHOOL OF ELECTRICAL & COMMUNICATION

DEPARTMENT OF ECE

VTU R 2015

In MOSFET devices the N-channel type is better than the

5  P – Channel type. Justify your answer.
5  CO1   K3  PO3
Draw the ID-VGS characteristics of the MOS device ID
6  if VGS = 0.65 V, VSB = 0 V, and VDS = 1 V with 5  CO1  K3  PO1
explanation.
For a cascode current mirror made using 15/5 devices,
7  calculate the minimum output voltage, Vomin.
5  CO2  K3  PO2
Design a circuit to bias the MOSFET in figure shown, so
that its drain current is 5 μA. Estimate the minimum CO2  K3  PO9
voltage across M1 if it is to remain in saturation.

8  5

The ID-VDS characteristics for a MOS device VBS if ID CO1  K3  PO1
9  = 40 uA, Vs s = 0 V, and VGS = 1.8 V draw the graph 5
with explanation.
When the gate – to – source voltage (VGS) of a
MOSFET with threshold voltage of 400 mV, working in CO1  K3
saturation is 900 mV, the drain current is observed to be
10  1 mA. Neglecting the channel width modulation effect 5  PO3
and assuming that the MOSFET is operating at
saturation, the drain current for an applied VGS of 1400
mV.

Design a regulated cascode current sink of 1 μA. CO1  K3  PO1

11  Estimate the output resistance of the current sink
5

Draw the ID-VGS characteristics of the MOS device ID CO1
12  if VGS = 1.95 V, VSB = 2 V, and VM = 1.5 V with 5  K3  PO2
explanation.
Design a bias circuit so that the current that flows in M1 CO2
and M2 is 1μA. What are the small signal resistances K3  PO9
looking into the drains of M2 and M1 ? what is the
minimum voltage across M1 and M2 for operation in the
saturation region ?

13  5

CC                                                                                                                                                                                 HOD
 ECE/Exam Cell/002


SCHOOL OF ELECTRICAL & COMMUNICATION

DEPARTMENT OF ECE

VTU R 2015


CO2
Design a simple voltage reference circuit with K3  PO1
14  expression.
5

Design a simple current mirror using a current of 1 μA CO2
15  and VGS of 1 volt.
5  K3  PO2
The drain of an n – channel MOSFET is shorted to the CO1
gate so that 𝑉𝐺𝑆 = 𝑉𝐷𝑆 . The threshold voltage (VT) of K3  PO1
16  MOSFET is 1 V. If the drain current (ID) is 1 mA for
5

VGS = 2 V, then for 𝑉𝐺𝑆 = 3 𝑉, ID.
The measured Transconductance 𝑔𝑚 of an NMOS CO1
transistor operating in the linear region is plotted against K3
17  5  PO2
voltage VG at a Constant drain voltage VD. Draw the
graph and explain.
A depletion type N – channel MOSFET in biased in its CO2
linear region for use as a voltage controlled resistor . K3
Assume threshold voltage 𝑉𝑇𝐻 = 0.5𝑉 , 𝑉𝐺𝑆 = 2.0𝑉 , PO1
18  5
𝑉𝐷𝑆 = 5𝑉 , 𝑊∕𝐿 = 100, 𝐶𝑂𝑋 = 10−8 𝐹/𝑐𝑚2 and 𝜇𝑛 =
800 𝑐𝑚2∕𝑉 − 𝑠. The value of the resistance of the voltage
controlled resistor (Ω).
Consider the following two situations about the internal CO1
conditions in an n – channel MOSFET operating in the K3
19  active region. S1: The inversion charge decreases from 5  PO2
source to drain and S2 : The channel potential increases
from source to drain. Justify your answer.
CO2
The Design of a Bandgap-Voltage Reference circuit with K3  PO3
20  MOSFET.
5

Draw the ID-VGS characteristics of the MOS device CO1
21  VBS if ID = 40 uA, Vs s = 0 V, and VGS = 1.8 V with   K3  PO2
explanation.
The slope of the 𝐼𝐷 𝑣𝑠 . 𝑉𝐺𝑆 curve of an n – channel CO1
MOSFET in linear region is 10−3 Ω−1 at 𝑉𝐷𝑆 = 0.1𝑉 . K3  PO9
22  For the same device, neglecting channel length 5
modulation, the slope of the √𝐼𝐷 𝑣𝑠 𝑉𝐺𝑆 curve (𝑖𝑛 √𝐴∕𝑉)
under saturation region is approximately. Draw the graph
Calculate the small signal conductance parameters for CO1
K3  PO1
23  the nMOS device for which W = 10 un and L = 3 un), 5
biased with VGS = 3 V, VSB = 2 V, and VDS = 2.5 V.
What is the body effect in MOSFET and how it can be CO1
24  avoided?
5  K3  PO2

Determine the current that flows in M3 of figure shown. CO2

K3  PO3
25  Neglect oxide encroachment and the finite output 5
resistance of the M3.

CC                                                                                                                                                                                 HOD
 ECE/Exam Cell/002


SCHOOL OF ELECTRICAL & COMMUNICATION

DEPARTMENT OF ECE

VTU R 2015


For a cascode current mirror made using 15/5 devices, CO2
26  calculate the value of the small signal output resistance 5  K3  PO2
of the Wilson current mirror.
Calculate the small signal conductance parameters for CO1
the nMOS device for which W = 10 un and L = 3 un), K3
PO1
27  biased with VGS = 3 V, VSB = 2 V, and VDS = 2.5 V. 5
assume that VGS is decreased so that ID = 2 nA. Find
the small-signal conductance parameters.
CO2
28  Design a simple current reference circuit with expression 5  K3  PO2

The ID-VDS characteristics for a MOS device Vos if CO1

K3  PO1
29  VSB = 2 V, 7D = 50 uA, and VflS = 1.4 V draw the 5
graph with explanation.
Draw the graph for Voltage References with Moderate CO2
30  Temperature Stability.
  K3  PO2
Estimate the variation in Io for the simple current mirror CO2
shown below, for VSS changing from -2.4 volts to -2.6 K3
volts.

PO1
31  5


Draw the ID-VGS characteristics of the MOS device Vos CO1

32  if VSB = 2 V, 7D = 50 uA, and VflS = 1.4 V with 5  K3  PO2
explanation.
Draw the graph for Voltage References with Moderate CO2
33  Temperature Stability.
5  K3  PO1

K1‐Remember  K2‐Understand  K3‐Apply  K4‐Analyze K5 –Evaluate  K6 –Create
