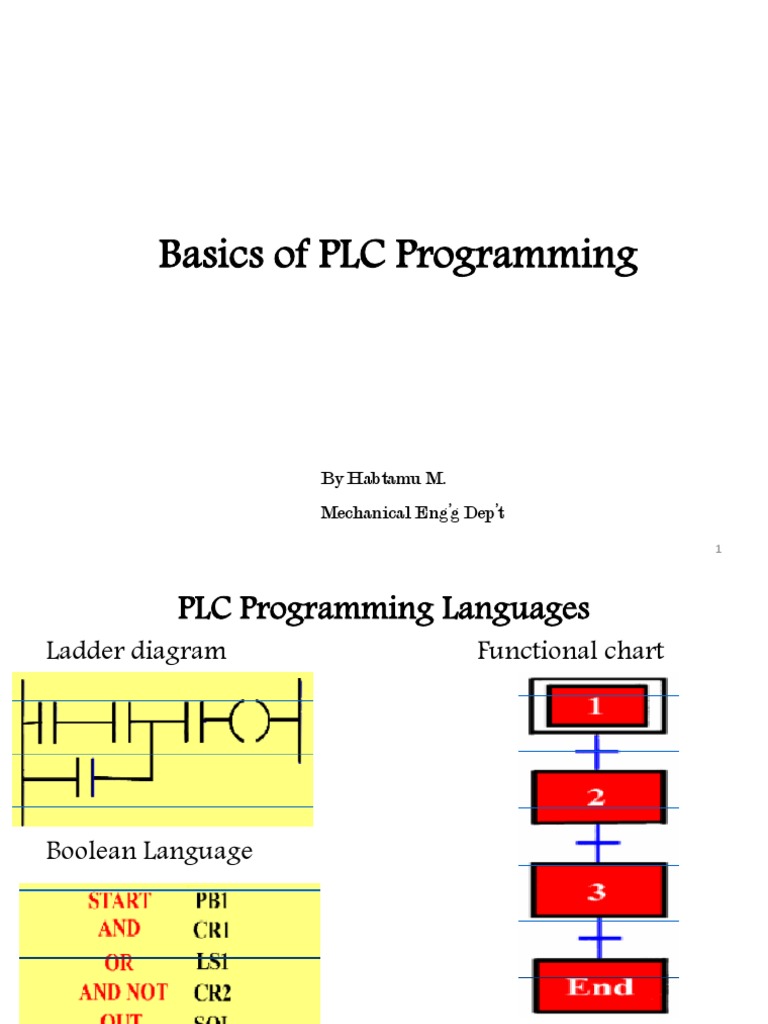

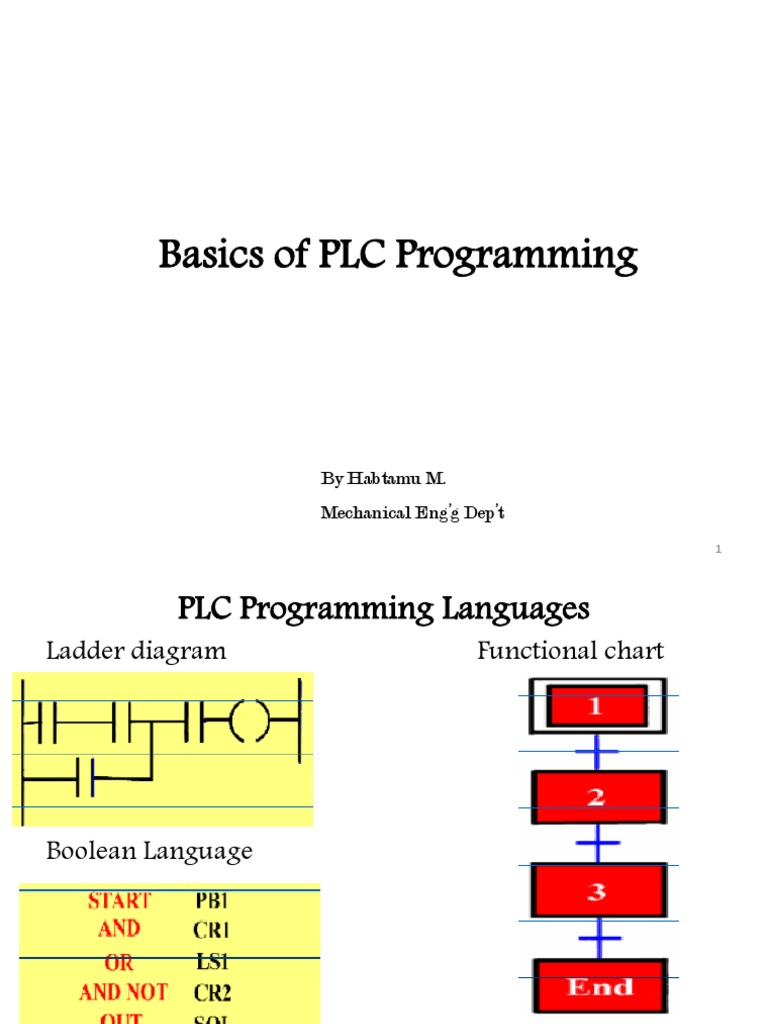

Basics of PLC Programming

By Habtamu M.
Mechanical Eng’g Dep’t
1
 PLC Programming Languages
Ladder diagram Functional chart

Boolean Language

2
 Comparing Programming Languages

Relay Schematic
•

Equivalent Ladder Diagram

Boolean Language

3
 Relay -Type Instructions
 These ladder instruction symbols are arranged to obtain
the desired control logic.

4
 Relay -Type Instructions…
Symbol is analogues to Normally open relay
contact.

Represents any input . It can be any switch

The status bit will or pushbutton, a contact from a connected
be either 1 or 0. output, or a contact from an internal output.

5
 Normally Open (NO) Instruction

The status bit is 0 means no input

Contact is open The instruction is FALSE

6
 Normally Open (NO) Instruction…

The status bit is 1 means input is given

Input makes contact to close The instruction is TRUE

7
Relay Type Instruction…

Symbol is analogous to normally closed relay

contact.

Represents any input. It can be a switch or a

pushbutton, a contact from connected output or
a contact from an internal output.

The status bit will be either 1 or 0.

8
 Normally Closed (NC) Instruction

The status bit is 0 means no input

Contact is closed the instruction is TRUE

9
 Normally Closed (NC) Instruction…

The status bit is 1 means input is given

Input makes the contact to open the instruction is FALSE

10
 Output Energize (OE) Instruction

Represents output. Analogous to the relay coil.

 The processor makes this instruction true (analogous to energizing
a coil) when there is path of true NO and NC instructions in the
rung.
 That is, If any left-to-right path of input conditions is TRUE, the
output will be energized (turned ON).

 It can be a connected device or an internal output (internal relay).

11
Output Energize (OE) Instruction …

Output energize instruction-TRUE

12
Output Energize (OE) Instruction …

Output energize instruction-FALSE

13
 Status Bit Examples
A Input module Bit status for A

14
Status Bit Examples…

A Input module Bit status for A

15
 Ladder Rung

A ladder rung consists of a set input conditions, represented by

contact instructions, and an output instruction at the end of the
rung, represented by the coil symbol.

16
 Ladder Rung…

For an output to be activated or energized, at lest one left-to-right

path of contacts must be closed. A complete path is referred to as
having logic continuity.

When logic continuity exists, the rung condition is said to be TRUE.

17
Ladder Rung…

18
 Parallel Output Branching

On most PLC modes, branches can be established at both the

input and output portion of the rung. With output branching ,
we can program parallel outputs on the rung to allow a true
logic path to control multiple outputs.

19
 Internal Control relay
 The internal output operates just as any other output that is
controlled by programmed logic; however, the output is used
strictly for internal purpose.

 The internal output does not directly control an output device.

 The advantage of using internal outputs is that there are many

situations where an output instruction is required in a program,
but no physical connection to a field device is needed. Their use
in this type of instance can minimize output card requirements.

20
Extending the Number of Series Contacts Using
an Internal Control Relay

21
 Operation of NO and NC instructions
 Status of output as obtained by changing the status of the
inputs in the rung.

22
Operation of NO and NC instructions

23
