PRECISION ANGULAR MEASUREMENTS USING SINE BAR
Apparatus : Sine bar, Slip Gauges, Taper plugs, Surface plate, Magnetic base, Dial
indicator.
Theory :
The sine principle uses ratio of length of two sides of right angle triangle in
deriving given angle. The name Sine bar has come into the picture because the operation
of the sine bar is completely based on Trigonometry.
i.e. Sin θ = Opposite/hypotenuse. It may be noted that device operating on sine principle
is capable of ‘self generation’. The measurement is usually limited to 45 degree and loss
of accuracy point of view. Sine bars used in conjunction with slip gauges constitute a
very good device. For precise measurement of angle within very close limit. Sine bars are
made from high carbon, high chromium, and corrosion resistant steel, hardened ground
and stabilized. Two cylinders of equal diameters are attached at ends. The axis of two
cylinders is mutually parallel to each other and at equal distance from upper surface of
sine bar. Depending upon accuracy of center distance, sine bars are graded as ‘A’ &
‘B’grade. ‘B’ grade sine bars are guaranteed accurate up to 0.02mm / m of length and ‘A’
grade are more accurate up to 0.01 mm / m.
Some holes are drilled in the body of sine bars to reduce the weight & facilitate handling.
The accuracy of sine bar depends on its constructional features and on maintaining these.
Some of these constructional features are,
1) The two rollers most have equal diameters and true cylinders.
2) Rollers must be parallel to each other & upper surface.
3) Upper surface must have high degree of flatness.
4) The precise center distance between rollers must be known.

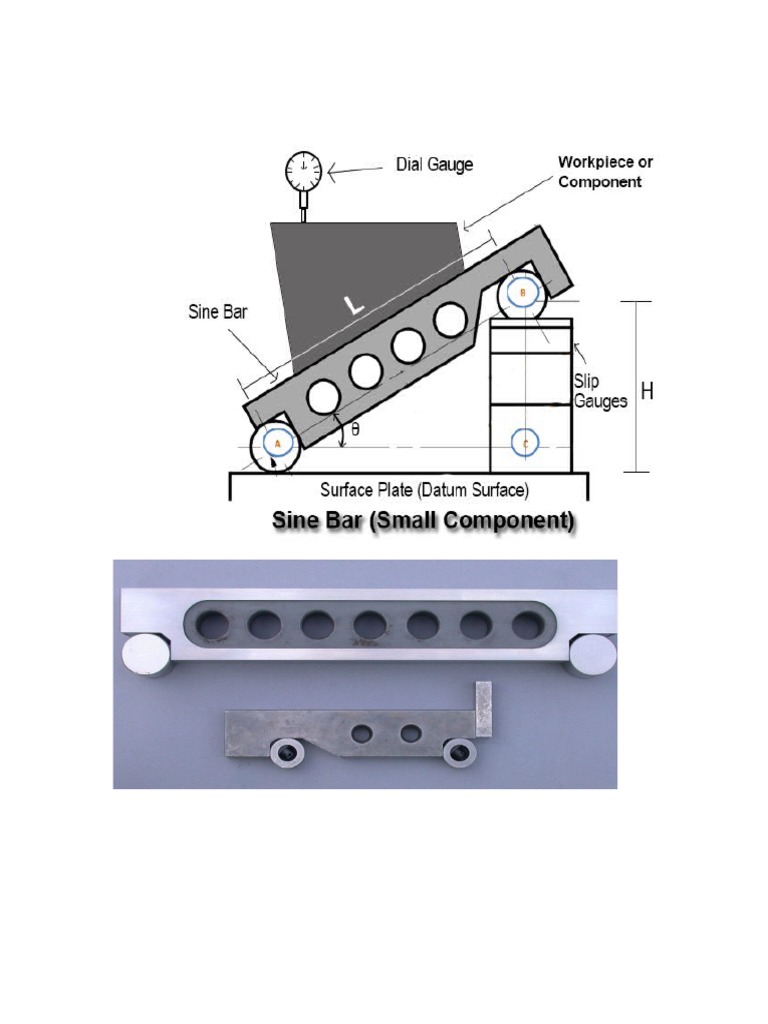

From the geometry figure
Sinθ = H / L,
Hence, θ = sin-1(H / L)
Where,
H = Height of combination of slip gauges.
L = Distance between the rollers centers and,
θ = full taper angle.
Procedure :
1) The sine bar is set up at nominal (approx.) angle on surface plate by suitable
combination of slip gauges.
2) The taper plug is placed on sine bar and is prevented from sliding down by stop plate.
3) Axis of taper plug gauge is aligned with bar axis.
4) Dial gauge supported on magnetic base is set at one of the ends of taper plug and
moved to other end.
5) The variation in parallelism of upper plate at both the ends is indicated by dial gauge.
6) The combination of Slip gauges is so adjusted that the upper surface is truly parallel
with surface plate.
SINE BAR
