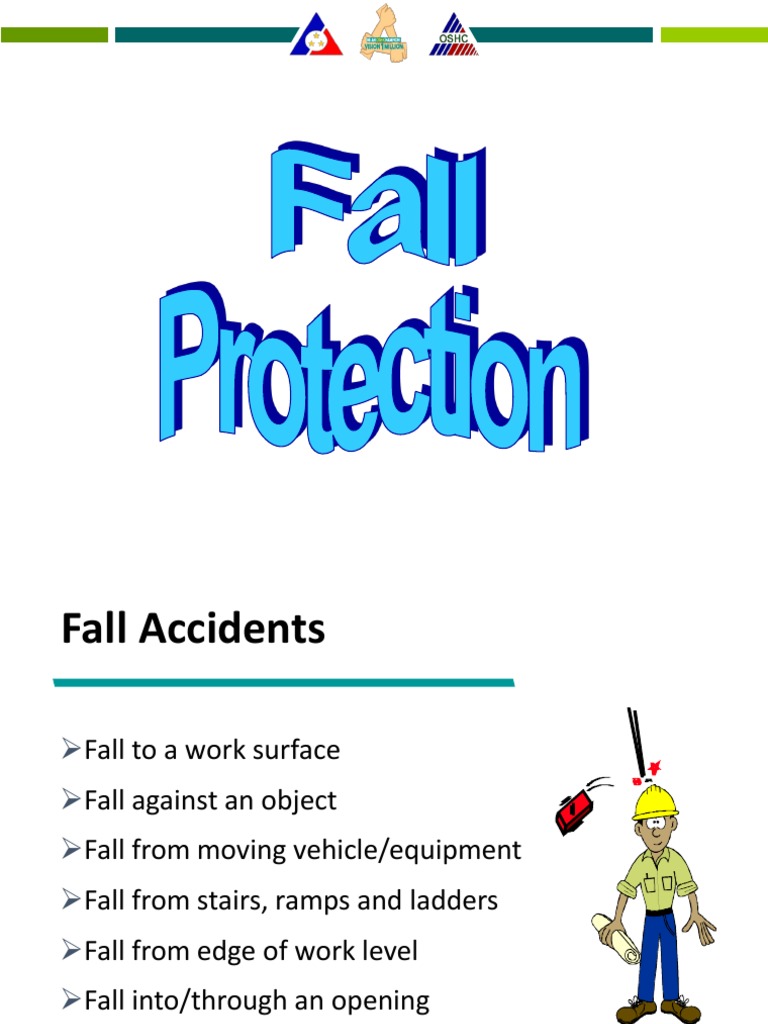

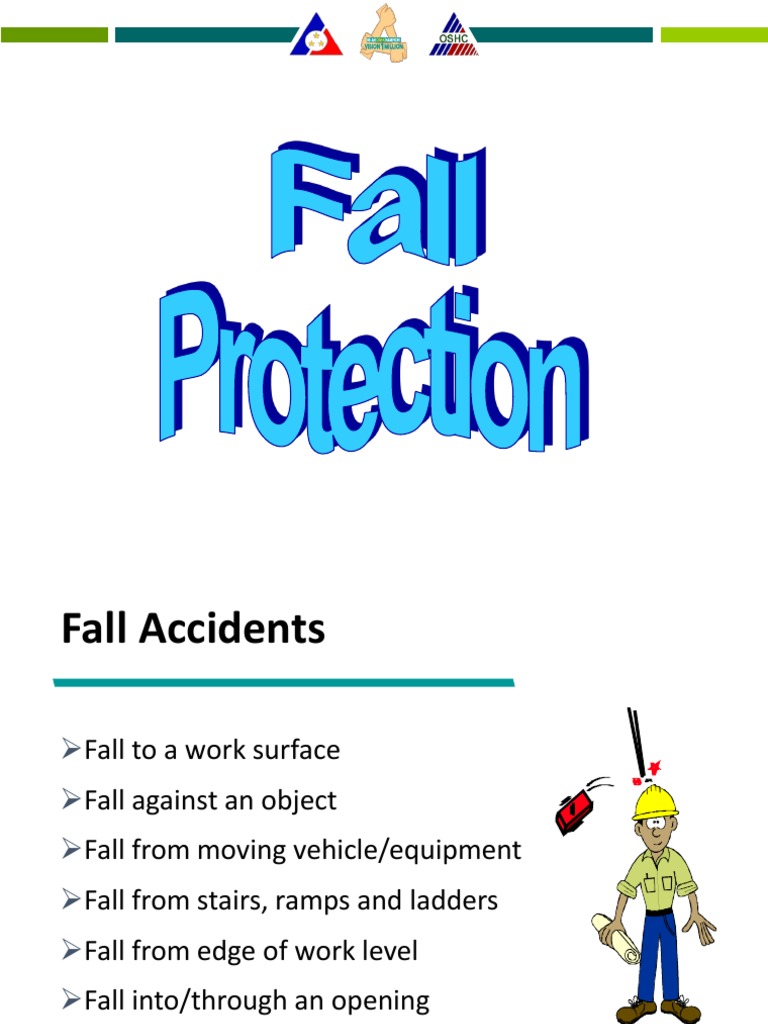

Fall Accidents

Fall to a work surface

Fall against an object
Fall from moving vehicle/equipment
Fall from stairs, ramps and ladders
Fall from edge of work level
Fall into/through an opening
Fall from one work level to the other
Department of Labor and Employment
FallCENTER
OCCUPATIONAL SAFETY AND HEALTH protection 2
Falling Object Protection

Hard hats required

Protect employees below
Barricade
Toe boards at edge of platform
Provide Canopies

Department of Labor and Employment

FallCENTER
OCCUPATIONAL SAFETY AND HEALTH protection 3
 Fall Protection System
Categories
Guard Rail Systems
Surface Opening Protection
Work Positioning Systems
Travel Restraint Systems
Fall Arrest Systems
Rescue Systems
Suspension Systems
Fall Containment Systems

Department of Labor and Employment

FallCENTER
OCCUPATIONAL SAFETY AND HEALTH protection 4
Guard Rail Systems

Department of Labor and Employment

FallCENTER
OCCUPATIONAL SAFETY AND HEALTH protection 5
Wooden guardrail with
midrail and toeboard

Department of Labor and Employment

FallCENTER
OCCUPATIONAL SAFETY AND HEALTH protection 6
Guardrail System

Department of Labor and Employment

FallCENTER
OCCUPATIONAL SAFETY AND HEALTH protection 7
Handrails

Department of Labor and Employment

FallCENTER
OCCUPATIONAL SAFETY AND HEALTH protection 8
Surface Opening Protection

Department of Labor and Employment

FallCENTER
OCCUPATIONAL SAFETY AND HEALTH protection 9
Common Pieces of Equipment
Shock Absorbing
Lanyard Self Rope &
Retracting Cable
Lifelines Grabs

Cross-
Carabiners Arm Strap

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 10
Work Positioning Systems

These systems are designed to hold and sustain

the user at a work location and limit the free fall
to two feet or less, as in rebar work or tree
trimming. These are examples of typical
components of a work positioning system:

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 11
Work Positioning Systems

Body Support: Full Body Harness

Connecting Component: Chain or web
rebar assembly, rope or web lanyard
Anchorage Connector: Carabiner or
snap hook
Anchorage: Rebar or Support Structure

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 12
Restraint Systems

These are systems designed to prevent the user

from reaching an area where free-fall could occur
so no free-fall is possible, as in leading edge roof
work. Here are some elements and examples of
restraint systems:

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 13
Restraint Systems
Body Support: Full Body Harness or
Body Belt
Connecting Component: Rope or
web lanyard
Anchorage Connector:
Carabiner,Tie-Off Adapter, Roof
Anchor
Anchorage: Beam or Support
Structure

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 14
Travel Restraint Systems

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 15
Restraint Systems

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 16
Fall Arrest

These systems are designed to stop a free-fall of

up to 6 feet, and limit the maximum forces of a
user to 1800 pounds or less, as in steel erection or
elevated maintenance work. The following are the
four elements of a fall arrest and some examples:

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 17
Fall Arrest Systems

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 18
Fall Arrest

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 19
Fixed static line with a shock absorber for use with
safety harnesses and lanyards

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 20
Required minimum clearance below
the level of the line anchorages

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 21
A Typical Fall Arrest Arrangement

 Consists of:
 Anchorage Connector
 Shock Absorbing
Lanyard
 Full Body Harness

 The anchorage connector

must be attached to a
suitable and strong
attachment point
Department of Labor and Employment
Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 22
Requirements for Personal
Fall Arrest System

Limit maximum arresting force of a worker to

900 pounds (4 KiloNewtons) when used with a
body belt;
Limit maximum arresting force of a worker to
1,800 pounds (8 KiloNewtons) when used with a
body harness;
Be rigged so that a worker can neither free fall
more than 6 feet (1.8 meters) nor contact any
lower level;

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 23
Requirements for Personal
Fall Arrest System
Bring an employee to a complete stop and limit
maximum deceleration distance a worker travels
to 3.5 feet (1.07 meters); and
Have sufficient strength to withstand twice the
potential impact energy of a worker free falling a
distance of 6 feet (1.8 meters) or the free fall
distance permitted by the system, whichever is
less.

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 24
Rescue Systems

These systems which are designed to raise or

lower a user to safety in the event of an
emergency, so no free-fall is possible (i.e.
confined space work). The following are the
four elements of a rescue system and examples
of each:

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 25
Rescue Systems

Body Support: Full Body Harness

Connecting Component: Lifeline
(winch, self retracting lifeline) and Y-
lanyard
Anchorage Connector: Tripod, Davit
Arm
Anchorage: Support Structure or
Surface

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 26
Suspension System

These systems support and suspend the

user while being transported up or down
vertically and will not allow a free fall.
Here are some elements and examples of
suspension systems:

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 27
Suspension System

Body Support: Full Body Harness

and a Boatswain’s Chair
Connecting Component: Lifeline
(rope, rescue positioning device)
rope or web lanyard
Anchorage Connector: Carabiner,
Tripod, Davit Arm,Tie-off Adapter
Anchorage: Beam or Support
Structure or Surface
Department of Labor and Employment
Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 28
Use of Body Belts

Effective January 1, 1998, body belts are

prohibited as a fall arrest device. (OSHA)
Body belts can still be used as a positioning
device.

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 29
Dee-Rings and Snap Hooks

Dee-rings and snap hooks must have a minimum

tensile strength of 5,000 pounds (22.2
KiloNewtons).
Dee-rings and snap hooks shall be proof-tested
to a minimum tensile load of 3,600 pounds (16
KiloNewtons) without cracking, breaking, or
suffering permanent deformation.

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 30
Fall Containment System

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 31
Safety Net

Constructed of materials of sufficient strength to

catch a falling person or debris
Sufficient tension and clearance to prevent a
falling person against contacting any surface or
structure below the net
Installed so that it extends 2.5m (8 ft) beyond the
edge of the work area and not further than 7.5m
(25 ft) below the working surface

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 32
Safety Mesh
Provides fall protection for roof installers,
maintenance and repair works
Used in conjunction with appropriate edge
protection,guardrails or fall arrest systems and
devices
Should not be used for access to or egress from a
work area or as a working platform

Note: When installing safety net or safety mesh,

elevating working platforms, scaffolding or fall
arrest systems should be used.
Department of Labor and Employment
Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 33
Means of installing safety mesh across the
roof prior to fixing it in position.

Department of Labor and Employment

Fall CENTER
OCCUPATIONAL SAFETY AND HEALTH protection 34
Additional Training

Extensive training is needed to fully

understand and utilize much of the fall
protection equipment available.
A competent person must evaluate work
conditions to insure safety when working in
elevated locations.
Most manufacturers provide very extensive
programs in fall protection.
