Digital System Design

Verilog Project (10%)

Name:

ID:

Section#:

Choose one of the following design questions:

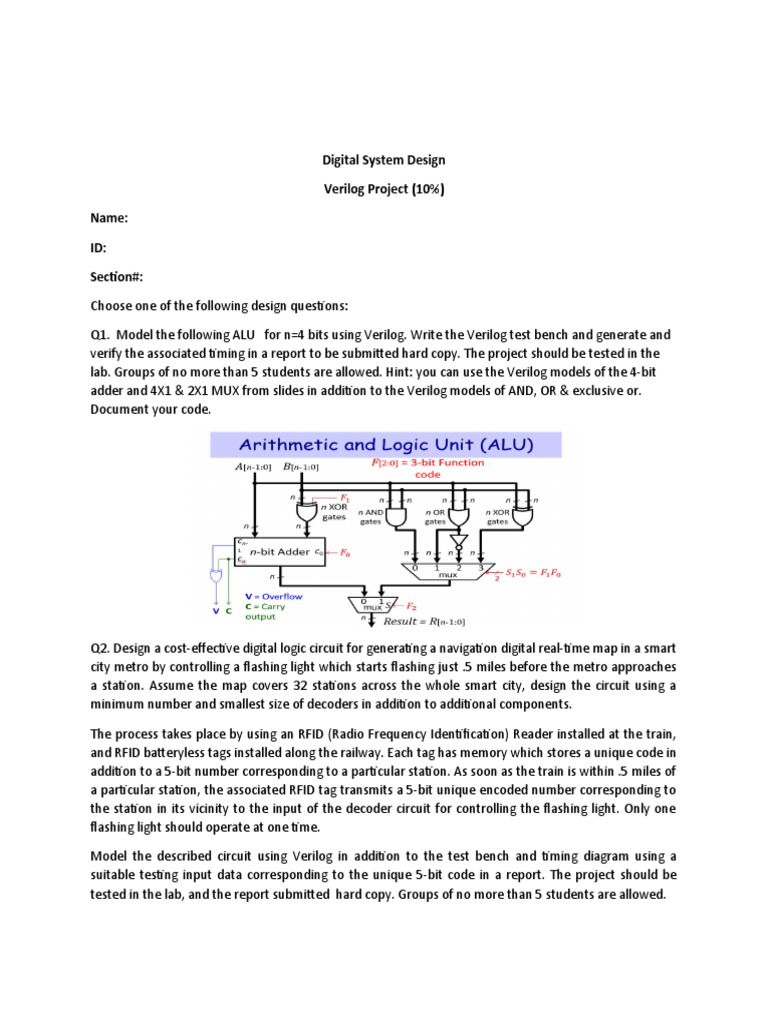

Q1. Model the following ALU for n=4 bits using Verilog. Write the Verilog test bench and generate and
verify the associated timing in a report to be submitted hard copy. The project should be tested in the
lab. Groups of no more than 5 students are allowed. Hint: you can use the Verilog models of the 4-bit
adder and 4X1 & 2X1 MUX from slides in addition to the Verilog models of AND, OR & exclusive or.
Document your code.

Q2. Design a cost-effective digital logic circuit for generating a navigation digital real-time map in a smart
city metro by controlling a flashing light which starts flashing just .5 miles before the metro approaches
a station. Assume the map covers 32 stations across the whole smart city, design the circuit using a
minimum number and smallest size of decoders in addition to additional components.

The process takes place by using an RFID (Radio Frequency Identification) Reader installed at the train,
and RFID batteryless tags installed along the railway. Each tag has memory which stores a unique code in
addition to a 5-bit number corresponding to a particular station. As soon as the train is within .5 miles of
a particular station, the associated RFID tag transmits a 5-bit unique encoded number corresponding to
the station in its vicinity to the input of the decoder circuit for controlling the flashing light. Only one
flashing light should operate at one time.

Model the described circuit using Verilog in addition to the test bench and timing diagram using a
suitable testing input data corresponding to the unique 5-bit code in a report. The project should be
tested in the lab, and the report submitted hard copy. Groups of no more than 5 students are allowed.
