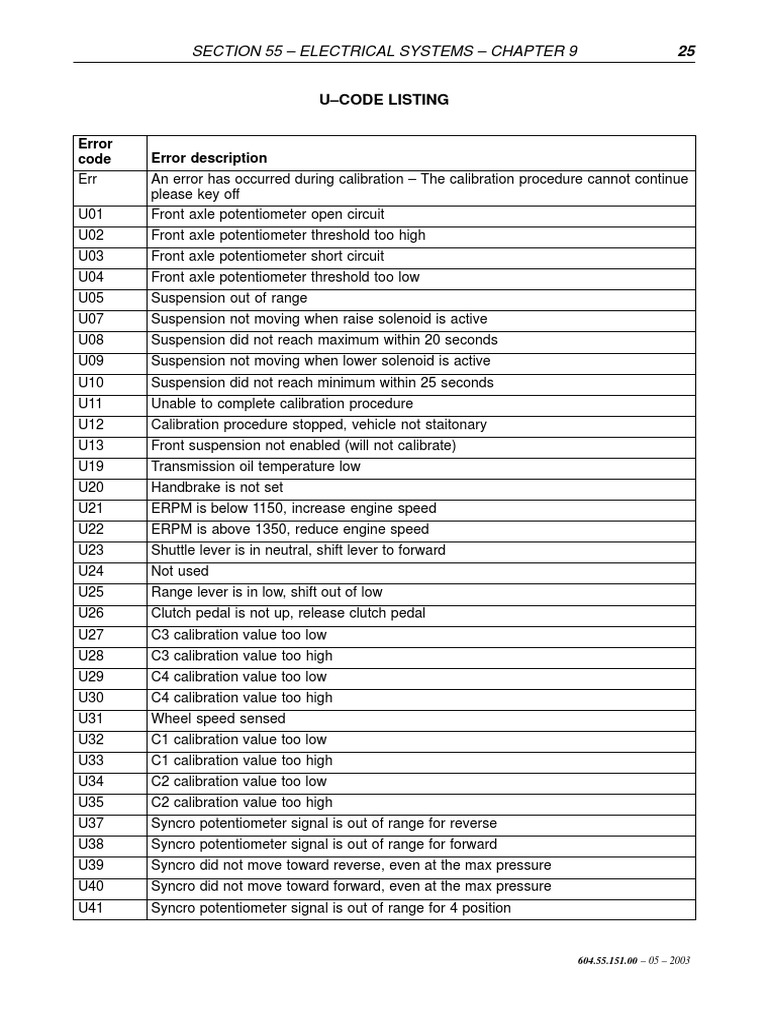

SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 25

U–CODE LISTING

Error
code Error description
Err An error has occurred during calibration – The calibration procedure cannot continue
please key off
U01 Front axle potentiometer open circuit
U02 Front axle potentiometer threshold too high
U03 Front axle potentiometer short circuit
U04 Front axle potentiometer threshold too low
U05 Suspension out of range
U07 Suspension not moving when raise solenoid is active
U08 Suspension did not reach maximum within 20 seconds
U09 Suspension not moving when lower solenoid is active
U10 Suspension did not reach minimum within 25 seconds
U11 Unable to complete calibration procedure
U12 Calibration procedure stopped, vehicle not staitonary
U13 Front suspension not enabled (will not calibrate)
U19 Transmission oil temperature low
U20 Handbrake is not set
U21 ERPM is below 1150, increase engine speed
U22 ERPM is above 1350, reduce engine speed
U23 Shuttle lever is in neutral, shift lever to forward
U24 Not used
U25 Range lever is in low, shift out of low
U26 Clutch pedal is not up, release clutch pedal
U27 C3 calibration value too low
U28 C3 calibration value too high
U29 C4 calibration value too low
U30 C4 calibration value too high
U31 Wheel speed sensed
U32 C1 calibration value too low
U33 C1 calibration value too high
U34 C2 calibration value too low
U35 C2 calibration value too high
U37 Syncro potentiometer signal is out of range for reverse
U38 Syncro potentiometer signal is out of range for forward
U39 Syncro did not move toward reverse, even at the max pressure
U40 Syncro did not move toward forward, even at the max pressure
U41 Syncro potentiometer signal is out of range for 4 position

604.55.151.00 – 05 – 2003
26 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

U42 Syncro potentiometer signal is out of range for 5 position


U43 Syncro did not move toward 4
U44 Syncro did not move toward 5, even at the max pressure
U45 50Kph clutch 5 calibration values too low
U46 50Kph clutch 5 calibration values too high
U47 50Kph clutch 5 solenoid not present
U51 Engine speed error
U52 Constant ERPM switch detected
U53 Ground speed drive selected
U54 PTO brake switch detected
U55 PTO started
U56 PTO stopped
U57 ERPM is below 1150, increase engine speed
U58 PTO twist sensor open circuit
U59 PTO twist sensor short circuit
U80 Flywheel torque sensor calibration unsuccessful, try again
U81 No signal from flywheel torque sensor
U82 No 12VD – No power for C3 and C4 solenoids
U83 4–5 synchro did not shift to 4 for calibration of flywheel torque sensor

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 27

GENERAL ERROR CODE LISTING

Error
Code Error description
0001 No CAN messages from the ADIC to the central controller
0003 Four wheel drive solenoid stuck off
0004 Four wheel drive solenoid open circuit

604.55.151.00 – 05 – 2003
28 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

ELECTRONIC DRAFT CONTROL ERROR CODE LISTING

Error
Code Error description
1002 Poor or no signal from tractor performance monitor radar
1003 Radar (ground speed) greater than wheel speed
1004 Wheel speed less than maximum speed of tractor
1005 Wheel speed greater than maximum speed of tractor
1006 Slip control voltage low (short or open circuit)
1007 Slip control voltage high (damaged potentiometer or short to +Ve Voltage)
1008 Raise / work switch failure
1009 Both external HPL fender switches are being operated simultaneously
1010 Height limit control voltage low (short or open circuit)
1011 Height limit control voltage high (damaged potentiometer or short to +Ve Voltage)
1012 Drop rate control voltage low (short or open circuit)
1013 Drop rate control voltage high (damaged potentiometer or short to +Ve Voltage)
1014 Right hand load sensing pin signal too low
1015 Right hand load sensing pin signal too high
1016 Left hand load sensing pin signal too low
1017 Left hand load sensing pin signal too hiigh
1018 Both load sensing pins disconnected
1019 Load sensing pin voltage less than 8 Volts (short or open circuit)
1020 Load sensing pin voltage greater than 8 Volts (short to +12 Volts)
1021 Draft sensitivity control voltage low (short or open circuit)
Draft sensitivity control voltage high (damaged potentiometer or short to +Ve
1022
Voltage)
1023 Control panel disconnected
1024 Perform the hydraulic lift autocalibration
1025 Position control potentiometer control voltage low (short or open circuit)
1026 Position control potentiometer control voltage high (damaged potentiometer or short
to +Ve Voltage)
1027 Lift arm position sensing control voltage low (short or open circuit)
1028 Lift arm position sensing control voltage high (damaged potentiometer or short to
+Ve Voltage)
1029 Hydraulic control valve disconnected
1030 Signal ground open circuit
1031 Chassis harness disconnected
1032 Draft control potentiometer control voltage high (damaged potentiometer or short to
+Ve Voltage)
1033 Draft control potentiometer control voltage low (short or open circuit)
1049 Wheel speed sensor open or short circuit

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 29

1053 Controller 5 Volt reference shorted to +Ve Voltage


1054 Controller 5 Volt reference short to ground
1057 Controller failure
1059 Controller reference voltage open circuit
1063 EDC Hydraulic valve lower solenoid open circuit
1064 EDC Hydraulic valve raise solenoid open circuit
1065 EDC Hydraulic valve lower solenoid short circuit
1066 EDC Hydraulic valve raise solenoid short circuit
1067 EDC Hydraulic valve supply voltage low
1068 Height limit calibration error

604.55.151.00 – 05 – 2003
30 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

TRANSMISSION ERROR CODE LISTING

Error
Code Error description
2001 CR – Shuttle too fast error
2003 CP – Clutch pedal required
2004 P – Handbrake error
2005 Creeper selection error
2011 Clutch pedal potentiometer signal low
2012 Clutch pedal potentiometer signal high
2013 Upshift and downshift switches both closed
2015 High and low range switches both closed
2016 Creeper solenoid short to ground or high voltage
2021 Chassis harness disconnected
2024 All clutches and synchronisers require calibration
2026 Engine speed too high
2027 Engine speed too low
2035 Dump solenoid short to ground or high voltage
2036 Dump solenoid open circuit
2037 Clutch pedal disconnect switch open circuit
2038 Clutch C3 solenoid short to ground or high voltage (16x16)
2038 Low range PWM valve short to ground or high voltage (24x24)
2039 Clutch C3 solenoid open circuit (16x16)
2039 Low range PWM valve open circuit (24x24)
2040 Clutch C4 solenoid short to ground or high voltage (16x16)
2040 High range PWM valve short to ground or high voltage (24x24)
2041 Clutch C4 solenoid open circuit (16x16)
2041 High range PWM valve open circuit (24x24)
2042 Clutch C2 solenoid short to ground or high voltage
2043 Clutch C2 solenoid open circuit
2044 Clutch C1 solenoid short to ground or high voltage
2045 Clutch C1 solenoid open circuit
2046 Fuse 35 open circuit
2047 Clutch disconnect switch set too high
2048 Clutch disconnect switch set too low
2049 Wheel speed sensor open circuit, short to ground or high voltage
2051 Oil temperature sensor open circuit
2052 Oil temperature sensor short to ground or high voltage
2053 5 Volt reference voltage too high
2054 5 Volt reference voltage too low

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 31

2055 No signal from wheel speed sensor


2056 Manual/automatic differential lock switches both closed
2059 Shuttle lever switch disagreement
2060 Forward synchroniser no longer engaged
2061 Forward/reverese synchroniser potentiometer signal high
2062 Forward/reverese synchroniser potentiometer signal low
2063 Forward synchroniser did not engage
2064 Reverse synchroniser did not engage
2065 Forward synchroniser solenoid open circuit
2066 Reverse synchroniser solenoid open circuit
2067 Forward solenoid short to ground or high voltage
2068 Reverese solenoid short to ground or high voltage
2069 Reverse synchroniser no longer engaged
2070 Shuttle lever forward switch voltage high
2071 Shuttle lever forward switch voltage low
2072 Shuttle lever reverse switch voltage high
2073 Shuttle lever reverse switch voltage low
2075 No signal from flywheel speed sensor
2076 Flywheel speed sensor open circuit
2077 Flywheel speed sensor short to ground or high voltage
2080 1–4 (9–12) range synchroniser no longer engaged
2081 4/5 range synchroniser potentiometer signal high
2082 4/5 range synchroniser potentiometer signal low
2083 1–4 (9–12) range synchroniser engaged error
2084 5–8 (13–16) range synchroniser engaged error
2085 1–4 (9–12) range synchroniser solenoid open circuit
2086 5–8 (13–16) range synchroniser solenoid open circuit
2087 1–4 (9–12) range synchroniser solenoid short to ground or high voltage
2088 5–8 (13–16) range synchroniser solenoid short to ground or high voltage
2089 5–8 (13– 16) range synchroniser no longer engaged
2090 Output speed to high for creeper engage
2091 Clutch C3 not calibrated
2092 Clutch C4 not calibrated
2093 High clutch not calibrated
2094 Low clutch not calibrated
2095 Clutch C1 not calibrated
2096 Clutch C2 not calibrated

604.55.151.00 – 05 – 2003
32 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

ELECTRONIC HYDRAULIC REMOTES (EHR) FAULT CODE LISTING


Error
Code Error description
4100 Remote No.1 no control message received
4101 Remote No.1 control message not plausible
4102 Remote No.1 EEPROM Error
4103 Remote No.1 switched to failsafe
4104 Remote No.1 under voltage
4105 Remote No.1 over voltage
4106 Remote No.1 spool movement too low
4107 Remote No.1 spool movement too high
4108 Remote No.1 Float position not reached
4109 Remote No.1 manually operated
4110 Remote No.1 driver faulty
4111 Remote No.1 POT faulty
4112 Remote No.1 unable to reach neutral
4113 Remote No.1 spool not in neutral at key on
4114 Remote No.2 no control message received
4115 Remote No.2 control message not plausible
4116 Remote No.2 EEPROM error
4117 Remote No.2 switched to failsafe
4118 Remote No.2 under voltage
4119 Remote No.2 over voltage
4120 Remote No.2 spool movement too low
4121 Remote No.2 spool movement too high
4122 Remote No.2 float position not reached
4123 Remote No.2 manually operated
4124 Remote No.2 driver faulty
4125 Remote No.2 POT faulty
4126 Remote No.2 unable to reach neutral
4127 Remote No.2 spool not in neutral at key on
4128 Remote No.3 no control message received
4129 Remote No.3 control message not plausible
4130 Remote No.3 EEPROM error
4131 Remote No.3 switched to failsafe
4132 Remote No.3 under voltage
4133 Remote No.3 over voltage
4134 Remote No.3 spool movement too low
4135 Remote No.3 spool movement too high

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 33

4136 Remote No.3 float position not reached


4137 Remote No.3 manually operated
4138 Remote No.3 driver faulty
4139 Remote No.3 POT faulty
4140 Remote No.3 unable to reach neutral
4141 Remote No.3 spool not in neutral at key on
4142 Remote No.4 no control message received
4143 Remote No.4 control message not plausible
4144 Remote No.4 EEPROM error
4145 Remote No.4 switched to failsafe
4146 Remote No.4 under voltage
4147 Remote No.4 over voltage
4148 Remote No.4 spool movement too low
4149 Remote No.4 spool movement too high
4150 Remote No.4 float position not reached
4151 Remote No.4 manually operated
4152 Remote No.4 driver faulty
4153 Remote No.4 POT faulty
4154 Remote No.4 unable to reach neutral
4155 Remote No.4 spool not on neutral at key on
4170 EHR control No.1 not calibrated
4171 EHR control No.1 open circuit
4172 EHR control No.1 short circuit
4173 EHR control No.2 not calibrated
4174 EHR control No.2 open circuit
4175 EHR control No.2 short circuit
4176 Timer switch No.1 /No.2 not connected
4177 EHR Control No.3 not calibrated
4178 EHR control No.3 open circuit
4179 EHR control No.3 short circuit
4180 EHR control No.4 not calibrated
4181 EHR control No.4 open circuit
4182 EHR control No.4 short circuit
4183 Timer switch No.3/No.4 not connected
4184 EHR joystick POT X open circuit
4185 EHR joystick POT X short circuit
4186 EHR joystick POT Y open circuit
4187 EHR joystick POT Y short circuit

604.55.151.00 – 05 – 2003
34 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

ELECTRONIC HYDRAULIC REMOTES FLASH CODE LISTING


NOTE: EHR valve may need the paint removed from the valve casing, next to the connector.
Flash codes are displayed on the EHR valve. The LED is internal and can be seen flashing through the plastic
part of the valve casing, located next to the valve harness connector.
First flash sequence will be after a long pause, next sequence will be after a short pause.
E.G. flash code 16 – Long pause then 1 flash, short pause then 6 flashes, long pause then 1 flash.....

Flash
Code Fault Description
11 No control message CAN BUS message fault
13 Implausible control message CAN BUS message fault
16 EEPROM inconsistent Software fault
17 Messages not received in the specified time CAN BUS message fault
21 Under voltage Supply voltage low
22 Over voltage Supply voltage high
23 Valve internal fault, possibly
Spool deflection too short mechanical
24 Spool deflection excessive Valve internal fault, possibly
mechanical
25 Open centre position not reached Valve internal fault, possibly
mechanical
26 Manual operation detected Valve has been operated
manually
31 Under 8 Volts Displayed only if the valve does
not shut–down automatically.
Valve will shut off the output
stage.
32 Over 36 or 45 Volts Displayed only if the valve does
not shut–down automatically.
Valve will shut off the output
stage.
41 Over 45 Volts Valve will internally shut–down
42 Output stage for the pilot solenoid valve fault Valve internal fault
43 Position transducer fault Position of the spool detected by
the transducer
81 Valve spool cannot be returned to neutral Valve internal fault, possibly
mechanical
82 Valve spool not in neutral when switched on Valve internal fault, possibly
mechanical
83 Checksum error Self diagnostic check of the
system

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 35

ENGINE FAULT CODE LISTING


Error
Code Fault description
3001 Foot throttle pedal position sensor low idle switch not plausible
3002 Foot throttle pedal positon sensor high voltage
3003 Foot throttle pedal positon sensor low voltage
3004 Foot throttle pedal position sensor open circuit or sensor disconnected
3005 Foot throttle pedal position sensor power supply short to +Ve or ground
3006 Coolant temperature sensor high value
3007 Coolant temperature sensor high voltage
3008 Coolant temperature sensor low voltage
3009 Coolant temperature sensor open circuit or sensor disconnected
3010 Boost temperature sensor high voltage
3011 Boost temperature sensor signal low voltage
3012 Boost temperature sensor open circuit or sensor disconnected
3014 Fuel temperature sensor high value
3015 Fuel temperature sensor high voltage
3016 Fuel temperature sensor low voltage
3017 Fuel temperature sensor open circuit or sensor disconnected
3018 Boost pressure sensor high value
3019 Boost pressure sensor high voltage
3020 Boost pressure sensor low voltage
3021 Boost pressure sensor open circuit or sensor disconnected
3022 Boost pressure signal power supply short to +Ve or ground
3023 Atmospheric pressure sensor high value
3024 Atmospheric pressure sensor high voltage
3025 Atmospheric pressure sensor low voltage
3026 Atmospheric pressure sensor open circuit
3027 Oil pressure sensor high value
3028 Oil pressure sensor low value
3029 Oil pressure sensor high voltage
3030 Oil pressure sensor low voltage
3031 Oil pressure sensor open circuit or sensor disconnected
3032 Oil pressure sensor signal power supply short to +Ve or ground
3033 Oil temperature sensor high value
3034 Oil temperature sensor high voltage
3035 Oil temperature sensor low voltage
3036 Oil temperature sensor open circuit or sensor disconnected
3037 Fuel filter heater relay short to VCC

604.55.151.00 – 05 – 2003
36 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

3038 Fuel filter heater relay short to ground


3039 Fuel filter heater relay disconnected or open circuit
3040 Cold start heater relay short to VCC
3041 Cold start heater relay short to ground
3042 Cold start heater relay disconnected or open circuit
3049 Battery voltage signal high value
3050 Battery voltage signal low value
3051 Battery voltage signal high voltage
3052 Battery voltage signal low voltage
3060 Fuel injector solenoid cyl 1 current decreased to fast
3061 Fuel injector solenoid cyl 1 short to VCC
3062 Fuel injector solenoid cyl 1 short to ground
3063 Fuel injector solenoid cyl 1 disconnected or open circuit
3064 Fuel injector solenoid cyl 5 current decreased to fast
3065 Fuel injector solenoid cyl 5 short to VCC
3066 Fuel injector solenoid cyl 5 short to ground
3067 Fuel injector solenoid cyl 5 disconnected or open circuit
3068 Fuel injector solenoid cyl 3 current decreased to fast
3069 Fuel injector solenoid cyl 3 short to VCC
3070 Fuel injector solenoid cyl 3 short to ground
3071 Fuel injector solenoid cyl 3 disconnected or open circuit
3072 Fuel injector solenoid cyl 6 current decreased to fast
3073 Fuel injector solenoid cyl 6 short to VCC
3074 Fuel injector solenoid cyl 6 short to ground
3075 Fuel injector solenoid cyl 6 disconnected or open circuit
3076 Fuel injector solenoid cyl 2 current decreased to fast
3077 Fuel injector solenoid cyl 2 short to VCC
3078 Fuel injector solenoid cyl 2 short to ground
3079 Fuel injector solenoid cyl 2 disconnected or open circuit
3080 Fuel injector solenoid cyl 4 current decreased to fast
3081 Fuel injector solenoid cyl 4 short to VCC
3082 Fuel injector solenoid cyl 4 short to ground
3083 Fuel injector solenoid cyl 4 disconnected or open circuit
3084 Fuel injector boost capacitor 1 high voltage
3085 Fuel injector boost capacitor 1 low voltage
3086 Fuel injector boost capacitor 2 high voltage
3087 Fuel injector boost capacitor 2 low voltage
3088 Increment speed signal error or reversed connections
3089 Increment speed signal excessive noise on circuit

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 37

3090 Segment speed signal phase error detection


3091 Segment speed signal error or reversed connections
3092 Engine speed signals, camshaftt or crankshaft signals not plausible
3093 Engine speed sensor high voltage
3094 Engine speed sensor low voltage
3095 Engine speed readings camshaft or crankshaft signals missing on start
3096 CAN A line no signal
3097 CAN B line no signal
3098 CAN TE control source low
3099 CAN TE control no signal
3100 CAN AE control source low
3101 CAN AE control no signal
3102 Fuel pressure monitoring low pressure
3103 Fuel pressure signal high value
3104 Fuel pressure signal high voltage
3105 Fuel pressure signal low voltage
3106 Fuel pressure sensor open circuit or disconnected
3107 Fuel metering unit short to VCC
3108 Fuel metering unit short to ground
3109 Fuel metering unit load diconnected or short to ground
3110 Fuel pressure relief value to high for long duration
3111 Fuel pressure relief value open
3112 Fuel pressure monitoring high pressure
3113 Main relay (Transistor supply UB2 is defective)
3114 Main relay (Transistor supply UB3 is defective)
3115 Main relay (Transistor supply UB4 is defective)
3116 Main relay (Controller internal source high)
3117 Self test not complete before power down
3118 Power supply for sensors not correct
3119 Power supply for sensors disconnected or failed
3120 Power supply for sensors high or low detected
3121 PTO twist sensor open circuit
3122 PTO twist sensor short to ground
3123 PTO twist sensor not calibrated
3124 Hand throttle position sensor potentiometer 2 over voltage
3125 Hand throttle position sensor potentiometer 2 under voltage
3126 Hand throttle position sensor potentiometer 1 over voltage
3127 Hand throttle position sensor potentiometer 1 under voltage
3128 Hand throttle position sensor difference error

604.55.151.00 – 05 – 2003
38 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

REAR PTO ERROR CODE LISTING

Error
code Error description
5001 Rear PTO brake solenoid stuck off
5002 Rear PTO brake solenoid stuck on
5003 Rear PTO brake output open circuit
5004 Rear PTO brake driver over temperature
5005 Brake switch open circuit
5007 Rear PTO solenoid stuck off
5008 Rear PTO solenoid overcurrent
5024 Rear PTO not calibrated
5027 Rear PTO speed sensor open circuit
5033 Rear PTO cab normally closed switch open circuit
5034 Fender mounted rear PTO switch open circuit or short to ground
5035 Fender mounted rear PTO switch input short to +Ve Voltage
5036 PTO failed to start
5037 Rear PTO cab normally open switch stuck closed
5038 Cab and fender PTO switches operated within 2 seconds
5039 Incorrect voltage on fender mounted rear PTO switch
5040 Fender mounted rear PTO switches reversed

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 39

FOUR WHEEL DRIVE ERROR CODE LISTING

Error
Code Error description
6020 Four wheel drive switch error
6021 Four wheel drive solenoid stuck on
6022 Four wheel drive solenoid stuck off
6023 Four wheel drive solenoid open circuit

604.55.151.00 – 05 – 2003
40 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

DIFFERENTIAL LOCK ERROR CODE LISTING

Error
Code Error description
7014 Differential lock switch error
7015 Differential lock solenoid stuck off
7016 Differential lock solenoid stuck on
7017 Differential lock solenoid open circuit
7018 Differential lock driver over temperature
7024 Steering angle sensor not calibrated
7031 Steering angle sensor out of maximum range
7032 Steering angle sensor out of minimum range

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 41

FRONT PTO ERROR CODE LISTING

Error
code Error description
8007 Front PTO solenoid stuck off
8008 Front PTO solenoid circuit overcurrent
8024 Front PTO not calibrated
8027 Front PTO speed sensor open circuit
8033 Front PTO cab normally closed switch open circuit
8036 PTO failed to start
8037 Front PTO cab normally open switch stuck closed

604.55.151.00 – 05 – 2003
42 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

FRONT HPL ERROR CODE LISTING

Error
code Error description
9001 Front HPL POT open circuit
9002 Front HPL POT short circuit

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 43

SUSPENDED FRONT AXLE FAULT CODE LISTING


Fault
Code Fault description
10001 Upper lockout solenoid error
10002 Raise solenoid error
10003 Lower solenoid error
10004 Front axle potentiometer threshold is higher than the set limit
10005 Front axle potentiometer threshold is lower than the set limit
10007 Front axle weight has been reduced but the suspension is unable to reset nominal
height
10008 Front axle weight has been increased but the suspension is unable to reset nominal
height
10009 Lower lockout solenoid error
10024 The front suspension is not calibrated

604.55.151.00 – 05 – 2003
44 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

INSTRUMENT CLUSTER ERROR CODE LISTING

Error
Code Error description
14001 Rear power take off (PTO) solenoid overcurrent
14002 Rear power take off (PTO) solenoid stuck off
14011 Engine speed sensor open circuit or short to high voltage
14012 Engine speed sensor short to ground
14021 Radar sensor open circuit or short to high voltage
14022 Radar sensor short to ground
14031 Front PTO solenoid overcurrent
14032 Front PTO solenoid stuck off
14041 Engine coolant temperature sensor short to high voltage
14042 Engine coolant temperature sensor open circuit or short to ground
14051 Fuel tank level sender open circuit or short to high voltage
14052 Fuel tank level sender short to ground
14061 Airbrake pressure sensor open circuit or short to high voltage
14071 Front hitch position potentiometer short circuit
14072 Front hitch position potentiometer open circuit
14081 Engine oil pressure sensor short to high voltage
14082 Engine oil pressure sensor open circuit or short to ground
14091 Wheel speed sensor open circuit or short to high volltage
14092 Wheel speed sensor short to ground
14100 Airbrake option needs to be set
14200 Error with Electrical Programmable Read Only Memory (EEPROM)
14900 Central controller not connected
14901 Engine module missing
14902 Auxiliary controller not connected
14903 Small control module not connected
14905 Instrument cluster key pad not connected
14907 Gear shift indicator missing
14101 Water in fuel sensor not detected

604.55.151.00 – 05 – 2003
SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9 45

U–CODE LISTING

Error
code Error description
Err An error has occurred during calibration – The calibration procedure cannot continue
please key off
U01 Front axle potentiometer open circuit
U02 Front axle potentiometer threshold too high
U03 Front axle potentiometer short circuit
U04 Front axle potentiometer threshold too low
U05 Suspension out of range
U07 Suspension not moving when raise solenoid is active
U08 Suspension did not reach maximum within 20 seconds
U09 Suspension not moving when lower solenoid is active
U10 Suspension did not reach minimum within 25 seconds
U11 Unable to complete calibration procedure
U12 Calibration procedure stopped, vehicle not staitonary
U13 Front suspension not enabled (will not calibrate)
U19 Transmission oil temperature low
U20 Handbrake is not set
U21 ERPM is below 1150, increase engine speed
U22 ERPM is above 1350, reduce engine speed
U23 Shuttle lever is in neutral, shift lever to forward
U24 Not used
U25 Range lever is in low, shift out of low
U26 Clutch pedal is not up, release clutch pedal
U27 C3 calibration value too low
U28 C3 calibration value too high
U29 C4 calibration value too low
U30 C4 calibration value too high
U31 Wheel speed sensed
U32 C1 calibration value too low
U33 C1 calibration value too high
U34 C2 calibration value too low
U35 C2 calibration value too high
U37 Syncro potentiometer signal is out of range for reverse
U38 Syncro potentiometer signal is out of range for forward
U39 Syncro did not move toward reverse, even at the max pressure
U40 Syncro did not move toward forward, even at the max pressure
U41 Syncro potentiometer signal is out of range for 4 position

604.55.151.00 – 05 – 2003
46 SECTION 55 – ELECTRICAL SYSTEMS – CHAPTER 9

U42 Syncro potentiometer signal is out of range for 5 position


U43 Syncro did not move toward 4
U44 Syncro did not move toward 5, even at the max pressure
U45 50Kph clutch 5 calibration values too low
U46 50Kph clutch 5 calibration values too high
U47 50Kph clutch 5 solenoid not present
U51 Engine speed error
U52 Constant ERPM switch detected
U53 Ground speed drive selected
U54 PTO brake switch detected
U55 PTO started
U56 PTO stopped
U57 ERPM is below 1150, increase engine speed
U58 PTO twist sensor open circuit
U59 PTO twist sensor short circuit
U80 Flywheel torque sensor calibration unsuccessful, try again
U81 No signal from flywheel torque sensor
U82 No 12VD – No power for C3 and C4 solenoids
U83 4–5 synchro did not shift to 4 for calibration of flywheel torque sensor

604.55.151.00 – 05 – 2003

You might also like
