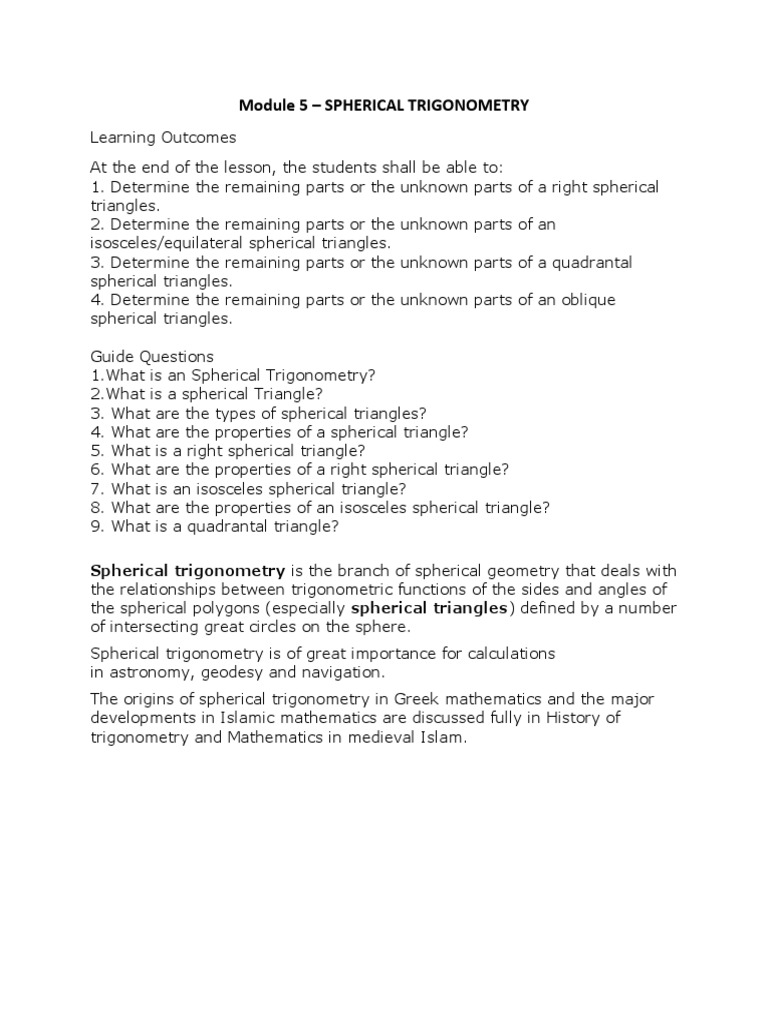

Learning Outcomes
At the end of the lesson, the students shall be able to:
1. Determine the remaining parts or the unknown parts of a right spherical
triangles.
2. Determine the remaining parts or the unknown parts of an
isosceles/equilateral spherical triangles.
3. Determine the remaining parts or the unknown parts of a quadrantal
spherical triangles.
4. Determine the remaining parts or the unknown parts of an oblique
spherical triangles.
Guide Questions
1.What is an Spherical Trigonometry?
2.What is a spherical Triangle?
3. What are the types of spherical triangles?
4. What are the properties of a spherical triangle?
5. What is a right spherical triangle?
6. What are the properties of a right spherical triangle?
7. What is an isosceles spherical triangle?
8. What are the properties of an isosceles spherical triangle?
9. What is a quadrantal triangle?
Great Circle - section which has the largest area. It is a circle on the
sphere whose plane passes through its center. Great Circles have a
radius of 90 degrees measured along the circumference of the sphere.
The equator of the Earth and meridians of longitude are great circles. A
plane passing through the center of the sphere cuts the sphere in a great
circle
Small Circle - a section in which its diameter do not pass through the center of the
sphere. Small Circles have a radius not equal to 90 degrees. Parallels of latitude
are small circles. A plane not passing through the center of the sphere cuts the
sphere in a small circle.
Properties of spherical angles
SPHERICAL ANGLES
Spherical Angles
In the figure:
Sides – a, b, and c.
Angles – A, B, C.
1. The sides are represented with a small letter while the angles are
represented using a big letter.
2. The sides are expressed in angular units (degree, minutes,
seconds).
3. Any side of a spherical triangle is less than the sum of the other
two sides. No side shall exceed 180. No angle shall be equal or
exceed 180.
4. The sum of the three angles must be greater than 180 but less
than 540 . 180 < (A+B+C) < 540
5. The sum of the three sides must be less than 360 .(a+b+c)< 360
6. The greater angle subtends the longer side.
7. The sum of any two sides is less than, greater than, or equal to 180
according as the sum of their opposite angle is less than, greater
than, or equal to 180 .
Quadrant 1
Quadrant 2
Theorem 1:
Theorem 2:
If any two sides terminate in the same quadrant, then the third side
terminates in quadrant 1. If, however, any two sides terminate in
different quadrant, then the third side terminates in quadrant 2.
NAPIER’S CIRCLE
1. Assume that the triangle is composed only of five parts. The angle
of 90 is omitted.
2. The complements of the two angles and the hypotenuse are used.
a. The Complements of A is A
b. The complement of c is c
c. The complement of B is B
3. Draw a circle and divide it into 5 parts. Then write all the parts
successively.
2. Adjacent Part – the part next to the middle part, having a common
boundary with the middle part.
3. Opposite Part – the part, which is past the adjacent part and has no
boundary with the middle part.
NAPIER’S RULE
Rule #1: The sine of the middle part is equal to the product of the
tangents of the adjacent part (tan-ad).
Rule #2: The sine of the middle part is equal to the product of the
cosines of the opposite parts(cos-opp).
Steps in Solving the Right Spherical Triangle
1. Draw the right spherical triangle and label the parts. Analyze the
quadrants of the unknown parts with the use of the theorems
discussed.
https://www.google.com/search?
q=image+of+a+right+spherical+triangle&sxsrf=ALeKk00XTwJSNBHmsz6r20lTDMDfT-
4FEA:1595309364295&tbm=isch&source=iu&ictx=1&fir=ZAGRaCsefLOjxM
%252CxOg4_7fkl7jdSM%252C_&vet=1&usg=AI4_-
kQpz1FXHu68MSfwGJkvBHm8WbnhUA&sa=X&ved=2ahUKEwijvNy_zt3qAhVaE4gKHc2RD_UQ9
QEwCXoECAsQFA&biw=1366&bih=608
1. Place a mark on the given parts in the Napier’s circle this will help
what Napier’s rule to use.
2. To solve an unknown part, see how it relates to the given parts.
Determine which of three parts the middle part is. Also find out if the
remaining two parts are adjacent or opposite. Decide what rule to use.
Note: Based on the above figure, the right spherical triangle has 3
angles and 3 sides. The 90 or the right angle in a right spherical
triangle is not included in the napier’s circle.
Any part of the Napier circle can be taken as the middle part
depending on the given parts of the triangle. The two given parts and
the required part must be present in the equation.
If side a is taken as the middle part
Adjacent parts are: Co - B and b
Opposite parts are: Co - c and Co – A
Examples:
1. In a right spherical triangle ABC, angle C = 90, side a = 25 20’, side
b = 60 15’ .Find the remaining Parts of the right Spherical Triangles
Given:
angle C = 90
side a = 25 20’
side b = 60 15’
Reqd:
Angle A - less than 90 - since side a is less than 90 (Theorem 1)
Angle B - less than 90 - since side b is less than 90 (Theorem 1)
side c – less than 90 - since side a and side b are less than 90,
then the third side c is also less than 90 (Theorem 2)
1
Cot A =
tan A
1
Sin b = tan a
tan A
tan a
Sin b = , express the equation in terms of tan A
tan A
tan a
tan A =
sin b
Substitute:
tan 25 20 ’
tan A =
sin 60 15 ’
0.47341
tan A =
0.86820
tan A = 0.54528
A = tan– (0.54528)
A = 28 36’
But:
1
Cot B =
tan B
1
Sin a = tan b
tan B
tan b
Sin a = , express the equation in terms of tan B
tan B
tan b
tan B =
sin a
Substitute:
tan 60 15 ’
tan B =
sin 25 20 ’
1.74964
tan B =
0.42788
tan B = 4.08905
B = tan– (4.08905)
B = 76 15’
c= cos– (0.44850)
B = 63 21’
Given:
Angle C = 90
angle A= 115 40’
side b= 85 15’
Reqd:
Angle B - less than 90 - since side b is less than 90 (Theorem 1)
side a – greater than 90 - since angle A greater than 90
(Theorem 1)
Angle c - greater than 90 - since side a is greater than 90 and
side bis less than 90 , the third side will be greater than
90 (Theorem 2)
Sin Co - B = cos B
substitute:
cos B = 0.07464
B = cos– (0.07464)
B = 85 43’
Solve for side a greater than 90
To solve for side a greater than 90, take b as the middle part since the two
given parts and the unknown parts are adjacent. Side b (given part) is
adjacent to side a (unknown part) and Co – A given part. Use Napier’s rule
1. (tan – adj)
Solution:
But:
1
Cot A =
tan A
1
Sin b = tan a
tan A
tan a
Sin b = , express the equation in terms of tan a
tan A
Substitute:
tan a = sin 85 15’ tan 115 40’
tan a = (0.99656) (-2.08094)
tan a = (-2.07379)
a = tan– (-2.07379)
a = 64 15’ ( This is not yet the final answer since we are solving
a = 115 45’
But:
1
Cot c =
tan c
1
Cos A = tan b
tan c
tan b
Cos A = , express the equation in terms of tan c
tan c
tanb
tan c =
cos A
substitute:
tan 8515 ’
tan c =
cos 115 40 ’
12.03462
tan c =
−0.43313
tan c = -27.78493
c= tan– (-27.78493)
c = 87 56’ (This is not yet the final answer since we are
solving for side c greater than 90)
Since, we are solving for side c greater than 90 (Theorem 2, side b is less
than 90, side a is greater than 90, then the third side must greater than
90. So we are going to get its supplement by subtracting 87 56’from 180.
c = 92 4’
Isosceles spherical triangle is a spherical triangle with two sides are equal or
two angles are equal. If two side of the triangle are equal, then the angles
opposite these two equal sides are also equal. If the spherical triangle has
two equal angles, the sides opposite these two equal angles are also equal.
Equilateral spherical triangle is a spherical triangle whose three sides are all
equal. Equilateral triangle is an equiangular triangle, which means all angles
are equal with each other.
The solution of an isosceles and equilateral triangle can be reduced with that
of the solution of a right spherical triangle by drawing an arc of a great circle
that passes through the vertex of the isosceles or equilateral triangle and
the midpoint of the base. This arc divides the triangle into two equal right
triangles.
C
A B
Example:
Find the remaining parts of an isosceles spherical triangle given the following
parts: side a = side b = 70, angle C = 80.
Solution:
When an arc is drawn from angle C perpendicular to side c, then two equal
right triangles are formed. Then solve for the remaining parts of the right
spherical triangle using Napier’s Rule.
For the formed right spherical triangle, X = 90, a = 70, C/2 = 40
Angle B = less than 90 - since side a is less than 90 (Theorem 1)
Angle A - is equal to angle B since side a is equal to side b, then
angle A
side c = less than 90 (Theorem 1)
Solve for angle B less than 90
To solve for angle B, side a and angle C/2 are known, referring to the
Napier’s circle, take Co - a as the middle part. If side Co - a is the middle
part, adjacent parts to side Co - a are Co – B and angle Co -C/2. Use rule
Napier’s rule 1. (tan - adj).
1 1
Cos a =
tan C /2 tan B
1
Tan B = tan C cos a
2
substitute
1
Tan B =
tan 40 cos 70
Tan B = 3.48445
–1
B = tan (3.48445)
B = 73 59’
A = 73 59’
To solve for side c of the isosceles triangle, solve for side c/2 first since
the isosceles triangle was divided into two equal right triangles. Side c of the
isosceles triangle is twice of side c/2.
Since side c/2 is opposite to the known parts angle Co -C/2 and side Co - a,
use Napier’s Rule 2 (Cos – opp)
Substitute:
c/2 = 3710’
c = 74 20’
QUADRANTAL TRIANGLE
A quadrantal spherical triangle together with Napier's circle for use in his
mnemonics
A quadrantal spherical triangle is defined to be a spherical triangle in which
one of the sides subtends an angle of π/2 radians at the centre of the
sphere: on the unit sphere the side has length π/2. In the case that the
side c has length π/2 on the unit sphere the equations governing the
remaining sides and angles may be obtained by applying the rules for the
right spherical triangle of the previous section to the polar
triangle A'B'C' with sides a',b',c' such that A' = π−a, a' = π−A etc.
Example
Given:
Side c = 90°
Side b = 115° 30
side A= 98° 45’.
A’ = 180° - a a’ = 180° - A
B’ = 180° - b b’ = 180° - B
C’ = 180° - c c’ = 180° - C
The remaining parts of the polar triangle are c’, b’, and A’. Solve for the
remaining parts of the polar triangle using the solution of a right spherical
tringle, the find the remaining parts of the quadrantal triangle using the
above formula.
Notice that since all elements (sides and intersection angles) of the triangle
are defined as angles, the values of these elements do not depend on the
radius of the underlying sphere.
Law of Sines:
Helpful tips on when to use the Sin Law and Cosine Law
The use of Sin Law is very helpful to solve for the remaining parts of the
oblique spherical triangle if there is a pair given, however, use the Cosine
Law if there is no pair given. If more of the sides are given, then use the
cosine law for sides, if more of the angles are given you may use the cosine
law for angles.
There are six different cases to consider in solving for the remaining parts of
the oblique spherical triangle and the suggested law to be used.
CASE 1: Three side are given (Use Cosine Law for Sides)
CASE 2: Three angles are given (Use Cosine Law for Angles)
CASE 3: Two sides and the included angle are given (Cosine Law for sides)
CASE 4: Two angles and the included side are given (Cosine Law for Angles)
CASE 5: Two sides and an angle opposite one of them are given
(Sine Law, Cosine Law for Sides, and Cosine Law for Angles)
CASE 6: Two angles and a side opposite one of them are given
(Sine Law, Cosine Law for Sides, and Cosine Law for Angles)
Find the remaining parts of an oblique spherical triangle ABC where, side a =
55° 20’, side b = 74° 10’, and side c = 100° 30’.
Reqd: Angle A, B and C
To solve for the remaining parts of the oblique spherical triangle, where
three sides are given, use Cosine Law for Sides
Solution:
0.61852
Cos A =
0.94595
Cos A = 0.65386
-1
A = cos (0.65386)
A = 49° 10’
Solution:
0.37469
Cos B =
0.80870
Cos B = 0.46555
-1
B = cos (0.46555)
B = 62° 15’
Solution:
−0.33743
Cos C =
0.79127
Cos C = -0.42644
-1
C = cos (-0.42644)
C = 115° 15’
Find the remaining parts of an oblique spherical triangle ABC where, angle A
= 125° 20’, angle B = 82° 10’, and angle C = 76° 30’.
To solve for the remaining parts of the oblique spherical triangle, where
three sides are given, use Cosine Law for Angles
Solution:
−0.54652
Cos a =
0.96330
Cos a = -0.56734
-1
a = cos (-0.56734)
a = 124° 34’
Solution:
0.00128
Cos b =
0.79326
Cos b = 0.00162
-1
b = cos (0.00162)
b = 89° 54’
Solution:
0.15462
Cos c=
0.80819
Cos c = 0.19132
-1
c = cos (0.19132)
c = 78° 58’
Solution:
Substitute:
Cos b = cos 105° 20’ cos 78° 10’+ sin 105° 20’ sin 78° 10’ cos 86° 10’
Cos b = 0.00888
-1
b = cos (0.00888)
b = 89° 29’
Solution:
Since we have already solve for side b, then we can use the sine Law or
Cosine Law in solving for angle C. The pair side b and angle B are already
known, then we can use sine Law
sin b sin c
sin B = sin C
Substitute:
sin 89 ° 29 ’ sin 78° 10 ’
sin 86 ° 10 ’ = sin C
Do cross multiplication and express the equation in terms of sin C
Sin C sin 89° 29’ = sin 86° 10’ sin 78° 10’
Sin C = 0.97660
C = sin -1(0.97660)
C = 77° 35’
Solution:
Since we have already solved for side b, then we can use the sine Law or
Cosine Law in solving for angle A. The pair side b and angle B are already
known, pair side c and angle C are also known, then we can use sine Law
sin b sin a
sin B = sin A
Substitute:
sin 89 ° 29 ’ sin 105° 20 ’
sin 86 ° 10 ’ = sin A
Sin A sin 89° 29’ = sin 86° 10’ sin 105° 20’
Sin A = 0.96228
A = sin -1(0.96228)
Find the remaining parts of an oblique spherical triangle ABC where, angle A
= 84° 20’, Angle C = 70° 10’, and side b = 106° 10’.
Solution:
Substitute:
Cos B = - cos 84° 20’ cos70° 10’ + sin 84° 20’ sin70° 10’ cos 106° 10’
Cos B = - 0.29414
-1
B = cos (- 0.29414)
B = 107° 6’
Since we have already solved for angle B, then we can use the sine Law or
Cosine Law in solving for side a. The pair side b and angle B are already
known, then we can use sine Law
Substitute:
Sin a = 0.99997
a = sin -1(0.99997)
a = 89° 32’
Solution:
Since we have already solved for angle B, then we can use the sine Law or
Cosine Law in solving for side a. The pair side b and angle B are already
known, then we can use sine Law
Sin c = 0.94527
c = sin -1(0.94527)
C = 70° 57’
Case 5 is often called the Ambiguous case because there are three possible
solutions to the problem. The possibilities are:
a. Two solutions
b. One solution
c. No solution
The number of solutions can be determined by the following:
1. There are two solutions when angle A and side a terminate in the
same quadrant and sin c > sin a > sin A sin c.
2. There is no solution when:
a. Angle A and side a terminate in different quadrants
and sin c > sin a or sin c = sin a or sin c = sin a
b. Sin a < sin A sin c
Find the remaining parts of an oblique spherical triangle ABC where, side a =
= 58° 10’, angle B = 78° 10’, and side b = 66° 10’.
Find angle A
Solution:
Since there is a pair given (Side b and angle B) then we can use Sine Law
sin b sin a
sin B = sin A
Substitute:
Sin A sin 66° 10’= sin 78° 10’ sin 58° 10’
Divide both side of the equation by sin 66° 10’
Sin A = 0.90905
A= sin -1(0.90905)
A = 65° 22’
Find the remaining parts of an oblique spherical triangle ABC where, Angle B
= 78° 20’, angle C = 65° 10’, and side c = 56° 10’.
Find side b
Solution:
Since there is a pair given (Side c and angle C) then we can use Sine Law
sin b sin c
sin B = sin C
Substitute:
Sin b sin 65° 10’= sin 78° 20’ sin 56° 10’
Divide both side of the equation by sin 66° 10’
Sin b = 0.88934
b= sin -1(0.88934)
b = 62° 47’
