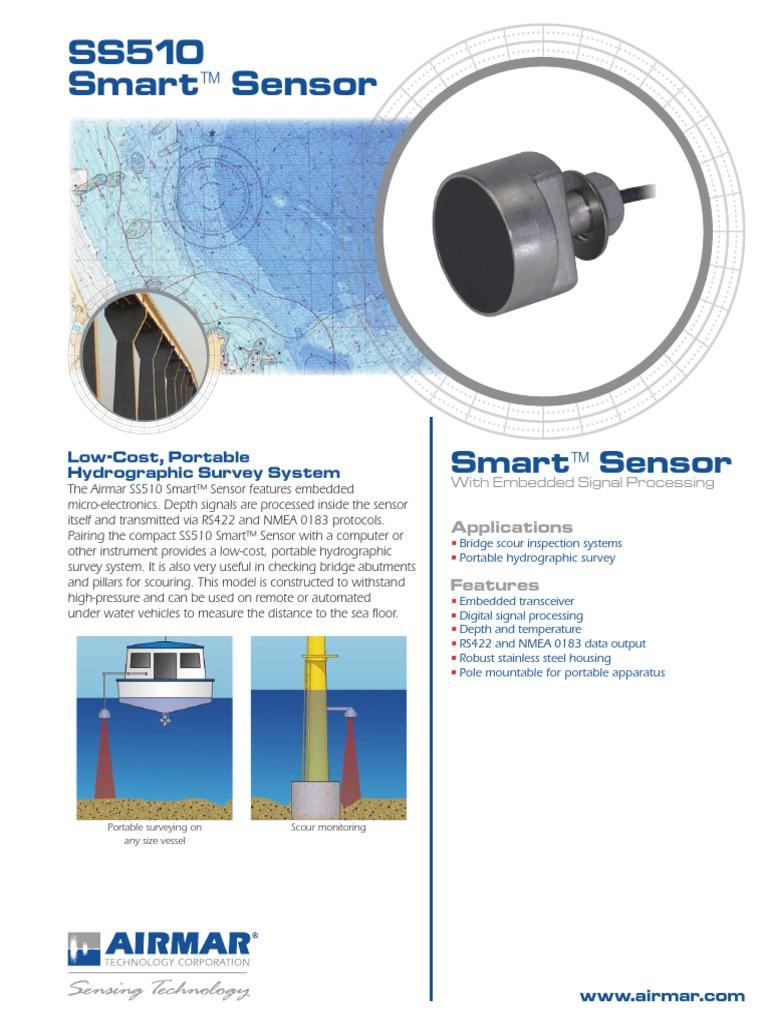

SS510

Smart™ Sensor

Low-Cost, Portable
Hydrographic Survey System Smart™ Sensor
The Airmar SS510 Smart™ Sensor features embedded With Embedded Signal Processing
micro-electronics. Depth signals are processed inside the sensor
itself and transmitted via RS422 and NMEA 0183 protocols.
Pairing the compact SS510 Smart™ Sensor with a computer or
Applications
• Bridge scour inspection systems
other instrument provides a low-cost, portable hydrographic • Portable hydrographic survey
survey system. It is also very useful in checking bridge abutments
and pillars for scouring. This model is constructed to withstand Features
high-pressure and can be used on remote or automated • Embedded transceiver
under water vehicles to measure the distance to the sea floor. • Digital signal processing
• Depth and temperature
• RS422 and NMEA 0183 data output
• Robust stainless steel housing
• Pole mountable for portable apparatus

Portable surveying on Scour monitoring

any size vessel

www.airmar.com
 SS510 Smart™ Sensor

Technical Information

Frequencies Configuration Beamwidth (@-3 dB) RMS Power (W) DIMENSIONS

235 kHz-A 6° 60 W

SPECIFICATIONS
Range: 0.5 m to 100 m
Resolution: 3 cm

ø 70 mm
(2.75”)
Thermistor: 10 kΩ NTC
Temperature Sensor Accuracy: ±0.5°C (1.8°F)
Data Output Protocol: RS422 and NMEA 0183
Data Update Rate: 1 per second
Maximum Depth Range: Up to 100 m (330’)
Minimum Depth Range: 0.5 m (1.6’)
Supply Voltage: 6 VDC to 25 VDC (100% output @ 11.5 V)
Supply Current: 40 mA maximum 43 mm
(1.69”)
RMS Power (W): 60 W
Reverse Polarity Protection: Yes
Over Voltage Protection: For transients only
1/2”-14
Cable Type: C33—Shielded twisted pair (2-20 AWG) with braided shield, NPS threads
black neoprene jacket, 6 mm diameter
Cable Length: 10 m (33’) cable
Weight: 1.3 kg
Sensor Baud Rate (NMEA 0183 Interface Only):
4,800 bps (can be increased to 38,400 bps with a command)
Acoustic Window: Urethane
Do not strike or use solvents (especially acetone) on the transducer face. Use water-based anti-fouling ø 22 mm
paint only. Do not cut transducer cable. (0.86”)

84 mm
(3.29”)
DATA OUTPUT PROTOCOL
43 mm
(1.71”)

NMEA 0183* Sentence Structure

$SDDBT, DDPT........... Depth
25 mm
(1.00”)
$YXMTW.................... Water Temperature
*NMEA 0183 is a serial data bus standard communications protocol that permits different types of
electronic equipment to communicate. For more information visit www.nmea.org.

Directivity Pattern—235 kHz-A

10° 0° 10°
20° 20°
30° 30°
40° -10 dB 40°

50° 50°
-20 dB

60° 60°
-30 dB

70° 70°
-40 dB
80° 80°

90° 90°
140° 150° 160° 170° 180° 170° 160° 150° 140°
