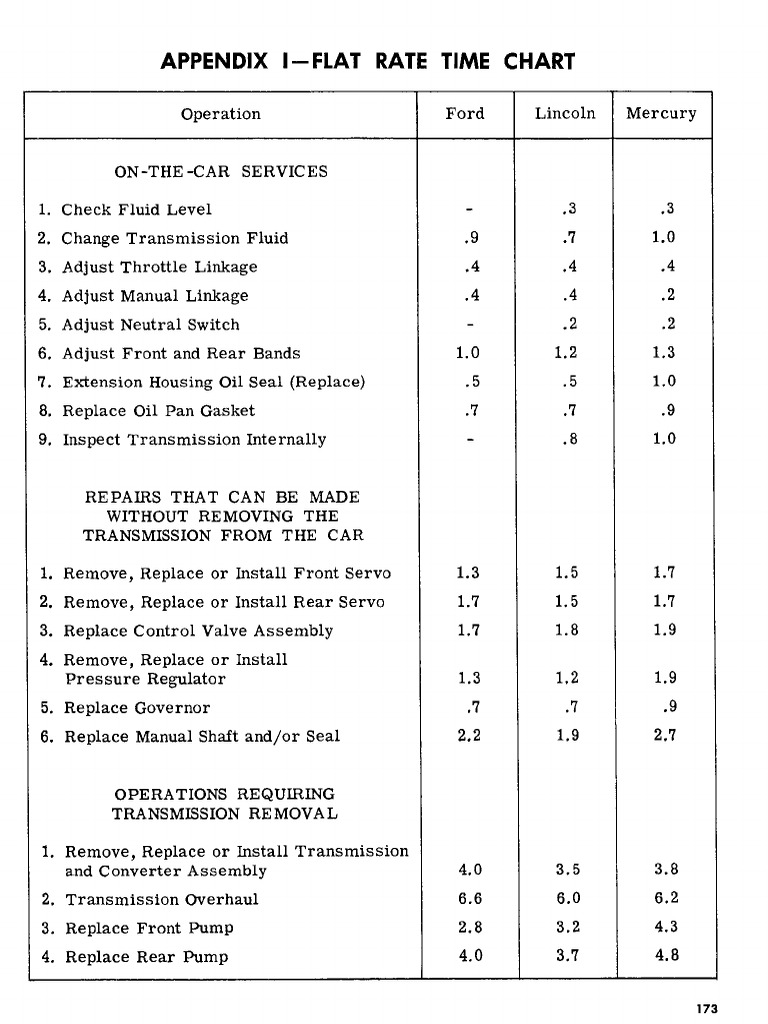

APPENDIX I-FLAT RATE TIME CHART

Operation Ford Lincoln Mercury

ON-THE -CAR SERVICES

1. Check Fluid Level .3 .3

2. Change Transmission Fluid .9 .7 1.0
3. Adjust Throttle Linkage .4 .4 .4
4. Adjust Manual Linkage .4 .4 .2
5. Adjust Neutral Switch .2 .2
6. Adjust Front and Rear Bands 1.0 1.2 1.3
7. Extension Housing Oil Seal Replace .5 .5 1.0
8. Replace Oil Pan Gasket .7 .7 .9
9. Inspect Transmission Internally .8 1.0

REPAIRS THAT CAN BE MADE

WITHOUT REMOVING THE
TRANSMISSION FROM THE CAR

1. Remove, Replace or Install Front Servo 1.3 1.5 1.7

2. Remove, Replace or Install Rear Servo 1.7 1.5 1.7
3. Replace Control Valve Assembly 1.7 1.8 1.9
4. Remove, Replace or Install
Pressure Regulator 1.3 1.2 1.9
5. Replace Governor .7 .7 .9
6. Replace Manual Shalt and/or Seal 2.2 1.9 2.7

OPERATIONS REQUIRING
TRANSMISSION REMOVAL

1. Remove, Replace or Install Transmission

and Converter Assembly 4.0 3.5 3.8
2. Transmission Overhaul 6.6 6.0 6.2
3. Replace Front Pump 2.8 3.2 4.3
4. Replace Rear Pump 4.0 3.7 4.8

173
 The flat rate figures given in the flat rate chart are the result of
repeating the various operations a number of times to establish an
average time for each repair operation. The times are based upon
the use of special tools, upon average skill and speed, and upon the
procedures in this manual.
The figures are a practical and useful guide in establishing prices
for various repair operations. Because some mechanics are, natu
rally, faster than others, the figures cannot be considered exact, but
they are time allowances within which any mechanic can stay. The
figures, generally speaking, will apply to any make or model. Of
course, there are minor variations, but they are so slight that it is
sale to say they will have no bearing on average time allowances
which have enough leeway to cover make and model variations.
The time schedules are broken down into increments of lOths of hours,
or 6-minute intervals. To aid you in translating these figures into
dollar costs, there is a computation table below. These are labor
charges only, based upon labor rates in given areas. Parts cost are
extra, and naturally depend on the number and type of parts replaced.
For parts costs, see your local jobber.

COMPUTATION TABLE

Hour $2.00 $2.25 $2.50 $2.75 $3.00 $3.25 $3.50 $3.75 $4.00 $4.25 $4.50 $4.75 $5.00 $5.25 $5.50 $5.75 $6.0

.1 . . . .20 .25 .25 .30 .30 .35 .35 .40 .40 .45 .45 .50 .50 .55 .55 .60 .60
.2 40 .45 .50 .55 .60 .65 .70 .75 .80 .85 .90 .95 1.00 1.05 1.10 1.15 1.20
.3 60 .70 .75 .80 .90 1.00 1.05 1.15 1.20 1.30 1.35 1.45 1.50 1,60 1.65 1.75 1.80
.4 80 .90 1.00 1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00 2.10 2.20 2.30 2.40
.5 . . . 1.00 1.15 1.25 1.40 1.50 1.65 1.75 1.90 2.00 2.15 2.25 2.40 2.50 2.65 2.75 2.90 3.00
.6. , . 1,20 1.85 1.50 1iT5 mo 1.95 T1b 2.2T 145 2.55 2.70 9Tä3 3.00 3.15 3.30 3.45 3.60
.7 - . . 1.40 1.60 1.75 1.90 2.10 2.30 2.45 2.65 2.80 3.00 3.15 3.35 3.50 3.70 3.85 4.05 4.20
.8 . . . 1.60 1.80 2.00 2.20 2.40 2.60 2.80 3.00 3.20 3.40 3.60 3.80 4.00 4.20 4.40 4,60 4.80
.9. . . 1,80 2.05 2.25 2.50 2.70 2.90 3.15 3.40 3.60 3.85 4.05 4.30 4.50 4.75 4.95 5.20 5.40
1.0 . . . 2.00 2.25 2.50 2.75 3.00 3.25 3.50 3.75 4.00 4.25 4.50 4.75 5.00 5.25 5.50 5,75 6.00
1.1 . . . 2.20 2.50 2.75 3.00 3.30 3.60 3.85 4.15 Zb 4.70 4.95 5.25 5.50 5.80 6.05 6.35
1.2 , . . 2.40 2.70 3.00 3.30 3.60 3.90 4.20 4.50 4.80 5.10 5.40 5.70 6.00 6.30 6.60 6.90 7.20
1.3. . . 2.60 2,95 3.25 3.60 3.90 4.25 4.55 4.90 5.20 5.55 5.85 6.20 6.50 6.85 7.15 7.50 7,80
1,4 . . . 2.80 3.15 3.50 3.85 4.20 4.55 4.90 5.25 5.60 5.95 6.30 6.65 7.00 7.35 7.70 8.05 8.40
1.5 . . . 3.00 3.40 3.75 4.10 4.50 4.90 5,25 5.65 6.00 6.40 6.75 7.15 7.50 7.90 8.25 8.65 9.00
1.6 . . . 3.20 3.60 4.00 4.40 4.80 5.20 3Z5 6.00 6.40 6.80 7.20 7.60 8.00 8.40 8.80 9.20 9.60
1.7. . . 3.40 3.85 4.25 4.65 5.10 5.55 5.95 6.40 6.80 7.25 7.65 8.10 8.40 8.95 9.35 9.80 10.20
1.8. . . 3.60 4.05 4.50 4.95 5.40 5.85 6.30 6.75 7.20 7.65 8.10 8.55 9.00 9.45 9.90 10.35 10.80
1.9. . . 3.80 4.30 4,75 5.20 5.70 6.20 6.65 7.15 7.60 8.10 8.55 9.05 9.50 10.00 10.45 10.95 11.40
2.0 . , . 4,00 4.50 5.00 5.50 6.00 6.50 7.00 7.50 8.00 8.50 9.00 9.50 10.00 11.50 11.00 11.50 12.00
2.1 . . . 4.20 4.75 5.25 75 6.30 6.85 7.35 7.90 8.40 8,95 9,45 10.00 10.50 11.05 11.55 12.10 12.60
2.2 . . . 4.40 4.95 5.50 6.00 6.60 7.15 7.70 8.25 8.80 9.35 9.90 10.45 11.00 11.55 12.10 12.65 13.20
2.3 . . . 4.60 5.20 5.75 6.30 6.90 7.50 8.05 8.65 9.20 9.80 10.35 10.95 11 .50 12.10 12.65 13.25 13.80
2.4 . . . 4.80 5.40 6.00 6.60 7.20 7.80 8.40 9.00 9.60 10.20 10.80 11.40 12.00 12.60 13.20 13.80 14.40
2.5 . . . 5.00 5.65 6.25 6.90 7.50 8.15 8.75 9.40 10.00 10.65 11.25 11.90 12.50 13.15 13.75 14.40 15.00
2.6 . . . 5.20 5.85 6.50 7,15 7.80 8.45 9.10 9.75 10.40 11.05 11.70 12.35 13,00 13.65 14.30 14.95 15.60
2.7.. . 5.40 6.10 6.75 7,40 8.10 8.80 9.45 10.15 10.80 11.50 12.15 12,85 13.50 14.20 14.85 15.55 16.20
2.8 . . , 5.60 6.30 7.00 7.70 8.40 9.10 9.80 10.50 11.20 11.90 12.60 13.30 14.00 14.70 15.40 16.10 16.80
2.9 . . . 5.80 6.55 7.25 8.00 8.70 9,45 10.15 10.90 11.60 12.35 13,05 13.80 14.50 15.25 15.95 16.70 17.40
3.0 . . . 6.00 6.75 7.50 8.25 9.00 9.75 10.50 11.25 12.00 12.75 13.50 14.25 15.00 15,75 16.50 17.25 18.00

174
 COMPUTATION TABLE continued
Hour $2.00 $2.25 $2.50 $2.75 $3.00 $3.25 $3.50 $3.75 $4.00 $4.25 $4.50 $4.75 $5.00 I $5.25 $5.50 $5.75 $6.00

3.] . . . 6.20 7.00 7.75 8.50 9.30 10.10 10.85 11.65 12.40 13.20 13.95 14.75 15.50 16.30 17.05 17.85 18.60
3.2 . . . 6.40 7.20 8.00 8.80 9.60 10.40 11.20 12.00 12.80 13.60 14.40 15.20 16.00 16,80 17.60 18.40 19.20
3.3 . . . 6.60 7.45 8.25 9.10 9.90 10.75 11.55 12.40 13.20 14.05 14.85 15.70 16.50 17.35 18.15 19.00 19.80
3.4. . . 6.80 7.65 8.50 9,35 10.20 11.05 11.90 12.75 13.60 14.45 15.30 16.15 17.00 17,85 18.70 19.55 20,40
3.5. . . 7.00 7.90 8.75 9.60 10.50 11.40 12.25 13.15 14.00 14.90 15.75 16.65 17.50 18.40 19.25 20.15 21,00
3.6. . . 7.20 8.10 9.00 9.90 10.80 11.70 12.60 13.50 14.40 15.30 16.20 17.10 18.00 18.90 19.80 20.70 21.60
3.7. . . 7.40 8.35 9.25 10.15 11.10 12.05 12.95 13.90 14.80 15.75 16.65 17.60 18.50 19,45 20.35 21.30 22.20
3.8. . . 7.60 8.55 9.50 10.45 11.40 12.35 13.30 14.25 15.20 16.15 17.10 18.05 19,00 19,95 20.90 21.85 22.80
3.9. . . 7.80 8.80 9.75 10.70 11.70 12.70 13.65 14.65 15.60 116.60 17.55 18,55 19.50 20.50 21.45 22.45 23.40
4.0 . . . 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20,00 21.00 22,00 23.00 24.00
4.1 . . . 8.20 9.25 10.25 11.30 12.30 13.30 14.35 15.40 16,40 17.45 18,45 19.50 20.50 21,55 22.55 23.60 24.60
4.2 . . . 8.40 9.45 10.50 11.55 12.60 13.65 14.70 15.75 16.80 17.85 18.90 19.95 21.00 22.05 23.10 24.15 25.20
4.3. . . 8.60 9.70 10.75 11.80 12.90 14.00 15.05 16.15 17.20 18.30 19.35 20.45 21.50 22.60 23.65 24.75 25.80
4.4. . . 8.80 9.90 11.00 12.10 13.20 14.30 15.40 16.50 17.60 18,70 19.80 20.90 22.00 23.10 24.20 25.30 26.40
4.5 . . . 9.00 10.15 11.25 12.40 13.50 14.60 15.75 16.90 18.00 19.15 20.25 21.40 22.50 23.65 24.75 25.90 27.00
4.6 . . . 9.20 10.35 11.50 12.65 13.80 14.95 16.10 17.25 18.40 19.55 20.70 21.85 23.00 241 tTh5.30 26.45 27.60
4.7. . . 9.40 10.60 11.75 12.90 14.10 15.30 16.45 17.65 18.80 20.00 21.15 22.35 23.50 24.70 25.85 27.05 28.20
4.8. . . 9.60 10.80 12.00 13.20 14.40 15.60 16.80 18.00 19.20 20.40 21.60 22.80 24.00 25.20 26.40 27.60 28.80
4.9. . . 9.80 11.05 12.25 13.50 14.70 15.90 17.15 18.40 19.60 20.85 22.05 23.30 24.50 25.75 26.95 28.20 29.40
5.0 . . . 10.00 11.25 12.50 13.75 15.00 16.25 17.50 18.75 20.00 21.25 22.50 23.75 25.00 26.25 27.50 28.75 30.00
5.1 .
5,2.
. . 10.20
10,40
11.50 12.75 14.00 15.30 16.60 17.65 19.15 20.40 21.70 22.95 24.25 25.50 J 26,80 28.05 29.35 30,60
. . 11.70 13.00 14.30 15.60 16.90 18.20 19.50 20.80 22.10 23.40 24.70 26.00 27.30 28.60 29.90 31.20
5.3. . . 10.60 11.95 13.25 14.60 15.90 17.25 18.55 19.90 21.20 22.55 23.85 25.20 26.50 27.85 29.15 30.50 31.80
5.4. . . 10.80 12.15 13.50 14.85 16.20 17.55 18.90 20.25 21.60 22.95 24.30 25.65 27.00 28,35 29.70 31.05 32.40
1_rr 11.00 12.40 13.75 15.10 16.50 17.90 19.25 20.65 22.00 23.40 24.75 26.15 27.50 28.90 30.25 31.65 33.00
5.6. . . 11.20 12.60 14.00 15.40 16.80 18.20 19.60 21.00 22.40 23.80 25.20 26.60 28.00 29.40 30.80 32.20 33.60
5.7.. . 11.40 12.85 14.25 15.70 17.10 18.55 19.95 21.40 22.80 24.25 25.65 27.10 28.50 29.95 31.35 32.80 34.20
5.8. . . 11.60 13.05 14.50 15.95 17.40 18.85 20.30 21.75 23.20 24.65 26.10 27.55 29.00 30.45 31.90 33.35 34.80
5.9. . . 11.80 13.30 14.75 16.20 17.70 19.20 20.65 22.15 23.60 25.10 26.55 28.05 29.50 31.00 32.45 33.95 35.40
6.0 . . . 12.00 13.50 15.00 16.50 18.00 19.50 21.00 22.50 24.00 25.50 27.00 28.50 30.00 31.50 33.00 34.50 36.00

Hour $2.00 $2.25 $2.50 $2.75 $3.00 $3.25 $3.50 $3.15 $4.00 $4.25 $4.50 $4.75 $5.00 $5.25 $5.50 $5.75 [ $6.00

6.1 . . . 12.20 13.75 15.25 16.80 18.30 19.85 21.35 22.90 24.40 25.95 27.45 29.00 30.50 32.05 33.55 35.10 36,60
6.2 . . . 12.40 13.95 15.50 17.05 18.60 20.20 21.70 23.25 24.80 26.35 27.90 29.45 31.00 32.55 34.10 35,65 37.20
6,3. , . 12,60 14.20 15.75 17.30 18.90 20.50 22.05 23.65 25.20 26.80 28.35 29.95 31.50 33.10 34.65 36.25 37.80
6.4. . . 12.80 14.40 16.00 17.60 19.20 20.80 22.40 24.00 25.60 27.20 28.80 30.40 32.00 33.60 35.20 36.80 38.40
6.5, . . 13.00 1465 16.25 17.90 19.50 21.15 22.75 24.40 26.00 27.65 29.25 30.90 32.50 34.15 35.75 37.40 39.00
6.6 . . . 13.20 14.85 16.50 18.15 19.80 21.45 23.10 24.75 26.40 28.05 29.70 31.35 33.00 34.65 36.30 37.95 39.60
6.7. . . 13.40 15.10 16.75 18.40 20.10 21.75 23.45 25.15 26.80 28.50 30.15 31.85 33.50 35.20 36.85 38.55 40.20
6.8. . . 13.60 15.30 17.00 18.70 20.40 22.10 23.80 25.50 27.20 28.90 30.60 32.30 34.00 35.70 37.40 39.10 40.80
6.9 . . . 13.80 15.55 17.25 19.00 20.70 22.45 24.15 25.90 27.60 29.35 31.05 32.80 34.50 36.25 37.95 39.70 41.40
7.0. . . 14.00 15.75 17.50 19.25 21.00 22.75 24.50 26.25 28.00 29.75 31.50 33.25 35.00 36.75 38.50 40.25 42.00
7.1 . . . 14.20 16.00 17.75 19.50 21.30 23.10 24.85 26.65 28.40 30.20 31.95 33.75 35.50 37.30 39.05 40.85 42.60
7.2. . . 14.40 16.20 18.00 19.80 21.60 23.40 25.20 27.00 28.80 30.60 32.40 34,20 36.00 37.80 39.60 41.40 43.20
7.3 . . . 14.60 16.45 18.25 20.10 21.90 23.75 25.55 27.40 29.20 31.05 32.85 34.70 36.50 38,35 40.15 42.00 43.80
7.4. . . 14.80 16.65 18.50 20.35 22.20 24.05 25.90 27.75 29.60 31.45 33.30 35.15 37.00 38.85 40.70 42.55 44.40
7.5. . . 15.00 16.90 18.75 20.60 22.50 24.40 26.25 28.15 30.00 31.90 33.75 35.65 37.50 39.40 41.25 43.15 45.00
7.6. . . 15.20 17.10 19.00 20.90 22.80 24.70 26.60 28.50 30.40 32.30 34.20 36.10 38.00 39.90 41.80 43.70 45.60
7,7. . . 15.40 17.35 19.25 21.20 23.10 25.05 26.95 28.90 30.80 32.75 34.65 36.60 38.50 40.45 42.35 44.30 46.20
7.8. . . 15.60 17.55 19.50 21.45 23.40 25.35 27.30 29.25 31.20 33.15 35.10 37.05 39.00 40.95 42.90 44.85 46.80
7.9. . . 15.80 17.80 19.75 21.70 23.70 25.70 27.65 29.65 31.60 33.60 35.55 37.55 39.50 41.50 43.45 45.45 47.40
8.0 . . . 16.00 8.00 20.00 22.00 24.00 26.00 28.00 30.00 32.00 34.00 36.00 38.00 40.00 42,00 44.00 46,00 48.00
9.0 . . . 18.00 20.25 22.50 24.75 27.00 29.25 31.50 33.75 36.00 38.25 40.50 42,75 45,00 47.25 49.50 51 .75 54.00
10.0 . , . 20.00 22.50 25.00 27.50 30.00 32.50 35.00 37.50 40.00 42.50 45.00 47.50 50.00 52.50 55.00 57.50 60.00
11.0.. .22.00 24.75 27.50 30,25 33,00 35.75 38.50 41.25 44,00 46,75 49.50 52.25 55.00 57.75 60.50 63.25 66.00
12.0 . . . 24.00 27.00 30.00 33.00 36.00 39.00 42.00 45.00 48,00 51.00 54.00 57.00 60.00 63.00 66.00 69.00 72.00
13.0 . , . 26.00 29.25 32.50 35.75 39.00 42.25 45.50 48.75 52.00 55,25 58.50 61.75 65.00 68.25 71.50 74.75 78.00
14.0 . . . 28.00 31.50 35.00 38,50 42,00 45.50 49.00 52.50 56.00 59.50 63.00 66.50 70.00 73.50 77.00 80.50 84.00
15.0 . . . 30.00 33.75 37.50 41.25 45.00 48.75 52.50 56.25 60.00 63.75 67.50 71.25 75.00 78.75 82.50 86.25 90.00
16.0 . . . 32.00 36.00 40.00 44.00 48.00 52.00 56.00 60.00 64.00 68.00 72.00 76.00 80.00 84.00 88.00 92.00 96.00
17.0 . . . 34.00 38.25 42.50 46.75 51.00 55.25 59.50 63.75 68.00 72.25 76.50 80.75 85.00 89.25 93.50 97.75 102.00
18.0 . . . 36.00 40.50 45.00 49.50 54.00 58.50 63.00 67.50 72.00 76.50 81.00 85.50 90.00 94.50 99.00 103.50 108.00
19.0 . . . 38.00 42.75 47.50 52.25 57.00 61.75 66.50 71.25 76.00 80.75 85.50 90.25 95.00 99.75 104.50 109.25 114.00
20.0 . . . 40.00 45.00 50.00 55.00 60.00 65.00 70.00 75.00 80.00 85.00 90.00 95.00 100.00 105.00 110.00 115.00 120.00

175
 APPENDIX Il-FORDOMATIC AND MERCOMATIC
IDENTIFICATION GUIDE
Transmission
Year Model Serial No.
Part No.

1950 Mercury 1P-7003-A 2 - 10001

1951 Ford 8
- 1P-7003-B 1- 10001
1951 Mercury 1P-7003-B 1- 10001
1951 Service Replacement 1P-7003-G 2 - 10001
1P-7003-H 1 - 10001
1952 Ford 8
- 1P-7003-C 4 - 10001
1952 Mercury 1P-7003-D 3 - 10001
1P-7003-E 6 - 10001
1P-7003-F 5 - 10001
1952 Ford -6 1P-7003-C 4 - 10001
1P-7003-D 3 - 10001
1P-7003-E 6 - 10001
1P-7003-F 5 - 10001
1953 Ford 8
- 1P-7003-J 10 - 10001
1953 Mercury 1P-7003-K 9 - 10001
1953 Ford 6 - 1P-7003-J 10 - 10001
1953 F-250, F-350 & P-350 Truck - 6 PMA-7003--A 13 - 10001
1953 F-100 Truck 8 - PAD-7003-A 8 - 10001
PAD-7003-B 7 - 10001
1953 F-100 Truck - 6 PAD-7003-A 8 - 10001
PAD-7003-B 7 - 10001
1954 Ford - 8 1P-7003-N
1P-7003-P 23D 10001 -

1P-7003-J 10 10001
-

1P-7003-K 9 10001
-

1954 Ford - 6 1P-7003-J 10 10001

-

1P-7003-K 9 10001
-

1954 F-250, F-350 Truck 8 - PMA-7003-A 13 10001

-

1954 F-250, F-350 & P-350 Truck - 6 PMA-7003-A 13 10001

-

1954 Ford - 8 PAG-7003-C

1954 F-100 Truck 8
- PAD-7003-A 8 - 10001
PAD-7003-B 7 - 10001
1954 F-100 Truck - 6 PAD-7003-A 8 - 10001
PAD-7003-B 7 - 10001
1954 Mercury PAE-7003-A 12 - 10001
1954 Ford Police Interceptor PAE -7003-B 11 - 10001
1954 Mercury 8 - PAM-7003-A 14 - 10001
1955 Ford 6 - PAG-7003-A2 16 - 10001
PAG-7003-A1 17 - 10001
1955 F-lOU Truck - 8 PAH-7003-A2 22 - 10001
PAG-7003-A1 21 - 10001

176
 FORDOMATIC AND MERCOMATIC GUIDE continued

Transmission
Year Model Serial No.
Part No.

1955 F-100 Truck - 6 PAH-7003-A2 22 - 10001

PAH-7003-A1 21 - 10001
1955 F-lOU Truck 8 - PAH-7003-C2 42 - 10001
1955 Thunderbird 8 - PAM-7003-B 26 - 10001
1955 Mercury 8 - PMB-7003-A 20 - 10001
1955 Ford 8, Police Interceptor
- PMB-7003-B 30 - 10001
1955 Thunderbird 8 - PMB-7003-C 32 - 10001
1955 Lincoln 8 - PMC-7003-A 24 - 10001
1955 F-100 Truck 6 - PAH-7003-C2 42 - 10001
1955 F-250, F-350 Truck 8 - PAJ-7003-A 15 - 10001
1955 F-250, F-350, P-359 Truck - 6 PAJ-7003-A 15 - 10001
1955 Ford 8 - PAK-7003-A2 18 - 10001
PAK-7003-A1 19 - 10001
PAK-7003-A3 19D - 10001
PAK-7003-A2 18 - 10001
PAK-7003-A1 19 - 10001
PAK-7003-A3 19D - 10001
1955 Ford - 8 Power Pack PAK-7003-D2 34 - 10001
PAK-7003-D1 33 - 10001
1956 Ford - 6 PAP-7003-A2 44 - 10001
PAP-7003-A1 43 - 10001
PAP-7003-B1 93 - 10001
PAP-7003-B2 94 - 10001
1956 Taxi - 6 Option PAP-7003-C1 117 - 10001
PAP-7003-C2 118 - 10001
PAP-7003-D1 123 - 10001
PAP-7003-D2 122 - 10001
1956 Ford 8 - PAR-7003-A2 46 - 10001
1956 Ford 8 Power Pack
- PAR-7003-B2 48 - 10001
1956 Special 8 Continental
- PMC-7003-B 28 - 10001
1956 Lincoln 8 - PAN-7003-A 38 - 10001
1956 Continental 8 - PAN-7003-B 40 - 10001
1956 Ford 8 - PAR-7003-C2 - 10001
PAR-7003-C1 - 10001
PAR-7003-C3 - 10001
PAR-7003-D2 62 - 10001
PAR-7003-E2 64 - 10001
PAR-7003-F2 66 - 10001
PAR-7003-F1 61 - 10001
PAR-7003-F3 61D 10001
-

1956 Ford - Fairlane Power Option PAR-7003-G1 111 - 10001

PAR-7003-G2 110 - 10001
PAR-7003-G3 liD 10001
-

177
 FORDOMATIC AND MERCOMATIC GUIDE continued

Transmission
Year Model Serial No.
Part No.

1956 F-100 Truck - 6 PAS-7003-A2 52 - 10001

PAS-7003-B2 96 - 10001
1956 F-lOU Truck - 8 PAT-7003-A2 36 - 10001
PAT-7003-B2 54 - 10001
1956 F-250, F-350, P-350, P-500 Truck - 6 PAU-7003-A1 51 - 10001
1956 F-250, F-350, P-350 & P-500
Steel Truck 6 - PAU-7003-C1 95 10001
-

1956 F-250, F-350 Truck 8 - PAV-7000-Al 29 10001

-

PAV-7003-Bl 53 10001
-

1956 Lincoln 8 - PAN-7003-F 112 10001

-

1956 Mercury 8 - PAW-7003-A 56 10001

-

1956 Ford 8
- Police Interceptor PAW-7003-B 58 10001
-

1956 Thunderbird 8 - PAW-7003-C 60 10001

-

1956 Mercury 8 - PAW-7003-D 68 10001

-

1956 Ford 8
- Police Interceptor PAW-7003-E 70 10001
-

1956 Thunderbird 8 - PAW-7003-F 72 10001

-

1957 Mercury 8 - PBA-7003-A 84 10001

-

1957 Ford 8 - Police Interceptor PBA-7003-B 86 10001

-

1957 Ford 8
- Thunderbird PBA -7003-C 88 10001
-

1957 Mercury 8 - PBA-7003-D 126 10001

-

1957 Lincoln 8 - PAN-7003-G 114 10001

-

1957 Mercury 8 Turnpike Cruiser

- PAN-7003-H 116 10001
-

PAN-7003-J 128 10001-

PAN-7003-E 102 10001

-

1957 F-250, F-350, P-500 & P-350 Truck - 6 PAU-7003-B1 81 10001

-

1957 Lincoln 8 - PAN-7003-C 90 10001

-

1957 Continental 8 - PAN-7003-D 92 10001

-

1957 F-250, F-350 Truck 8 - PAV-7003-C1 83 10001

-

1957 Ford 6 - PAY-7003-A1 73 10001

-

PAY-7003-A2 74 1.0001
-

PAY-7003-B1 97 10001
-

PAY-7003-B2 98 10001
-

1957 Taxi - 6 Option PAY-7003-C1 121 10001

-

PAY-7003-C2 120 10001

-

PAY-7003-D1 125 10001

-

PAY-7003-D2 124 10001

-

1957 Ford - 8 PAZ-7003-A2 105 10001

-

106 10001
-

1USD 10001 -

PAZ -7000-B1 77 10001

-

PAZ-7003-B2 78 10001
-

PAZ-7003-B3 77D 10001 -

PAZ-7003-C2 108 10001

-

178
 FORDOMATIC AND MERCOMATIC GUIDE continued

Transmission
Year Model Serial No.
Part No.

1957 Ford - 8 PAZ-7003-D1 103 10001

-

PAZ-7003-D2 104 10001

-

PAZ-7003-D3 103D 10001 -

1957 F-100 Truck -6 PBC-7003-A2 80 - 10001

PBC-7003-B2 100 10001
-

1957 F-100 Truck 8 - PBD-7003-A2 82 10001

-

1957 F-250, F-350, P-350 & P-533

Steel Truck 6 - PAU-7003-D1 99 - 10001
1957 Thunderbird 8 - Power Option PBA-7003-E 132 - 10001
1957 Ford 8- Power Option PBA-7003-F 134 - 10001
-- Continental Mark II PAN-7003-J
1957 Mercury PBA-7000-G 180 10001
-

and up
PBA-7000-H 184 10001
-

and up
PAN-7000-L 182 10001
-

and up
PAN-7000-M 186 10001
-

and up

179
 APPENDIX Ill-SPECIAL SERVICE TOOLS

Tool Number Application

Description Kent- New
Manzel Ford Lincoln Mercury
Moore Britain

ON-THE-CAR SERVICE TOOLS

Front Band Adjusting Tool 7225-B 5880 AF-lO 51-57 55-57 51-57
Rear Band Adjusting Tool 7195-B 5883 AF-li 51-57 55-57 51-57
Throttle Linkage Gage 77230- Late
FA-52 5867 AF-19 51-53
Throttle Linkage Gage 77230-A 5884 54
Throttle Linkage Gage Pin 77230-MB 5879 AF-14 55-57 55-57 54-57
Throttle Linkage Gage 77230-MAA 5870 52-53
Throttle Linkage Gage 77230-M Early 51
Throttle Linkage Gage 77230-F Late 50
Early 51
Manual Selector Cable
Adjusting Gage 77270-F 6971 57
Park Release Cable
Adjusting Gage 77270-E 6972 57
Slide Hammer 8-160 2619 P-148-5 51-57 55-57 51-57
Rear Extension Housing
Seal Remover 117 5-AB 51-57 55-57 51-57
Rear Bushing and Oil Seal
Remover 7000-AD 6455 ASP-i 55-57 55-57
Rear Oil Seal and Bushing
Remover 7000-G 4830 ASP-2 51-57 51-54
Rear Oil Seal and Bushing
Installer 6403 51-57 51-54
Rear Oil Seal and Bushing
Installer 6440 55-57 55-57
Extension Seal Pilot and
Replacer 7657 51-57 51-54
Extension Housing Oil Seal
Replacer 7657-D 557 55-57
Extension Housing Bushing
Replacer 7000-J 55-57 55-57
Extension Housing Rear
Bushing Replacer 7000-H 51-57 51-54
Manual Control Shalt Seal
Installer 77288 5441 AF-13 51-57 55-57 51-57
Throttle Valve Stop Bending
Tool 77763 5887 AF-12 51-57 55-57 51-57
Universal Pressure Gage 77820 5907 AOP-1 51-57 55-57 51-57
Air Nozzle 7000-DE 51-57 55-57 51-57
Oil Drain Can and Filler 7000-CH 4264 51-57 55-57 51-57

I80
 SPECIAL SERVICE TOOLS continued

Tool Number Application

Description
Kent- New
Manzel Ford Lincoln Mercury
Moore Britain

COMPLETE OVERHAUL TOOLS

Air Nozzle 7000-DE 51-57 55-57 51-57

Clutch Assembly Fixture 77530 51-57 55-57 51-57
Dial Indicator Support Fixture 77067 ADI-3 51-51 55-57 51-57
Front Clutch Spring Compressot 77565 AFC-1 51-57 55-57 51-57
Front Pump Seal Replacer 77837 ASD-5 51-57 55-57 51-57
Guide Pins 7975 51-57 55-57 51-57
Transmission Holding Fixture 7000-CC ATH-1 51-57 55-57 51-57
Rear Clutch Spring Compressor 77515 AFC-2 51-57 55-57 51-57
Snap Ring Pliers 7064 P-59 51-57 55-57 51-57
Front Bushing Clutch Sun
-

Gear Remover 77507-A 51-54 55-57 55-57

Rear Bushing Clutch Sun Gear
-

Remover 77508-A 51-54 55-57 55-57

Front and Rear Bushing -

Clutch Sun Gear Installer 77507-B 51-54 55-57 51-57

Inner One Way Clutch Replacer 7946 AF-15 51-57 55-57 51-57
Rear Pump Discharge Tube
Remover and Replacer 77869 AF-17 51-57 55-57 51-57
Bushing Replacement Set AF-109 51-57 55-57 51-57

181
