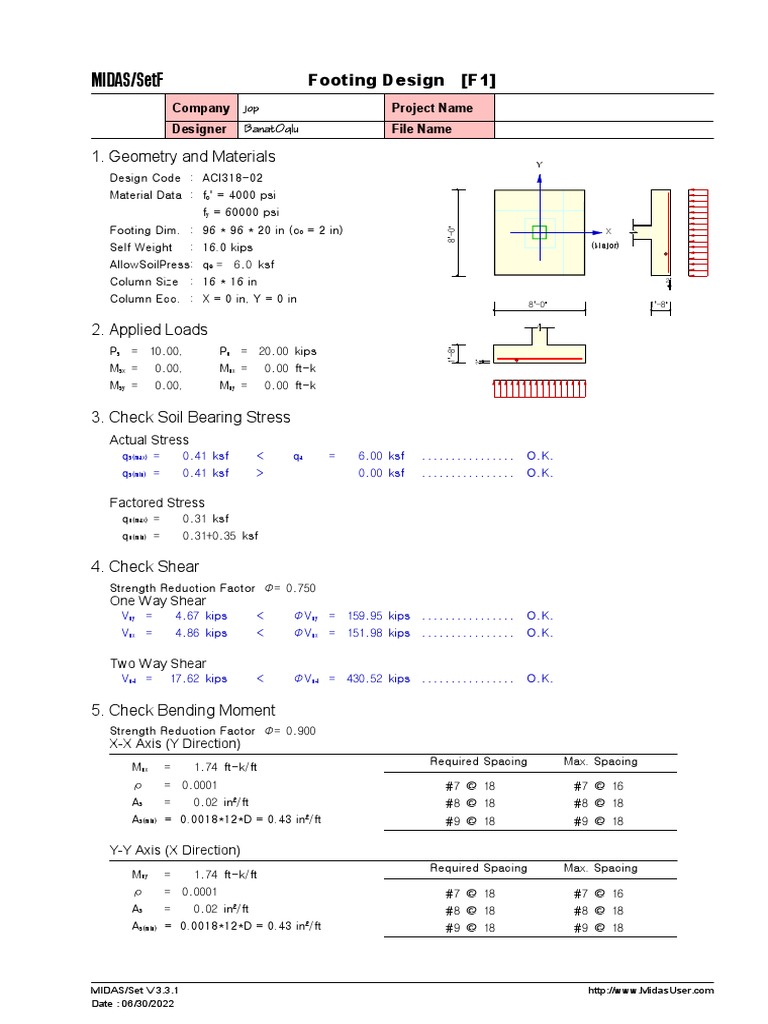

MIDAS/SetF Footing Design [F1]

Company jop Project Name

Designer BanatOglu File Name

1. Geometry and Materials Y

Design Code : ACI318-02
Material Data : fc' = 4000 psi
fy = 60000 psi
Footing Dim. : 96 * 96 * 20 in (cc = 2 in)

8'-0"
X
Self Weight : 16.0 kips (Major)

AllowSoilPress: qe = 6.0 ksf

Column Size : 16 * 16 in 2"

Column Ecc. : X = 0 in, Y = 0 in 8'-0" 1'-8"

2. Applied Loads
Ps = 10.00, Pu = 20.00 kips

1'-8"

2"
Msx = 0.00, Mux = 0.00 ft-k
Msy = 0.00, Muy = 0.00 ft-k

3. Check Soil Bearing Stress

Actual Stress
qs(max) = 0.41 ksf < qa = 6.00 ksf ................ O.K.
qs(min) = 0.41 ksf > 0.00 ksf ................ O.K.

Factored Stress
qu(max) = 0.31 ksf
qu(min) = 0.31+0.35 ksf

4. Check Shear
Strength Reduction Factor Φ= 0.750
One Way Shear
Vuy = 4.67 kips < ΦVny = 159.95 kips ................ O.K.
Vux = 4.86 kips < ΦVnx = 151.98 kips ................ O.K.

Two Way Shear

Vu4 = 17.62 kips < ΦVn4 = 430.52 kips ................ O.K.

5. Check Bending Moment

Strength Reduction Factor Φ= 0.900
X-X Axis (Y Direction)
Required Spacing Max. Spacing
Mux = 1.74 ft-k/ft
ρ = 0.0001 #7 @ 18 #7 @ 16
As = 0.02 in2/ft #8 @ 18 #8 @ 18
As(min) = 0.0018*12*D = 0.43 in2/ft #9 @ 18 #9 @ 18

Y-Y Axis (X Direction)

Required Spacing Max. Spacing
Muy = 1.74 ft-k/ft
ρ = 0.0001 #7 @ 18 #7 @ 16
As = 0.02 in2/ft #8 @ 18 #8 @ 18
As(min) = 0.0018*12*D = 0.43 in2/ft #9 @ 18 #9 @ 18
