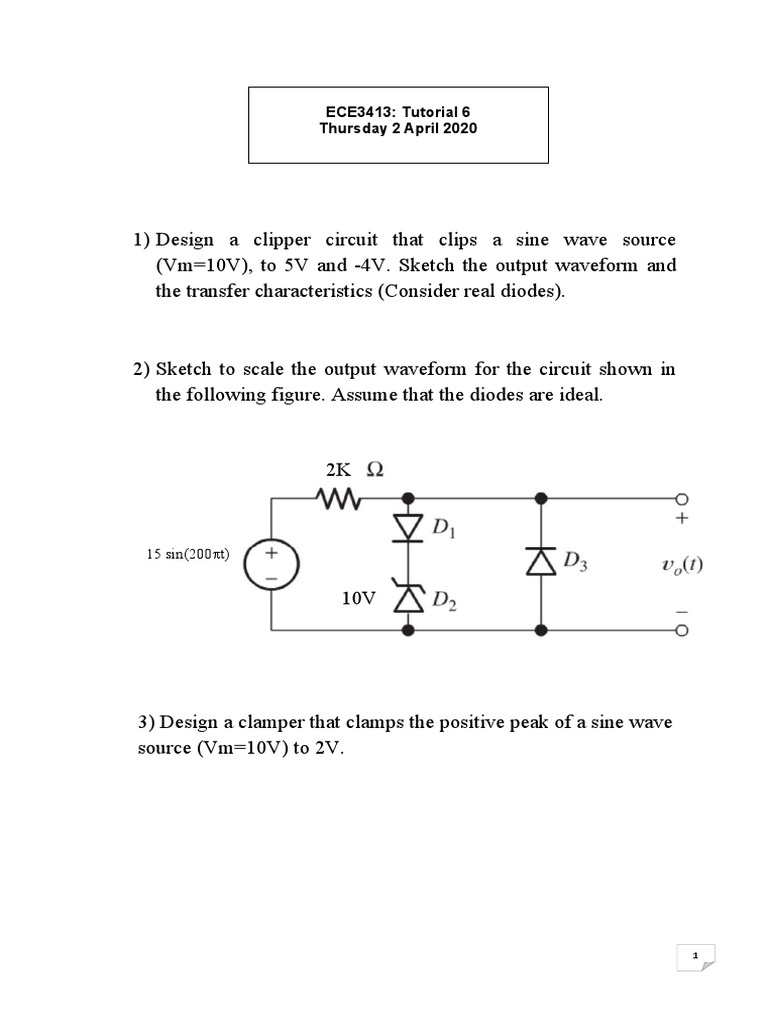

    ECE3413: Tutorial 6

    Thursday 2 April 2020

    1) Design a clipper circuit that clips a sine wave source


    (Vm=10V), to 5V and -4V. Sketch the output waveform and
    the transfer characteristics (Consider real diodes).

    2) Sketch to scale the output waveform for the circuit shown in


    the following figure. Assume that the diodes are ideal.



    2K

    15 sin(200t)

    10V





    3) Design a clamper that clamps the positive peak of a sine wave
    source (Vm=10V) to 2V.
