BMS (building management system), also called a building automation system, is a system that monitors, controls, and manages all electromechanical and electrical equipment in a building through one integrated system. It allows control of all equipment and systems from one central location. BMS consists of sensors, actuators, DDC controllers, software, and other hardware connected through a network to monitor and control HVAC, lighting, security systems, and more for efficient building operation and maintenance.
BMS (building management system), also called a building automation system, is a system that monitors, controls, and manages all electromechanical and electrical equipment in a building through one integrated system. It allows control of all equipment and systems from one central location. BMS consists of sensors, actuators, DDC controllers, software, and other hardware connected through a network to monitor and control HVAC, lighting, security systems, and more for efficient building operation and maintenance.
BMS (building management system), also called a building automation system, is a system that monitors, controls, and manages all electromechanical and electrical equipment in a building through one integrated system. It allows control of all equipment and systems from one central location. BMS consists of sensors, actuators, DDC controllers, software, and other hardware connected through a network to monitor and control HVAC, lighting, security systems, and more for efficient building operation and maintenance.

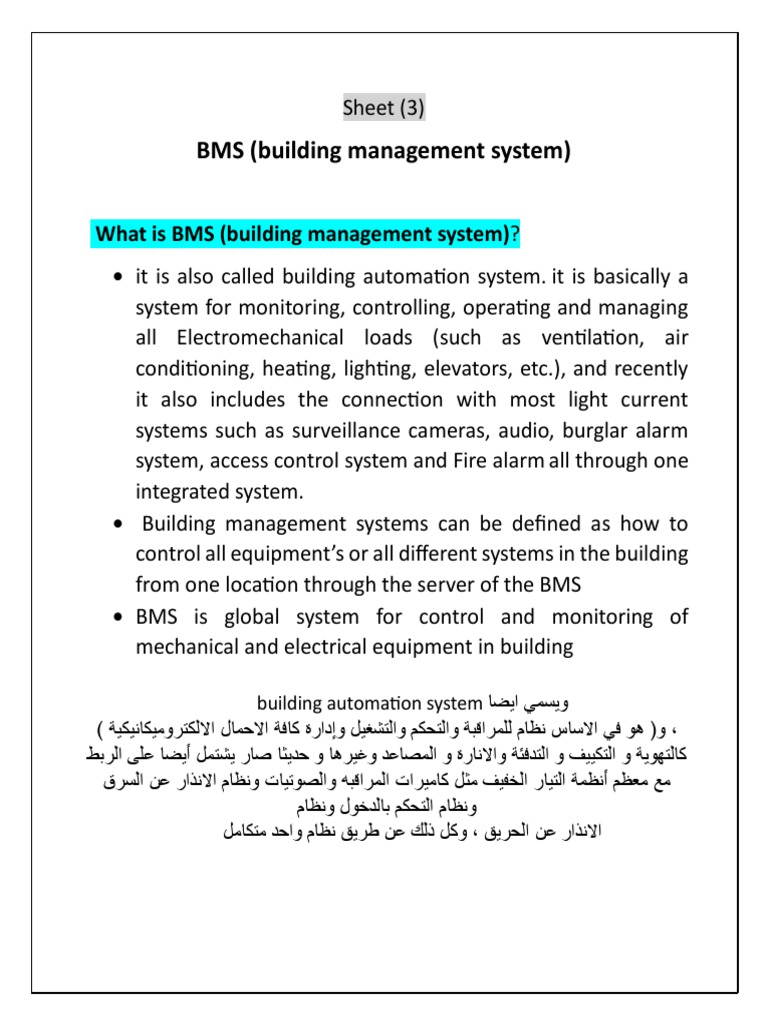

• it is also called building automation system. it is basically a system for monitoring, controlling, operating and managing all Electromechanical loads (such as ventilation, air conditioning, heating, lighting, elevators, etc.), and recently it also includes the connection with most light current systems such as surveillance cameras, audio, burglar alarm system, access control system and Fire alarm all through one integrated system. • Building management systems can be defined as how to control all equipment’s or all different systems in the building from one location through the server of the BMS • BMS is global system for control and monitoring of mechanical and electrical equipment in building
building automation system ويسمي ايضا
) و( هو في االساس نظام للمراقبة والتحكم والتشغيل وإدارة كافة االحمال االلكتروميكانيكية، كالتهوية و التكييف و التدفئة واالنارة و المصاعد وغيرها و حديثا صار يشتمل أيضا على الربط مع معظم أنظمة التيار الخفيف مثل كاميرات المراقبه والصوتيات ونظام االنذار عن السرق ونظام التحكم بالدخول ونظام وكل ذلك عن طريق نظام واحد متكامل، االنذار عن الحريق Why do we need building management systems? 1. Energy saving and planning 2. Comfort and healthy environment through optimum control of main facilities like HVAC and lighting 3. Efficient maintenance of electrical and mechanical equipment 4. Fast trouble shooting and less down time 5. Correct fault analysis thanks to historical data and reports. What is BMS consist of? ➢ in the old system consisted of: ▪ Sensors ▪ Actuators: to open and close the valves to be controlled. ▪ DDC direct digital control: is the brain of the system, it receives various types of Input signals, whether digital or analog, from the various sensors installed on the desired devices monitor or control it, and the DDC analyzes this data received and based on the programs designed within it .It sends the Output signals to the different devices (the signal reaches the actuators that control it In hardware parts), for example, digital signals are output from it to separate and operate devices such as fans and pumps, as well Analog signals come out of it to devices such as variable speed drive, which are speed control devices Motors, Dampers, or Valves installed on other devices ▪ Soft ware ▪ Pc display this system worked independently, meaning that through the controllers it could control the HVAC equipment. For example, or other lighting systems.
➢ in new system consist of
• Hardware • DDC-Direct digital controller • Sensors • Actuators • Cables to connect sensors, actuators to DDC. • HMI display-Human machine interface. • PC Workstation • Server to save the extensive database. • Software • Programming or configuration tools. • Graphics or User interface. protocols Networkingالمسئولة عن تسهيل التواصل بين االجهزه المختلفة • TCP/IP– Transfer control protocols/Internet Protocol. • BACnet– Building automation controller network-ASHRAE • Modbus • Lon Works • CAN bus and numerous protocols available. What is structure of BMS?
Management Level: This is the front end for the operator and engineer used to visualize the graphics for controlling and monitoring the systems which have computer workstation, server, web browser, printers.
Automation Level: BMS Router and other main controllers
connected in building network
Field devices Level: this is Level where BMS controllers
connect to field systems sensors, actuators, and other panel circuits to monitor and control. Discuss The input and output modules ▪ Analogue inputs (AI): An analogue input is any input where the value is variable and not just true or false such as Water level sensor, Water flow sensor. اشاره دخل تناظريه ويكون مصدرها الحساسات واجهزه القياس يتم تحويل الكميه التناظريه from (0to 10 vdc) or (0 to 1vdc) اشاره جهد )from 0 to 20mA (اشاره تيار ▪ Digital inputs (DI) A digital input is a point the controller reads which can be one of two states; it is either true or false. the fire alarm input on a building management system would always be a digital input, this is because the fire alarm is either activated or it is not, it has to be one of two states and Air /water pressure switch. المدخالت الرقميه وغالبا تستخدم مع المالمسات التي بدون جهد اي 1 او0 تكون ▪ Analogue outputs) AO): An analogue output is a point that the controller commands across a variable range such as 0-10Vdc. Such as VSD, VFD, valve actuator and damper actuator. هي التي تخرج من لوحه التحكم علي شكل اشارات كهربيه تناظريه فولت مثل محابس التحكم ووحدات التحكم في سرعه10 الي0 من المواتير ▪ Digital outputs (DO): It is a point which the controller commands such as a pump enable signal. اشارات خرجيه رقميه تخرج من لوحه التحكم الي ريالي للقيام بعمليات التحكم (تشغيل وايقاف ) غلق وفتح مثل محابس التحكم الثنائيه ومحركات المضخات ومحركات المراوح Discuss types of DDCS: ▪ Compact and modular Compact -fixed numbers of I/P per controller Modular -expandable Applications of BMS What buildings can we apply BMS?
Direct benefits of the BMS application:
Discuss knx topology
Discuss Bus cable installation (twisted pair, TP)
Free topology The topologies line, star and tree can be combined Rings have to be avoided
