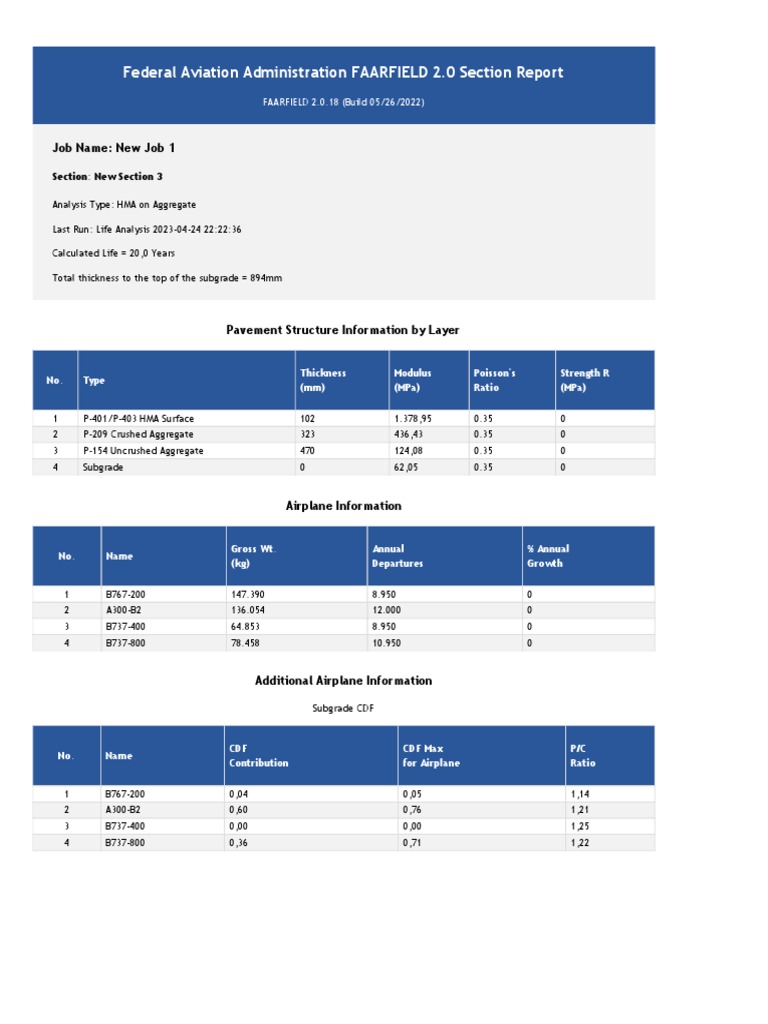

Federal Aviation Administration FAARFIELD 2.

0 Section Report
FAARFIELD 2.0.18 (Build 05/26/2022)

Job Name: New Job 1

Section: New Section 3

Analysis Type: HMA on Aggregate

Last Run: Life Analysis 2023‐04‐24 22:22:36

Calculated Life = 20,0 Years

Total thickness to the top of the subgrade = 894mm

Pavement Structure Information by Layer

Thickness Modulus Poisson's Strength R

No. Type
(mm) (MPa) Ratio (MPa)

1 P‐401/P‐403 HMA Surface 102 1.378,95 0.35 0

2 P‐209 Crushed Aggregate 323 436,43 0.35 0
3 P‐154 Uncrushed Aggregate 470 124,08 0.35 0
4 Subgrade 0 62,05 0.35 0

Airplane Information

Gross Wt. Annual % Annual

No. Name
(kg) Departures Growth

1 B767‐200 147.390 8.950 0

2 A300‐B2 136.054 12.000 0
3 B737‐400 64.853 8.950 0
4 B737‐800 78.458 10.950 0

Additional Airplane Information

Subgrade CDF

CDF CDF Max P/C

No. Name
Contribution for Airplane Ratio

1 B767‐200 0,04 0,05 1,14

2 A300‐B2 0,60 0,76 1,21
3 B737‐400 0,00 0,00 1,25
4 B737‐800 0,36 0,71 1,22

HMA CDF

CDF CDF Max P/C

No. Name
Contribution for Airplane Ratio

1 B767‐200 0,17 0,17 1,44

2 A300‐B2 0,32 0,37 1,36
3 B737‐400 0,02 0,12 2,67
4 B737‐800 0,08 0,29 2,70
 2 A300‐B2 0,60 0,76 1,21
3 B737‐400 0,00 0,00 1,25
4 B737‐800 0,36 0,71 1,22

HMA CDF

CDF CDF Max P/C

No. Name
Contribution for Airplane Ratio

1 B767‐200 0,17 0,17 1,44

2 A300‐B2 0,32 0,37 1,36
3 B737‐400 0,02 0,12 2,67
4 B737‐800 0,08 0,29 2,70

User Is responsible For checking frost protection requirements.
