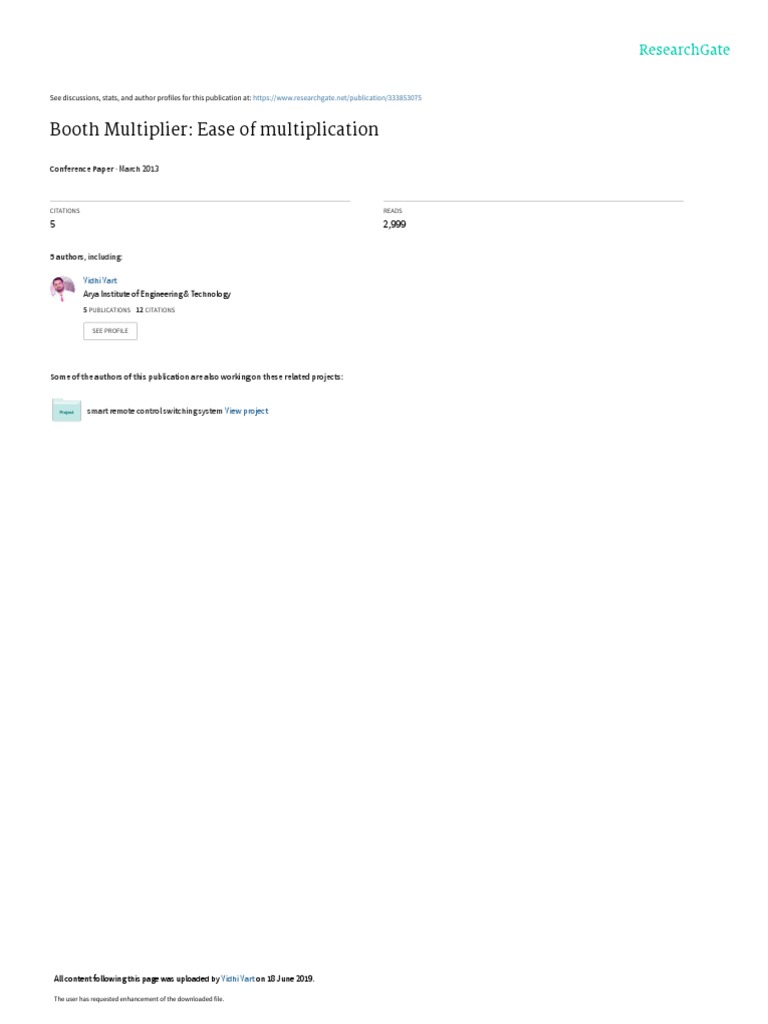

See discussions, stats, and author profiles for this publication at: https://www.researchgate.

net/publication/333853075

Booth Multiplier: Ease of multiplication

Conference Paper · March 2013

CITATIONS READS
5 2,999

5 authors, including:

Vidhi Vart
Arya Institute of Engineering & Technology
5 PUBLICATIONS   12 CITATIONS

SEE PROFILE

Some of the authors of this publication are also working on these related projects:

smart remote control switching system View project

All content following this page was uploaded by Vidhi Vart on 18 June 2019.

The user has requested enhancement of the downloaded file.

 International Journal of Emerging Technology and Advanced Engineering
Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 3, Issue 3, March 2013)
Booth Multiplier: Ease of multiplication
Deepali Chandel1, Gagan Kumawat2, Pranay Lahoty3, Vidhi Vart Chandrodaya 4, Shailendra Sharma5
1,2
B.Tech. Student, 3Assistant Professor, Arya Institute of Engineering & Technology, Jaipur (Raj.), India
4,5
M.Tech. Student, Jagannath University, Jaipur (Raj.), India
Abstract—Multiplication in hardware can be implemented
in two ways either by using more hardware for achieving fast
execution or by using less hardware and end up with slow
execution. The area and speed of the multiplier is an
important issue, increment in speed results in large area
consumption and vice versa. Multipliers play vital role in
most of the high performance systems. Performance of a
system depend to a great extent on the performance of
multiplier thus multipliers should be fast and consume less
area and hardware. This idea forced us to study and review
about the Booth’s Algorithm, modified Booth’s algorithm
and its radix-2, radix-4, radix-8 forms.
Keywords—Booth’s Algorithm, Modified Booth’s
Algorithm, multiplication, multipliers, radix-2, Radix-4,
radix-8.
I. INTRODUCTION
Booth‘s Algorithm is a smart move for multiplying
signed numbers. It initiate with the ability to both add and
subtract there are multiple ways to compute a product [5].
Booth‘s algorithm is a multiplication algorithm that utilizes
two‘s complement notation of signed binary numbers for
multiplication [9].
Earlier multiplication was in general implemented via
sequence of addition then subtraction, and then shift
operations. Multiplication can be well thought-out as a
series of repeated additions. The number which is to be
added is known as the multiplicand, and the number of
times it is added is known as the multiplier, and the result
we get is the multiplication result. After Each step of
addition a partial product is generated. When the operands
are integers, the product in general is twice the length of
operands in order to protect the information content. This
repetitive addition method that is recommended by the
arithmetic definition is slow as it is always replaced by an
algorithm that makes use of positional depiction.
We can decompose multipliers into two parts. The first
part is committed to the generation of partial products, and
the second part collects and then adds them. The
fundamental multiplication principle is twofold i.e.
evaluation of partial products and gathering of the shifted
partial products. It is performed by the consecutive
additions of the columns of the shifted partial product
matrix.
326
The ‗multiplier‘ is effectively shifted and gets the proper
bit of the ‗multiplicand‘. The delayed, gated case of the
multiplicand must all be in the same column of the shifted
partial product matrix. Then they are added to form the
product bit for the particular form. Multiplication is thus a
multi operand operation. To expand the multiplication to
both signed and unsigned numbers, a suitable number
system would be the depiction of numbers in two‘s
complement format.
II. BACKGROUND
This algorithm was invented by Andrew Donald Booth
in 1950 while doing study on crystallography at Birkbeck
College in Bloomsbury, London. Booth used reception
desk calculators that shifts faster than adding and formed
the algorithm to increasing the speed. Booth's algorithm is
important in the study of computer architecture [14].
Andrew Donald Booth was the person in charge of a
team of computer pioneers at Birkbeck College in the
University of London. Andrew Donald Booth was born on
Feb 11th 1918 and died on Nov 29th 2009. Booth worked
with inadequate resources, both human being and financial
and emphasized on building smaller machines [15].
Andrew Donald Booth was a British electrical
engineer, computer scientist and physist who led the
innovation of the magnetic drum memory for computers
and invented Booth's multiplication algorithms. Booth was
raised in Weybridge, Surrey, and learned at
the Haberdashers' Aske's Boys School.
III. MULTIPLICATION ALGORITHM
A circuit that multiplies two unsigned n bit binary
numbers, uses a 2 dimensional array of identical
subcircuits. Each of which contains a full adder and an
―and‖ gate. For large number of bits this approach may not
be appropriate because of the large number of gates
needed. Another approach is to use shift register in
combination with an adder to implement the traditional
method of multiplication. [1]
P=0;
For i=0 to n-1 do
If bi=1 then
 International Journal of Emerging Technology and Advanced Engineering
Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 3, Issue 3, March 2013)
P=P+A; IV. BOOTH ALGORITHM
End if; Signed multiplication is a vigilant process. Through
Left shift A; unsigned multiplication there is no need to take the sign of
the number into consideration. Even though in signed
End for;
multiplication the same procedure cannot be applied for the
reason that the signed number is in a 2‘s compliment form
which would give in an inaccurate result if multiplied in an
analogous manner to unsigned multiplication [10].
Thus here Booth‘s algorithm comes in. Booth‘s
algorithm conserves the sign of the end result. While doing
multiplication, strings of 0s in the multiplier call for only
shifting. While doing multiplication, strings of 1s in the
multiplier need an operation only at each end. We require
to add or subtract merely at positions in the multiplier
where there is a switch from 0 to 1 or from 1 to 0. In the
following flow chart we have, b=Multiplier,
a=Multiplicand, m= Product [3].
Now here we will require twice as many bits in our
product as we already have in our two operands. The
leftmost bit of our operands of both the multiplicand and
the multiplier is always a sign bit, and can‘t be used as part
of the value. Then choose which operand will be multiplier
and which will be multiplicand. If one operand and both are
negative then they are represented in two's complement
form. Start in on with a product that consists of the
multiplier in the company of an additional X leading zero
bits. Now check the LSB and the previous LSB of product
Fig. No.1. ASM chart for multiplier [1] to find out the arithmetic action. Add ‗0‘ as the previous
LSB if it is the FIRST pass. [3]
Probable arithmetic actions are if:
00:- no arithmetic operation is performed only shifting is
done.
01:- add multiplicand to left half part of product and then
shifting is done.
10:- subtract multiplicand from left half part of product
and then shifting is performed
11:- no arithmetic operation is performed only shifting is
done.

Fig. No. 2. Data circuit of multiplier [1]

327
 International Journal of Emerging Technology and Advanced Engineering
Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 3, Issue 3, March 2013)
Fig. No. 3. Flow chart of Booth’s Algorithm [3]
Example :
Multiply 10 by -7 using 5-bit numbers (10-bit result).
10 in binary is 01010
-10 in binary is 10110 (thus now we can add 10110
when we need to subtract multiplicand)
-7 in binary is 11001
Our expected result should be (-70) in binary (11101
11010).
Steps of algorithm are:
Step1: (00000 11001 0) now as last two bits are 10 so
here 00000+10110=10110. Now we get (10110 11001 0)
now by ARS (arithmetic right shift) we get (11011 01100
1).
Step2: as last two bits are 01 so,
11011+01010=00101(carry is ignored as because addition
+ve and –ve numbers cannot overflow). Now we get
(00101 01100 1) now by ARS we get (00010 10110 0).
Step 3: as last two bits are 00 there is no change only
ARS will be done, now we will get (00001 01011 0).
Step 4: as last two bits are 10 so, 00001+10110=10111,
now we will get (10111 01011 0) now by ARS we will get
(11011 10101 1)
Step 5: as last two bits are 11, there is no change only
ARS will take place, now we will get (11101 11010 1).
Step 6: now ignoring the last bit we will get our product
that is (11101 11010) = -70 [9]
328
V. MODIFIED BOOTH‘S ALGORITHM
Modified Booth‘s is twice as fast as Booth‘s algorithm.
Modified Booth encoding algorithm is an efficient way to
reduce the number of partial products by grouping
consecutive bits in one of the two operands to form the
signed multiples. The operand that is Booth encoded is
called the multiplier and the other operand is called the
multiplicand.
A. Radix-2
Booth algorithm provides a process for multiplying
binary integers in signed –2‘s complement form [12].
Example: 2 in decimal × (–4) in decimal i.e. 0010 ×
1100 in binary.
Step 1: The Booth table [12]
1. Among the two numbers, choose the number which has
the smallest difference between a sequences of consecutive
numbers, and consider it as s multiplier.
i.e. 0010 - 0 to 0 there is no change, 0 to 1there is one
change 1 to 0 there is another change, and thus there are
two changes , 1100 -1 to 1 no change, 1 to 0 there is one
change, 0 to 0 there is no change, thus there is merely one
change . Thus, multiplication of 2 * (–4), where (0010) is
considered as the multiplicand and (1100) is as the
multiplier.
2. Now X = 1100 is multiplier and Y = 0010 is
multiplicand. Now take the 2‘s complement of Y and
consider it as –Y, now –Y = 1110.
3. Put the value of X in the table.
4. Put 0 for X-1 value it should be the previous first LSB of
X.
5. Put 0 in the U and V rows which will contain the product
of X and Y after the end of operation.
6. Make 4 rows for each cycle we have to multiply
numbers of 4 bits.
Step 2: Booth algorithm needs assessment of the bits of
the multiplier and partial product shifting. Before to the
shifting, the multiplicand might be added to partial product.
Might be subtracted from the partial product, or may be
left unchanged, according to the following rules:
Observe the first LSBs of the multiplier X, and the
previous least significant bits of the multiplier X - 1.
Now observing the bits
0 0: Shifting is to be done
1 1: Shifting is to be done
0 1: Add Y to the U, and then shifting is done
1 0: Subtracting Y from U, and shifting is done or
addition of -Y to U is performed and then shifting is done.
 International Journal of Emerging Technology and Advanced Engineering
Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 3, Issue 3, March 2013)
II. Consider U & V together and shift through arithmetic And now 1111 is added with the result because of the
right shift (ARS) which conserves the sign bit of 2‘s negative sign. So final result of multiplication of -1 is
complement of the number. 1111001011, here negative term sign is extended.
By this a positive number leftovers positive, and a (ii)1 * 001011= 001011
negative number leftovers negative. (iii)1 * 001011 = 001011
III. Now Shift X with circular right shift so this will (iv)00001 are get added with these 3 resultants as the
prevent us from using 2 registers for the value of X. error correction of the negation.
B. Radix-4 1 1 1 1 1 1 0 1 0 0 here also negative term sign is
extended
Radix-4 Booth algorithm scans strings of 3 bits with the
001011
algorithm given below:
001011
1. Extending the sign bit 1 position if require, to ensure 0 0 0 0 1 here is error correction for negation
that n is even only. 0 0 1 1 0 1 0 0 0 1 here we have discarded the carried
2. Append a 0 to the right side of the least significant bit high bit
of the multiplier.
3. According to the value of each vector, Partial C. Radix-8
Product will be 0, +Y, –Y, +2Y,–2Y. The negative In the radix-8 booth multuplier we consider group of 4
values of y are considered by taking the 2‘s complement to bits[34].
the Booth recode the multiplier term, we have to consider Each group is coded as a signed-digit using the table III
the bits in groups of three, in a way that each group TABLE III
overlaps with the previous group by one bit. Grouping ENCODING OF RADIX-8 BOOTH MUTIPLIER [8][17]
starts from the LSB and the first group only uses 2 bits of
the multiplier [12]. quartets Signed digit value
0000 0
Let us take an example:
0001 +1
Multiplicand is (001011)
0010 +1
Multiplier is (010011)
Now we will consider the group of three bits for 0011 +2
Multiplier [11][13]. 0100 +2
0101 +3
Encoding for radix-4 booth multiplier will be done
0110 +3
according to the following table which is as below:
0111 +4
TABLE II 1000 -4
ENCODING OF RADIX-4 BOOTH MUTIPLIER [16][4][6][7]
1001 -3
groups Partial products 1010 -3
000 0 1011 -2
001 1*multiplicand 1100 -2
010 1*multiplicand 1101 -1
011 2*multiplicand 1110 -1
100 -2*multiplicand 1111 0
101 -1*multiplicand
Here we have an odd multiple of the multiplicand, 3Y,
110 -1*multiplicand
which is not available. To produce it we require to perform
111 0 the following previous addition which is 2Y+Y=3Y. But
Now according to the table 2. we get to know that as we are scheming a multiplier for a specific purpose and
(010) -1 thus the multiplicand belongs to a previously known set of
(001) - 1 numbers.[17]
(110) - (-1) Here we have tried to obtain advantage of this fact, to
Thus Multiplicand is multiplied with the three encoded simplify the blockage of the radix-8 architecture, i.e ,the
digits which are 1, 1 and –1. generation of 3Y.
(i) –1 * (001011)
= 001011

329
 International Journal of Emerging Technology and Advanced Engineering
Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 3, Issue 3, March 2013)
In this approach we make an effort to achieve a better on
the whole multiplication time, or at least comparable to the
time we could attained using radix-4 architecture with
addition to the advantage of using a less number of
transistors compared to radix-4, radix-2 [17].
VI. CONCLUSION
The outcome and result of the above multiplication
techniques reviewed in this paper is the reduction of the
maximum height of the partial product array, which may
simplify the partial product reduction tree, in terms of delay
and regularity of the layout. This is of special interest for
short bit-width multipliers for high performance, where
short but high speed bit-width multiplications are common
operations. And also from this it is clear that radix-8 has
more advantages than Booth‘s algorithm and radix-2 and
radix-4 in terms less number of transistors required in
radix-8 and due to this less power consumpted in radix-8
than in radix-2, radix-4.
REFERENCES
[1] Stephen Brown|Zvonko Vranesic, ‖Fundamentals of Digital Logic
Degin with VHDL‖, Tata McGraw-Hill
[2] M. Zamin Ali Khan1, Hussain Saleem2, Shiraz Afzal3 and Jawed
Naseem4, ― An Efficient 16-Bit Multiplier based on Booth
Algorithm,‖ nternational Journal of Advancements in Research &
Technology, Volume 1, Issue 6, November-2012 ISSN 2278-7763
[3] Dr. Ravi Shankar Mishra,Prof. Puran Gour,Braj Bihari Soni,
―Design and Implements of Booth and Robertson‘s multipliers
algorithm on FPGA.‖ International Journal of Engineering Research
and Applications (IJERA) ISSN: 2248-9622.
[4] S. Shafiulla Basha1, Syed. Jahangir Badashah2, ―DESIGN AND
IMPLEMENTATION OF RADIX-4 BASED HIGH SPEED
MULTIPLIER FOR ALU‘S USING MINIMAL PARTIAL
PRODUCTS,‖ International Journal of Advances in Engineering &
Technology, July 2012. ©IJAET ISSN: 2231-1963
[5] Depth:In More Booth‘s Algorithm,
staff.ustc.edu.cn/~han/CS152CD/Content/COD3e/InMoreDepth/IM
D3-Booths-Algorithm.pdf - -
[6] H. S. Krishnaprasad Puttam1, P. Sivadurga Rao2 & N. V. G.
Prasad3, ― Implementation of Low Power and High Speed
Multiplier-Accumulator Using SPST Adder and Verilog,‖
International Journal of Modern Engineering Research (IJMER)
www.ijmer.com Vol. 2, Issue. 5, Sep.-Oct. 2012 pp-3390-3397
ISSN: 2249-6645
330
View publication stats
[7] J.UMAMAGESHWARI M.VENI SARANYA M.TECH, ―ASIC
IMPLEMENTATION OF LOW POWER HIGH RADIX BOOTH
ENCODED MULTIPLIER USING SPST,‖ International Journal of
Communications and Engineering Volume 05– No.5, Issue: 02
March2012
[8] K.V.GANESH ,T.SUDHA RANI, P.N.VENKATESWARA RAO,
K.VENKATESH, ― Constructing a low power multiplier using
Modified Booth Encoding Algorithm in redundant binary number
system,‖ International Journal of Engineering Research and
Applications (IJERA) ISSN: 2248-9622 www.ijera.com Vol. 2,
Issue 3, May-Jun 2012, pp.2734-2740
[9] Abenet Getahun, ―Booth Multiplication Algorithm,‖ Fall 2003
CSCI 401
[10] Laxman S, Darshan Prabhu R, Mahesh S Shetty ,Mrs. Manjula BM,
Dr. Chirag Sharma, ― FPGA Implementation of Different Multiplier
Architectures,‖ International Journal of Emerging Technology and
Advanced Engineering Website: www.ijetae.com (ISSN 2250-2459,
Volume 2, Issue 6, June 2012
[11] Jean-Luc Beuchat, Jean-Michel Muller, ―Multiplication Algorithms
for Radix-2 RN-Codings and Two‘s Complement Numbers‖.
[12] Sandeep Shrivastava*, Jaikaran Singh* and Mukesh Tiwari*,
―Implementation of Radix-2 Booth Multiplier and Comparison with
Radix-4 Encoder Booth Multiplier,‖ International Journal on
Emerging Technologies 2(1): 14-16(2011) ISSN : 0975-8364
[13] Y. MareswaraRao1, Mr. A. Madhusudan, ―Radix4 Configurable
Booth Multiplier for Low Power and High Speed Applications,‖
IOSR Journal of Electronics and Communication Engineering
(IOSR-JECE) ISSN: 2278-2834, ISBN: 2278-8735. Volume 4, Issue
2 (Nov. - Dec. 2012), PP 31-37
[14] Jayashree Taralabenchi, Kavana Hegde, Soumya Hegde,
―Implementation of Binary Multiplication using Booth and Systolic
Algorithm on FPGA using VHDL,‖ International Conference &
Workshop on Recent Trends in Technology, (TCET) 2012
Proceedings published in International Journal of Computer
Applications® (IJCA)
[15] Roger G. Johnson, ― Andrew D Booth - Britain‘s Other ―Fourth
Man‖,‖Dept of Computer Science and Information Systems
Birkbeck University of London Malet Street, London WC1E 7HX,
UK.
[16] Fabrizio Lamberti, Nikolaos Andrikos,Elisardo Antelo, Paolo
Montuschi, ―Speeding-up Booth Encoded Multipliers by Reducing
the Size of Partial Product Array," INTERNAL REPORT
DAUIN/DELEN-POLITECNICO DI TORINO AND UNIVERSITY
DE SANTIAGO DE COMPOSTELA, 2009
[17] 1Premananthan.G, 2Amudha.K, 3 Sreenath.G, ― A FASTER
CARRY SAVE ADDER IN RADIX-8 BOOTH ENCODED
MULTIPLIER,‖ International Journal of VLSI & Signal Processing
Applications, Vol. 2,Issue2,April 2012, ISSN 2231-3133, (171-175).
