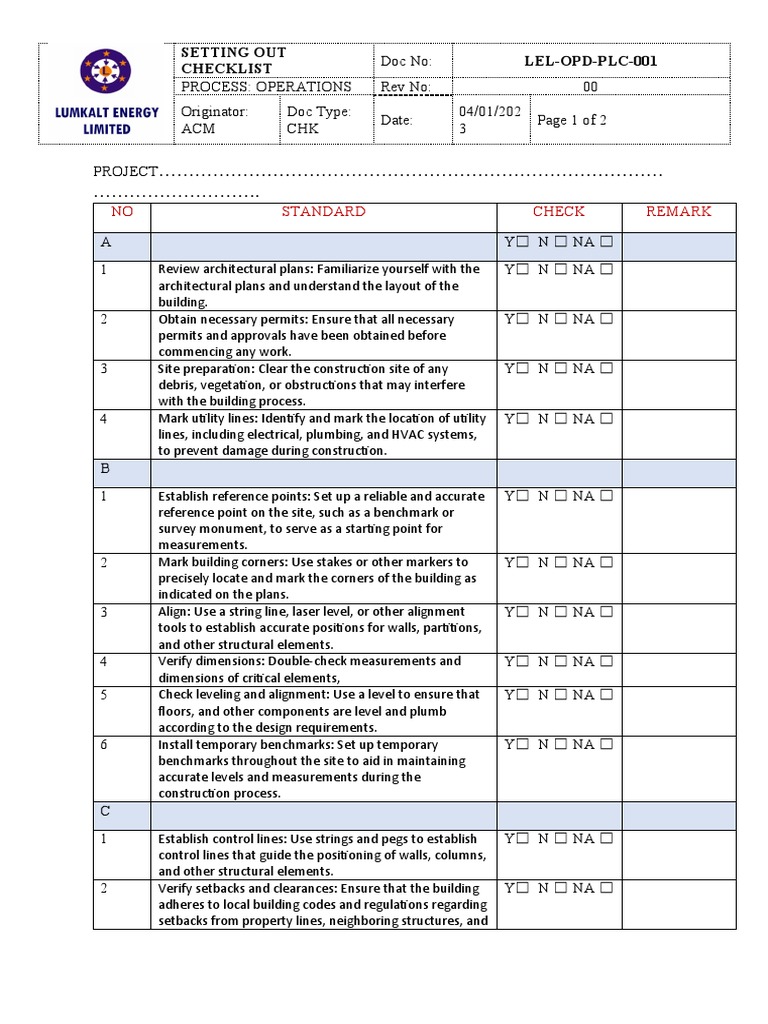

SETTING OUT

Doc No: LEL-OPD-PLC-001


CHECKLIST
PROCESS: OPERATIONS Rev No: 00
Originator: Doc Type: 04/01/202
Date: Page 1 of 2
ACM CHK 3

PROJECT…………………………………………………………………………
……………………….
NO STANDARD CHECK REMARK

A Y☐ N ☐ NA ☐
1 Review architectural plans: Familiarize yourself with the Y☐ N ☐ NA ☐
architectural plans and understand the layout of the
building.
2 Obtain necessary permits: Ensure that all necessary Y☐ N ☐ NA ☐
permits and approvals have been obtained before
commencing any work.
3 Site preparation: Clear the construction site of any Y☐ N ☐ NA ☐
debris, vegetation, or obstructions that may interfere
with the building process.
4 Mark utility lines: Identify and mark the location of utility Y☐ N ☐ NA ☐
lines, including electrical, plumbing, and HVAC systems,
to prevent damage during construction.
B
1 Establish reference points: Set up a reliable and accurate Y☐ N ☐ NA ☐
reference point on the site, such as a benchmark or
survey monument, to serve as a starting point for
measurements.
2 Mark building corners: Use stakes or other markers to Y☐ N ☐ NA ☐
precisely locate and mark the corners of the building as
indicated on the plans.
3 Align: Use a string line, laser level, or other alignment Y☐ N ☐ NA ☐
tools to establish accurate positions for walls, partitions,
and other structural elements.
4 Verify dimensions: Double-check measurements and Y☐ N ☐ NA ☐
dimensions of critical elements,
5 Check leveling and alignment: Use a level to ensure that Y☐ N ☐ NA ☐
floors, and other components are level and plumb
according to the design requirements.
6 Install temporary benchmarks: Set up temporary Y☐ N ☐ NA ☐
benchmarks throughout the site to aid in maintaining
accurate levels and measurements during the
construction process.
C
1 Establish control lines: Use strings and pegs to establish Y☐ N ☐ NA ☐
control lines that guide the positioning of walls, columns,
and other structural elements.
2 Verify setbacks and clearances: Ensure that the building Y☐ N ☐ NA ☐
adheres to local building codes and regulations regarding
setbacks from property lines, neighboring structures, and
SETTING OUT
Doc No: LEL-OPD-PLC-001
CHECKLIST
PROCESS: OPERATIONS Rev No: 00
Originator: Doc Type: 04/01/202
Date: Page 2 of 2
ACM CHK 3

other clearance requirements.


3 Conduct periodic checks: Regularly review the accuracy Y☐ N ☐ NA ☐
of measurements, alignments, and levels throughout the
construction process to ensure that deviations are
detected and corrected promptly.
4 Document the setting out process: Take photos or make Y☐ N ☐ NA ☐
sketches of the building layout and measurements as a
reference for future stages of construction or for record-
keeping purposes.
5 Conduct final verification: Before proceeding to the next Y☐ N ☐ NA ☐
phase of construction, conduct a final check of all
measurements, levels, and alignments to confirm that
the building has been correctly set out.

COMPANY REP CLIENT REP


Checked & signed Checked &
signed
