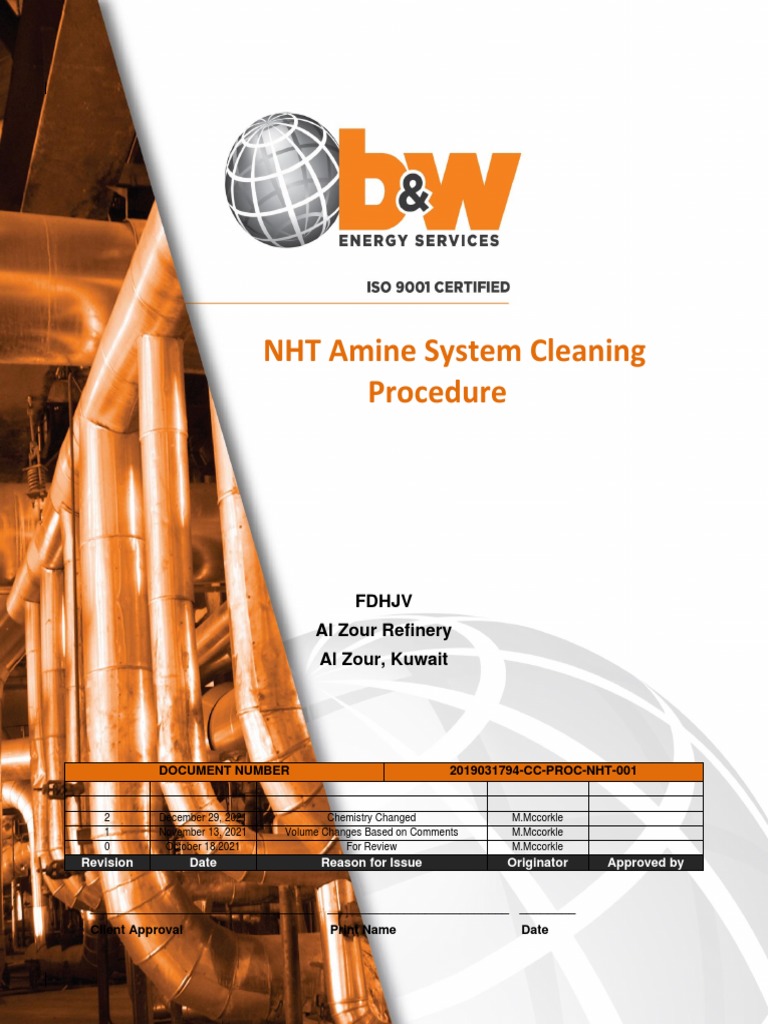

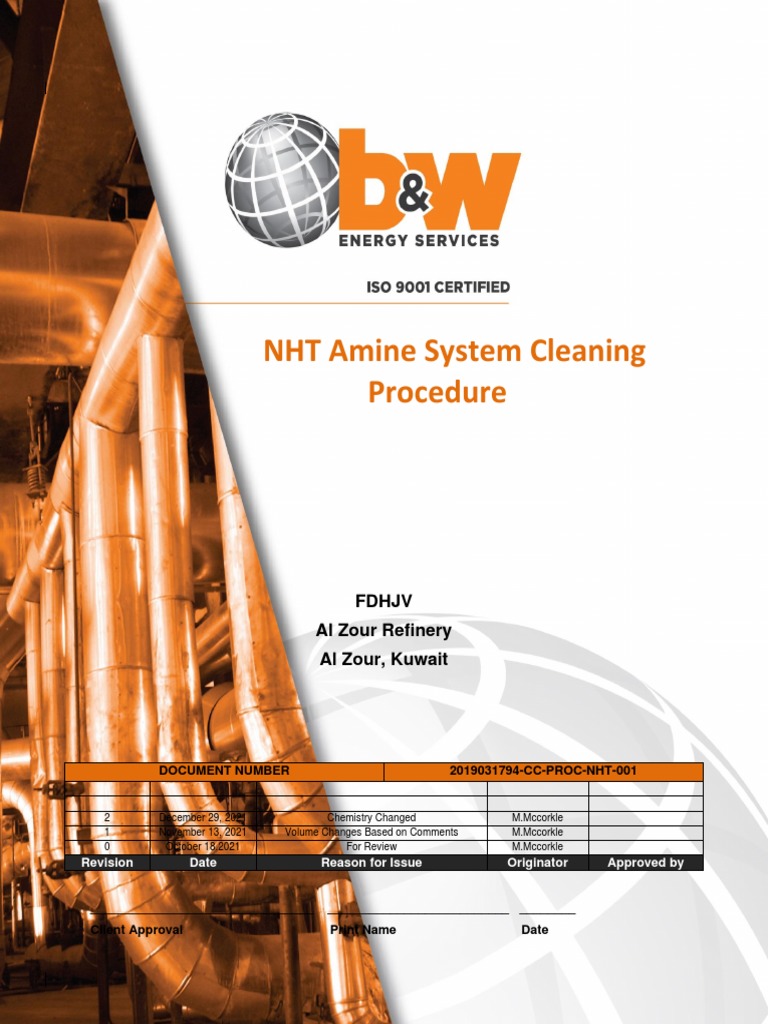

NHT Amine System Cleaning

Procedure

FDHJV
Al Zour Refinery
Al Zour, Kuwait

DOCUMENT NUMBER 2019031794-CC-PROC-NHT-001

2 December 29, 2021 Chemistry Changed M.Mccorkle

1 November 13, 2021 Volume Changes Based on Comments M.Mccorkle
0 October 18,2021 For Review M.Mccorkle
Revision Date Reason for Issue Originator Approved by

________________________________ __________________________ ________

Client Approval Print Name Date
 Better People – Better Equipment – Better Engineering

TABLE OF CONTENTS

1 GENERAL INFORMATION ........................................................................................................................... 3

2 CLEANING OPERATIONS ............................................................................................................................ 4

Appendices
A P&ID Markup
B List of Construction Activities
C Equipment General Arrangement Drawing
D Chemistry Table
E Analytical Log
B&W Energy Services Issue Date: November 13, 2021
Amine Cleaning Procedure Revision 1
TR Al Zour Refinery Page 3 of 8

1 GENERAL INFORMATION
1.1 The purpose of this document is to present, in details, a degreasing program that can be
executed to achieve the desired cleanliness levels for the chosen systems and ensure a
successful startup of these systems.
1.2 Analysis
1.2.1 The following analytical items will be performed for this program:
pH, Conductivity
1.3 The estimated Total Circulating Volume (TCV) is 6,800 gallons (25.7 m3).
1.4 The estimated effluent volume
Items Vol. (m3) Vol. (Gallons) Remarks
Degreasing Solution 25.7 6,800 N/A
1st Rinse 25.7 6,800 N/A
2nd Rinse 25.7 6,800 N/A
Total 77.1 20,400 N/A
B&W Energy Services Issue Date: November 13, 2021
Amine Cleaning Procedure Revision 1
TR Al Zour Refinery Page 4 of 8

2 CLEANING OPERATIONS
2.1 General notes
2.1.1 The maximum working pressure (MAWP) of cleaning operation is 150 psig unless
otherwise specified.
2.1.2 During circulation, system pressure shall be monitored and controlled/regulated. When
necessary, bleed the fluid from the circulation system to either waste holding tank(s) or
surge tank to maintain system pressure under 150 psig.
2.1.3 Since the system will be packed (100% full) during the circulation, the system pressure
shall be monitored closely to prevent the overpressure. This can occur due to (but not
limited to) the follows:
▪ The expansion of solution volume due to heating
▪ The expansion of solution volume due to addition of water or chemicals
2.1.4 The system volume shall be verified during the initial filling stage and compared to the
estimated volume. Adjustment of the amount of chemicals being used might be
necessary if over 10% deviation of the volume exists.
2.1.5 Record the readings of flow and volume while filling/draining water to/from system.
2.1.6 During circulation, monitor and record the following parameters hourly as a minimum.
▪ Pressure on supply and return header
▪ Temperature on supply and return header
▪ Pressure and temperature of heating device
▪ Temperatures of all flow paths (checked with infrared thermometer)
▪ Circulation flow rates
▪ Pump driver RPM
▪ Pressure differential across the filter(s) (during filtering)
▪ Pressure differential across the suction strainer(s) of pump(s)
2.1.7 If system circulation needs to be stopped, the power of electric heater shall be shut
down prior to such operation.
2.1.8 During filling and circulation stage, check all nozzles and flanges of the system to
make sure they are not leaking fluid.
2.1.9 In order to maintain flow balance of all lines of circulation circuit, the temporary valves
at tie-in points of the system can be manipulated (regulating the opening of valves).
2.1.10 The filter(s) will be used during initial flush and post rinse stages; they shall be
bypassed during chemical stages.
2.1.11 During filtering stage, once ∆P across the filters and pump suction strainer(s) is over
10 psig, change the filter bags and clean the mesh of pump suction strainer(s).
2.1.12 Liquid chemical injection line has a flow meter which shall be used to control chemical
injection rate based on main circuit flow rate and chemistry requirement.
2.1.13 The injection flow rate of liquid chemicals (surfactant, inhibitor, etc.) should be based
on the system circulating flow rate.
For example: if the system circulating flow rate is 1,000 gpm, then
▪ the max. injection flow rate is 1 gpm for 0.1% scenario
▪ the max. injection flow rate is 2 gpm for 0.2% scenario
▪ the max. injection flow rate is 3 gpm for 0.3% scenario
▪ the max. injection flow rate is 4 gpm for 0.4% scenario
▪ the max. injection flow rate is 5 gpm for 0.5% scenario
Notes:
B&W Energy Services Issue Date: November 13, 2021
Amine Cleaning Procedure Revision 1
TR Al Zour Refinery Page 5 of 8

For 2” diaphragm pump, displacement per stroke: 0.7 Gal. (2.65 L), approx.
For 1” diaphragm pump, displacement per stroke: 0.1 Gal. (0.38 L), approx.
2.1.14 For each liquid chemical injection, once it is complete, rinse the injection line by
pumping 5 to 10 gallons of clean water, and then isolate the injection pump/line.
2.1.15 Antifoam agent shall not be mixed to the fluid which will be circulated back to the
system; this agent is used during the draining of chemical solution to waste holding
tanks.
2.1.16 When bleeding air/gas from high point vents, containers (such as buckets, barrels,
etc.) and chemical resistant hose/tubing shall be used to capture the fluid to prevent
spills.
2.1.17 One (1) tank (clean and lined) shall be designated for storing demineralized water.
Refill the tank whenever it is not full.
2.1.18 The temporary demin water supply line shall be isolated when it is not in use.
2.1.19 Only dry air shall be used to purge liquid during draining stage.
2.1.20 The permanent inline valves shall be stroked (with approx. 50% disk exposure to
solution) several times during the circulation in order to clean the internals.
Initial Filling of System
2.2 Perform initial settings for the temporary valves to allow for loading the system.
2.3 Set “zero” reading for the flow meter on demin water supply.
2.4 Open vents of the system.
2.5 Perform internal flush from every equipment drain to ensure release of any deposits.
2.6 Prime and start a circulation pump to load demineralized water to the system.
2.7 Filling is to be performed in stages
2.7.1 Fill Amine Absorber (04-C-0002) until level gauge reads at the high level of 2750.0mm
venting at permanent vent on top of Amine Absorber (04-C-0002).
2.7.2 Open valve at Amine Absorber (04-C-0002) to Rich Amine Flash Drum (04-V-0006)
and continue filling until at high level of 700.0mm.
2.7.3 Open valve to temporary equipment and fill until water is flowing at the temporary
pumps. Continue filling using temporary pumps until system is full.
2.8 Once the system is full, shut down the pump and secure demineralized water source. High
point vents may remain open throughout the degreasing process.
2.9 Record the filling volume.
Initial Flush
2.10 Line up system to circulate the main loop.
2.11 Input heat to circuit to achieve 122 - 131°F (50 - 55°C).
2.12 Intermittently open drains to Amine Sump Vessel (02-V-0414).
2.13 When the Amine Sump Drum at the high level start submersible pump and flow through Amine
Sump Filter (02-S-0410) to add water back to the main circuit.
2.14 Cleanliness criteria of flush (all to be met):
2.14.1 Water clarity is equivalent to tap water as per naked eye observation (light color is
permissible).
B&W Energy Services Issue Date: November 13, 2021
Amine Cleaning Procedure Revision 1
TR Al Zour Refinery Page 6 of 8

2.14.2 ΔP across the filter(s) stays below 10 psi and doesn’t increase for at least 30 minutes.
2.15 Good quality water can be left inside system for the subsequent cleaning.
2.16 QC CHECK/VERIFICATION:
CLEANLINESS OF SYSTEM VERIFIED AS PER 2.16

CLIENT SIGNATURE BWES SIGNATURE DATE

Chemical Blending for Degreasing

2.1 Set the Chemical Injection line into circulation.
2.2 Don the proper PPE per MSDS.
2.3 Add the prescribed amount of chemistry as below:

Active Strength Amount

Loop No. Chemical
( % by vol.) (Lbs.)
1 Soda Ash 3% 1,699

2.4 Isolate chemical mixing/injection equipment.

Degreasing
2.5 Heat the chemical solution to minimum of 135 maximum of 145°F (57 - 63°C).
2.6 The degreasing time is minimum of 12 hrs and maximum of 24 hrs.
2.7 Monitor and record operation parameters.
2.8 Walk down the entire system and inspect high point vents hourly.
2.9 Intermittently cycle the Amine drains to the Amine Sump Vessel (02-V-0414)
2.10 When the Amine Sump Drum at the high level start submersible pump and flow through Amine
Sump Filter (02-S-0410) to add water back to the main circuit.
2.11 Sample and perform the following analytical testing hourly during this period:
2.11.1 pH
2.12 The degreasing stage completion criteria (all to be met):
2.12.1 Circulation circuit temperature is a minimum of 135°F (57°C).
2.12.2 Circulation maintained for minimum of 12 hours.
Drain Degreasing Solution
2.13 Drain the solution from system to the Amine Sump Vessel (02-V-0414)
2.14 Open the drain lines of entire system for thorough draining.
2.15 Utilize a vacuum truck to transfer waste from the Amine Sump Vessel (02-V-0414) to a suitable
storage location.
2.16 Connect diaphragm pumps to low points to empty system including BWES equipment.
Fill System for 1st Rinse
2.17 Align valves on demineralized water supply line to fill the system.
2.18 Verify “zero” reading of the flow meter on filling line.
B&W Energy Services Issue Date: November 13, 2021
Amine Cleaning Procedure Revision 1
TR Al Zour Refinery Page 7 of 8

2.19 Start a circulation pump.

2.20 Bleed air from the system during the filling.
2.21 Continue the filling until system has been packed and high point vents have issued water.
2.22 Once the filling of entire system is complete, shut down the pump and isolate demineralized
water supply line.
2.23 Sample and perform the following analytical testing:
2.23.1 Water clarity (visual inspection)
2.23.2 Conductivity
2.24 Final rinse completion criteria (all to be met):
2.24.1 The clarity of rinse sample is equivalent to tap water (observed by naked eyes); the
light color is permissible.
2.24.2 Conductivity ±200 μS/cm based on initial Demin water sample
2.25 If the criteria have not been met, Client will make a decision as to whether or not to repeat
pervious steps: draining → filling → rinse circulation.
2.26 Once the rinsing is complete, shut down the circulation.
2.27 QC CHECK/VERIFICATION
FINAL RINSE CRITERIA HAVE BEEN MET

CLIENT SIGNATURE BWES SIGNATURE DATE

Transfer Final Rinse Water to Water Tank

2.28 The good quality final rinse water can be transferred to water tank for cleaning of next loop.
2.29 The purpose is to reduce the volume of wastewater to be treated.
2.30 Shut down the circulation pump prior to transferring water.
2.31 Align the valves of the system for this transferring.
2.32 Inject air (5 - 10 psig) to the top of system to assist the transferring.
2.33 Once completing the transfer, open the drain lines of system for thorough draining under air
pressure.
2.34 Connect diaphragm pumps to low points to empty system including BWES flush equipment.
Post-Cleaning Activities
2.35 Use dry air to purge (continuous or pulse blowing) the entire system until all low points have no
running water.
2.36 Transfer waste solution from the waste holding tanks to a designated disposal location.
2.37 Ensure zero energy and no hazard substances left inside the cleaning system before breaking
piping and performing the disassembly of temporary system.
2.38 QC CHECK/VERIFICATION
SYSTEM IS UNDER SAFE STATUS: ZERO ENERGY AND NO HAZARD SUBSTANCES
B&W Energy Services Issue Date: November 13, 2021
Amine Cleaning Procedure Revision 1
TR Al Zour Refinery Page 8 of 8

CLIENT SIGNATURE BWES SIGNATURE DATE

2.39 Disassemble/disconnect temporary system with spill trays under each disconnection to catch
any residual water/solution.
2.40 Perform visual inspection for the internals of system.
2.41 Any sediments/sludge found inside the system shall be vacuumed or cleaned manually.
2.42 Perform reinstatement for the system.
2.43 Perform dry-out of the system with dry air and place under 0.5 barG blanket for preservation.
2.44 Ensure the areas used are clear of debris.
2.45 Load out and demobilize temporary equipment/materials.
 Appendix A
Marked P&ID's
J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

J
LEGEND FOR P&ID MARKUP – DEGREASING
I

I
Cleaning Scope TP-## Tie-In Point No.
H

H
Isolation Path XX Construction Activity

Jumper
Intermittent Flow Valve Closed Position
G

G
Valve Open Position

Valve Manipulation
F

F
Cleaning Direction

SH ## Sheet Number To/From

E

E
## Cleaning Inlet No.

## Cleaning Outlet No.

D

D
DRAIN Draining Location

VENT Venting Location

C

C
B

B
A

A
REVISION This drawing and all information contained herein is the property of B&W
901 Seaco Ave
REV DATE COMMENTS DRAWN BY REVIEWED BY Deer Park, TX 77536 Energy Services and it shall not wholly or in part be copied, reproduced SHELL FRANKLIN PROJECT
BECHTEL
C Jun 06, 2021 For Review M.M. D.Z. Phone: 281 – 534 – 9300 or used without written permission of MONACA, PENNSYLVANIA APPENDIX C: P&ID MARKUP FOR DEGREASING OF LOOP 1
Fax: 281 – 534 – 9305 B&W Energy Services.
www.bwenergyservices.com Engineering – Consulting- Project Management – Specialized Equipment
1 of 6
SCALE: NOT TO SCALE DWG. NO. 2020031852-DEG-PE-1-DWG-3
 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
GENERAL NOTES:
A. FOR LEGENDS, TYPICALS, GENERAL NOTES REFER TO DRAWINGS :
04-P-0005A /B P4049ZOR-00-08-1-E-001 TO P4049ZOR-00-08-1-E-086.
P055AZOR-04-08-1-J006-001

LEAN AMINE PUMP

J016-001 B. FOR PFS REFERENCE REFER TO DRAWINGS : P055AZOR-04-08-1-I-001 TO
A DESIGN CAPACITY: 6.6 m^3/hr P055AZOR-04-08-1-I-032. A
SUCTION PRESSURE: 7.4 bar(ga)
FH DISCHARGE PRESSURE: 29.9 bar(ga) C. FOR PIPE SPECIFICATION REFER TO PIPING MATERIAL SPECIFICATION
13048 DRIVER POWER: 18.50 kW P055AZOR.00.10.40.003.
TO 04-V-0006
50-04AL00-3406-13032K-N

20-04FH00-2728-115109-N
P055AZOR-04-08-1-J006 5079 D. THERE ARE TWO IDENTICAL NAPHTHA HYDROTREATER UNITS 04 AND 14.

NO LIQUID POCKETS
LEAN AMINE ALL EQUIPMENT, LINE AND INSTRUMENT TAG NUMBERS SHALL BE PRECEDED
WITH UNIT NUMBER.
25
N 13032K 04
P 61374K PI PI
VC1 50 305 305
B N P
25 B
VC1 50 115109
20 E.G.
20 61374K V
20 E. ALL INSTRUMENT SERIAL NUMBER SHALL BE PRECEDED WITH THE CIRCUIT
NUMBER 00.
50 x 25
20
V-001 25 25
VC1 25 04
PI PI
50 FO ANTI-FOAM POT
VC1 (150 mmID X 250 mmTT) 305 00 305
FF 20 PG
50 x 25 FV
11847
20 20 20 +
298 E.G.
20-04AR00-3519-115125-N 105 V 25-04AL00-3411-61374K-P
AD 20
C C

25-04AL00-3412-61374K-P
FREE DRAINING FC P-001C F. WHENEVER AN EXCHANGER IS ISOLATED FOR MAINTENANCE, IT MUST BE
J012 D 20 105 DRAINED TO PREVENT OVERPRESSURE DUE TO THERMAL EXPANSION.
61374K
115125

P N L
VC1 50 25
FF G. ALL START UP AND SHUTDOWN LINES SHALL BE DRAINED AFTER USE TO
FI 20 ELIMINATE NEED FOR THERMAL RELIEF VALVE.
VC1 50
105 H. HIGH POINT VENT AND LOW POINT DRAINS TO BE PROVIDED. REFER TO
D
61374K 25 SP ISOMETRIC PIPING DRAWING.
READABLE
25-04AL00-3410-61374K-P 31007K 176 I. WHERE REMOVABLE SPOOLS ARE PROVIDED, BLIND FLANGES FOR
50-04AL00-3405-61374K-P

BLINDING OFF PIPING SHALL BE PROVIDED AS WAREHOUSE ITEMS.

D J. INSTALL 40MESH TEMPORARY SCREEN / SLEEVE ON PUMP SUCTION D

25 25 STRAINER FOR START UP.
FF 20
FT
K. ALL BURIED CARBON STEEL MATERIAL SHALL BE EXTERNALLY COATED.
105
D
25 20 M. ERGONOMIC CATEGORY OF ALL MANUAL VALVES IS AT LEAST VC2 BY
TO 04-C-0002 DEFAULT. VALVES WITH OTHER CATEGORY WILL BE IDENTIFIED IN PEFS.
VM 50-04AL00-3403-61374K-P
P055AZOR-04-08-1-J005-001 6508 D
O. FOR SAMPLE CONNECTIONS INFORMATION AND DETAILS REFER TO

25-04AL00-3413-61374K-P
LEAN AMINE DRAWINGS: P055AZOR-04-08-1-J501.
P N P N
VC1 50
VC1 50 20-04AR00-3561-61374K-N P. FOR LEVELS INFORMATION AND DETAILS REFER TO DRAWINGS:
20 20-04AR00-3563-61374K-N 20
P055AZOR-04-08-1-J504 TO P055AZOR-04-08-1-J504-006.
E E
50-04AL00-3402-61374K-P Q. FOR API PLANS INFORMATION AND DETAILS REFER TO DRAWINGS:
VC1 50 P055AZOR-04-08-1-J505.
VC1 50
11840 11837
20 20 20 20 20 20 20-04AR00-3532-115125-N R. FOR THICKNESS MONITORING LOCATIONS (TMLS) IN PIPING AND STATIC
20-04AR00-3531-115125-N AD EQUIPMENT, REFER TO CORRESPONDING ISOMETRICS AND DRAWINGS
AD
N P FREE DRAINING FREE DRAINING 25 RESPECTIVELY. PHILOSOPHY FOR IDENTIFICATION AND MARKING OF
N P 50
V 20 50 D 20 61374K 115125 J012 V 20 D 20 61374K 115125 J012 TMLS SHALL BE IN COMPLIANCE WITH ANNEXES A AND C OF API RP572
5333 20 5331 & PARAGRAPH 13 AND APPENDIX 26 OF P4049N-0000-DE20-VAR-0005.
20 20 20 20 20

25-04AL00-3415-31007K-P
20-04FH00-2394-115109-N 20-04FH00-2395-115109-N 25 61374K P
FH FH
NO LIQUID POCKETS NO LIQUID POCKETS 115125 N
J016-001 115109 61374K C J016-001 115109 61374K E
F F
PG PG 25-04AR00-3513-115125-N
P-001C P-001C
118 TP-01 120 TP-03
11846
HS HS NOTES:
50-04AL00-3414-61374K-P 50-04AL00-3408-61374K-P AD
105 STOP 106 STOP 1. WATER ACCUMULATED IN SUMP SHOULD BE TESTED PRIOR TO ITS RELEASE
PG UC PG UC J012 TO AOC. IF NOT SUITABLE FOR ROUTING TO AOC, IT WILL BE COLLECTED
04-P-0005A 04-P-0005B
117 119 BY VACUUM TRUCK FOR SAFE DISPOSAL.
M-002 P-001C 25 61374K 115125 P-001C 25 61374K 115125
M-002
NOT RUNNING GBZ 80 x 50 50 NOT RUNNING GBZ 80 x 50 50 2. FOR INTERLOCK DETAILS, REFER TO CAUSE AND EFFECT DIAGRAM
P N P N
P055AZOR-04-30-3-G003.
105 106
G P N
20 VC1 20 20 P N 20 VC1 20 20 G
SP SP 3. SPILL WALL FOR AMINE HANDLING AREA. SPILL WALL INSIDE AREA SHALL BE
C D C SLOPED TO EITHER ARE CONNECTED AOC HEADER WITH BLOCK VALVE. IN
XZS SEAL PLAN 31+53B OH6 25 003 XZS SEAL PLAN 31+53B OH6 25 D 004
D 20 P D 20 CASE OF RAIN, BLOCK VALVE WILL BE OPEN TO MAKE WATER FLOW TO AOC.
105 12686
D P 20-04AR00-3562-115125-N 106 12688
F

20-04AR00-3560-115125-N
IN CASE OF AMINE SPILLAGE, PORTABLE PUMP OR HAND BUCKET CAN BE
FREE DRAINING

FREE DRAINING
12689 B 12690 B N

25 x 20
N
25 x 20

CWS CWS USED FOR AMINE COLLECTION.

20-04AL00-3407-61374K-N

50-04LS00-3938-11042K-N

20-04AL00-3409-61374K-N
50 61374K
50-04LS00-3937-11042K-N

CWR VC1 50 61374K CWR VC1

J505 TP-02
20 31007K J505 TP-04
20 31007K
J505 J505
VALVE TO BE VALVE TO BE
D 25 D OPERABLE SPILL WALL FOR AMINE HANDLING AREA OPERABLE
25 (NOTE 3)
FROM GRADE FROM GRADE
20 20 TRENCH GRATING
H H

50-04AL00-3401-31007K-P
25 25
61374K 61374K
GRADE GRADE

FREE DRAINING
115125
FREE DRAINING

115125
12721 12720
AD AD
25-04AR00-3506-115125-N NOTE 1 NOTE 1
25-04AR00-3505-115125-N J012 J012 NOTE 1 NOTE 1
11838 AOC AOC
11839
ODS ODS AD
AD
VALVE BOX VALVE BOX
J021 J021 J012
J012
I HZS HZS
RESET
4. DELETED.
I
237 030R
S/D 5. LOCATED AT OPERATOR CONSOLE AS HARDWIRED PUSH BUTTON.
NOTE 5

04-IZ-00030
TRIP OF LEAN AMINE EQUIPMENT ON THIS DRAWING
FROM PZI-551A PUMPS FROM ARU HEADER
50-04AL00-3400-31007K-P 04-P-0005A /B
16351 P055AZOR-04-08-1-J511 NOTE 2 P055AZOR-04-08-1-J904 7079
SIGNAL LEAN AMINE
J J
FROM PZI-551B IZ
16355 P055AZOR-04-08-1-J511-001 040
THIS DOCUMENT CONTAINS TRADE SECRET AND PROPRIETARY INFORMATION. THE PROPERTY OF HALDOR TOPSOE A/S
SIGNAL AND IS ISSUED ON CONDITION THAT IT IS RECEIVED AND HELD IN CONFIDENCE. NEITHER IT NOR THE INFORMATION
HEREIN SHALL BE PRODUCED, SOLD, LENT, DISCLOSED OR USED FOR ANY PURPOSE OTHER THAN THAT FOR
WHICH IT HAS BEEN ISSUED WITHOUT WRITTEN AUTHORITY OF HALDOR TOPSOE A/S.

CONFIDENTIAL INFORMATION
K NOTICE: THIS DRAWING HAS NOT BEEN PUBLISHED AND IS THE SOLE PROPERTY OF KIPIC AND IS LENT TO THE BORROWER K
FOR HIS CONFIDENTIAL USE ONLY, AND IN CONSIDERATION OF THE LOAN OF THIS DRAWING, THE BORROWER PROMISES
AND AGREES TO RETURN IT UPON REQUEST AND AGREES THAT IT SHALL NOT BE REPRODUCED, COPIED, LENT OR OTHERWISE
DISPOSED OF DIRECTLY OR INDIRECTLY, NOR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT IS FURNISHED.

CONTRACTOR APPROVAL COMPANY APP. DRAWN BY CHECKED BY

REV
NO.
DATE REVISION DESCRIPTION DRAWN CHECK
PROC PIPING MECH. CTRL.SYS. PROJ. ENGR. PROJ.
DWG. NO. REFERENCE DRAWING HKL CKJ PROCESS ENGINEERING FLOW SCHEME
O 03-02-16 ISSUE FOR APPROVAL HKL CKJ SUH - - - PMK PROCESS APP. DATE

A 06-05-16 ISSUE FOR HAZOP HKL CKJ SUH - - - PMK

PMH 30-10-17 AMINE PREPARATION / SEPARATION (2/2)
01/11/2017 3:14:18 PM

CONTROL SYS. APP. DATE

B 25-08-16 ISSUE FOR DESIGN HKL CKJ SUH - - - PMK
C 16-12-16 ISSUE FOR DESIGN REVISED HKL CKJ SUH PMK PIPING APP. DATE
04 - NHT UNIT
SIZE A1 (594 X 841)

D 30-06-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK

E 30-10-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK PROJECT ENGR. APP. DATE
PMK 30-10-17 SCALE DRAWING NUMBER REVISION

CONTRACTOR DOC NUMBER

P055AZOR-04-08-1-J006-001
CLIENT APP. DATE NONE P055AZOR-04-08-1-J006-001 E
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
GENERAL NOTES:
04-A-0001 04-J-0001 04-V-0012 04-C-0002 A. FOR LEGENDS, TYPICALS, GENERAL NOTES REFER TO DRAWINGS :
P4049ZOR-00-08-1-E-001 TO P4049ZOR-00-08-1-E-086.
SILENCER EVACUATION EJECTOR SOUR GAS KO DRUM AMINE ABSORBER
P055AZOR-04-08-1-J005-001

DESIGN CAPACITY : 0.7 m^3/hr DESIGN CAPACITY: 500 kg/hr ID x LENGTH (T/T): 500.0 mm x 2800.0 mm ID x LENGTH (T/T): 575.0 mm x 13970.0 mm B. FOR PFS REFERENCE REFER TO DRAWINGS : P055AZOR-04-08-1-I-001 TO
A DT : 360 °C / -10 °C DT: 400 °C / -10 °C DP: 30.2 bar(ga) / FV @ 160 °C DP: 30.2 bar(ga) / FV @ 160 °C P055AZOR-04-08-1-I-032. A
DP : 3.5 bar(ga) DP: 34.5 bar(ga) DT: 90 °C / -10 °C DT: 100 °C / -10 °C
TRIM : 04P00-1872-11076K-N TRIM: 04P00-1871-11076K-N MATERIAL: CS SHELL MATERIAL: KCS SHELL, SS316L TRAY J501 C. FOR PIPE SPECIFICATION REFER TO PIPING MATERIAL SPECIFICATION
INSULATION THICKNESS: N INSULATION THICKNESS: P P055AZOR.00.10.40.003.
TRIM: 04P00-1869-615125-N TRIM: 04P00-1870-31076K-P FH
04AR00-1873-315125-P D. THERE ARE TWO IDENTICAL NAPHTHA HYDROTREATER UNITS 04 AND 14.
J501 11593 J501
40-04P00-2102-31076K-N ALL EQUIPMENT, LINE AND INSTRUMENT TAG NUMBERS SHALL BE PRECEDED
WITH UNIT NUMBER.
CWS CWR
H 11594 C 11595
PI TI FI 04
PI PI
092 092 G 092 305 305
B NOTE 19
L SC H FZI B
4A 091 LL E.G.
FF FF 04-SC-0007 FF
04-A-0001 VENT PT TT FT 2oo3 E. ALL INSTRUMENT SERIAL NUMBER SHALL BE PRECEDED WITH THE CIRCUIT
A
092 092 092 NUMBER 00.
40 VC3 20 25
50-04CL00-2614-11076K-P 31076K TO 04-V-0014
11076K P-001B 100-04P00-2100-31076K-N TC VM 04
PI PI
11076K 6507 P055AZOR-04-08-1-J005-002
V 50 RS 20-04FH00-2725-115109-N 305 00 305
100% H2 PURGE GAS
NOTE 6 20 VC3 H 13051
AI AT AI AT 20 20
V 20 E.G.
D 50 11076K 04-J-0001 FH
V 091 091 090 090 NO LIQUID POCKETS
C 31076K FC N 61374K 115109
J016-001 H
F. WHENEVER AN EXCHANGER IS ISOLATED FOR MAINTENANCE, IT MUST BE C
100 VPPM FF DRAINED TO PREVENT OVERPRESSURE DUE TO THERMAL EXPANSION.
091 P FZT PT PI
NOTE 4 H2S XZV
40 L 20 +
091 091
XZV 092 A 091 G. ALL START UP AND SHUTDOWN LINES SHALL BE DRAINED AFTER USE TO
PG L
FVVC1 +
P-001C ELIMINATE NEED FOR THERMAL RELIEF VALVE.
101
31007K 61374K 092 B TSO (VI/VI) NOTE 5 (A/B/C)
+
50-04AL00-3402-61374K-P
04-C-0002 50-04AL00-3404-31007K-P 091 VC1 F-001C
100 XV-002 XV-002 DP FROM 04-P-0005A/B H. HIGH POINT VENT AND LOW POINT DRAINS TO BE PROVIDED. REFER TO
50 80 x 50 50 50 50 x 25 25 FF 50 50 50 FC 50 FC
100 x 40 40-04P00-2113-11076K-N ISOMETRIC PIPING DRAWING.
P055AZOR-04-08-1-J006-001 6508
ODS DP
P-001B FREE DRAINING 04-NRV-009 TC 80 x 50 VC1 VC1 FO 50 x 25 VC1 VC1 TSO (VI/VI) FF
20 LEAN AMINE I. WHERE REMOVABLE SPOOLS ARE PROVIDED, BLIND FLANGES FOR
31076K FF 20 V-001 VC1 FT
J021 #600 40 P BLINDING OFF PIPING SHALL BE PROVIDED AS WAREHOUSE ITEMS.
H FF TT 50 091
PDI PDT N
11604 F-001C J. INSTALL 40MESH TEMPORARY SCREEN / SLEEVE ON PUMP SUCTION
D 093 093 091 VC1 I
O STRAINER FOR START UP.
D
READABLE P-003C B AP O O
40 ZS ZL
ZS
J501 092A 092A XZY K. ALL BURIED CARBON STEEL MATERIAL SHALL BE EXTERNALLY COATED.
TI 092B C C +

25 25 25 25 C 092 A
SC A M. ERGONOMIC CATEGORY OF ALL MANUAL VALVES IS AT LEAST VC2 BY
40 091 6A DEFAULT. VALVES WITH OTHER CATEGORY WILL BE IDENTIFIED IN PEFS.
20 11601 AI

04-SC-0008
FREE DRAINING 40 F 11602
20 31076K N O XZY (NE) O. FOR SAMPLE CONNECTIONS INFORMATION AND DETAILS REFER TO
V G
CWS ZL +
DRAWINGS: P055AZOR-04-08-1-J501.
092 B
D J501 092B
NOTE 7 C P. FOR LEVELS INFORMATION AND DETAILS REFER TO DRAWINGS:
H 11596 J501
40 FF PV C P055AZOR-04-08-1-J504 TO P055AZOR-04-08-1-J504-006.
PDI AI
E 5202
40-04SM00-2403-315107-H H
PDT
PV
FH E
SM TI 090 090 TDI (NE)
20 11603 Q. FOR API PLANS INFORMATION AND DETAILS REFER TO DRAWINGS:
090 093 J501

PST
P-003C H P055AZOR-04-08-1-J505.
J013 L CWR
FREE DRAINING 40 D IZ
31076K 20 R. FOR THICKNESS MONITORING LOCATIONS (TMLS) IN PIPING AND STATIC
J501 04-IZ-00060 030
PST EQUIPMENT, REFER TO CORRESPONDING ISOMETRICS AND DRAWINGS
NO LEAN AMINE RESPECTIVELY. PHILOSOPHY FOR IDENTIFICATION AND MARKING OF
20
61374K NOTE 14 TO AMINE ABSORBER TMLS SHALL BE IN COMPLIANCE WITH ANNEXES A AND C OF API RP572
80 HZS
FF FF NOTE 9 & PARAGRAPH 13 AND APPENDIX 26 OF P4049N-0000-DE20-VAR-0005.
TT PG HHLL 2750.0 mm LT LC H 115125
11855
233
090 100 HLL 2300.0 mm 091 091 20-04AR00-3510-115125-N S/D
DP L AD HZS HZS
VC3 20 SLOPE 1: 500 L-004A RESET NOTES:
F TC NOTE 15 100-04P00-1153-315125-N FREE DRAINING F
80 092AR 092B 1. DELETED.
80 J012 HZS HZS
V
50 RS SP READABLE P-001C K 80 HZS RESET 060R 092A PST
VC3 25 ENABLE 2. SPRING RESISTED HAND VALVE.
50 80 L-004A
460 LZT LZI HH 092BR RESET PST
LG NLL 1625.0 mm 3. DELETED.
#600 25 ENABLE
615125 04-SC-0006 40-04AR00-3500-315125-N L-001A DP 095 095
80 2oo3
A
40-04AR00-3502-115125-N MAG 101 (A/B/C) 4. LOCATE NEAR 04-J-0001.
SC 14563 40 80
3A FREE DRAINING 40 NOTE 2 40
TRIP
AD 80 HS
04-I-00023 5. ORIFICE FLANGES TO ALLOW TAPPINGS FOR FOUR (4) FLOW TRANSMITTERS.
40 80 FF
115125
315125
FROM 04-E-0009 LT LI TRIP OF RICH AMINE FROM 235
100-04P00-1159-315125-N TWO PHASE FLOW 150 x 100 C J012 D 20 D 20 50 6. LOCATE AT GRADE.
6506 P055AZOR-04-08-1-J004-002 #600 094 094 AMINE ABSORBER RESET
G ANCHOR SECURELY 04-V-0012 H P DP LL HS G
MIN. L-004A NOTE 9 7. COMMON TAP FOR PDI-093 AND PDI-090 SHALL BE MANIFOLDED TO
SOUR GAS LLL 950.0 mm
11609 80 236R PROVIDE SEPARATE ISOLATION VALVES FOR THE TWO TRANSMITTERS.
50 50 50 VC3 50 50
H FF 80 50 FH LLLL 500.0 mm
LC LT XY
VC3 VC3 VC3 + 8. DELETED.
80 50 093
50-04P00-2553-315125-H

093 093 J501 VC3 20 D 20 D 20 20 20 13052

L
HH DP L-004A FF LG 315125 D O 20-04FH00-2726-115109-N 9. FOR INTERLOCK DETAILS, REFER TO CAUSE AND EFFECT DIAGRAM
LI LT L-001A ZL (NE) TI FH
11261K NO LIQUID POCKETS P055AZOR-04-30-3-G003.

1900 mm
HHLL 1000.0 mm 100 VC3 VC3
090 MAG VC3 093 AI 094 315125 115109
090 DP C J016-001
50-04AR00-2554-315125-H

LL HLL 710.0 mm 5200 10. DELETED.

L-004A
50-04SL00-2507-11261K-H

80 SL
RESET 50 11. DELETED.
HS LLL 360.0 mm O 20 FF 50-04AR00-3450-33032K-N
04-I-00022 80 N H FF
H 232R TRIP OF H/C LIQUID LLLL 260.0 mm MIN.
J013
G.L ZS TT LV
+ 12. DELETED. H
50 093 V 091 NOTE 18 33032K 13032K 50-04AR00-3452-13032K-N
TRIP FROM SOUR GAS KO DRUM 50 50 50 C FREE 094
HS #600 20 TWO PHASE 13. DELETED.
NOTE 9 AI XY DRAINING TO 04-V-0006
+ VC3 VC3 VC3 VC3 XV-001 TC 50 50 25 50 50 FLOW
231 090 MIN.
11261K 315125

O 20 20 20 6509 P055AZOR-04-08-1-J006 14. LOCATED AT OPERATOR CONSOLE AS HARDWIRED PUSH BUTTON.

50
VC3

ZL O ZS VC3 D D 50 FC 80 x 50 80 x 50 VC1 VC1 50 x 25 FC 50 x 25 VC1 VC1

40 RICH AMINE
TSO (VI/VI) V-001 15. LOCATE AT TOP OF LINE.

40-04AR00-3501-315125-N
D VC3 VC3 50-04AR00-3451-315125-N
090 C 090 VC1 VC1
(NE)

C XV
FF
+
50 16. DELETED.
FI 093
FT
1530 mm

FF XV VC1 17. DELETED.

LV 094 094 315125 33032K SP
40-04P00-1161-315125-N +
50-04SL00-2506-11261K-H

+
090 5194
I 093
UC 20 40 MIN.
404 18. VALVE 04-LV-091 TRIM / BYPASS VALVE SIZE AFFECTS REFLIEF I
TO 04-E-0003 SL 315125 20 20 VALVE 04-RV-105A/B LOAD. Cv VALUE FOR 04-SP-404 SHALL NOT EXCEED
40 40 40 x 25 25 40 40 VM #600
P055AZOR-04-08-1-J007-001 6502 MAXIMUM 2.
J013 33032K
FC FC 50 x 40 50 40
40 x 25

UNSTABILIZED NAPHTHA VC1 VC1 VC1 VC1 20

20 V-001 20 TSO (VI/VI) 40 19. LOCATED AT SAFE LOCATION.
VC1 XV-001 20 D
G.L
40 20 VC1
40-04P00-1259-315125-N
D
D
D 20 20 EQUIPMENT ON THIS DRAWING
VC1 40-04P00-1160-315125-N VC3
NC 40 D
20-04FH00-2346-115109-N 20 40 04-C-0002 04-A-0001
D 40 VC3 40 33032K 20
20-04AR00-3511-115125-N 04-J-0001
40 5234 115125
20 20 40 315125 04-V-0012

FREE DRAINING
J 315125 NC 40 J
FH 315125
115125 NO LIQUID POCKETS 115109
40-04P00-1163-115125-N 115125
20 315125 115109 J016-001 40-04FH00-2385-115109-N
5233
ODS
TO 04-V-0005 FH
D NO LIQUID POCKETS THIS DOCUMENT CONTAINS TRADE SECRET AND PROPRIETARY INFORMATION. THE PROPERTY OF HALDOR TOPSOE A/S
P055AZOR-04-08-1-J011 6503 J021 11854
AND IS ISSUED ON CONDITION THAT IT IS RECEIVED AND HELD IN CONFIDENCE. NEITHER IT NOR THE INFORMATION
ODS J016-001 HEREIN SHALL BE PRODUCED, SOLD, LENT, DISCLOSED OR USED FOR ANY PURPOSE OTHER THAN THAT FOR
WHICH IT HAS BEEN ISSUED WITHOUT WRITTEN AUTHORITY OF HALDOR TOPSOE A/S.
SOUR WATER AD
J021
TO AMINE DRAIN HEADER
J012 40-04AR00-3566-115125-N
6633 P055AZOR-04-08-1-J012 CONFIDENTIAL INFORMATION
AMINE DRAIN
K NOTICE: THIS DRAWING HAS NOT BEEN PUBLISHED AND IS THE SOLE PROPERTY OF KIPIC AND IS LENT TO THE BORROWER K
FOR HIS CONFIDENTIAL USE ONLY, AND IN CONSIDERATION OF THE LOAN OF THIS DRAWING, THE BORROWER PROMISES
AND AGREES TO RETURN IT UPON REQUEST AND AGREES THAT IT SHALL NOT BE REPRODUCED, COPIED, LENT OR OTHERWISE
DISPOSED OF DIRECTLY OR INDIRECTLY, NOR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT IS FURNISHED.

CONTRACTOR APPROVAL COMPANY APP. DRAWN BY CHECKED BY

REV
NO.
DATE REVISION DESCRIPTION DRAWN CHECK
PROC PIPING MECH. CTRL.SYS. PROJ. ENGR. PROJ.
DWG. NO. REFERENCE DRAWING HKL CKJ PROCESS ENGINEERING FLOW SCHEME
O 03-02-16 ISSUE FOR APPROVAL HKL CKJ SUH - - - PMK PROCESS APP. DATE

A 06-05-16 ISSUE FOR HAZOP HKL CKJ SUH - - - PMK

PMH 30-10-17 AMINE ABSORBER (1/2)
27/10/2017 6:33:06 PM

CONTROL SYS. APP. DATE

B 25-08-16 ISSUE FOR DESIGN HKL CKJ SUH - - - PMK
C 16-12-16 ISSUE FOR DESIGN REVISED HKL CKJ SUH PMK PIPING APP. DATE
04 - NHT UNIT
SIZE A1 (594 X 841)

D 30-06-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK

E 30-10-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK PROJECT ENGR. APP. DATE
PMK 30-10-17 SCALE DRAWING NUMBER REVISION

CONTRACTOR DOC NUMBER

P055AZOR-04-08-1-J005-001
CLIENT APP. DATE NONE P055AZOR-04-08-1-J005-001 E
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
NOTES CONTD: GENERAL NOTES:
04-V-0006 10. DELETED. A. FOR LEGENDS, TYPICALS, GENERAL NOTES REFER TO DRAWINGS :
P4049ZOR-00-08-1-E-001 TO P4049ZOR-00-08-1-E-086.
RICH AMINE FLASH DRUM
11. DELETED.
ID x LENGTH (T/T): 1400.0 mm x 4200.0 mm B. FOR PFS REFERENCE REFER TO DRAWINGS : P055AZOR-04-08-1-I-001 TO
A A
P055AZOR-04-08-1-J006

DP: 12.0 bar(ga) / FV @ 160 °C 12. DELETED. P055AZOR-04-08-1-I-032.

DT: 100 °C / -10 °C
MATERIAL: CS SHELL 13. DELETED. C. FOR PIPE SPECIFICATION REFER TO PIPING MATERIAL SPECIFICATION
INSULATION THICKNESS: N P055AZOR.00.10.40.003.
TRIM: 04P00-1876-315125-N 14. POCKETS TO BE MINIMIZED. RICH AMINE SYSTEM WITH POSSIBLE
DEGASSING. D. THERE ARE TWO IDENTICAL NAPHTHA HYDROTREATER UNITS 04 AND 14.
ALL EQUIPMENT, LINE AND INSTRUMENT TAG NUMBERS SHALL BE PRECEDED
J015 15. ALL THE RV'S ISOLATION BLOCK VALVES SHALL HAVE THEIR STEMS WITH UNIT NUMBER.
ORIENTED IN THE HORIZONTAL PLANE.
RG
SLOPE 1: 200 04
5292 5294 16. FOR INTERLOCK DETAILS, REFER TO CAUSE AND EFFECT DIAGRAM PI PI
80-04FH00-2321-115109-N SP
P055AZOR-04-30-3-G003. 305 305
B FH
554 40-04RG00-2004-11003K-N B
11003K N
J016-001 80 E.G.
LO 80 LO 115125 StTr 40 E. ALL INSTRUMENT SERIAL NUMBER SHALL BE PRECEDED WITH THE CIRCUIT
50-04FH00-2312-115109-N FP FP
NO LIQUID POCKETS NOTE 15 NOTE 15 NUMBER 00.

NO LIQUID POCKETS

NO LIQUID POCKETS
80-04FH00-2320-115109-N RV 12.0 RV 12.0 40
+ +
04
105B 25E50 105A 25E50 20 PI PI
SLOPE 1: 200 V 20 SLOPE 1: 200 V 20 305 305
00
#300 #300 D
115109 115109 40 E.G.

MIN.
115125 115125 20 FI PC
C 80 x 25 80 x 25 106 105
F. WHENEVER AN EXCHANGER IS ISOLATED FOR MAINTENANCE, IT MUST BE C
DRAINED TO PREVENT OVERPRESSURE DUE TO THERMAL EXPANSION.

MIN.
MIN.
V 20 V 20 D
115109 40
25 25 25 25 G. ALL START UP AND SHUTDOWN LINES SHALL BE DRAINED AFTER USE TO
115125 40-04P00-2107-115125-StTr FF FF ELIMINATE NEED FOR THERMAL RELIEF VALVE.
NC 50
20 LC 80 LO FT PT
FP NOTE 15 FF
FP NOTE 15 80 106 105 PV H. HIGH POINT VENT AND LOW POINT DRAINS TO BE PROVIDED. REFER TO
LC 80 NOTE 4 80 LO UC 20 +
ISOMETRIC PIPING DRAWING.
V NOTE 15 105 TO LP OFF-GAS HEADER
NC 50 FP NOTE 15 FP 40-04P00-2105-115125-StTr FREE DRAINING TM 40 40 40 x 25 25 40 40 FREE DRAINING
6715 P055AZOR-04-08-1-J008-001 I. WHERE REMOVABLE SPOOLS ARE PROVIDED, BLIND FLANGES FOR
BLINDING OFF PIPING SHALL BE PROVIDED AS WAREHOUSE ITEMS.
50-04AR00-3459-115125-N 80-04AR00-3456-115125-N FREE DRAINING 50 x 40 50 x 40 P-001C VC1 VC1 FC 40 x 25 VC1 VC1 OFF-GAS
20 V-001 20
StTr J. INSTALL 40MESH TEMPORARY SCREEN / SLEEVE ON PUMP SUCTION
D MIN.
VC1
STRAINER FOR START UP.
D
25 N 40 25 40-04P00-2106-11042K-StTr
FROM 04-C-0002
50-04AR00-3452-13032K-N TWO PHASE FLOW K. ALL BURIED CARBON STEEL MATERIAL SHALL BE EXTERNALLY COATED.
25 25

FREE DRAINING
6509 P055AZOR-04-08-1-J005-001 VC1

80-04AR00-3455-115125-N
RICH AMINE 115125 11042K M. ERGONOMIC CATEGORY OF ALL MANUAL VALVES IS AT LEAST VC2 BY
5302 20 20
20-04FH00-2347-115109-N DEFAULT. VALVES WITH OTHER CATEGORY WILL BE IDENTIFIED IN PEFS.
B
FH
NO LIQUID POCKETS O. FOR SAMPLE CONNECTIONS INFORMATION AND DETAILS REFER TO
J016-001 115109 115125 D 20 11610 DRAWINGS: P055AZOR-04-08-1-J501.
VENT
C
FH P. FOR LEVELS INFORMATION AND DETAILS REFER TO DRAWINGS:
VC3 20 P055AZOR-04-08-1-J504 TO P055AZOR-04-08-1-J504-006.
E FROM 04-P-0005A/B
PG
04-SC-0010 J501 E
50-04AL00-3406-13032K-N A SC
5079 P055AZOR-04-08-1-J006-001 V 4B Q. FOR API PLANS INFORMATION AND DETAILS REFER TO DRAWINGS:
115 50 P055AZOR-04-08-1-J505.
LEAN AMINE VC3 11612 11611
750 H G
40 CWR CWS R. FOR THICKNESS MONITORING LOCATIONS (TMLS) IN PIPING AND STATIC
P-001C EQUIPMENT, REFER TO CORRESPONDING ISOMETRICS AND DRAWINGS
50 #300 #300 315125 #300
J501 J501 RESPECTIVELY. PHILOSOPHY FOR IDENTIFICATION AND MARKING OF
315125 50
50 315125 50 TMLS SHALL BE IN COMPLIANCE WITH ANNEXES A AND C OF API RP572
HHLL 700.0 mm 80 & PARAGRAPH 13 AND APPENDIX 26 OF P4049N-0000-DE20-VAR-0005.
04-V-0006
HLL 600.0 mm 80
50 DP FF LC H
LG LG NLL 550.0 mm LT
500 500 NOTES:
F 115 116
MAG
LLL 500.0 mm 105 LG
105 L HH
04-IZ-00030 F
50 80 LZT LZI H 1. WATER ACCUMULATED IN SUMP SHOULD BE TESTED PRIOR TO ITS RELEASE
MAG L-001A L-001A LLLL 260.0 mm L-004A MAG TRIP OF LEAN AMINE PUMP
MIN. 117 TO AOC. IF NOT SUITABLE FOR ROUTING TO AOC, IT WILL BE COLLECTED
L-001A 106 DP 106
L
5205 50 80 L-004A BY VACUUM TRUCK FOR SAFE DISPOSAL.
50-04SL00-2513-11261K-H 50 50 50 50 50 5206 NOTE 16
#300 50 50 50 50
SL #300 #300 50-04SL00-2514-11261K-H 2. DELETED.
#300 #300 SL
VC3 VC3 VC3 VC3 VC3
D 20 D D 50 50 VC3 VC3 VC3
J013 20 20 H N VC3 VC3 3. DELETED.
1175 mm

VC3 20 D 20
11261K

D D J013
115125

115125
11261K
VC3 VC3 20
N H VC3 VC3 VC3
D 50 D 4. VALVES TO BE KEY INTERLOCKED PER DEP 80.46.30.11 SECTION 3.2.1.
D MIN.
50 50
READABLE G.L 5. MINIMUM 3000 MM.
50-04AR00-2557-115125-H
G 50-04AR00-2556-115125-H 50 50 6. DELETED.
G
50

50 D 50 50 D 50 7. DELETED.

8. DELETED.
50-04AR00-3512-115125-N

50-04AR00-3504-115125-N
FREE DRAINING

FREE DRAINING

9. SPILL WALL FOR AMINE HANDLING AREA. SPILL WALL INSIDE AREA SHALL BE
SLOPED TO EITHER ARE CONNECTED AOC HEADER WITH BLOCK VALVE. IN
CASE OF RAIN, BLOCK VALVE WILL BE OPEN TO MAKE WATER FLOW TO AOC.
IN CASE OF AMINE SPILLAGE, PORTABLE PUMP OR HAND BUCKET CAN BE
USED FOR AMINE COLLECTION.
ODS ODS
H VALVE TO BE VALVE TO BE H
J021 J021 OPERABLE SPILL WALL FOR AMINE HANDLING AREA OPERABLE
11850 11848 FROM GRADE (NOTE 9) FROM GRADE
TRENCH GRATING
AD AD
GRADE GRADE
J012 J012
V 20
13053
20 20 20-04FH00-2727-115109-N
FH NOTE 1 NOTE 1
NO LIQUID POCKETS
115125 115109 J016-001 NOTE 1 NOTE 1
AOC AOC
I 50-04AR00-3458-135101-N I
20 FF
FF FI FF PI LV VALVE BOX VALVE BOX
FT PT
+

107 107 108 108 105

50 x 25 25 50 x 25 50 TO ARU HEADER
50-04AR00-3453-115125-N 50 50 50 50 NOTE 14 50-04AR00-3454-115125-N
VM
7075 P055AZOR-04-08-1-J904
P-001C
VC1 VC1 FC V-001 VC1 VC1 NO GAS POCKETS EQUIPMENT ON THIS DRAWING
VC1 RICH AMINE
25
50 NOTE 5 04-V-0006

115125
135101
25
VC1
J 11641 A 115125 J
FH
C 115125
20 135101 20
25
11644 115125 11631 135101
J501 I SC 11201K
AP 6A CWS 25 THIS DOCUMENT CONTAINS TRADE SECRET AND PROPRIETARY INFORMATION. THE PROPERTY OF HALDOR TOPSOE A/S
G
04-SC-0009 11852 AND IS ISSUED ON CONDITION THAT IT IS RECEIVED AND HELD IN CONFIDENCE. NEITHER IT NOR THE INFORMATION
11647 11640 20 20 20-04AR00-3520-115125-N HEREIN SHALL BE PRODUCED, SOLD, LENT, DISCLOSED OR USED FOR ANY PURPOSE OTHER THAN THAT FOR
J501 J501 WHICH IT HAS BEEN ISSUED WITHOUT WRITTEN AUTHORITY OF HALDOR TOPSOE A/S.
F H AD
N CWR FREE DRAINING
135101 115125
20 J012
J501 B J501 CONFIDENTIAL INFORMATION
TO AMINE DRAIN HEADER
K 50-04AR00-3503-115125-N NOTICE: THIS DRAWING HAS NOT BEEN PUBLISHED AND IS THE SOLE PROPERTY OF KIPIC AND IS LENT TO THE BORROWER K
6632 P055AZOR-04-08-1-J012 FOR HIS CONFIDENTIAL USE ONLY, AND IN CONSIDERATION OF THE LOAN OF THIS DRAWING, THE BORROWER PROMISES
AND AGREES TO RETURN IT UPON REQUEST AND AGREES THAT IT SHALL NOT BE REPRODUCED, COPIED, LENT OR OTHERWISE
AMINE DRAIN DISPOSED OF DIRECTLY OR INDIRECTLY, NOR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT IS FURNISHED.

CONTRACTOR APPROVAL COMPANY APP. DRAWN BY CHECKED BY

REV DATE REVISION DESCRIPTION DRAWN CHECK DWG. NO. REFERENCE DRAWING
NO. PROC PIPING MECH. CTRL.SYS. PROJ. ENGR. PROJ. HKL CKJ PROCESS ENGINEERING FLOW SCHEME
O 03-02-16 ISSUE FOR APPROVAL HKL CKJ SUH - - - PMK PROCESS APP. DATE

A 06-05-16 ISSUE FOR HAZOP HKL CKJ SUH - - - PMK PMH 30-10-17 AMINE PREPARATION / SEPARATION (1/2)
01/11/2017 3:11:59 PM

CONTROL SYS. APP. DATE

B 25-08-16 ISSUE FOR DESIGN HKL CKJ SUH - - - PMK
C 16-12-16 ISSUE FOR DESIGN REVISED HKL CKJ SUH PMK PIPING APP. DATE
04 - NHT UNIT
SIZE A1 (594 X 841)

D 30-06-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK

E 30-10-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK PROJECT ENGR. APP. DATE
PMK 30-10-17 SCALE DRAWING NUMBER REVISION

CONTRACTOR DOC NUMBER

P055AZOR-04-08-1-J006
CLIENT APP. DATE NONE P055AZOR-04-08-1-J006 E
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
GENERAL NOTES:
FROM ISBL MP CONDENSATE A. FOR LEGENDS, TYPICALS, GENERAL NOTES REFER TO DRAWINGS :
HEADER P4049ZOR-00-08-1-E-001 TO P4049ZOR-00-08-1-E-086.
50-04CM00-2452-31011K-H ANCHOR SECURELY
6647 P055AZOR-04-08-1-J019
TWO PHASE FLOW B. FOR PFS REFERENCE REFER TO DRAWINGS : P055AZOR-04-08-1-I-001 TO
A A
P055AZOR-04-08-1-J904

MP CONDENSATE P055AZOR-04-08-1-I-032.

TO LEAN AMINE PUMPS C. FOR PIPE SPECIFICATION REFER TO PIPING MATERIAL SPECIFICATION
04-P-0005A/B P055AZOR.00.10.40.003.
50-04AL00-3400-31007K-P
P055AZOR-04-08-1-J006-001 7079 D. THERE ARE TWO IDENTICAL NAPHTHA HYDROTREATER UNITS 04 AND 14.
LEAN AMINE ALL EQUIPMENT, LINE AND INSTRUMENT TAG NUMBERS SHALL BE PRECEDED
WITH UNIT NUMBER.
FROM AMINE SUMP PUMP 04-P-0008
80-04AR00-3514-115125-N 80 04
5068 P055AZOR-04-08-1-J022 PI PI

MIN.
AMINE VC1 305 305
B B
FROM RICH AMINE FLASH DRUM
04-V-0006 E.G.
50-04AR00-3454-115125-N NO GAS POCKETS E. ALL INSTRUMENT SERIAL NUMBER SHALL BE PRECEDED WITH THE CIRCUIT
7075 P055AZOR-04-08-1-J006
NUMBER 00.

NO POCKETS
80 x 50
RICH AMINE
04
TO ISBL RG HEADER PI PI
80-04RG00-2000-11003K-N NO LIQUID POCKETS 305 305
P055AZOR-04-08-1-J015 6638 00

REFINERY FUEL GAS E.G.

C TO ISBL WU HEADER F. WHENEVER AN EXCHANGER IS ISOLATED FOR MAINTENANCE, IT MUST BE C

80-04WU00-2850-11031K-N DRAINED TO PREVENT OVERPRESSURE DUE TO THERMAL EXPANSION.
P055AZOR-04-08-1-J014-002 7156
FI
UTILITY WATER G. ALL START UP AND SHUTDOWN LINES SHALL BE DRAINED AFTER USE TO
245 ELIMINATE NEED FOR THERMAL RELIEF VALVE.
FROM ISBL NON-PUMPED LP
CONDENSATE HEADER H. HIGH POINT VENT AND LOW POINT DRAINS TO BE PROVIDED. REFER TO
80-04CL00-2600-11011K-P TWO PHASE FLOW 80 x 50
6648 P055AZOR-04-08-1-J019 ISOMETRIC PIPING DRAWING.
ANCHOR SECURELY FF FF FF FF
NON-PUMPED LP CONDENSATE FY FT TI TT TI TT FI FT
I. WHERE REMOVABLE SPOOLS ARE PROVIDED, BLIND FLANGES FOR
245 COMP 245 VM 107 107 TC 106 106 TC 289 289 DP BLINDING OFF PIPING SHALL BE PROVIDED AS WAREHOUSE ITEMS.
F-001B
FROM / TO ISBL LP STEAM HEADER 80 x 50
D 200-04SL00-2500-11261K-H FF J. INSTALL 40MESH TEMPORARY SCREEN / SLEEVE ON PUMP SUCTION D
13806 P055AZOR-04-08-1-J013-001 TI TT FF FF STRAINER FOR START UP.
PI PT PI PT PG
LP STEAM 245 245 TC
107 107 106 106 270 K. ALL BURIED CARBON STEEL MATERIAL SHALL BE EXTERNALLY COATED.
FROM SZI-500 P-001C
FF P-001C P-001B
17031 P055AZOR-04-08-1-J508 PI PT M. ERGONOMIC CATEGORY OF ALL MANUAL VALVES IS AT LEAST VC2 BY
245 245 DEFAULT. VALVES WITH OTHER CATEGORY WILL BE IDENTIFIED IN PEFS.
SIGNAL
P-001B
FROM SI-540 NOTE 5 O. FOR SAMPLE CONNECTIONS INFORMATION AND DETAILS REFER TO
HY DRAWINGS: P055AZOR-04-08-1-J501.
17030 P055AZOR-04-08-1-J509 FF
226 PG
SIGNAL NOTE 4 FF P. FOR LEVELS INFORMATION AND DETAILS REFER TO DRAWINGS:
FT 250
P-001B P055AZOR-04-08-1-J504 TO P055AZOR-04-08-1-J504-006.
E E

NO POCKETS
FI FY 226B
226 226 Q. FOR API PLANS INFORMATION AND DETAILS REFER TO DRAWINGS:
P055AZOR-04-08-1-J505.
COMP
TO ISBL MP STEAM HEADER FF R. FOR THICKNESS MONITORING LOCATIONS (TMLS) IN PIPING AND STATIC
150-04SM00-2400-315107-H FY FT DP MIN. EQUIPMENT, REFER TO CORRESPONDING ISOMETRICS AND DRAWINGS
P055AZOR-04-08-1-J013 6773 226B F-001B RESPECTIVELY. PHILOSOPHY FOR IDENTIFICATION AND MARKING OF
226A
MP STEAM V TMLS SHALL BE IN COMPLIANCE WITH ANNEXES A AND C OF API RP572
FF VC1 31007K & PARAGRAPH 13 AND APPENDIX 26 OF P4049N-0000-DE20-VAR-0005.
25-04AR00-3547-115125-N P N 115125
FT FF
FI FY FT VC3 20
5287 40 40 10856 20 10854 NOTES:
226C 40 25 25 25 FREE DRAINING 20 20
225 225 225 VM
N AD AD 1. DELETED.
F COMP NOTE 7 RS NOTE 6
11011K 11003K VC3 VC3 VC3 VC3 VC3 VC3 VC3 FREE DRAINING
F
RS NOTE 6
PG J017 VC3 20 J012 D 20 J012 2. ALL INSTRUMENTS IN THIS DRAWING ARE LOCATED AT BATTERY LIMITS
PG 40-04RG00-2009-11003K-N
231 AND SHALL BE READBLE.
230 P-001B D VC3
P-001B 20-04AR00-3545-115125-N
V V 3. DELETED.
TG 40-04N00-2203-11011K-N
TG 20-04FH00-2475-115109-N
231 VC3 20 VC3 20 4. FT 226A/C : NHT TO OSBL.
230 TC 10871 25 25 25 10870 20
FF 25-04FH00-2476-115109-N 20 20 FT 226B : OSBL TO NHT.
PI PT FH FH
PI FF

MIN.
PT 226 226 NO LIQUID POCKETS VC3 VC3 VC3 NO LIQUID POCKETS VC3 VC3 VC3 5. FT-226B IS SELECTED NORMALLY. IF ONE OF THE SIGNAL FROM SZI-500 OR
225 225 P-001B J016-003 J016-003 N P SI-540 IS SENT TO HY-226, FT-226A/C WILL BE SELECTED AUTOMATICALLY.
P-001B FF P-001B P-001B 115109 115125 115109 31007K
G TI TT
PG PG 20 D 6. SPOOL PIECE TO BE REPLACED WITH TEMPORARY SACRIFICIAL VALVE FOR G
FF

MIN.

MIN.
TI TT 226 226 25 STEAM BLOWING DURING PRE-COMMISSIONING PERIOD.
271 243
225 25 D 20 VC3
225 TC 25 25 D 25 P N 7. SELECTED VALUE BASED ON RANGE ABILITY WILL BE SHOWN
25 V VC3 V
25 D D D 31007K 115125 ON DCS BY FY-226B.
VC3 25-04AR00-3548-115125-N VC3 EPC #4 EPC #3
V VC3 25 VC3 25 VC3 25 VC3 VC1 80 VC1 50

UNIT 86
UNIT 98
UNIT 93
EPC #2

UNIT 75
MIN.
VC3 V V V EPC #3
20 25 10857 10855
20 25 FREE DRAINING 20 20 FREE DRAINING
D VC3 VC3 VC3 UNIT 67
MIN.

MIN.
MIN.

MIN.
AD AD
MIN.

D UNIT 98
VC3 VC3 20 VC3 VC3 VC3
VC3 20 UNIT 75

UNIT 84
EPC #1
P D
J012
Q
VC1 50
VC3
J012
UNIT 43

EPC #3
EPC #5
VC3 EPC #2 UNIT 96
H H
VC1

VC1

VC1

VC1

150 50 200 50 VC1 80 VC1 80 25 80 1A VC1 80 VC1 50 D 50

VC1 1B 20-04AR00-3546-115125-N VC1 ISBL UNIT 33 UNIT 92
BL AMINE
OSBL STORAGE
EPC #3
N 115125 P UNIT 35 UNIT 39

EPC #4
EPC #1
SP IP-04-018 31007K IP-04-017 EPC #2
IP-04-023-001 IP-04-022-001 IP-04-021 IP-04-020 IP-04-019
IP-04-023-002 IP-04-022-002 P 11374K H 31374K IP-04-016 UNIT 31
310
UNIT 32
EPC #2
UNIT 67 EPC #1

UNIT 06 UNIT 22
150-74SM11-1294-315107-H

200-74SL11-1296-11261K-H

80-74WU11-1808-11031K-N

80-74RG11-1795-11003K-N

50-74CM11-1300-31011K-H
80-74AR11-1802-11374K-P
ANCHOR SECURELY
80-74CL11-1298-11011K-P

50-74AL11-1800-31374K-H
I I
TWO PHASE FLOW

UNIT 23 UNIT 21
NO LIQUID POCKETS

UNIT 25 UNIT 12
KEY PLAN
UNIT 14 UNIT 11
UNIT 13 UNIT 02
UNIT 05 UNIT 01
THIS DWG.
UNIT 04
UNIT 34
EPC #1 UNIT 03 EPC #1
EPC #3 EPC #3

UNIT 63

UNIT 61

UNIT 60

UNIT 62

UNIT 76
HEADER

NON-PUMPED LP CLEAN

TO ARU RICH AMINE HEADER

CONDENSATE

TO MP COND. HEADER
TO NON PUMPED LP CONDENSATE

MP CONDENSATE
RICH AMINE
7271

7262

7258
LP STEAM

FROM/TO DISTRIBUTION HEADER

5086

J J
P055AZOR-74-08-1-J702

P055AZOR-74-08-1-J602

P055AZOR-74-08-1-J602

P055AZOR-74-08-1-J602
FROM ARU LEAN AMINE HEADER
FROM UTILITY WATER HEADER
P055AZOR-74-08-1-J602

P055AZOR-74-08-1-J602

P055AZOR-74-08-1-J602
P055AZOR-74-08-1-J702
FROM MP STEAM HEADER

FROM FUEL GAS HEADER

THIS DOCUMENT CONTAINS TRADE SECRET AND PROPRIETARY INFORMATION. THE PROPERTY OF HALDOR TOPSOE A/S
REFINERY FUEL GAS

AND IS ISSUED ON CONDITION THAT IT IS RECEIVED AND HELD IN CONFIDENCE. NEITHER IT NOR THE INFORMATION
HEREIN SHALL BE PRODUCED, SOLD, LENT, DISCLOSED OR USED FOR ANY PURPOSE OTHER THAN THAT FOR
WHICH IT HAS BEEN ISSUED WITHOUT WRITTEN AUTHORITY OF HALDOR TOPSOE A/S.
UTILITY WATER

CONFIDENTIAL INFORMATION

LEAN AMINE
MP STEAM
7327

7270

7269

7259
K NOTICE: THIS DRAWING HAS NOT BEEN PUBLISHED AND IS THE SOLE PROPERTY OF KIPIC AND IS LENT TO THE BORROWER K
FOR HIS CONFIDENTIAL USE ONLY, AND IN CONSIDERATION OF THE LOAN OF THIS DRAWING, THE BORROWER PROMISES
AND AGREES TO RETURN IT UPON REQUEST AND AGREES THAT IT SHALL NOT BE REPRODUCED, COPIED, LENT OR OTHERWISE
DISPOSED OF DIRECTLY OR INDIRECTLY, NOR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT IS FURNISHED.

CONTRACTOR APPROVAL COMPANY APP. DRAWN BY CHECKED BY

REV DATE REVISION DESCRIPTION DRAWN CHECK DWG. NO. REFERENCE DRAWING
NO. PROC PIPING MECH. CTRL.SYS. PROJ. ENGR. PROJ. HKL CKJ PROCESS ENGINEERING FLOW SCHEME
O 03-02-16 ISSUE FOR APPROVAL HKL CKJ SUH - - - PMK PROCESS APP. DATE

A 06-05-16 ISSUE FOR HAZOP HKL CKJ SUH - - - PMK PMH 30-10-17 UTILITY SYSTEMS BATTERY LIMIT (1/2)
01/11/2017 2:59:49 PM

CONTROL SYS. APP. DATE

B 25-08-16 ISSUE FOR DESIGN HKL CKJ SUH - - - PMK
C 16-12-16 ISSUE FOR DESIGN REVISED HKL CKJ SUH PMK PIPING APP. DATE
04 - NHT UNIT
SIZE A1 (594 X 841)

D 30-06-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK

E 30-10-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK PROJECT ENGR. APP. DATE
PMK 30-10-17 SCALE DRAWING NUMBER REVISION

CONTRACTOR DOC NUMBER

P055AZOR-04-08-1-J904
CLIENT APP. DATE NONE P055AZOR-04-08-1-J904 E
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
GENERAL NOTES:
A. FOR LEGENDS, TYPICALS, GENERAL NOTES REFER TO DRAWINGS :

KTM NORTH
P4049ZOR-00-08-1-E-001 TO P4049ZOR-00-08-1-E-086.

B. FOR PFS REFERENCE REFER TO DRAWINGS : P055AZOR-04-08-1-I-001 TO

A A
P055AZOR-04-08-1-J012

P055AZOR-04-08-1-I-032.

PR C. FOR PIPE SPECIFICATION REFER TO PIPING MATERIAL SPECIFICATION

E
W VAI
AH

P055AZOR.00.10.40.003.
IN LIN
KK

D
MA

G
D. THERE ARE TWO IDENTICAL NAPHTHA HYDROTREATER UNITS 04 AND 14.
ALL EQUIPMENT, LINE AND INSTRUMENT TAG NUMBERS SHALL BE PRECEDED
WITH UNIT NUMBER.

04
PI PI
305 305
B FROM DEMINERALIZED WATER B
HEADER E.G.
40-04WD00-2750-13021K-N
P055AZOR-04-08-1-J905 6639 E. ALL INSTRUMENT SERIAL NUMBER SHALL BE PRECEDED WITH THE CIRCUIT
DEMINERALIZED WATER
NUMBER 00.

04
J005-002 J005-001 J504-001 J006-001 J006-001 J006-001 J006-001 J006-001 J006-001 J006-001 J904 J904 J904 J904 J022 J022 J022 J501 PI PI
305 00 305
AD AD AD AD AD AD AD AD AD AD AD AD AD AD AD AD AD AD
11853 11855 10910 11846 11837 11838 12720 11840 11839 12721 10857 10855 10856 10854 10774 10773 17138 15021 E.G.

25-04AR00-3513-115125-N FROM ANTI-FOAM POT

AMINE DRAIN

AMINE DRAIN

AMINE DRAIN

AMINE DRAIN

AMINE DRAIN

AMINE DRAIN

AMINE DRAIN
FROM 04-P-0005B

FROM 04-P-0005B

FROM 04-P-0005B

FROM 04-P-0005A

FROM 04-P-0005A

FROM 04-P-0005A
DISCHARGE LINE

DISCHARGE LINE
AMINE DRAIN

AMINE DRAIN

AMINE DRAIN

AMINE HEADER
AMINE DRAIN

AMINE HEADER
AMINE DRAIN

AMINE HEADER
AMINE DRAIN

AMINE HEADER
AMINE DRAIN

AMINE DRAIN

AMINE DRAIN

AMINE DRAIN

COLLECTOR

AMINE DRAIN
FROM 04-V-0014

FROM FV-091

FROM LG-102

FROM 04-S-0002

FROM 04-S-0002

FROM 04-S-0002

04-SC-0020
FROM RICH

FROM LEAN

FROM RICH

FROM LEAN

DRAIN
OUTLET LINE

INLET LINE

FROM SAMPLE
C F. WHENEVER AN EXCHANGER IS ISOLATED FOR MAINTENANCE, IT MUST BE C

SUCTION LINE
SUCTION LINE

SUCTION LINE

SUCTION LINE
DRAINED TO PREVENT OVERPRESSURE DUE TO THERMAL EXPANSION.

G. ALL START UP AND SHUTDOWN LINES SHALL BE DRAINED AFTER USE TO

ELIMINATE NEED FOR THERMAL RELIEF VALVE.

H. HIGH POINT VENT AND LOW POINT DRAINS TO BE PROVIDED. REFER TO

ISOMETRIC PIPING DRAWING.

I. WHERE REMOVABLE SPOOLS ARE PROVIDED, BLIND FLANGES FOR

50-04AR00-3508-115125-N

20-04AR00-3510-115125-N

20-04AR00-3549-115125-N

20-04AR00-3532-115125-N

25-04AR00-3506-115125-N

20-04AR00-3560-115125-N

20-04AR00-3531-115125-N

25-04AR00-3505-115125-N

20-04AR00-3562-115125-N

25-04AR00-3548-115125-N

20-04AR00-3546-115125-N

25-04AR00-3547-115125-N

20-04AR00-3545-115125-N

25-04AR00-3544-115125-N

25-04AR00-3543-115125-N

50-04AR00-3524-115125-N

25-04AR00-2905-115125-N
FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING
BLINDING OFF PIPING SHALL BE PROVIDED AS WAREHOUSE ITEMS.

D J. INSTALL 40MESH TEMPORARY SCREEN / SLEEVE ON PUMP SUCTION D

STRAINER FOR START UP.

K. ALL BURIED CARBON STEEL MATERIAL SHALL BE EXTERNALLY COATED.

M. ERGONOMIC CATEGORY OF ALL MANUAL VALVES IS AT LEAST VC2 BY

DEFAULT. VALVES WITH OTHER CATEGORY WILL BE IDENTIFIED IN PEFS.

O. FOR SAMPLE CONNECTIONS INFORMATION AND DETAILS REFER TO

13021K DRAWINGS: P055AZOR-04-08-1-J501.
VC1 115125
40 P. FOR LEVELS INFORMATION AND DETAILS REFER TO DRAWINGS:
P055AZOR-04-08-1-J504 TO P055AZOR-04-08-1-J504-006.
E E
50 x 25
Q. FOR API PLANS INFORMATION AND DETAILS REFER TO DRAWINGS:
VC3 40 P055AZOR-04-08-1-J505.

20 40 x 20 40 x 20 R. FOR THICKNESS MONITORING LOCATIONS (TMLS) IN PIPING AND STATIC

EQUIPMENT, REFER TO CORRESPONDING ISOMETRICS AND DRAWINGS
RESPECTIVELY. PHILOSOPHY FOR IDENTIFICATION AND MARKING OF
MIN.

D TMLS SHALL BE IN COMPLIANCE WITH ANNEXES A AND C OF API RP572

40 & PARAGRAPH 13 AND APPENDIX 26 OF P4049N-0000-DE20-VAR-0005.
20 80 x 50

F 40
D F
NOTES:
TO AMINE SUMP VESSEL 04-V-0016 1. LINES IN AMINE DRAIN SYSTEM LOCATED BELOW GROUND LEVEL
NOTE 1 100-04AR00-3507-115125-N
6510 P055AZOR-04-08-1-J022 WILL BE LAID IN A COVERED CONCRETE TRENCH. LINES LOCATED
IN COVERED TRENCH WILL NOT BE INSULATED.
AMINE DRAIN
80-04AR00-3565-115125-N

13171 FROM LZT-095,

G AD
LT-094 25-04AR00-3553-115125-N G
AMINE DRAIN FREE DRAINING
J504-002

FROM AMINE ABSORBER FROM RICH AMINE FLASH DRUM

04-C-0002 BOTTOM 04-V-0006
40-04AR00-3566-115125-N 50-04AR00-3503-115125-N
6633 P055AZOR-04-08-1-J005-001 P055AZOR-04-08-1-J006 6632
AMINE DRAIN AMINE DRAIN

H H
40-04AR00-3502-115125-N

50-04AR00-3512-115125-N

50-04AR00-3504-115125-N

25-04AR00-3550-115125-N

20-04AR00-3520-115125-N

20-04AR00-3519-115125-N

20-04AR00-3511-115125-N
FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

FREE DRAINING

I I
FROM 04-C-0002

FROM 04-V-0006

FROM 04-V-0006

LT-105, LG-117,
LG-115, LG-116
FROM LZT106,
AMINE DRAIN

AMINE DRAIN

AMINE DRAIN
AMINE DRAIN
FROM LV-105

FROM LV-091
AMINE DRAIN

AMINE DRAIN

AMINE DRAIN
FROM FV-105

J J
14563 11850 11848 10912 11852 11847 11854
AD AD AD AD AD AD AD
THIS DOCUMENT CONTAINS TRADE SECRET AND PROPRIETARY INFORMATION. THE PROPERTY OF HALDOR TOPSOE A/S
AND IS ISSUED ON CONDITION THAT IT IS RECEIVED AND HELD IN CONFIDENCE. NEITHER IT NOR THE INFORMATION
J005-001 J006 J006 J504-003 J006 J006-001 J005-001 HEREIN SHALL BE PRODUCED, SOLD, LENT, DISCLOSED OR USED FOR ANY PURPOSE OTHER THAN THAT FOR
WHICH IT HAS BEEN ISSUED WITHOUT WRITTEN AUTHORITY OF HALDOR TOPSOE A/S.

CONFIDENTIAL INFORMATION
K NOTICE: THIS DRAWING HAS NOT BEEN PUBLISHED AND IS THE SOLE PROPERTY OF KIPIC AND IS LENT TO THE BORROWER K
FOR HIS CONFIDENTIAL USE ONLY, AND IN CONSIDERATION OF THE LOAN OF THIS DRAWING, THE BORROWER PROMISES
AND AGREES TO RETURN IT UPON REQUEST AND AGREES THAT IT SHALL NOT BE REPRODUCED, COPIED, LENT OR OTHERWISE
DISPOSED OF DIRECTLY OR INDIRECTLY, NOR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT IS FURNISHED.

CONTRACTOR APPROVAL COMPANY APP. DRAWN BY CHECKED BY

REV DATE REVISION DESCRIPTION DRAWN CHECK DWG. NO. REFERENCE DRAWING
NO. PROC PIPING MECH. CTRL.SYS. PROJ. ENGR. PROJ. HKL CKJ PROCESS ENGINEERING FLOW SCHEME
O 03-02-16 ISSUE FOR APPROVAL HKL CKJ SUH - - - PMK PROCESS APP. DATE

A 06-05-16 ISSUE FOR HAZOP HKL CKJ SUH - - - PMK PMH 30-10-17 AMINE DRAIN HEADER
27/10/2017 8:01:07 PM

CONTROL SYS. APP. DATE

B 25-08-16 ISSUE FOR DESIGN HKL CKJ SUH - - - PMK
C 16-12-16 ISSUE FOR DESIGN REVISED HKL CKJ SUH PMK PIPING APP. DATE
04 - NHT UNIT
SIZE A1 (594 X 841)

D 30-06-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK

E 30-10-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK PROJECT ENGR. APP. DATE
PMK 30-10-17 SCALE DRAWING NUMBER REVISION

CONTRACTOR DOC NUMBER

P055AZOR-04-08-1-J012
CLIENT APP. DATE NONE P055AZOR-04-08-1-J012 E
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
NOTES CONTD: GENERAL NOTES:
04-S-0002 04-V-0016 04-P-0008 18. VALVE AND SPECTACLE BLIND SHOULD BE OPERABLE FROM A. FOR LEGENDS, TYPICALS, GENERAL NOTES REFER TO DRAWINGS :
OUTSIDE THE PIT. P4049ZOR-00-08-1-E-001 TO P4049ZOR-00-08-1-E-086.
AMINE SUMP FILTER AMINE SUMP VESSEL AMINE SUMP PUMP
DESIGN CAPACITY: 18.0 m^3/hr ID x LENGTH (T/T): 1800.0 mm x 5200.0 mm DESIGN CAPACITY: 18.0 m^3/hr 19. LOCATE IN AN ACCESSIBLE POINT. PUMP OR VACUUM TRUCK B. FOR PFS REFERENCE REFER TO DRAWINGS : P055AZOR-04-08-1-I-001 TO
A DT: 100 °C / -10 °C BOOT: 600.0 mm x 500.0 mm SUCTION PRESSURE: 0.0 bar(ga) A
P055AZOR-04-08-1-J022

CONNECTION. P055AZOR-04-08-1-I-032.
DP: 15.1 bar(ga) / FV @ 160 °C DP: 3.5 bar(ga) / FV @ 160 °C DISCHARGE PRESSURE: 9.7 bar(ga)
TRIM: 04AR00-1920-315125-P DT: 100 °C / -10 °C DRIVER POWER: 30.00 kW 20. LINES IN AMINE DRAIN SYSTEM LOCATED BELOW GROUND LEVEL C. FOR PIPE SPECIFICATION REFER TO PIPING MATERIAL SPECIFICATION
MATERIAL: CS SHELL WILL BE LAID IN A COVERED CONCRETE TRENCH. LINES LOCATED P055AZOR.00.10.40.003.
INSULATION THICKNESS: N IN COVERED TRENCH WILL NOT BE INSULATED.
TRIM: 04AR00-1915-315125-N D. THERE ARE TWO IDENTICAL NAPHTHA HYDROTREATER UNITS 04 AND 14.
04AR00-1916-31374K-N ALL EQUIPMENT, LINE AND INSTRUMENT TAG NUMBERS SHALL BE PRECEDED
WITH UNIT NUMBER.
15.1 RV
+

25D50 247 V 04
5278 PI PI
80 x 50 80 FREE DRAINING 80-04FH00-3530-115109-N
#300 305 305
B NOTE 16 LO
FH B

NO LIQUID POCKETS
115109 FP J016-001 E.G.
50 x 25
115125 E. ALL INSTRUMENT SERIAL NUMBER SHALL BE PRECEDED WITH THE CIRCUIT
NUMBER 00.
V
115125 115109 04
MIN. 20 PI PI
50 50 305 00 305
50-04FH00-3536-115109-N

FREE DRAINING
NC NC E.G.
50-04AR00-3535-115125-N
C F. WHENEVER AN EXCHANGER IS ISOLATED FOR MAINTENANCE, IT MUST BE C
50-04AR00-3529-115125-N DRAINED TO PREVENT OVERPRESSURE DUE TO THERMAL EXPANSION.
50-04WD00-2751-13021K-N
G. ALL START UP AND SHUTDOWN LINES SHALL BE DRAINED AFTER USE TO
FROM DEMINERALIZED WATER MIN. ELIMINATE NEED FOR THERMAL RELIEF VALVE.
HEADER
50 50
9698 P055AZOR-04-08-1-J905 H H. HIGH POINT VENT AND LOW POINT DRAINS TO BE PROVIDED. REFER TO
VC3 PDI ISOMETRIC PIPING DRAWING.
13021K 115125 20 050
50 I. WHERE REMOVABLE SPOOLS ARE PROVIDED, BLIND FLANGES FOR
20 BLINDING OFF PIPING SHALL BE PROVIDED AS WAREHOUSE ITEMS.
50-04AR00-3515-115125-N
FF
D PDT J. INSTALL 40MESH TEMPORARY SCREEN / SLEEVE ON PUMP SUCTION
D STRAINER FOR START UP.
D
050 NOTE 3
04-S-0002
P-003C K. ALL BURIED CARBON STEEL MATERIAL SHALL BE EXTERNALLY COATED.
50
315125
M. ERGONOMIC CATEGORY OF ALL MANUAL VALVES IS AT LEAST VC2 BY
V DEFAULT. VALVES WITH OTHER CATEGORY WILL BE IDENTIFIED IN PEFS.
50 READABLE
NC 50 PG PG O. FOR SAMPLE CONNECTIONS INFORMATION AND DETAILS REFER TO
305 304 DRAWINGS: P055AZOR-04-08-1-J501.
P-001C
TO ARU HEADER P-001C
80 80 80 80 80 80-04AR00-3528-115125-N P. FOR LEVELS INFORMATION AND DETAILS REFER TO DRAWINGS:
P055AZOR-04-08-1-J904 5068 P055AZOR-04-08-1-J504 TO P055AZOR-04-08-1-J504-006.
E VC1 #300 #300 VC1 VC1 E
AMINE
80-04AR00-3514-115125-N 25 25 Q. FOR API PLANS INFORMATION AND DETAILS REFER TO DRAWINGS:
#300 P055AZOR-04-08-1-J505.
20 20
VC1 80
50
R. FOR THICKNESS MONITORING LOCATIONS (TMLS) IN PIPING AND STATIC
D D 11774 WITH 11770 04-I-00030
SAMPLE COOLER EQUIPMENT, REFER TO CORRESPONDING ISOMETRICS AND DRAWINGS
25 AMINE SUMP PUMP RESPECTIVELY. PHILOSOPHY FOR IDENTIFICATION AND MARKING OF
25 20 CWR FH
H 25 PROTECTION SYSTEM TMLS SHALL BE IN COMPLIANCE WITH ANNEXES A AND C OF API RP572

C
25-04AR00-3544-115125-N
FREE DRAINING

15020 J501 J501 NOTE 9 & PARAGRAPH 13 AND APPENDIX 26 OF P4049N-0000-DE20-VAR-0005.

D FREE DRAINING E 04-SC-0020 SC A V
AD
50 5025-04AR00-3543-115125-N 6A
25 25 NOTES:
PSET=0.6 barg
F J501
F G I 1. DELETED.
F
50 11781 11785 11784 RO PCV
START + +

N CWS AP HS 288 202

10773 2. DELETED.
FREE DRAINING

271
50-04AR00-3524-115125-N

AD 40-04AR00-3518-115125-N 40 STOP HH H 50 50 x 25 50 50 5307

J501 J501 J501 LI H PI 50-04AR00-3516-11374K-N 50-04RG00-2005-11003K-N 3. LOCATE PDI TRANSMITTER AND INTEGRAL INDICATOR AT GRADE.
RG
10774 5284 J012 NC 271 L 294 VC1 25 50 x 25
80 11374K 11003K 4. 03-P-0015S IS COMMON WAREHOUSE SPARE FOR DHT AND NHT UNITS.
LL L

FREE DRAINING
80-04FH00-2384-115109-N 80-04AR00-3534-11374K-N
VENT VC1
AD ODS FH R D 20 J015
NO LIQUID POCKETS LO 5208 5. PUMP STARTS ON HIGH LEVEL. PUMP STOPS ON LOW LEVEL.
FF FF 50 50 50
J012 J021 J016-001 115109 11374K D 25 VC3 20 M-001 LT PT LG 50-04AR00-2565-11374K-H 50-04SL00-2519-11261K-H
TP-05 SL 6. STEEL PLATE.
P-001C 271 294 272
80 H 11374K 11261K
G 17138
V
50 LO 80 PG
GWR
L-007A P-001C L-007A DIS N 50
20 D 20 J013-001 7. PROVIDED SUFFICIENT CLEARANCE AROUND THE VESSEL FOR OPERATION / G
VC3 D
NOTE 10 MAINTENANCE OF THE VALVES, ETC. VESEEL BLINDING DETAILS TO BE
AD ACCESS OPENING NOTE 11 293 NOTE 18
NOTE 6 PROVIDED ON INDIVIDUAL PEFS.
J012 80 x 50 NOTE 11 G.L 8. DELETED.
(2 REQUIRED)
G.L 100
MIN. 9. FOR INTERLOCK DETAILS, REFER TO CAUSE AND EFFECT DIAGRAM
MH P055AZOR-04-30-3-G003.
NOTE 10 100 40 100
NOTE 10 315125 31374K #300 315125
FROM AMINE DRAIN HEADER 31374K #300 600 750 10. THE LO VALVES SHALL BE EQUIPPED WITH EXTENDED STEAM TO ALLOW
100-04AR00-3507-115125-N NOTE 20 100 100 NOTE 7
EASY OPERATION WITHOUT ENTRY INTO SUMP PIT.
6510 P055AZOR-04-08-1-J012
FREE DRAINING #300
H AMINE DRAIN
LO
D 25
LO 04-P-0008 11. THE VENTILATION NOZZLE SHALL BE LOCATED SO THAT THERE IS ADEQUATE H
HHLL 1400.0 mm NOTE 4, 5 04-V-0016 CROSS-VENTILATION.

HLL 1200.0 mm 12. DELETED.

600
MH NLL 800.0 mm 13. DELETED.
LLL 400.0 mm 14. DELETED.
LLLL 220.0 mm
12693 H N 15. DELETED.
C
CWR SEAL PLAN 61+53B VS4 16. ALL THE RV'S ISOLATION BLOCK VALVES SHALL HAVE THEIR STEMS
I B #300 ORIENTED IN THE HORIZONTAL PLANE. I
J505 MIN.
17. POSITION OF THE BLIND CAN BE SWITCHED ACCORDING TO REQUIREMENT
12694 OF ISOLATION OR VESSEL ENTRY.
CWS
1475 mm
J505
#300 EQUIPMENT ON THIS DRAWING
50-04AR00-3525-115125-N 04-S-0002
SLOPE 1: 200 04-V-0016
04-P-0008
J D 50 J
D 50

NOTE 19 S THIS DOCUMENT CONTAINS TRADE SECRET AND PROPRIETARY INFORMATION. THE PROPERTY OF HALDOR TOPSOE A/S
AND IS ISSUED ON CONDITION THAT IT IS RECEIVED AND HELD IN CONFIDENCE. NEITHER IT NOR THE INFORMATION
HEREIN SHALL BE PRODUCED, SOLD, LENT, DISCLOSED OR USED FOR ANY PURPOSE OTHER THAN THAT FOR
WHICH IT HAS BEEN ISSUED WITHOUT WRITTEN AUTHORITY OF HALDOR TOPSOE A/S.

CONFIDENTIAL INFORMATION
K NOTICE: THIS DRAWING HAS NOT BEEN PUBLISHED AND IS THE SOLE PROPERTY OF KIPIC AND IS LENT TO THE BORROWER K
FOR HIS CONFIDENTIAL USE ONLY, AND IN CONSIDERATION OF THE LOAN OF THIS DRAWING, THE BORROWER PROMISES
AND AGREES TO RETURN IT UPON REQUEST AND AGREES THAT IT SHALL NOT BE REPRODUCED, COPIED, LENT OR OTHERWISE
DISPOSED OF DIRECTLY OR INDIRECTLY, NOR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT IS FURNISHED.

CONTRACTOR APPROVAL COMPANY APP. DRAWN BY CHECKED BY

REV DATE REVISION DESCRIPTION DRAWN CHECK DWG. NO. REFERENCE DRAWING
NO. PROC PIPING MECH. CTRL.SYS. PROJ. ENGR. PROJ. HKL CKJ PROCESS ENGINEERING FLOW SCHEME
O 03-02-16 ISSUE FOR APPROVAL HKL CKJ SUH - - - PMK PROCESS APP. DATE

A 06-05-16 ISSUE FOR HAZOP HKL CKJ SUH - - - PMK PMH 30-10-17 AMINE SUMP SYSTEM
01/11/2017 3:19:34 PM

CONTROL SYS. APP. DATE

B 25-08-16 ISSUE FOR DESIGN HKL CKJ SUH - - - PMK
C 16-12-16 ISSUE FOR DESIGN REVISED HKL CKJ SUH PMK PIPING APP. DATE
04 - NHT UNIT
SIZE A1 (594 X 841)

D 30-06-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK

E 30-10-17 ISSUE FOR CONSTRUCTION HKL CKJ PMH PMK PROJECT ENGR. APP. DATE
PMK 30-10-17 SCALE DRAWING NUMBER REVISION

CONTRACTOR DOC NUMBER

P055AZOR-04-08-1-J022
CLIENT APP. DATE NONE P055AZOR-04-08-1-J022 E
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
 Appendix B
Construction Activities
 TR
Al Zour Refinery Project

Appendix B: Construction Activities for Degreasing

Tie-Point App. A Activity BWES TR
Seq. Service Description Date
No. Sheet # Location Sign Off Sign Off

1 N/A N/A 1 A Deleted

2 N/A N/A 1 B Deleted

3 TP-01 INLET 1 C Remove check valve and spool. Connect temporary equipment.

4 TP-02 OUTLET 1 D Remove spool and connect temporary equipment.

5 TP-03 INLET 1 E Remove check valve and spool. Connect temporary equipment.

6 TP-04 OUTLET 1 F Remove spool and connect temporary equipment.

7 N/A N/A 2 G Deleted

8 N/A N/A 2 H Deleted

9 N/A N/A 2 I Deleted

10 N/A N/A 2 J Deleted

11 N/A N/A 2 K Install spectacle blind in the closed position.

12 N/A N/A 2 L Deleted

13 N/A N/A 2 M Deleted

14 N/A N/A 3 N Deleted

15 N/A N/A 3 O Deleted

16 N/A JUMPER 4 P Remove spool and install temporary jumper.

17 N/A JUMPER 4 Q Remove spool and install temporary jumper.

18 TP-05 INLET 6 R Utilize sump pump to add back to system circulation as required.

19 N/A N/A 6 S Connect vaccum truck to transport waste to a suitable location.

App.B_CA_DEG_NHT_Rev_A 1 OF 1 www.bwenergyservices.com
 Appendix C
Equipment General Arrangement Drawing
F 1 2 3 4 5 6 7 8 9 10 11

F
E
E
D

D
4"x2"
TP-02
4"x2"
TP-04
C

4"x2"

C
Skid Boundry
TP-01

4"x2"
Mixing Tank LG
TP-03
6" 1060 Gallons
Inlet
(4010 Liters) PG
2"
3"
PG PG
6"
Outlet
6"

Skid Boundry

B
B

A
A

REVISION HISTORY
TR Al Zour Refinery
REV DATE COMMENTS DRAWN BY ISSUED BY Degreasing Chemical Mixing and Injection Setup
0 10/18/2021 Issued For Review M. Mccorkle M. Mccorkle
DWG. JOB
NO. NO. N/A REV. 0
Engineering – Consulting- Project Management – Specialized
Equipment
SCALE None Not Drawn to Scale SHT. # 1 of 1
Standard Centrifugal
Pioneer Prime

SC64C17L71
Typical Pump Configuration

Performance High pressure, high flow, heavy duty pump

End suction standard centrifugal
pump
Bare shaft, frame mounted, heavy duty pump
Designed to operate over a broad range of performance while
delivering outstanding suction lift, the SC64C17 is the clear choice.
The rugged construction and modular design provide proven reliability
and flexibility in the most demanding applications.

Optional Priming System

Size 6" x 4"
150 x 100 mm Priming System Mechanically Driven Diaphragm Style Vacuum
Pump
Flow, Max 1,700 USgpm
Air Removal 50 CFM
390 m3 /h
Capability
110 l/s
Priming Chamber Single chamber with positive sealing air
Head, Max 525 feet
separation PosiValve™ with stainless steel
160 meters float ball & linkage.
Flow at BEP 1,200 USGgpm Swing Style - ductile iron with Buna-n Disc
Discharge Check
280 m3 /h Valve
80 l/s
Efficiency at BEP 75% Other Specifications
Solids Handling, 1.0" Mechanical Seal Single Type Seal w/ Tungsten Carbide vs.
Max 25 mm Silicon Carbide Seal Faces, Viton Elastomers,
300 Series Stainless Steel Hardware and
Operating Speed, 2200 rpm
Spring (Run Dry Option Available).
Max
Suction Connection 6" (150 mm) Pump End Bearing Single Row Ball
150 ANSI Flanges Drive End Bearing Double Row Angular Contact
Delivery Connection 4" (100 mm) Shaft 17-4 PH Stainless Steel
150 ANSI Flanges
Bearing Lubrication Oil STD
Grease optional Construction Materials
Fasteners Imperial Standard
CD4MCu Stainless Steel
Construction
Impeller CA6NM SS CD4MCu

Applications Volute Ductile Iron ASTM A536 65-45-12 CD4MCu

Wear Ring ASTM A48 Class 40 Gray Iron 316 SS
Oil & Gas Construction
Suction Cover Ductile Iron ASTM A536 65-45-12 CD4MCu
Industrial Mining
Petrochemical Rental Brac-plate Ductile Iron ASTM A536 65-45-12 CD4MCu
Agriculture Irrigation

PosiValve™ Patent #6,783,730 SC64C17L71_2.16

Mechanical Dimensions

Typical Pump Configuration

SC64C17
4" [100] CLASS 150 DISCHARGE FLANGE

6" [150] CLASS 150

SUCTION FLANGE

Performance Curve

Model: SC64C17 Impeller Dia: 17” SPEED:

Speed:2200
Variable
RPM Solids Size: 1.0” Curve #A1267HQ

160 525 2200 RPM 40 50 60

70

475
20

140
0H

75
P

2000 RPM
425
Head- Meters

Head - Feet

120
15

375 70
0H
P

1800 RPM
75

10
HP

0H

100
12

325
P

5H
P

65

275 20
NPSHR - FEET

80
15

225 NPSHR @ 2000 RPM

10

60 5
NPSHR @ 1800 RPM
175
0 200 400 600 800 1000 1200 1400 1600 1800 2000 usgpm

0 50 100 150 200 250 300 350 400 450 m3/h

0 10 20 30 40 50 60 70 80 90 100 110 120 l/s

Corporate +1 (503) 266-4115 EMEA +44 (0)1449 736777 South Africa +27 (0) 118240085 Australia +61 3 9988 1650

www.pioneerpump.com
 Appendix D
Chemical Table
 PROJECT: Al Zour Refinery Project
LOCATION: Al Zour, Kuwait
EQUIPMENT: 04 NHT Amine System
CLIENT: TR

Degreasing
Stage 1 - Degreasing: 2% Methyl Miethanolamine
Stage 2 - Rinse: Demineralized water

TOTAL CIRCULATING VOLUME Imperial Metric

(TCV) 6,800 gallons 25.741 m3
STAGE CHEMICAL STATE FORMULA ACTIVE % IN SYS.
AMOUNT UNIT NOTES

STAGE 1
Soda Ash Solid Na2CO3 3% w/w 1,699 Lbs NA
DEGREASING

Antifoam
OTHERS Liquid N/A N/A 5 Gal. To suppress foaming in waste tank.
(FG10 or WC0810)
 Appendix E
Analytical Logs
 10/18/2021

APPENDIX E: ANALYTICAL REPORT OF CHEMICAL CLEANING SOLUTION

Year/Month/Date
Project:

System: Analyzed By:

Chemical Analysis
Time Notes/Chemical Dosage
pH Conductivity

App.E_AnalyticalLog_R0 1 OF 2 www.bwenergyservices.com
 10/18/2021

APPENDIX E: ANALYTICAL REPORT OF CHEMICAL CLEANING SOLUTION

Year/Month/Date
Project:

System: Analyzed By:

Chemical Analysis
Time Notes/Chemical Dosage
pH Conductivity

App.E_AnalyticalLog_R0 2 OF 2 www.bwenergyservices.com
 Appendix F
Operational Logs
 10/18/2021

APPENDIX F: CHEMICAL CLEANING OPERATION PARAMETERS LOG

Year/Month/Date
Project:
/ /

Boiler No.: Logged By:

Flow Rate,
Temp, °F Pressure, psig Pump Engine
GPM
Time Notes
FE-01
Disch Hdr Return Hdr Disch Hdr Return Hdr XFS Inlet P Diff-Filter RPM
Pump Disch

App.F_OpLog_R0 1 OF 1 www.bwenergyservices.com
