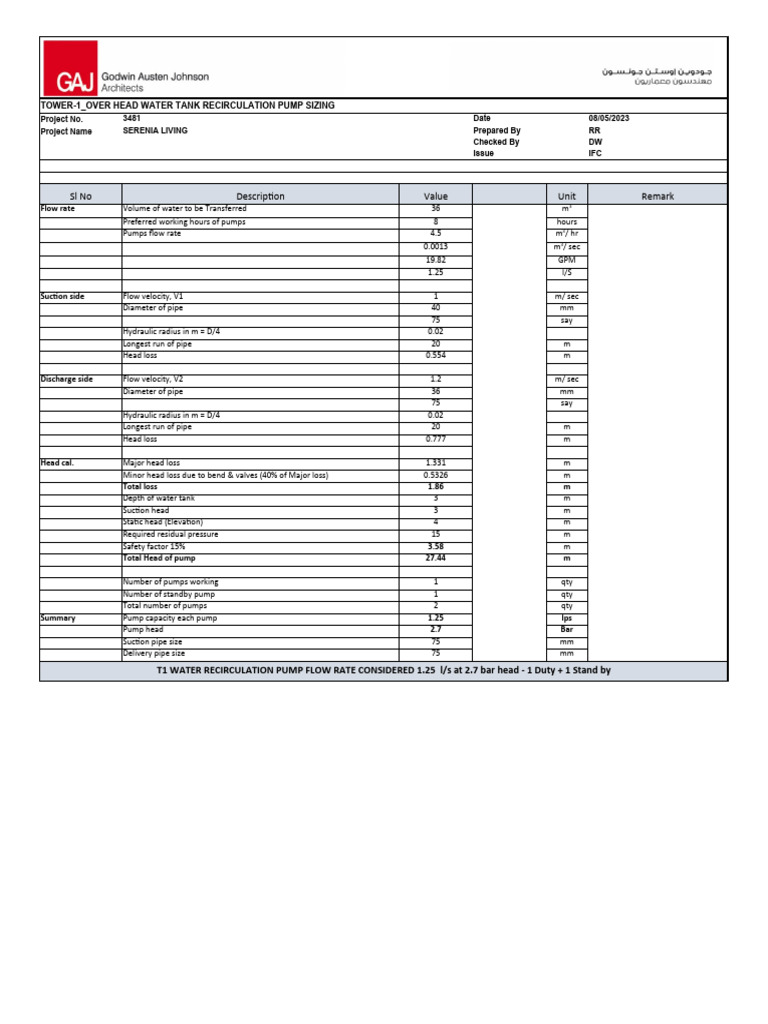

TOWER-1_OVER HEAD WATER TANK RECIRCULATION PUMP SIZING

Project No. 3481 Date 08/05/2023

Project Name SERENIA LIVING Prepared By RR
Checked By DW
Issue IFC

Sl No Description Value Unit Remark

Flow rate Volume of water to be Transferred 36 m3
Preferred working hours of pumps 8 hours
Pumps flow rate 4.5 m3/ hr
0.0013 m3/ sec
19.82 GPM
1.25 l/S

Suction side Flow velocity, V1 1 m/ sec

Diameter of pipe 40 mm
75 say
Hydraulic radius in m = D/4 0.02
Longest run of pipe 20 m
Head loss 0.554 m

Discharge side Flow velocity, V2 1.2 m/ sec

Diameter of pipe 36 mm
75 say
Hydraulic radius in m = D/4 0.02
Longest run of pipe 20 m
Head loss 0.777 m

Head cal. Major head loss 1.331 m

Minor head loss due to bend & valves (40% of Major loss) 0.5326 m
Total loss 1.86 m
Depth of water tank 3 m
Suction head 3 m
Static head (Elevation) 4 m
Required residual pressure 15 m
Safety factor 15% 3.58 m
Total Head of pump 27.44 m

Number of pumps working 1 qty

Number of standby pump 1 qty
Total number of pumps 2 qty
Summary Pump capacity each pump 1.25 lps
Pump head 2.7 Bar
Suction pipe size 75 mm
Delivery pipe size 75 mm
T1 WATER RECIRCULATION PUMP FLOW RATE CONSIDERED 1.25 l/s at 2.7 bar head - 1 Duty + 1 Stand by
TOWER-2_OVER HEAD WATER TANK RECIRCULATION PUMP SIZING
Project No. 3481 Date 08/05/2023
Project Name SERENIA LIVING Prepared By RR
Checked By DW
Issue IFC

Sl No Description Value Unit Remark

Flow rate Volume of water to be Transferred 47 m3
Preferred working hours of pumps 8 hours
Pumps flow rate 5.9 m3/ hr
0.0016 m3/ sec
25.87 GPM
1.63 l/S

Suction side Flow velocity, V1 1 m/ sec

Diameter of pipe 46 mm
75 say
Hydraulic radius in m = D/4 0.02
Longest run of pipe 20 m
Head loss 0.554 m

Discharge side Flow velocity, V2 1.2 m/ sec

Diameter of pipe 42 mm
75 say
Hydraulic radius in m = D/4 0.02
Longest run of pipe 20 m
Head loss 0.777 m

Head cal. Major head loss 1.331 m

Minor head loss due to bend & valves (40% of Major loss) 0.5326 m
Total loss 1.86 m
Depth of water tank 3 m
Suction head 3 m
Static head (Elevation) 4 m
Required residual pressure 15 m
Safety factor 15% 3.58 m
Total Head of pump 27.44 m

Number of pumps working 1 qty

Number of standby pump 1 qty
Total number of pumps 2 qty
Summary Pump capacity each pump 1.63 lps
Pump head 2.7 Bar
Suction pipe size 75 mm
Delivery pipe size 75 mm
T2 WATER RECIRCULATION PUMP FLOW RATE CONSIDERED 1.63 l/s at 2.7 bar head - 1 Duty + 1 Stand by
BASEMENT FILTERED WATER TANK RECIRCULATION PUMP SIZING
Project No. 3481 Date 08/05/2023
Project Name SERENIA LIVING Prepared By RR
Checked By DW
Issue IFC

Sl No Description Value Unit Remark

Flow rate Volume of water to be Transferred 210 m3
Preferred working hours of pumps 8 hours
Pumps flow rate 26.3 m3/ hr
0.0073 m3/ sec
115.59 GPM
7.29 l/S

Suction side Flow velocity, V1 1 m/ sec

Diameter of pipe 96 mm
100 say
Hydraulic radius in m = D/4 0.03
Longest run of pipe 20 m
Head loss 0.396 m

Discharge side Flow velocity, V2 1.2 m/ sec

Diameter of pipe 88 mm
100 say
Hydraulic radius in m = D/4 0.03
Longest run of pipe 20 m
Head loss 0.555 m

Head cal. Major head loss 0.952 m

Minor head loss due to bend & valves (40% of Major loss) 0.3807 m
Total loss 1.33 m
Depth of water tank 4 m
Suction head 4 m
Static head (Elevation) 4 m
Required residual pressure 15 m
Safety factor 15% 3.65 m
Total Head of pump 27.98 m

Number of pumps working 1 qty

Number of standby pump 1 qty
Total number of pumps 2 qty
Summary Pump capacity each pump 7.29 lps
Pump head 2.8 Bar
Suction pipe size 100 mm
Delivery pipe size 100 mm
WATER RECIRCULATION PUMP FLOW RATE CONSIDERED 7.29 l/s at 2.8 bar head - 1 Duty + 1 Stand by
