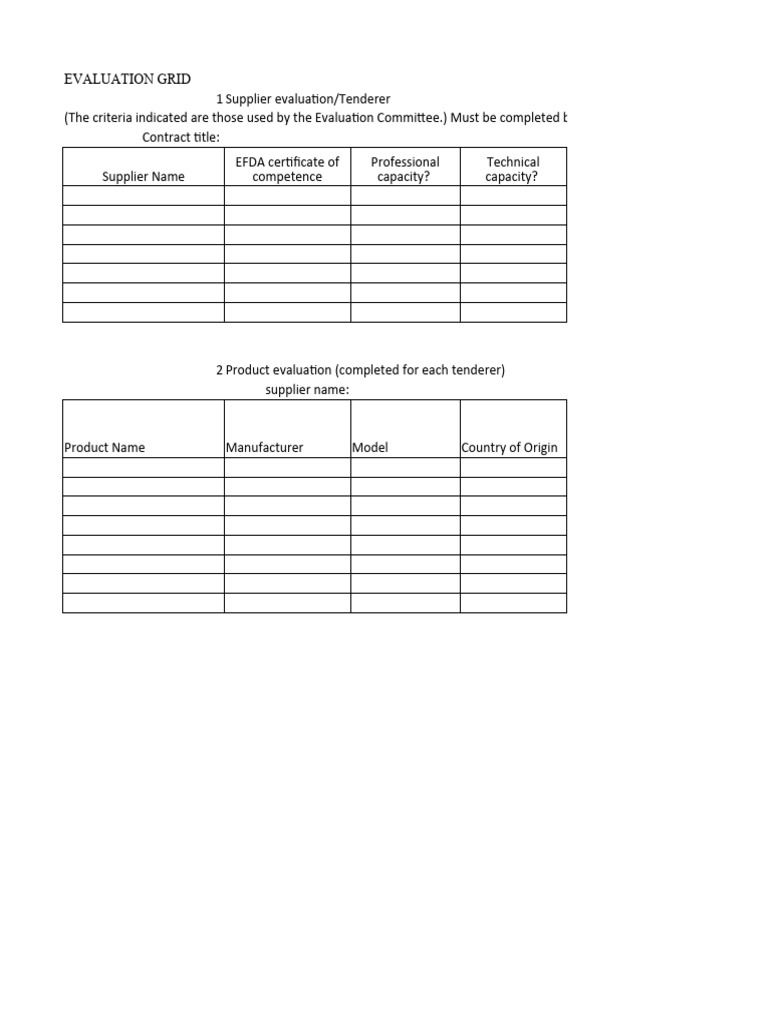

1 Supplier evaluation/Tenderer
(The criteria indicated are those used by the Evaluation Committee.) Must be completed by each member of the Evaluation Co
Contract title:
EFDA certificate of Professional Technical
Supplier Name competence capacity? capacity?
Characteristics of waste
Combustion performance
Outdoor installation
Materials of construction
Air supply
Insulation
Refractory
Electrical
Electrical safety
Physical safety
Noise level
Temperature measurement
Display indicators
Other indicator displays
Stack (chimney)
Emergency bypass
Recording
Typical service life
Spare parts
Warranty
Training
Other
* WHO, Safe management of wastes from health-care activities, Second edition 2014
** The Stockholm Convention on Persistent Organic Pollutants (POPs) 2001
Other Auxiliary equipment to be made available and used during operating the treatment unit (recommended)
· Safety Googles
· Working Gloves - Heat resistant
· Pedal Bins Infectious Waste 30 l
· Collection bin grey / black 50 l
· Collection bin yellow 50 l
· Transport Trolley
· Weighing scale
· Sharp Boxes 5 l
· Bag 40 l (yellow)
PERFORMANCE
DIMENSIONS
MATERIALS
CONTROLS
AUXILIARY FIRING
EMISSION CONTROL
AUXILLARY EQUIPMENT
PAINTING
SITE REQUIREMENTS
R MEDICAL WASTE INCINERATORS
Treatment of infectious waste, sharps and small amounts of pathological waste. The following average characteristics are considered*:
The medical waste incinerator will be installed outdoors. All incinerator components shall be suitable for but not limited to outdoor
shaded installation, including electric motors, be resistant to corrosion, moisture and related weather elements.
Static stability of the incinerator must be achieved by a steel frame on which the incinerator doors, the burner and the protective
shielding are mounted
The incinerator shall not have any asbestos, asbestos-containing substances, mercury thermometers, and mercury switches. Refractory
materials shall be able to meet relevant standards under ISO TC33 and CEN/TC 187.
Dual-chamber controlled air incinerator or dual-chamber pyrolytic incinerator
Batch loading.
Shall be constructed with a casing (reinforced to withstand internal pressures without deflection or damage to the refractory or other
components) supported by a structural frame and provided with refractory lining and insulation
All access doors, openings, and gaps shall be sealed to prevent emission of smoke and exhaust gas and to block admission of air during
incinerator operations. Doors exposed to flame or direct heat of combustion gases shall be lined with the same type and thickness of
refractory lining and insulation as that used in the combustion chamber
≥ 850ºC with no cold spots
Shall be constructed with an exterior casing (reinforced to withstand internal pressures without deflection or damage to the refractory or
other components) and provided with refractory lining and insulation
1100ºC or higher
≥ 2 seconds after the last injection of air in the secondary chamber
Separate electrically spark-ignited primary burners and secondary burners with automatic control shall be used to achieve the specified
temperature requirements in the primary and secondary chambers. The flames of the primary and secondary burners shall not impinge on
the incinerator walls or floor.
Diesel fuel
Air supply in the primary and secondary chamber should be regulated between 30%- 80% and 170%- 120% of stoichiometric amount
respectively. Suitable flow measurement devices shall be provided on the primary and secondary air ducting. The combustion air shall b
supplied through a separate forced draft fan after accounting for the air supplied through burners
Insulation to be used for masonry, reinforced concrete, or non-combustible material shall prevent damage to the foundation from
excessive heat and shall be of a thickness to limit the outer casing to a maximum temperature of 66ºC in an ambient temperature of 21ºC
when the incinerator is operating at full capacity.
Refractory shall be “super duty” and heat-resistant to a minimum of 1100ºC in the primary chamber and 1250ºC in the secondary
chamber. Refractory shall also be abrasion resistant in the primary chamber, constructed of plastic or castable type refractory, designed
to prevent bulging and destruction due to heat stress, capable of supporting more than twice the hourly burning rate and preventing
leakage of fluids, and with a minimum thickness of 110 mm for walls and hearths
220V, single phase, 50Hz electrical power
The medical waste incinerator shall meet the requirements of IEC 61010-2-040, UL 61010A-2-041, or an equivalent electrical safety
standard; as well as the electromagnetic compatibility requirements under EN 61326 or equivalent standard.
Belts, pulleys, chains, gears and other rotating parts as well as sharp edges, located where persons come in close proximity to them, shall
be enclosed or guarded to protect personnel. High-temperature surfaces and piping located where they could endanger personnel or
create a fire hazard shall be covered with insulation
The noise level at 305 mm from any incinerator component shall not exceed 85 dBA..
Fully automated treatment process . The medical waste incinerator shall include control equipment and instruments, controls for burners
and fans, time clocks, relays, operating switches, indicator lights, gauges, motor starters, fuses, alarms, and circuit elements of the
control system, and other controls and instruments necessary for operation of the incinerator.
The operation and regulation of the medical waste incinerator shall be done from a central console. The console shall include a visual
graphic (screen) and computer recording to automatically monitor and record dates, time of day, batch number and operating parameters
The control system shall include an emergency shut-down switch or button. The system should be protected against the effects of
electrical short circuits
Automatic control circuit systems and manual switches shall be interlocked to prevent hazardous conditions or the discharge of toxic air
pollutants above the specified limits.
The control system shall be able to use proportional control or other effective control algorithm to maintain the operating conditions
specified herein.
The medical waste incinerator shall have an indicating recording pyrometer for measuring incinerator temperature with a range at least
from 0 to 1315ºC accurate to within ± 1% of range
The medical waste incinerator shall have thermocouples to measure gas temperatures and control burner operation, suitable for
temperatures up to 1260ºC and accurate to within 0.5% of the operating and indicating temperature range
Temperature and other key parameters shall be readable by normal vision from a distance of 1.00m
Displays shall be able to indicate: operation in progress, end of cycle or fault conditions
Error shall not exceed 1% of the indicated time in hours or minutes as applicable
In the event of a failure that prevents the completion of the process, the controls shall be able to show a visual indication of failure and
an audible alarm
The medical waste incinerator shall be able to meet the following air emission limits*,
DAILY AVERAGE VALUES:
Total dust: 10 mg/m3 Carbon monoxide: 50 mg/m3
Gaseous and vaporous organic substances, expressed as total organic carbon: 10 mg/m3
Hydrogen chloride: 10 mg/m3 Hydrogen fluoride: 1 mg/m3 Sulphur dioxide: 50 mg/m3
Nitrogen monoxide and nitrogen dioxide, expressed as nitrogen dioxide: 200 mg/m3
Standard conditions defined as T = 273ºK, P=101.3 kPa, 11% O2, dry gas
A copy of test results from stack sampling and analysis of air emissions from an incinerator of the same model and capacity burning
typical medical waste shall be provided and in compliance with EU DIRECTIVE 2000/76/EC. The tests shall be conducted by an
independent Third Party duly accredited and certified. The test report shall include concentrations of 17 congeners of 2,3,7,8-TCDD/F,
corresponding detection limits, Toxic Equivalent (TEQ) using I-TEF as well as TEQ from non- detected congeners and the maximum
possible TEQ (estimated maximum possible concentration/upper bound), sampling standard recoveries, extraction standard recoveries,
and other quality assurance/quality control information
The stack shall have a minimum height of 6.0 meters of mild or stainless steel (partly with insulation) above ground level
The emergency bypass shall remain closed and should not permit the release of gaseous emissions during normal operations. The date,
time and duration of the opening of the emergency bypass during abnormal conditions should be recorded and included in the permanen
record
The incinerator should include a ash sump with additional means to prevent bottom ash from being released into the workspace
The inner surfaces of the outer casing of the incinerator, the exterior surfaces of the outer casing, the control panel, and piping, except
corrosion-resistant steel, should be cleaned to the base metal for removal of oil and rust before primer is applied. A weather resistant
finish should be placed on all items that will be exposed to the outside
Recording of operating parameters should be able to be done digital or analog and should include values sufficient to confirm that cycle
parameters have been achieved and maintained within the manufacturer’s specified tolerances. Printed records should be readable for no
less than 2 years
10 years
Complete set of spare parts/ wear parts suitable for two year of operation and be precisely specified
Operation Manual in English and French language Workshop manual in English and French language
All installation materials, all necessary connection materials and power supply cables
Warranty on parts and service after commissioning and acceptance, for two years. Preventive maintenance for 2 years
On-site training provided to operators
Local travel shall include the following:
Installation of the incinerators Testing and commissioning
Final completion report (at the end of the project a final completion report signed by a representative of the customer has to be presented. This will be the document used
for invoice certification
Training and trainee assessment report Training
Local transportation of the trainer to each site
The aim of the training is to enable the participating local users/ technicians to use, maintain, repair and install incinerators under this
cost estimate
The complete shop drawings, site planning and technical requirements are to be provided by the supplier to the client prior to delivery
and not later than 3 weeks after contract signature, in order to prepare the site by the client.
Set of plans and assembly drawings
Set of engineering drawings: Lay out drawing with all main equipment, flue gas ductwork and main piping, PID flow diagram
A list of steps in the construction process
All standard accessories/consumables/parts required for the proper operation for 2 years of the above item shall be included in the offer.
Bidders shall specify, in a separate Scope of Supply the quantity and details of any items included in this offer which have not been
specified above.
Delivered and installed. Completely ready for use functionally and operationally, user instructions, service and repair instructions and
list of all wear parts and spare parts in English and French language.
DESCRIPTION
Standard top type – Self supporting
Capacity(kg/hr)
Refuse
Average Moisture (%)
Air pollution Std
Loading door opening(mm x mm)
Grate/Hearth area(m2)
Primary Chamber volume(m3)
Secondary Chamber total volume(m3)
Minimum stack diameter(mm)
Approximate weight (kg)
Casing
Bracing
Fire gate
Ashing door
Loading door
Grate/Hearth support
Refractory
Insulation-walls
Insulation- Roof
Draught control
Air supply
Electric
Fuel
Primary burner
Output
Secondary Burner
Output
Flame monitoring
Ignition
System
Firing tools
Peepholes
Casting
Roof
Stack-mild Steel
Stack- 3CR12
Foundation
Shelter
Electric power
Fuel supply
Access
Class 1
>300
Health care Waste
15-25
SI 141 of 1996
750x750
3.72
5.56
7.6
933
25800
5.0mm mild steel plate
Mild steel
High grade cast iron
High grade cast iron
Heavy mild steel plate lined with castable refractory and insulation
Heavy mild steel sections
High alumina monolithic
High temperature insulation bricks
Calcium silicate boards and air traps
Natural induction and door operated draught reducer
Primary- quarl induction,
vortex
interruption
and door
operated
limiter
Secondary –
natural and
venture
induction
Control
panels, relays
isolator,
contractors
circuit
breakers
Switches,
digital
indicating
temperature
controller,
pilot
light,
pyrometer
(indicating)
Diesel, Oil (or
natural gas of
LPG)
RIELLO RG
RL28 HILO
or equivalent
Max 332kW
Photoelectric
cell
Max. 450kW
Photoelectric
cell
Auto spark
after pre-
purge
Automatic
regulation of
air
distribution,
air quantity
and rate of
distribution
Heated
refractory
screen
Low velocity
grit settling
Minimization
of
entrainment
Rake, Straight
poker
Optional air
cooled, glass
fronted
viewing point
in loading
door or rear
wall
Hammerite
deep green
Hammerite
silver grey
Hammerite
silver grey
Pickled and
passivated.
Single
phase/220V/1
0 Amp/50hz
to Isolator of
controls.
10mm gravel
feed
connected to
fire valve of
incinerator
Reasonable
access to
permit the
entry of all
components
of the
Incinerator
and Chimney
stack to be
ensured by
others.
ELECTRICAL INCINERATOR
Supply and install KRII or equivalent 50 kg/hr incineration capacity medical waste incincrator with the following techn ical
1. GENERAL
1.1 Outline
This facility is basecl on incinerator which incinerate medical wastes and prevention 'facilities which treat fly ash from incin
facilities.
1.2 Scope of estimate
- Offered scopes included
1) Supply of incinerator & accessories
2) Ocean transportation fee.
3) Installation & commissioning fee.
1 •3 delivery period
2 months after contract
1. 4 50Kg/hr Incinerator of medical waste
1.5 completion and guarantee
1)Completion date is 90 calendar dates.
2) The term of guarantee : Guarantee performance and extra defects for 1 year after delivery time completion.
3) Defect-management: If defects occurred in the term of guarantee, contractor should fix on contractor's responsibility.
1.6 Design Standard
1 ) Target waste composition ratio
shall include
will be
Copper and its compounds: Total 0.05 mg/m3 Manganese and
as TEQ from non- detected congeners and the maximum possible TEQ
(estimated maximum possible concentration/upper bound) sampling standard recoveries
extraction standard
OR Light, mobile
Clinical Purpose/Description:
A mobile type operating light provides an optimal shadow free lighting for carrying out surgical procedures in an eme
environment.
Technical Specification:
The unit comprises of spring balanced articulating arm.
Have continuous dimmer, continuous focus adjustment, and continuous field adjustment.
Auxiliary light source included for extra operations
No infrared or ultraviolet radiation
Sterilizable removable handle to regulate light field size
Light intensity: not less than 160,000 lux at 1m distance from light source
Color temperature: ≥ 4300 K
Applicable Working Distances from Light head to Surgical Area (cm): 70 ~ 140
Diameter of light head: not less than 0.60cm
Heat filtrating: 99%
Dimming Range 30 - 100°/o
Lifetime of LEDs ≥ 50,000hrs
Mobile stand:
Shall have Sturdy mobile base made of fiberglass and diameter 54 cm (21.3 in), easy to move, low friction castors (an
two castors can be locked)
Castor must be medical chemical resistant
Battery:
Built in rechargeable batteries with capacity sufficient for operating in battery mode (fully charged) for minimum of 3
Battery power (charge) indicator
System Configuration Accessories, Spares, Consumables and other components:
1x spare of Sterilizable removable handle
1 x spare of fuses
Operating Environment;
Operating Temperature: +10 °C to + 32°C
Relative humidity: < 85%
Utility Requirements:
Electrical Power Supply: 100 - 240VAC
Standards and Safety Requirements:
Shall meet IEC-60601(Or Equivalent) General Requirements of Safety for Electromagnetic Compatibility
Shall meet ISO 13485 Medical Device Quality Management system (Or Equivalent)
Installation, Training and Commissioning:
The supplier must provide installation, and commissioning of the device at health Facility
The supplier must provide on sight technical and end user training
Warranty and After Sale service:
The supplier must provide minimum of two years warranty including labor and spare part from the date of commissio
After basic warranty the supplier must agree for after sales service
Documentation:
User and service manual in English
Packaging and Labeling;
Packing of all the goods clearly marked and securely packed.
Each good will be further packed in separate package with all its standard accessories of distinct identification and nu
consecutively.
Additional packing and labeling requirements should bear in each package
Each item with all accessories /spare part shall be configured and packed in one unit.
Ophthalmoscope, direct
Technical specification:
3.5 V LED illumination Ophthalmoscope:
shall have not less than 89 diopters
Corrective lenses for 89 diopter values Plus 1-45 in single steps, Minus 1-44 in single steps.
Easy-to-operate aperture hand-wheel with semi-circle, small/medium/large circle, fixation star, slit and grid.
Includes filter wheel engageable for all apertures with symbol display, red-free filter, blue filter and polarization filter
Focusing device with zero retention force for the quick correction of ametropias.
Dust-proof
Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations
Lithium Rechargeable Battery
Slit
Material:
Illuminators, Optical glass encased with break proof and lightweight plastic.
Handle: Chromed steel
Accessories/Spare parts/Consumables:
Spare lamps, 3.5 V LED
Lithium Rechargeable battery for handle.
Carrying case
Operating Environment;
Operating Temperature: +10 °C to + 45°C
Relative humidity: < 85%,
Utility requirement: NA
Electrical Power Supply: 220VAC +/-10%, 50HZ
Standards and Safety Requirements:
IEC 60601-1: 2012, IEC 60601-1-2:2007
Shall meet ISO 13485/10943 Medical Device Quality Management system (Or Equivalent)
Warranty and After Sale service:
The supplier must provide minimum of Two years warranty including labor and spare part from the date of commissi
Documentation:
Operating/user Manual (language in English) including lists of important accessories, Documentation must also show
recommended procedures for disposal and any probable hazards to the environment and/or community.
Packaging and Labeling;
Each item with all accessories /spare part shall be configured and packed in one unit.
INFUSION PUMP, UNIVERSAL SINGLE CHANNEL
1. INFUSION PUMP, UNIVERSAL SINGLE CHANNEL
General Specifications:
Adult, Pediatric and Neonatal Patients
Makes use of the linear peristalsis working principle
Has an open system to be able to use universal IV sets
7 infusion modes (mI/h, body weight, drip loading dose, ramp, sequence. & Relay modes)
Infusion Rate Range of 0.01 to 1200 ml7h with a minimum increment of 0.01 ml/h
Accuracy of set delivery rate ±2% according to IEC/EN60601-2-24
VTBI range of 0 to 9999ml” Volume infused range ol o to 9,999 ml
More than 15 types of dose rate units
KVO rale range of 0.01 fa 5 ml/h with a default value of 1 ml/h
Maximum purge rate of 1200 ml/h
Manual and programmable bolus
Has anti-bolus
Volume preselection
0.1-99.99ml increments of 0.01ml
100.0–999.0ml in increments 0.1ml
1000–9999ml in increments 1ml
Time preselection 00:01–99:59h
Alarm in the case of incorrect dose for incorrect dosages of 0.1ml due to malfunctions of the device the pump will automati
Audible and visible alarms (VTBI Infused Pressure high, battery empty, KVO finished, Check upstream, Door error, Air bu
VTBI near end Battery near empty, no battery inserted reminder alarm, Standby time expired, no power supply, drop sensor
Technical specifications:
7 levels of air bubble detection
12 levels of occlusion pressure detection from 0.1-1.2bar
Has a drug library that can record more than 2000 items
Has a history record that can contain more than 5000 records
10 levels of voice volume” 0 levels of brightness contrast display
Physical specifications:
Weight Approximately 1.5kg
4.3-inch TFT Screen Resolution
Touch screen Display
Automatic Door Design and Flow Clamp
Operating conditions:
Power supply: 240V AC~,50/60Hz
Time of operation: 100% (continuous operation)
Relative humidity: 30%…90% (without condensation)
Temperature+5…+40°C
Atmospheric pressure 500-1060mbar
Type of battery pack: (rechargeable)NiMH
Operating time of rechargeable battery Approx. 8hours at 25ml/h
Recharging time: Approx. 4hours
Instructions: Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Co
of each Specification stating the corresponding performance parameter of the equipment offered. Statements of “Com
Bid and cross-referenced to that evidence. Evidence shall be in the form of manufacturer’s un-amended sales literatu
compliance issued by the manufacturer, samples, independent test data etc., as appropriate. A statement that is not su
contradicted by the evidence presented will render the Bid under evaluation liable for rejection. A statement either in
supporting evidence that is found to be false either during Bid evaluation, post-qualification or the execution of the C
the Bidder or supplier liable for prosecution.
Functional requirement:
Recessed handles help with lifting and positioning.
Textures on the layout prevent the patient from slipping during cardiopulmonary resuscitation,
making it easier for the patient to be lifted by contouring the front.
Can be stored under cot mattress.
Technical requirement:
23-1/4in x 17-1/4in x 2in, Orange
The press plate is made of high-density polyethylene plastic, solid surface, one end down into a
cup just to keep the patient's head back.
Waterproof for water rescue.
Performance requirement:
Warranty of two years
EFDA registered
d either “Comply” or “Not Comply” against each of the individual parameters
nt offered. Statements of “Comply” must be supported by evidence in a Bidders
er’s un-amended sales literature, unconditional statements of specification and
iate. A statement that is not supported by evidence or is subsequently found to be
ejection. A statement either in the Bidders statement of compliance or the
ation or the execution of the Contract may be regarded as fraudulent and render
List to be provided of important spares, consumables, and accessories, with their part numbers and cost applicable for two y
List of standard accessories and configurations.
Contact details of the manufacturer, supplier and local service agent to be provided.
Regulatory approval: EFMHACA registration certificate, European CE/ISO
Authorization letter from the manufacturer.
All technical specifications should be supported with the original data sheet highlighting the page number in the compliance
Photocopy/computer print of our specification will not be acceptable
SOP for the item.
Warranty certificate for two years from date of commissioning.
Separate reference (2) letter from local Government hospitals/health centers about timely completion of installation and
uninterrupted supply of consumables for the item to be supplied (same model).
Separate letter for a 2-year service agreement including cost of labor and spare parts along with implementation plan
Separate letter to provide service and application training to biomedical engineers and users with implementation plan.
Maintenance:
2 years after-sales service agreement including Spares and labor.
During the warranty period free upgrades of the software, if any, should be provided.
Advanced maintenance tasks required shall be documented
Manufacturer/principal to give the undertaking to provide spares and consumables for the next 5 years of their quoted mode
without interruption.
Not Comply” against each of the
offered. Statements of “Comply” must be
manufacturer’s un-amended sales
pendent test data etc., as appropriate. A
ed will render the Bid under evaluation
found to be false either during Bid
dder or supplier liable for prosecution.
Bidder’s
Statement of
Specification as
Compliance
Technical Offer
No Item Spec Version Date
22 Wheel chair 001 3/23/2021
21 Weighing scale with height, electronic 001 3/30/2021
16 Thermometer aux 001 3/28/2021
8 Suction machine 001 3/26/2021
14 Stretcher 001 3/27/2021
Steam Sterilizer, 24L 002 5/11/2021
25 Room heater
12 Pulse Oximeter 001 3/25/2021
13 Patient bed 001 3/21/2021
11 Microscope, Light 001 3/17/2021
7 Microscope, flourescence 001 3/18/2021
3 Laundry, 24Kg 001 3/24/2021
4 Hematology analyser, 3 Diff 001 3/16/2021
26 HBA1c
10 Haemoglobin meter, POCT 001 3/31/2021
2 Freezer, plasma 500L 001 3/24/2021
9 Fetal Doppler 001 3/22/2021
17 Examination Light, Mobile 001 3/25/2021
15 Examination light 001 3/29/2021
6 Examination couch 001 3/20/2021
5 Delivery couch 001 3/19/2021
1 Chemistry analyser, 100T 001 3/15/2021
24 Centrifuge, general purpose
20 Bp Appratus, Mercurial 000 3/14/2021
18 Bp Appratus, Digital 001 3/13/2021
19 Bp Appratus, anaeroid 002 3/12/2021
23 Bd screen
27 centrifuge, Hematocrit
28 Electrolyte analyzer
29 Hormone Analyzer
30 Opthalmoscope
31 Infant radiant warmer
32 Infusion pump
33 Operating table
34 Refrigerator, EPI
35 Refrigerator, pharmaceutical or lab
36 IV stand
37 Glucometer
38 Opthalmoscope
39 Cardiotochography (CTG)
40 Oxygen concentrator
41 Crytherapy machine
42 Biosafety cabinet level I
43 Biosafety cabinet level II
44 Biosafety cabinet level III
45 Phototherapy machine
46 CPR board
47 Defibrillator
48 Operating Light
49 Incinarator
50 Oxygen gauge
51 Otoscope
52 Trolley
53 Thermometer IR
54 Micro pippete 100-1000 micro litters
55 Micro pippete 05-50
56 Micro pippete 0.5-10ul
57 Micro pippete 20-200
58 Micro pippete 10-1004
59 Micro pippete 10-1005
60 ESR analyzer
61 Dry Oven
62 oxygen cylinder
63
Anaesthetic machine
I. Composition:
Anaesthesia machine complete, mounted on a robust mobile frame
Accessories:
Swivel arm for circuit system
Tube holder for patient tubing
Patient circuits for adult: 02 set
Circuit system, complete with two CO2 absorbers, in-and expiratory valve, and
pressure adjustable valve.
All other standard accessories ready for use
Patient circuits for adult: 02 set
Circuit system, complete with two CO2 absorbers, in-and expiratory valve, and
pressure adjustable valve.
All other standard accessories ready for use
II. Specification:
Frame of modular construction, mounted on cart with 4 antistatic castors, 2 of them
with lockable
Retractable writing panel, 3 drawers
Frame of stainless steel, plastic coated, surface must be stable against treatment
with disinfectional solutions
Gas supply:
Yokes for medical gas cylinders, 1x O2, 1x N2O
Independent for each cylinder pressure reducer
Separate gauges for piped-in gases
High pressure hoses for supplying O2, N2O and air, length of at least 5 m
Non-return valve
Acoustic alarm in case of Oxygen failure and N2O automatic cut off if oxygen
oxygen pressure < 2.0 bar
Bistable switch for N2O / O2 or AIR/ O2 mixture.
Frontal manometers for controlling of inlet gases
Oxygen: 3.5-5.5 bar
Nitrous–oxide: 3.5-5.5 bar
Compressed air: 3.5-5.5 bar
Colour code: Blue for Oxygen, Grey for N2O, Yellow for compressed air
Gas dosage adjustment:
+Measuring pipes: Low-flow flowmeter with 5 pipes:
+ Measuring range :
Oxygen: 200-1000ml/min (fine tube)
1-10l/min (coarse tube).
Nitrous-oxide: 200-1.000ml/min (fine tube)
1-10l/min (coarse tube).
Air: 0.2-15l/min
Vaporizer: 2pcs. Vaporizer (Halothane, Isoflurance) with interlock and safety key
filling system.
Power supply: 220V AC ± 10%, 50Hz
III. Other conditions:
Pass the international quality standards: ISO 9001 or other equivalents
Complies with IEC 601-1 , class 1 , type BF or B
Usable under tropical conditions
All surfaces must be cleanable with disinfectional solutions
Spare parts supply ability
Installation and after sale service.
Provide operation manuals in Vietnamese
Warranty: min. 1 year
Operating light with satellite, ceiling mounted, 150000 - 200000 lux
I. Composition:
Main unit and standard accessories
Accessories: 5 pcs halogen bulb and 2pcs light adjustment hand grips
II. Specification:
For use in main Operating theatre
Combination of main and auxiliary cool lights, suspended from ceiling
Constant light field diameter without refocusing up to 500 mm in height
Light intensity adjustment: continuous
Light adjustment by sterilizable rotating hand grip
Room height: approx. 3,000 mm
Main light
llluminance at the distance of 1 m min 120.000 lux
Color temperature approx. 4300 ºK
Focusable light field size: approx. 8-35 cm
Diam. of lamp head: approx. 85 cm
Temperature increase in the operating field at 100.000 lux max. 15 ºC
Temperature increase at head level max. 2 ºC
Swivel radius of lamp housing approx. 1500 mm
Height adjustment of light head approx. 800 mm
Number of bulbs approx. 7 pcs
Bulb type: Halogen 24V
Satellite
Illuminance at the distance of 1 m min 70.000 lux
Color temperature approx. 4300 ºK
Diam. of lamp head: approx. 55 cm
Temperature increase in the operating field at 50.000 lux max. 8 ºC
Temperature increase at head level max. 2 ºC
Swivel radius of lamp housing approx. 1500 mm
Height adjustment of light head approx. 1200 mm
Number of bulbs approx. 4 pcs
Bulb type: Halogen 24V
Power supply: 220VAC ± 10% / 50 Hz, Transformer DC 24 V
III. Other conditions:
Meet the international quality standards: ISO 9001 or other equivalents
Usable under tropical conditions
Warranty: min. 1 year
Installation and staff instruction
Commit to supply spare parts and consumables for at least 10 years
Operating manual in English
Respirator (Ventilator)
I. Function
For adult and child with weight = 5kg
II. Composition
Main unit: 01 unit
Humidifier with heater: 01 unit
Re-usable Patient Tubing System, two water traps (for adult) : 02 sets
Re-usable Patient Tubing System, two water traps (for child) : 02 sets
Patient circuit hanger: 01 ea
Mobile cart for the whole system: 1ea
Standard accessories: 01 set
External air compressor
All reusable parts must be autoclavable
III. Specification
Ventilation method:
Volume Support (VS)
Volume – based breaths (V-CMV, P-SIMV)
Pressure – based breaths (P-CMV, P-SIMV)
Pressure-regulated volume control (PRVC)
Ventilation mode:
Control mandatory ventilation (V-CMV; P-CMV)
Synchronized intermittent mandatory ventilation (V-SIMV, P-SIV)
Spontaneous ventilation (SPONT)
Smart positive Airway pressure (SPAP)
Volume targeted ventilation (VTV)
Auto mode
Breath Triggering:
Pressure triggering from 1-20 cmH2O
Flow triggering from 1-25lpm
User Configurable Functions:
Apnea Back-up:
User selected back-up breath type/mode
User-defined respiratory rate, trigger type, breath timing, oxygen concentration, and PEEP settings
Apnea interval setting from 10-60 seconds
Nebulizer Function:
User defined duration between 1-60 minutes
User defined frequency up to 480 minutes
Oxygen concentration and volume compensated
Sigh Function:
User defined volume or pressure based sigh
User defined frequency and multiples of sigh
User defined amplitude of sign (+0-50% of tidal pressure or volume settings)
Man Insp (manual breath delivery)
Inspiratory and Expiratory Breath Holds
100% oxygen
Adjustable rise time; fast, medium or slow
Exh Sens % (10-80% of spont peak flow)
Control settings: selectable for following parameters
+ Tidal volume range: 10-2000 ml
+ Breathing rate range: 1-150 beats/min
+ PEEP/CPAP: 0-50 cmH2O
+ Pcontrol, Psupport between 0-80 cmH2O
+ I-times: 0.1 –0.5 sec
+ Peak flow: 3-120 liters/ min (for mandatory); 180 lpm for spontaneous breaths
+ O2 concentration range: 21-100%
Page 126 of 205
27
Alarms: visible and audible for pressure high, pressure low; rate high / rate low;
Exp Min Vol high /low Exp Min Vol ; Oxygen high/oxygen low; apnoea;
Disconnection; Flow sensor; O2 Supply; Air supply; Compressor
Err:509
Err:509
Monitored data
Pressure value: Ppeak., PEEP, Pmean, Pplateau
Volume/Flow value: Vte, Exp Min Vol, leak rate
Time values: Respiration rate, Tinsp, Ti/Ttot, RR/TV
Respiratory Mechanics : R insp ., R exp, C stat
Delivered O2%
Real time curves:
+ Pressure over time
+ Flow over time
+ Volume over time
+ Pressure-Volume & Flow-Volume loops
Power supply: AC: 220V/ 50 Hz +/- 10%
Battery: built in rechargeable battery for the respirator continuous
running of up to 6 hours
Internal air compressor
VI. Other conditions :
Pass the international quality standards: ISO 9001 or other equivalent international
Standards ,TUV, FDA a.o.
Complies with IEC 601-1 , class 1 , type BF or B
Warranty time: at least 1 year
Installation, test, staff training maintenance at site
Supply after sale service within 48 hours
Supply full set of documents including: user manual, service manual with circuit
Diagrams, drawings, troubleshooting guidelines, spare parts list etc.
Operating manual in Vietnamese
Commit to supply spare parts and consumables for at least 10 years after the
installation
Episiotomy set
Composition and Specification:
Haemostic forceps curved, non-tooth approx. 16 cm length - 1pc
Holder needle, approx. 200m length - 1pc
maier’s sponge holding forceps , approx. 240mm length - 1pc
Surgical scissor , straight, s/s, approx. 180mm length - 1pc
Surgical scissor , straight, b/b, approx. 180mm length - 1pc
Needle suture, section 0, No8 - 5 pcs
Instrument case approx. 320x 165x 65 mm - 1pc
All items made of stainless steel, and autoclavanle
Meet ISO 9001 or other equivalent international standard
Examination instrument, gynecology
Composition and Specification:
Grave’s vaginal speculum, small -1pc
Grave’s vaginal speculum, medium -1pc
Vaginal speculum, approx. 80x 8mm blade - 1pc
Maier’s sponge holding forceps, approx. 240mm L - 1pc
Instrument case approx. 320 x 165 x 65mm Aluminum - 1pc
Meet ISO 9001 or other equivalent international standard
All items made of stainless steel, and autoclavanle
Examination instruments, prenatal
Composition and Specification:
Sphygmomanometer : see Item 78 (sphygmomanometer with cuff for adult)
Scale, meter
Obstetric stethoscope : for fetal heart sound, aluminum or wood, plastic, length
approx. 150 mm
Normal stethoscope see Item 38 (Binaural stethoscope for adult)
Meet ISO 9001 or other equivalent international standard
All items made of stainless steel, and autoclavanle
Instrument for minor surgical
Composition and Specification:
Scalpel handle No3 -1pc
Blade No15 sterile package of 100- 1pkt
Kidney-bowl ,approx. 250x140x40 mm - 1pc
Round bowl, approx 0.16 liters -1 pc
Crile retractor , double-Ended, approx. 12x4mm /20x6mm, 110 mm - 2 pcs
OP, scissors, curved , blunt /sharp,approx.155 mm - 1 pc
Mayo dissecting scissors, curved approx.190 mm - 1pc
Mayo dissecting scissors, curved approx.170 mm - 1pc
Tissue forceps 2x3 teeth , slend, patt, approx.160 mm -1pc
Dissecting forceps , slend patt , approx.160 mm- 1pc
Baby cricle artery forceps, curved, approx.140 mm -2 pcs
Hegar-mayo needle holder,approx.160 mm - 1 pc
Needle suture circle cutting edge spring eye No18 /to No45 package of 8 pieces - 10 pkt
Grooved director with probe point , approx.13cm long -1pc
Container for instrument approx. 300x 140x70 mm -1 pc
Meet ISO 9001 or other equivalent international standard
All items made of stainless steel, and autoclavanle
Major surgical instrument set
I. Composition and Specification:
Aluminum container approx. 580x280x135 mm 1 pc
Perforated instrument basket with handle approx. 485x255x50 mm-1pcs
Identification labels (red) -2pcs
Fixation clamps for securing sterile covering drapes- 4pcs
Cloth for lining deep containers- 1pcs
Kidney tray, stainless steel approx.250x 140x 40 mm- 1pcs
Bachkaus towel clamps, box joint, stainless steel, length approx.110 mm -12pcs
Foerster sponge holding forceps , serrated jaw , box joint stainless steel, length
approx.250 mm - 6pcs
Tissue forceps, 1x2 teeth, stainless steel, length approx.145 mm - 2pcs
Dissecting forceps serrated jaws stainless steel, length approx.145 mm -2pcs
Dissecting forceps serrated jaws stainless steel, length approx.200 mm -1pcs
Tissue forceps, 1x2 teeth , stainless steel length approx.200 mm -1pcs
Scalpel blade handle , stainless steel , size 4 - 1pcs
Scalpel blade handle , stainless steel , size 3 - 1pcs
Operating knife blade steel No14 package of 100 - 1Pkt
Operating knife blade steel No11 package of 100 - 1pkt
Operating knife blade steel No23 package of 100 - 1pkt
Operating knife blade steel No25 package of 100 - 1pkt
Mayo dissecting scissors, curved, stainless steel , length approx.170 mm - 1pc
Mayo surgical scissors , straight, stainless steel approx.140 mm - 1pc
Metzenbaum, dissecting scissors , curved , stainless steel approx.180 mm - 1pc
Metzenbaum, dissecting scissors , curved approx.200 mm - 1pc
Operating scissors, straight, blunt/sharp, approx.145 mm -1pc
Cricle artery forceps , curved on flat serrated jaws, box joint, stainless steel
approx.140 mm 8pcs
Rochester-pean artery forceps, straight , serrated jaws, stainless steel approx.185
mm, 10pcs
Spencer wells artery forceps , straight serrated jaws stainless steel approx.175
mm -6pcs
Halstead mosquito forceps, straight , approx.125 mm - 12pcs
Halstead mosquito forceps curved, approx.125 mm -12pcs
Allis intestinal forceps 5x6 teeth approx.155 mm - 6pcs
Duval Collin intestinal grasping forceps stainless steel approx.200 mm -2pcs
Allis- thoms tissue grasping forceps 6x7 teeth, box joint stainless steel approx.200
mm - 2pcs
Bainbridge intestinal forceps , straight approx.155 mm - 2pcs
Bainbridge intestinal clamp , small pattern approx.180mm - 1pc
Hegar-mayo needle holder, stainless steel approx.160 mm - 1pc
Hegar-mayo needle holder, stainless steel approx.180 mm - 2pcs
Hegar-mayo needle holder, stainless steel approx.200 mm - 2pcs
Blood vessel suture needle 3/8 circle, curved taper point sprint eye package of 3 -
10pkt
Blood vessel suture needle 1/2 circle, curved taper point sprint eye package of 3 -
10pkt
Intestinal suture needle 3/8 circle , curved taper point sprint eye package of 5 -
10pkt
Intestinal suture needle ½ circle , curved taper point sprint eye package of 5 -10pkt
Gynecological suture needle 7/10 circle , curved taper point sprint eye package of
8 - 10pkt
Martin uterine suture needle 1/2 circle , curved taper point sprint eye package of 3 -
10pkt
Denis brown intestinal forceps approx.190 mm -1pc
Babcock intestinal forceps tissue grasping forceps approx.190mm - 2pcs
Lister dressing forceps approx.175 mm -1pc
Lahey gall duct forceps , curved approx.200 mm - 2pcs
Macdonald dissector approx.185 mm - 1pc
Probe with eye, approx.145 mm - 1pc
Abdominal intestinal malleable spatula width of approx.50 mms/steel , 330mm -1pc
Richardson retractor , blade of approx.52x22 mm, stainless steel approx.240mm -
2pcs
Kocher langenbeck retractor blade of 40x11 mm fenestrated handle , stainless
steel , approx.215 mm - 2pcs
Farabeuf retractor, double ended , set of 2, stainless steel, fig 1+2, approx.120mm
-1pc
Volkmann retractor, blunt prongs 8x29mm, approx. 220 mm long -2 pcs
Balfour abdominal retractor , stainless steel - 1pc
Pean kidney clamps, curved approx.200 mm - 1pc
Randall kidney stone forceps , approx.220mm 1pcs
Yankauer suction tube , with central bore of 2.0mm diameter stainless steel ,
approx.270mm - 1pc
Flat nose pliers , marburg patt , serrated jaw 1pcsUniversal pin pliers, standard
pattern -1pc
Luer bone rongeur , curved, approx.155mm -1pc
Volkmann curette sharp double end approx.130mm -1pc
Bergmann Mallet of metal approx.245mm, 300g, approx.30mm diameter, stainless
steel -1pc
Liston bone cutting forceps , straight , approx.140mm, -1pc
Instrument set for take out of gall stone: 1 set, include:
01 gall forceps Blake straight, approx.200mm
01 gall duct probe, Ochsner, approx.350mm
01 gall stone scoop, Luer-koerte, fig.0
Bone saw, Charriere amputation handle type, -1pc
Lexer flat chisel, curved, approx.16mm wide approx.265mm, long - 1pc
Mayo safety pins for holding ring handle instruments stainless steel
,approx.140mm - 3pcs
Suction hose, silicon , inside diameter 7.0mm, approx. 1m long - 3pcs
II. Other conditions:
Meet ISO 9001 or other equivalent international standard
All items are made of stainless steel and contained in a steel box.
Instructions: Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Co
individual parameters of each Specification stating the corresponding performance parameter of the equipment offere
supported by evidence in a Bidders Bid and cross-referenced to that evidence. Evidence shall be in the form of manuf
literature, unconditional statements of specification and compliance issued by the manufacturer, samples, independen
statement that is not supported by evidence or is subsequently found to be contradicted by the evidence presented will
liable for rejection. A statement either in the Bidders statement of compliance or the supporting evidence that is found
evaluation, post-qualification or the execution of the Contract may be regarded as fraudulent and render the Bidder o
Cylinder, oxygen, 40L (with regulator and flow meter) on trolley with accessories
Country of Or
Manufactu
Mo
Cylinder
Volume: 50L
Rechargeable, Seamless, Made of chromium- molybdenum steel
Cylinder neck fitted with side nozzle, bull nose value for connecting oxygen regulator.
Valve with hand wheel for safety opening / closing.
One-staged reducing unit for oxygen to reduce and monitor Pressure of one-sided cylinder bank.
Normal flow rate: 20 Nm3/ h
Inlet pressure: 200 bar
Outlet pressure: 8 bar
Nominal pressure: 200 bar
Filter pores: 50ppm
For connection between gas cylinder and collecting pipe. non return valve Cylinder connection: G ¾ box nut
High pressure manometer to indicate pressure level in the cylinder
Oxygen flow meter tube calibrated from 0. 15 liters per minute, with tube nipple outlet.
Humidifier, bubble through type, water capacity 300 ml. couples directly to flow meter.
Trolley:
For transportation oxygen cylinder.
Stainless steel construction.
Powder with two antistatic rubber wheels with pushing handle and safety fasteners to secure cylinder
Bidder’s
Statement of
Specification as
Compliance
Technical Offer
Instructions: Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Co
of each Specification stating the corresponding performance parameter of the equipment offered. Statements of “Com
Bid and cross-referenced to that evidence. Evidence shall be in the form of manufacturer’s un-amended sales literatu
compliance issued by the manufacturer, samples, independent test data etc., as appropriate. A statement that is not su
contradicted by the evidence presented will render the Bid under evaluation liable for rejection. A statement either in
supporting evidence that is found to be false either during Bid evaluation, post-qualification or the execution of the C
the Bidder or supplier liable for prosecution.
Phototherapy
Clinical Purpose/Description:
Phototherapy units are used to treat hyperbilirubinemia, a condition characterized by high
bilirubin concentrations in the blood.
Technical Specification:
LED to provide, after filtering, light of wavelength approximately 420 to 480 nm.
Irradiance to be user variable in the range at least of 4 to 40 μW/cm2/nm.
Hour meter showing total exposure time for current patient to be clearly visible by operator.
Ultraviolet levels shall not exceed a maximum irradiance of 1,000 μW/cm2 for ultraviolet A
radiation (315 to 400 nm) or a maximum effective radiance of 0.1 μW/cm2 for ultraviolet B
radiation (280 to 315 nm).
Near-infrared (780 to 1,400 nm) radiation shall be filtered.
Over temperature safety cut out to be included.
Counter for lamp working hours and built-in timer for dose monitoring.
Lamp replacement interval not less than 2000 hours.
Light emission peak spectrum inside the range 400 - 500 nm.
Unit to provide shielding of infant in the event of bulb breakage
Bulb mount to have angle adjustment of at least 30 degrees
Lamp arm adjustable height.
Stainless steel stand and lamp arm
All surfaces to be made of corrosion resistant materials
Mobile unit with at least 4 castor anti-static wheels and at least two brakes.
System Configuration Accessories, Spares
1x spare Complete set of replacement light
100x eyes protections masks of at least two different infant large & Small sizes.
All standard accessories, consumables and parts required to operate the equipment, including all
standard tools and cleaning and lubrication materials including items not specified above
All the instrument/supply/device should be medical grade
Operating Environment;
Operating Temperature: +10ᵒC to +40ᵒC
Relative Humidity: <85%
Utility Requirements:
Power Supply: 220VAC ±10%, Frequency: 50Hz
Standards and Safety Requirements:
Patient safety should not be compromised.
ISO 14971Medical devices -- Application of risk management to medical devices
Shall meet IEC-60601(Or Equivalent ) General Requirements of electrical Safety
Shall meet ISO 13485 Medical Device Quality Management system (Or Equivalent)
Installation/Training/Commissioning:
The supplier must provide Installation, technical and end user training on site.
Regular preventive servicing of the machines should be performed by qualified engineers or
technicians.
Records of routine servicing should be maintained by the supplier.
Warranty and After Sale service:
The supplier must provide minimum of two years warranty including labour and spare part from
the date of commissioning.
Documentation:
User and Technical manual
Packaging and Labeling;
Packing of all the goods clearly marked and securely packed.
Each goods will be further packed in separate package with all its standard accessories of distinct
identification and numbers consecutively.
Additional packing and labeling requirements should bear in each package
Each item with all accessories /spare part shall be configured and packed in one unit.
d either “Comply” or “Not Comply” against each of the individual parameters
nt offered. Statements of “Comply” must be supported by evidence in a Bidders
er’s un-amended sales literature, unconditional statements of specification and
iate. A statement that is not supported by evidence or is subsequently found to be
ejection. A statement either in the Bidders statement of compliance or the
ation or the execution of the Contract may be regarded as fraudulent and render
Refrigerator, Medicine
Clinical Purpose/Description:
Medicine Refrigerator is an Upright refrigerator for storage and conservation of Medications.
Technical Specification:
Type: Compression type, freezer with CFC free refrigerant gas
Fan-cooled for even distribution of air in the cabinet
Control system: Microprocessor
Temperature Adjustment Range: 2 to 8 deg C
Accuracy, whatever the load: +/- 1 deg C
Capacity: not less than 250L
Hold over time: >30 min
Temperature monitoring: Digital temperature LED/LCD display with 0.1°C graduation
Battery back-up for audio and visual alarm system, and temperature recording for 24 hr
Shall have visual and audio signals when the lower and upper temperature
Shall have alarm for low voltage and /or electricity cut off problems occurs.
Internal surface structure: Stainless steel
External surface structure: corrosion resistant structure
Door: high density polyurethane filling insulation
System Configuration Accessories, Spares, Consumables and other components:
All standard accessories, consumables and parts required to operate the equipment should be supplied.
Utility Requirements:
Electrical Power Supply: 220VAC +10%, 50HZ
Standards and Safety Requirements:
Shall meet IEC-60601(Or Equivalent ) General Requirements of electrical safety
Shall meet ISO 13485 Medical Device Quality Management system
Documentation:
User and service manual in English
s literature, unconditional statements of specification and compliance issued by
supported by evidence or is subsequently found to be contradicted by the
r in the Bidders statement
Bidder’s of compliance
Specification or the supporting evidence that is found
as Technical
Statement of Compliance
Offer
Defibrillator
Clinical Purpose/Description:
Device that provides a high energy electric shock to the heart of someone who is in cardiac arrest to
restore normal rhythm and contractile function in patients.
Technical Specification
High-resolution color LCD display not less than 5.8 inches for showing 12 lead ECG, pulse, selected
energy and delivered energy charge, mains, battery charge, and LED indicator.
Defibrillator with ECG.
DC defibrillator for short time depolarization, impulse energy adjustable for extra- and intracranial
defibrillation with 2 electrodes (anterior/ posterior).
Defibrillator with pediatric and adult paddles and cardioverter.
The machine should be compact, portable with built in rechargeable battery & light weight.
Operation Modes: synchrony defibrillation and extrathoracical stimulation.
Defibrillator with pediatric and adult paddles minimum of 4.5cm and 8cm respectively.
The instruments with a bi-phasic wave form Defibrillation.
Monitor vital parameters and display them (ECG, SpO2, NIBP, and temperature).
Able to print the ECG on thermal recorders.
Output energy ranges across 50Ω: 2J-200 J.
Able to work on manual and automated external defibrillation (AED ).
Manual mode_ Charging time should be less than 5 sec to maximum energy, 200J. (When AC power is
used OR new full charged battery at 20 degrees).
AED mode: Charging time should be from 8-15 sec to maximum energy, 200 J. (When AC power is
used OR new full charged battery at 20 degrees).
Should have rechargeable battery (Lithium-ion battery) that is capable of monitoring for minimum of 180
minutes.
Thermal array ECG Recorder for Lead selection, II, III aVR, aVL, V, aVF, paddles.
Heart frequency monitoring with alarms for exceeding or falling below set limits.
A low energy biphasic defibrillator monitors with recorder, having capability to arrest all arrhythmia
within a maximum energy of 200 Joules.
Monitor ECG through paddles, pads and monitoring electrodes and defibrillate through pads and paddles.
Should have automatic lead switching to see patient ECG through paddles or leads.
Able to measure and compensate for chest impedance for a range of 25 to 150 ohms.
The machine should have inbuilt auto & manual thermal recorder for printing ECG trace & stored
information.
Charge indicator: audible and graphic.
Facility for self-test/check before usage.
The machine should have AED feature as inbuilt with manual override for manual operations.
SPO2 and NIBP integrated facility.
System Configuration Accessories, Spares, Consumables and other components:
Paddles Adult (pair)-01
Paddles pediatrics (pair)-01
Patient cable-02
Compatible thermal paper for printer - 10 roll
Compatible Gel - 300mL
Disposable pads – 20
NIBP Cuff Adult – 02
NIBP Cuff Pediatrics- 02
NIBP Cuff Infants- 02
SPO2 Finger Probe - pediatric 01
SPO2 probe Adult -01
Ear Probe – 02
Complete set of ECG Leads – 02
Carrying case-01
All standard accessories, consumables and parts required to operate the equipment, including all standard
tools and cleaning and lubrication materials including items not specified above
Operating Environment;
Operating Temperature: +10 °C to + 32°C
Relative humidity: < 85%
Utility Requirements:
Electrical Power Supply: 220VAC +10%,50hz
Standards and Safety Requirements:
Shall meet ISO 13485 Medical Device Quality Management system (Or Equivalent)
ISO 14971: Medical devices -- Application of risk management to medical devices
IEC 60601-2-4: Medical electrical equipment - Part 2-4: Particular requirements for the basic safety and
essential performance of cardiac defibrillators
Installation, Training and Commissioning:
The supplier must provide commissioning of the device at health facility.
The supplier must provide onsite technical and end user training.
Warranty and After Sale service:
The supplier must provide minimum of two years warranty including labor and spare part from the date
of commissioning.
After basic warranty the supplier must agree for aftersales service.
Documentation:
User and service manual in English
Packaging and Labeling;
Packing of all the goods clearly marked and securely packed.
Each good will be further packed in separate package with all its standard accessories of distinct
identification and numbers consecutively.
Additional packing and labeling requirements should bear in each package
Each item with all accessories /spare parts shall be configured and packed in one unit.
Instructions: Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Co
of each Specification stating the corresponding performance parameter of the equipment offered. Statements of “Com
Bid and cross-referenced to that evidence. Evidence shall be in the form of manufacturer’s un-amended sales literatu
compliance issued by the manufacturer, samples, independent test data etc., as appropriate. A statement that is not su
contradicted by the evidence presented will render the Bid under evaluation liable for rejection. A statement either in
supporting evidence that is found to be false either during Bid evaluation, post-qualification or the execution of the C
the Bidder or supplier liable for prosecution.
ELECTROLYTE ANALYSER
Principle:Direct measurement by Ion Selective Electrode (ISE)
Sample volume:100~150µL
Resolution 0.1 mmol/L
Parameter Reported: Na, K, Cl
Measuring Range: Na: 1–300 mmol/L, K: 0.4–120 mmol/L, Cl: 1-300 mmol/L
Sample Type: Whole Blood, Serum, Plasma, Urine
Analysis Time: Upto 60 sec.
Data storage: up to 200 patient result
Input:Touch-screen
Type: Table Top
Output: Internal thermal recorder, RS-232 serial port
Cost & Benefits: Cost per test for 1000 tests per month should be mentioned and it should be
frozen for 5 Years.
Electrodes should be separate for Na, K & Cl and should be maintenance free.
Sample Volume: Upto 100 µL
It should have a RS-232 serial port for computer connectivity.
It should have automatic calibration as well as user controlled manual calibration option.
Stand-by mode should be user controlled as well as automatic.
Should be supplied with offline pure sine-wave UPS which will provide minimum 1 hour
backup.
Power Supply: AC: 220V ± 10V, 50 Hz.
Equipment should be CE marked / USFDA approved/ EFDA
Should be provided with minimum 2 years warranty that covers all the spare parts as well as
electrodes and tubings. The necessary PM kits within the warranty period should also be provided
by the bidder.
All the reagents for first 6 months should be provided along with the equipment taking into
consideration 1000 tests per month. (edited by facility)
d either “Comply” or “Not Comply” against each of the individual parameters
nt offered. Statements of “Comply” must be supported by evidence in a Bidders
er’s un-amended sales literature, unconditional statements of specification and
iate. A statement that is not supported by evidence or is subsequently found to be
ejection. A statement either in the Bidders statement of compliance or the
ation or the execution of the Contract may be regarded as fraudulent and render
Power supply: 220 – 240 VAC, 50Hz fitted with appropriate plug. The power cable must be at least 3 metre in length
Suitable UPS with maintenance free batteries for minimum 30 min. back-up shall be supplied with the system.
Standards and Safety Requirements
Must submit ISO13485:2003/AC:2007 for Medical Devices AND
Should be FDA/CE/BIS approved product.
Shall meet internationally recognised for Electromagnetic Compatibility(EMC) for electromedical equipment: 61326-
Certified to be compliant with IEC 61010-1, IEC 61010-2-281, 61010-2- 101 for safety.
User Training
Must provide user training (including how to use and maintain the equipment )
Warranty
Comprehensive warranty for 2 years from acceptance
Maintenance Service During Warranty Period
During the warranty period supplier must ensure planned preventive maintenance (PPM) and corrective/breakdown
maintenance whenever required.
Installation and Commissioning
The bidder must arrange for the equipment to be installed and commissioned by certified or qualified personnel; any
prerequisites for installation to be communicated to the purchaser in advance, in detail.
Documentation
User (Operating) manual in English Should provide 2 sets (hardcopy and soft-copy)
Service (Technical / Maintenance) manual in English Should provide 2 sets (hardcopy and soft-copy)
List of important spare parts and accessories with their part number and costing.
Certificate of calibration and inspection from factory
Not Comply” against each of the individual parameters of each Specification
upported by evidence in a Bidders Bid and cross-referenced to that evidence.
fication and compliance issued by the manufacturer, samples, independent test
cted by the evidence presented will render the Bid under evaluation liable for
be false either during Bid evaluation, post-qualification or the execution of the
Table made of corrosion resistant and disinfectant- proof stainless steel and Traction facility
High density memory foam, 1-piece mattress, with cut- outs to fit the mattress frame at all
positions with mattress size of 60mm
Powered height adjustment from 0.6m to 1.2m
Powered Trendelenburg adjustment: -30 deg up to +45 deg
Lower Back: +100°/-30° and Upper Back: +80°/-30
Lateral tilt (left/right): ±30 deg
Adjustment of backrest: -25 to +70
Adjustment to flex/reflex position
Adjustment leg section: +70° / -90°
Table dimension: (l x w x h) 970mm x 500mm x 2000mm
Support at least: 250 Kg
Leg Sections (UP/Down): +25°/-90° and Head Sections (Up/Down): ±40°
System Configuration Accessories, Spares, Consumables and other components:
1x Screen frame
2 x I.V. stands
Shoulder support (pair): Lateral support (pair)
2x Arm table
6x Clamps
1x Jelly mattress for each part to prevent nerve distort all over the body
1x Restraint strap
Orthopedic Surgery's accessories: Orthopedic extension, raised arm tabled / Adjustable arm
support
ENT accessories: Head rest
Gynecology Surgery's accessories: Knee crunches (Pair) Rotary clamps (2 pcs)
Neuro Surgery's accessories: Mayfield and head rest
All standard accessories, consumables and parts required to operate the equipment, including all
standard tools and cleaning and lubrication materials including items not specified above.
Operating Environment;
Operating Temperature: +10 °C to + 40°C
Relative humidity: < 85%
Utility Requirements:
Electrical Power Supply: 220VAC +10%
Standards and Safety Requirements:
Shall meet IEC-60601(Or Equivalent) General Requirements of Safety for Electromagnetic
Compatibility
Shall meet ISO 13485 Medical Device Quality Management system (Or Equivalent)
EFDA product registration certificate
Installation, Training and Commissioning:
The supplier must provide installation, and commissioning of the device at health Facility
The supplier must provide on sight technical and end user training
Warranty and After Sale service:
The supplier must be providing minimum of two years warranty including labor and spare part
from the date of commissioning.
After basic warranty the supplier must agree for after sales service
Documentation:
User and service manual in English
Packaging and Labeling;
Packing of all the goods clearly marked and securely packed.
Each good will be further packed in separate package with all its standard accessories of distinct
identification and numbers consecutively.
Additional packing and labeling requirements should bear in each package
Each item with all accessories /spare part shall be configured and packed in one unit.
DEVIA
TION IF
ANY
Instructions: Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Co
Specification stating the corresponding performance parameter of the equipment offered. Statements of “Comply” mu
referenced to that evidence. Evidence shall be in the form of manufacturer’s un-amended sales literature, uncondition
manufacturer, samples, independent test data etc., as appropriate. A statement that is not supported by evidence or is
presented will render the Bid under evaluation liable for rejection. A statement either in the Bidders statement of com
either during Bid evaluation, post-qualification or the execution of the Contract may be regarded as fraudulent and r
Instructions:Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Comply” against each of
the individual parameters of each Specification stating the corresponding performance parameter of the equipment offered. Statements of
“Comply” must be supported by evidence in a Bidders Bid and cross-referenced to that evidence. Evidence shall be in the form of
manufacturer’s un-amended sales literature, unconditional statements of specification and compliance issued by the manufacturer, samples,
independent test data etc., as appropriate. A statement that is not supported by evidence or is subsequently found to be contradicted by the
evidence presented will render the Bid under evaluation liable for rejection. A statement either in the Bidders statement of compliance or the
supporting evidence that is found to be false either during Bid evaluation, post-qualification or the execution of the Contract may be
regarded as fraudulent and render the Bidder or supplier liable for prosecutio.
Statement of
Procuring Entity’s Specification Bidder’s Specification as Technical Offer Compliance
MODEL: BS-240 Comply
1. Analyzer - Clinical Chemistry, fully automated 1. Analyzer - Clinical Chemistry, fully automated Comply
Clinical Purpose/Description: Chemistry Analyzer is required for Clinical Purpose/Description: Chemistry Analyzer is required
the detection and quantification of blood chemistry and other body for the detection and quantification of blood chemistry and Comply
fluids other body fluids
Technical Specification: Technical Specification: Comply
For analysis of serum, plasma, urine, cerebrospinal fluid (CSF), For analysis of serum, plasma, urine, cerebrospinal fluid (CSF),
Comply
hemolysate and/or whole blood and other hemolysate and/or whole blood and other
A discrete patient prioritized automated random access clinical
A discrete patient prioritized automated random access clinical
chemistry analyzer, for chemistries, immunoglobulins, drug Comply
chemistry analyzer, for chemistries, immunoglobulins, drug assay.
assay.
Independent calibration of photometer and electrolyte analysis and Independent calibration of photometer and electrolyte
Comply
open reagent system analysis and open reagent system
Wavelength range: 340 – 800nm Wavelength range: 340 – 800nm Comply
Through put: 100 test/hour with ISE module Through put: 100 test/hour with ISE module Comply
Reagent/sample tray: Not less than 40 reagent position, 80
Reagent/sample tray: Not less than 40 reagent position, 80 sample po Comply
sample position
Reagent volume: 20 -350ul Reagent volume: 20 -350ul Comply
Error Check: Automatic flagging for errors Error Check: Automatic flagging for errors Comply
Auto dilution Capability: For high value samples Auto dilution Capability: For high value samples Comply
Repeat Run Capability: Capable to check the results by repeat run Repeat Run Capability: Capable to check the results by repeat
Comply
on desired samples run on desired samples
Sample clot and Probe crash detection Capability: For excluding Sample clot and Probe crash detection Capability: For
Comply
erroneous analysis excluding erroneous analysis
Self-diagnosis and troubleshooting: For minor day-to-day Self-diagnosis and troubleshooting: For minor day-to-day
Comply
problems problems
Calibration modes: Linear, Non-Linear and Multipoint Calibration modes: Linear, Non-Linear and Multipoint Comply
Reagent storage facility: Onboard refrigeration for not less than 40 Reagent storage facility: Onboard refrigeration for not less than
Comply
reagent bottles 40 reagent bottles
STAT mode STAT mode Comply
LAN interface facility: Online data transmission facility through LAN interface facility: Online data transmission facility through
Comply
LAN LAN
Cuvette washing system: Inbuilt with automatic cuvette washing Cuvette washing system: Inbuilt with automatic cuvette
Comply
facility and/or disposal system for one time use. washing facility and/or disposal system for one time use.
OPTICAL SYSTEM: OPTICAL SYSTEM: Comply
Light Source: Halogen/ Xenon Lamp. Light Source: Halogen/ Xenon Lamp. Comply
Wave Length Range: 340 – 800 nm with polychromatic
Wave Length Range: 340 – 800 nm with polychromatic correction Comply
correction
The Operational Requirements: should be with programmable The Operational Requirements: should be with programmable
Comply
memory - memory -
The Processing mode: - patient by patient, Test by test and The Processing mode: - patient by patient, Test by test and
Comply
STATmode STATmode
Operating Mode: End point, Kinetic, initial rate, monochromatic, Operating Mode: End point, Kinetic, initial rate,
dichromatic, turbid metric, serum blank (differential), fixed time, monochromatic, dichromatic, turbid metric, serum blank Comply
optics and wavelength range (differential), fixed time, optics and wavelength range
System: open system-able to work with reagents and supplies from System: open system-able to work with reagents and supplies
Comply
other manufacturers from other manufacturers
Assay: End point, rate assay, fixed point assay Assay: End point, rate assay, fixed point assay Comply
Calibration: Linear, non-linear, with possibility of two and multi Calibration: Linear, non-linear, with possibility of two and multi
Comply
point point
calibration; multi point calibration for kinetic and fixed type calibration; multi point calibration for kinetic and fixed type
Comply
modes. modes.
Light Source: long life halogen or equivalent lamp. Light Source: long life halogen or equivalent lamp. Comply
The supplier must provide minimum of Two years warranty we provide minimum of Two years warranty including labor
Comply
including labor and spare part from the date of commissioning. and spare part from the date of commissioning.
we agree after basic warranty the supplier must agree for after
After basic warranty the supplier must agree for after sales service Comply
sales service
Documentation: Documentation: Comply
User and service manual in English (2 hard copy) soft copy for User and service manual in English (2 hard copy) soft copy for
Comply
tender evaluation tender evaluation
Technical data sheet Technical data sheet Comply
Manufacturer catalogue Manufacturer catalogue Comply
Standard accessories and spare parts list (required for three
Standard accessories and spare parts list (required for three years) Comply
years)
Regulation Regulation Comply
EFDA registered product (Valid product registration certificate) EFDA registered product (Valid product registration certificate) Comply
Each good will be further packed in separate package with all its Each good will be further packed in separate package with all
standard accessories of distinct identification and numbers its standard accessories of distinct identification and numbers Comply
consecutively. consecutively.
Additional packing and labeling requirements should bear in each Additional packing and labeling requirements should bear in
Comply
package each package
Each item with all accessories /spare part configured and packed in Each item with all accessories /spare part configured and
Comply
one unit. packed in one unit.
Note: Any information not supported by manufacturer catalogue and technical datasheet results in disqualification from the bid.
Acceptance of the equipment is after successful completion of installation and commissioning by respective biomedical engineering department.
All technical proposals shall be in both hard copy and soft copy.
Instructions:Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Comply”
against each of the individual parameters of each Specification stating the corresponding performance parameter of the
equipment offered. Statements of “Comply” must be supported by evidence in a Bidders Bid and cross-referenced to that
evidence. Evidence shall be in the form of manufacturer’s un-amended sales literature, unconditional statements of
specification and compliance issued by the manufacturer, samples, independent test data etc., as appropriate. A statement
that is not supported by evidence or is subsequently found to be contradicted by the evidence presented will render the Bid
under evaluation liable for rejection. A statement either in the Bidders statement of compliance or the supporting evidence
that is found to be false either during Bid evaluation, post-qualification or the execution of the Contract may be regarded as
fraudulent and render the Bidder or supplier liable for prosecutio.
Independent calibration of photometer and electrolyte analysis and open reagent system
System: open system-able to work with reagents and supplies from other manufacturers
2- Graphic printer- for printout of parameters, results, calibration curves, kinetic and
statistics, facility to store data in PC through connecting data cable and related software must
be provided.
3- Desktop PC with compatible Operating system must be provided along (brand new)
4-Complete Start up kits consumables (reagents, kits, controls…), accessories, and spares
required for installation and standardization of the System to be provided free of charge.
All standard accessories, consumables and parts required to operate the equipment, including
all standard tools and cleaning and lubrication materials including items not specified above
Operating Environment;
Operating Temperature: +10 °C to + 30°C
Relative humidity: < 85%
Utility Requirements:
Electrical Power Supply: 220VAC +10%
Standards and Safety Requirements:
Shall meet IEC-60601(Or Equivalent) General Requirements of Safety for EMC
Shall meet ISO 13485 Medical Device Quality Management system (or Equivalent)
Installation, Training and Commissioning:
The supplier must provide installation, and commissioning of the device at health Facility
The supplier must provide onsite technical and end user training (at least 5 days)
Warranty and After Sale service:
The supplier must provide minimum of Two years warranty including labor and spare part
from the date of commissioning.
After basic warranty the supplier must agree for after sales service
Documentation:
User and service manual in English (2 hard copy) soft copy for tender evaluation
Technical data sheet
Manufacturer catalogue
Standard accessories and spare parts list (required for three years)
Regulation
EFDA registered product (Valid product registration certificate)
Packaging and Labeling:
Packing of all the goods clearly marked and securely packed.
Each good will be further packed in separate package with all its standard accessories of
distinct identification and numbers consecutively.
Each item with all accessories /spare part configured and packed in one unit.
Note: Any information not supported by manufacturer catalogue and technical datasheet results in disqualification from the bid.
Acceptance of the equipment is after successful completion of installation and commissioning by respective biomedical engineering
department.
All technical proposals shall be in both hard copy and soft copy.
Requirements
Analyzer-Hematology, 3 Differential
Clinical Purpose/Description:
Used in clinical laboratory, Hematology tests can be used to indicate, diagnose, and
evaluate many conditions, including infection, inflammation, and anemia. Hemoglobin
(Hg) - the oxygen-carrying protein in red blood cell.
Technical Specification:
Principles: Electrical impedance method with advanced SRV technology for accurate &
precise total count
Diode based LASER Technology for 3-part differential
Photometry – LED based technology for hemoglobin
Parameters: Not less than 20 parameters (WBC, RBC, HGB, HCT, MCV, MCH, MCHC,
PLT, LYM#, MON#, Gran#, LYM%, MON%, Gran%, RDW-SD, RDW-CV, PDW-SD,
PDW-CV, MPV, PCT)
Plus: 3 histograms –RBC, WBC & PLT
Throughput: Not less than 40 samples / hour
Sample mode: whole blood in open mode
Chambers: Dual chamber advanced system
Auto Clean Modes: Available
Automatic system
Sample volume: approx. 30 micro liters
Determination of: red blood cell (RBC), White blood cell (WBC), Hemoglobin (HGB),
Calibration: independent automated calibration and manual calibration for two test modes
minimum
Data storage approximately 40,000 sample results with Histogram
WBC, RBC, and platelet
Calibrator and control shelf life at least 3 months and reagent 1 year
Operation by screen touch and key board
Printer built in thermal printer (standard)and external printer optional
Typical counting time: approx. 60 seconds for differential
With self-test capability
Display: LCD screen
Indication of self-test failures and assistance messages
Sample ID, date and time are reported with test results
Supplied complete with dedicated data analysis and data management software
Results are reported on external inkjet printer
Casing, corrosion proof material such as plastic or epoxy coated steel
With built-in RS232, USB 2.0 or equivalent, allowing data transfer
System Configuration Accessories, Spares, Consumables and other components:
Supplied with: UPS and stabilizer as one unit
Supplied with dust cover
Bar code reader with handheld accessories
All standard accessories, consumables and parts required to operate the equipment,
including all standard tools and cleaning and lubrication materials including items not
specified above
Operating Environment;
Operating Temperature: +10 °C to + 30°C
Relative humidity: < 85%
Utility Requirements:
Electrical Power Supply: 220VAC +10%
Standards and Safety Requirements:
Shall meet IEC-60601(Or Equivalent) General Requirements of Safety for
Electromagnetic Compatibility
Shall meet ISO 13485 Medical Device Quality Management system (or Equivalent)
The supplier must provide installation, and commissioning of the device at health Facility
The supplier must provide onsite technical and end user training
Warranty and After Sale service:
The supplier must be provide minimum of Two years warranty including labor and spare
part from the date of commissioning.
After basic warranty the supplier must agree for after sales service
Documentation:
User and service manual in English
Packaging and Labeling:
Packing of all the goods clearly marked and securely packed.
Each good will be further packed in separate package with all its standard
accessories of distinct identification and numbers consecutively.
Additional packing and labeling requirements should bear in each package
Each item with all accessories /spare part configured and packed in one unit.
iance the word either “Comply” or “Not Comply” against each of the
rformance parameter of the equipment offered. Statements of “Comply”
hat evidence. Evidence shall be in the form of manufacturer’s un-amended
e issued by the manufacturer, samples, independent test data etc., as
ently found to be contradicted by the evidence presented will render the Bid
atement of compliance or the supporting evidence that is found to be false
ontract may be regarded as fraudulent and render the Bidder or supplier
Requirements
Analyzer-Hematology, 3 Differential
Clinical Purpose/Description:
Used in clinical laboratory, Hematology tests can be used to indicate, diagnose, and evaluate many
conditions, including infection, inflammation, and anemia. Hemoglobin (Hg) - the oxygen-carrying
protein in red blood cell.
Technical Specification:
Principles: Electrical impedance method with advanced SRV technology for accurate & precise total
count
Diode based LASER Technology for 3-part differential
Photometry – LED based technology for hemoglobin
Parameters: Not less than 20 parameters (WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT,
LYM#, MON#, Gran#, LYM%, MON%, Gran%, RDW-SD, RDW-CV, PDW-SD, PDW-CV, MPV,
PCT)
Plus: 3 histograms –RBC, WBC & PLT
Throughput: Not less than 40 samples / hour
Sample mode: whole blood in open mode
Chambers: Dual chamber advanced system
Auto Clean Modes: Available
Automatic system
Sample volume: approx. 30 micro liters
Determination of: red blood cell (RBC), White blood cell (WBC), Hemoglobin (HGB),
Calibration: independent automated calibration and manual calibration for two test modes minimum
Sub-stage condenser shall be fitted with aspherical lens and iris diaphragm
Focusing shall be achieved by coaxial coarse and fine adjustments with a
safety stop at end of the range
At least one eyepiece shall include dioptric adjustment
A mirror with sub-stage mounting shall be supplied for direct light operation with
no electricity
The slide holder shall have spring-loaded side clamps
Slide stage shall have Vernier gauge rule in at least one dimension, with
movement possible in both X and Y directions with range not smaller than
60mm for x-direction and 40 mm for y-direction.
Wide-field eyepieces at least 10x and 15x.
At least the following plane achromatic objectives provided: 4x, 10x, 40x, and
100x (oil immersion) with Numerical Aperture (N.A.) for each objective
respectively of at least 0.10, 0.25, 0.65, and 1.25 respectively
Anti-fungus treated observation tubes, eyepieces, and objectives.
LED light
Brightness control: 0 to 100 % (linear)
Resolution:
Coarse focusing: approx. 3 mm per rotation
Fine focusing: approx. 0.3 mm per rotation
Range of total magnification: 40 to 1000Xs
Reverse angle quadruple revolving nose-piece, with distinct click-stop, with
rubber grip for easy handling
Condenser: Abbe with iris diaphragm aperture, 1.25 NA
Light power on / off and intensity control shall be fitted
The main body and lenses shall be supplied in an airtight protective
container(s)
All material shall be non-ferrous and corrosion-proof
Electrical source requirements: Voltage: 220V; Frequency: 50Hz; Phases:
single
Fuse protection of mains line to be incorporated
Power Consumption: approx. 20 W
Backrest adjustable via secured pawl and gear ratchet, safe for patient and operator.
When fully extended, both sections align to perfectly flat surface.
Materials:
High resistance to corrosion (tropical environment).
Frame: Stainless steel.
Upholstery: high-density polyurethane foam, density not less than 30 kg/m3.
Cover: plastic, flexible highly tear resistant, anti-static, flame retardant, disinfectant- and
liquid proof, washable.
Dimensions:
Approx. Overall size 1820-1830mm L × 600-610mm W × 750-760mmH.
Frame, diameter: approx. 30 mm.
Upholstery: approx. 50 mm (h)
Carrying capacity: Not less than 150Kg.
Standard examination table for health care facilities.
Packaging: Delivered in a knockdown construction, with assembly instructions.
Complies with Medical Device Directive 93/42/EEC, class risk 1
CE mark and reference number of notifying body.
e the word either “Comply” or “Not Comply” against each of the individual parameters of
quipment offered. Statements of “Comply” must be supported by evidence in a Bidders Bid
facturer’s un-amended sales literature, unconditional statements of specification and
as appropriate. A statement that is not supported by evidence or is subsequently found to be
iable for rejection. A statement either in the Bidders statement of compliance or the
st-qualification or the execution of the Contract may be regarded as fraudulent and render
Bidder’s Specification as
Technical Offer Statement of Compliance
Ultrasound, General Purpose
Overview of functional requirements:
Delivers real-time, non-invasive imaging of internal organ structures and functionality
Displays images on integral screen and also enables DICOM compliant image transfer
Supplied with all necessary probes for cardiac, vascular, Obs/Gyn, prostate and breast imaging, with color Dopple
imaging, for patients of all ages
Detailed requirements
Color monitor, TFT or LCD of Approximately 15".
Dynamic range at least 180 dB
Frequency range of at least 1-15 MHz
Modes: M (Bi-dimensional, simultaneous); Color Doppler; Pulsed Doppler; Color perfusion; Harmonic images.
Digital and caliper measurement functions required for both distance, area and volume.
Trackball and/or touchpad in user panel.
Frame by frame image memory or cine-loop.
Doppler display to indicate blood flow both numerically and in colour.
Connection port for image printing to be included (printer specified separately).
HD/CD/DVD/USB storage unit
Hard disk of at least 1 TB
Displayed parameters:
Unit display to be at least 512 by 512 pixels, with at least 256 gray scale levels and 256 color scale levels. Area,
distance, volume, angles, speed and acceleration. Frozen image zoom of at least 10X.
Dynamic real time zoom of at least 4X.
User adjustable settings:
Adjustable depth gain, freeze frame and image zoom facilities required.
Protocols.
Cine record and playback feature required, with frame rate at least 500 fps.
Measurement accuracy to be better than 2% over 10cm distance
Alphanumeric annotation to be possible
Physical/Chemical Characteristics:
Unit to be supplied on stable, mobile trolley fitted with 4 wheels that can be braked
Display to have tilt/swivel facility for easy viewing
Configurable footswitch control with at least 2m lead required
Probe leads to be at least 1.5m in length 22)
Included probes:
Convex with at least triple frequency, bandwidth of at least 3Mhz, including 3.5Mhz frequency;
Linear with at least triple frequency, bandwidth of at least 2Mhz, including 6.5Mhz frequency
Phased array with at least triple frequency, bandwidth of at least 2 Mhz including 3 Mhz frequency;
Vaginal probe with at least triple frequency, and Field of view of at least 185° for one equipment.
Utility requirements:
Electrical and Back Up Battery, Approx. 2 Hours Battery Life
220 V, 50 Hz, ±10%,
Voltage corrector / stabilizer / UPS to allow operation at ± 30% of local rated voltage and one hour operation in th
event of mains power failure.
Electrical protection by resettable circuit breakers in both live and neutral supply lines.
Mains supply cable to be at least 3m in length.
Accessories, consumables, spare parts, other components
Accessories
Lineal probe, 5 to 12 MHz
Convex probe, 2 to 5 MHz
Endo-cavity probe, 4 to 8 MHz
Video printer (digital)
Consumables / reagents
Gel
Disposable covers for Endo-cavity probe
CD/DVD discs
Spare parts
Medical units select them according to their needs, ensuring compatibility with the brand and model of the medica
device.
Other components
UPS
Environmental requirements:
Capable of being stored continuously in ambient temperature of 0 to 50 deg C and relative humidity of 15 to 90%.
Capable of operating continuously in ambient temperature of 10 to 40 deg C and relative humidity of 15 to 90%.
Commissioning, installation, utilization:
Supplier to perform installation, commissioning, safety, and operation checks before handover
Local Biomedical and clinical staff to affirm completion of installation
Training of user/s/ and Biomedical Engineers/Technicians:
Advanced maintenance tasks required shall be documented
Warranty and maintenance:
Warranty: Not less than 24 months
Comprehensive Contract for two years including spare and labor cost provided free of charge.
Spare parts availability post-warranty:5 years
Software / Hardware upgrade availability: DICOM licenses.
Clinical/operational software upgrade available during useful lifespan.
Documentation:
User, technical and maintenance manuals to be supplied in English language.
Certificate of calibration and inspection to be provided.
List of standard configuration and accessories.
List to be provided of equipment and procedures required for local calibration and routine maintenance
List to be provided of important spares and accessories, with their part numbers and costings.
Contact details of manufacturer, supplier and local service agent to be provided
EFDA product registration certificate
Separate letter for 3 years post-warranty to provide spare parts.
International standards: ISO, IEC or CE Certified
Separate letter for warranty
Servicing agreement (details with implementation plan) including labor and spare cost within warranty period to b
provided free of charge.
Addis Ababa City Administration Health Bureau
Biomedical Engineering Department
Bidder’s Specification as
Procuring Entity’s Specification Technical Offer Statement of Compliance
Model:
Manufacturer:
Country of origin:
Item:Ultrasound imaging system/Ultrasound machine
Scope of work: supply, installation, training, commissioning, and aftersales service.
General Description:
Mobile ultrasound Imaging system with 2 probes for obstetrics and gynecology
Delivers real-time, non-invasive imaging of internal organ structures and functionality
Should be field upgradable to next generation system on site.
All new software should be upgraded free of cost.
Detailed requirements
Monitor Size: 15" LCD
Tilt/Rotate Adjustable Monitor: Yes
Dynamic range at least 180 dB
Frequency range of at least 1-15 MHz
Image up-date rate at least: 20 image/s
Trackball and/or touchpad in user panel.
Phased array probe system with Minimum 1000 Electronic independent channels.
Calculations: Ob/gyn and general (mandatory)
Tissue harmonic imaging: Yes
Modes: B, M, PW,
Number of Ports: 2
Stationary or Portable: Portable
Automated Gain control for additional level of flexibility to image quality control.
Battery: 2hours
Maximum Depth of Field: 30cm
DICOM 3.0 Connectivity
DICOM SR_OB-GYN
HDD/SDD: 500GB
DVD/CD RW
Material: Heavy duty plastic and steel
Comprehensive Contract for two years including spare and labor cost provided free
of charge.
Spare parts availability post-warranty:5 years
Software / Hardware upgrade availability: DICOM licenses.
Clinical/operational software upgrade available during useful lifespan.
Documentation:
User, technical and maintenance manuals to be supplied in English language.
Certificate of calibration and inspection to be provided.
List of standard configuration and accessories.
List to be provided of equipment and procedures required for local calibration and
routine maintenance
List to be provided of important spares and accessories, with their part numbers and
costings.
Contact details of manufacturer, supplier and local service agent to be provided
EFDA product registration certificate
Separate letter for 3 years post-warranty to provide spare parts.
International standards: ISO, IEC or CE Certified
Separate letter for warranty
Servicing agreement (details with implementation plan) including labor and spare
cost within warranty period to be provided free of charge.
Bidder’s Specification as
Procuring Entity’s Specification Technical Offer Statement of Compliance
Laundry machine (washer extractor) with dryer
Scope of work: Supply, Installation, testing, commissioning and turnkey work of mechanized laundry equipment
and handover to the facility premises, including services of defect liability period as per contract.
Capacity -18-21kg , Electrically Heated, Front loading, Heavy duty, High Spin, Soft Mount, variable frequency
drive & Auto reverse & forward, & Front display.
Purpose: For removal of blood stains, faecal matter, vomit and another residue
Dynamic weghting system
Door Opening - 55 mm Ø
Level Sensor - Highly sensitive auto water level sensor with PLC
Basket Volume- 100 Liters.
Wash RPM - 50
Low extract-300 RPM
Final Extract - 900 RPM
Motor power: 4.5 KW
G-Force - 400
Electric supply - 220/380V AC, 50hz. 4P
In-built Control Panel and Motor
Noise level: <70dB
System Configuration Accessories, Spares, Consumables and other components:
Washer extractor with all standard and complete accessories
Overall Turnkey Works
It is the responsibility of the Supplier to provide any turnkey works in all aspects for successful installation and
commissioning of the equipment. This shall include everything required for successful commissioning but not
limited to the following:
a). Water Connection:
All water intake connection to the machine should be fitted with manual shut-off valves.
b). Drain Connection:
Bidder shall do drain outlet via either drilled floor or any other for drainage purpose
c). Electrical Connection:
Three phase breaker with size as per manufacturer recommendation near to the machine.
d). Mechanical installation:
Bidder shall do if the machine needs a concrete floor with thickness recommended by the manufacturer.
e). Evacuation system:
To allow dryer, ironer to work at its best, air inlet passes through an opening outside
Air inlet opening should be standard and placed behind the
machine
Exhaust duct is made from galvanized steel not be from plastic ducting
Commissioning, installation, utilization:
Supplier to perform installation, commissioning, safety, and operation checks before handover
Biomedical staff to affirm completion of installation
Training of user/s/ and Biomedical Engineers/Technicians:
Warranty and maintenance:
Warranty: Not less than 24 months
Comprehensive Contract for two years including spare and labor cost provided free of charge.
Documentation:
User, technical and maintenance manuals to be supplied in English language.
List to be provided of important spares and accessories, with their part numbers and costings.
Contact details of manufacturer, supplier and local service agent to be provided
EFDA product registration certificate
International standards: ISO, IEC or CE Certified
Scope of work: Supply, Installation, testing, commissioning and turnkey work of mechanized laundry equipment
and handover to the facility premises, including services of defect liability period as per contract.
Capacity:18-21kg , Electrically Heated, Front loading, Heavy duty, High Spin, Soft Mount, variable frequency
drive & Auto reverse & forward, & Front display.
Purpose: For removal of blood stains, faecal matter, vomit and another residue
Dynamic weghting system
Door Opening - 55 mm Ø
Level Sensor - Highly sensitive auto water level sensor with PLC
Basket Volume- 100 Liters.
Wash RPM - 50
Low extract-300 RPM
Final Extract - 900 RPM
Motor power: 4.5 KW
G-Force - 400
Electric supply - 220/380V AC, 50hz. 4P
In-built Control Panel and Motor
Noise level: <70dB
System Configuration Accessories, Spares, Consumables and other components:
Washer extractor with all standard and complete accessories
Overall Turnkey Works
It is the responsibility of the Supplier to provide any turnkey works in all aspects for successful installation and
commissioning of the equipment. This shall include everything required for successful commissioning but not
limited to the following:
a). Water Connection:
All water intake connection to the machine should be fitted with manual shut-off valves.
b). Drain Connection:
Bidder shall do drain outlet via either drilled floor or any other for drainage purpose
c). Electrical Connection:
Three phase breaker with size as per manufacturer recommendation near to the machine.
d). Mechanical installation:
Bidder shall do if the machine needs a concrete floor with thickness recommended by the manufacturer.
e). Evacuation system:
To allow dryer, ironer to work at its best, air inlet passes through an opening outside
Air inlet opening should be standard and placed behind the
machine
Exhaust duct is made from galvanized steel not be from plastic ducting
Commissioning, installation, utilization:
Supplier to perform installation, commissioning, safety, and operation checks before handover
Biomedical staff to affirm completion of installation
Training of user/s/ and Biomedical Engineers/Technicians:
Warranty and maintenance:
Warranty: Not less than 24 months
Comprehensive Contract for two years including spare and labor cost provided free of charge.
Documentation:
User, technical and maintenance manuals to be supplied in English language.
List to be provided of important spares and accessories, with their part numbers and costings.
Contact details of manufacturer, supplier and local service agent to be provided
EFDA product registration certificate
International standards: ISO, IEC or CE Certified
Bidder’s Specification as
Technical Offer Statement of Compliance
Procuring Entity’s Specification
Glycated Hemoglobin (HbA1C) Analyzer
Measuring method:
Sample Type:
Sample Size:
Reaction Time:
Measuring Range:
Precision:
Display unit:
Memory Capacity:
Patient ID/Operator ID Entry:
Storage environment:
CARTRIDGE SPECIFICATION
Measuring method
Operating environment:
Storage environment:
Communication:
Power supply:
Automation:
Certifications:
Warranty :
Training and installation
Bidder’s Specification as
Procuring Entity’s Specification Technical Offer
(HbA1C) Analyzer
Mnaufacturer
Model
Country of origin
Photometry
Whole blood or prediluted - Fingertips capillary or EDTA venous blood
≦ 0.2 μl
≦ 5 mins
4 % ~ 16 %
CV <3%
Percentage (%) or mmol/mol
10,000 results
Barcode reader or Keyboard
10-40 ºC, 10-90 % R.H.
Immunoassay
10-40 ºC, 10-90 % R.H.
Scope of work: Supply, Installation, Testing, Commissioning and Turnkey work of mechanized laundry equipment
with tumble drier and handover to the facility premises, including services of defect liability period as per contract.
Dryer:
Tumble dryers are used, machines in which textiles are dried by tumbling in a rotating drum through which heated
air is passed.
Capacity 70 to 80 kg of wet linen
Dryer/tumbler should be, electrically heated, heavy duty, Front Loading, Cool down
Feature, Auto-timed, Auto-reversible, Auto digital temperature control, Dual Motor drive,
Open Pocket & Front display
Programmable microprocessor controlled with touch panel, color screen LCD/TFT display for working parameters
and multi-level interface
Heating Power: Not more than 40 Kw
Motor power: 1.10 KW
Electric, steam heating type
Steam pressure: 0.3-0.5mpa
Equipped with removable lint screen
Automatic signal display when finishing
Tumble dryers with stainless steel drum
Alarms and free display of operating parameters
Auto adjustable vacuum power to the existing condition
Professional brushless motor
Bi-directional drum movement, with auto reversing and exhaust system
Perfect tumble dry system
Tumble dryers with humidity sensor and display
Large wide opening door, with semi-perforated inner drum for easy removal of hot air
Easy water emptying to accessible drain out
Noise <50dB
Adjustable drum speed and rotation
Trap system to remove fine particles
Exact dry moisture sensor
Door minimal heat loss
Less steam consumption but quick dry time
Stainless steel dryer drum
Outer chamber dryer should be made of stainless steel 304 sheet
Inner chamber dryer should be made of s.s 316
Heating and time control should be done digital temperature, time controller
Trays should be made from SS 316 sheets
Racks and trolleys racks should be provided for trays inside the dryer
Racks should be provided with wheels to slide them in and out of the dryer
Machine should be fitted with anchor bolt with vibration damper
Safety micro switches on door, depression and filter check
Self-diagnostic fault alarm systems, safety protection system
Power supply: 380v, +- 10%, 50hz
With all standard accessories
Equipped with removable lint screen Automatic and gives signal when finishing
Stainless steel drum Safety micros witches on door, Electrical heating system,
Air particle filter to ensure the drying air is free from particles.
Tumbler drier of solid steel construction
machine should have thermal overload protection system
cycle programming should be by varying temp or time
System Configuration Accessories, Spares, Consumables and other components:
Washer extractor with all standard and complete accessories
Overall Turnkey Works
It is the responsibility of the Supplier to provide any turnkey works in all aspects for successful installation and
commissioning of the equipment. This shall include everything required for successful commissioning but not
limited to the following:
a). Water Connection:
All water intake connection to the machine should be fitted with manual shut-off valves.
b). Drain Connection:
Bidder shall do drain outlet via either drilled floor or any other for drainage purpose
c). Electrical Connection:
Three phase electrical line from hospital MDB/Generator near to the machine ( Proper grounding should be
included)
Three phase breaker with size as per manufacturer recommendation near to the machine.
d). Mechanical installation:
Bidder shall do if the machine needs a concrete floor with thickness recommended by the manufacturer.
e). Evacuation system:
To allow dryer, ironer to work at its best, air inlet passes through an opening outside
Air inlet opening should be standard and placed behind the
machine
Exhaust duct is made from galvanized steel not be from plastic ducting
Commissioning, installation, utilization:
Supplier to perform installation, commissioning, safety, and operation checks before handover
Biomedical staff to affirm completion of installation
Training of user/s/ and Biomedical Engineers/Technicians:
Advanced maintenance tasks required shall be documented
Warranty and maintenance:
Warranty: Not less than 24 months
Comprehensive Contract for two years including spare and labor cost provided free of charge.
Spare parts availability post-warranty:5 years
Documentation:
User, technical and maintenance manuals to be supplied in English language.
Certificate of calibration and inspection to be provided.
List of standard configuration and accessories.
List to be provided of equipment and procedures required for local calibration and routine maintenance
List to be provided of important spares and accessories, with their part numbers and costings.
Contact details of manufacturer, supplier and local service agent to be provided
EFDA product registration certificate
Separate letter for 2 years post-warranty to provide spare parts.
International standards: ISO, IEC or CE Certified
Servicing agreement (details with implementation plan) including labor and spare cost within warranty period to be
provided free of charge.
Bidder’s Specification as
Technical Offer Statement of Compliance
Item Detail
Generic Name: Laundry Machine
GMDN/UMDN Code/Name:
Clinical Purpose/Description:
Used to receive contaminated items for cleaning and to provide an adequate efficient, economic, continues quality
disinfected linen to all patient care services in the hospital.
Technical Specification:
Washer Extractor machine:
Both hot and cold water washing Horizontal drum type made of non-magnetic stainless steel,
Front loading type,
Method of washing should be tumble wash.
Machine should be made of 304 grade stainless steel (Inner cage should have die-sunk perforations on adequate ar
thickness should be of 14 SWG S.S and outer body thickness 16 SWG 304 S.S).
Machine should have large stainless steel front door with toughened glass.
Machine should have automatic door locking system while machine is in operation.
Large loading and unloading doors with up to 180 degree opening angle for easy access
Machine should have auto-reverse / open pocket with low spin extract.
Machine should have level indicator.
Capacity of 65 kg to 75 kg dry linen.
Nose level (dB) <70
Wash speed / Spin speed rpm. Not less than 33
Extracting speed rpm, - Not less than 670
Machine should have heavy duty Motor Power Not more than 7.5 KW
Machine should have Dual operating system options i.e., both electrical and steam heating provisions.
Steam pressure: -0.2 to o.6 MPa
Air pressure: -0.4 to o.6 MPa
Drum volume: - Not less than 700 Liter
Heating power: - 40 -55kw
Rotation direction: -forward/reverse/stop, one way drive with electrical water heater, adjustable rotation speed of g
1000rpm (max).
With operating valves Material: stainless steel
Automatic stop alarming mechanism
With washing options for dirty and colored clothes
Automatic stopping and stop signaling when finishing with braking system.
The machine shall have features like wash timer, automatic forward/reverse cyclic timer. Sensor to detect level in
easy refilling system.
Sensor for water in chamber to avoid dry run.
Built in steam condenser for washing and drain.
Single phase motor invertor
Programmable water temperature for each bath
Freely programable control with advanced 7 " color display for easy operation
Programmable overnight bath soak
Programmable water temperature for each bath
Long, short and extra short program
Temperature adjustment
Fresh water flashing chemical manifold
Shock absorbing system
Two-way circulation pump hose with flat inner surface
Auto wash feature
Dirt resistant drain hose
Emergency stop switch
Connections:
voltage inlet: 380V frequency of 50Hz
Connections:
voltage inlet: 380V frequency of 50Hz
Hot and Cold-Water connections: Machine should have adequate water inlet and drain outlet size with appropriate
pressure and satisfactory flow rate.
Dryer:
Tumble dryers are used, machines in which textiles are dried by tumbling in a rotating drum through which heated
Capacity 70 to 80 kg of wet linen
Dryer/tumbler should be, electrically heated, heavy duty, Front Loading, Cool down
Feature, Auto-timed, Auto-reversible, Auto digital temperature control, Dual Motor drive,
Open Pocket & Front display
Programmable microprocessor controlled with touch panel, color screen LCD/TFT display for working parameter
level interface
Heating Power: Not more than 40 Kw
Motor power: 1.10 KW to 1.5 KW
Electric, steam heating type
Steam pressure: 0.3-0.5mpa
Equipped with removable lint screen
Automatic signal display when finishing
Tumble dryers with stainless steel drum
Alarms and free display of operating parameters
Auto adjustable vacuum power to the existing condition
Professional brushless motor
Bi-directional drum movement, with auto reversing and exhaust system
Perfect tumble dry system
Tumble dryers with humidity sensor and display
Large wide opening door, with semi-perforated inner drum for easy removal of hot air
Easy water emptying to accessible drain out
Noise <50dB
Adjustable drum speed and rotation
Trap system to remove fine particles
Exact dry moisture sensor
Door minimal heat loss
Less steam consumption but quick dry time
Stainless steel dryer drum
Outer chamber dryer should be made of stainless steel 304 sheet
Inner chamber dryer should be made of s.s 316
Heating and time control should be done digital temperature, time controller
Trays should be made from SS 316 sheets
Racks and trolleys racks should be provided for trays inside the dryer
Racks should be provided with wheels to slide them in and out of the dryer
Machine should be fitted with anchor bolt with vibration damper
Safety micro switches on door, depression and filter check
Self-diagnostic fault alarm systems, safety protection system
Power supply: 380v, +- 10%, 50hz
With all standard accessories
Equipped with removable lint screen Automatic and gives signal when finishing
Stainless steel drum Safety micros witches on door, Electrical heating system,
Air particle filter to ensure the drying air is free from particles.
Tumbler drier of solid steel construction
machine should have thermal overload protection system
cycle programming should be by varying temp or time
Ironing machine
Roller type: - Heater temperature adjustment for various types of clothes/garments
Having maximum and minimum speeds and reversing Roller length used to dry ironing.
Water spray. Variable thermostat control l
Roller length: - 2.5 meter
Roller diameter: = not less than 500mm
Ironing speed (Rotation speed:) m/minute - 0 -8
Motor power (KW): - 1.1 to 1.5
Electric heating power (KW)33 to 39
Roller type, stainless steel body
Electrical heating system
Heating range: max 200degC
Heater temperature adjustment for various types of garments
Having maximum and minimum adjustable speed
Noise level <65dB
Automatic control of overheating
Built in electric heating system with temperature setting unit
The machine must have Emergency stop button
Having driving and exhaust motors with brake system
Indication of ironing speed and temperature
Separate delivering and receiving table for dirty and clean linen
Variable setups for folding
Built-in feeding and length folding system
Frequency controlled motor
Automatic cool down
Power supply: three phase, 380v, +- 10% 50hz
An ironer with exhaust fan for the removal of vapors produced while ironing is preferable
The roller padding should ensure uniform pressure throughout its length
Final cover of the roller should be made with NOMEX which is high temp. resistant
The machine must have Emergency stop button
Ironing speed must be adjustable
Laundry trolley for wet clothes:
Material: chrome plated steel/polymers Capacity of not less than 60kg Built on heavy
duty castors. Mobile box of non-rust polymer construction for solidity and durability.
Dimensions: approx. 736 x 660 x 965 mm (h x w x l). With 2 rigid and 2 swivel castors.
With outlet tap.
Laundry trolley for dry clothes:
Material: chrome plated steel Capacity of not less than 40kg about 55kg
Built on heavy duty castors Material: chrome plated steel/polymers
Capacity of not less than 40kg Built on heavy duty castors.
Mobile box of non-rust polymer construction for solidity and durability.
Dimensions: approx. 736 x 660 x 965 mm (h x w x l).
With 2 rigid and 2 swivel castors.
Gloves: - Heavy duty type Rubber Gloves For laundry purpose
5. System Configuration Accessories, Spares, Consumables and other components:
Washer extractor, dryer and ironer should provide with all standard and complete accessories
6. Operating Environment;
Operating Temperature: +10 °C to + 40°C
Relative humidity: < 85%
7. Utility Requirements:
Electrical Power supply: Three phase, 380VAC ±10%, 50hz
The system must be inclusive of water supply with proper pressure
Should have proper drainage system
Should have heat ventilation and air circulation system
8. Standards & Safety Requirements:
Shal meet, ISO, and CE, Certification, this shall include standard and safety
requirement and also meet the following:
Shall meet IEC-6060 General Requirements of Safety for Electromagnetic Compatibility
Shall meet ISO 1042, safety requirements for hospital laundry machine
machine should have thermal overload protection system
Overall Turnkey Works
It is the responsibility of the Supplier to provide any turnkey works in all aspects for successful installation and co
the equipment. This shall include everything required for successful commissioning but not limited to the followin
a). Water Connection:
All water intake connection to the machine should be fitted with manual shut-off valves.
b). Drain Connection:
Bidder shall do drain outlet via either drilled floor or any other for drainage purpose
c). Electrical Connection:
Three phase electrical line from hospital MDB/Generator near to the machine ( Proper grounding should be includ
Three phase breaker with size as per manufacturer recommendation near to the machine.
d). Mechanical installation:
Bidder shall do if the machine needs a concrete floor with thickness recommended by the manufacturer.
e). Evacuation system:
To allow dryer, ironer to work at its best, air inlet passes through an opening outside
Air inlet opening should be standard and placed behind the
machine
Exhaust duct is made from galvanized steel not be from plastic ducting
9. Installation/Training/Commissioning:
The supplier must provide installation, and commissioning of the device at health Facility
The supplier must provide on site technical and end user training
10. Warranty/ After sales service:
The supplier must be provide minimum of Two years warranty including labor and spare part from the date of com
After basic warranty the supplier must agree for after sales service
10. Documentation:
The supplier must provide user manuals/operation manuals and Services manuals in English.
Procuring Entity’s Specification
Pulse oximeter, finger tip
Manufacturer
Country of origin
Model
Description: Pulse oximeters are medical devices that monitor the level of oxygen saturation in a patient's blood
and alert the health-care worker if oxygen levels drop below safe levels, allowing rapid intervention.
Technical requirement
Type: Fingertip SpO2:
Display range: 1 - 100 % accuracy - no motion, adults and children
Accuracy - with motion, adults and children: 70 - 100 % +/- 3 digits.
Accuracy - no motion, neonates: 70 - 100 % +/- 3 digits
Resolution: 1%
Pulse rate:
Display range: 25 – 240 bpm
Accuracy - with motion, adults, children, neonates: 25 - 240 bpm +/- 5 digits
Resolution: 1 bpm
Memory:
Not less than 3000 entries: begin and end of monitoring episodes, alarm limits
Alarms;
High priority: SpO2 high, SpO2 low, pulse high, pulse low
Medium Priority: battery depleted, sensor defect, data communication error
Low priority: battery low, defect alarm loud speaker
Interface:
Analog: SpO2: 0 - 1.0 V, Pulse rate: 0 - 2.4 V, Plethysmogram: 0 - 2.5 V
RS232 infrared remote alarm, nurse call
Power Supply:
External AC-adapter: 9.3 V
Internal Lithium-Ion-battery:7.2 V, 4Ah
Operating hours: min. 20 hrs, typ. 24 hrs
Min. charging duration: 6 Hrs
Supplied different probes: Fits fingers with a thickness of: Infant, child (greater than one year) and Adult
Error Messages: The display read error when a malfunction occurs and the thermometer will power off.
Detailed requirements
Specified accuracy to be better than +/- 0.1°C
Measurement range: 32°C to 43°C
High / low patient temperature display feature preferred
Safe to use, atraumatic, no glass, no mercury
Auto power off required after minimum of 1 minute
‘Out of range’ indication required
Response time to steady reading < 5 seconds required
Displayed parameters
Display graded in maximum 0.1 deg C steps.
High/low patient temperature, low battery, malfunction, °F or °C.
Liquid crystal display, easy to read
Supplied in protective case for clean storage and safe transport Must be lightweight and comfortable to
hold. There must be no sharp edges on the unit. Unit case should be hard and splash proof
Electrical, water and/or gas supply (if relevant): Powered by internal, rechargeable, replaceable battery
Requirements for commissioning (if relevant): Local clinical staff to affirm completion of installation
Training of user/s
User care (if relevant): The whole unit is to be cleanable with alcohol or chlorine wipes
Warranty: Up to 24 months
Type of service contract: NA
Documentation requirements:
User / technical manual to be supplied in local language.
Certificate of calibration and inspection to be provided.
List to be provided of equipment and procedures required for local calibration and routine maintenance
Battery disposal according local laws
Estimated Life Span: 5 years
Regulatory Approval / Certification
Must be EFMHACA registered, CE or UL approved product. "Manufacturer / supplier should have ISO
certificate for quality standard.
Electrical safety conforms to standards for electrical safety IEC-60601-1.
Deviation if
Offer
any
Requirements
Infrared thermometer
Manufactu
Country of orig
Mo
Clinical purpose: Measuring the temperature of a site on the skin
Overview of functional requirements:
Displays patient temperature by measurement of infrared radiation from the skin.
Device must be reusable, with sterilizable surface.
Display should be easily readable in all levels of ambient light
Technical characteristics
Temperature range: 32°C to 42°C
Alarm Out of range indication required
Power: Auto power off required after minimum of 1 minute
Accuracy: ±0.3°C
Response time (95%): < 500ms (95% of reading)
Spectral response: 8 to 14 microns
Emissivity: 0.10 to 1.00
Optical resolution: 10:1 (calculated at 90% energy)
Display resolution: 0.1°C (0.2°F)
Repeatability of readings: ±0.8% of reading or < ±1.0°C (2°F), whichever is greater
Power: Auto power off required after minimum of 1 minute
Battery life: 10 hours with laser and backlight on
Battery cover to be secure but simple to open
Battery to allow at least 1,000 measurements between charges
Battery charger to operate from input supply 220 V, 50 Hz
Physical Specifications
Weight: <300g
Operating temperature: 0°C to 50°C (32°F to 122°F)
Operating humidity: 10% to 90% RH non-condensing at 30°C (86°F)
Operating altitude: 2300 meters above mean sea level
Drop test: 3 meters
Vibration and shock: IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11ms
EMC: EN 61326-1:2006 EN 61326-2:2006
Standards and agency approval: Compliance: EN/IEC 61010-1: 2001
Laser safety: FDA and EN 60825-1 Class II
Warranty: 24 months from date of delivery
Accessories: Full range of any adaptors required to allow for measurement of all ages of patient
Spare parts: Replacement battery pack, supplied free of charge (for one year)
Documentation
Regulatory approval: EFDA registration certificate.
Manuals: Operators manual in English language
Spare parts: Replacement battery pack, supplied free of charge (for one year)
Offer Deviation if any
Requirement
Item: Weighing scale with height (adult)
Country of origin:
Manufacturer:
Model:
General:
Ideal scale for Physicians Offices, Weight Loss Clinics, Health Fitness Centers and other Medical practices.
Functional requirement:
Measures both weight and height
Digital display
Automatic calculation of BMI.
Display shows weight, height and BMI.
Prints weight, height and BMI automatically.
Heavy-duty scale base for assurance when weighing.
Technical requirements
Capacity: 200KG
Graduation: 50g
Accuracy: ± 5g, Precision: ± 5g
Measuring range: 20-250cm
Measuring graduation: 1mm
Accuracy: ± 0.2 cm, Precision: ± 0.2 cm
Display: 2.5cm LCD Display with 5 Digits
Power supply: Rechargeable batteries with power adapter
Slip resistant glass platform
Key Functions: ON/OFF, kg/lb, ZERO, HOLD, BMI
Auto Off: After 120 seconds of non-use
Built-in wheels for fast transport.
Performance requirement:
Warranty: Three years (separate letter)
CE (EU) qualified
US FDA 510 (k) certification
Installation and commissioning provided free of charge
Training shall be provided free of cost.
EFDA registration certification.
Clinical and biomedical staff to affirm completion of installation to accept/reject equipment.
Offer Deviation is any
Instructions:Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Co
each of the individual parameters of each Specification stating the corresponding performance parameter of the equi
Statements of “Comply” must be supported by evidence in a Bidders Bid and cross-referenced to that evidence. Evide
the form of manufacturer’s un-amended sales literature, unconditional statements of specification and compliance iss
manufacturer, samples, independent test data etc., as appropriate. A statement that is not supported by evidence or is
found to be contradicted by the evidence presented will render the Bid under evaluation liable for rejection. A statem
Bidders statement of compliance or the supporting evidence that is found to be false either during Bid evaluation, pos
or the execution of the Contract may be regarded as fraudulent and render the Bidder or supplier liable for prosecuti
Bidder’s
Specification as
Technical Offer Statement of Compliance
Offer Deviation if any
Item description
Portable hemoglobin meter (invasive, point-of-care device)
Country of origin:
Manufacturer:
Model:
Technical requirement
Sample material: Capillary, venous or arterial whole blood.
Measurement range: 0-25.6 g/dL (0-256 g/L or 0-15.9 mmol/L).
Results: approx. 8 seconds.
Sample volume: approx. 10 µL.
Weight: maximum 500 g with batteries installed.
Power: AC adapter (220V 50Hz) and batteries.
Operating temperature: 10°C -43 °C (50-105 °F).
Interface: Printer and PC
Quality control: Built-in “self-test” and liquid controls.
Calibration: The system should be factory calibrated against the ICSH reference method for
hemoglobin and needs no further calibration.
Storage for the Analyzer: The analyzer should be stored at temperature 0-50 °C (32-122 °F).
Storage for the Micro cuvette: The micro cuvettes are to be stored at 10-40 °C (50-104 °F). Short-
term storage (6 weeks) -18-50 °C (0 – 122 °F).
Method: Spectrophotometry of hemoglobin and hemoglobin derivatives
Supplied with:
Instructions for use, preventive maintenance and troubleshooting in English.
Standard configuration and accessories
All necessary startup kit and consumables for 6-month consumption inclusively supplied.
Training, installation and utilization:
Supplier to perform installation, safety and operation checks before handover. Supplier to clearly state
supply current requirements of unit.
Two days training for operation of device.
Local clinical staff and Biomedical Engineers to affirm completion of installation
Documentation requirements:
Certificate of calibration and inspection to be provided.
List to be provided of important spares, consumables and accessories, with their part numbers and
cost.
Contact details of manufacturer, supplier and local service agent to be provided.
Regulatory approval: EFMHACA registration certificate, European CE
All technical specification should be supported with original data sheet highlighting the page number
in the compliance sheet. Photocopy/computer print will not be acceptable
SOP for the item.
Performance test results.
Separate reference letter (2) from local Government hospitals/health centers about timely completion
of installation and uninterrupted supply of consumables for the item to be supplied (same model).
Separate letter for 2-year warranty after installation with labor and spare.
offer Deviation if any
Item description
BP apparatus, Digital, Adult and pediatric
Country of origin:
Manufacturer:
Model:
Digital Blood Pressure Monitor Machine
General Description: Digital Blood Pressure Monitor with One-touch operation
Technical Specifications:
Blood pressure and pulse measurements
Fully automatic inflation and deflation Memory
Error Code indicator
Jumbo display
Automatic Switch off
Battery check
Oscillometric measuring method
High accuracy
Power requirements:
Power of 220 V ± 10%, 50 Hz.
Built-in re-chargeable battery
Regulatory Approval / Certification:
Certificate from EFDA for product registration, CE mark (EU) and US FDA 510(K)
Measurement method -Electronic
Measurement range:
Numerical display Pressure: 0 ~ 300 mmHg
Pulse: 30 ~ 200 beats / minute
Pressure bar display Pressure: 20 ~ 280 mmHg
Measurement accuracy
Numerical display Pressure: ±3 mmHg 15
Pulse: ±5 %
Pressure bar display Pressure: ±4 mmHg
Power supply- 2 x 1.5 V alkaline batteries (LR6 or AA)
Upper arm circumference -23 ~ 33 cm using the medium cuff
Number of measurements- Approx. 2000 measurements,
When AA alkaline batteries are used, with pressure value of 180 mmHg at room temperature of 23°C
Classification - Internally powered ME equipment
Continuous operation mode EMC IEC 60601-1-2: 2007
Operating conditions +10°C to +40°C / 15%RH to 85 %RH 800 hPa to 1060 hPa
Storage conditions -15°C to +60°C / 10%RH to 95 %RH
Dimensions standard
Weight standard
Documentation
User, technical and maintenance manuals to be supplied in English language.
Certificate of calibration and inspection to be provided.
List to be provided of equipment and procedures required for local calibration and routine maintenance
List to be provided of important spares and accessories, with their part numbers and cost.
Contact details of manufacturer, supplier and local service agent to be provided
Offer Deviation if any
Item description
BP, apparatus, Aneroid
Country of origin
Manufacture
Mode
Overview of functional requirements
Inflatable rubber cuff surrounded by durable, flexible cover that can be easily fastened round upper arm
Aneroid pressure gauge displaying cuff pressure
Pumping bulb and valve allowing adjustment up and down of cuff pressure
The inflating bulb should be soft and should not have any joints or ridges.
Detailed requirements
Cuff arm fixing method to allow ease of use, ease of cleaning and low attraction of dirt; Washable size adjustable cuff (one size fits
all).
Pressure gauge to allow reading of pressure to 2mmHg accuracy
Maximum pressure to be at least 300mmHg
Gauge body to allow recalibration of readings, yet in normal operation be sealed and secure
The unit shall be designed to maintain calibration
The dial manometer markings and graduations should be permanent and
Clearly visible and filled with pigments, with diameter of minimum diameter of 160 mm.
All plastic parts, if any used should not crack, flake, peel or disintegrate in normal use.
Displayed parameters: (mmHg)
Components and Raw Materials
Rubber tubes to be detachable from other parts, allowing periodic cutting of decayed end.
Gauge body to include clip for mounting on cuff
Tube length to be greater than 30cm
Cuff surround to be removable and washable
To be supplied in protective, reclosable container
Should be provided with adult arm cuffs of size medium & large and pediatric cuff.
Mobility, portability: Portable
Aneroid: Aluminum light weight construction.
Cuff: fabric covered silicone rubber, length 0.54 m
Accessories
Child Velcro cuff
Flexible hose connecting inflation cuff to aneroid
One (1) aneroid in box with manufacturer's instruction for use.
Capable of being stored continuously in ambient temperature of 0 to 50 deg C and relative humidity of 15 to 90%.
Capable of operating continuously in ambient temperature of 10 to 40 deg C and relative humidity of 15 to 90%.
Training of users in operation and basic maintenance shall be provided
Warranty: Minimum of 2 years after installation
Documentation requirements
User, technical and maintenance manuals to be supplied in English language.
Certificate of calibration and inspection to be provided.
List to be provided of equipment and procedures required for local calibration and routine maintenance
List to be provided of important spares and accessories, with their part numbers and cost.
Contact details of manufacturer, supplier and local service agent to be provided
Regulatory Approval / Certification
Should be EFMHACA registered, CE or UL approved product.
Offer Deviation if any
Item description and Rquirements
BP apparatus, mercurial
Country of origin:
Manufacturer:
Model:
General Description: Mercury sphygmomanometer
Technical Specifications:
Portable/ desk, with oversize, metal housing
colors (red, blue, green, yellow, black and silver), with chromed metal air release valve, bulb and cuff with 2-tube
latex bladder
Precision glass tube with inside diameter not less than 3.5 mm
Graduated scale to 300 mmHg, through clear and accurate scale markings
Mercury lock
Accuracy +/- 1 mm Hg
Certificate: CE-mark
FMHACA registered (certificate required)
Offer Deviation if any
Instructions:Bidders must state in the column under Statement of Compliance the word either “Comply” or
“Not Comply” against each of the individual parameters of each Specification stating the corresponding
performance parameter of the equipment offered. Statements of “Comply” must be supported by evidence in a
Bidders Bid and cross-referenced to that evidence. Evidence shall be in the form of manufacturer’s un-amended
sales literature, unconditional statements of specification and compliance issued by the manufacturer, samples,
independent test data etc., as appropriate. A statement that is not supported by evidence or is subsequently
found to be contradicted by the evidence presented will render the Bid under evaluation liable for rejection. A
statement either in the Bidders statement of compliance or the supporting evidence that is found to be false
either during Bid evaluation, post-qualification or the execution of the Contract may be regarded as fraudulent
and render the Bidder or supplier liable for prosecution
Starting system of the engine shall be equipped with 12 V D.C. Electric starter motor with auto/manual start stop system.
The automatic battery charger shall include overload protection, DC ammeter and fused AC input.
The battery charger shall be mounted in the generator switch panel.
Speed governor shall be mechanical or electronics type.
Engine protection system shall be ensuring automatic shutdown to protect the engine from damage due to the following
abnormal conditions.
Low lubricating oil pressure
High cooling water temperature
Over/under speed
Over/under voltage
High/low oil pressure
High/Low frequency
Engine over crank
Low fuel level
Low battery level
SPECIFIC ENGINE DETAILS (Mandatory)
Engine Firing order shall clearly be stated on engine datasheet - (Mandatory)
Bore x stroke: 105x130mm (Mandatory)
Compression ratio: 18:1 (Mandatory)
Total displacement: 3.15L (Mandatory)
Injection type - Direct injection
Aspiration system - Turbo CAC (Mandatory)
Cooling type - Water cooled
Intake and Exhaust system detailed information shall be available on engine datasheet (mandatory)
Fuel tank capacity (Liter): 150
Recommended Fuel: Diesel (HSD)
Max allowable air intake restriction 3.5kpa at 1500rpm
Maximum exhaust temperature - 5400C
maximum allowed backpressure - 5kpa
Cooling air flow - 10-11m3/min
Fuel consumption at 1500rpm (Mandatory)
Fuel consumption 50% - 14L/h
Fuel consumption 75% - 17L/h
Fuel consumption 100% - 21L/h
Lubricating Oil system:
Lub oil sump capacity: 8.5 L
Oil change period (Hrs.): 500
Oil filters quantity (Nos) /type: 01 / spin on type
Oil Cooler: Water cooled
Derating (Mandatory)
The engine shall be operated up to 1000 m altitude and 40°C
ambient air temperature without derating.
Engine datasheet shall clearly show the following.
Charging alternator details (amperage, voltage, drive ratio etc.)
Starter motor details (KW, voltage, type etc.)
Engine Noise level (shall have low noise & ISO certified)
shall clearly be shown dB(A) on engine datasheet (Mandatory)
Maintenance
shall be accessible for easy maintenance
shall have disposable/replaceable air & oil filters
ALTERNATOR
Voltage: 380-440V
Frequency: 50Hz
Current @ 0.8PF (Amps): 69.6
Type: 4 Pole, Rotating field
Exciter Type: Brushless (Permanent magnet optional)
Leads: Quantity, type: 6, fixed. 12, re connectable (Optional)
Voltage regulator: Solid State
Insulation: Class H,
Temperature rise: 125 Deg. C (Class H)
Bearing: Quantity, type: 1, Sealed
Coupling: Flexible disc, Close coupled
Voltage regulation (No load to full load): 2 Phase sensing, ±1%
One step load acceptance: 100% of rating
Unbalance load capability: 25% of rated current
The alternator shall be 3 phase synchronous generator and it shall be brushless.
The automatic voltage regulating equipment shall maintain the alternator output voltage at +-1%of the rated voltage for
any steady load from no load to full load at any power factor. It shall also reestablish the voltage at rated value within
maximum of 2 seconds of sudden load change from no load to full load or vice versa. The AVR shall be housed in the
generator control panel.
GENERATOR CONTROL PANEL
The control panel shall include the following points:
Auto start, test, manual start and stop button
Battery charger
D.C voltmeter
Frequency meter
Emergency push button
Hour run meter
Oil pressure indicator
Water temperature indicator
Engine alarm light
Reset button and etc.
DOCUMENTATIONS
Operating and service manuals
Wiring diagrams
Spare part catalogue
Manufacturer standard tools
INSTALLATION WORKS:
Complete supply, delivery of materials and construction of individual powerhouses including generator base and other
civil/structural related works.
Complete supply, delivery and installation of mechanical parts and accessories.
Complete supply, delivery and installation of electrical parts, wires/cables, panelboards, breakers, roughing-ins and others.
In case of machine downtime, the supplier is given three (3) days for remedial action (repair and or replacement of spare
parts). On the 4th day, if the unit is not operational, a back-up machine shall be provided (within the warranty period).
The Health Center has the right to terminate the contract for any violation in the right to terminate the contract for any
violation in the terms and conditions stated in this technical specification and other reasons as stated in the GCC.
Instructions:Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Comply” against each
corresponding performance parameter of the equipment offered. Statements of “Comply” must be supported by evidence in a Bidders B
form of manufacturer’s un-amended sales literature, unconditional statements of specification and compliance issued by the manufactur
that is not supported by evidence or is subsequently found to be contradicted by the evidence presented will render the Bid under evalua
of compliance or the supporting evidence that is found to be false either during Bid evaluation, post-qualification or the execution of the
supplier liable for prosecution
Supply, Delivery and Installation of at least 40KVA Diesel Generator; 220/400Vac; 3-Phase; 50Hz; 0.8PF; Powered by branded and hea
duty Diesel Engine; 1500RPM; 4-Stroke; and heavy-duty brushless type AC Alternator
Manuf
Genset
Engine
Alternator
Country of
Year of manu
GENERAL
Capacity: 40KVA prime power
Type: Automatic Start with ATS
Enclosure: sound proof canopy structure (With Exhaust Silencer (Hospital Grade Type), 70 dB @ 1 mtrs
ATS type: Standard integrated/separated
Generator/Manufacturer shall be ISO certified (must attach ISO certificates)
Load and function tests (at least 10 hours, fuel at the supplier’s cost)
Comprehensive user and technical manual with parts catalog
Amps: 35 Per Phase
Phase: Single Phase & 3 Phase
The diesel generator must include
Water jacket heater
Automatic battery charger
Pre-heater /Coolant/
Standard Circuit Breaker
Manual fuel gauge on Fuel tank and Digital fuel level sensors on controller
Fuel tanker: Minimum 10Hr consumption (Mandatory)
Civil works (foundation and shade) must be included. (based on your site visit) (mandatory)
Technical data to the generating set
Rated site output: 40KVA/32KW (Mandatory)
Current (Amp.) Prime/Standby:160A (Mandatory)
No. of cylinders: 6Cylinders inline (Mandatory)
Rated voltage: 400/230V
Rated Frequency: 50HZ
Rated Speed: 1500RPM
Power Factor 0.8
Phase 3 + Neutral
Alternator connection: star
Excitation: Self excited
Overloading: 110% for 1 hour
OPERATING SITE CONDITION
The generating set is to be operated outdoor.
Altitude 2500 meter above sea level.
Temperature 40 and above deg. Centigrade.
DIESEL ENGINE GENERAL
The engine shall be turbocharged and intercooler with residential type silencer.
The engine shall be operated up to 1000 m altitude and 40°C ambient air temperature without derating.
The engine performance shall correspond to ISO 3046, BS 5514 and DIN 6271
The cooling system shall be water cooled by means of a closed loop pressurized water-cooling system and engine mounted radiator with
blower type fan which can maintain safe operation of the generator as well as the water jacket heater should be installed in the cooling sy
Exhaust system shall be sized to comply with the engine manufacturer’s requirement for pressure drop. The necessary extension pip shou
provided to extend the exhaust outside the generator room.
Starting system of the engine shall be equipped with 12 V D.C. Electric starter motor with auto/manual start stop system.
The automatic battery charger shall include overload protection, DC ammeter and fused AC input.
The battery charger shall be mounted in the generator switch panel.
Speed governor shall be mechanical
Engine protection system shall be ensuring automatic shutdown to protect the engine from damage due to the following abnormal condit
The equipment/machines must be a BRAND-NEW unit and under warranty including spare parts for at least two (2) years. Supplier mus
itself to conduct preventive maintenance on a quarterly basis at its own expense (including labor and cost of spare parts in compliance).
All machines must be manufactured by a known and reputable company with Certificate of Good Manufacturing Practice (GMP), TUV
or its equivalent for equipment/machine only.
The equipment / machine must be able to comply with its installation and operation qualification which would be conducted in the prese
Technicians, Operators, End-users and the Company Engineers.
Supplier must comply with the following conditions:
Must either be the exclusive or authorized distributor of the principal company of the equipment and the necessary parts and accessories
Submit certificate of training of the company engineer / technical personnel and product specialist issued by the Principal or Manufactur
Provide company response within 24 – 48 hours in case of technical problems or equipment breakdown.
In case of machine downtime, the supplier is given three (3) days for remedial action (repair and or replacement of spare parts). On the 4
if the unit is not operational, a back-up machine shall be provided (within the warranty period).
The Supplier must submit the following:
Three (3) copies of the Operating and Service Manuals in English during the delivery of the equipment.
Notarized Certificate of availability of spare parts and accessories for the next ten (10) years.
The principal in coordination with the supplier must provide a comprehensive certification training program preferably onsite for the end
operators and technicians without additional cost to the procuring entity. Supplier must submit a comprehensive training module as part
technical specification which covers product orientation, hands-on training and troubleshooting.
Cost of damages on the existing facility that will be incurred during delivery and installation of all equipment will be shouldered by the
supplier.
The bidder must submit Site inspection certificate issued by the procuring entity as part of the Eligibility and Technical Requirements.
The Health Center has the right to terminate the contract for any violation in the right to terminate the contract for any violation in the te
and conditions stated in this technical specification and other reasons as stated in the GCC.
NB:
The bidder shall have enough (greater or equal to 5 years) work experience related to the specific field (Power Generators supply) and sh
attach work experience testimony documents from reliable clients. (mandatory)
The bidder shall give detailed knowledge transfer technical training
The bidder shall visit installation site and get an approval letter from client and identify Electromechanical erection, transportation and
installation cost (Mandatory)
Electromechanical erection and installation cost must be included (power cable cost) Mandatory
t each of the individual parameters of each Specification stating the
ers Bid and cross-referenced to that evidence. Evidence shall be in the
acturer, samples, independent test data etc., as appropriate. A statement
valuation liable for rejection. A statement either in the Bidders statement
of the Contract may be regarded as fraudulent and render the Bidder or
Easy data transportation through USB port and it must also have on board diagnostic software.
Supplier to perform installation, safety and operation checks before handover free of charge.
The bidder must provide two-year warranty including both labour and Spare parts starting
from the date of commissioning
This will be followed by 5 years comprehensive advanced maintenance contract.
Spare parts availability post-warranty: Manufacturer/principal to give undertaking to provide
spares for next 5 years of their quoted model.
Documentation:
User and Service manuals, Certificate of calibration supplied with each device in English
language
All technical specification should be supported with original data sheet highlighting the page
number in the compliance sheet. Photocopy/computer print will not be acceptable
List to be provided of important spares and accessories, with their part numbers and cost.
Regulatory approval certificate from EFMHACA and FDA/CE/ISO 13485 and IEC 60601
List to be provided of equipment and procedures required for local calibration and routine
maintenance
Operating Environment:
Temperature: 08°C to 40°C
Humidity: 15% to 90%
Packaging and Labelling
Packaging of all goods must be clearly marked and securely packed. Each Device will be
further packed in separate package with all its standard accessories of distinct identification
and numbers consecutively.
Additional Packing and Labeling requirement should bear in each package
Bidder’s Specification as
Technical Offer Statement of Compliance
Procuring Entity’s Specification
Water distiller, 20L/H
Device distillates tap water and separates from contaminants to produce 99.9% distill water
Health center, district hospital, provincial hospital, specialized hospital
Laboratory
Provides still water 20 liters
Technical characteristics
Automatic water stills
Pyrex double pitch coil condenser that gives low temperature distillate
Automatic cut off in the absence/low water level
Cut out in the event of feed water failure
Stainless steel is used for containers and condenser system
Output: 20L/H
Voltage: 220 V, 50 Hz, ±10% or 380 V, 50 Hz, 3 phases
Capable to work with tap water
Supplied With:
Pyrex reservoir complete.
Spare heater(two)
Standard accessories and configuration
Environmental requirements
Capable of being stored continuously in ambient temperature of 0 to 50 degree Celsius and relative humidity of 15 to
Capable of operating continuously in ambient temperature of 08 to 40 degree Celsius and relative humidity of 15 to 9
Training, installation and utilization
Supplier to perform installation, commissioning, safety and operation checks before handover free of charge.
Local clinical staff to affirm completion of installation.
Technical and operators training free of charge.
Warranty and maintenance
Warranty: Not less than 24 months(including spare parts)
Comprehensive service (maintenance) agreement free of charge within warranty period.
User and Service manuals, Certificate of calibration supplied with each device in English language
All technical specification should be supported with original data sheet highlighting the page number in the complian
Photocopy/computer print will not be acceptable
List to be provided of important spares and accessories, with their part numbers and cost.
Certificate of calibration and inspection to be provided.
Regulatory approval certificate from EFMHACA and FDA/CE/ISO 13485 and IEC 60601
List to be provided of equipment and procedures required for local calibration and routine maintenance
Standard accessories and configuration certificate.
Bidder’s Specification as Statement of
Technical Offer Compliance
15 to 90%.
mpliance sheet.
Procuring Entity’s Specification
Model:
Manufacturer:
Country of origin:
Item: IV stand
Description: Table, examination in 2 sections.
Technical Features:
Heavy weight four-leg base with 8-inch swivel casters, two with brake.
Height easily adjusts from 150cm to 250cm by turning the knob counterclockwise—turns the knob
clockwise to tighten and lock in height.
Four hook tops with stainless steel finish.
Two-piece telescoping 30 mm-diameters tubulars 16-gauge type 304 stainless steel pole.
20˝ (51mm)-diameter, 17-lb. (7.7 kg), five-leg black epoxy coated height-weight base.
3˝ (76mm) premium swivel casters with rubber wheel— two with brake.
Knob-operated height adjustment from 148 to 250cm
Four-hook top.
Holds not less than 9.0 kg of I.V. fluid.
Easy-to-clean surfaces
Materials:
Stainless steel
Frame: Stainless steel.
Dimensions:
Frame, diameter: approx. 30 mm.
Must be cleaned after each use.
Acceptance testing
The acceptance tests at the final destination include the following:
Demonstration of the performance of the instrument.
Validation of the instrument with respect to accuracy and performance and documentation.
Training completion.
Mechanical integrity test
Warranty: 2 years comprehensive warranty by separate letter
Any other items required to make it a complete system to be quoted and provided by supplier
Bidder’s Specification as Statement of
Technical Offer Compliance
Procuring Entity’s Specification
Model:
Manufacturer:
Country of origin:
Oxygen concentrator
Compact and easy to transport oxygen concentrator.
Device concentrates oxygen from ambient air.
Integrated Oxygen Sensing Device (OSD) measures concentration at flow meter entrance.
Output flow: max 10LPM (Liter Per Minute)
Flow meter range: 1 to 10 LPM
Output pressure: Approx. 60 Kpa.
Oxygen concentration: Approx. 95% ±3% at 1-5 LPM, 92% ±3% at 7 LPM, 90% ±3% at 10 LPM.
Time to reach 95% the specified performance: Approx.2 minutes.
Four-step filtering (coarse, pre, inlet and bacterial) of air-intake.
All filters replaceable, coarse filter washable/reusable.
Continuous monitoring, with visual and audible alert on: Low and high output pressure and Low oxygen concentratio
Oxygen monitor: amber light on the front illuminates when oxygen concentrator is below 85%.
If concentration remains below 85% for more than 15 minutes, an audible alarm sound.
Safety Alarms: Audible and visual
Power Failure,
Restricted Flow,
Battery test, and
Low O2
Temperature operating range: 20 to 60 C
Relative humidity operating range: up to 99%
Sound level produced: 40 to 50 dB(A)
Power requirements: 220V, 50Hz
Power consumption, approx.: 500 W
Warranty: two years
Oxygen concentrator is supplied as a complete set with:
1 x Oxygen concentrator
1 x Power cord
2 x Adult cannula, with 2 m tubing.
4 x Infant cannula, with 2 m tubing.
4 x Pediatric Cannula, with 2 m tubing.
3 x Connector for above.
4 x Humidifiers.
4 x 50' tubing.
4 x Adapter kit.
1 x Box of 6 coarse filters (spare)
3 x Pre-filters (spare)
3 x Inlet-filters (spare)
3 x Bacterial-filters (spare)
Documentation
User, technical and maintenance manuals to be supplied in English language.
Certificate of calibration and inspection to be provided.
List to be provided of equipment and procedures required for local calibration and routine maintenance
List to be provided of important spares and accessories, with their part numbers and cost.
Warranty certificate
Contact details of manufacturer, supplier and local service agent to be provided
FMHACA product registration certification
After sales service agreement (for two years during warranty period) including spare parts and labor free of charge.
Bidder’s Specification as Statement of
Technical Offer Compliance
oncentration
Procuring Entity’s Specification
Item: Oxygen regulator With Flow Meter and Humidifier (Compatible with Oxygen cylinder available)
Country of origin:
Manufacturer:
Model:
Flow meter regulator type: bull nose
Calibrated for Oxygen gas.
Back pressure compensated.
Polycarbonate tubes, chrome-plated brass body.
200 Bar, 0 - 15 LPM flow range.
2" Pressure gauge
Supply Pressure: 500 to 2200 psi
Outlet Pressure: High flow outlets: 40 to 50 psi at 500 to 2200 psi inlet pressure
Flow Capacity: High flow outlets: 125 LPM minimum single or combined flow with 500 psi inlet pressure
Constant flow outlet selections: 0-15 lpm: 0, .5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 15 0-25 lpm: 0, .5, 1, 2, 4, 6, 8, 10, 12,
15, 20, 25
Filter: 25 micron sintered bronze Safety Relief Pressure: 50-125 psi
Operating Temperature: 8° C to 40° C Storage Temperature: 0°C to 45° C
Materials: Body - nickel-plated brass; knob - anodized aluminum; outlets - nickel-plated brass; internal parts -
brass, stainless steel, Viton®, silicon, and Teflon®
Product Certificate:
FMHACA product registration certificate
Packaging of all goods must be clearly marked and securely packed.
Each Device will be further packed in separate package with all its standard accessories of distinct identification
and numbers consecutively.
Bidder’s Specification as Statement of
Technical Offer Compliance
Procuring Entity’s Specification
Stethoscope, binaural, adult
Model:
Manufacturer:
Country of origin:
Clinical or other purpose
Listening to sounds from the heart, lungs, and/or gastrointestinal tract.
Overview of functional requirements
Instrument for listening to sounds within the body.
Easy to dismantle, and therefore to clean and disinfect.
Detailed requirements
Double cup for adult auscultation: diaphragm 28mm. Sensitivity 3.2dB in a range from 50 to 500Hz for
cardiology.
The Y tube treated rubber with large diameter of 10 mm.
Arms with spring treated to give lasting spring and maximum reliability and comfort
Removable ear-pieces. Easy to dismantle, and therefore to clean and disinfect.
Components: Ear pieces; Y Tube; arms; double cup; diaphragm membranes
Mobility, portability: Portable
Raw Materials
Chest piece in stainless steel or chromed brass.
Y tube treated rubber.
Arms stainless steel or chrome brass.
Plastic ear-pieces.
Accessories
Supplied with spare diaphragms or diaphragm membrane, y tube and a pair of ear-pieces
Warranty: 2 year
Estimated Life Span: 4 years
Regulatory Approval / Certification
EFMHACA registered, CE mark (EU)
Bidder’s Specification as
Technical Offer Statement of Compliance
Procuring Entity’s Specification
Temperature monitor (30days temperature lodger, digital, for vaccine refrigerator)
Mode
Manufacture
Country of origi
Purpose/ function:
Electronic refrigerator logger, with factory-programmed alarms and visual display for monitoring storage conditions i
vaccine refrigerators over a 30 day period.
Detail requirement:
Operating temperature range: Upper limit: +50°C. Lower limit: -20°C
Accuracy: ±0.5°C or better within the range -20°C to +20°C for a minimum of 12 months following initial calibration or
subsequent re-calibration. ±1.0°C or better after 12 months if re-calibration is not carried out.
Resolution: ±0.2°C or better within the range -20°C to +20°C
Power source: Non-replaceable battery.
Product response time: T90 20 minutes maximum in accordance with EN12830:1999.
Sensor:
Electronic:
Integrated sensor devices: The complete device is to be mounted inside the cabinet in a position which accurately measures the
load temperature.
Remote sensor devices: The temperature display unit is to be physically attached to the outside of the cabinet and the sensor lea
is to pass through the door seal. The sensor head is to be physically attached to the inside of the refrigerator or freezer in a
position which accurately measures the load temperature.
Unit of measurement:
Temperatures must be recorded and displayed in degrees centigrade.
Calibration:
Each product is to be covered by a Certificate of Traceability and Calibration. The traceability declaration is to confirm that the
measurement standards and instruments used during calibration of the product are traceable to an ISO/IEC 17025 accredited
testing laboratory, to NIST, or to another internationally recognized standards agency.
Logging interval:
The device must measure the storage temperature at intervals not exceeding 10 minutes and log all relevant data at intervals not
exceeding one hour.
Mode of operation:
The device is to measure and log the temperature inside the refrigerator cabinet periodically, as described in clause 4.2.9, for a
period of 30 days. It must be possible to read the maximum and minimum logged temperatures for each day via a ‘history mode
function. If, at any time during the 30 day cycle the temperature in the cabinet exceeds the high alarm setting or drops below th
low alarm setting for the periods described in clause 4.2.13, the device is to display the relevant alarm condition(s). At the end
of the 30 day cycle the device is to continue the temperature and alarm monitoring process by incrementally overwriting data
older than 30 days. The ‘history mode’ function must be programmed to include a ‘pause period’ so that transient temperatures
are not recorded when the device is temporarily removed from the refrigerated environment for reading purposes. The ‘pause
period’ operates by suspending the processing the reading of alarm events, maximum/minimum temperatures and duration
statistics for a suitable period of time after button press activity. The operation of the internal clock must not be interrupted whe
the pause function is activated.
Bidder’s Specification as
Technical Offer Statement of Compliance
Procuring Entity’s Specification
Trolley, instrument
Basic lockable trolley for storage and transport of emergency medicines; medical devices and renewable, and resuscitation equi
in health care facilities.
Technical Specifications:
Emergency response trolley with work surface and storage.
Heavy carriage mounted on 4 swivel castors, of which two with brakes and two anti-static.
Work surface with elevated edges, finished with anti-slip layer.
Four side-to-side drawers for storage of medicine, renewable and equipment.
One central lock to secure all drawers.
Inside of drawers is customizable, with organizer dividers.
Front of each drawer fit with prefixed content identification strips.
Integrated fitting for waste basket and sharps container.
Lateral positioned lift-up worktop extends work surface.
Fit with push bar-handle.
Protective bumpers at all four corners.
Materials:
High resistance to corrosion (tropical environment).
Frame, side panels, base and drawers: epoxy coated steel plate, ABS or equivalent polymer.
Push handle: Austenitic stainless steel 18/10.
Worktop: ABS or equivalent polymer.
Dimensions:
Overall: approx. 800 x 600 x 1000 mm (l x w x h).
Worktop extension: approx. 400 x 500 mm (l x w).
Height upper drawers: approx. 100 mm.
Height middle drawer: approx. 200 mm.
Height base drawer: approx. 400 mm.
Swivel castors, diameter: approx. 100 mm.
Carrying capacity: Approx. 30Kg
Warranty: two years
FMHACA product registration certificate
Bidder’s Specification Statement of
as Technical Offer Compliance
Description of Function
Hematocrit centrifuge
Hematocrit centrifuge is a piece of equipment, generally driven by a motor
that puts an object in rotation around a fixed axis, applying force
perpendicular to the axis. The centrifuge works using the sedimentation
principle, where the centripetal acceleration is used to separate substances of
greater and less density and is used to calculate Hematocrit values.
Operational Requirements
Hematocrit Centrifuge for Capillary tubes with built in safety system is
required.
Technical Specifications
On-board Capillary positions :24 Samples in capillary at a time
Timer :Built in Timer for up to 0-15 min
Safety System: Triple Balance System, Manual Lid Lock, Lift Cover and Power
Cut off
Speed app. 12,000 RPM
Centrifugal Force :app.15000 G
Capillary size: 40 mm
System Configuration Accessories, spares and consumables
System as specified-
All consumables required for installation and standardization of system to be
given free of cost.
Capillaries- 1000
Environmental factors
The unit shall be capable of being stored continuously in ambient
temperature of 0 -50deg C and relative humidity of 15-90%
Thu unit shall be capable of operating in ambient temperature of 20-30 deg C
and relative humidity of 80%.
Power Supply
Power input to be 220-240VAC, 50Hz fitted with Indian plug
UPS of suitable rating for one hour backup minimum has to be provided.
Documentation
Certificate of calibration and inspection from factory.
All costs of accessories and all necessary parts to complete the installation and commission shall be included in the
total cost of item and the bidder will be responsible for additional expenses incurred to make the device functional
(supply the health facility) complete.
Certificate of Calibration Shall be attached.
The bidder shall state in his offer the expected lifetime of the Devices, under the specified operation conditions.
Complete set of documents including:
The bidder shall indicate clearly the manufacturer, country of manufacturing and the country of origin.
Complete and detail technical specifications and manufacturer original catalogues for all equipment and devices of
the system shall be submitted along with the offer.
The bidder must quote to carry out the training course for engineers. The training program must be described in
details, specifying training course duration etc.…
Original catalog with data sheet
Full technical detailed data for all units shall be provided with the offer.
Ethiopian Food and Drug Administration product registration certificate (updated) shall be attached.
Product approval from country of origin regulatory body shall be attached.
International standards: ISO, IEC and CE Certified.
Acceptance Test
Demonstration of the performance of the instrument.
Validation of the instrument with respect to accuracy and performance and documentation.
Warranty: 2 years (including maintenance and any repair in warranty period) provide at free of cost by separate
letter.
Completeness of items offered in the bid (all manufacture recommended parts and others specified in this
document) and additionally stated in the specification of the buyer’s
Procuring Entity’s Specification
Cylinder, Oxygen, 42L
Oxygen Cylinder (with regulator and flow meter) on trolley with accessories
Country of Origi
Manufacture
Mode
Rechargeable, Seamless, Made of chromium- molybdenum steel
Cylinder neck fitted with side nozzle, bull nose value for connecting oxygen regulator.
Valve with hand wheel for safety opening / closing.
One-staged reducing unit for oxygen to reduce and monitor Pressure of one-sided cylinder bank.
Normal flow rate: 20 Nm3/ h
Inlet pressure: 200 bar
Outlet pressure: 8 bar
Nominal pressure: 200 bar
Filter pores: 50ppm
For connection between gas cylinder and collecting pipe. non return valve Cylinder connection: G ¾ box nut
High pressure manometer to indicate pressure level in the cylinder
Oxygen flow meter tube calibrated from 0. 15 liters per minute, with tube nipple outlet.
Humidifier, bubble through type, water capacity 300 ml. couples directly to flow meter.
Trolley:
ü For transportation oxygen cylinder.
ü Stainless steel construction.
ü powder with two antistatic rubber wheels with pushing handle and safety fasteners to secure cylinder
Flow meter regulator type: bull nose
Calibrated for Oxygen gas.
Back pressure compensated.
Polycarbonate tubes, chrome-plated brass body.
200 Bar, 0 - 15 LPM flow range.
2" Pressure gauge
Supply Pressure: 500 to 2200 psi
Outlet Pressure: High flow outlets: 40 to 50 psi at 500 to 2200 psi inlet pressure
Flow Capacity: High flow outlets: 15 LPM minimum single or combined flow with 500 psi inlet pressure Constan
flow outlet selections: 0-15 lpm: 0, .5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 15
Filter: 25 micron sintered bronze Safety Relief Pressure: 50-125 psi
Operating Temperature: 8° C to 40° C Storage Temperature: 0°C to 45° C
Materials: Body - nickel-plated brass; knob - anodized aluminum; outlets - nickel-plated brass; internal parts -
brass, stainless steel.
Certificates:
EFDA product registration certificate
Packaging of all goods must be clearly marked and securely packed.
Warranty: 3years
Bidder’s Specification
as Technical Offer Statement of Compliance
Oxygen regulator With Flow Meter and Humidifier (Compatible with Oxygen cylinder.
Channel architecture
Input coupling
Input sensitivity
Bandwidth limiter
Normal/invert/variable
Extended offset
Input voltage
Vertical resolution
Accuracy
Input impedance
Horizontal
Maximum real-time sample rate (sampled
simultaneously)
Record length
Time base range
Timing accuracy
Glitch capture
Display and acquisition
Display
Display modes
Visible screen width
Digital persistence modes
Waveform mathematics
Acquisition modes
Modes
Connect-and-View™
Time delay
N-cycle triggering
Replay
Replay storage
Window
Automatic window
Vertical scale
Frequency axis
Pass/Fail Testing
Advanced functions
Cursor measurements
Source
ZOOM
Meter Modes
Meter inputs
Number of readings
Maximum resolution
Input impedance
Voltage
Vdc accuracy
Vac true rms accuracy 15 Hz to 60 Hz: 60 Hz to
1 kHz: 60 Hz to 20 kHz:
Accuracy
Other meter functions
Continuity
Diode test
Current (A)
Temperature
Recorder Modes
ScopeRecord™ Roll Mode
Dual or multiple input waveform storage mode,
using deep memory
Source and display
Bandwidth
Memory depth
Min/max values
Recording modes
Stop-on-trigger
Horizontal scale
Zoom
Memory
Ranges
Recording mode
Measurement speed
Horizontal scale
Zoom
Memory
Source
General specifications
Input voltage range
Rated maximum floating voltage
Screencopies
Volatility
Real-time clock
Case
Design
Display size
Resolution
Contrast and brightness
Brightness
Mechanical data
Size (HxWxD)
Weight (including battery)
Power
Line power
Battery power
Safety
Compliance
Environmental
Operating temperature
Storage temperature
Humidity
Interfaces
Probe calibration output
Warranty
Included accessories
Batterey charger/mains adapter
Li-Ion battery pack
Voltage probe sets. Each set includes ground
lead, hook clip, ground spring and probe tip
insulation sleeve
Test leads
Other
he column under Statement of Compliance the word either “Comply” or “Not Comply” against each of the individual parameters of each
e parameter of the equipment offered. Statements of “Comply” must be supported by evidence in a Bidders Bid and cross-referenced to
ufacturer’s un-amended sales literature, unconditional statements of specification and compliance issued by the manufacturer, samples,
ment that is not supported by evidence or is subsequently found to be contradicted by the evidence presented will render the Bid under ev
r in the Bidders statement of compliance or the supporting evidence that is found to be false either during Bid evaluation, post-qualifica
arded as fraudulent and render the Bidder or supplier liable for prosecution
2
200 MHz
1.7 ns
2 input channels plus external trigger
All inputs fully insulated from each other and from ground Inputs may be
activated in any combination
AC or DC, with ground level indicator
2 mV/div to 100 V/div, plus variable attenuation
User selectable: 20 kHz, 20 MHz or full bandwidth
On each input channel, switched separately
Not avalable currently
CAT III 1000 V/CAT IV 600 V rated, see general specifications for further
details
8 bit
± (2.1 % of reading + 0.04 x range/div) @ 5 mV/div to 100 V/div
1 MΩ ± 1 %/14 pF ± 2 pF
Automatic Connect-and-View™, free run, single shot, edge, delay, dual slope,
video, video line, selectable pulsewidth (channel A only), N-cycle
NTSC, PAL, PAL+, SECAM; includes field 1, field 2 and line select
Non-interlaced video with line-select, for line frequencies in the range 14
kHz up to 65 kHz
Pulse width qualified by time allows for triggering < t, > t, = t, ≠ t, where t is
selectable in minimum steps of 0.01 div or 50 ns
1 Full screen of pre-trigger view or up to 100 screens (= 1,200 divisions) of
post- trigger delay
Triggers on both rising and falling edges alike
When in oscilloscope mode, the instrument always memorizes the last 100
screens—no specific user setup required. When an anomaly is seen, the
replay button can be pressed to review the full sequence of screen events
over and over. Instrument can be set to trigger on glitches or intermittent
anomalies and will operate in baby-sit mode capturing 100 specified events.
V dc, V ac rms, V ac + dc, Vpeak max, Vpeak min, Vpeak to peak, A ac, A
dc, A ac + dc, frequency (in Hz), rise time (using cursors), fall time (using
cursors), phase (between any 2 inputs), pulse width (pos./neg.), duty cycle
(pos./neg.), temperature °C, temperature °F (not for Japan), dBV, dBm into
50 Ω and 600 Ω
V/Hz Ratio (190M-2 only), Power Factor (PF), watts, VA, VA reactive,
VPWMac and VPWM (ac + dc) for measurement on pulse width modulated
motordrives and frequency inverters
mA×s (Current-over-time, between cursors); V×s (voltage over time,
between cursors); W×s (energy, between cursors)
Via 4 mm banana inputs, fully isolated from scope inputs and scope ground
One at a time
5,000 counts
1 MΩ ± 1 %/14 pF ± 2 pF
Auto/manual ranging, relative measurements (Zero reference), TrendPlot ™
recording
The specified accuracy is valid over the temperature range 18 °C to 28 °C
Add 10
± (0.5 % + 5 counts)
± (1 % + 10 counts)
± (2.5 % + 15 counts)
± (1 % + 10 counts)
± (2.5 % + 15 counts)
500 mV, 5 V, 50 V, 500 V, 1,000 V
Beeper on < 50 Ω (± 30 Ω)
Up to 2.8 V
A dc, A ac, A ac + dc using an optional current clamp or shunt Scaling
factors: 0.1 mV/A, 1 mV/A to 100 V/A and 400 mV/A
With optional accessories. Scale factors 1 °C/mV or 1 °F/mV
5 ms/div to 2 min/div
6 sec to 48 hr
0.5 s/div to 4 h/div
8 ns
125 MS/s
200 μsec to 4.8 sec
Cursors may be used to identify min, max or average value of any datapoint
in a record, with time between cursors, time from start or absolute time
200 cd/m2 typical using power adapter, 90 cd/m2 typical using battery power
4800 mAh
Battery has built-in status indicator for use with external charger, next to
battery status indicator on instrument screen
Up to four hours using BP290 (included); up to eight hours using BP291
(optional)
2.5 hours using BP290; 5 hours using BP291
Auto power-down with adjustable power-down time; auto display off with
adjustable power-down time; on-screen battery power indicator
BC190
BP290 (2400 mAh)
Bidder’s Specification as
Statement of Compliance
Technical Offer
Instructions: Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Comply”
each Specification stating the corresponding performance parameter of the equipment offered. Statements of “Comply” mu
and cross-referenced to that evidence. Evidence shall be in the form of manufacturer’s un-amended sales literature, uncondi
compliance issued by the manufacturer, samples, independent test data etc., as appropriate. A statement that is not supporte
contradicted by the evidence presented will render the Bid under evaluation liable for rejection. A statement either in the Bi
supporting evidence that is found to be false either during Bid evaluation, post-qualification or the execution of the Contrac
Bidder or supplier liable for prosecution
Accuracy:± 2.5 %
Power (0.0 W to 99.9 W ± 5 % + 1 W, 100 to 500 W ± 5 %)
Maximum: At 25 % duty cycle (10 seconds on, 30 seconds off): 10 Ω: 300 W, 20 Ω to 2900 Ω: 400 W, 3000 Ω
to 5200 Ω: 200 W
At 10 % duty cycle (5 seconds on, 45 seconds off): 10 Ω: 300 W, 20 Ω to 2400 Ω: 500 W, 2425 Ω to 2900 Ω:
400 W, 3000 Ω to 5200 Ω: 200 W
Current
RMS: 0 mA to 5,500 mA
Accuracy: ± (2.5 % of reading + 1 mA)
Voltage
Peak: 10 kV Peak to Peak
Accuracy: ± (10 % of reading + 50 V)
Crest factor1.4 to 16.0 Defined as the ratio of Peak voltage to RMS voltage (Vpk /Vrms), using the larger of
the 2 peaks (positive or negative)
Vessel sealing measurement
Loop current, RMS: 0 mA to 5500 mA
Accuracy: ± (2.5 % of reading + 1 mA)
HF leakage current
Fixed load :200 Ω
V Accuracy: ±2.5 %
Power rating: 400W
Additional fixed load :200 Ω
Current, RMS: 0 mA to 5500 mA
Accuracy: ± (2.5 % of reading + 1 mA)
CQM test (Contact Quality Monitor)
Resistances : 0 Ω to 475 Ω (by 1 Ω)
Accuracy : 0 Ω to 10 Ω ±0.5 Ω, 11 Ω and above ±5 %
Power rating: 0.5 W
Auto time interval: 1 to 5 seconds
Oscilloscope Output
1 V per ampere of input current, typical
Footswitch simulations
Cut and Coag
Communications
USB device port: Micro B connector, full speed
Wireless port: 802.15, Speed: 115,200 baud
Memory
Test records : 8000
Non-volatile: retained through power cycling
Calibration
Recommended cycle: Traceable to the International System of Units (SI) through the appropriate National
Metrology Institutes such as NIST or through intrinsic standards.
Environmental specifications
Operating temperature: 10 °C to 40 °C (50 °F to 104 °F)
Storage temperature:-20 °C to 60 °C (-4 °F to 140 °F)
Humidity:10 % to 90 % non-condensing
Altitude: 2300 m
IP rating: IEC60529:IP20
Electromagnetic Compatibility (EMC)
IEC 61326-1: Basic Emissions Classification: IEC CISPR11: Group 1, Class A. Group 1 have intentionally gener
ated and/or use
conductively coupled radio-frequency energy which is necessary for the internal functioning of the
equipment itself. Class A equipment is suitable for use in nondomestic locations and/or directly connected
to a low-voltage power supply network
Safety
IEC 61010-1: Overvoltage category II, pollution degree 2
IEC 61010-2-030: Measurement 5,000 V
Measurements and tests specifications
Measures: Cut and coag waveforms, monopolar and bipolar outputs
Power and current measurements: True-rms
Bandwidth: 30 Hz to 3MHz at -3 dB including loads
Delay time for single measurements: 0.2 seconds to 4.0 seconds from Foot Switch activation to start of
measurement
Comply” or “Not Comply” against each of the individual parameters of
tements of “Comply” must be supported by evidence in a Bidders Bid
d sales literature, unconditional statements of specification and
ement that is not supported by evidence or is subsequently found to be
statement either in the Bidders statement of compliance or the
e execution of the Contract may be regarded as fraudulent and render the
Accuracy: 1 % of reading ±1 LSD for flows of 16 to 200 ml/h for volumes over 20 ml, otherwise 2 % of
reading ±1 LSD for volumes over 10 ml under laboratory conditions. Degassed water at 15 °C to 30 °C (59 °F
to 86 °F) is recommended for long tests.
Max test duration: 100 hours
Volume measurement
Method: Volume is measured directly by the measuring module in mini-
mum sample sizes of 60 ìl
Range: 0.06 ml to 9999 ml
Accuracy: 1 % of reading ±1 LSD for flow rates of 16 ml/h to 200 ml/h for volumes over 20 ml. Otherwise 2
% of reading ±1 LSD for volumes over 10 ml under laboratory conditions.
Max test duration: 100 hours
PCA bolus/dual flow measurement
Method: See volume measurement above
Min bolus volume: 0.5 ml
Resolution: 60 ul increments
Max test duration: 100 hours
Pressure measurement
Method (back pressure and flow test): Direct measurement of pressure at the inlet port
Range: 0 psi to 45 psi or equivalent in mmHg and kPa
Accuracy: 1 % of full scale ±1 LSD under laboratory conditions
Max test duration: 1 hour
Other specification
Templates: Predetermined test sequences. Typical capacity 200.
Storage of results: Test results stored for later viewing, printing or transfer to PC. Typical capacity 250 tests.
General specifications
Operating voltage range: 240 V ac
Supply frequency: 60 Hz
Supply power: <50 VA
Weight: <3.2 kg (approx)
Altitude: 2300 m
Temperature
Operating: 15 °C to 30 °C
Storage: -20 °C to +40 °C when drained of all liquid
Humidity: 10 % to 90 % non-condensing
Comply” or “Not Comply” against each of the individual parameters of
tements of “Comply” must be supported by evidence in a Bidders Bid
d sales literature, unconditional statements of specification and
ement that is not supported by evidence or is subsequently found to be
statement either in the Bidders statement of compliance or the
e execution of the Contract may be regarded as fraudulent and render the
Normal-sinus-rhythm waveform
The ECG amplitudes specified are for Lead II (calibration), from the baseline to
ECG reference
the peak of the R wave. All other leads are proportional
High-level output 0.5 V/mV ± 5 % of the ECG amplitude setting available on a BNC connector
Irregular tachycardia: Atrial fibrillation (coarse and fine), atrial flutter, unstable
monomorphic ventricular tachycardia (120 BPM to 300 BPM), torsade
Neonatal: 35/15 (22); 60/30 (40); 80/50 (60); 100/65 (77); 120/80 (93) and
150/100
Saturation outside UUT specific range: monotonic with unspeci- fied accuracy
Phototherapy radiometer
Manufacturer:
Model:
Country of Origin:
Date of Manufacture:
Effective spectral range
429 - 473 nm (max. 97% response at 453 nm)
Measurement range
0-1999 µW/cm
Resolution
1 µW/cm
Linearity:
± 3 %full scale
Operating temperature:
0-50 degree celisius
Electrical accuracy: ± 3 %
Radiometer accuracy: within
± 4 % of full scale
Probe
Lens matches the cosine receiving function of human skin
Power
9 V battery; indicator on display for battery replacement;
Capable of 160 continuous hours operation
Weight
<250 g
Comply” or “Not Comply” against each of the individual parameters of
tements of “Comply” must be supported by evidence in a Bidders Bid
d sales literature, unconditional statements of specification and
ement that is not supported by evidence or is subsequently found to be
statement either in the Bidders statement of compliance or the
e execution of the Contract may be regarded as fraudulent and render the
Accuracy for Isolation, MAP, Direct AP, Alternative AP, and Alternative
Equipment leakage tests all ranges are:
Mains on applied part test 100 % ± 7 % of Mains for IEC 62353 current limited to 3.5 mA ± 25 % per IEC
voltage 62353
100 % ± 7 % of Mains for IEC 60601-1 current limited to 7.5 mA ± 25 % per
IEC 60601-1
Differential leakage
75 μ A to 199 μA
Ranges 200 μA to 1999 μA
2.00 mA to 20.00 mA
Accuracy ± (10 % of reading + (2 counts or 20 μA, whichever is greater))
Insulation resistance
0.5 MΩ to 20.0 MΩ: ± (2 % of reading + 0.2 MΩ)
Ranges/accuracy
20.0 MΩ to 100.0 MΩ: ± (7.5 % of reading + 0.2 MΩ)
500 V dc or 250 V dc (+20 %, -0 %)
Source test voltage
2.0 ± 0.25 mA short-circuit current
Mains-PE, AP-PE, Mains-PE, Mains-NE (non-earthed accessible conductive
Insulation resistance tests
part) and AP-NE (non-earthed accessible conductive part)
ECG performance waveforms
±2%
Accuracy ± 5 % for amplitude of 2 Hz square wave only, fixed at 1 mV lead II
configuration
Rates
ECG complex: 30 BPM, 60 BPM, 120 BPM, 180 BPM, and 240 BPM
Ventricular fibrillation
Waveforms Square wave (50 % duty cycle): 0.125 Hz and 2 Hz
Sine wave: 10 Hz, 40 Hz, 50 Hz, 60 Hz, and100 Hz
Triangle wave: 2 Hz
Pulse (63 ms pulse width): 30 BPM and 60 BPM
Test standards
Available selections ANSI/AAMI ES-1, IEC62353, IEC60601-1, and AS/NZS 3551
Built-in test sequences
Patient Monitor, Defibrillator, Infusion Pump, Ultrasound Device, Ge- neric
IEC60601-1 3rd Edition
Device and System
Patient Monitor, Defibrillator, Infusion Pump, Ultrasound Device and Generic
IEC62353
Device
Patient Monitor, Defibrillator, Infusion Pump, Ultrasound Device and Generic
NFPA-99 (Hospital)
Device
Patient Monitor, Defibrillator, Infusion Pump, Ultrasound Device and Generic
ANSI/AAMI ES1
Device
Communications
USB device upstream port Mini-B connector for control by a computer
USB host controller port Type A, 5 V output, 0.5 A max load. Connector for keyboard and barcode reader
Note: AC pulsed biphasic waveform has not been approved in the United States.
Autoranged measurement 0.1 J to 600 J
0.1 J to 360 J: ± (1 % of reading + 0.1 J) 360 J to 600 J: ± (1 % of reading + 0.1 J),
typical
Note: For pulsed biphasic defibrillator, specified accuracy is ± (1.5 % of reading +
Accuracy 0.3 J) on both ranges.
Load resistance
Resistance 50 Ω
Accuracy ± 1 %, non-inductive (< 2 μH)
Pulse trigger level 20 V
Pulse width
Range 1 ms to 50 ms
Accuracy ± 0.1 ms
Voltage
Range 20 V to 5000 V
Accuracy ± (1 % of reading + 2 V)
Current
Range 0.4 A to 100 A
Accuracy ± (1 % of reading + 0.1 A)
Tilt (biphasic and pulsed biphasic)
Range 1 % to 99 %
Accuracy ± 1 digit
Ventricular
Bigeminy
Ventricular Pair PVCs
Run 5 PVCs
Run 11 PVCs
Internal rechargeable NiMH battery pack for nine hours (typical) operation after
full charge or the battery charger can operate the analyzer and charge the battery
Power simultaneously
Battery charger 240 V input
Enclosure ABS plastic housing
Dimensions (WxDxH) 32 cm x 24 cm x 13 cm (13 in x 9.5 in x 5 in)
Weight 3.02 kg (6.6 lb, 0.1 oz)
CE: IEC/EN61010-1 2nd Edition; Pollution degree 2 CAN/CSA-C22.2 No 61010-1;
Safety standards UL61010-1
Electromagnetic compatibility standards European EMC: EN61326-1
Instructions: Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Comply” ag
corresponding performance parameter of the equipment offered. Statements of “Comply” must be supported by evidence in a B
form of manufacturer’s un-amended sales literature, unconditional statements of specification and compliance issued by the ma
statement that is not supported by evidence or is subsequently found to be contradicted by the evidence presented will render th
Bidders statement of compliance or the supporting evidence that is found to be false either during Bid evaluation, post-qualifica
render the Bidder or supplier liable for prosecution
Tachometer, digital
Manufact
M
Country of Or
Date of Manufac
Detailed specifications
Measurement method
Accuracy
Non-contact measuring
detection range
Display refresh rate
Functions
Common functions
Power supply
Operating time
AC power supply
Dimensions and mass
Accessories
ders must state in the column under Statement of Compliance the word either “Comply” or “Not Comply” against each of the individual par
formance parameter of the equipment offered. Statements of “Comply” must be supported by evidence in a Bidders Bid and cross-reference
urer’s un-amended sales literature, unconditional statements of specification and compliance issued by the manufacturer, samples, independ
ot supported by evidence or is subsequently found to be contradicted by the evidence presented will render the Bid under evaluation liable f
of compliance or the supporting evidence that is found to be false either during Bid evaluation, post-qualification or the execution of the Co
or supplier liable for prosecution
al
Manufacturer:
Model:
Country of Origin:
Date of Manufacture:
tions
Non-contact: Using red visible-spectrum light and reflective tape
Contact: Using optional Contact Adapter
Rotation (r/min): (30.00 to 199.99) to (20000 to 99990), Rotation (r/s): (0.5000 to 1.9999) to (200.0
to 1600.0), Period (ms): (0.6000 to 1.9999) to (200.0 to 1999.9), Count: 0 to 999999
Rotation (r/min): (15.00 to 199.99) to (2000 to 19999), Rotation (r/s): (0.2500 to 1.9999) to (200.0 to
333.00), Period (ms): (3.000 to 19.999) to (200.0 to 3999.9), Count: 0 to 999999
Straight-line speed (meter/min): (1.500 to 19.999) to (200.0 to 1999.9)
Straight-line speed (meter/s): (0.0250 to 1.9999) to (20.00 to 33.30)
Up to 9999 counts: ±1 dgt. (AVG=ON), ±10 dgt. (AVG=OFF)
10000 counts or more: ±2 dgt. (AVG=ON), ±20 dgt. (AVG=OFF)
20000 counts or more (r/min mode only): ±20 dgt. (AVG=ON), ±100 dgt. (AVG=OFF)
Straight-line speed measurement only: ±0.5 % rdg. add to above-mentioned accuracy
Continuity 1000 Ω / 1 Ω,
Manufacturer:
Model:
Country of Origin:
Date of Manufacture:
Accuracy
±([% of reading] + [counts]): 0.5% + 2
±([% of reading] + [counts]): 0.5% + 2
2.0% + 3 (DC, 45 Hz to 500 Hz), 4.0% + 3 (500 Hz to
1 kHz)
1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to
1 kHz)
1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to
1 kHz)
Beeper on < 20 Ω, off > 250 Ω detects opens or shorts
of 500 μs or longer.
0.9% + 1
5% + 2
0.9% + 2
1.9% + 2
10% + 2 typical
1.5% + 3, 20 A continuous overload for 30 seconds
max
1.0% + 3, 20 A continuous overload for 30 seconds
max
0.1% + 2
dividual parameters of each Specification
id and cross-referenced to that evidence.
e manufacturer, samples, independent
will render the Bid under evaluation liable
ation, post-qualification or the execution
Statement of Compliance
Instructions: Bidders must state in the column under Statement of Compliance the word either “Comply” or “Not Comply” ag
stating the corresponding performance parameter of the equipment offered. Statements of “Comply” must be supported by evid
Evidence shall be in the form of manufacturer’s un-amended sales literature, unconditional statements of specification and com
data etc., as appropriate. A statement that is not supported by evidence or is subsequently found to be contradicted by the evide
rejection. A statement either in the Bidders statement of compliance or the supporting evidence that is found to be false either d
Contract may be regarded as fraudulent and render the Bidder or supplier liable for prosecution
Probe type
Displays
ate in the column under Statement of Compliance the word either “Comply” or “Not Comply” against each of the individual parameters of e
ormance parameter of the equipment offered. Statements of “Comply” must be supported by evidence in a Bidders Bid and cross-referenced
of manufacturer’s un-amended sales literature, unconditional statements of specification and compliance issued by the manufacturer, sampl
tement that is not supported by evidence or is subsequently found to be contradicted by the evidence presented will render the Bid under ev
n the Bidders statement of compliance or the supporting evidence that is found to be false either during Bid evaluation, post-qualification or
raudulent and render the Bidder or supplier liable for prosecution
re logger,
Manufacturer:
Model:
Country of Origin:
Date of Manufacture:
95 x 27mm
100g
-30°C to +60°C / -22°F to +140 °F
-30°C to +55°C / -22°F to +131 °F
-10°C to +55°C / +14°F to +131 °F
-30°C to +50°C, in 0.1°C increments / -22°F to +122°F
2 individually programmable alarm limits (1 upper and 1 lower alarm limit)
1 Minute to 23h 59min
Every minute
±0.5°C (-5°C to 30°C), ±0.6°C (beyond this range)
±1.0°F (+23°F to +86°F), ±1.1°F (beyond this range)
±30 minutes / year
Every device is calibrated / NIST/ILAC traceable
Date and time will be set when device is activated
IP67
up to years - expiry date printed on label
Fridge-tag® 2 cannot be manipulated or reset without destroying it.
>2years
2years
sealed
connected via USB to a PC or Mac it creates a PDF
Software-Less PDF Generation Temperature / Alarm Data Plus Graphs
PDF report... 60 days of temperature & alarm data
Removable Probe
Current Temperature
30 Day Status on Screen
Meets FDA 21 CFR Part 11 requirements
mply” against each of the individual parameters of each Specification
by evidence in a Bidders Bid and cross-referenced to that evidence.
and compliance issued by the manufacturer, samples, independent test
he evidence presented will render the Bid under evaluation liable for
either during Bid evaluation, post-qualification or the execution of the
3. PHYSICAL CHARACTERISTICS
3.1 Dimensions(metric)
3.2 Weight (lbs, kg)
3.3 Noise (in dBA)
3.4 Heat dissipation
3.5 Mobility, portability
4. ENERGY SOURCE (electricity, UPS, solar, gas, water, CO2 ….)
4.1 Power requirements
4.2 Battery operated
4.3 Protection
4.4 Power consumption
5. ACCESSORIES, SPARE PARTS, CONSUMABLES
BIDDING/PROCUREMENT TERMS
6. ENVIRONMENTAL AND DEPARTMENTAL CONSIDERATIONS
Atmosphere/Ambience (air
6.1
conditioning, humidity, dust …)
Examination/treatment chairs designed to facilitate dental examination, treatment, and/or minor surgical procedures. These chairs are typ
adjustable up to a height that allows the healthcare staff to perform procedures while standing; the chairs usually include head- and armr
reclining back that may be tilted from a vertical to a horizontal or near-horizontal position, and rotating capabilities to facilitate examina
and/or treatment.
Dental Department
TECHNICAL
CS
It should have double articulating headrest with seesaw movement. It should be provided with soft cervical support.
Dental unit should have latest overhead delivery system.
It should have two 3-way syringes (Tip autoclavable, with spare tips) one on unit side and other on the assistant side.
It should have two high speed Air rotor terminals with two rotor hand pieces and accessories and one terminal for fiber optic. One for air
motor/micro motor having straight and contra angle hand pieces and other for air rotor terminal with two air rotor hand pieces with two s
cartridges.
It should have LED light cure unit with minimum intensity 1200 mW/cm2.
It should have infection control system with non-retraction valves.
All hand pieces / terminals should be kept on Autoclavable pads. 8 spare autoclavable pads should be supplied.
Arm of unit should be pneumatically locked.
All air tubing of the delivery system can be disinfected internally after every dental procedure.
It should have one in built piezo ultrasonic scalar (max frequency should be 36 KHZ)
Removable auxiliary tray (autoclavable) shall be supplied – 10 sets.
It should have integrated latest foot operated LED light (30000 - 50000 Lux).
It should have rotatable water system with removable spittoon.
It should have Medium Vacuum Suction and high suction (Motorized Suction).
Should have following multiple programmes Two programmable working positions.
Spitting and last working position with light ON and OFF automatically.
Return to Zero position with light OFF automatically.
It should have emergency stop control with luminous indication. Programmable bowl water and cup filler water.
It should have LED based X-ray viewer (For I.P.G/O.P. G films). It should be provided with right arm.
It should have multi-functional foot control base.
It should be provided with two stools with adjustable backrest tilt including an adjustable ring for foot rest
Oil free medical grade compressor of 1. HP (fully imported)
Manual
In built
TICS
NA
NA
Noise-free system
Should maintain nominal temp and the heat should be disbursed through a cooling mechanism
Contact details of manufacturer, supplier and local service agent to be provided; Any Contract (AMC/CMC/ ad-hoc) to be declared by th
manufacturer.
Used by clinical
1.2
department/ward
TECHNICAL
2. TECHNICAL CHARACTERISTICS
3. PHYSICAL CHARACTERISTICS
3.1 Dimensions(metric)
3.2 Weight (lbs, kg)
3.3 Noise (in dBA)
4.3 Protection
Atmosphere/Ambience (air
6.1
conditioning, humidity, dust …)
Local and/or
7.2
international
off
technicians)
9.1 Warranty
10. DOCUMENTATION
Other accompanying
10.2
documents
11. Notes
Service Support Contact details
11.1 (Hierarchy Wise; including a toll
free/landline number)
Recommendations or
11.2
warnings
DENTAL X-RAY – EXTRA ORAL (O.P.G) – DIGITAL
Version no. :
Date:
Done by: (name. Institution)
UMDNS name
UMDNS code(s)
GENERAL
1. USE
Used by clinical
1.2
department/ward
TECHNICAL
2. TECHNICAL CHARACTERISTICS
3. PHYSICAL CHARACTERISTICS
3.1 Dimensions(metric)
3.2 Weight (lbs, kg)
3.3 Noise (in dBA)
Atmosphere/Ambience (air
6.1
conditioning, humidity, dust …)
Local and/or
7.2
international
off
technicians)
9.1 Warranty
10. DOCUMENTATION
Other accompanying
10.2
documents
11. Notes
Service Support Contact details
11.1 (Hierarchy Wise; including a toll
free/landline number)
Recommendations or
11.2
warnings
FULLY LOADED DENTAL CHAIR ELECTRICALLY
OPERATED
Version no. :
Date:
Done by: (name. Institution)
UMDNS name
UMDNS code(s)
GENERAL
1. USE
2. TECHNICAL CHARACTERISTICS
3. PHYSICAL CHARACTERISTICS
3.1 Dimensions(metric)
3.2 Weight (lbs, kg)
3.3 Noise (in dBA)
Atmosphere/Ambience (air
6.1
conditioning, humidity, dust …)
Other accompanying
10.2
documents
11. Notes
Service Support Contact details
11.1 (Hierarchy Wise; including a toll
free/landline number)
Recommendations or
11.2
warnings
Version no. :
Date:
Done by: (name. Institution)
UMDNS name
UMDNS code(s)
GENERAL
1. USE
Used by clinical
1.2
department/ward
TECHNICAL
2. TECHNICAL CHARACTERISTICS
3. PHYSICAL CHARACTERISTICS
3.1 Dimensions(metric)
3.2 Weight (lbs, kg)
3.3 Noise (in dBA)
Atmosphere/Ambience (air
6.1
conditioning, humidity, dust …)
Local and/or
7.2
international
9.1 Warranty
10. DOCUMENTATION
Other accompanying
10.2
documents
11. Notes
Service Support Contact details
11.1 (Hierarchy Wise; including a toll
free/landline number)
11.2 Recommendations or warnings
DENTAL INSTRUMENTS
Version no. :
Date:
Done by : (name.institution)
List of instruments
2.1
3. PHYSICAL CHARACTERISTICS
3.1 Dimensions(metric)
3.2 Weight (lbs, kg)
3.3 Noise (in dBA)
3.4 Heat dissipation
3.5 Mobility, portability
5.1
Atmosphere/Ambience (air
conditioning,
6.1 humidity, dust …)
9.1 Warranty
10. DOCUMENTATION
Other accompanying
10.2
documents
11. Notes
Service Support Contact details
(Hierarchy Wise; including a toll
11.1 free/landline number)
Recommendations or
11.2
warnings
NTRA ORAL WITH RVG
GENERAL
Dental radiographic units for which the dental film is placed inside the patient's mouth. These units are used
for imaging of crowns and the upper third of the roots of both upper and lower teeth (bitewing image), the
full tooth structure (periapical image), or the masticating surface of the premolars and molars (occlusal
image). In these units, the x-ray tube is usually located in a cylindrical tube head mounted on an articulating
arm positioned according to the view desired.
Dental Department
In built
CS
NA
NA
Noise-free system
Should maintain nominal temp and the heat should be disbursed through
a cooling mechanism
Should provide a pedestal stand with freely movable round wheels with locking devices to prevent unusual
and excessive movement/ System should be wall mounted. It has to be set as per the requirement of the
facility.
TS, CONSUMABLES
1. Two numbers of BARC approved whole body lead aprons with all attachments and thyroid colors.
2. RVG (with Software) should be supplied with adequate and compatible computer system with latest
operating system i.e desktop of latest version (i5 processor with 500 GB or more Hard disk drive and RAM
approx 4 GB) and suitable laser printer.
ARTMENTAL CONSIDERATIONS
1. Disinfection: Parts of the Device that are designed to come into contact with the patient or the operator
should either be capable of easy disinfection or be protected by a single use/disposable cover.
ON
1.Training of users on operation and basic maintenance; 2.Advanced maintenance tasks required shall be
documented;
NCE
List of essential spares and accessories, with their part number and cost;
Ver_1
12/7/2018
HCT/NHSRC
18427
Radiographic Units, Dental, Extra oral
GENERAL
Dental radiographic units in which the dental film is placed in an external film cassette. These units are
designed for imaging the maxillofacial region using a rotating x-ray beam (panoramic radiography), which
produces a single image of the dental arch as a fixed elliptical shape; and/or to obtain images of the
complete skull (cephalometric radiography) or of a region of interest from various angles. Some extra oral
units can produce multilayered transverse images of the maxillary and mandibular jaws (cross-sectional
tomography).
Dental Department
It should be digital.
Suitable for Adult and Pediatrics.
Minimum total filtration shall be 2.5 mm Al. Heat capacity shall be ≥20,000 HU.
Focal spot size should be 0.6 mm.
Constant potential; high-frequency required.
Automatic Exposure Control (AEC) is required which is used to control the length of x-ray exposure. The
exposure timer controls the length of the x- ray exposure; typical exposure times are 0.1 to 5 seconds for
cephalometric radiography and 5 to 20 seconds for panoramic radiography. Patient selection Switches
( Thin, Normal and Obese) Feather touch keypad and length of exposure cable should be 5 to 6 meters.
Ease of operation as all the functions can be selected from the remote control as well as timer.
An excellent output of 60 kV to 80 kV, 0mAs to 15 mAs. Exposure time shall be ≤15 sec
Audible and Visual indication of “X-Ray On” (Radiation indications). Should provide compatible voltage
stabilizer (Built in/External).
Source to Image Distance(SID) 400-500 mm
MAGNIFICATION : 1.2-1.5x
Manual
In built
CS
NA
NA
Noise-free system
Should maintain nominal temp and the heat should be disbursed through
a cooling mechanism
TS, CONSUMABLES
1. Two numbers of BARC approved whole body lead aprons with all attachments and thyroid color.
ARTMENTAL CONSIDERATIONS
1. Disinfection: Parts of the Device that are designed to come into contact with the patient or the operator
should either be capable of easy disinfection or be protected by a single use/disposable cover.
ON
1.Training of users on operation and basic maintenance; 2.Advanced maintenance tasks required shall be
documented;
NCE
List of essential spares and accessories, with their part number and cost;
Ver_1
12/7/2018
HCT/NHSRC
10792
Chairs, Examination/Treatment, Dentistry
GENERAL
Examination/treatment chairs designed to facilitate dental examination, treatment, and/or minor surgical
procedures. These chairs are typically adjustable up to a height that allows the healthcare staff to perform
procedures while standing; the chairs usually include head- and armrests, a reclining back that may be tilted
from a vertical to a horizontal or near-horizontal position, and rotating capabilities to facilitate examination
and/or treatment.
Dental Department
TECHNICAL
S
It should have double articulating headrest with seesaw movement. It should be provided with soft cervical
support.
Dental unit should have latest overhead delivery system.
It should have two 3-way syringes (Tip autoclavable, with spare tips) one on unit side and other on the
assistant side.
It should have LED light cure unit with minimum intensity 1200 mW/cm2.
It should have infection control system with non-retraction valves (Bio system /equivalent).
All hand pieces / terminals should be kept on Autoclavable pads. 8 spare autoclavable pads should be
supplied.
Arm of unit should be pneumatically locked.
All air tubing of the delivery system can be disinfected internally after every dental procedure.
It should have one in built piezo ultrasonic scalar (max frequency should be 36 KHZ)
Removable auxiliary tray (autoclavable) shall be supplied – 10 sets.
It should have integrated latest foot operated LED light (30000 - 50000 Lux).
It should have rotatable water system with removable spittoon.
It should have Medium Vacuum Suction and high suction (Motorized Suction).
Should have following multiple programmes Two programmable working positions.
Spitting and last working position with light ON and OFF automatically.
Return to Zero position with light OFF automatically.
It should have emergency stop control with luminous indication. Programmable bowl water and cup filler
water.
It should have LED based X-ray viewer (For I.P.G/O.P. G films). It should be provided with right arm.
It should have multi-functional foot control base.
It should be provided with two stools with adjustable backrest tilt including an adjustable ring for foot rest
In built
CS
NA
NA
Noise-free system
Should maintain nominal temp and the heat should be disbursed
through a cooling mechanism
TS, CONSUMABLES
AIR COMPRESSOR:
1. Medical grade, Oil free, Noise free at least 1 HP Compressor.
2. The compressor should be fitted with
a. Built in thermo cut off to save motor during excess of heat
b. auto head air release valve,
c. Automatic cut off
d. Safety release valve
e. Drain Valve
f. The inner surface of the compressor tank (at least 35 L) is
coated with Epoxy to prevent rusting.
ARTMENTAL CONSIDERATIONS
1. Disinfection: Parts of the Device that are designed to come into contact with the patient or the operator
should either be capable of easy disinfection or be protected by a single use/disposable cover.
ON
NCE
3 years, including all spares and calibration.
E (VACUUM TYPE)
Ver_1
12/7/2018
HCT/NHSRC
16142
Sterilizing Units, Steam, Tabletop
GENERAL
a tabletop unit including a treatment with shelves on which the devices to be sterilized are placed, usually
after being cleaned of gross debris and then packed;
Dental Department
S
The autoclave should provide sterilization at 121o C and 134o C for both wrapped and unwrapped tools and
also a flash cycle for rapid sterilization.
The autoclave should be equipped with a powerful vacuum pump to eject air pockets from the chamber at
the beginning and at the end of cycle (Pre-vacuum and Post vacuum)
It should have minimum four sterilization programs and two test programs.
Minimum volume at least 20liters.
It should be class B autoclave so that hollow bodied instruments, hand pieces, and turbines can be fully
autoclaved.
Manual
In built
CS
NA
NA
Noise-free system
Should maintain nominal temp and the heat should be disbursed
through a cooling mechanism
TS, CONSUMABLES
All Accessories like water purification unit, sealing machine etc. should be of same manufacturer.
All accessories should be supplied to make equipment fully functional as per user requirement.
ARTMENTAL CONSIDERATIONS
1. Disinfection: Parts of the Device that are designed to come into contact with the patient or the operator
should either be capable of easy disinfection or be protected by a single use/disposable cover.
ON
NCE
MENTS
1
15/02/2018
HCT/NHSRC
Dental
TECHNICAL
ICS
DIAGNOSTIC INSTRUMENTS
Mouth Mirror Handle with tops. – 1 No Explorer – 1 No
Tweezers – 1 No Straight Probe. – 1 No
Periodontal Probe. – 1 No Kidney Tray 1 No
RESTORATIVE INSTRUMENTS
Spoon Excavator – 18/w Medium E-2 Cement Spatula – 1 No
Plastic filling instrument – 2 No Burnisher Ball – 1 No
Smooth Plugger - 1 No Matrix Band – 1 No
Matrix Retainer with band (50 nos) – Toffelmeir – 8 No Cellophane Strips – 1No
Composite Filling Instrument – 2 No
ENDODONTIC INSTRUMENTS
Endodontic No: D, G 16 / Equivalent endodontic explorer – 1 No Endodontic Spreader, 0.2 mm tips (Nickel,
Titanium) – 1No
NA
CS
NA
NA
NA
NA
Supplied in protective SS case for clean storage and safe transport.
NA
NA
NA
NA
TS, CONSUMABLES
NA
ARTMENTAL CONSIDERATIONS
NA
1. Disinfection: Parts of the Device that are designed to come into contact with the patient or the operator
should either be capable of easy disinfection or be protected by a single use/disposable cover.
2. Sterilization required.
ON
NA
NA
Training of users in operation and basic maintenance shall be provided. Advanced maintenance tasks
required shall be documented.
NCE
