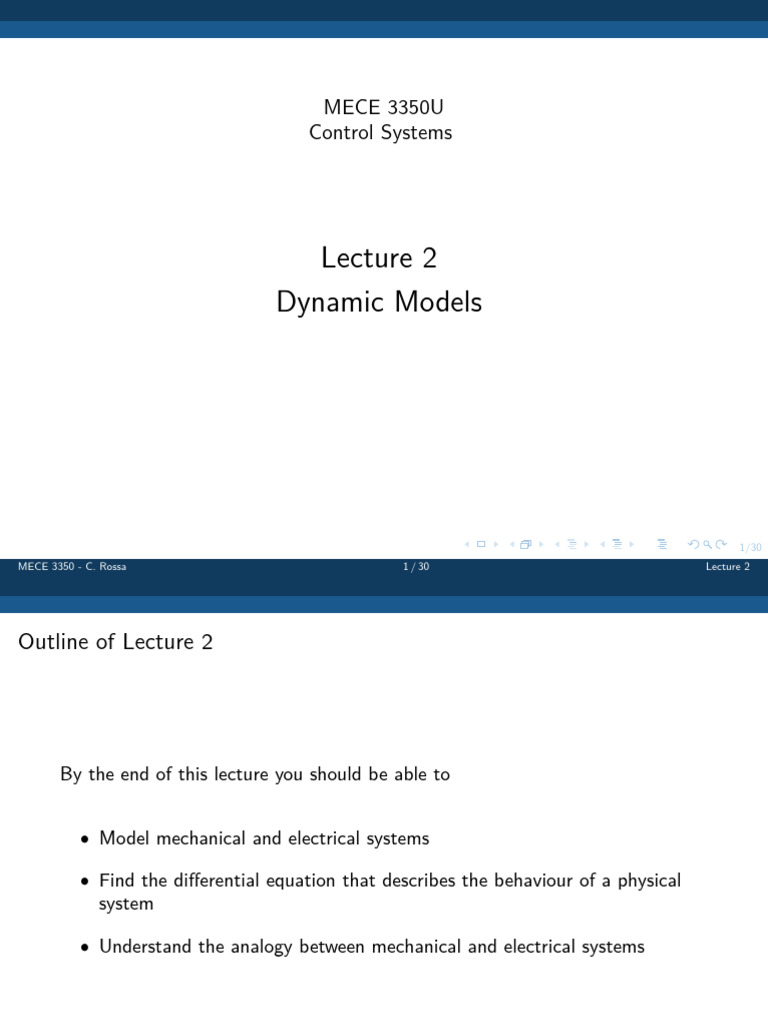

MECE 3350U

Control Systems

Lecture 2
Dynamic Models

1/30
MECE 3350 - C. Rossa 1 / 30 Lecture 2
Outline of Lecture 2

By the end of this lecture you should be able to

• Model mechanical and electrical systems

• Find the differential equation that describes the behaviour of a physical

system

• Understand the analogy between mechanical and electrical systems

2/30
MECE 3350 - C. Rossa 2 / 30 Lecture 2
Elements of a mechanical system

→ Mass: The quantity of matter in a body

→ Inertia: Tendency to resist changes in state of motion
Idealization: Rigid body

3/30
MECE 3350 - C. Rossa 3 / 30 Lecture 2
Elements of a mechanical system

→ Spring: Designed to store energy

Idealization: Negligible mass and damping

4/30
MECE 3350 - C. Rossa 4 / 30 Lecture 2
Elements of a mechanical system

→ Viscous damper: Designed to dissipate energy

Idealization: negligible mass and stiffness

viscous friction
6=
kinetic/static friction

5/30
MECE 3350 - C. Rossa 5 / 30 Lecture 2
Example
Find the equation of motion of the spring-mass-damper system.

6/30
MECE 3350 - C. Rossa 6 / 30 Lecture 2
Elements of electrical circuits

→ Resistor: Resistance against electric current

Idealization: No inductance or capacitance

→ Capacitor: Stores energy in an electric field

Idealization: No inductance or resistance

→ Inductor: Stores energy in a magnetic field

Idealization: No capacitance or resistance

7/30
MECE 3350 - C. Rossa 7 / 30 Lecture 2
Example
Find the relation between the voltage V , the current, and the charge in the
circuit.

8/30
MECE 3350 - C. Rossa 8 / 30 Lecture 2
Mechanical/electrical analogy

d 2x dx
F =m +b + kx (1)
dt 2 dt

d 2q dq 1
V =L +R + q (2)
dt 2 dt C
Impulse response

x (t) = Ke −αt sin(βt + θ) (3)

9/30
MECE 3350 - C. Rossa 9 / 30 Lecture 2
Mechanical/electrical analogy

Mechanical Electrical

Force F Voltage V
Velocity v Current i
Displacement x Charge q

Damping b Resistance R
Mass m Inductance L
Compliance k −1 Capacitance C

10/30
MECE 3350 - C. Rossa 10 / 30 Lecture 2
Mechanical/electrical analogy

Taking: m = 5 kg, k = 0.25 N/m, b = 0.1 Ns.

7 3
Step Response
Impulse Response
Amplitude

Amplitude

0 -3
0 Time (seconds) 50 0 Time (seconds) 50

11/30
MECE 3350 - C. Rossa 11 / 30 Lecture 2
Mechanical/electrical analogy
Taking: m = 5 kg, k = 0.25 N/m, b = 0.1 Ns.

2 Step Response 2
Impulse Response
Amplitude

Amplitude

-2 -2
0 Time (seconds) 50 0 Time (seconds) 50

12/30
MECE 3350 - C. Rossa 12 / 30 Lecture 2
Mechanical/electrical analogy
6
displacement/charge
velocity/current

Amplitude

0
Step Response

0 Time (seconds) 50

2
displacement/charge
velocity/current
Amplitude

Impulse Response
-2
0 Time (seconds) 50

13/30
MECE 3350 - C. Rossa 13 / 30 Lecture 2
Exercise 3

Find the equations of motion of the mass-spring system shown.

Procedure:
→ Draw the free body diagram of each mass
→ Apply the equation of motion

14/30
MECE 3350 - C. Rossa 14 / 30 Lecture 2
Exercise 3 - continued

15/30
MECE 3350 - C. Rossa 15 / 30 Lecture 2
Exercise 4

Find the differential equations to model the behaviour of the system shown.

Procedure:
→ Draw the free body diagram of each mass
→ Apply the equation of motion

16/30
MECE 3350 - C. Rossa 16 / 30 Lecture 2
Exercise 4 - continued

17/30
MECE 3350 - C. Rossa 17 / 30 Lecture 2
Exercise 5

Find the differential equations to model the behaviour of the system shown.

Procedure:
→ Draw the free body diagram of each mass
→ Apply the equation of motion

18/30
MECE 3350 - C. Rossa 18 / 30 Lecture 2
Exercise 5 - continued

19/30
MECE 3350 - C. Rossa 19 / 30 Lecture 2
Exercise 6

Find the differential equations to model the behaviour of the system shown.

Procedure:
→ Draw the free body diagram of each mass
→ Apply the equation of motion

20/30
MECE 3350 - C. Rossa 20 / 30 Lecture 2
Exercise 6 - continued

21/30
MECE 3350 - C. Rossa 21 / 30 Lecture 2
Exercise 7

Find the differential equations to model the behaviour of the system shown.

Procedure:
→ Draw the free body diagram of each mass
→ Apply the equation of motion

22/30
MECE 3350 - C. Rossa 22 / 30 Lecture 2
Exercise 7 - continued

23/30
MECE 3350 - C. Rossa 23 / 30 Lecture 2
Exercise 8

Write the the differential equations (i = f (V )) of the following circuit.

Procedure:
→ Apply Kirchhoff’s voltage law
→ Find the equations for i1 and i2

24/30
MECE 3350 - C. Rossa 24 / 30 Lecture 2
Exercise 8 - continued

25/30
MECE 3350 - C. Rossa 25 / 30 Lecture 2
Exercise 9

Write the the differential equations (i = f (V )) of the following circuit.

Procedure:
→ Apply Kirchhoff’s voltage law
→ Find the equations for i1 and i2

26/30
MECE 3350 - C. Rossa 26 / 30 Lecture 2
Exercise 9 - continued

27/30
MECE 3350 - C. Rossa 27 / 30 Lecture 2
Exercise 10

Write the the differential equations (Vout = f (V )) of the following circuit.

Procedure:
→ Apply Kirchhoff’s law
→ Find the equations for Vout as a function of V

28/30
MECE 3350 - C. Rossa 28 / 30 Lecture 2
Exercise 10 - continued

29/30
MECE 3350 - C. Rossa 29 / 30 Lecture 2
Next class...

• Laplace transform

30/30
MECE 3350 - C. Rossa 30 / 30 Lecture 2
