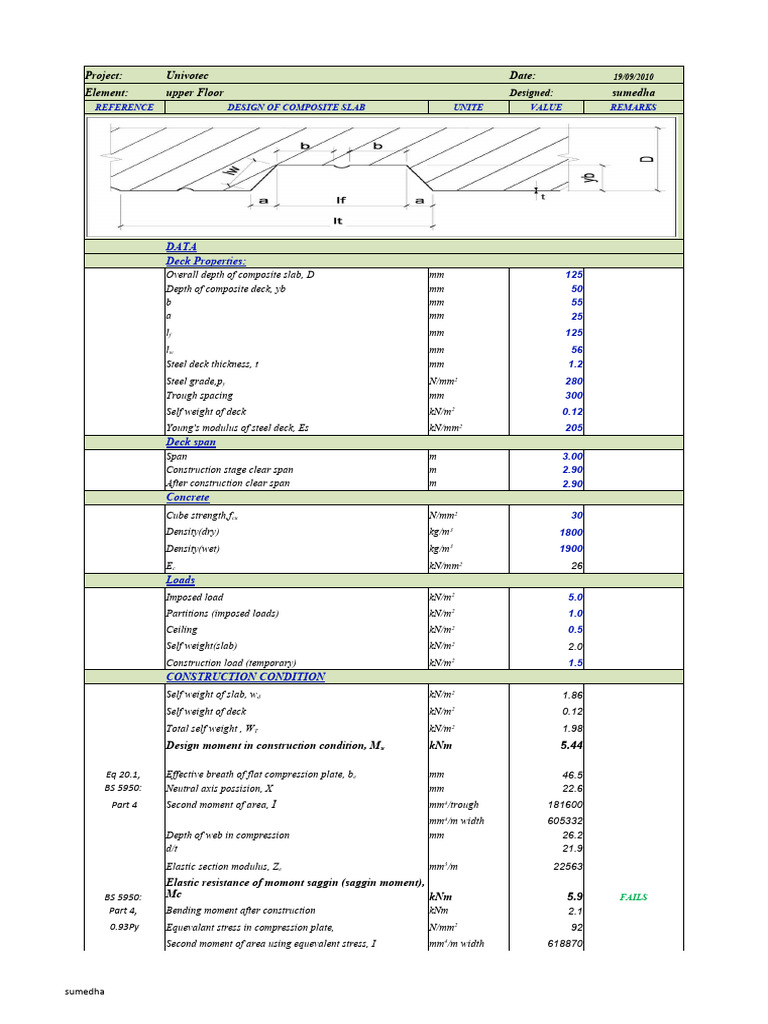

Project: Univotec Date: 19/09/2010

Element: upper Floor Designed: sumedha


REFERENCE DESIGN OF COMPOSITE SLAB UNITE VALUE REMARKS

DATA
Deck Properties:
Overall depth of composite slab, D mm 125
Depth of composite deck, yb mm 50
b mm 55
a mm 25
lf mm 125
lw mm 56
Steel deck thickness, t mm 1.2
Steel grade,py N/mm2 280
Trough spacing mm 300
Self weight of deck kN/m2 0.12
Young's modulus of steel deck, Es kN/mm2 205
Deck span
Span m 3.00
Construction stage clear span m 2.90
After construction clear span m 2.90
Concrete
Cube strength,fcu N/mm2 30
Density(dry) kg/m 3
1800
Density(wet) kg/m3 1900
Ec kN/mm 2
26
Loads
Imposed load kN/m2 5.0
Partitions (imposed loads) kN/m2 1.0
Ceiling kN/m 2
0.5
Self weight(slab) kN/m2 2.0
Construction load (temporary) kN/m2 1.5
CONSTRUCTION CONDITION
Self weight of slab, wd kN/m2 1.86
Self weight of deck kN/m2 0.12
Total self weight , WT kN/m 2
1.98
Design moment in construction condition, M u kNm 5.44

Eq 20.1, Effective breath of flat compression plate, be mm 46.5


BS 5950: Neutral axis possision, X mm 22.6
Part 4 Second moment of area, I mm4/trough 181600
mm4/m width 605332
Depth of web in compression mm 26.2
d/t 21.9
Elastic section modulus, Ze mm3/m 22563
Elastic resistance of momont saggin (saggin moment),
BS 5950: Mc kNm 5.9 FAILS
Part 4, Bending moment after construction kNm 2.1
0.93Py Equevalant stress in compression plate, N/mm2 92
Second moment of area using equevalent stress, I mm4/m width 618870

sumedha

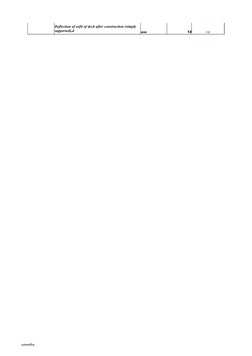

Deflection of sofit of deck after construction (simply
supported),d mm 14 OK

sumedha

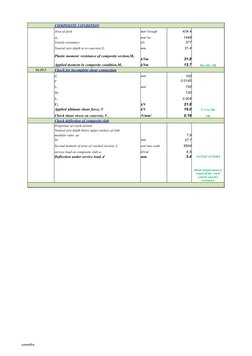

COMPOSITE CONDITION
Area of deck mm2/trough 434.4
Ap mm2/m 1448
Tensile resistance kN 377
Neutral axis depth in to concrete,Xc mm 31.4

Plastic moment resistance of composite section,M p


kNm 31.8
Applied moment in composite condition,M u kNm 13.7 Mu<Mc, OK
Eq 20.2 Chech for incomplete shear connection
de mm 100
p 0.0145
Lv mm 750
Md 130
kd 0.004
Vu kN 21.8
Applied ultimate shear force, V kN 19.0 V<Vu, OK
Check shear stress on concrete, Vc N/mm 2
0.19 OK
Check deflection of composite slab
Properties of crack section
Neutral axis depth below upper surface of slab
modular ratio ,αe 7.9
Xe mm 37.7
Second moment of area of cracked section, Ic mm4/mm width 8504
service load on composite slab,ws kN/m 2
6.5
Deflection under service load, d mm 3.4 SATISFACTORY

Mesh reinforcment is
required for crack
control and fire
resistance

sumedha
