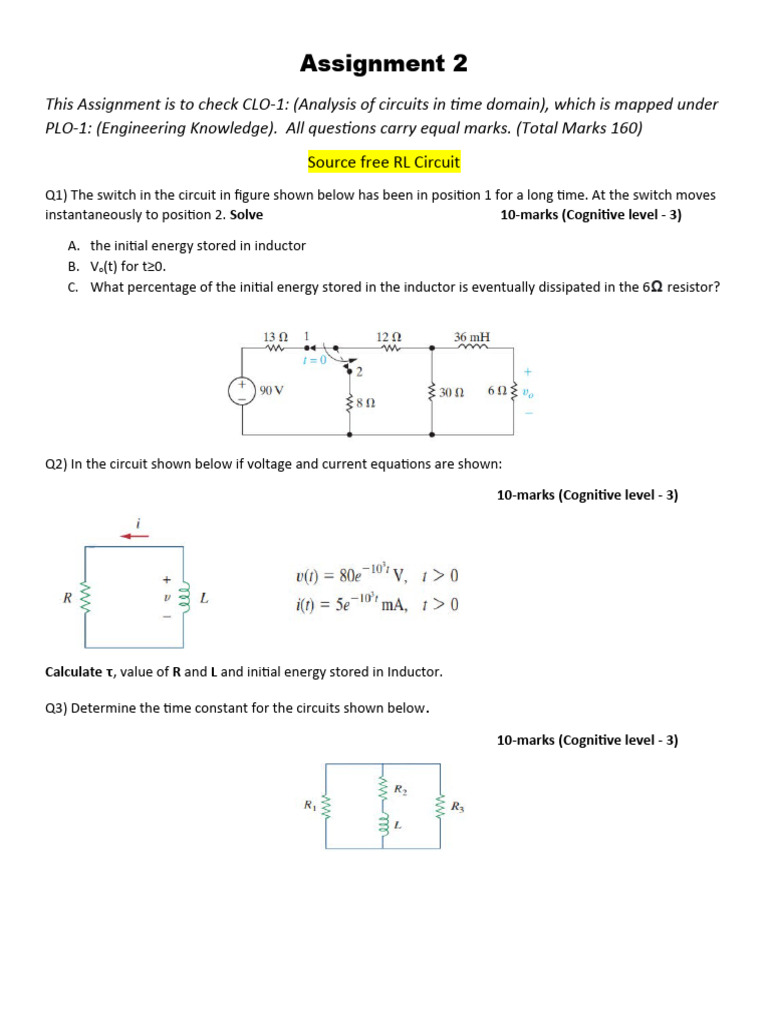

Assignment 2

This Assignment is to check CLO-1: (Analysis of circuits in time domain), which is mapped under
PLO-1: (Engineering Knowledge). All questions carry equal marks. (Total Marks 160)
Source free RL Circuit
Q1) The switch in the circuit in figure shown below has been in position 1 for a long time. At the switch moves
instantaneously to position 2. Solve 10-marks (Cognitive level - 3)
A. the initial energy stored in inductor
B. Vo(t) for t≥0.
C. What percentage of the initial energy stored in the inductor is eventually dissipated in the 6Ω resistor?

Q2) In the circuit shown below if voltage and current equations are shown:
10-marks (Cognitive level - 3)

Calculate 𝞃, value of R and L and initial energy stored in Inductor.

Q3) Determine the time constant for the circuits shown below.

10-marks (Cognitive level - 3)

Q4) Consider the circuit in Figure below. If Vo(0)= 10 V, find vo(t) and vx(t) for t > 0.
10-marks (Cognitive level - 3)

Source free RC Circuit

Q5) The switch shown in figure below has been open for a long time before closing at t=0. Calculate
10-marks (Cognitive level - 3)
A. V(t) for t≥0.
B. the initial energy stored in the capacitor.

Q6) Calculate the time constant for the circuits shown below.

10-marks (Cognitive level - 3)

Q7) In the circuit shown below if voltage and current equations are shown:
10-marks (Cognitive level - 3)

Find 𝞃, value of R and C and initial energy stored in Capacitor.

Q8) The switch in figure below has been in position A for a long time and is moved to position B at t = 0s, then
at t = 1s, the switch moves from B to C. Solve for vC (t) for t ≥ 0.
10-marks (Cognitive level - 3)

Step response of RC Circuit

Q9) The switch in Figure below has been in position a for a long time. At t=0 it moves to position b. Calculate
i(t) for all t > 0. Assume Vc (0)= 0 V.
10-marks (Cognitive level - 3)

Q10)

a)For the circuit in Figure below, is(t) = 5 u(t), solve v(t).

10-marks (Cognitive level - 3)

b)If the waveform in figure below is applied to the circuit shown above. Solve for v(t). Let, v(0) = 0V.

10-marks (Cognitive level - 3)

Q11) The switch in the Figure below a for a long time. At the switch is moved to position b. Calculate (a) the initial
voltage on the capacitor; (b) the final voltage on the capacitor; (c) the time constant (in microseconds) for t > 0. d)
Equation for Vc(t).

10-marks (Cognitive level - 3)

Q12) The switch in the circuit seen in figure below has been in position a for a long time. At t = 0 the switch moves
instantaneously to position b. Calculate V0(t) and i0(t) for t ≥ 0.

10-marks (Cognitive level - 3)

Step response of RL Circuit

Q13) Find v(t) for t > 0 in the circuit of figure below, if the initial current in the inductor is zero.
10-marks (Cognitive level - 3)

Q14) Obtain v(t) and i(t) in the circuit of Figure shown below.
10-marks (Cognitive level - 3)
Q15) If the input pulse in Figure (left) is applied to the circuit in Figure (right), determine the response i(t).

10-marks (Cognitive level - 3)

Q16) The switch in the circuit shown in Figure below has been in position a for a long time. At the switch moves
instantaneously to position b. Find the numerical expression for i0 (t) when t ≥ 0. Find the numerical expression for v0 (t)
when t ≥ 0.

10-marks (Cognitive level - 3)
