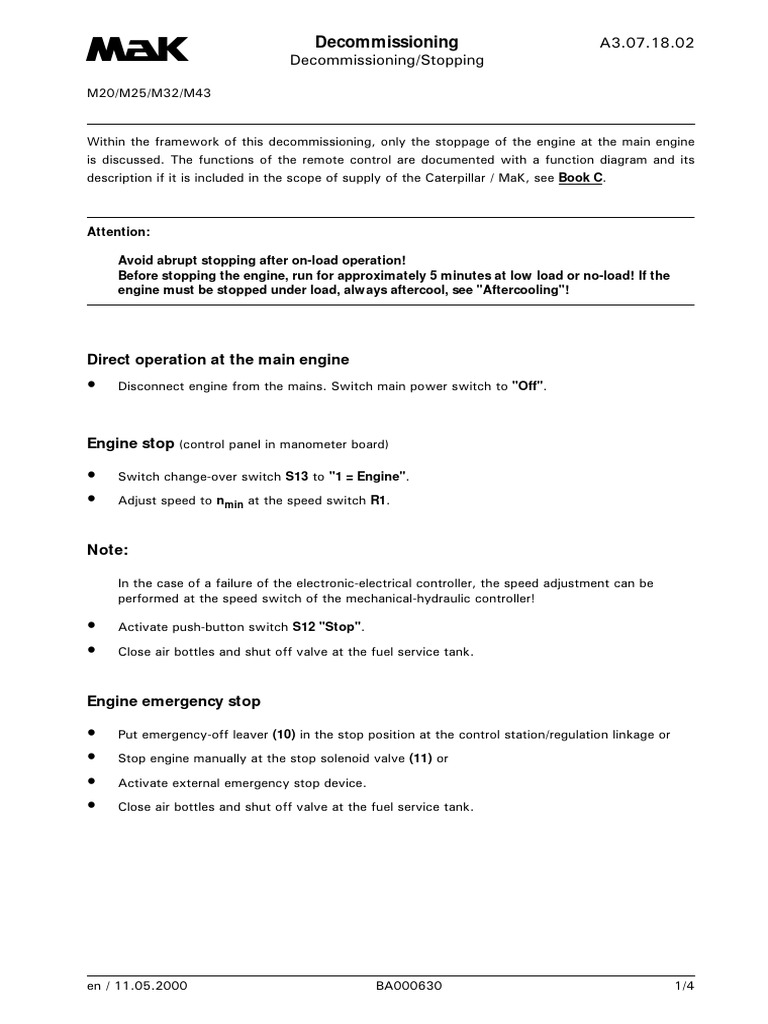

Ĺ Decommissioning

Decommissioning/Stopping
A3.07.18.02

M20/M25/M32/M43

Within the framework of this decommissioning, only the stoppage of the engine at the main engine
is discussed. The functions of the remote control are documented with a function diagram and its
description if it is included in the scope of supply of the Caterpillar / MaK, see Book C.

Attention:

Avoid abrupt stopping after on-load operation!


Before stopping the engine, run for approximately 5 minutes at low load or no-load! If the
engine must be stopped under load, always aftercool, see "Aftercooling"!

Direct operation at the main engine


• Disconnect engine from the mains. Switch main power switch to "Off".

Engine stop (control panel in manometer board)

• Switch change-over switch S13 to "1 = Engine".

• Adjust speed to nmin at the speed switch R1.

Note:

In the case of a failure of the electronic-electrical controller, the speed adjustment can be
performed at the speed switch of the mechanical-hydraulic controller!

• Activate push-button switch S12 "Stop".

• Close air bottles and shut off valve at the fuel service tank.

Engine emergency stop

• Put emergency-off leaver (10) in the stop position at the control station/regulation linkage or

• Stop engine manually at the stop solenoid valve (11) or

• Activate external emergency stop device.

• Close air bottles and shut off valve at the fuel service tank.

en / 11.05.2000 BA000630 1/4


Ĺ Decommissioning
Decommissioning/Stopping
A3.07.18.02

M20/M25/M32/M43

S14 H13

H12 H11
S11 S12
H9 H10

1 2 V O Z

S15
S13
R1

11

10

H11 Wrong start


H12 Start locking
H13 Run from remote control
R1 Speed adjustment
S11 / H9 Start
S12 / H10 Stop
S13 Change-over switch
1 = Engine
2 = Remote control
S14 Lamps test
S15 Change-over switch ahead / back

en / 11.05.2000 BA000630 2/4
