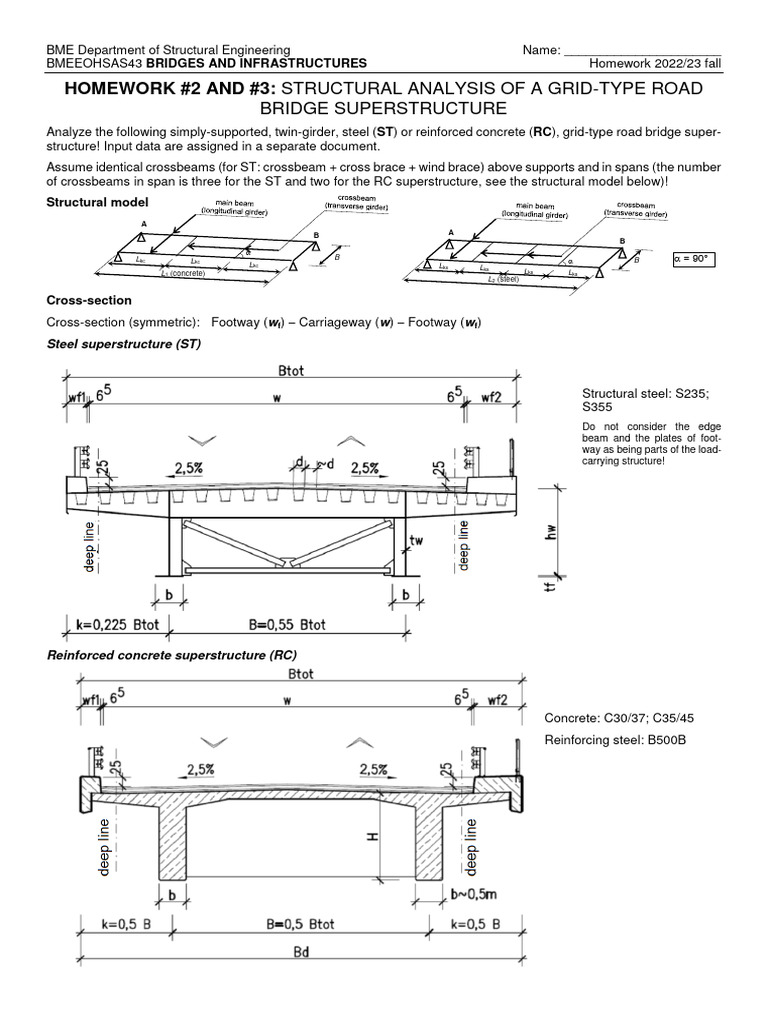

BME Department of Structural Engineering Name: ______________________
BMEEOHSAS43 BRIDGES AND INFRASTRUCTURES Homework 2022/23 fall
HOMEWORK #2 AND #3: STRUCTURAL ANALYSIS OF A GRID-TYPE ROAD
BRIDGE SUPERSTRUCTURE Analyze the following simply-supported, twin-girder, steel (ST) or reinforced concrete (RC), grid-type road bridge super- structure! Input data are assigned in a separate document. Assume identical crossbeams (for ST: crossbeam + cross brace + wind brace) above supports and in spans (the number of crossbeams in span is three for the ST and two for the RC superstructure, see the structural model below)! Structural model A B A B Lkc Lkc B B = 90° Lkc Lks Lks L1 (concrete) Lks Lks L2 (steel)
S355 Do not consider the edge beam and the plates of foot- way as being parts of the load- carrying structure!
Reinforced concrete superstructure (RC)
Concrete: C30/37; C35/45
Reinforcing steel: B500B BME Department of Structural Engineering Name: ______________________ BMEEOHSAS43 BRIDGES AND INFRASTRUCTURES Homework 2022/23 fall Loading class Loading class 0: Q1=1,0, Q2=1,0, Q3=1,0, q1=1,0, qi (i>1)= qr=1,0 Loading class I: Q1=1,0, Q2=0,8, Q3=0,0, q1=0,8, qi (i>1)= qr=1,0 Loading class II: Q1=0,8, Q2=0,8, Q3=0,0, q1=0,6, qi (i>1)= qr=1,0 Tasks to submit Homework #2: Separation of main girders by using influence line for lateral load distribution Separate the main girders and calculate the effective width of main girders as well as the influence line characterizing the lateral load distribution between the main girders! Based on this, perform the structural analysis of HW#3 at the following cross-sections of the structure: at mid-span (section AB); in the vicinity of the abutment (at a distance of hw/2 (ST) or 0,9H (RC) from the abutment) (denoted by section A’)! Homework #3: Calculation of critical internal forces Determine the following internal forces for the most critical main girder: a) design values of bending moment (MEd) and shear force (VEd) as follows: at section AB: MEd,AB; at section A’ : ST: MEd,A’ and VEd,A’; RC: VEd,A’ b) frequent values of bending moment at section AB: Mfr,AB! Consider only self-weight as permanent action, only traffic load as variable action, only gr1a and gr4 groups of traffic loads! Consulting teacher Dr. JÁGER Bence Deadline Homework #2: submission via Moodle (pdf document): 23:00 pm, 3 of November, 2022 (Thursday), repetition: 23:00 pm, 10 of November, 2022 (Thursday, repetition fee due). Homework #3: submission via Moodle (pdf document): 23:00 pm, 1 of December, 2022 (Thursday), repetition: 23:00 pm, 8 of December, 2022 (Thursday, repetition fee due). Budapest, October 06, 2022
