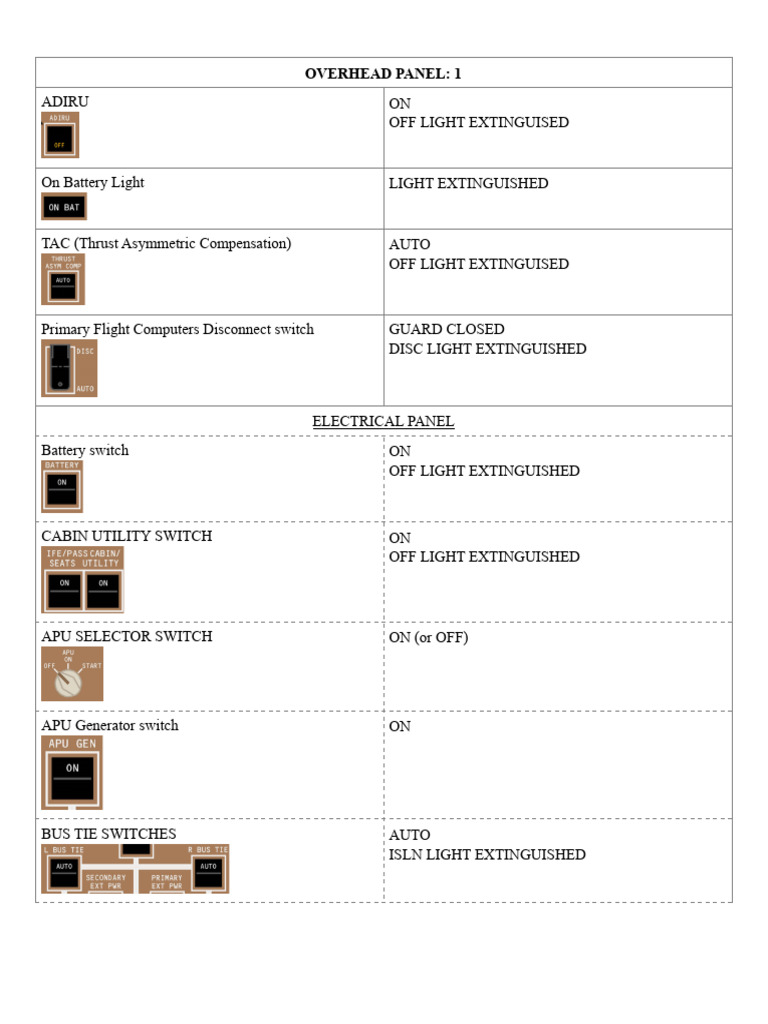

OVERHEAD PANEL: 1

ADIRU ON
OFF LIGHT EXTINGUISED
!
On Battery Light LIGHT EXTINGUISHED

!
TAC (Thrust Asymmetric Compensation) AUTO
OFF LIGHT EXTINGUISED

!
Primary Flight Computers Disconnect switch GUARD CLOSED
DISC LIGHT EXTINGUISHED

!
ELECTRICAL PANEL
Battery switch ON
OFF LIGHT EXTINGUISHED

!
CABIN UTILITY SWITCH ON
OFF LIGHT EXTINGUISHED

!
APU SELECTOR SWITCH ON (or OFF)

!
APU Generator switch ON

!
BUS TIE SWITCHES AUTO
ISLN LIGHT EXTINGUISHED

!
Primary/Secondary External Power switch OFF (or ON)

!
GENERATOR CONTROL SWITCHES OFF light ILLUMINATED (2)
DRIVE ILLUMINATED (2)
GUARDS DOWN

!
L/R BACK UP GENERATOR OFF: ILLUMINATED (2)

!
CAMERA LIGHTS SWITCH OFF

!
L WIPER SELECTOR OFF

OVERHEAD PANEL: 2
ELT switch GUARD CLOSED

!
Emergency Lights switch GUARD CLOSED

!
SERVICE INTERPHONE SWITCH OFF

!
Passenger Oxygen switch GUARD CLOSED

!
WINDOW HEAT SWITCHES ON
INOP LIGHTS EXTINGUISED

!
RAM AIR TURBINE GUARD CLOSED
UNLOCKED LIGHT EXTINGUISED

!
HYDRAULIC PANEL
L/R Engine PRIMARY Pump Switches OFF
FAULT LIGHTS: ILLUMINATED (2)

!
C1/C2 Electric PRIMARY Pump Switches OFF
FAULT LIGHTS: ILLUMINATED (2)

!
L/R Electric DEMAND Pump Switches OFF
FAULT LIGHTS: ILLUMINATED (2)

!
C1/C2 AIR DEMAND Pump Switches OFF
FAULT LIGHTS: ILLUMINATED (2)

PASSANGER SIGNS
No Smoking sign ON

!
Seat Belts sign OFF

!
LIGHTING PANEL
Overhead/Circuit Breakers light switch

MID POSITION

!
Dome light switch

MID POSITION

!
Storm Light switch

ON

!
MASTER BRIGHT SWITCH

AS NEEDED

!
GLARESHIIELD PANEL/FLOOD LIGHT CONTROL

MID POSITION

!
LANDING LIGHTS

OFF

OVERHEAD PANEL: 3
APU FIRE PANEL
APU BOTTLE DISCH LIGHT EXTINGUISHED

!
APU Fire switch IN
Light EXTINGUISHED (APU Fire Warning light)

!
CARGO FIRE PANEL
FWD/AFT CARGO FIRE ARM SWITCHES OFF
FIRE WARNING LIGHTS EXTINGUISHED

!
DISCHARGE LIGHT DISCH LIGHT EXTINGUISED
GUARD CLOSED

!
ENGINE PANEL
EEC MODE SWITCHES NORM

!
START/IGNITION SWITCHES NORM

AUTOSTART SWITCH ON
OFF LIGHT EXTINGUISHED

!
FUEL JETISSON PANEL
FUEL JETTISON NOZZLE SWITCHES OFF
LIGHTS EXTINGUISED (Valve Lights)
GUARD CLOSED

!
FUEL TO REMAIL SELECTOR IN

!
FUEL JETTISON ARM SWITCH OFF
(FAULT) LIGHT EXTINGUISHED

!
 FUEL PANEL
L Forward Pump LIGHT EXTINGUISHED (If APU is ON)
LIGHT ILLUMINATED (If APU is OFF)

!
L PUMP AFT OFF
R PUMPS FWD/AFT (PRESSURE) LIGHTS ILLUMINATED (3)

!
Crossfeed FWD/AFT Switch OFF
(VALVE) LIGHTS EXTINGUISHED

!
L/R Center Pumps AS NEEDED

!
ANTI-ICE PANEL
Wing
L/R Engine

AUTO

LIGHTING PANEL
Beacon Light

OFF

!
NAV LIGHT

ON

!
LOGO LIGHT
WING LIGHT

AS NEEDED

INDICATOR LIGHT Switch

AS NEEDED

RUNWAY TURNOFF Light switches

TAXI LIGHT Switch
STROBE LIGHT Switch
OFF

OVERHEAD PANEL: 4
AIR CONDITIONING PANEL
EQUIPMENT COOLING AUTO
(OVERRIDE) LIGHT EXTINGUISHED

!
RECIRCULATION FANS switches ON

!
FLIGHT DECK TEMPERATURE Control MID AUTO POSITION

!
CABIN TEMPERATURE Control MID POSITION

!
PACK Switches AUTO
(OFF) LIGHTS EXTINGUISHED

!
TRIM AIR Switches ON
(FAULT) LIGHTS EXTRINGUISHED

!
BLEED AIR PANEL
L/C/R ISOLATION Switches AUTO
(CLOSED) LIGHTS EXTINGUISED

!
ENGINE BLEED AIR Switches (OFF) LIGHTS ILLUMINATED (2)

!
APU BLEED AIR AUTO
(OFF) LIGHT EXTINGUISED

!
PRESSURIZATION PANEL
Outflow Valve switches AUTO
(MAN) LIGHTS EXTINGUISHED

!
LANDING ALTITUDE Selector IN

!
RIGHT WIPER Selector OFF

GLARESHIELD PANEL
Flight Director switch ON

!
DISPLAY SELECTOR PANEL
Left Inboard Display PUSH
Select DOOR
Lower Center Display Push
Select STAT

!
Right Inboard Display PUSH
Select CAM
EFIS CONTROL PANEL
Minimums Reference Selector AS NEEDED
RADIO (for
ILS)
BARO (for
! Non-Precision)
Flight Path Vector switch AS NEEDED

!
Meters switch AS NEEDED

!
Barometric Reference Selector (Outer Selector) AS NEEDED
HPa for PH
In. Hg for other
countries
!
Barometric Selector (Middle Selector) Set local altimeter
setting

!
Left VOR ON

!
ND Mode Selector MAP

!
ND RANGE SELECTOR AS NEEDED
(Usually 10)

!
RIGHT VOR ON

!
WEATHER RADAR OFF

OXYGEN TEST
TEST Switch PRESS
Cross: Extinguished
FLT Volume: Press
Volume: 12 o’clock position

!
SPKR Volume Button: Press
Volume Button: 12 o’clock position

!
RESET/TEST Hold 5 seconds
MIC/INT Hold on MIC simultaneously for 5 seconds

!
AIR SYNOPTIC* Note: Crew Oxygen Pressure does not decrease more
than 50 PSI

GLARESHIELD PANEL
FORWARD PANEL BRIGHTESS Controls MID POSITION

INSTRUMENT SOURCE SELECT PANEL

NAVIGATION SOURCE SWITCH OFF

!
DISPLAY CONTROL SOURCE SWITCH

!
AIR DATA/ATT SOURCE SWITCH

!
Clock Set to UTC

!
INBOARD DISPLAY SELECTOR MFD

!
FMC SELECTOR AUTO

!
PFD FLIGHT INSTRUMENTS CHECK TCAS OFF
VERIFY NO V-SPEEDS
A/T MODE BLANK
ROLL MODE TO/GA
PITCH MODE TO/GA
AFDS STATUS FLT DIR
LANDING GEAR PANEL
GROUND PROXIMITY LIGHT EXTINGUISHED

!
FLAP OVERRIDE SWITCH OFF

!
GEAR OVERRIDE SWITCH

!
TERRAIN OVERRIDE SWITCH

!
LANDING GEAR LEVER DOWN

!
ALTERNATE GEAR SWITCH GUARD CLOSED

!
AUTOBRAKE SELECTOR RTO

!
EICAS DISPLAY CHECK
VERIFY PRIMARY ENGINE
INDICATIONS SHOW
EXISTING
CONDITIONS
VERIFY NO EXCEEDENCE
SHOWN
MFD CHECK
VERIFY SECONDARY ENGINE
INDICATIONS SHOW
EXISTING
CONDITIONS
NO EXCEEDENCE
SHOWN
 STATUS DISPLAY PUSH
SWITCH
CHECK STATUS
MESSAGES
CHECKLIST DISPLAY PUSH
SWITCH
LOWER CENTER PUSH
CURSOR LOCATION
VERIFY LOWER
SWITCH
CENTER CURSOR
LOCATION LIGHT
ILLUMINATED
RESETS SELECT
RESET ALL SELECT
COMMUNICATION OFF
DISPLAY CONTROL
SOURCE SWITCH
CENTER DISPLAY CONTROL SOURCE SWITCH OFF

!
CENTER PANEL BRIGHTNESS CONTROL MID POSITION

!
LEFT RADIO TUNING PANEL SET
OFF LIGHT EXTINGUISHED

!
WEATHER RADAR PANEL SET

!
CENTER RADIO TUNING PANEL SET
OFF LIGHT EXTINGUISHED

!
OBSERVER’S AUDIO CONTROL PANEL AS NEEDED
FLIGHT DECK DOOR PANEL AS NEEDED

!
ENGINE FIRE PANEL
ENG BOTTLE 1/2 DISCH WARNING LIGHTS EXTINGUISHED

!
ENGINE FIRE SWITCHES IN
LIGHTS EXTINGUISED

!
CENTER CDU SET

!
FLIGHT DECK PRINTER SET

! RP-C7778, RP-C7779
POWER ON
LOW PAPER LIGHT EXTINGUISHED
RP-C7772, RP-C7777
PAPER LIGHT EXTINGUISED
RADIO TUNING PANEL OFF LIGHT EXTINGUISED
F/O AUDIO CONTROL PANEL AS NEEDED

!
TRANSPONDER PANEL SET

!
FLOOR LIGHTS SWITCH AS NEEDED

!
OBSERVER AUDIO SELECTOR NORM

!
AISLE STAND PANEL/FLOOR LIGHT CONTROL MID POSITION

SEAT ADJUST
RUDDER PEDALS ADJUST
STOW RUDDER PEDAL ADJUST CRANK
PREFLGHT CHECKLIST AT CAPTAIN’S COMMAND
