Ingram

Cactus

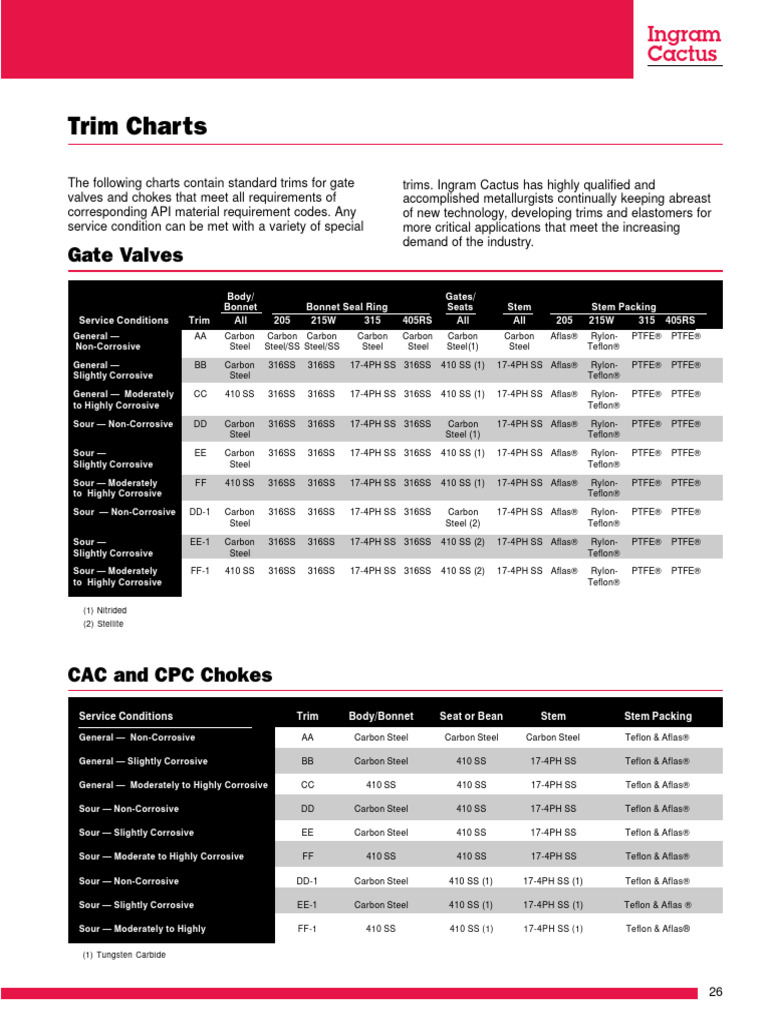

Trim Charts

The following charts contain standard trims for gate trims. Ingram Cactus has highly qualified and
valves and chokes that meet all requirements of accomplished metallurgists continually keeping abreast
corresponding API material requirement codes. Any of new technology, developing trims and elastomers for
service condition can be met with a variety of special more critical applications that meet the increasing
demand of the industry.
Gate Valves
Body/ Gates/
Bonnet Bonnet Seal Ring Seats Stem Stem Packing
Service Conditions Trim All 205 215W 315 405RS All All 205 215W 315 405RS
General — AA Carbon Carbon Carbon Carbon Carbon Carbon Carbon Aflas® Rylon- PTFE® PTFE®
Non-Corrosive Steel Steel/SS Steel/SS Steel Steel Steel(1) Steel Teflon®

General — BB Carbon 316SS 316SS 17-4PH SS 316SS 410 SS (1) 17-4PH SS Aflas® Rylon- PTFE® PTFE®
Slightly Corrosive Steel Teflon®

General — Moderately CC 410 SS 316SS 316SS 17-4PH SS 316SS 410 SS (1) 17-4PH SS Aflas® Rylon- PTFE® PTFE®
to Highly Corrosive Teflon®

Sour — Non-Corrosive DD Carbon 316SS 316SS 17-4PH SS 316SS Carbon 17-4PH SS Aflas® Rylon- PTFE® PTFE®
Steel Steel (1) Teflon®

Sour — EE Carbon 316SS 316SS 17-4PH SS 316SS 410 SS (1) 17-4PH SS Aflas® Rylon- PTFE® PTFE®
Slightly Corrosive Steel Teflon®

Sour — Moderately FF 410 SS 316SS 316SS 17-4PH SS 316SS 410 SS (1) 17-4PH SS Aflas® Rylon- PTFE® PTFE®
to Highly Corrosive Teflon®

Sour — Non-Corrosive DD-1 Carbon 316SS 316SS 17-4PH SS 316SS Carbon 17-4PH SS Aflas® Rylon- PTFE® PTFE®
Steel Steel (2) Teflon®

Sour — EE-1 Carbon 316SS 316SS 17-4PH SS 316SS 410 SS (2) 17-4PH SS Aflas® Rylon- PTFE® PTFE®
Slightly Corrosive Steel Teflon®

Sour — Moderately FF-1 410 SS 316SS 316SS 17-4PH SS 316SS 410 SS (2) 17-4PH SS Aflas® Rylon- PTFE® PTFE®
to Highly Corrosive Teflon®

(1) Nitrided
(2) Stellite

CAC and CPC Chokes

Service Conditions Trim Body/Bonnet Seat or Bean Stem Stem Packing

General — Non-Corrosive AA Carbon Steel Carbon Steel Carbon Steel Teflon & Aflas®

General — Slightly Corrosive BB Carbon Steel 410 SS 17-4PH SS Teflon & Aflas®

General — Moderately to Highly Corrosive CC 410 SS 410 SS 17-4PH SS Teflon & Aflas®

Sour — Non-Corrosive DD Carbon Steel 410 SS 17-4PH SS Teflon & Aflas®

Sour — Slightly Corrosive EE Carbon Steel 410 SS 17-4PH SS Teflon & Aflas®

Sour — Moderate to Highly Corrosive FF 410 SS 410 SS 17-4PH SS Teflon & Aflas®

Sour — Non-Corrosive DD-1 Carbon Steel 410 SS (1) 17-4PH SS (1) Teflon & Aflas®

Sour — Slightly Corrosive EE-1 Carbon Steel 410 SS (1) 17-4PH SS (1) Teflon & Aflas ®

Sour — Moderately to Highly FF-1 410 SS 410 SS (1) 17-4PH SS (1) Teflon & Aflas®

(1) Tungsten Carbide
