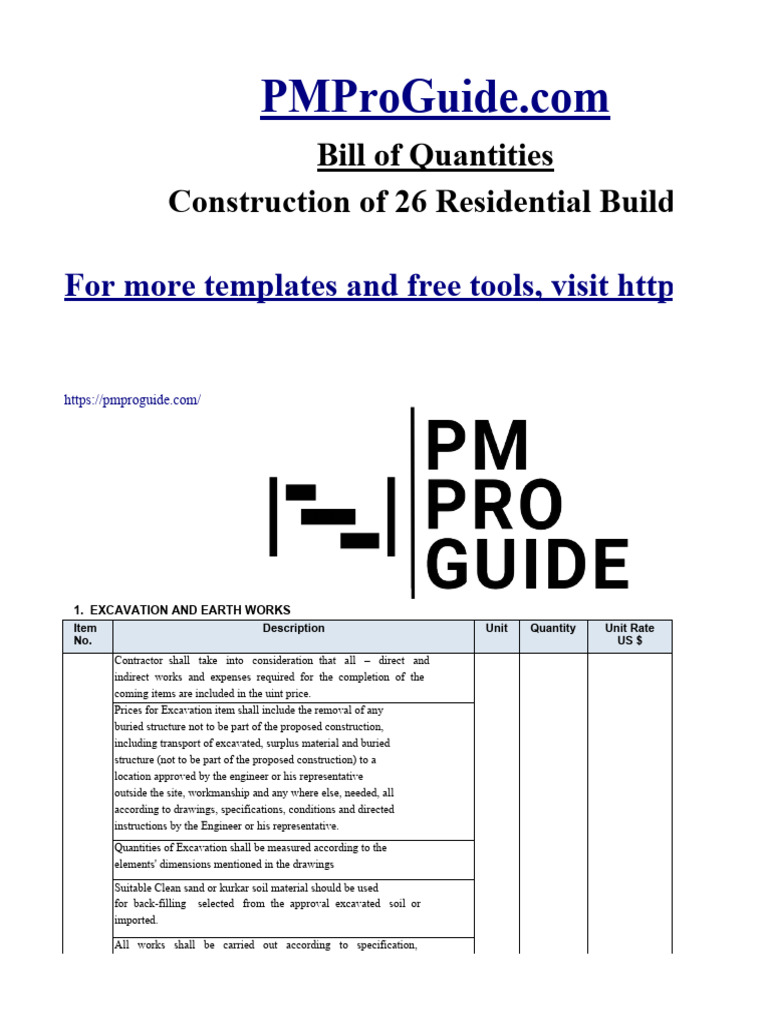

Bill of Quantities
Construction of 26 Residential Buildings
For more templates and free tools, visit https://pmp
https://pmproguide.com/
1. EXCAVATION AND EARTH WORKS

Item Description Unit Quantity Unit Rate
No. US $
Contractor shall take into consideration that all – direct and
indirect works and expenses required for the completion of the
coming items are included in the uint price.
Prices for Excavation item shall include the removal of any
buried structure not to be part of the proposed construction,
including transport of excavated, surplus material and buried
structure (not to be part of the proposed construction) to a
location approved by the engineer or his representative
outside the site, workmanship and any where else, needed, all
according to drawings, specifications, conditions and directed
instructions by the Engineer or his representative.
Quantities of Excavation shall be measured according to the
elements' dimensions mentioned in the drawings
Suitable Clean sand or kurkar soil material should be used
for back-filling selected from the approval excavated soil or
imported.
All works shall be carried out according to specification,

condition, drawing and as directed by the engineer.
The contractor must submit reports for the exisiting activities and
materials on the project site supported with photographs before
work start and take approval to start the work.
Cleaning and leveling around the buildings according to the
accompanied drawings as far as the work completed and handed
over for the engineer
Cleaning and removing the existing debris and unused materials
from inside and around the buildings, and transporting debris
outside the site as directed by the Engineer.
Backfilling in layers not more than 25cm thick for each layer and
compaction to 98% of MDD. Prices shall includes supply, wetted,
compacted, transporting, tested and anywhere else, needed,
EXCAVATION
Excavation in sandy soil or any other soil. The price includes excavation for
any un wanted existing soil, organics, etc to any levels as per engineer
instruction and approval drawings.The price also includes transportation of
excavated material to approved dump area according to supervision engineer’s
1.1 L.S 1
instructions, and includes using shutter bracing to the excavation sides.
1.2 Ditto but for underground water tanck L.S 1

BACKFILLING
Backfilling by using (Sand) around foundations , walls & any other element
for building to design levels up to the ground floor slab level and outside yard,
which shall be spread in layers not exceeding 25 cm and compacted (98%) as
1.3 shown in the drawings and mentioned in the specifications and according to m³ 650
the engineer's
instructions.
1.4 Ditto but using imported material Kurkar. m³ 50

Total
m
Buildings
https://pmproguide.com/
Total Amount
US $
2. CONCRETE WORKS
Item Description Unit Quantity Unit Rate US $ Total Amount US
No. $
Rates of Concrete Works shall include:-

1. All form works and shuttering (new lumber for shuttering) in any form, shape
and size . Making chamfered and curved edges, allowing for and making
grooves and sleeves and using Tie Rods (Batant) for concrete walls ; removal of
forms and cleaning of all exposed tie wires and rods. Steel forms must be used in
shuttering the external decorations.
2. Supplying, Casting, vibrating and curing as per specifications.

3. Approved additives and admixtures.
4. Incurred costs on New Concrete Job Mix Designs, Sampling , testing and
providing test results certificates, storing and saving of samples, and preparation
of bar bending schedules and workshops.
5. Supplying reinforcement of any grade, size and length as detailed in the

drawings, storing on site including cutting, bendingand fixing in position and
providing all tying wires, spacers, shop
drawings, testing and bar bending schedules
6. Painting of exposed surfaces of underground reinforced concrete elements

with two coats of hot bituminous paint (75/25) after primer layer , the
strokes of each layer to be opposite to each
other.
7. Steel bars used for alignment and fixing of reinforcement works, and extra
steel added to assure proper detailing and safety.
8.Preliminary installations for Electrical, plumbing and floor

drainage in floor slabs
9. Compaction and testing under the foundation, ground beams,
and ground slabs, the compaction must exceed 98% of MDD.
10. Cleaning existing steel constructed bars from rust and dirt with wire brush
11. All works according to specifications , drawings and

supervisor engineer instructions
Prices for all concrete items shall include shuttering, steel reinforcement, testing
for steel reinforcement and concrete, supply and placing of concrete, Mix Design,
vibrating, curing, striking, polyethylene sheet (for any concrete contact with the
soil), painting for hot bitumen (one coat of primer & min. 2- coats of hot
bitumen) underground concrete for external surfaces, workmanship, all ducts,
sleeves, opening areas and the concrete surface shall be finished with mechanical
steel trowel and the price shall include steel trowelling with smooth face (fair
face)and anywhere else, needed, all according to drawings, specifications,
conditions and directed instructions by the Engineer or his representative.
- The Price for any concrete contact with soil includes laid polythene sheet 200
micron
CONCRETE (B - 200)
2.1
2.1.1 Supply and cast plain concrete B (200) kg/cm2 for blinding beds below 26
foundations ,supports, anchor blocks, benching, slopes or likes with all required
works including polythene sheets as per M3
specifications , drawings and supervisor engineer instructions
2.2 CONCRETE (B - 250)

2.2.1 Supply and cast ready mix reinforced concrete B(250) kg/cm2 for the ground 417
slab 10cm thick with steel mesh 8mm diameter every 20cm including polythene
sheets below concrete slab as per specifications , drawings and supervisor M2
engineer instructions
No. $
2.2.2 Supply and cast ready mix reinforced concrete B (250) kg/cm2 for external steps 3
& its edge beams. including flights, landings, steps, drop, inverted beams and
hand rail wall including entrance M3
stairs, Ramp & parapet including all required materials.
2.2.3 Ditto but for expansion joints inverted beams at the roof.including M3 3
KALKAL
2.2.4 Supply and cast ready mix concrete (250kg/cm2) for doors and windows lintels
and roof coping including all required materials. 90
M3

2.3.1 Supply and cast ready mix reinforced concrete B (300) kg/cm2 for foundations ,
as per specifications , drawings and supervisor M3 117
2.3.2 Ditto but for for minore foundation for support ground beam. M3 9
2.3.3 Ditto but for the ground beams ( main & secondary). M3 58
2.3.4 Ditto for stairs including flights, landings, steps, drop, inverted beams and hand
rail wall including entrance stairs, Ramp & M3 30
parapet including all required materials.
2.3.5 Ditto but for suspended hollow block slab 25 cm thick, including the reinforced
steel, light weight hollow cement block 40 x 25 x 17cm(weight of one block not
exceeding 17 kg) ,all drop and inverted beams everywhere in the slab drainage,
electrical, air conditioning, mechanical ducts and all other materials as per M2 2670
2.3.6 Ditto but for solid slab 30 cm thick for staircase slab and duct Slab. The price 70
include the reinforced steel, all drop and inverted beams everywhere in the slab
and all other materials as per M2
specifications , drawings and supervisor engineer's instructions
2.3.7 Ditto but concrete decoration including all required materials as

shown in the drawings and according to the engineer’s instructions.. M3 31

2.4.1 Supply and cast ready mix reinforced concrete B (350) kg/cm2 for for columns M3
and column necks , as per specifications , drawings and supervisor engineer
instructions 98
2.5 Supply and cast ready mix reinforced concrete B (300FF) kg/cm2 for reinforced
walls with thick 20cm using tie rods (Batant) and water stop minimum 20 cm,
and for floor and solid slab and openings cover pre-casting solid slab
size100x100x10 cm .as specifications, drawings and supervisor engineer
instructions. M3 32
Total
3. MASONRY WORKS
Item Description Unit Quantity Unit Rate US Total Amount US
No. $ $
The price include:
1- supplying hollow or solid cement block from good and approved factory
in perfect dimension and build it in good manner with a compressive
strength 35 kg/cm2 for hollow block and 60
kg/cm2 for solid block. This item will include cement mortars, reinforced
concrete infill (B250) between columns & block walls (10-20 cm wide)
with 2Ø8mm/40cm horizontally and 2Ø10mm vertically according to
drawings, pipes encasement, false columns 20x20 cm/4.0m among the
parapet wall with 4Ø12mm and bituminous paper between block work
and drop beams & all requirements needed to finish the works according to
the drawings, specification and to the supervision engineer instructions.
2- Providing samples for approval and all the required tests.
3.1 Supply and build hollow concrete block type A size 40x20x20cm M2 2400
with compressive strength 35 kg/cm2.
3.4 Supply and build solid concrete block type A size 40x20x20cm M2 200
Total
4. PLASTERING WORKS
Item Description Unit Quantity Unit Rate Total Amount
No. US $ US $
Rates include:
(a) Prices of plastering works shall include supply of all materials, galvanized
angles (for exposed edges), galvanized mesh (between block wall and
concrete), mixing, scaffolds, curing, workmanship & tools and anywhere else,
needed, all according to drawings, specifications, conditions and directed
instructions by the Engineer or his representative..
Supply and make internal plastering 15 mm thick for ceiling and soffits. The
work includes rough primer nail rendering to form a key with (mix 1:1) cement
sand, second layer 13mm: Base-Coat "Rendering" with (1:3:0.25) cement:
sand mortar: lime and third layer: Finishing Coat with (1:4:0.50) cement: sand
4.1 mortar: lime . Works include all materials needed to finish the works according M2 2600
to specifications , drawings and supervisor engineer's instructions
4.2 Ditto, but 15 mm thick for walls and parapets M2 5500

Supply and make external plastering 20 mm thick to elevations, ceilings and
parrabet roof wall with three faces : the first is the rough nail rendering (mix
1:1) cement sand; the second is 5mm thick mortar (mix 1: 2) cement:sand, the
4.3 third is the undercoat 13mm (mix 1: 3 :0.25) cement:sand:lime, according to M2 2200
4.4 Marmarina finish for elevations, edges and anywhere else with M2 2200
color painting and all required works.
Total
5. TILES AND MARBLE WORKS
No. US $ US $
All works must be according to drawings, specification and
engineer instructions. Rates shall include :
(a) Prices of Tiles & Marble works shall include supply of all materials,
testing, mortar, 5cm sand under tiles or marble or back the tiles or marble
(wall), skirting, workmanship, opening areas and all materials & tools and
anywhere else, needed, all according to drawings, specifications, conditions
and directed instructions by the Engineer or his representative
(b) Cleaning, mechanical polishing and pointing using grout.

(c) Plastic angle beads for ceramic wall tiles and Aluminum angle
for ceramic of walls at the corners.
(d) Local marble must be Grade (A) free cracks and clay flaws.
(e)Only European Type of good quality imported porcelain and
glazed ceramic tiles (floor & walls) shall be used
(f) Only Grade A for local marble shall be used, free from cracks,
holes and pits, homogeneous in the approval color
(g) Black Basalt mixed with white marble chips, size 4mm,shall be used in the
precast terrazzo tiles, free from cracks, holes and pits, homogeneous in thee
approval color
PORCELAIN TILES
Supply and fix non-slip color porcelain floor tiles grade A , Spain made or
equivalent,Full body, size 40x40x1cm, for staircase landings , opened
area in ground floor and shops, the price include bedded in cement and sand
mortar 1:3 laid on a dry mixed sand and cement backfill, the price including
5.1 skirting 40cmx 7cmx1cm, pointing using special pre- mix grout and 400
M2
final polishing as per specifications , drawings and supervisor engineer
instructions, for
entrances.
CERAMIC TILES
Supply and fix non-slip color ceramic floor tiles grade A , Spain made or
equivalent, size 40x40x1cm, bedded in cement and sand mortar 1:3 laid on a
dry mixed sand and cement backfill, the price including pointing using special
5.2 pre- mix grout and final polishing as per specifications , drawings and M2 1750
supervisor engineer
instructions, for men and women prayer halls
5.3 Ditto but size 30x30x0.8 cm for WCs and Bathrooms floors M2 180
Supply and fix color glazed ceramic wall tiles, Spain made or
equivalent, size 30x60x1cm for WCs and Bathrooms walls , bedded in
cement and sand mortar 1:3 to walls. Price to include limfree backing
5.4 plaster layers, pointing using special pre- mixed grout,and plaster layers as M2 1000
specifications , drawings and supervisor
5.5 Ditto but, size 30x60x1cm for kitchens walls . M2 760

5.6 Ditto but size 40x20x0.8cm for staircase walls and opened area in ground M2 160
Floor
Graneet Rosabita
Supply and lay graneet rosabita type 26 cm wide wide x 2cm thick
5.7 for window sills including water drip groove as per specifications , drawings L.M 35
and supervisor engineer instructions
5.8 Ditto but 22cm wide for window sills L.M. 110
5.9 Ditto but 28cm wide for kitchens and Bathrooms window L.M. 70
5.10 Ditto but 15 cm wide x 3cm thick for doors opthresholds L.M. 40
No. US $ US $
5.11 Supply and lay graneet rosabita type 28 cm wide x 3cm thick for L.M. 50
ground floor open area and ramps top parapet finish.
GRANITE
Supply and lay Granite (rozabita) for staircases size110 cm length 33 cm wide
x 3cm thick, risers size110 cm length 16 cm high x 2 cm thick ) laid on 2cm
5.12 thick cortar bed. The price including skirting 2cm thick on both sides, and No 215
final polishing as per
specifications , drawings and supervisor engineer instructions.
5.13 Ditto but for external steps size260 cm length 33 cm wide x 3cm No 8
thick, risers size200 cm length 16 cm high x 2 cm thick )
5.14 Ditto but for shops and main doors or entrances openings or L.M. 22
opthresholds
Supply and lay Granite (rozabita) for staircases top parapet finish size15 cm
wide x 2cm thick laid on 2cm thick mortar bed. The price including final
5.15 polishing as per specifications , drawings and L.M. 70
supervisor engineer instructions.
Local marble (Black Granite - Tiger) 2cm thick for the kitchen
for cupboadrs 60 wide 280 cm length and 100cm height and length around 5
m,the works including the top surface with round edges, verticaldeviders and
internal horizontal shelves,back of cupboards, floor skirting 10cm hight (local
marble - yatta type orequivelent) and making the needed opening for basins ,
5.16 all according to drawings, specifications, conditions and directed instructions No 16
by the
Engineer or his representative
5.17 Ditto but 230 cm length No 8

GRANULATE
5.19 Supply and lay Granulate layer with all needed works to complete the job for 50
the ramps floors and internal walls and where needed, all according to
drawings, specifications, conditions and directed M2
instructions by the Engineer or his representative
Total
6. PAINTING WORKS
No. US $ US $
Rates include:
(a) All the painting materials used should be Tambour type or equivalent
and should be approved and tested by approved local laboratory and have
the final approved from the supervisor engineer.
(b) The surface must be dry and clean before painting.

(c )All painting works should provide the required coverage.
(d ) All paint works must be according to specifications , drawings
and supervisor engineer instructions.
(e )Smoothen surfaces of exisiting plastering before the
Commencement paint
Prices of painting works for walls & ceilings (European Type of good quality)
shall include supply of all materials, scaffolds, workmanship & tools and
and directed instructions by the Engineer or his representative.
PAINTING
Supply and Paint the internal walls with one coat of Pendrole primer , at least M2
two coat of External quality of colored emulsion (Supercryle) approved as
6.1 specifications , drawings and supervisor engineer instructions 5500
Supply and Paint one-primer and minimum two coats of Poliside for ceilings
and soffits as specifications, drawings and supervisor engineer instructions.
6.2 M2 2600
Total
7. CARPENTRY WORKS
No. US $ US $
(a) supplying Doors from U-PVC Door including frame and
architrave.
( b) Hard ware locked type European switch or equivalent for all doors and
bath type for Toilets doors, and brass hinges 10cm height, door stopper ,and
all other fitting.
c) Doors constructed using 2mm thickness GRP woodgrain skins
Supply and install U-PVC door PD2 overall size 90 x 220x 4.5cm thick one
leave the scope of works includes joineries,accessories, switch approval
European type of good quality, door stops, all and anywhere else, needed, all
7.1 according to drawings, specifications, conditions and directed instructions No 56
by
the Engineer or his representative.
Ditto but for PD3 overall size 80 x 220 x 4.5cm thick one
7.2 leavecomplete with the above preamble including WC type switch and brass No 48
latches. with all required works
7.3 Ditto but for PD1 overall size 100 x 220 x 4.5cm thick one leave No 6
with all required works
Total
8. METAL WORKS
No. US $ US $
(a) Submitting samples for approval of material, accerrories, color and
fixation method.
(b) anodized Aluminum profile windows, complete with glazing, silicone
sealant, ironmonger and hardware as specified and as shown on the
drawings. Minimum wall thickness for all
aluminum profiles is 1.5mm.
( c) All metal works include the fixation for frames and leaves
and all required accessories according to the engineer's instructions.
(d) Painting after smoothing and filling all the voids with putty, primer
coat, undercoat and two oil coats and in case of galvanized steel the primer
should be poly zinc.
(e )Hardware, ironmongery and accessories should be made of

aluminum, and All tests for thickness and color.
ALUMINUM WORK
Supply and fix powder coated colored aluminum window section 7000 type
AW1, size 140 x100cm, complete with frame, decorated and colored glass 4mm
thick,insect screen leave, silicone sealant, ironmongery and hardware. all and
8.1 any where else, needed, as per specifications and drawings. No 120
8.2 thick, ironmongery and hardware. and as No 50
per specifications and drawings.
Ditto but, Type AW3 size 140 x 60cm

8.3 No 20
Supply and install complete door size 90x180cm two leave

8.4 AW4, for cabinet in the stair case with fiber sheet, switch, door hand with all No 22
accessories and requred works
STEEL WORK
Supply and fix Multi Lock door SD1 (100 x220x4cm), complete with
galvanized steel frame 3mm thick, ironmongery, all requirement as
latches, locks…etc. as per specifications ,
8.5 drawings and supervisor engineer instructions No 26
Supply and fix galvanized steel double external gate SD2 (160 x240x4cm)
two leave, complete with polycarbonate sheets (6- mm thick), frame 3mm
thick, ironmongery,including decorated, hardware and oil painting include
8.6 primer and under coat, with Wally switch and all requirement as latches, No 4
locks…etc. as per
8.7 Ditto but single door SD3 (100 x220x4cm), No 2

8.8 Supply and install Galvanized Steel Grill for window type AW1 No 120
protection with all required works .
8.9 Ditto but for window Type AW2 No 50
Supply and install Galvanized Steel Handrail for stair landing
8.10 with all required works MR 70
Supply & install galvanized steel ladder 60cm width for water tanks consist of
40x40x3mm G.S Box section include fixation to slab by
G.S plate 4mm th.. with all needed fitting, welding , painting with at least two
coats oil paint over one coat polyzinc primer & the needed accessories to
8.11 complete the job as shown in MR 10
the drawings, specifications and the engineer’s instructions.
Supply and fix Roll galvanized steel door SD-R1 (280 x260cm),
galvanized steel sheets (0.8mm thick), complete with frame 3mm thick, ironmongery,
hardware and oil painting include primer and
8.12
under coat, with a locks 12mm and all requirement as latches, No 6
locks…etc. as per specifications , drawings and supervisor engineer instructions
Total
9. INSULATION WORKS
No. $ $
All the following items shall be completed according to drawings,
specifications, conditions and directed instructions by the Engineer or his
representative.
9.1 Supply and cast foam concrete with fine aggregates for roof screeding of 525
average thickness 7cm. The price include supply and execute concrete angle
fillet 5x5cm around the boundar of the M2
parapet.as shown in drawing.

Supply and lay one layer of plasticized bitumen roofing membrane with
chipping 4 mm thick, including priming concrete surface prior to laying,
dressing into rainwater outlets to form waterproofing seal and cover with angle
fillets.The rate includes vertical parts, skirting and fixing the ends of
plasticized bituminous roofing membrane skirting inside concrete grooving
9.2 and water testing for the roof after completing the works as per M2 620
specification ,drawings and supervisor engineer instructions.
Measurement: Only horizontal projection to be paid
Supply and lay tow layers of sackcloth bitumen for isolate

9.3 bathrooms and kitchens flooring , using primer coat. two hot bitumen M2 400
coats (75/25)g the price include water testing
9.4 Execute expansion joints and cover for back columns/wall, front columns L.m 85
and walls as detailed in drawings including flexcell sheets 4mm thick, and
aluminum strip size 80 x 6mm screwed to walls or
soffits from one side as per specification and drawings.
Supply and Paint two coats of sica sel top 107 for inside
9.5 walls , floors and ceilings for water tank as specifications, drawings and M2 75
Total
10. PLUMBING WORKS
No. $ $
(a) All Plumbing works include the required units and its
accessories as described in the items and the rates include:
(b) All the plumbing units should be from the best quality and has
trade mark.
( c ) Submitting shopdrawing for water supply and waste water
networks for approval prior to commencement of the work.
(d) Submitting samples for all required material with catalogue
indicating its specifications.
( e ) All required tests , pressure for water net work , hydraulic test
for sewage lines
(f) Cleaning and desinficting all water pipes.
(g) Insulation of all galvanized water pipes and wraping it with bitumen's
sheets and protect pipes located under tiles with cement morter. In addition to
the insulation materials against heat loss for hot water pipes.
(h) All hot and cold water pipes for the points of fixtures to the
nearest distribution board.
(i) All plumbing works ( wash basin, kitchen sink, gully traps,etc…) include
the connection to the nearest trap, WC to the nearest vertical sewage header in
the typical floors and WC in the GF to the nearest manhole and include all
accessories including PVC S and caps for all the ends of pipes at parapet.
The Contractor shall when pricing this Bill take into consideration, include and
allow for costs or expenses of all requirements stipulated in the section entitled
“General and Preambles” preceding this Bill.
- The exact lengths of the required pipes, the exact number of the required
valves and the exact quantities of concrete will be determined during the
implementation of the Works.
- Price should include all excavation, backfilling, supporting of trenches and
all associated works.
Supply and fix white glazed fireclay hand wash basin size
55cmx45cm (Vitra Type) or equivalent, complete with Short pillar
, all water supply pipes 16mm and 20mm pipes (Golany) to the nearest
dist. box (WDB), waste fitting, trap, plug and chain,water mixer (hamat
Type) or equivalent and mirror 60x60cm,china shelves, chrome traps
and the drainage line 2” to the nearest floor trap. or to the nearest manhole as
per specification, drawings and No. 48
engineer instructions.
10.1
10.2 Ditto but for handicaped size50x60 cm the price include stainless No. 2
steel holding bars (Moving and Fixed)
Supply and fix white glazed fireclay European W.C. suite (Vitra Type),
or equivalent complete with plastic double action flushing cistern2
gal.capacity, and fixed chromium plated tap , including all water supply pipes
16mm and 20mm pipes (Golany) to the nearest dist. box (DB),seat
mounted, and hard seat covers, flushing mechanism, angle valves,S
10.3 trap,4” diam UPVC drainage pipe connecting to the nearest manhole and No. 48
all associated water pipes, china paper holder, all other required fittings
as required.as per
Ditto but for handicaped the price include stainless steel holding bar
10.4 (Moving) and stainless steel holding bar (Fixed) 90 Degree No. 2
Supply and install one bowel stainless steel kitchen sink 50x85cm complete
with chrome plated hot and cold water mixer (hamat Type) or equivalent,
workmanship and all necessary fixing, accessories, waste pipes and
10.5 drainage to the nearest manhole with No. 26
al required works.
10.6 supply and install shower mixer (hamat Type) or equivalent the price No. 24
include shower column set waste pipes and drainage and all associated water
pipes, china soap holder, all other required
fittings as per specification, drawings and engineer instructions.
Ditto but the opice include stainless steel folding seat and
stainless steel holding Bars and all associated water pipe
10.7 No. 2
10.8 Ditto but water tap (hamat Type) or equivalent the price include all No. 26
associated water pipe
Supply and install, water meter device, type (BMETER) or equivalent 2” with
gate valve 2”,check valve 2'' diameter,
10.9 jointing, and connection to the HDPE pipe 63mm including NO 1
allrequired fittings and accessories as per specifications , drawings and
10.10 Ditto but for 1/2" water meter with all required works NO 32
Supply and instal (2) Pressure booster pump from underground tanks to
the roof tanks with capacity of 10m3/hr at 25m head, complete with
electrical control panel , cables, electrical float, switches, all materials,
accessories, , fittings & workmanship and anywhere else, needed, all
10.11 according to drawings, specifications, conditions and directed instructions L.S. 1
by the Engineer or his
representative.
Supply and Install sump pump , DAB or equivalent, with

capacity = 5 m3/hr and head equal 10 m. The item includes all the required
upvc pipes to nearest manhole, and fittings (valves,T, elbows, non return
valves,. etc.), also the item includes pump control panel , electrical cable,
disconnecting switch, and all materials required for installation and operation ,
with all needed pipes and civil works (concrete base), and all required
accessories, and all as specifications , drawings and supervisor engineer
10.12 NO 1
instructions,for drainge underground water tank and pumps room.
Supply and fix cold water storage consists of (3) plastic tank 5000 liter
capacity each one , approved type, complete with lockable cover with lock, 1
inch diam. automatic heavy duty float valve , overflow pipe (1”diam) and drip
tray, with all connections for rising main and distribution pipe work and stop
valves 1” including steel base and wood as drawings ,with all
10.13 accessories as specification and drawings, including painting tanks with NO 2
white
supercryle
Supply and install Solar System . the price including plastic water tank 1000
liter,mirror Solarium size 200x125x10 cm containing 12 pipe copper, electric
heater Chinese interior (120 liters) with thermostate, steel base, 5 cm
thick painted hard wood under the tanks, connection to the piping
system and all accessories, fittings,valves and all required works to
10.14 NO 26
complte the job.as per
drawings, specification and engineer instructions.
Supply and install HDPE 63mm pipe from municipality main line to under
ground water tank and from pumps collection to the roof tanks main line, and
from roof tanks to appartments watermeters including all necessary
bends,valves, connections and accessories and makingwith all required
fittings and couplings, good with all required worksthe item includes
10.15 excavation, backfilling with clean MR 150
sand , watering and compaction , tracer tap.
Supply and install piping system HDPE 25 mm pipe from each

appartments watermeters to solar system or shops and from Solar System to
appartments ( cold water), including all necessary bends,valves,
10.16 connections and accessories and making good with Unit 32
all required works.
10.17 Ditto but piping system HDPE (20mm) from each solar system to Unit 26
appartments (hot water)
Supply and install water distribution box (WDB1) complete with

polethene pipes (PEX ) Ф20 and Ф16 mm to each feeding pointsin
appartment including all needed accessories, fittings .The price includes
all distribution headers, Sagiv valves, Air valves and aluminum
10.18 leafs,complete with with local marble frame 2cm thick as per drawings, NO 24
specifications and engineer instructions. The size
of DB is to fit the No. of outlets (13) .
10.19 Ditto but (WDB2)the No. of outlets (9) . NO 2

Supply and install pre-cast manhole of 100cm internal size
reinforced concrete class B300 sewage manholes as per
specifications and drawings complete with 10 cm reinforced concrete
base, 10cm reinforced concrete slab, plain concrete, cast iron cover (8 tons
capacity and 60cm opening), frame, rings, internal coating, benching, cast iron
steps if need and special joint required to fix the pipe to the manhole. The item
also includes excavation, supporting the trench sides and backfilling using
clean sand with watering and compaction (compaction layers at max.
thicknes of layer is 25cm). The work also includes coating the inside walls
10.20 and slab with two coats of special sewer epoxy and theexternal surfaces with NO 1
two coats of hot bitumen. Pipe opening at manhole base shall be factory made
without drilling manhole walls at site. Locations are as shown on in drawings
and Depth up to any
depth as specified.
10.21 Ditto but 80 cm internal size . NO 4

Supply and install DN160-mm diameter gravity Rigid PVC-U sewer pipes
SN8 and lay in all kinds of soil including excavation to the required depth,
supporting the trench sides, bedding with clean sand, backfilling and
compaction (compaction layers at max. thicknes of layer is 25cm). Unwanted
soil to be removed outside the site. The price includes all necessary
works, supplying and installing warning tape with copper wires, gaskets,
connection to manholes and others to complete the work as specified in the
10.23 specification, drawings and to the satisfaction of the Engineer. MR 155
Excavation up to any depth as specified.
10.24 Ditto but for DN110-mm diameter SN8 with all required works MR 470
10.25 Ditto but for DN110-mm diameter SN8 with all required for rain water drain, MR 160
with mesh drain and 4"mesh vent (G.S type) with all related works according
to the specifications , drawings and
supervisor engineer's instructions
Supply and fix floor trap 4 inch diameter, complete with heavy duty brass
grating and 4”& 2” PVC drainage pipe to the nearest manhole or next F.T and
10.26 including S trap if needed include Stainless Steel cover with all accessories, No. 115
fittings as per
10.27 Ditto but for rain water with mesh vent (G.S type) No. 10
Total
11. ELECTRICAL WORKS
Description Unit Quantity Unit Rate Total Amount
US $ US $
The items in general shall also include conduits, connection boxes, controls,
wires, connectors, clamps, bolts, and connecting the cables to switchboards and
common electric network are included in the unit price. The price includes all
required Reinforced cement to all items in this Bill such as cutting into the walls
and ceiling then repairing, all measurement devices ,equipment's ,machinery,
...., etc.
(a) Contractor shall submit shop drawings for all electrical works to be approved
by the Engineer before executing the work.
(b) As-built drawings shall be submitted after handing over the work.
(c) All the electrical works shall be executed according to Standards, drawings,
specifications and supervisor engineer
instructions.
a Distribution Boards
Supply, install and commission main distribution panel board (MDB) as specified
and as shown on drawings, factory assembled wired and tested in accordance
with international standards, including 2mm Galv and 30% spare space . steel
frame with anti static paint , The work includes busbars, neutral bus bar and
earthing terminal,all necessary power and control
wires,terminals,ducts,supports,labels and numbers and all necessary civil works
for foundations , cable trenches and handing over clean, tested and in operating
conditions. (Type is MOELLER or equivalent). The panel sizes should
determined determined as the approved shopdrawings and approved components.
11.1 All works must be according to engineer instruction and approval and regarding
No. 2
to GEDCo specifications. The panel shall include but not limited to the
followings
Supply install and connect the folowig items: all following items type Eaton
Moeller :
11.2 LTL fuse 3x250A/160A with 160A fuses.(Type is JEAN MUELLER or

No. 2
equivalent)
11.3 LTL fuse 3x32 A/6A including 6A fuse. No. 6
11.4 3 indication lamps R S T with resistance 220V,with LTL fuse3x36/6A
set 4
11.5 Current transformer 3x(200/5A) set 6

11.6 KVAR meter 3 phase 3x5A.(Type is ISKRA or equivalent)(optional)
No. 2
11.7 Pre-Paied Digital KWH meter, 1 phase . Approved type by GEDCO.

No. 32
11.8 Ammeter 0-250A No. 6
11.9 Voltmeter 0-500V with 7 positions selector switch set 2
11.10
MCCB 3x160.(Type is MOELLER NZMN-A160 or equivalent). No. 2
11.11 MCB 3x25A. (Type is MOELLER or equivalent). No. 4

11.14 Ditto but 3x16A. No. 4
US $ US $
11.20 ELCB 4x40A,30mA. No. 4
11.21 ELCB 2x40A,30mA. No. 2
11.22 Step relay 10A ,220V. ( MOELLER or equivalent) No. 2
11.23 Manual change over switch 4x32A (Type is Hager or equivalent). No. 2
Supply and install 3 phase mains/generator automatic change over switch consist
of 2 contactors 4 poles 63A,400V , with electrical and mechanical inter-lock ,the
work includes automatic changeover control unit (ACU) with all required
Timers,Relays,adjastable under voltage Relay and all protection devices to
11.24 complete the work as per the engineer instructions Set 2
.(Type is MOELLER or equivalent).
11.25 Supply install and connect Automatic power factor improving unit including
MCCB 3x63A, Static capacitors, contactors, LTLs with fuses , CBs selector
switches and quick discharge resistor as per Unit 2
drawings.
11.26 Water pump power and control components including 3x25 contactor, overload
set 2
triping current 3-6A, and selector switch.
11.27 External lighting power and control components including 3x25 contactor, 24 hr
set 2
timer, photocell and selector switch.
b Sub-Distribution Board.
Supply, install sub-distribution board (DBA) consists of plastic board frame
capacity is 24 as per specifications including neutral and earthing terminal with
11.28 all necessary accessories and material to hand over clean and tested under No. 18
operating conditions. (Type is Gawiss or equivalent).

11.33 ELCB 2x40A,30mA. No. 18
Supply, install sub-distribution board (DBB) consists of plastic board frame
operating conditions. (Type is
Gawiss or equivalent).

11.39 ELCB 2x40A,30mA. No. 8
Supply, install sub-distribution board (DBS) consists of plastic board frame

11.45 ELCB 2x40A,30mA. No. 6
Lighting Fixtures and Switches
The following items shall include supply, install, connect and commission
lighting fixtures and switches, including PVC conduits, conduit fittings, pull
boxes, 3x1.5mm², accessories and circuit wiring between fittings, switches up to
its subpanel board. As shown on drawings & specifications.
US $ US $
C Lighting Fixtures
Supply, install, connect and test fluorescent lighting fixture 2x36w complete with
lighting tubes 36, chock, Electronic Ballast , starters rigid PVC conduits, J.boxes,
11.46 fixing screws (Galv.) and wiring (Type is GA'ASH No. 50540 or equivalent) No. 220
11.47 Ditto but water proof IP65. No. 30

11.48 Led night lighting fixture E27 with 3W lamp, wires, conduits, j. boxes and fixing
No. 60
screws for wall mounted.
11.49 Circular globe type is Nisko pop with 26W lamp type is Nepton, ceiling
No. 100
mounted.
Ditto but entrance globe IP65 wall mounted type is Nisko with
11.52 28W Nepton type lamp, wires, conduits, j. boxes and fixing screws for wall No. 35
mounted. .(entrance of flat)
Ditto but lighting globe IP55 above the mirror in the bathroom with 18W Nepton
11.57 type lamp. No. 32
Supply, install, connect and test external security flood lighting fixture, water
proof IP65, LED lighting fixture 50W, including 3x2.5 mm2 cable from MDB to
11.54 projector location . (Type is GAASH or equivalent). No. 14
11.55 Supply, install, connect and test 6" Extractor fan with movable louvers, 250cfm,
complete with PVC conduits, J. boxes, wiring, and all necessary accessories.
(Type is VENTA or equivalent). No. 78
Supply, install, connect and test 56" fan complete speed control switch, PVC
conduits, J. boxes, wiring, and all necessary accessories. (Type is CHMC or
11.56 No. 86
equivalent).
11.57 Supply, install, connect and test electrical door bell. No. 26
D Switches :
11.58 Supply, install connect and test single pole one way switch, 220v, 13A, complete
with PVC conduits, J. boxes, wiring, cover and all necessary accessories. (Type
is Bticino Matix or equivalent). No. 115
11.59 Ditto, but one way, two pole switch. No. 110
11.60 Ditto, but two way, one pole switch. No. 105
11.61 Ditto, but push button with illuminated lamp for stair. No. 15
11.62 Ditto, but push button for bell. No. 26
E Sockets :
The following items shall include supply, install, connect and commission power
sockets and switches, including PVC conduits, conduit fittings, pull boxes,
11.63 3x2.5mm², accessories and circuit wiring between fittings, switches up to its
subpanel board. As shown on drawings & specifications.
11.64 supply, install connect and, testing single socket outlet 16A, 220v, 2p+E for flush
mounting, complete with 3x2.5mm² wire, PVC conduits, J. boxes, wiring, and all
necessary accessories. (Type is No. 325
Bticino Matix or equivalent).
11.65 Ditto, but water proof type. No. 105

11.66 Ditto but A/C unit socket outlet 20A with 3x4mm² wire. No. 58
supply, install connect and, testing water proof switched socket outlet 230V,
20A, with pilot lamp, flush type for water heaters including 3x4²mm wire. (Type
11.67 is Bticino Matix or equivalent). No. 26
US $ US $
F Telephone, TV and Intercom systems
Supply, install and commissioning Telephone socket outlets, 6 pin as specified &
shown on drawings including rigid plc. conduits, pull & J. boxes, telephone
11.68 cables not less than 2px0.5 o the junction box.(Type is Bticino Matix or No. 118
equivalent).
Supply, install and commissioning TV socket outlets, as specified

11.69 & shown on drawings including rigid plc. conduits, pull & J. boxes, coaxial No. 92
cables to the junction box.
Supply, install and commissioning complete intercom system for not less than 13
flats including indoor units, outdoor unit , power supply an door lock .(Type is
11.70 Farfisa or equivalent). No. 2
Supply, install and commissioning main Telephone Junction Box

11.71 including connecting cable to communication company grid and cables to each No. 1
flat.
Supply, install and commissioning Telephone and TV Junction Box
11.72 including all needed cables from main telephone junction box or satellite system. No. 26
G Earthing System
Supply, install, and commission complete earthing system includes the following:
Hot galvanized steel strip 3x30mm welded to the external steel beams at ground
floor with 3 ends, one at the MDB and the other 2 at the corners of the building.
Cupper electrodes with diameter 19mm inside 60cm manhole with its standard
11.73 cover. The wire of 16mm² NYA from manhole to MDB. All civil works required. LS 1
The resistance of the system must not exceed 5 ohm.
H Cables conduits and monholes
Supply, laying and termination of XLPE CU cable, including laying cables,
termination,PVC pipes,labeling cable lugs, cable glands with all required
electrical and civil works to connect cable terminals from source to destination.
According to drawings, specifications , demands of the supervising engineer and
D.O.W. as follow:.
11.74 3x95+50 mm² XLPE Cable (from PILLAR to MDB). L.m 200
11.75 3x6 mm² XLPE (from MAD to each apartment) L.m 400
11.76 3x4 mm² XLPE (from MAD to each shop). L.m 90
Supply, install and commissioning Elect. manhole, 60cm dia. No. 4
11.77 complete with heavy duty cover 8 ton capacity including excavation, backfilling,
aggregate bedding and all need work.
11.78 Ditto but 40cm. No. 4
Provide and lay underground 3" internal diameter PVC pipes;

11.79 including excavation of 75cm depth, backfilling with clean soft sand, warning No. 60
tape and compaction
11.80 Ditto but 2" internal diameter PVC pipe. No. 50
Ditto but 1.25" internal diameter PVC fluxible pipe from each aparture to nearest
11.81 duct for future solar system (it is considared as No. 110
spare).
Total
12. EXTERNAL WORKS
No. US $ US $
Prices for Excavation item shall include the removal of any buried structure
not to be part of the proposed construction, including transport of
excavated, surplus material and buried structure (not to be part of the
proposed construction) to a location approved by the engineer or his
representative outside the site, workmanship and any where else,
needed, all according to drawings, specifications, conditions and
directed instructions by the Engineer or his representative.
Quantities of Excavation shall be measured according to the elements'
dimensions mentioned in the drawings
Back-filling item should be in layers (25cm max. each & compaction test
98%). Prices shall includes supply, wetted, compacting, transporting,
tested and anywhere else, needed, all according to drawings,
representative.
Suitable Kurkar Material should be used for back-filling in layers (25cm
max. each & compaction test 98%), selected from the approval
excavated soil or imported. Prices shall includes supply, wetted, compacted,
transporting, tested and anywhere else, needed, all according to
drawings, specifications, conditions and directed instructions by the Engineer
or his representative.
Leveling of the existing roads according to the design level (sub base layer) M2 500
with compaction by spreading water and should be reached 98% as shown in
the drawings. The work includes excavation and backfill with Kurkar material
if it's needed that the compaction layers should be reached 98% of the bulk
density, and the item includes the removal of obstacles such as concrete
12.1 blocks, trees, fences, etc out of the site as approval location by engineer or
his representative and all needed works to complete
the job as shown in the drawings, specifications and directed by the
Engineer.
Supply and spreading Kurkar for site with thickness 20cm (two layers - M2 500
with compaction by spreading water, leveled and compacted, including
12.2 preparation of sub grade, testing and all as according to drawings,
specifications, and the engineer's
instructions.
Supply and construction of curbstone size (20 × 10 × 100) cm Precast concrete MR 150
B300 for the sidewalks, and the item includes supply and cast of reinforced
concrete B250 section 20 × 10 cm under curbstone and section 13 × 10 cm
behind the curbstone, and the work includes filling of the blanks with
concrete mortar and cleaning, the work includes supply and paint the
curbstone a preparatory face and 2 layers with the required approved roads
12.3 color with glass powder, the work includes the development of expansion
joints every 12 meters filled with Kalkal and Mastic and all needed works to
complete the job according to the specification and instruction of engineer or
his representative.
Supply and install Colored Interlocking Tiles 6 cm thick (B-450) for theside M2 500
works, size and shape as directed by the engineer or his representative.
Prices shall includes supply, 5cm clean sand under Interlocking, testing,
workmanship and the works includes supply and install concrete at the ends
12.4 and edges of tiles and anywhere else, needed, all according to drawings,
specifications, conditions and directed instructions by the Engineer or
his
representative.
Total
Summary
.
Item Description Total (Us $)
1 EXCAVATION AND EARTH WORKS
2 CONCRETE WORKS
3 MASONRY WORKS
4 PAINTING WORKS
5 TILES AND MARBLE WORKS
6 PAINTING WORKS
7 CARPENTRY WORKS
8 METAL WORKS
9 INSULATION WORKS
10 PLUMBING WORKS
11 ELECTRICAL WORKS
12 EXTERNAL WORKS
TOTAL
Total in numbers .........................................................................

Total in letters ..............................................................................
Name of the contractor ………….………..…………………………...
Authorized signature ……………...………………….………………..
Signature and Sealing………………………………………………….
Title ………………………………………..……………………………….
Telephone………………………………………………………………….
Fax ………………………………………………………………………….
Mobile …………………………………………………………………….
Summary
.
1. EXCAVATION AND EARTH WORKS
Item Description Unit Quantity Unit Rate
No. US $
Contractor shall take into consideration that all – direct and
indirect works and expenses required for the completion of the
coming items are included in the uint price.
Prices for Excavation item shall include the removal of any
buried structure not to be part of the proposed construction,
including transport of excavated, surplus material and buried
structure (not to be part of the proposed construction) to a
location approved by the engineer or his representative
outside the site, workmanship and any where else, needed, all
according to drawings, specifications, conditions and directed
instructions by the Engineer or his representative.
Quantities of Excavation shall be measured according to the
elements' dimensions mentioned in the drawings
Suitable Clean sand or kurkar soil material should be used
for back-filling selected from the approval excavated soil or
imported.
All works shall be carried out according to specification,

condition, drawing and as directed by the engineer.
The contractor must submit reports for the exisiting activities and
materials on the project site supported with photographs before
work start and take approval to start the work.
Cleaning and leveling around the buildings according to the
accompanied drawings as far as the work completed and handed
over for the engineer
Cleaning and removing the existing debris and unused materials
from inside and around the buildings, and transporting debris
outside the site as directed by the Engineer.
Backfilling in layers not more than 25cm thick for each layer and
compaction to 98% of MDD. Prices shall includes supply, wetted,
compacted, transporting, tested and anywhere else, needed,
EXCAVATION
Excavation in sandy soil or any other soil. The price includes excavation for
any un wanted existing soil, organics, etc to any levels as per engineer
instruction and approval drawings.The price also includes transportation of
excavated material to approved dump area according to supervision engineer’s
1.1 L.S 1
instructions, and includes using shutter bracing to the excavation sides.
1.2 Ditto but for underground water tanck L.S 1

BACKFILLING
Backfilling by using (Sand) around foundations , walls & any other element
for building to design levels up to the ground floor slab level and outside yard,
which shall be spread in layers not exceeding 25 cm and compacted (98%) as
1.3 shown in the drawings and mentioned in the specifications and according to m³ 650
the engineer's
instructions.
1.4 Ditto but using imported material Kurkar. m³ 50

Total
Total Amount
US $
2. CONCRETE WORKS
No. $
Rates of Concrete Works shall include:-

1. All form works and shuttering (new lumber for shuttering) in any form, shape
and size . Making chamfered and curved edges, allowing for and making
grooves and sleeves and using Tie Rods (Batant) for concrete walls ; removal of
forms and cleaning of all exposed tie wires and rods. Steel forms must be used in
shuttering the external decorations.
2. Supplying, Casting, vibrating and curing as per specifications.

3. Approved additives and admixtures.
4. Incurred costs on New Concrete Job Mix Designs, Sampling , testing and
providing test results certificates, storing and saving of samples, and preparation
of bar bending schedules and workshops.
5. Supplying reinforcement of any grade, size and length as detailed in the

drawings, storing on site including cutting, bendingand fixing in position and
providing all tying wires, spacers, shop
drawings, testing and bar bending schedules
6. Painting of exposed surfaces of underground reinforced concrete elements

with two coats of hot bituminous paint (75/25) after primer layer , the
strokes of each layer to be opposite to each
other.
7. Steel bars used for alignment and fixing of reinforcement works, and extra
steel added to assure proper detailing and safety.
8.Preliminary installations for Electrical, plumbing and floor

drainage in floor slabs
9. Compaction and testing under the foundation, ground beams,
and ground slabs, the compaction must exceed 98% of MDD.
10. Cleaning existing steel constructed bars from rust and dirt with wire brush
11. All works according to specifications , drawings and

Prices for all concrete items shall include shuttering, steel reinforcement, testing
for steel reinforcement and concrete, supply and placing of concrete, Mix Design,
vibrating, curing, striking, polyethylene sheet (for any concrete contact with the
soil), painting for hot bitumen (one coat of primer & min. 2- coats of hot
bitumen) underground concrete for external surfaces, workmanship, all ducts,
sleeves, opening areas and the concrete surface shall be finished with mechanical
steel trowel and the price shall include steel trowelling with smooth face (fair
face)and anywhere else, needed, all according to drawings, specifications,
conditions and directed instructions by the Engineer or his representative.
- The Price for any concrete contact with soil includes laid polythene sheet 200
micron
CONCRETE (B - 200)
2.1
2.1.1 Supply and cast plain concrete B (200) kg/cm2 for blinding beds below 26
foundations ,supports, anchor blocks, benching, slopes or likes with all required
works including polythene sheets as per M3

2.2.1 Supply and cast ready mix reinforced concrete B(250) kg/cm2 for the ground 417
slab 10cm thick with steel mesh 8mm diameter every 20cm including polythene
sheets below concrete slab as per specifications , drawings and supervisor M2
No. $
2.2.2 Supply and cast ready mix reinforced concrete B (250) kg/cm2 for external steps 3
& its edge beams. including flights, landings, steps, drop, inverted beams and
hand rail wall including entrance M3
stairs, Ramp & parapet including all required materials.
2.2.3 Ditto but for expansion joints inverted beams at the roof.including M3 3
KALKAL
2.2.4 Supply and cast ready mix concrete (250kg/cm2) for doors and windows lintels
and roof coping including all required materials. 90
M3

2.3.1 Supply and cast ready mix reinforced concrete B (300) kg/cm2 for foundations ,
as per specifications , drawings and supervisor M3 117
2.3.2 Ditto but for for minore foundation for support ground beam. M3 9
2.3.3 Ditto but for the ground beams ( main & secondary). M3 58
2.3.4 Ditto for stairs including flights, landings, steps, drop, inverted beams and hand
rail wall including entrance stairs, Ramp & M3 30
parapet including all required materials.
2.3.5 Ditto but for suspended hollow block slab 25 cm thick, including the reinforced
steel, light weight hollow cement block 40 x 25 x 17cm(weight of one block not
exceeding 17 kg) ,all drop and inverted beams everywhere in the slab drainage,
electrical, air conditioning, mechanical ducts and all other materials as per M2 2670
2.3.6 Ditto but for solid slab 30 cm thick for staircase slab and duct Slab. The price 70
include the reinforced steel, all drop and inverted beams everywhere in the slab
and all other materials as per M2
2.3.7 Ditto but concrete decoration including all required materials as

shown in the drawings and according to the engineer’s instructions.. M3 31

2.4.1 Supply and cast ready mix reinforced concrete B (350) kg/cm2 for for columns M3
and column necks , as per specifications , drawings and supervisor engineer
instructions 98
2.5 Supply and cast ready mix reinforced concrete B (300FF) kg/cm2 for reinforced
walls with thick 20cm using tie rods (Batant) and water stop minimum 20 cm,
and for floor and solid slab and openings cover pre-casting solid slab
size100x100x10 cm .as specifications, drawings and supervisor engineer
instructions. M3 32
Total
3. MASONRY WORKS
No. $ $
The price include:
1- supplying hollow or solid cement block from good and approved factory
in perfect dimension and build it in good manner with a compressive
strength 35 kg/cm2 for hollow block and 60
kg/cm2 for solid block. This item will include cement mortars, reinforced
concrete infill (B250) between columns & block walls (10-20 cm wide)
with 2Ø8mm/40cm horizontally and 2Ø10mm vertically according to
drawings, pipes encasement, false columns 20x20 cm/4.0m among the
parapet wall with 4Ø12mm and bituminous paper between block work
and drop beams & all requirements needed to finish the works according to
the drawings, specification and to the supervision engineer instructions.
2- Providing samples for approval and all the required tests.
3.4 Supply and build solid concrete block type A size 40x20x20cm M2 200
Total
4. PLASTERING WORKS
No. US $ US $
Rates include:
(a) Prices of plastering works shall include supply of all materials, galvanized
angles (for exposed edges), galvanized mesh (between block wall and
concrete), mixing, scaffolds, curing, workmanship & tools and anywhere else,
needed, all according to drawings, specifications, conditions and directed
instructions by the Engineer or his representative..
Supply and make internal plastering 15 mm thick for ceiling and soffits. The
work includes rough primer nail rendering to form a key with (mix 1:1) cement
sand, second layer 13mm: Base-Coat "Rendering" with (1:3:0.25) cement:
sand mortar: lime and third layer: Finishing Coat with (1:4:0.50) cement: sand
4.1 mortar: lime . Works include all materials needed to finish the works according M2 2600
to specifications , drawings and supervisor engineer's instructions
4.2 Ditto, but 15 mm thick for walls and parapets M2 5500

Supply and make external plastering 20 mm thick to elevations, ceilings and
parrabet roof wall with three faces : the first is the rough nail rendering (mix
1:1) cement sand; the second is 5mm thick mortar (mix 1: 2) cement:sand, the
4.3 third is the undercoat 13mm (mix 1: 3 :0.25) cement:sand:lime, according to M2 2200
4.4 Marmarina finish for elevations, edges and anywhere else with M2 2200
color painting and all required works.
Total
5. TILES AND MARBLE WORKS
No. US $ US $
(a) Prices of Tiles & Marble works shall include supply of all materials,
testing, mortar, 5cm sand under tiles or marble or back the tiles or marble
(wall), skirting, workmanship, opening areas and all materials & tools and
and directed instructions by the Engineer or his representative
(b) Cleaning, mechanical polishing and pointing using grout.

(c) Plastic angle beads for ceramic wall tiles and Aluminum angle
for ceramic of walls at the corners.
(d) Local marble must be Grade (A) free cracks and clay flaws.
(e)Only European Type of good quality imported porcelain and
glazed ceramic tiles (floor & walls) shall be used
(f) Only Grade A for local marble shall be used, free from cracks,
holes and pits, homogeneous in the approval color
(g) Black Basalt mixed with white marble chips, size 4mm,shall be used in the
precast terrazzo tiles, free from cracks, holes and pits, homogeneous in thee
approval color
PORCELAIN TILES
Supply and fix non-slip color porcelain floor tiles grade A , Spain made or
equivalent,Full body, size 40x40x1cm, for staircase landings , opened
area in ground floor and shops, the price include bedded in cement and sand
mortar 1:3 laid on a dry mixed sand and cement backfill, the price including
5.1 skirting 40cmx 7cmx1cm, pointing using special pre- mix grout and 400
M2
final polishing as per specifications , drawings and supervisor engineer
instructions, for
entrances.
CERAMIC TILES
Supply and fix non-slip color ceramic floor tiles grade A , Spain made or
equivalent, size 40x40x1cm, bedded in cement and sand mortar 1:3 laid on a
dry mixed sand and cement backfill, the price including pointing using special
5.2 pre- mix grout and final polishing as per specifications , drawings and M2 1750
supervisor engineer
instructions, for men and women prayer halls
5.3 Ditto but size 30x30x0.8 cm for WCs and Bathrooms floors M2 180
Supply and fix color glazed ceramic wall tiles, Spain made or
equivalent, size 30x60x1cm for WCs and Bathrooms walls , bedded in
cement and sand mortar 1:3 to walls. Price to include limfree backing
5.4 plaster layers, pointing using special pre- mixed grout,and plaster layers as M2 1000
specifications , drawings and supervisor
5.5 Ditto but, size 30x60x1cm for kitchens walls . M2 760

5.6 Ditto but size 40x20x0.8cm for staircase walls and opened area in ground M2 160
Floor
Graneet Rosabita
Supply and lay graneet rosabita type 26 cm wide wide x 2cm thick
5.7 for window sills including water drip groove as per specifications , drawings L.M 35
and supervisor engineer instructions
5.8 Ditto but 22cm wide for window sills L.M. 110
5.9 Ditto but 28cm wide for kitchens and Bathrooms window L.M. 70
5.10 Ditto but 15 cm wide x 3cm thick for doors opthresholds L.M. 40
No. US $ US $
5.11 Supply and lay graneet rosabita type 28 cm wide x 3cm thick for L.M. 50
ground floor open area and ramps top parapet finish.
GRANITE
Supply and lay Granite (rozabita) for staircases size110 cm length 33 cm wide
x 3cm thick, risers size110 cm length 16 cm high x 2 cm thick ) laid on 2cm
5.12 thick cortar bed. The price including skirting 2cm thick on both sides, and No 215
final polishing as per
specifications , drawings and supervisor engineer instructions.
5.13 Ditto but for external steps size260 cm length 33 cm wide x 3cm No 8
thick, risers size200 cm length 16 cm high x 2 cm thick )
5.14 Ditto but for shops and main doors or entrances openings or L.M. 22
opthresholds
Supply and lay Granite (rozabita) for staircases top parapet finish size15 cm
wide x 2cm thick laid on 2cm thick mortar bed. The price including final
5.15 polishing as per specifications , drawings and L.M. 70
Local marble (Black Granite - Tiger) 2cm thick for the kitchen
for cupboadrs 60 wide 280 cm length and 100cm height and length around 5
m,the works including the top surface with round edges, verticaldeviders and
internal horizontal shelves,back of cupboards, floor skirting 10cm hight (local
marble - yatta type orequivelent) and making the needed opening for basins ,
5.16 all according to drawings, specifications, conditions and directed instructions No 16
by the
Engineer or his representative

GRANULATE
5.19 Supply and lay Granulate layer with all needed works to complete the job for 50
the ramps floors and internal walls and where needed, all according to
drawings, specifications, conditions and directed M2
instructions by the Engineer or his representative
Total
6. PAINTING WORKS
No. US $ US $
Rates include:
(a) All the painting materials used should be Tambour type or equivalent
and should be approved and tested by approved local laboratory and have
the final approved from the supervisor engineer.
(b) The surface must be dry and clean before painting.

(c )All painting works should provide the required coverage.
(d ) All paint works must be according to specifications , drawings
and supervisor engineer instructions.
(e )Smoothen surfaces of exisiting plastering before the
Commencement paint
Prices of painting works for walls & ceilings (European Type of good quality)
shall include supply of all materials, scaffolds, workmanship & tools and
and directed instructions by the Engineer or his representative.
PAINTING
Supply and Paint the internal walls with one coat of Pendrole primer , at least M2
two coat of External quality of colored emulsion (Supercryle) approved as
6.1 specifications , drawings and supervisor engineer instructions 5500
Supply and Paint one-primer and minimum two coats of Poliside for ceilings
and soffits as specifications, drawings and supervisor engineer instructions.
6.2 M2 2600
Total
7. CARPENTRY WORKS
No. US $ US $
(a) supplying Doors from U-PVC Door including frame and
architrave.
( b) Hard ware locked type European switch or equivalent for all doors and
bath type for Toilets doors, and brass hinges 10cm height, door stopper ,and
all other fitting.
c) Doors constructed using 2mm thickness GRP woodgrain skins
Supply and install U-PVC door PD2 overall size 90 x 220x 4.5cm thick one
leave the scope of works includes joineries,accessories, switch approval
European type of good quality, door stops, all and anywhere else, needed, all
7.1 according to drawings, specifications, conditions and directed instructions No 56
by
the Engineer or his representative.
Ditto but for PD3 overall size 80 x 220 x 4.5cm thick one
7.2 leavecomplete with the above preamble including WC type switch and brass No 48
latches. with all required works
7.3 Ditto but for PD1 overall size 100 x 220 x 4.5cm thick one leave No 6
with all required works
Total
CONSTRUCTION OF 100 RESIDENTIAL UNITS IN NORTHERN GAZA
RESIDENTIAL BUILDING
8. METAL WORKS
No. US $ US $
(a) Submitting samples for approval of material, accerrories, color and
fixation method.
(b) anodized Aluminum profile windows, complete with glazing, silicone
sealant, ironmonger and hardware as specified and as shown on the
drawings. Minimum wall thickness for all
aluminum profiles is 1.5mm.
( c) All metal works include the fixation for frames and leaves
and all required accessories according to the engineer's instructions.
(d) Painting after smoothing and filling all the voids with putty, primer
coat, undercoat and two oil coats and in case of galvanized steel the primer
should be poly zinc.
(e )Hardware, ironmongery and accessories should be made of

aluminum, and All tests for thickness and color.
ALUMINUM WORK
thick,insect screen leave, silicone sealant, ironmongery and hardware. all and
8.1 any where else, needed, as per specifications and drawings. No 120
8.2 thick, ironmongery and hardware. and as No 50
per specifications and drawings.
Ditto but, Type AW3 size 140 x 60cm

8.3 No 20
Supply and install complete door size 90x180cm two leave

8.4 AW4, for cabinet in the stair case with fiber sheet, switch, door hand with all No 22
accessories and requred works
STEEL WORK
Supply and fix Multi Lock door SD1 (100 x220x4cm), complete with
galvanized steel frame 3mm thick, ironmongery, all requirement as
latches, locks…etc. as per specifications ,
8.5 drawings and supervisor engineer instructions No 26
Supply and fix galvanized steel double external gate SD2 (160 x240x4cm)
two leave, complete with polycarbonate sheets (6- mm thick), frame 3mm
thick, ironmongery,including decorated, hardware and oil painting include
8.6 primer and under coat, with Wally switch and all requirement as latches, No 4
locks…etc. as per
8.7 Ditto but single door SD3 (100 x220x4cm), No 2

8.8 Supply and install Galvanized Steel Grill for window type AW1 No 120
protection with all required works .
8.9 Ditto but for window Type AW2 No 50
Supply and install Galvanized Steel Handrail for stair landing
8.10 with all required works MR 70
Supply & install galvanized steel ladder 60cm width for water tanks consist of
40x40x3mm G.S Box section include fixation to slab by
G.S plate 4mm th.. with all needed fitting, welding , painting with at least two
coats oil paint over one coat polyzinc primer & the needed accessories to
8.11 complete the job as shown in MR 10
the drawings, specifications and the engineer’s instructions.
Supply and fix Roll galvanized steel door SD-R1 (280 x260cm),
galvanized steel sheets (0.8mm thick), complete with frame 3mm thick, ironmongery,
hardware and oil painting include primer and
8.12
under coat, with a locks 12mm and all requirement as latches, No 6
locks…etc. as per specifications , drawings and supervisor engineer instructions
Total
ORTHERN GAZA
9. INSULATION WORKS
No. $ $
All the following items shall be completed according to drawings,
representative.
9.1 Supply and cast foam concrete with fine aggregates for roof screeding of 525
average thickness 7cm. The price include supply and execute concrete angle
fillet 5x5cm around the boundar of the M2
parapet.as shown in drawing.

Supply and lay one layer of plasticized bitumen roofing membrane with
chipping 4 mm thick, including priming concrete surface prior to laying,
dressing into rainwater outlets to form waterproofing seal and cover with angle
fillets.The rate includes vertical parts, skirting and fixing the ends of
plasticized bituminous roofing membrane skirting inside concrete grooving
9.2 and water testing for the roof after completing the works as per M2 620
specification ,drawings and supervisor engineer instructions.
Measurement: Only horizontal projection to be paid
Supply and lay tow layers of sackcloth bitumen for isolate

9.3 bathrooms and kitchens flooring , using primer coat. two hot bitumen M2 400
coats (75/25)g the price include water testing
9.4 Execute expansion joints and cover for back columns/wall, front columns L.m 85
and walls as detailed in drawings including flexcell sheets 4mm thick, and
aluminum strip size 80 x 6mm screwed to walls or
soffits from one side as per specification and drawings.
Supply and Paint two coats of sica sel top 107 for inside
9.5 walls , floors and ceilings for water tank as specifications, drawings and M2 75
Total
10. PLUMBING WORKS
No. $ $
(a) All Plumbing works include the required units and its
accessories as described in the items and the rates include:
(b) All the plumbing units should be from the best quality and has
trade mark.
( c ) Submitting shopdrawing for water supply and waste water
networks for approval prior to commencement of the work.
(d) Submitting samples for all required material with catalogue
indicating its specifications.
( e ) All required tests , pressure for water net work , hydraulic test
for sewage lines
(f) Cleaning and desinficting all water pipes.
(g) Insulation of all galvanized water pipes and wraping it with bitumen's
sheets and protect pipes located under tiles with cement morter. In addition to
the insulation materials against heat loss for hot water pipes.
(h) All hot and cold water pipes for the points of fixtures to the
nearest distribution board.
(i) All plumbing works ( wash basin, kitchen sink, gully traps,etc…) include
the connection to the nearest trap, WC to the nearest vertical sewage header in
the typical floors and WC in the GF to the nearest manhole and include all
accessories including PVC S and caps for all the ends of pipes at parapet.
The Contractor shall when pricing this Bill take into consideration, include and
allow for costs or expenses of all requirements stipulated in the section entitled
“General and Preambles” preceding this Bill.
- The exact lengths of the required pipes, the exact number of the required
valves and the exact quantities of concrete will be determined during the
implementation of the Works.
- Price should include all excavation, backfilling, supporting of trenches and
all associated works.
Supply and fix white glazed fireclay hand wash basin size
55cmx45cm (Vitra Type) or equivalent, complete with Short pillar
, all water supply pipes 16mm and 20mm pipes (Golany) to the nearest
dist. box (WDB), waste fitting, trap, plug and chain,water mixer (hamat
Type) or equivalent and mirror 60x60cm,china shelves, chrome traps
and the drainage line 2” to the nearest floor trap. or to the nearest manhole as
per specification, drawings and No. 48
engineer instructions.
10.1
10.2 Ditto but for handicaped size50x60 cm the price include stainless No. 2
steel holding bars (Moving and Fixed)
Supply and fix white glazed fireclay European W.C. suite (Vitra Type),
or equivalent complete with plastic double action flushing cistern2
gal.capacity, and fixed chromium plated tap , including all water supply pipes
16mm and 20mm pipes (Golany) to the nearest dist. box (DB),seat
mounted, and hard seat covers, flushing mechanism, angle valves,S
10.3 trap,4” diam UPVC drainage pipe connecting to the nearest manhole and No. 48
all associated water pipes, china paper holder, all other required fittings
as required.as per
Ditto but for handicaped the price include stainless steel holding bar
10.4 (Moving) and stainless steel holding bar (Fixed) 90 Degree No. 2
Supply and install one bowel stainless steel kitchen sink 50x85cm complete
with chrome plated hot and cold water mixer (hamat Type) or equivalent,
workmanship and all necessary fixing, accessories, waste pipes and
10.5 drainage to the nearest manhole with No. 26
al required works.
10.6 supply and install shower mixer (hamat Type) or equivalent the price No. 24
include shower column set waste pipes and drainage and all associated water
pipes, china soap holder, all other required
fittings as per specification, drawings and engineer instructions.
Ditto but the opice include stainless steel folding seat and
stainless steel holding Bars and all associated water pipe
10.7 No. 2
10.8 Ditto but water tap (hamat Type) or equivalent the price include all No. 26
associated water pipe
Supply and install, water meter device, type (BMETER) or equivalent 2” with
gate valve 2”,check valve 2'' diameter,
10.9 jointing, and connection to the HDPE pipe 63mm including NO 1
allrequired fittings and accessories as per specifications , drawings and
10.10 Ditto but for 1/2" water meter with all required works NO 32
Supply and instal (2) Pressure booster pump from underground tanks to
the roof tanks with capacity of 10m3/hr at 25m head, complete with
electrical control panel , cables, electrical float, switches, all materials,
accessories, , fittings & workmanship and anywhere else, needed, all
10.11 according to drawings, specifications, conditions and directed instructions L.S. 1
by the Engineer or his
representative.
Supply and Install sump pump , DAB or equivalent, with

capacity = 5 m3/hr and head equal 10 m. The item includes all the required
upvc pipes to nearest manhole, and fittings (valves,T, elbows, non return
valves,. etc.), also the item includes pump control panel , electrical cable,
disconnecting switch, and all materials required for installation and operation ,
with all needed pipes and civil works (concrete base), and all required
accessories, and all as specifications , drawings and supervisor engineer
10.12 NO 1
instructions,for drainge underground water tank and pumps room.
Supply and fix cold water storage consists of (3) plastic tank 5000 liter
capacity each one , approved type, complete with lockable cover with lock, 1
inch diam. automatic heavy duty float valve , overflow pipe (1”diam) and drip
tray, with all connections for rising main and distribution pipe work and stop
valves 1” including steel base and wood as drawings ,with all
10.13 accessories as specification and drawings, including painting tanks with NO 2
white
supercryle
Supply and install Solar System . the price including plastic water tank 1000
liter,mirror Solarium size 200x125x10 cm containing 12 pipe copper, electric
heater Chinese interior (120 liters) with thermostate, steel base, 5 cm
thick painted hard wood under the tanks, connection to the piping
system and all accessories, fittings,valves and all required works to
10.14 NO 26
complte the job.as per
drawings, specification and engineer instructions.
Supply and install HDPE 63mm pipe from municipality main line to under
ground water tank and from pumps collection to the roof tanks main line, and
from roof tanks to appartments watermeters including all necessary
bends,valves, connections and accessories and makingwith all required
fittings and couplings, good with all required worksthe item includes
10.15 excavation, backfilling with clean MR 150
sand , watering and compaction , tracer tap.
Supply and install piping system HDPE 25 mm pipe from each

appartments watermeters to solar system or shops and from Solar System to
appartments ( cold water), including all necessary bends,valves,
10.16 connections and accessories and making good with Unit 32
all required works.
10.17 Ditto but piping system HDPE (20mm) from each solar system to Unit 26
appartments (hot water)
Supply and install water distribution box (WDB1) complete with

polethene pipes (PEX ) Ф20 and Ф16 mm to each feeding pointsin
appartment including all needed accessories, fittings .The price includes
all distribution headers, Sagiv valves, Air valves and aluminum
10.18 leafs,complete with with local marble frame 2cm thick as per drawings, NO 24
specifications and engineer instructions. The size
of DB is to fit the No. of outlets (13) .
10.19 Ditto but (WDB2)the No. of outlets (9) . NO 2

Supply and install pre-cast manhole of 100cm internal size
reinforced concrete class B300 sewage manholes as per
specifications and drawings complete with 10 cm reinforced concrete
base, 10cm reinforced concrete slab, plain concrete, cast iron cover (8 tons
capacity and 60cm opening), frame, rings, internal coating, benching, cast iron
steps if need and special joint required to fix the pipe to the manhole. The item
also includes excavation, supporting the trench sides and backfilling using
clean sand with watering and compaction (compaction layers at max.
thicknes of layer is 25cm). The work also includes coating the inside walls
10.20 and slab with two coats of special sewer epoxy and theexternal surfaces with NO 1
two coats of hot bitumen. Pipe opening at manhole base shall be factory made
without drilling manhole walls at site. Locations are as shown on in drawings
and Depth up to any
depth as specified.

Supply and install DN160-mm diameter gravity Rigid PVC-U sewer pipes
SN8 and lay in all kinds of soil including excavation to the required depth,
supporting the trench sides, bedding with clean sand, backfilling and
compaction (compaction layers at max. thicknes of layer is 25cm). Unwanted
soil to be removed outside the site. The price includes all necessary
works, supplying and installing warning tape with copper wires, gaskets,
connection to manholes and others to complete the work as specified in the
10.23 specification, drawings and to the satisfaction of the Engineer. MR 155
Excavation up to any depth as specified.
10.24 Ditto but for DN110-mm diameter SN8 with all required works MR 470
10.25 Ditto but for DN110-mm diameter SN8 with all required for rain water drain, MR 160
with mesh drain and 4"mesh vent (G.S type) with all related works according
to the specifications , drawings and
supervisor engineer's instructions
Supply and fix floor trap 4 inch diameter, complete with heavy duty brass
grating and 4”& 2” PVC drainage pipe to the nearest manhole or next F.T and
10.26 including S trap if needed include Stainless Steel cover with all accessories, No. 115
fittings as per
10.27 Ditto but for rain water with mesh vent (G.S type) No. 10
Total
11. ELECTRICAL WORKS
US $ US $
The items in general shall also include conduits, connection boxes, controls,
wires, connectors, clamps, bolts, and connecting the cables to switchboards and
common electric network are included in the unit price. The price includes all
required Reinforced cement to all items in this Bill such as cutting into the walls
and ceiling then repairing, all measurement devices ,equipment's ,machinery,
...., etc.
(a) Contractor shall submit shop drawings for all electrical works to be approved
by the Engineer before executing the work.
(b) As-built drawings shall be submitted after handing over the work.
(c) All the electrical works shall be executed according to Standards, drawings,
specifications and supervisor engineer
instructions.
a Distribution Boards
Supply, install and commission main distribution panel board (MDB) as specified
and as shown on drawings, factory assembled wired and tested in accordance
with international standards, including 2mm Galv and 30% spare space . steel
frame with anti static paint , The work includes busbars, neutral bus bar and
earthing terminal,all necessary power and control
wires,terminals,ducts,supports,labels and numbers and all necessary civil works
for foundations , cable trenches and handing over clean, tested and in operating
conditions. (Type is MOELLER or equivalent). The panel sizes should
determined determined as the approved shopdrawings and approved components.
11.1 All works must be according to engineer instruction and approval and regarding
No. 2
to GEDCo specifications. The panel shall include but not limited to the
followings
Supply install and connect the folowig items: all following items type Eaton
Moeller :
11.2 LTL fuse 3x250A/160A with 160A fuses.(Type is JEAN MUELLER or

No. 2
equivalent)
11.3 LTL fuse 3x32 A/6A including 6A fuse. No. 6
11.4 3 indication lamps R S T with resistance 220V,with LTL fuse3x36/6A
set 4
11.5 Current transformer 3x(200/5A) set 6

11.6 KVAR meter 3 phase 3x5A.(Type is ISKRA or equivalent)(optional)
No. 2
11.7 Pre-Paied Digital KWH meter, 1 phase . Approved type by GEDCO.

No. 32
11.8 Ammeter 0-250A No. 6
11.9 Voltmeter 0-500V with 7 positions selector switch set 2
11.10
MCCB 3x160.(Type is MOELLER NZMN-A160 or equivalent). No. 2

US $ US $
11.20 ELCB 4x40A,30mA. No. 4
11.21 ELCB 2x40A,30mA. No. 2
11.22 Step relay 10A ,220V. ( MOELLER or equivalent) No. 2
11.23 Manual change over switch 4x32A (Type is Hager or equivalent). No. 2
Supply and install 3 phase mains/generator automatic change over switch consist
of 2 contactors 4 poles 63A,400V , with electrical and mechanical inter-lock ,the
work includes automatic changeover control unit (ACU) with all required
Timers,Relays,adjastable under voltage Relay and all protection devices to
11.24 complete the work as per the engineer instructions Set 2
.(Type is MOELLER or equivalent).
11.25 Supply install and connect Automatic power factor improving unit including
MCCB 3x63A, Static capacitors, contactors, LTLs with fuses , CBs selector
switches and quick discharge resistor as per Unit 2
drawings.
11.26 Water pump power and control components including 3x25 contactor, overload
set 2
triping current 3-6A, and selector switch.
11.27 External lighting power and control components including 3x25 contactor, 24 hr
set 2
timer, photocell and selector switch.
b Sub-Distribution Board.
Supply, install sub-distribution board (DBA) consists of plastic board frame

11.33 ELCB 2x40A,30mA. No. 18
Supply, install sub-distribution board (DBB) consists of plastic board frame
operating conditions. (Type is
Gawiss or equivalent).

11.39 ELCB 2x40A,30mA. No. 8
Supply, install sub-distribution board (DBS) consists of plastic board frame

11.45 ELCB 2x40A,30mA. No. 6
Lighting Fixtures and Switches
The following items shall include supply, install, connect and commission
lighting fixtures and switches, including PVC conduits, conduit fittings, pull
boxes, 3x1.5mm², accessories and circuit wiring between fittings, switches up to
its subpanel board. As shown on drawings & specifications.
US $ US $
C Lighting Fixtures
Supply, install, connect and test fluorescent lighting fixture 2x36w complete with
lighting tubes 36, chock, Electronic Ballast , starters rigid PVC conduits, J.boxes,
11.46 fixing screws (Galv.) and wiring (Type is GA'ASH No. 50540 or equivalent) No. 220

11.48 Led night lighting fixture E27 with 3W lamp, wires, conduits, j. boxes and fixing
No. 60
screws for wall mounted.
11.49 Circular globe type is Nisko pop with 26W lamp type is Nepton, ceiling
No. 100
mounted.
Ditto but entrance globe IP65 wall mounted type is Nisko with
11.52 28W Nepton type lamp, wires, conduits, j. boxes and fixing screws for wall No. 35
mounted. .(entrance of flat)
Ditto but lighting globe IP55 above the mirror in the bathroom with 18W Nepton
11.57 type lamp. No. 32
Supply, install, connect and test external security flood lighting fixture, water
proof IP65, LED lighting fixture 50W, including 3x2.5 mm2 cable from MDB to
11.54 projector location . (Type is GAASH or equivalent). No. 14
11.55 Supply, install, connect and test 6" Extractor fan with movable louvers, 250cfm,
complete with PVC conduits, J. boxes, wiring, and all necessary accessories.
(Type is VENTA or equivalent). No. 78
Supply, install, connect and test 56" fan complete speed control switch, PVC
conduits, J. boxes, wiring, and all necessary accessories. (Type is CHMC or
11.56 No. 86
equivalent).
11.57 Supply, install, connect and test electrical door bell. No. 26
D Switches :
11.58 Supply, install connect and test single pole one way switch, 220v, 13A, complete
with PVC conduits, J. boxes, wiring, cover and all necessary accessories. (Type
is Bticino Matix or equivalent). No. 115
11.59 Ditto, but one way, two pole switch. No. 110
11.60 Ditto, but two way, one pole switch. No. 105
11.61 Ditto, but push button with illuminated lamp for stair. No. 15
11.62 Ditto, but push button for bell. No. 26
E Sockets :
The following items shall include supply, install, connect and commission power
sockets and switches, including PVC conduits, conduit fittings, pull boxes,
11.63 3x2.5mm², accessories and circuit wiring between fittings, switches up to its
subpanel board. As shown on drawings & specifications.
11.64 supply, install connect and, testing single socket outlet 16A, 220v, 2p+E for flush
mounting, complete with 3x2.5mm² wire, PVC conduits, J. boxes, wiring, and all
necessary accessories. (Type is No. 325
Bticino Matix or equivalent).
11.65 Ditto, but water proof type. No. 105

11.66 Ditto but A/C unit socket outlet 20A with 3x4mm² wire. No. 58
supply, install connect and, testing water proof switched socket outlet 230V,
20A, with pilot lamp, flush type for water heaters including 3x4²mm wire. (Type
11.67 is Bticino Matix or equivalent). No. 26
US $ US $
F Telephone, TV and Intercom systems
Supply, install and commissioning Telephone socket outlets, 6 pin as specified &
shown on drawings including rigid plc. conduits, pull & J. boxes, telephone
11.68 cables not less than 2px0.5 o the junction box.(Type is Bticino Matix or No. 118
equivalent).
Supply, install and commissioning TV socket outlets, as specified

11.69 & shown on drawings including rigid plc. conduits, pull & J. boxes, coaxial No. 92
cables to the junction box.
Supply, install and commissioning complete intercom system for not less than 13
flats including indoor units, outdoor unit , power supply an door lock .(Type is
11.70 Farfisa or equivalent). No. 2
Supply, install and commissioning main Telephone Junction Box

11.71 including connecting cable to communication company grid and cables to each No. 1
flat.
Supply, install and commissioning Telephone and TV Junction Box
11.72 including all needed cables from main telephone junction box or satellite system. No. 26
G Earthing System
Supply, install, and commission complete earthing system includes the following:
Hot galvanized steel strip 3x30mm welded to the external steel beams at ground
floor with 3 ends, one at the MDB and the other 2 at the corners of the building.
Cupper electrodes with diameter 19mm inside 60cm manhole with its standard
11.73 cover. The wire of 16mm² NYA from manhole to MDB. All civil works required. LS 1
The resistance of the system must not exceed 5 ohm.
H Cables conduits and monholes
Supply, laying and termination of XLPE CU cable, including laying cables,
termination,PVC pipes,labeling cable lugs, cable glands with all required
electrical and civil works to connect cable terminals from source to destination.
According to drawings, specifications , demands of the supervising engineer and
D.O.W. as follow:.
11.74 3x95+50 mm² XLPE Cable (from PILLAR to MDB). L.m 200
11.75 3x6 mm² XLPE (from MAD to each apartment) L.m 400
11.76 3x4 mm² XLPE (from MAD to each shop). L.m 90
Supply, install and commissioning Elect. manhole, 60cm dia. No. 4
11.77 complete with heavy duty cover 8 ton capacity including excavation, backfilling,
aggregate bedding and all need work.
11.78 Ditto but 40cm. No. 4
Provide and lay underground 3" internal diameter PVC pipes;

11.79 including excavation of 75cm depth, backfilling with clean soft sand, warning No. 60
tape and compaction
11.80 Ditto but 2" internal diameter PVC pipe. No. 50
Ditto but 1.25" internal diameter PVC fluxible pipe from each aparture to nearest
11.81 duct for future solar system (it is considared as No. 110
spare).
Total
12. EXTERNAL WORKS
No. US $ US $
Prices for Excavation item shall include the removal of any buried structure
not to be part of the proposed construction, including transport of
excavated, surplus material and buried structure (not to be part of the
proposed construction) to a location approved by the engineer or his
representative outside the site, workmanship and any where else,
needed, all according to drawings, specifications, conditions and
directed instructions by the Engineer or his representative.
Quantities of Excavation shall be measured according to the elements'
dimensions mentioned in the drawings
Back-filling item should be in layers (25cm max. each & compaction test
98%). Prices shall includes supply, wetted, compacting, transporting,
tested and anywhere else, needed, all according to drawings,
representative.
Suitable Kurkar Material should be used for back-filling in layers (25cm
max. each & compaction test 98%), selected from the approval
excavated soil or imported. Prices shall includes supply, wetted, compacted,
transporting, tested and anywhere else, needed, all according to
drawings, specifications, conditions and directed instructions by the Engineer
or his representative.
Leveling of the existing roads according to the design level (sub base layer) M2 500
with compaction by spreading water and should be reached 98% as shown in
the drawings. The work includes excavation and backfill with Kurkar material
if it's needed that the compaction layers should be reached 98% of the bulk
density, and the item includes the removal of obstacles such as concrete
12.1 blocks, trees, fences, etc out of the site as approval location by engineer or
his representative and all needed works to complete
the job as shown in the drawings, specifications and directed by the
Engineer.
Supply and spreading Kurkar for site with thickness 20cm (two layers - M2 500
with compaction by spreading water, leveled and compacted, including
12.2 preparation of sub grade, testing and all as according to drawings,
specifications, and the engineer's
instructions.
Supply and construction of curbstone size (20 × 10 × 100) cm Precast concrete MR 150
B300 for the sidewalks, and the item includes supply and cast of reinforced
concrete B250 section 20 × 10 cm under curbstone and section 13 × 10 cm
behind the curbstone, and the work includes filling of the blanks with
concrete mortar and cleaning, the work includes supply and paint the
curbstone a preparatory face and 2 layers with the required approved roads
12.3 color with glass powder, the work includes the development of expansion
joints every 12 meters filled with Kalkal and Mastic and all needed works to
complete the job according to the specification and instruction of engineer or
his representative.
Supply and install Colored Interlocking Tiles 6 cm thick (B-450) for theside M2 500
works, size and shape as directed by the engineer or his representative.
Prices shall includes supply, 5cm clean sand under Interlocking, testing,
workmanship and the works includes supply and install concrete at the ends
12.4 and edges of tiles and anywhere else, needed, all according to drawings,
specifications, conditions and directed instructions by the Engineer or
his
representative.
Total
Summary
.
Item Description Total (Us $)
1 EXCAVATION AND EARTH WORKS
2 CONCRETE WORKS
3 MASONRY WORKS
4 PAINTING WORKS
5 TILES AND MARBLE WORKS
6 PAINTING WORKS
7 CARPENTRY WORKS
8 METAL WORKS
9 INSULATION WORKS
10 PLUMBING WORKS
11 ELECTRICAL WORKS
12 EXTERNAL WORKS
TOTAL
Total in numbers .........................................................................

Total in letters ..............................................................................
Name of the contractor ………….………..…………………………...
Authorized signature ……………...………………….………………..
Signature and Sealing………………………………………………….
Title ………………………………………..……………………………….
Telephone………………………………………………………………….
Fax ………………………………………………………………………….
Mobile …………………………………………………………………….
Summary
.

Boq Format For Residential Building

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Boq Format For Residential Building

Uploaded by

Copyright:

Available Formats

PMProGuide.

For more templates and free tools, visit https://pmp

1. EXCAVATION AND EARTH WORKS

All works shall be carried out according to specification,

1.2 Ditto but for underground water tanck L.S 1

1.4 Ditto but using imported material Kurkar. m³ 50

Rates of Concrete Works shall include:-

2. Supplying, Casting, vibrating and curing as per specifications.

5. Supplying reinforcement of any grade, size and length as detailed in the

6. Painting of exposed surfaces of underground reinforced concrete elements

8.Preliminary installations for Electrical, plumbing and floor

11. All works according to specifications , drawings and

specifications , drawings and supervisor engineer instructions

2.2 CONCRETE (B - 250)

stairs, Ramp & parapet including all required materials.

2.3 CONCRETE (B - 300)

specifications , drawings and supervisor engineer's instructions

2.3.7 Ditto but concrete decoration including all required materials as

2.4 CONCRETE (B - 350)

4.2 Ditto, but 15 mm thick for walls and parapets M2 5500

(b) Cleaning, mechanical polishing and pointing using grout.

5.5 Ditto but, size 30x60x1cm for kitchens walls . M2 760

5.17 Ditto but 230 cm length No 8

instructions by the Engineer or his representative

(b) The surface must be dry and clean before painting.

(e )Hardware, ironmongery and accessories should be made of

Ditto but, Type AW3 size 140 x 60cm

Supply and install complete door size 90x180cm two leave

8.7 Ditto but single door SD3 (100 x220x4cm), No 2

parapet.as shown in drawing.

Supply and lay tow layers of sackcloth bitumen for isolate

Supply and Install sump pump , DAB or equivalent, with

Supply and install piping system HDPE 25 mm pipe from each

Supply and install water distribution box (WDB1) complete with

10.19 Ditto but (WDB2)the No. of outlets (9) . NO 2

10.21 Ditto but 80 cm internal size . NO 4

11.2 LTL fuse 3x250A/160A with 160A fuses.(Type is JEAN MUELLER or

11.5 Current transformer 3x(200/5A) set 6

11.7 Pre-Paied Digital KWH meter, 1 phase . Approved type by GEDCO.

11.8 Ammeter 0-250A No. 6

11.9 Voltmeter 0-500V with 7 positions selector switch set 2

11.11 MCB 3x25A. (Type is MOELLER or equivalent). No. 4

11.29 Ditto but 2x32A. No. 18

11.35 Ditto but 2x32A. No. 8

11.41 Ditto but 2x25A. No. 6

11.47 Ditto but water proof IP65. No. 30

11.65 Ditto, but water proof type. No. 105

Supply, install and commissioning TV socket outlets, as specified

Supply, install and commissioning main Telephone Junction Box

Provide and lay underground 3" internal diameter PVC pipes;

Item Description Total (Us $)

1 EXCAVATION AND EARTH WORKS

5 TILES AND MARBLE WORKS

Total in numbers .........................................................................

All works shall be carried out according to specification,

1.2 Ditto but for underground water tanck L.S 1

1.4 Ditto but using imported material Kurkar. m³ 50

Rates of Concrete Works shall include:-

2. Supplying, Casting, vibrating and curing as per specifications.

5. Supplying reinforcement of any grade, size and length as detailed in the

6. Painting of exposed surfaces of underground reinforced concrete elements

8.Preliminary installations for Electrical, plumbing and floor
