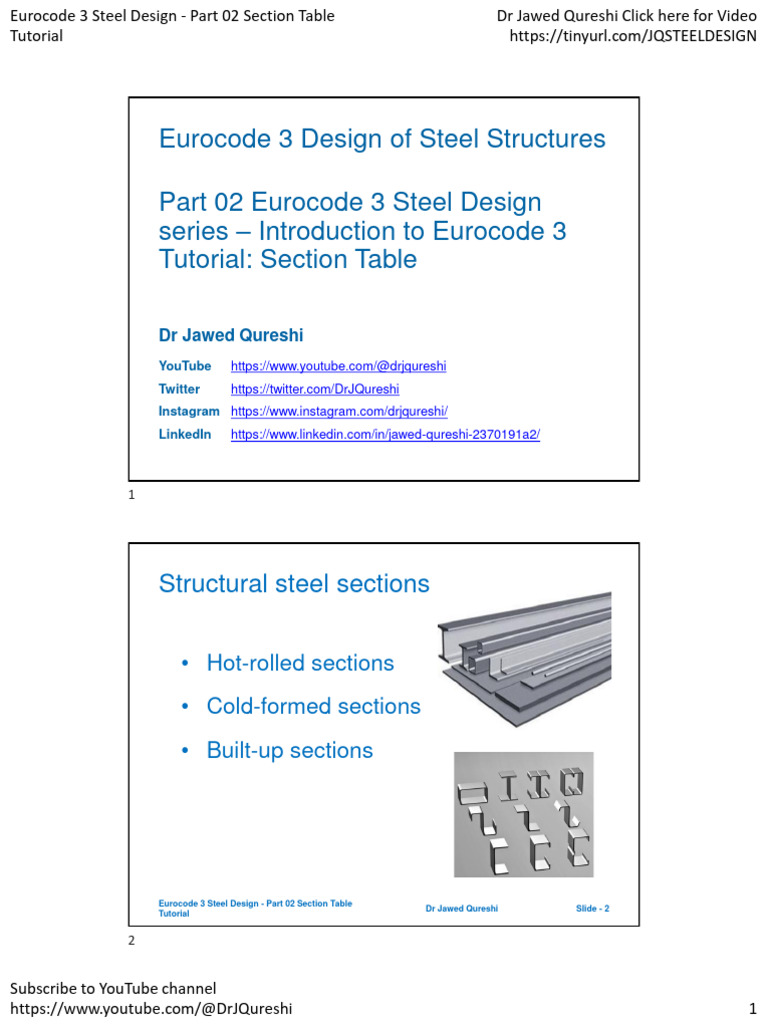

Eurocode 3 Design of Steel Structures

Part 02 Eurocode 3 Steel Design

series – Introduction to Eurocode 3
Tutorial: Section Table

Dr Jawed Qureshi
YouTube https://www.youtube.com/@drjqureshi
Twitter https://twitter.com/DrJQureshi
Instagram https://www.instagram.com/drjqureshi/
LinkedIn https://www.linkedin.com/in/jawed-qureshi-2370191a2/

Structural steel sections

• Hot-rolled sections
• Cold-formed sections
• Built-up sections

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi Slide - 2
Tutorial

2 –
Subscribe to YouTube channel
https://www.youtube.com/@DrJQureshi 1
Eurocode 3 Steel Design - Part 02 Section Table Dr Jawed Qureshi Click here for Video
Tutorial https://tinyurl.com/JQSTEELDESIGN

Hot-rolled sections • Steel grades: S275 and S355

Standard I beam

Angle

Standard Channel Structural Tee

Wide flange section

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi Slide - 3
Tutorial

Hot-rolled • S460M – Jan 2021 by British Steel

sections

Eurocode 3 Steel Design - Part 02

Section Table Tutorial Dr Jawed Qureshi Slide - 4

Subscribe to YouTube channel

https://www.youtube.com/@DrJQureshi 2
Eurocode 3 Steel Design - Part 02 Section Table Dr Jawed Qureshi Click here for Video
Tutorial https://tinyurl.com/JQSTEELDESIGN

Hot-rolled sections (S355 and S420)

Square Hollow section (SHS)

Rectangular Hollow section (RHS)

Circular Hollow section (CHS)

Flat oval tube

Elliptical Hollow section (EHS)
Eurocode 3 Steel Design - Part 02 Section Table
Dr Jawed Qureshi Slide - 5
Tutorial

How to read Section Tables?

b

tf
r
c = cw
h

tw

tf

c = cf

EC3 notation for a UKB and a UKC

section*. Dimension c will be used in
the classification of sections. convention for member axes

* To comply with the Construction Products Directive (CPD 89/106/EEC) the new Advanced section range has UKB and UKC for UB and UC.

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi Slide - 6
Tutorial

Subscribe to YouTube channel

https://www.youtube.com/@DrJQureshi 3
Eurocode 3 Steel Design - Part 02 Section Table Dr Jawed Qureshi Click here for Video
Tutorial https://tinyurl.com/JQSTEELDESIGN

How to read Section Tables?

Universal Beams and left hand page

For Eurocodes y-y is a

major axis, and z-z is a
minor axis

Column Nos. 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi 7
Tutorial

How to read Section Tables?

Column definition (using Eurocode notation):
1. Designation of hot-rolled section. 1016 x 305 x 487 is for the
section with depth of cross-section (h) of 1016 mm (actual nominal
is 1036.3 mm (are exact metric conversions of nominal imperial
sizes, here 40.79 inches), width of cross-section (b) of 305 mm
(actual is 308.5 mm (i.e. 12.15 inches)) and mass per unit length of
487 kg/m.
2. Nominal mass per meter: 486.7 kg/m (To establish value of
permanent action (G) due to dead load.)
3. Nominal overall depth of Section (h) - shape dimensions are given
in units of mm.
4. Nominal overall breadth of Section (b)
5. Nominal thickness of web (tw )
6. Nominal thickness of flange (tf)
7. Nominal root radius (r)

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi 8
Tutorial

Subscribe to YouTube channel

https://www.youtube.com/@DrJQureshi 4
Eurocode 3 Steel Design - Part 02 Section Table Dr Jawed Qureshi Click here for Video
Tutorial https://tinyurl.com/JQSTEELDESIGN

How to read Section Tables?

Column definition (using Eurocode notation):
8. Nominal depth of straight portion of a web (d)
9. *Flange width-to-thickness ratio ((cf/tf) for local buckling.
10. *Web width-to-thickness ratio for local buckling (cw/tw ).
11. Major second moment of area (Iy). Geometric properties of sections
are given in units of cm.
12. Minor second moment of area (Iz).
13. Radius of gyration about the Major (y-y) axis (iy)
14. Radius of gyration about the Minor (z-z) axis (iz).
Radius of gyration is defined by expression , where I is the second
moment of area about the relevant axis (in Columns 11 and 12) and A is the
area of the cross-section (in Column 23), determined for the gross cross-
section.

* Width-to-thickness ratios are used in EC3 to classify each compressed (or partially compressed element)

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi 9
Tutorial

How to read Section Tables?

Universal Beams and right page; for further section properties.

C No. 15 16 17 18 19 20 21 22 23 24 25 1

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi 10
Tutorial

10

Subscribe to YouTube channel

https://www.youtube.com/@DrJQureshi 5
Eurocode 3 Steel Design - Part 02 Section Table Dr Jawed Qureshi Click here for Video
Tutorial https://tinyurl.com/JQSTEELDESIGN

How to read Section Tables?

Column definition (using Eurocode notation):

15. Elastic modulus (Wel,y) about Major (y-y) axis.

16. Elastic modulus (Wel,z) about Minor (z-z) axis.
17. Plastic modulus (Wpl,y) about Major (y-y) axis.
18. Plastic modulus (Wpl,z) about Minor (z-z) axis.
19. & 20. The buckling parameter (U) and Torsional index (X) are
specific parameters usedused in BS 5950-1:2000 (Structural use of
steelwork in building - Part 1: Code of practice for design-
Rolled and welded sections) to determine the buckling moment
resistance.
21. Warping constant (IW). Note this geometric properties has units of
dm6 (i.e. 1012 mm6).

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi 11
Tutorial

11

How to read Section Tables?

Column definition (using Eurocode notation):

22. St. Venant torsional constant (IT) BS code – notation is J

23. Area of section (A).
24. & 25 Indicative values for S355 steel.

Final column on the right-sided page repeats, for ease of reading,

column 1 for member designation on the left-sided page.

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi 12
Tutorial

12

Subscribe to YouTube channel

https://www.youtube.com/@DrJQureshi 6
Eurocode 3 Steel Design - Part 02 Section Table Dr Jawed Qureshi Click here for Video
Tutorial https://tinyurl.com/JQSTEELDESIGN

Simple framing
bracing

Braced or non- sway frame

have joints that are nominally
pinned

Eurocode 3 Steel Design - Part 02 Section Table

Dr Jawed Qureshi Slide - 13
Tutorial

13

Simple framing
• Steel design in this module will be limited to
Braced or Non-sway frames.
• Bracing transfers the lateral loading (e.g. from
wind) to the ground without the frame having
significant horizontal deformation.
• Moments and forces can be determined using first
order elastic structural analysis.
• Second-order effects are small enough to be
ignored.
