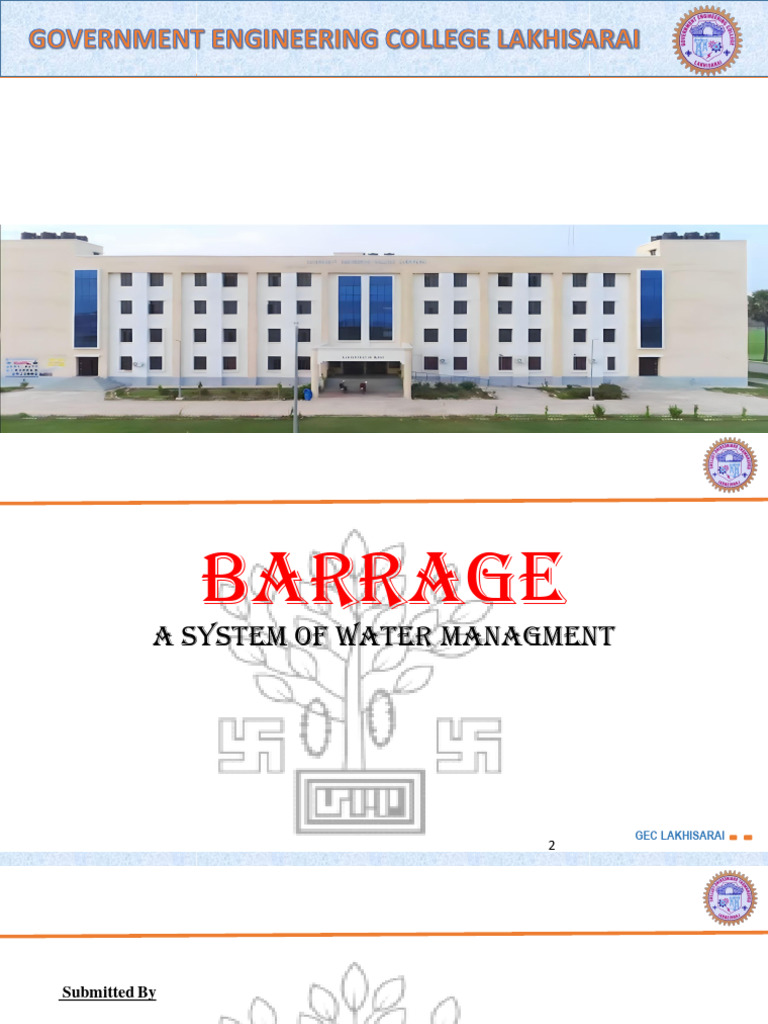

Barrage

A SYSTEM Of Water Managment

GEC LAKHISARAI
2
Submitted By

• Shubham Kumar-20101158074
• Harshit Kumar-20101158046
• Om Prakash -20101158027
• Suman Kumar-20101158036
• Aryan Patel-20101158084
• Kapil Kumar-20101158013
• Guided By –Prof. Navdeep Sir
• Nicky Kumar-20101158051
Depatment Of Civil Engineering
• Gautam Kumar-20101158034

GEC LAKHISARAI
3
Content :

• Introduction
• Benefits & Drawback of Barrage
• Case Study: Kundar Barrage,Lakhisarai(Bihar)
• Future Workplan
• Refrerences

GEC LAKHISARAI
4
Objective

• To Analyse Efficiency Of Kundar Barrage

• Constuction Principle Of Kundar Barrage
• To Increase Irrigation Efficiancy
• To Identify Problem & Give Solution

GEC LAKHISARAI
5
Introduction :

BARRAGE
• Barrage is a type of hydraulic
structure.
• It is used for water
management, flood control, and
irrigation purposes.
• It is designed to regulate the
flow of water in rivers and
canals.
Fig 1 Barrage (Google)

GEC LAKHISARAI
6
 Geographical Feature Of Barrage:
• 1. Location
• 2. River width and depth
• 3. Catchment area
• 4. Topography
• 5. Climate
• 6. Downstream impacts

Fig 2 Location Of Kundar Barrage (Google Map)

GEC LAKHISARAI
7
Sketch Of Barrage:

U/S- Upstream
D/S - Downstream

Fig 3 Sketch Of Barrage (Google)

GEC LAKHISARAI
8
Component Of Barrage:

1. Main Structure: It is constructed across the river to impound water and regulate it. It is usually
made of concrete, masonry, or earthen materials.
2. Gates: Gates help regulate the water level upstream and downstream of the barrage.
3. Spillway: It release excess water during floods or high flows.
4. Fish Pass: Fish passes or fish ladders are built to allow fish to migrate upstream and downstream
of the barrage.
5. Navigation Locks: Navigation locks to allow boats and ships to pass through the barrage without
hindrance.
6. Control Room: Barrages are often equipped with a control room where operators monitor and
manage the flow of water, operate gates, and ensure the safe functioning of the barrage.
7. Reservoir: Barrages create a reservoir behind them, which can store water for irrigation, drinking
water supply, or hydroelectric power generation.

GEC LAKHISARAI
9
Benefits of Barrage:

• 1. Flood Control: Barrages help to regulate the flow of water, reducing the risk
of flooding downstream.
• 2. Irrigation: Barrages store water in reservoirs, which can be used for irrigation
purposes, especially during dry seasons.
• 3. Hydropower Generation: Barrages can be equipped with turbines to generate
electricity from the stored water.
• 4. Navigation: Barrages can improve navigation by maintaining a consistent
water level in rivers and canals.

GEC LAKHISARAI
10
Disadavantage Of Barrage

• Barrage can disrupt the natural flow of rivers and impact the local ecosystem.
• By impeding the flow of water, barrages can alter the habitat of aquatic species,
block fish migration routes, and lead to sedimentation and erosion in the river.
• Barrages can also affect water quality by trapping pollutants and increasing the
risk of flooding in downstream areas.

GEC LAKHISARAI
11
Failure Of Barrage
• Seepage & Leekage
• Overloading
• Natural Disasters
• Structural Deficiencies
• Poor Maintenance

GEC LAKHISARAI
12
Case Study: Kundar Barrage,Lakhisarai(Bihar)

• The Kundar Barrage is a major irrigation

project in Jamui (Bihar)
• Its gets constructed From Weir To Barrage
2016
• River- Kiul River.
• Location: Kundar, Jamui
• Project Period :2016 to 2019
• Total No Of Gates: 25
• Constuction Cost :146 Crore
• Department- Water Resources
Department,Irrigation Division, Jamui Fig 4 Image Of Kundar Barrage

GEC LAKHISARAI
13
Fig 5 Kundar Barrage
Located At Jamui
(WATER RESOURCES DEPARTMENT Annual Report)

GEC LAKHISARAI
14
Dimensions:
1. Maximum discharge of the river-
5665.72 cumec (200057 cusec).
2. Average bed level of the river – 62-65
m. (205.50 feet).
3. Flood level before construction – 69.74
m. (228.75 feet).
4. Width of road= 10 feet
5. Total Length of water way of
barrage=205.80m (675feet).
6. Spillway-20 *8.5=170m.
7. Under Sluice Left Side-3*8=24 m
8. Under Sluice Right Side- 2*5.65=11.30m

Fig 6 Kundar Barrage

GEC LAKHISARAI
15
Canal From Kundar Barrage

• Left Canal • Right Canal

1. Water Distribution -151 Km 1. Water Distribution-29.720 Km
2. Discharge(Q)-21.24 cumecs 2. Discharge(Q)-6 Cumecs
3. Kharif Cultruable Command Area(CCA)- 3. Kharif Cultruable Command Area(CCA)-
26873 Hectare 4250 Hectare
4. Rabi Cultruable Command Area(CCA)-4428
Hectare

• Kharif Total Cultruable Command Area(CCA)-31123 Hectare

• Rabi Total Cultruable Command Area(CCA)-4428 Hectare

GEC LAKHISARAI
16
 Hydraulic Calculation

The Velocity of this canal is calculated by P=ρgh

the formula given by
=1000*9.81*22.84 h from annual
(V=(QF2/140)1/6) V from leacy Theory
=224064.4 Pa report by Water
Data Collected
Q=5665.75 cumec From Kudar Data
Resource

F=1 Visit P =2.24 MPa Department

V=(5665.75*12/140)1/6
V=1.85 m/s Pressure=2.24 MPa

GEC LAKHISARAI
17
Hydraulic Calculation

R=5/2 (V2/F) gb=C/106(Q*g*103)

From Leacy Theory C,Q From Visit
R= 5/2(1.852/1) gb=20/106(5665.75*9.81*103)
Kundar Barrage
R =8.55 m =1111.62 N/S
gb= From Irregation
gb=1111.62/205.80 Engineering &
=5.40N/m/sec Hydraulic Machine
S K Gerg

Total Load Running Rate-5.40N/m/sec

GEC LAKHISARAI
18
Future Workplan

• Increase Irrigation Efficiancy

• Water Management Strategies
• Reducing Ground Water Dependency
• Social Awarness
• Improving Cannal System

GEC LAKHISARAI
19
References

• Wikipedia
• ChatGPT
• Google
• Irregation Engineering & Hydraulic Structutes ,Santosh Kumar Garg ,Khanna Publication
• Jeeva, V; Kumar, S (2015). "Impact of the Low Head Dam/Barrage on Fisheries – A Case
Study of Giri River of Yamuna Basin (India)
• Annual Repot Of Safety Status Specified Dames In Bihar,Water Resource Department
Bihar

GEC LAKHISARAI
20
To Identify Problem & Give Solution

Problem Solution
• Water Losses
• Siltation
• Illegal Manipulation Of Cannal
• Dibrish
• Plant Growth-
