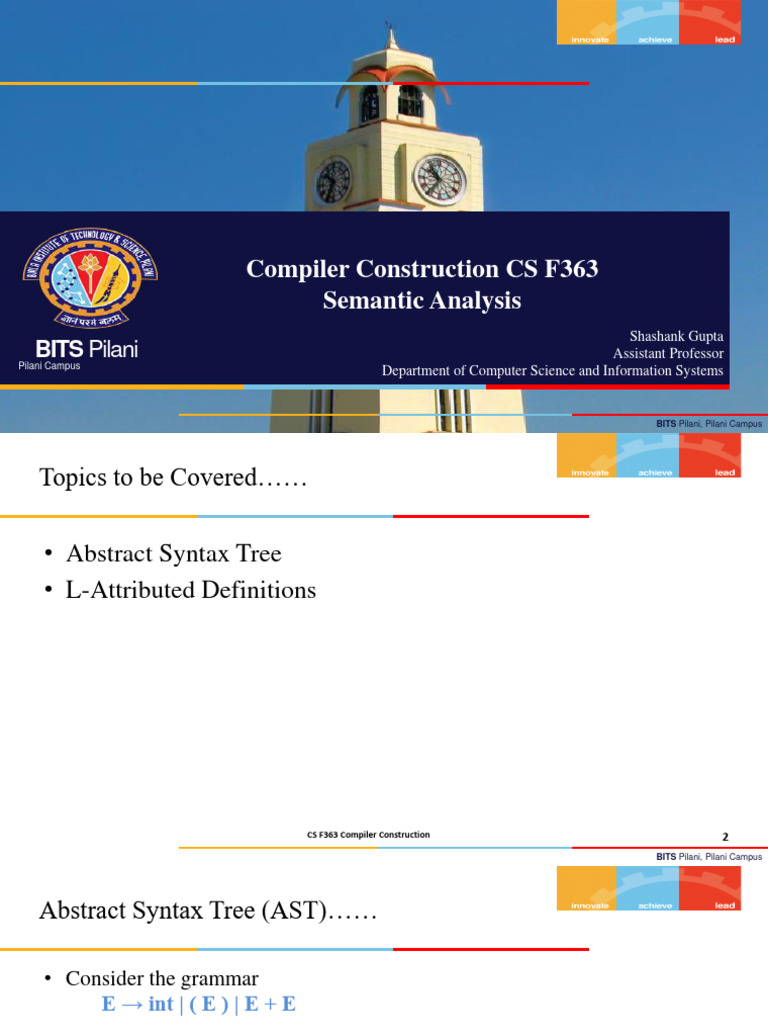

Compiler Construction CS F363

Semantic Analysis
Shashank Gupta
BITS Pilani Assistant Professor
Pilani Campus
Department of Computer Science and Information Systems

BITS Pilani, Pilani Campus

Topics to be Covered……

• Abstract Syntax Tree

• L-Attributed Definitions

CS F363 Compiler Construction 2

BITS Pilani, Pilani Campus
Abstract Syntax Tree (AST)……

• Consider the grammar

E → int | ( E ) | E + E

• And the string

5 + (2 + 3)

• After lexical analysis (a list of tokens)

int5 ‘+’ ‘(‘ int2 ‘+’ int3 ‘)’

• During parsing we build a parse tree …

CS F363 Compiler Construction 3

BITS Pilani, Pilani Campus
Abstract Syntax Tree (AST)……

• Traces the operation of

the parser
• Captures the nesting
structure
• But too much info
• Parentheses
• Single-successor
nodes

CS F363 Compiler Construction 4

BITS Pilani, Pilani Campus
Abstract Syntax Tree (AST)……

• Also captures the nesting structure

• But abstracts from the concrete
syntax
• a more compact and easier to use
• An important data structure in a
compiler

CS F363 Compiler Construction 5

BITS Pilani, Pilani Campus
Abstract Syntax Tree (AST)

The parse tree generated during syntax checking is

not suitable a representation for further processing.

A modified form, known as abstract syntax tree

(AST) is required.

CS F363 Compiler Construction 6

BITS Pilani, Pilani Campus
Abstract Syntax Tree (AST)……

AST is condensed form of parse tree.

• Like Parse Trees but ignore some details
• An abstract syntax tree (AST) is the procedure’s parse tree with the
nodes for most non-terminal symbols removed.

Chain of single productions may be collapsed, and

operators move to the parent nodes

CS F363 Compiler Construction 7

BITS Pilani, Pilani Campus
Abstract Syntax Tree (AST)……

Abstract Syntax tree

Syntax tree CS F363 Compiler Construction 8

BITS Pilani, Pilani Campus
Construction of AST……

We use attribute grammar rules to construct the

abstract syntax tree.

But in order to do that we first require two

procedures for tree construction.

CS F363 Compiler Construction 9

BITS Pilani, Pilani Campus
Construction of AST…..

Each node can be represented as a record

• Operators: one field for operator, remaining fields ptrs to operands

• mknode (op, left, right )
• Creates a node with label op (with fields which point to left and right) and returns a
pointer to the newly created node.
Identifier: one field with label id and another ptr to symbol table
mkleaf(id,entry)
• Number: one field with label num and another to keep the value of the number
mkleaf(num,val)

CS F363 Compiler Construction 10

BITS Pilani, Pilani Campus
Construction of AST…..

The following sequence of function calls creates a tree for a - 4 + c

P1 = mkleaf (id, entry.a)

P2 = mkleaf (num, 4)
P3 = mknode (-, P1 , P2 )
P4 = mkleaf (id, entry.c)
P5 = mknode (+, P3 , P4 )

CS F363 Compiler Construction 11

BITS Pilani, Pilani Campus
Syntax Directed Definition for Constructing
AST

E → E1 + T
E → T
T → T1 * F
T → F
F → (E)
F → id
F → num

CS F363 Compiler Construction 12

BITS Pilani, Pilani Campus
Expression Grammar

• E → E1 + T [Link] = mknode(+, E1 .ptr, [Link])

• E→T [Link] = [Link]
• T → T1 * F [Link] := mknode(*, T1 .ptr, [Link])
• T→F [Link] := [Link]
• F → (E) [Link] := [Link]
• F → id [Link] := mkleaf(id, [Link])
• F → num [Link] := mkleaf(num,val)

CS F363 Compiler Construction 13

BITS Pilani, Pilani Campus
L-Attributed Definitions

L-Attributed Definitions contain both synthesized and inherited attributes

A syntax directed definition is L-Attributed if each inherited attribute of Xj in a

production
A → X1 . . . Xj . . . Xn, depends only on
• The attributes of the symbols to the left (this is what L in L-Attributed stands for) of Xj , i.e., X1 X2 . .
. Xj − 1, and
• The inherited attributes of A.
• A → BC {B.S = A.S} is an L-attributed definition. (where S is an inherited attribute)
CS F363 Compiler Construction 14
BITS Pilani, Pilani Campus
Few Examples

A → LM
• [Link] = f1 ([Link])
L-Attributed Definitions
• [Link] = f2 ([Link])
• [Link] = f3 ([Link])
A → QR
• [Link] = f4 ([Link])
Not L-Attributed Definitions
• [Link] = f5 ([Link])
• [Link] = f6 ([Link])
CS F363 Compiler Construction 15
BITS Pilani, Pilani Campus
L-Attributed Definitions

When translation takes place during parsing, order of

evaluation is linked to the order in which nodes are created
• In S-attributed definitions, parent’s attribute evaluated after child’s
attribute.

A natural order in both top-down and bottom-up parsing is

depth first-order
• L-attributed definition: where attributes can be evaluated in depth-first
order
CS F363 Compiler Construction 16
BITS Pilani, Pilani Campus
 Compiler Construction CS F363
Semantic Analysis

Shashank Gupta
BITS Pilani Assistant Professor
Pilani Campus
Department of Computer Science and Information Systems

BITS Pilani, Pilani Campus

Translation Schemes

Translation Schemes are more implementation oriented than syntax

directed definitions since they indicate the order in which semantic rules
and attributes are to be evaluated.

A Translation Scheme is a context-free grammar in which

• Attributes are associated with grammar symbols;

• Semantic Actions are enclosed between braces {} and are inserted within the right-hand
side of productions.
CS F363 Compiler Construction 2
BITS Pilani, Pilani Campus
Translation Schemes……

Translation Schemes deal with both synthesized and inherited

attributes.
• Semantic Actions are treated as terminal symbols
• Annotated parse-trees contain semantic actions as children of the node
standing for the corresponding production.

Translation Schemes are useful to evaluate L-Attributed

definitions at parsing time
• An L-Attributed Syntax-Directed Definition can be transformed into a
Translation Scheme.
CS F363 Compiler Construction 3
BITS Pilani, Pilani Campus
Translation Schemes……

A CFG where semantic actions occur

within the RHS of production
• E→ T R
• R→ addop T R | ε
• T→ num
• addop → + | –
CS F363 Compiler Construction 4
BITS Pilani, Pilani Campus
Parse Tree for 9-5+2

CS F363 Compiler Construction 5

BITS Pilani, Pilani Campus
Translation Schemes

A CFG where semantic actions occur within the RHS of production

• E→ T R
• R→ addop T R | ε
• T→ num
• addop → + | –

Example: A translation scheme to map infix to postfix

• E→ T R
• R→ addop T {print(addop)}R | ε
• T→ num {print(num)}
• addop → + | –
CS F363 Compiler Construction 6
BITS Pilani, Pilani Campus
Parse Tree for 9-5+2

E→ T R
R→ addop T {print(addop)}R | ε
T→ num {print(num)}
addop → + | –

CS F363 Compiler Construction 7

BITS Pilani, Pilani Campus
Parse Tree for 9-5+2

E→ T R
R→ addop T {print(addop)}R | ε
T→ num {print(num)}
addop → + | –

CS F363 Compiler Construction 8

BITS Pilani, Pilani Campus
Evaluation of Translation Schemes

Assume attribute equations are terminal symbols

• Perform depth first order traversal to obtain 9 5 – 2 +

When designing translation scheme, ensure

attribute value is available when referred to

CS F363 Compiler Construction 9

BITS Pilani, Pilani Campus
CS F363 Compiler Construction 10
BITS Pilani, Pilani Campus
An inherited attribute for a symbol on RHS of a production must
be computed in an action before that symbol
• S → A1 A2 {A1 .in = 1,A2 .in = 2}
• A → a {print([Link])}

Depth first order traversal gives error (undefined)

• A synthesized attribute for the non terminal on the LHS can be computed after
all attributes it references, have been computed. The action normally should be
placed at the end of RHS.
CS F363 Compiler Construction 11
BITS Pilani, Pilani Campus
Syntax Directed Definition

• D→TL [Link] = [Link]

• T → real [Link] = real
• T → int [Link] = int
• L → L1 , id L1 .in = [Link]
addtype([Link], [Link])
• L → id addtype ([Link],[Link]) 12
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Translation Schemes: An Example

Consider the Translation Scheme for the L-Attributed Definition for “type declarations”:

D → T {[Link] := T .type } L
T → int {T .type :=int }
T → real {T .type :=real }
L → { L [Link] := [Link] } L1, id {addtype([Link], [Link]) }
L → id {addtype([Link], [Link]) }

CS F363 Compiler Construction 13

BITS Pilani, Pilani Campus
 Translation Schemes: An Example (Cont.)

The parse-tree with semantic actions for the input real id1, id2, id3 is:
D D → T {[Link] := T .type } L
T → int {T .type :=int }
T → real {T .type :=real }
L → { L [Link] := [Link] } L1, id {addtype([Link], [Link]) }
T [Link]:=[Link] L
L → id {addtype([Link], [Link]) }
real [Link] := real[Link]:=[Link] L1 , id 3 addtype(id 3 . entry , L. in )

L2 .in:=L1 .in L2

, id 2 addtype(id2 .entry , L1. in)

id1 addtype(id1 .entry , L2 .in )

Traversing the Parse-Tree in depth-first order we can evaluate the attributes.

CS F363 Compiler Construction 14

BITS Pilani, Pilani Campus
Design of Translation Schemes

When designing a Translation Scheme we must be sure that an

attribute value is available when a semantic action is executed.
• When the semantic action involves only synthesized attributes.
• The action can be put at the end of the production

Example: The following Production and Semantic Rule:

• T →T1∗F [Link]:=[Link]∗[Link] yield the translation scheme
• T →T1∗F {[Link] := [Link]∗[Link]}
CS F363 Compiler Construction 15
BITS Pilani, Pilani Campus
Design of Translation Schemes……

Rules for Implementing L-Attributed SDD’s: If we have an L-Attributed

Syntax-Directed Definition we must enforce the following restrictions:
• Attributes in a Translation Scheme following the previous rules can be computed at
compile time similarly to the evaluation of S-Attributed Definitions.

An inherited attribute for a symbol in the right-hand side of a production

must be computed in an action before the symbol;
• A synthesized attribute for the non terminal on the left-hand side can only be computed
when all the attributes it references have been computed.
• The action is usually put at the end of the production.

CS F363 Compiler Construction 16

BITS Pilani, Pilani Campus
Bottom-up Evaluation of Inherited Attributes

Eliminate attribute equations from the translation

scheme.
• Make transformation so that embedded actions occur only at the
end of their productions.

Replace each action by a distinct marker non-

terminal M and attach action at end of M → ∈

CS F363 Compiler Construction 17

BITS Pilani, Pilani Campus
L-Attributed Definitions to S-Attributed Definitions

E→TR E→TR
R → + T {print (+)} R R→+TMR
R → - T {print (-)} R R→-TNR
R→∈ R→∈
T→num{print([Link])} T → num {print([Link])}
M→∈ {print(+)}
N→∈ {print(-)}

Translation Schemes S-Attributed Definitions

18
CS F363 Compiler Construction BITS Pilani, Pilani Campus
 Compiler Construction CS F363
Type Checking

Shashank Gupta
BITS Pilani Assistant Professor
Pilani Campus
Department of Computer Science and Information Systems

BITS Pilani, Pilani Campus

Type Checking

A type is a set of values and operations on those values.

• A language’s type system specifies which operations are valid for a
type.

The aim of type checking is to ensure that operations are

used on the variable/expressions of the correct types.

CS F363 Compiler Construction 2

BITS Pilani, Pilani Campus
Categories of Type System

Untyped • No type checking needs to be done.

Statically • All type checking is done at compile time.

Typed • Also, called strongly typed.

Dynamically • Type checking is done at run time

Typed
CS F363 Compiler Construction 3
BITS Pilani, Pilani Campus
Static Typing

Static Typing
• Catches most common programming errors at compile time
• Avoids runtime overhead
Most code is written using static types languages
• In fact, developers for large/critical system insist that code
should be strongly type checked at compile time even if
language is not strongly typed
CS F363 Compiler Construction 4
BITS Pilani, Pilani Campus
Type Expression

The idea is to associate each language construct with an

expression describing its type and so it is known as Type
Expression.

Type expressions are defined inductively from basic types and

constants using type constructors.
• They are close to type constructors of languages like C.
CS F363 Compiler Construction 5
BITS Pilani, Pilani Campus
Type System

A type system is a collection of rules for assigning

type expressions to various parts of a program

Different type systems may be used by different

compilers for the same language

CS F363 Compiler Construction 6

BITS Pilani, Pilani Campus
Type Expression…..

Used to represent types of language constructs. A type

expression can be
• Basic Type: integer, real, char, Boolean, etc.
• A special type: type-error is used to indicate type violations.

Type Name
• Type Constructor applied to a list of type expressions.
7
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type Constructors

Array: if T is a type expression then array(I, T) is a type expression

denoting the type of an array with elements of type T and index set I
• int A[10];
• A can have type expression array(0 .. 9, integer)

Product: if T1 and T2 are type expressions then their Cartesian

product T1 × T2 is a type expression.
For e.g. An argument list passed to a function with first argument integer and
second real, has type integer × real.
CS F363 Compiler Construction 8
BITS Pilani, Pilani Campus
Type Constructors…..

Pointer: if T is a type expression, then pointer (T) is a type expression

denoting type pointer to an object of type T

Function: function maps domain set to range set. It is denoted by type

expression D → R (D is the Domain and R is the Range of function)
• int × int → int
• The type of function int* f(char a, char b)is denoted by
• char × char → pointer(int)

CS F363 Compiler Construction 9

BITS Pilani, Pilani Campus
Type Constructors…..

What does Type Expression “(integer → (real → character)”

represents?

It represents a function that takes an integer as an argument and

returns another function which maps a real number to a
character.

CS F363 Compiler Construction 10

BITS Pilani, Pilani Campus
Type Constructors……

Named Records: These are products with named elements.

• For a record structure with two named fields
• length (an integer) and word (of type array(10, char)), the record is of
type
record((length × integer) × (word × array (10, character)))

CS F363 Compiler Construction 11

BITS Pilani, Pilani Campus
Type Systems

Type System of a language is a collection of rules depicting

the type expression assignment to program objects.
• Usually done with Syntax Directed Definition

Type Checker is an implementation of a Type System.

CS F363 Compiler Construction 12

BITS Pilani, Pilani Campus
Specifications of a Type Checker

The type checker is a translation scheme that synthesizes the

type of each expression from the types of its sub-expressions.

The type checker can handle arrays, pointers, statements and

functions.

CS F363 Compiler Construction 13

BITS Pilani, Pilani Campus
Specifications of a Type Checker

Consider a language which consists of a sequence of declarations

followed by a single expression

P → D ; E
D → D ; D | id : T
T → char | integer | T[num] | T*
E → literal | num | E%E | E [E] | *E

CS F363 Compiler Construction 14

BITS Pilani, Pilani Campus
Specifications of a Type Checker

A program generated by this grammar is

• key : integer;
• key % 1999
Assume following
• basic types are char, int, type-error
• all arrays start at 0
• char[256] has type expression array(0 .. 255, char)
CS F363 Compiler Construction 15
BITS Pilani, Pilani Campus
Rules for Symbol Table entry

D → id : T
T → char
T → integer
T → T1*
T → T1 [num]

16
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Rules for Symbol Table entry

D → id : T addtype([Link], [Link])
T → char [Link] = char
T → integer [Link] = int
T → T1* [Link] = pointer(T1 .type)
T → T1 [num] [Link] = array(0….num-1, T1 .type)

17
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type Checking of Functions

E → E1 (E2) E. type = ([Link] == s and [Link] == s → t) ? t : type-error

CS F363 Compiler Construction 18

BITS Pilani, Pilani Campus
 Compiler Construction CS F363
Type Checking

Shashank Gupta
BITS Pilani Assistant Professor
Pilani Campus
Department of Computer Science and Information Systems

BITS Pilani, Pilani Campus

Type Systems

Type System of a language is a collection of rules depicting

the type expression assignment to program objects.
• Usually done with Syntax Directed Definition

Type Checker is an implementation of a Type System.

CS F363 Compiler Construction 2

BITS Pilani, Pilani Campus
Specifications of a Type Checker

The type checker is a translation scheme that synthesizes the

type of each expression from the types of its sub-expressions.

The type checker can handle arrays, pointers, statements and

functions.

CS F363 Compiler Construction 3

BITS Pilani, Pilani Campus
Specifications of a Type Checker

Consider a language which consists of a sequence of declarations

followed by a single expression

P → D ; E
D → D ; D | id : T
T → char | integer | T[num] | T*
E → literal | num | E%E | E [E] | *E

CS F363 Compiler Construction 4

BITS Pilani, Pilani Campus
Specifications of a Type Checker

A program generated by this grammar is

• key : integer;
• key % 1999
Assume following
• basic types are char, int, type-error
• all arrays start at 0
• char[256] has type expression array(0 .. 255, char)
CS F363 Compiler Construction 5
BITS Pilani, Pilani Campus
Rules for Symbol Table entry

D → id : T addtype([Link], [Link])
T → char [Link] = char
T → integer [Link] = int
T → T1* [Link] = pointer(T1 .type)
T → T1 [num] [Link] = array(0….num-1, T1 .type)

6
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type Checking of Functions

E → E1 (E2) E. type = ([Link] == s and [Link] == s → t) ? t : type-error

CS F363 Compiler Construction 7

BITS Pilani, Pilani Campus
Type Checking for Expressions

E → literal [Link] = char

E → num [Link] = integer
E → id [Link] = lookup([Link])

The synthesized attribute type for E gives the type expression assigned by
the type system to the expression generated by E

CS F363 Compiler Construction 8

BITS Pilani, Pilani Campus
Type Checking for Expressions…..

E → E1 % E2 [Link] = if E1 .type == integer and E2 .type == integer

then integer else type_error

CS F363 Compiler Construction 9

BITS Pilani, Pilani Campus
Type Checking for Expressions…..

E → E1 [ E2 ] [Link] = if [Link]==integer and E1 .type==array(s, t)

then t else type_error

In an array reference E1 [ E2 ], the index expression E2 must have type

integer, in which case the result is the element type t obtained from the type
array(s, t) of E1

10
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type Checking for Expressions…..

E → *E1 [Link] = if [Link] == pointer(t) then t else

type_error

Within expressions, the prefix operator * yields the object pointed to by its
operand. The type of *E is the type t of the object pointed to by the pointer E

11
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type checking for Statements

A program now consists of declarations followed by

statements
• Statements normally do not have any type value, hence of type
void.

The statements we consider are assignment,

conditional, and while statements.
• Sequence of statements are separated by semicolons
CS F363 Compiler Construction 12
BITS Pilani, Pilani Campus
Revised Specifications of a Type Checker

P → D ; S
D → D ; D | id : T
T → char | integer | T[num] | T*
E → literal | num | E%E | E [E] | *E
S → id := E
S → if E then S1
S → while E do S1
S → S1 ; S2

CS F363 Compiler Construction 13

BITS Pilani, Pilani Campus
Type checking for Statements

The previous rules for checking expressions are still

needed since statements can have expressions within them.

For propagating type error occurring in some statement

nested deep inside a block, a set of rules are required.

CS F363 Compiler Construction 14

BITS Pilani, Pilani Campus
Type checking for Statements

S → id := E [Link] = if [Link] == [Link] then

void else type_error

15
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type checking for Statements….

S → if E then S1 [Link] = if [Link] == boolean then [Link] else

type_error

CS F363 Compiler Construction 16

BITS Pilani, Pilani Campus
Type checking for Statements

S → while E do S1 [Link] = if [Link] == boolean then [Link] else type_error

CS F363 Compiler Construction 17

BITS Pilani, Pilani Campus
Type checking for Statements

S → S1 ; S2 [Link] = if [Link] == void and [Link] == void then void else

type_error

In this rule, a sequence of statements has type void only if each sub-
statement has type void.

18
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type Conversion

Consider expression like x + i where x is of type real and

i is of type integer
• Internal representations of integers and reals are different in a computer
• Different machine instructions are used for operations on integers and reals

The compiler has to convert both the operands to the same

type
• Language definition specifies what conversions are necessary.

19
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type Conversion…..

Usually, conversion is to the type of the left hand side

• Type checker is used to insert conversion operations:
•x + i is converted into x real+ inttoreal(i)

Type conversion is called implicit/coercion if done by

compiler.
• It is limited to the situations where no information is lost.
• Conversions are explicit if programmer has to write something to cause
conversion.
20
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type Checking for Expressions

E → num
E → [Link]
E → id
E → E1 op E2

CS F363 Compiler Construction 21

BITS Pilani, Pilani Campus
Type Checking for Expressions

E → num [Link] = int

E → [Link] [Link] = real
E → id [Link] = lookup( [Link] )

CS F363 Compiler Construction 22

BITS Pilani, Pilani Campus
Type Checking for Expressions……

E → E1 op E2 [Link] = if E1 .type == int && E2 .type == int

then int

elseif E1 .type == int && E2 .type == real

then real

elseif E1 .type == real && E2 .type == int

then real

elseif E1 .type == real && E2 .type==real then

real
23
CS F363 Compiler Construction BITS Pilani, Pilani Campus
 Compiler Construction CS F363
Type Checking

Shashank Gupta
BITS Pilani Assistant Professor
Pilani Campus
Department of Computer Science and Information Systems

BITS Pilani, Pilani Campus

Outline of Lecture

• Overloading of Functions
• Overloaded Function Resolution
• Narrowing the Set of Types
• Implementation of Symbol Table for Local Scope

CS F363 Compiler Construction 2

BITS Pilani, Pilani Campus
Overloaded Functions and Operators

Overloaded symbol has different meaning depending

upon the context
• In math, + is overloaded; used for integer, real, complex, etc.

In Ada, () is overloaded; used for array, function call,

etc.
• Overloading is resolved when a unique meaning for an
occurrence of a symbol is determined
CS F363 Compiler Construction 3
BITS Pilani, Pilani Campus
Overloaded Functions and Operators……

In Ada standard interpretation of * is multiplication of integers.

However, it may be overloaded by saying
• function “*” (i, j: integer) return complex;
• function “*” (i, j: complex) return complex;

• Possible type expression for “ * ” include:

• integer x integer → integer

• integer x integer → complex
• complex x complex → complex
4
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Overloaded Functions Resolution

Suppose only possible type for 2, 3 and 5 is integer.

• Z is a complex variable

3*5 is either integer or complex depending upon the

context
• in 2*(3*5): 3*5 is an integer because 2 is an integer
• in Z*(3*5): 3*5 is complex because Z is complex
CS F363 Compiler Construction 5
BITS Pilani, Pilani Campus
Finding Set of Possible Types…..

E`→ E E`.types = [Link]

E → id [Link] = lookup(id)
E → E1 (E2 ) [Link] = {t |∃s in E2 .types && s→t is in E1 .types}

6
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Set of Possible types for the 3*5……

7
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Finding Set of Possible Types…..

There may be several declarations of an overloaded identifier, so

we assume that a symbol-table entry may contain a set of
possible types
• This set is returned by the lookup function

Similarly, the rules for checking other operators in expressions

can be obtained.

CS F363 Compiler Construction 8

BITS Pilani, Pilani Campus
Type Resolution

Try all possible types of each overloaded function

• Keep track of all possible types.
• Discard invalid possibilities.
• At the end, check if there is a single unique type.
Overloading can be resolved in two passes:
• Bottom up: compute set of all possible types for each expression.
• Top down: Narrow set of possible types based on what could be
used in an expression.
CS F363 Compiler Construction 9
BITS Pilani, Pilani Campus
Narrowing the Set of Possible types

It requires a complete expression to have a unique type.

• Given a unique type from the context we can narrow down the type
choices for each expression.
If this process does not result in a unique type for each sub-
expression then, a type error is declared for the expression.

CS F363 Compiler Construction 10

BITS Pilani, Pilani Campus
Narrowing the set of Possible types….

E` → E E`.types = [Link]
[Link] = if E`.types=={t} then t else type_error
E → id [Link] = lookup(id)
E → E1 (E2 ) [Link] = { t | ∃s in E2 .types && s→t is in E1 .types}
t = [Link]
S = {s | s ∈ [Link] and (s→t) ∈ [Link]}
E2 .unique = if S=={s} then s else type_error
E1 .unique = if S=={s} then s→t else type_error

11
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Symbol Table

Compiler uses symbol table to keep track of scope and

binding information about names.

Changes to table occur

• if a new name is discovered
• if new information about an existing name is discovered
12
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Symbol Table……

Symbol table must have mechanism to

• add new entries
• find existing information efficiently

Two common mechanism

• linear lists: simple to implement, poor performance
• hash tables: greater programming/space overhead, good performance
Compiler should be able to grow symbol table dynamically. If size is fixed, it
must be large enough for the largest program
CS F363 Compiler Construction 13
BITS Pilani, Pilani Campus
Hashed Local Symbol Table

14
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Symbol Table Entries

Each entry corresponds to a declaration of a name

• Format need not be uniform because information depends upon the
usage of the name
Each entry is a record consisting of consecutive words.
• If uniform records are desired, some entries may be kept outside the
symbol table (e.g., variable length strings)

CS F363 Compiler Construction 15

BITS Pilani, Pilani Campus
Symbol Table Entries…….

Information is entered into symbol table at various times

• keywords are entered initially

• Identifier lexemes are entered by lexical analyzer
A name may denote several objects in the same block
int x;
struct x {float y, z; }
• Lexical analyzer returns the name itself and not pointer to symbol table entry.
• Record in the symbol table is created when role of the name becomes clear.
• In this case two symbol table entries will be created.
CS F363 Compiler Construction 16
BITS Pilani, Pilani Campus
Declarations

P→D
D→D;D
D → id : T
T → integer
T → real

CS F363 Compiler Construction 17

BITS Pilani, Pilani Campus
Declarations……

For each name create symbol table entry with information like
type and relative address
P → {offset=0} D
D→D;D
D → id : T enter([Link], [Link], offset); offset = offset + [Link]

T → integer [Link] = integer; [Link] = 4

T → real [Link] = real; [Link] = 8

CS F363 Compiler Construction 18

BITS Pilani, Pilani Campus
Declarations……

T → array [ num ] of T1 [Link] = array([Link], T1 .type)

[Link] = [Link] x T1 .width

T → *T1 [Link] = pointer(T1 .type)

[Link] = 4

CS F363 Compiler Construction 19

BITS Pilani, Pilani Campus
 Compiler Construction CS F363
Symbol Table

Shashank Gupta
BITS Pilani Assistant Professor
Pilani Campus
Department of Computer Science and Information Systems

BITS Pilani, Pilani Campus

Declarations

P→D
D→D;D
D → id : T
T → integer
T → real

CS F363 Compiler Construction 2

BITS Pilani, Pilani Campus
Declarations……

For each name create symbol table entry with information like
type and relative address
P → {offset=0} D
D→D;D
D → id : T enter([Link], [Link], offset); offset = offset + [Link]

T → integer [Link] = integer; [Link] = 4

T → real [Link] = real; [Link] = 8

CS F363 Compiler Construction 3

BITS Pilani, Pilani Campus
Declarations……

T → array [ num ] of T1 [Link] = array([Link], T1 .type)

[Link] = [Link] x T1 .width

T → *T1 [Link] = pointer(T1 .type)

[Link] = 4

CS F363 Compiler Construction 4

BITS Pilani, Pilani Campus
Nested Scope of Procedures

program sort;
var a : array[1..n] of integer;
x : integer;
procedure readarray;
var i : integer;
……
procedure exchange(i,j:integers);
……
procedure quicksort(m,n : integer);
var k,v : integer;
function partition(x,y:integer):integer;
var i,j: integer;
……
……
begin{main}
……
end. 5
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Design of Symbol Table for Nested Procedures

6
BITS Pilani, Pilani Campus
Keeping track of local information

When a nested procedure is seen, processing of declaration in enclosing

procedure is temporarily suspended.
• assume following language
•P → D
• D → D ;D | id : T | proc id ;D ; S

A new symbol table is created when procedure declaration

D → proc id ; D1 ; S is seen
• entries for D1 are created in the new symbol table.
• the name represented by id is local to the enclosing procedure.
CS F363 Compiler Construction 7
BITS Pilani, Pilani Campus
Things to be Done…..

1.1 Create Symbol Table

2.1 Compute offset for each scope

2.2 Remember the offset of previous scope

1.2 Remember the pointer to the Symbol Table

1.3 Remember the pointer to the Previous Symbol Table

CS F363 Compiler Construction 8

BITS Pilani, Pilani Campus
Creating Symbol Table: Interface

mktable (previous): create a new symbol

table and return a pointer to the new table.
• The argument previous points to the enclosing procedure.

enter (table, name, type, offset)

• Creates a new entry

CS F363 Compiler Construction 9
BITS Pilani, Pilani Campus
Creating Symbol Table: Interface……..

addwidth (table, width): Records cumulative

width of all the entries in a table
•enterproc (table, name, newtable) creates a new entry for
procedure name.
•newtable points to the symbol table of the new procedure.

Maintain two stacks : (1) Symbol tables and (2) Offsets

• Standard stack operations: Push, Pop, Top

10
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Declarations in Nested Procedures

P → D
D → D ;D
D → id : T
D → proc id ;D ; S

CS F363 Compiler Construction 11

BITS Pilani, Pilani Campus
Creating Symbol Table……..

P → {t = mktable (nil);
push(t,tblptr);
push(0,offset)}
D
{addwidth(top(tblptr),top(offset));
pop(tblptr); pop(offset)}
D → D;D

12
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Creating Symbol Table ..…

D → proc id; {t = mktable(top(tblptr));

push(t, tblptr);
push(0, offset)}
D1 ; S
{t = top(tblptr);
addwidth(t, top(offset));
pop(tblptr); pop(offset);
enterproc(top(tblptr), [Link], t)}

13
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Creating symbol table …

D → id: T {enter(top(tblptr), [Link], [Link], top(offset));

top(offset) = top (offset) + [Link]}

14
CS F363 Compiler Construction BITS Pilani, Pilani Campus
 Compiler Construction CS F363
Intermediate Code Generation

Shashank Gupta
BITS Pilani Assistant Professor
Pilani Campus
Department of Computer Science and Information Systems

BITS Pilani, Pilani Campus

Intermediate Code Representation

Front end translates a source program into an intermediate

representation.
• Back end generates target code from intermediate representation

Benefits
• Retargeting is possible.
• Machine independent code optimization is possible is a set of values and
operations on those values.
CS F363 Compiler Construction 2
BITS Pilani, Pilani Campus
Position of Intermediate Code Generator

CS F363 Compiler Construction 3

BITS Pilani, Pilani Campus
Abstract Syntax Tree/DAG

Condensed form of a parse tree.

• Useful for representing language constructs.

Depicts the natural hierarchical structure of the source program

• Each internal node represents an operator.
• Children of the nodes represent operands.
• Leaf nodes represent operands.
• DAG is more compact than abstract syntax tree because common sub
expressions are eliminated.
CS F363 Compiler Construction 4
BITS Pilani, Pilani Campus
a := b * -c + b * -c

Abstract Syntax Tree DAG

5
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Postfix Notation

Linearized representation of a syntax tree.

• List of nodes of the tree.

Nodes appear immediately after its children.

CS F363 Compiler Construction 6

BITS Pilani, Pilani Campus
Postfix Notation……

The postfix notation for an expression E is defined as

follows:
• If E is a variable or a constant, then the postfix notation is E itself.

If E is an expression of the form E1 op E2 where op

is a binary operator then the postfix notation for E is
• E1`E2`op where E1`E2` are the postfix notations for E1 and E2
respectively.
CS F363 Compiler Construction 7
BITS Pilani, Pilani Campus
Postfix Notation…….

If E is an expression of the form (E),

• then the postfix notation for (E) is E`.
• No parenthesis are needed in postfix notation.
Postfix notation for a = b×-c + b×-c is
•abc-×bc-×+=
CS F363 Compiler Construction 8
BITS Pilani, Pilani Campus
Three Address Code

Sequence of statements of the general form

X := Y op Z
• X, Y or Z are names, constants or compiler generated
temporaries
• op stands for any operator such as a fixed - or floating-point
arithmetic operator, or a logical operator
CS F363 Compiler Construction 9
BITS Pilani, Pilani Campus
Three Address Code……

Only one operator on the right hand side is allowed. Source expression
like x + y * z might be translated into
• t1 := y * z
• t2 := x + t1 where t1 and t2 are compiler generated temporary names.

Unraveling of complicated arithmetic expressions and of control flow

makes 3-address code desirable for code generation and optimization
• The use of names for intermediate values allows 3-address code to be easily
rearranged
• A linearized representation of a syntax tree where explicit names correspond to the
interior nodes of the graph.
CS F363 Compiler Construction 10
BITS Pilani, Pilani Campus
Three Address Instructions

Assignment
• x = y op z
• x = op y
• x=y
Jump
• goto L
• if x relop y goto L
CS F363 Compiler Construction 11
BITS Pilani, Pilani Campus
Three Address Instructions…..

Indexed assignment
• x = y[i]
• x[i] = y
Function
• param x
• call p,n
• return y
CS F363 Compiler Construction 12
BITS Pilani, Pilani Campus
Three Address Instructions…….

Pointer
•x = &y
•x = *y
•*x = y
CS F363 Compiler Construction 13
BITS Pilani, Pilani Campus
Syntax directed translation of expression into 3-
address code

Two attributes
• [Link], a name that will hold the value of E, and
• [Link], the sequence of three-address statements evaluating E.

• A function gen(…)to produce sequence of three

address statements

CS F363 Compiler Construction 14

BITS Pilani, Pilani Campus
Syntax directed translation of expression into
3-address code……
E → E1 + E2 [Link]:= newtmp
[Link]:= E1 .code || E2 .code ||
gen([Link] := E1 .place +
E2 .place)

CS F363 Compiler Construction 15

BITS Pilani, Pilani Campus
Syntax directed translation of expression into
3-address code…….
S → id := E [Link] := [Link] || gen([Link]:= [Link])

CS F363 Compiler Construction 16

BITS Pilani, Pilani Campus
Syntax directed translation of expression into
3-address code……
E → E1 * E2 [Link]:= newtmp
[Link]:= E1 .code || E2 .code ||
gen([Link] := E1 .place *
E2 .place)

CS F363 Compiler Construction 17

BITS Pilani, Pilani Campus
Syntax directed translation of expression into
3-address code……
E → (E1) [Link] := [Link]
[Link] := E1 .code

CS F363 Compiler Construction 18

BITS Pilani, Pilani Campus
Syntax directed translation of expression into
3-address code……
E → -E1 [Link] := newtmp
[Link] := E1 .code || gen([Link] :=
- E1 .place)

CS F363 Compiler Construction 19

BITS Pilani, Pilani Campus
 Compiler Construction CS F363
Intermediate Code Generation

Shashank Gupta
BITS Pilani Assistant Professor
Pilani Campus
Department of Computer Science and Information Systems

BITS Pilani, Pilani Campus

x= (y+z)*(-w+v)

2
CS F363 Compiler Construction BITS Pilani, Pilani Campus
More Examples……

For a = b * -c + b * -c, following code is generated

t1 = -c
t2 = b * t1
t3 = -c
t4 = b * t3
t5 = t2 + t4
a = t5

CS F363 Compiler Construction 3

BITS Pilani, Pilani Campus
Names in the Symbol Table

S → id := E {p = lookup([Link]);
if p <> nil then emit(p := [Link])
else error}

E → id {p = lookup([Link]);
if p <> nil then [Link] = p
else error}

4
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Flow of Control …
S → if E then S1 else S2 [Link] := newlabel
[Link] [Link] := newlabel
if [Link] = 0 goto [Link]
S1 .code [Link] = [Link] ||
goto [Link] gen(if [Link] = 0 goto [Link]) || S1 .code ||
[Link]: gen(goto [Link]) ||
S2 .code gen([Link] :) ||
[Link]: S2 .code ||
gen([Link] :)

5
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Flow of Control ……

S → while E do S1 [Link] := newlabel

Desired Translation is [Link] := newlabel
[Link]: [Link] := gen([Link]:) ||
[Link] [Link] ||
if [Link] = 0 goto [Link] gen(if [Link] = 0 goto [Link]) ||
S1 .code S1 .code ||
goto [Link] gen(goto [Link]) ||
[Link]: gen([Link]:)

6
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Type Conversion within Assignments

E → E1+ E2 [Link]= newtmp;

if E1 .type = integer and E2 .type = integer then
emit([Link] ':=' E1 .place 'int+' E2 .place);
I/P: x = y+i*j
[Link] = integer;
assuming x and y
have type real and i …
and j have type similar code if both E1 .type and E2 .type are real
integer else if [Link] = int and [Link] = real then
u = newtmp;
t1 := i int* j emit(u ':=' inttoreal [Link]);
t2 := inttoreal t1
emit([Link] ':=' u 'real+' [Link]);
t3 := y real+ t2
x = t3 [Link] = real;
…
similar code if [Link] is real and [Link] is integer
else
[Link] = type_error;
7
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Boolean Expressions

• Compute logical values E → E or E

• Change the flow of control E and E
• Boolean operators are: and or not not E
(E)
id relop id
true
false

8
CS F363 Compiler Construction BITS Pilani, Pilani Campus
Methods of Translation

Evaluate similar to arithmetic expressions –

• Normally use 1 for true and 0 for false

Implement by flow of control

• Given expression E1 or E2 if E1 evaluates to true then
E1 or E2 evaluates to true without evaluating E2
CS F363 Compiler Construction 9
BITS Pilani, Pilani Campus
