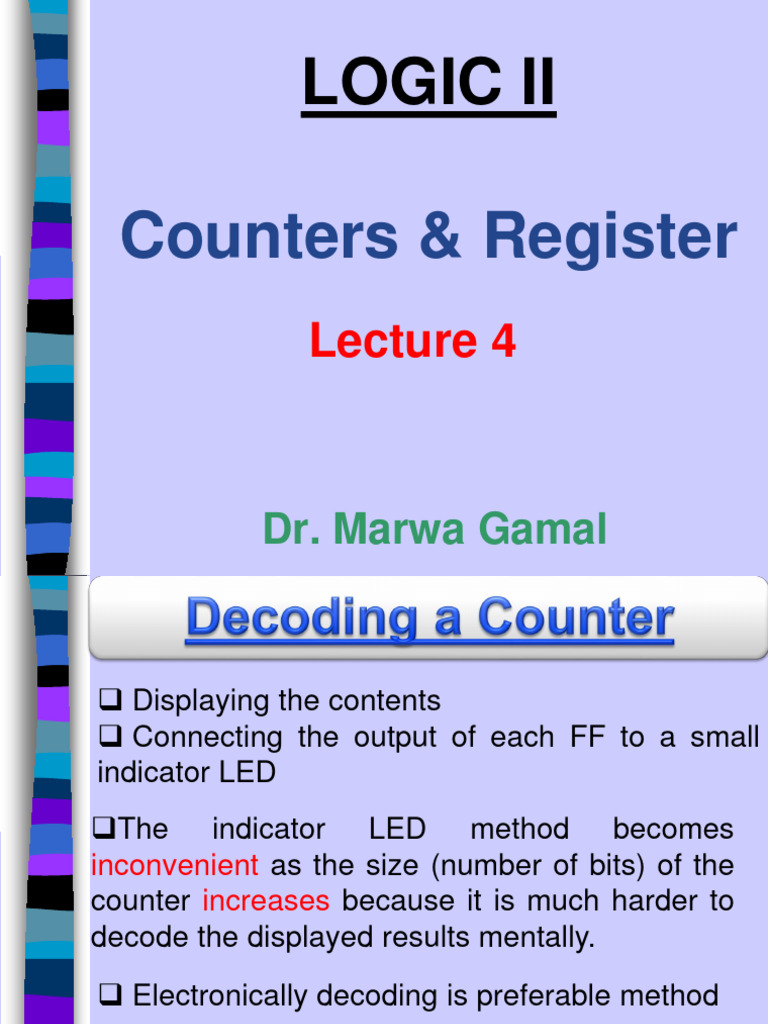

Displaying the contents Connecting the output of each FF to a small indicator LED The indicator LED method becomes inconvenient as the size (number of bits) of the counter increases because it is much harder to decode the displayed results mentally. Electronically decoding is preferable method Active-HIGH Decoding A MOD-X counter has X different states A decoding network is a logic circuit that generates X different outputs.
Using AND Gates for decoding
To Decode a MOD-8 Counter (produce pulse at specific count)
Active-LOW Decoding Using NAND Gates for decoding Active-HIGH Decoding How many AND gates are required to decode completely all of the states of a MOD-32 binary counter?
• What are the inputs to the gate that decodes for
the count of 21 (that is,101012)? by predicting the FF control inputs for each state of the counter
Steps of Analysis process
1) write the logic expression for each FF control
input. 2) Assume a PRESENT state for the counter 3) Apply that combination of bits (PRESENT state ) to the control logic expressions. 4) The outputs from the control expressions will allow us to predict NEXT state 5) Repeat the analysis process until the entire count sequence is determined. EXAMPLE:
1) Control expression
2) Assume a PRESENT state = 0000
3 & 4 ) Apply PRESENT state and find NEXT state Steps of design
1) Determine the desired
number of bits (FFs) and the desired counting
2) Draw the state transition
diagram showing all possible states, including those that are not part of the desired 3) Use the state transition diagram to set up a table that lists all PRESENT states and their NEXT states. 4) Add a column for each JK input (or other inputs). Indicate the level required at each J and K in order to produce transition to the NEXT state. 5) Implement the final expressions (obtained from the K map). 6) Design the logic circuits needed to generate the levels required at each J and K input.. Steps of design 1) Determine the desired number of bits (FFs) and the desired counting 2) Draw the state transition diagram showing all possible states, including those that are not part of the desired 3) Use the state transition diagram to set up a table that lists all PRESENT states and their NEXT states. 4) Add a column for each JK input in order to produce transition to the NEXT state. 5) Implement the final expressions (obtained from the K map). 6) Design the logic circuits needed to generate the levels required at each J and K input.. Example: MOD-5 Counter Using D-type Flip-Flops Example: MOD-5 Counter Using D-type Flip-Flops Registers can be classified by the way data is entered for storage, and by the way data is outputted from the register.
– Parallel in/parallel out (PIPO)
– Serial in/serial out (SISO) – Parallel in/serial out (PISO) – Serial in/parallel out (SIPO) A six-bit register parallel inputs(synchronous) on the PGT of the clock input CP (D5 through D0) and parallel outputs Q5 through Q0. MR (Master Reset) to reset asynchronously all of the FFs eight-bit shift register data loaded into it one bit at a time in the same order. QH is accessible serial data is input on SER and will be stored in FF QA The serial output is obtained at QH asynchronous clear input (CLR) and synchronous (SH/LD) . The synchronous (SH/LD) can be inhibited (disabled) by applying a HIGH to the CLK INH 8 bit register – Serial data entry via DS –Asynchronous parallel data entry P0 through P7 – Only the outputs of Q7 are accessible • CP is clock input for shifting • CP INH ORed with CP • Shift load input Example : 74HC165 PISO Waveforms Ds = 0, CP INH = 0, Output values for given inputs (P0=P7) 8 bit shift register A and B inputs are • Each FF output combined in an AND is externally gate for serial input. accessible. • Shift occurs on PGT of the clock input. Last FF shifts its value to first FF Uses D-type FFs (JK FFs can also be used) it is made to circulate as clock pulses are applied. it is called a ring counter. Must start with only one FF in the 1state and all others in the 0 state. a MOD-N ring counter uses N flip-flops a MOD-8 ring counter requires eight FFs, while a MOD-8 binary counter requires only three. Johnson counter: • Also called a twisted ring counter • Same as ring counter but the inverted output of the last FF is connected to input of the first FF •The MOD number of a Johnson counter will always be equal to twice the number of FFs Choose If a 10-bit ring counter has an initial state 1101000000, what is the state after the second clock pulse? a) 1101000000 b) 0011010000 c) 1100000000 d) 0000000000
What is the preset condition for a ring shift counter?
a) All FFs set to 1 b) All FFs cleared to 0 c) A single 0, the rest 1 d) A single 1, the rest 0 Ring shift and Johnson counters are ____________ a) Synchronous counters b) Asynchronous counters c) binary counters d) Synchronous and binary counters In a parallel in/parallel out shift left register, D0 = 1, D1 = 1, D2 = 1, and D3 = 0. After three clock pulses, the data outputs are ________ a) 1110 b) 0001 c) 1100 d) 1000 Thank you!!! Chapter 7 Ends!!!
