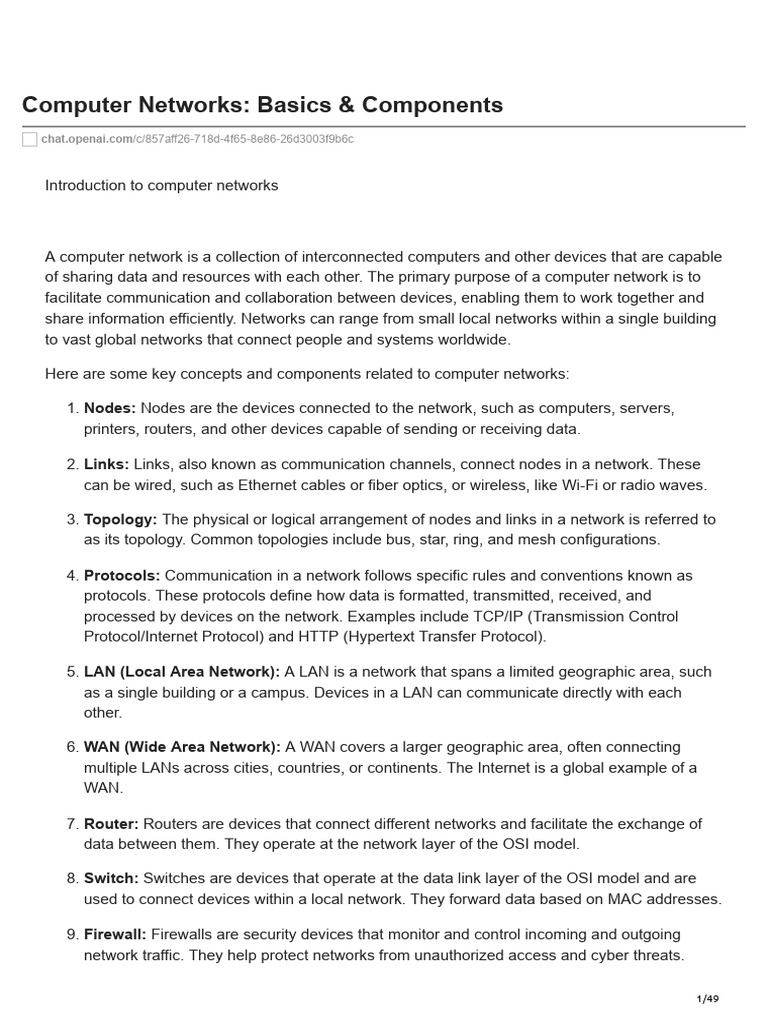

Computer Networks: Basics & Components

chat.openai.com/c/857aff26-718d-4f65-8e86-26d3003f9b6c

Introduction to computer networks

A computer network is a collection of interconnected computers and other devices that are capable
of sharing data and resources with each other. The primary purpose of a computer network is to
facilitate communication and collaboration between devices, enabling them to work together and
share information efficiently. Networks can range from small local networks within a single building
to vast global networks that connect people and systems worldwide.

Here are some key concepts and components related to computer networks:

1. Nodes: Nodes are the devices connected to the network, such as computers, servers,
printers, routers, and other devices capable of sending or receiving data.

2. Links: Links, also known as communication channels, connect nodes in a network. These
can be wired, such as Ethernet cables or fiber optics, or wireless, like Wi-Fi or radio waves.

3. Topology: The physical or logical arrangement of nodes and links in a network is referred to
as its topology. Common topologies include bus, star, ring, and mesh configurations.

4. Protocols: Communication in a network follows specific rules and conventions known as

protocols. These protocols define how data is formatted, transmitted, received, and
processed by devices on the network. Examples include TCP/IP (Transmission Control
Protocol/Internet Protocol) and HTTP (Hypertext Transfer Protocol).

5. LAN (Local Area Network): A LAN is a network that spans a limited geographic area, such
as a single building or a campus. Devices in a LAN can communicate directly with each
other.

6. WAN (Wide Area Network): A WAN covers a larger geographic area, often connecting
multiple LANs across cities, countries, or continents. The Internet is a global example of a
WAN.

7. Router: Routers are devices that connect different networks and facilitate the exchange of
data between them. They operate at the network layer of the OSI model.

8. Switch: Switches are devices that operate at the data link layer of the OSI model and are
used to connect devices within a local network. They forward data based on MAC addresses.

9. Firewall: Firewalls are security devices that monitor and control incoming and outgoing
network traffic. They help protect networks from unauthorized access and cyber threats.

1/49
 10. Client-Server Architecture: Many networks follow a client-server model where certain
devices (servers) provide resources or services, and other devices (clients) request and use
those resources or services.

11. Wireless Networks: Some networks use wireless communication technologies like Wi-Fi or
Bluetooth, eliminating the need for physical cables and allowing for more flexible device
mobility.

12. Internet: The Internet is a global network that connects millions of devices worldwide. It is a
massive network of networks, allowing communication and information exchange on a global
scale.

Understanding these fundamental concepts is crucial for anyone working with or studying
computer networks. The field of computer networking continues to evolve, with emerging
technologies like 5G, IoT (Internet of Things), and edge computing shaping the future of network
architecture and communication.

Network Models- OSI Reference Model

The OSI (Open Systems Interconnection) Reference Model is a conceptual framework that
standardizes the functions of a telecommunication or computing system into seven abstraction
layers. It was developed by the International Organization for Standardization (ISO) to guide
product developers and facilitate communication between different systems. Each layer in the OSI
model performs specific functions, and together they provide a systematic approach to
understanding and designing network architectures. Here are the seven layers of the OSI
Reference Model:

1. Physical Layer (Layer 1):

Focus: Physical connectivity and transmission of raw binary data over the physical
medium (cables, electrical signals, etc.).
Functions: Defines the hardware characteristics such as cables, connectors, voltage
levels, and transmission rates.
2. Data Link Layer (Layer 2):

Focus: Framing, addressing, and error detection within the data transmission.
Functions: Organizes bits into frames, adds headers and trailers for addressing and
error checking. This layer also manages access to the physical medium.

2/49
 3. Network Layer (Layer 3):

Focus: Logical addressing, routing, and forwarding of data packets between different
networks.
Functions: Defines the logical addressing (such as IP addresses), determines the best
path for data to travel between networks, and handles logical-to-physical address
mapping.
4. Transport Layer (Layer 4):

Focus: End-to-end communication, flow control, and error recovery.

Functions: Ensures the reliable and efficient transfer of data between devices. It may
break large messages into smaller segments, reassemble them at the destination, and
handle issues like flow control and error correction.
5. Session Layer (Layer 5):

Focus: Establishing, maintaining, and terminating communication sessions between

applications.
Functions: Manages sessions or connections between applications, allowing them to
communicate over the network. It also handles synchronization and recovery in case of
interruptions.
6. Presentation Layer (Layer 6):

Focus: Data translation, encryption, and compression.

Functions: Responsible for translating data between the application layer and the lower
layers. It also handles data compression, encryption, and character set conversions to
ensure that data is presented in a format that both the sender and receiver can
understand.
7. Application Layer (Layer 7):

Focus: End-user services, network communication, and application-level protocols.

Functions: Provides network services directly to end-users and application processes.
It includes protocols for file transfer, email, remote login, and other application-level
functions.

It's important to note that the OSI model is a conceptual framework and does not directly
correspond to the architecture of any specific network. Instead, it serves as a guide for
understanding and designing network protocols and systems. The model helps in breaking down
the complexities of networking into manageable and well-defined layers, allowing for easier
development, troubleshooting, and interoperability of network protocols and technologies.

TCP/IP Model;

3/49
The TCP/IP (Transmission Control Protocol/Internet Protocol) model is another widely used
conceptual framework for computer networking. It is not as strictly divided into layers as the OSI
model, but it serves as a practical guide for understanding and implementing networking protocols
in the context of the Internet. The TCP/IP model consists of four layers, often referred to as a
"stack," each serving a specific purpose in network communication:

1. Link Layer:

Similar to the OSI Data Link Layer.

Functions include framing, addressing, and error detection at the physical and data link
layers.
Protocols include Ethernet, Wi-Fi, and PPP (Point-to-Point Protocol).
2. Internet Layer:

Similar to the OSI Network Layer.

Focuses on logical addressing, routing, and packet forwarding.
Key protocol: Internet Protocol (IP), including IPv4 and IPv6.
3. Transport Layer:

Similar to the OSI Transport Layer.

Ensures reliable end-to-end communication, flow control, and error recovery.
Key protocols include Transmission Control Protocol (TCP) for reliable communication
and User Datagram Protocol (UDP) for faster, connectionless communication.
4. Application Layer:

Combines functionalities of the OSI Session, Presentation, and Application Layers.

Provides network services directly to end-users and applications.
Includes various protocols such as HTTP (Hypertext Transfer Protocol), FTP (File
Transfer Protocol), SMTP (Simple Mail Transfer Protocol), and DNS (Domain Name
System).

While the TCP/IP model is more streamlined than the OSI model, it is important to note that both
models describe the conceptual layers of network communication and have been instrumental in
the development and standardization of networking protocols. In practice, TCP/IP has become the
de facto standard for the Internet and most modern computer networks. Many network protocols,
such as HTTP, operate at the application layer of the TCP/IP model, while others, like IP and TCP,
operate at lower layers.

It's also worth mentioning that the TCP/IP model's architecture has played a significant role in the
success and widespread adoption of the Internet, making it a fundamental framework for
understanding and implementing network communication.

Transmission Media

4/49
Transmission media, also known as communication channels or simply "media," refer to the
physical pathways through which data travels between devices in a network. The choice of
transmission media depends on factors such as the distance between devices, data rate
requirements, environmental conditions, and cost considerations. There are two main types of
transmission media: guided and unguided.

Guided Transmission Media:

1. Twisted Pair Cable:

Description: Consists of pairs of insulated copper wires twisted together.

Common Types: Unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP).
Use Cases: Commonly used in telephone lines and local area networks (LANs).
2. Coaxial Cable:

Description: Consists of a central conductor, insulation, a metallic shield, and an outer

cover.
Common Types: Thinnet (10Base2) and Thicknet (10Base5).
Use Cases: Often used for cable television (CATV) and in some broadband Internet
connections.
3. Optical Fiber:

Description: Transmits data using light signals through a glass or plastic fiber.
Advantages: High bandwidth, low signal loss, immunity to electromagnetic
interference.
Common Types: Single-mode and multimode fibers.
Use Cases: Long-distance telecommunications, high-speed data networks.

Unguided Transmission Media:

1. Wireless Communication:

Description: Uses electromagnetic waves to transmit data without a physical

connection.
Common Types: Radio waves, microwaves, and infrared waves.
Use Cases: Wi-Fi, Bluetooth, cellular networks, satellite communication.
2. Satellite Communication:

Description: Communication through artificial satellites in orbit.

Advantages: Wide coverage, suitable for remote areas.
Use Cases: Broadcasting, global communication, navigation systems.

5/49
 3. Microwave Communication:

Description: Uses high-frequency microwave signals for point-to-point communication.

Advantages: High data rates, low signal loss.
Use Cases: Backbone links in telecommunications, long-distance point-to-point
communication.
4. Infrared Communication:

Description: Uses infrared light for short-range communication.

Use Cases: IrDA (Infrared Data Association) for wireless data transfer between
devices, remote controls.

The choice between guided and unguided media depends on factors like data transmission
requirements, distance, and environmental conditions. Guided media is generally more suitable for
wired connections within a confined space, while unguided media is preferred for wireless
communication over longer distances or in situations where physical wiring is impractical. Each
type of transmission medium has its advantages and limitations, and the selection depends on the
specific needs of the network or communication system.

Transmission Media – principles

Transmission media, also known as communication channels, play a crucial role in facilitating the
transfer of data between devices in a network. The principles governing the transmission of data
through these media involve various factors that impact the performance, reliability, and efficiency
of communication. Here are some key principles related to transmission media:

1. Bandwidth:

Definition: Bandwidth refers to the capacity of a communication channel to carry data.

It is usually expressed in hertz (Hz) or bits per second (bps).
Principle: Higher bandwidth allows for the transmission of more data in a given time,
supporting faster communication.
2. Signal Attenuation:

Definition: Signal attenuation is the decrease in signal strength as it travels over a

medium.
Principle: Attenuation can limit the distance over which a signal can be effectively
transmitted. Different media have varying levels of signal attenuation.

6/49
 3. Propagation Delay:

Definition: Propagation delay is the time it takes for a signal to travel from the sender
to the receiver.
Principle: Propagation delay is influenced by the speed of the signal in the medium. In
optical fibers, for example, signals travel close to the speed of light, resulting in lower
propagation delay.
4. Interference and Noise:

Definition: Interference and noise refer to unwanted signals that can distort or degrade
the quality of the transmitted data.
Principle: Effective transmission media should minimize susceptibility to interference
and noise, ensuring the integrity of the transmitted signals.
5. Transmission Media Types:

Principle: Different types of transmission media, such as twisted pair cables, coaxial
cables, and optical fibers, offer varying characteristics in terms of bandwidth,
attenuation, and susceptibility to interference. The choice of media depends on the
specific requirements of the communication system.
6. Guided vs. Unguided Media:

Principle: Guided media, like cables, provide a physical pathway for signals, offering
better control and protection. Unguided media, such as wireless communication, rely
on the propagation of electromagnetic waves through the air.
7. Multiplexing:

Definition: Multiplexing is the technique of combining multiple signals into a single

transmission medium.
Principle: Multiplexing allows for efficient use of bandwidth by transmitting multiple
signals simultaneously. Common types include time-division multiplexing (TDM) and
frequency-division multiplexing (FDM).
8. Duplexing:

Definition: Duplexing involves simultaneous two-way communication between devices.

Principle: Full-duplex communication allows for simultaneous transmission and
reception, while half-duplex allows for communication in only one direction at a time.
9. Physical and Data Link Layer Considerations:

Principle: The characteristics of the transmission media influence decisions at the

physical and data link layers of network protocols, including the choice of modulation
techniques, error detection/correction methods, and framing.

Understanding these principles is essential for designing and implementing effective

communication systems, as they guide decisions related to the selection and optimization of
transmission media in diverse networking environments.

7/49
issues and examples

When dealing with transmission media in networking, various issues may arise that can impact the
performance, reliability, and overall effectiveness of data communication. Here are some common
issues along with examples:

1. Signal Attenuation:

Issue: Signal strength decreases as it travels over a medium, limiting the distance over
which a signal can be effectively transmitted.
Example: In long-distance communication using copper cables, signal attenuation may
result in a weaker signal at the receiving end, requiring amplifiers to boost the signal
strength.
2. Propagation Delay:

Issue: The time it takes for a signal to travel from the sender to the receiver may
impact real-time communication applications.
Example: In satellite communication, the propagation delay caused by the distance
between the satellite and the Earth can result in noticeable delays during voice or video
calls.
3. Interference and Noise:

Issue: Unwanted signals or external factors can introduce interference or noise,

degrading the quality of transmitted data.
Example: Electromagnetic interference from nearby electronic devices may cause
disruptions in wireless communication, leading to signal degradation.
4. Multipath Distortion:

Issue: Signals may take multiple paths between the sender and receiver, resulting in
distortions and phase differences.
Example: In radio communication, multipath distortion can cause signal fading or
ghosting in television broadcasts when signals reflect off buildings or other obstacles.
5. Limited Bandwidth:

Issue: The capacity of the transmission medium may restrict the amount of data that
can be transmitted within a given time.
Example: In legacy dial-up connections, the limited bandwidth severely restricted the
data transfer rates compared to modern broadband connections.
6. Crosstalk:

Issue: Undesired coupling between adjacent communication channels can lead to

interference.
Example: In twisted pair cables, crosstalk may occur when signals from one pair
interfere with signals in adjacent pairs, degrading the quality of the communication.

8/49
 7. Environmental Factors:

Issue: External conditions, such as temperature, humidity, or physical obstacles, can

affect signal transmission.
Example: In outdoor wireless communication, heavy rainfall may attenuate radio
signals, impacting the performance of wireless networks.
8. Security Concerns:

Issue: Some transmission media, especially wireless communication, may be

susceptible to eavesdropping or unauthorized access.
Example: Unsecured Wi-Fi networks can be vulnerable to unauthorized users
intercepting or manipulating data transmitted over the network.
9. Duplexing Issues:

Issue: Inefficient duplexing may lead to collisions and contention in shared

communication channels.
Example: In half-duplex communication modes, devices on a shared channel may
experience delays and conflicts as they attempt to transmit data simultaneously.
10. Fiber Optic Cable Vulnerabilities:

Issue: Physical damage to fiber optic cables, such as bending or cutting, can disrupt
communication.
Example: Construction activities accidentally damaging underground fiber optic cables
may result in service outages for data communication.

Addressing these issues often involves a combination of proper design, use of appropriate
transmission media, implementation of error detection and correction mechanisms, and adherence
to best practices in network planning and management.

Wired Media – Coaxia

It seems there might be a typo in your question. If you are asking about "Coaxia," it might be a
typo for "Coaxial." Let me provide information on Coaxial Cable, which is a type of wired
transmission medium commonly used in networking.

Coaxial Cable:

Description:

Coaxial cable, often referred to as coax cable, consists of a central conductor, an insulating
layer, a metallic shield, and an outer insulating layer.
The central conductor is typically made of copper or aluminum and carries the electrical
signals.

9/49
 The metallic shield surrounds the central conductor, providing insulation from external
electromagnetic interference.

Characteristics:

1. Shielding: The metallic shield protects the signal from external interference and reduces
signal leakage.
2. Bandwidth: Coaxial cables offer a wide bandwidth, making them suitable for transmitting
data at high speeds.
3. Versatility: Coaxial cables can carry various types of signals, including cable television
(CATV), broadband internet, and networking data.
4. Resistance to Interference: The shielding of coaxial cables makes them less susceptible to
electromagnetic interference compared to unshielded cables.

Types of Coaxial Cables:

1. Thinnet (10Base2): Thin coaxial cables are flexible and often used in smaller network
installations.
2. Thicknet (10Base5): Thick coaxial cables have a thicker diameter and are suitable for
longer-distance network connections.

Applications:

1. Cable Television (CATV): Coaxial cables are commonly used for transmitting television
signals in cable TV networks.
2. Broadband Internet: Coaxial cables serve as the transmission medium for cable broadband
internet connections.
3. Networking: Coaxial cables were historically used in Ethernet networks, especially in the
earlier implementations (e.g., 10Base2, 10Base5).

Advantages:

Provides good shielding against interference.

Supports higher bandwidth compared to some other wired media.
Suitable for both short and moderately long-distance communication.

Disadvantages:

Bulky and less flexible compared to twisted pair cables.

Installation can be more complex than with some other cable types.

In networking, coaxial cables have been largely replaced by twisted pair cables for Ethernet
connections due to the latter's cost-effectiveness, ease of installation, and support for higher data
rates. However, coaxial cables are still used in certain applications, such as cable television and
broadband internet connections.

10/49
UTP

UTP stands for Unshielded Twisted Pair, and it is a type of copper cabling that is widely used for
networking, particularly in local area networks (LANs). UTP cables consist of pairs of insulated
copper wires twisted together. The twisting of the pairs helps to reduce electromagnetic
interference from external sources and crosstalk between adjacent pairs.

Here are some key features and characteristics of UTP cables:

1. Construction:

UTP cables typically have four pairs of twisted wires, though there are variations with more
pairs.
The twisting of the pairs helps to cancel out electromagnetic interference and crosstalk.

2. Categories:

UTP cables are categorized based on their performance characteristics. Common categories
include Cat5e, Cat6, and Cat6a.
Higher category cables generally support higher data rates and offer better performance.

3. Connector Types:

UTP cables are terminated with connectors, and the most common connector for Ethernet
connections is the RJ-45 connector.

4. Applications:

UTP cables are widely used for Ethernet networking in homes, businesses, and data centers.
They are used for various applications, including connecting computers to a network, linking
network devices, and distributing data within buildings.

5. Advantages:

Cost-Effective: UTP cables are relatively inexpensive compared to other types of networking
cables.
Easy Installation: UTP cables are easy to install and terminate, making them a popular
choice for network installations.
Versatility: UTP cables support various networking standards and can carry data, voice, and
video signals.

6. Disadvantages:

Limited Distance: UTP cables have a distance limitation, and as the cable length increases,
there can be signal degradation.

11/49
 Susceptible to Interference: While twisting helps reduce interference, UTP cables are still
more susceptible to external interference than shielded cables.

7. Categories of UTP Cable:

Cat5e (Category 5e): Commonly used for Fast Ethernet (10/100 Mbps) and Gigabit Ethernet
(1000 Mbps) connections.
Cat6 (Category 6): Supports higher data rates and better performance than Cat5e.
Cat6a (Category 6a): Augmented Cat6, offering even higher performance and data rates.

UTP cables have become the standard for most Ethernet networking applications due to their cost-
effectiveness and ease of installation. They are suitable for a wide range of environments, from
home networks to large-scale enterprise networks. However, for environments with high levels of
electromagnetic interference, shielded twisted pair (STP) cables may be considered as they
provide additional protection against interference.

STP

STP stands for Shielded Twisted Pair, and it is a type of copper cabling commonly used in
networking to reduce electromagnetic interference (EMI) and radio frequency interference (RFI).
STP cables have an additional layer of shielding around the twisted pairs of copper wires,
providing extra protection against external interference. The shielding is usually made of metal,
such as aluminum or copper.

Here are some key features and characteristics of Shielded Twisted Pair (STP) cables:

1. Construction:

STP cables consist of pairs of insulated copper wires twisted together, similar to unshielded
twisted pair (UTP) cables.
The twisted pairs are enclosed by an additional metal foil or braided shield.

2. Shielding:

The shielding layer helps to minimize electromagnetic interference from external sources and
reduces crosstalk between adjacent pairs.
The shield is grounded to prevent the accumulation of electrical charges and to improve the
cable's overall performance.

3. Categories:

STP cables are categorized based on their performance characteristics similar to UTP
cables. Common categories include Cat5e, Cat6, and Cat7.
Higher category cables generally support higher data rates and offer better overall
performance.

12/49
4. Connector Types:

STP cables are terminated with connectors, and the most common connector for Ethernet
connections is the RJ-45 connector.
The connectors for STP cables are similar in appearance to those used for UTP cables.

5. Applications:

STP cables are used in environments where there is a higher risk of electromagnetic
interference, such as areas with many electronic devices or in close proximity to power
cables.
Common applications include networking in industrial settings, healthcare facilities, and
environments with high levels of electrical noise.

6. Advantages:

Improved Shielding: The additional shielding provides better protection against

electromagnetic and radio frequency interference.
Enhanced Performance: STP cables are often capable of supporting higher data rates over
longer distances compared to UTP cables.
Reduced Crosstalk: The shielding minimizes crosstalk between adjacent pairs, enhancing
signal integrity.

7. Disadvantages:

Cost: STP cables are generally more expensive than UTP cables due to the additional
shielding.
Rigidity: The additional shielding makes STP cables less flexible than UTP cables, which can
affect ease of installation.

8. Categories of STP Cable:

Cat5e (Category 5e): Commonly used for Fast Ethernet (10/100 Mbps) and Gigabit Ethernet
(1000 Mbps) connections.
Cat6 (Category 6): Supports higher data rates and better performance than Cat5e.
Cat7 (Category 7): Offers even higher performance and data rates, often used in data
centers and demanding environments.

STP cables are chosen when a network installation requires additional protection against
electromagnetic interference, making them suitable for environments with challenging conditions.
The choice between STP and UTP depends on the specific requirements of the networking
environment and the potential for interference.

Fiber Optic

13/49
Fiber optic cables use light signals to transmit data, and they are a popular choice for high-speed
and long-distance communication in networking. Fiber optic cables consist of thin strands of glass
or plastic fibers that carry data using light signals. These cables offer several advantages,
including high bandwidth, low signal loss, and immunity to electromagnetic interference. Here are
key features and characteristics of fiber optic cables:

Types of Fiber Optic Cables:

1. Single-Mode Fiber (SMF):

Core Size: Smaller core diameter (typically around 9 micrometers).

Distance: Suitable for long-distance transmissions.
Applications: Long-haul telecommunications, internet backbone connections.
2. Multimode Fiber (MMF):

Core Size: Larger core diameter (commonly 50 or 62.5 micrometers).

Distance: Suitable for shorter-distance transmissions.
Applications: Local area networks (LANs), data centers.

Components of a Fiber Optic Cable:

1. Core:

The core is the central part of the fiber where light signals travel.
2. Cladding:

Cladding surrounds the core and reflects light signals back into the core, preventing
signal loss.
3. Buffer Coating:

A protective layer that covers the cladding, preventing damage and enhancing
durability.
4. Strength Members:

Materials like aramid or fiberglass provide strength and support to the cable.
5. Outer Jacket:

The outer layer protects the cable from environmental factors and physical damage.

Key Characteristics:

1. High Bandwidth:

Fiber optic cables provide high data transmission rates, supporting a vast amount of
bandwidth.

14/49
 2. Low Signal Loss:

Light signals in fiber optic cables experience minimal attenuation, allowing for longer-
distance transmissions.
3. Immunity to Electromagnetic Interference (EMI):

Fiber optics are not susceptible to interference from electromagnetic fields, making
them ideal in environments with high EMI.
4. Lightweight and Thin:

Fiber optic cables are lighter and thinner than traditional copper cables, making them
easier to handle and install.
5. Security:

Fiber optic signals do not radiate electromagnetic signals, reducing the risk of
eavesdropping.

Applications:
1. Telecommunications:

Fiber optics are widely used in long-distance communication networks, including

undersea cables.
2. Internet Services:

Fiber-to-the-Home (FTTH) and Fiber-to-the-Premises (FTTP) provide high-speed

internet access.
3. Data Centers:

Fiber optics are used for high-speed connections between servers and networking
equipment.
4. Cable Television (CATV):

Fiber optics support high-definition video and data transmission in cable television
networks.
5. Medical Imaging:

Fiber optics are used in medical applications such as endoscopy and imaging.

Advantages:

1. High Speed and Bandwidth:

Fiber optics support high data rates and offer large bandwidth.
2. Low Latency:

Light signals travel at high speeds, resulting in low latency.

15/49
 3. Security:

Difficult to tap without physical access, enhancing data security.

4. Long Distances:

Single-mode fibers can transmit data over long distances without significant signal
degradation.

Disadvantages:
1. Cost:

Initial installation costs can be higher compared to copper cables.

2. Fragility:

Fiber optic cables can be more delicate and require careful handling.
3. Equipment Cost:

Specialized equipment is often required for termination and splicing.

Fiber optic cables play a crucial role in modern telecommunications and networking infrastructure,
providing a reliable and high-performance medium for data transmission. They are particularly
advantageous in scenarios where high bandwidth, long-distance transmission, and immunity to
interference are essential.

Cables; Wireless Media – HF, VHF, UHF, Microwave, Ku Band; Network topologies; Data Link
Layer – design issues, example protocols (Ethernet, WLAN, Bluetooth); Switching Techniques;

Wireless Media:

HF (High Frequency), VHF (Very High Frequency), UHF (Ultra High Frequency):

Frequency Ranges:
HF: 3 MHz to 30 MHz
VHF: 30 MHz to 300 MHz
UHF: 300 MHz to 3 GHz
Applications:
HF is used in long-distance radio communication.
VHF is common for FM radio and television broadcasting.
UHF is widely used in mobile phones, Wi-Fi, and some TV broadcasting.

Microwave:

Frequency Range:
Typically above 1 GHz (1,000 MHz)

16/49
 Applications:
Microwave communication is used for point-to-point communication links, including
satellite communication, long-distance telephone networks, and some wireless
backhaul connections.

Ku Band:

Frequency Range:
Approximately 12 GHz to 18 GHz
Applications:
Ku Band is often used for satellite communication, including satellite broadcasting and
broadband data services.

Network Topologies:

Star Topology:

Description:
All devices are connected to a central hub or switch.
Centralized control, easy to manage.
Advantages:
Easy to add or remove devices.
Fault isolation (a failure in one device doesn't affect others directly).
Disadvantages:
Dependency on central hub (if it fails, the entire network may be affected).

Bus Topology:

Description:
All devices share a single communication line.
Data is broadcasted to all devices on the line.
Advantages:
Simple and cost-effective.
Easy to implement for small networks.
Disadvantages:
Performance degrades as more devices are added.
Single point of failure (the main communication line).

Ring Topology:

Description:
Each device is connected to exactly two other devices, forming a closed loop.
Advantages:
Data travels in one direction, reducing collisions.
Simple to install and manage in small networks.

17/49
 Disadvantages:
Failure of one device can disrupt the entire network.

Mesh Topology:

Description:
Every device is connected to every other device in the network.
Advantages:
High redundancy and fault tolerance.
Multiple paths for data transmission.
Disadvantages:
Complex and expensive to install and manage.
High cabling requirements.

Data Link Layer:

Design Issues:

1. Error Detection and Correction:

Ensure data integrity through techniques like CRC (Cyclic Redundancy Check) or
Hamming codes.
2. Flow Control:

Manage the flow of data between sender and receiver to prevent congestion.
3. Addressing:

Assign unique addresses to devices on the same network to facilitate communication.

4. Media Access Control (MAC):

Control access to the transmission medium, especially in shared media environments.

Example Protocols:

1. Ethernet (IEEE 802.3):

Common LAN protocol using CSMA/CD (Carrier Sense Multiple Access with Collision
Detection).
Provides connectionless communication and operates at the Data Link Layer.
2. Wireless LAN (WLAN - IEEE 802.11):

Used for wireless communication within a local area network.

Various standards, such as 802.11b/g/n/ac, define different data rates and frequency
bands.
3. Bluetooth (IEEE 802.15.1):

Short-range wireless communication protocol for connecting devices like smartphones,

headphones, and peripherals.

18/49
Switching Techniques:

1. Circuit Switching:

Establishes a dedicated communication path between two devices for the entire
duration of the conversation.
Used in traditional telephone networks.
2. Packet Switching:

Breaks data into packets for transmission, each packet taking its own route to the
destination.
Common in computer networks, including the Internet.
3. Message Switching:

Entire message is sent to the destination before routing to the next message.
Less common due to inefficiencies.

These concepts and protocols play vital roles in designing and implementing communication
networks, ensuring efficient and reliable data transmission.

Network Layer - design issues

The Network Layer is the third layer of the OSI model, responsible for routing and forwarding data
packets between different networks. It plays a crucial role in designing a robust and efficient
communication infrastructure. Here are some design issues associated with the Network Layer:

1. Routing:

Issue: Determining the optimal path for data packets from the source to the
destination.
Considerations:
Routing algorithms: Selecting algorithms that consider factors like shortest path,
load balancing, and dynamic changes in the network topology.
Routing table management: Efficiently updating and maintaining routing tables to
reflect changes in the network.
2. Addressing:

Issue: Assigning unique addresses to devices on the network for identification and
routing purposes.
Considerations:
IP addressing: Choosing between IPv4 and IPv6, subnetting, and address
allocation strategies.
Address resolution: Implementing mechanisms for mapping network layer
addresses to link layer addresses (e.g., ARP - Address Resolution Protocol).

19/49
3. Packet Switching vs. Circuit Switching:

Issue: Choosing between packet switching and circuit switching based on network
requirements.
Considerations:
Packet switching for flexibility and efficient use of resources.
Circuit switching for low-latency and dedicated communication paths.
4. Error Handling and Recovery:

Issue: Detecting and correcting errors that may occur during the transmission of data
packets.
Considerations:
Error detection mechanisms: Implementing checksums, cyclic redundancy checks
(CRC), or other error-checking algorithms.
Error recovery: Protocols like Automatic Repeat reQuest (ARQ) to retransmit lost
or corrupted packets.
5. Fragmentation and Reassembly:

Issue: Handling data packets that are too large for the underlying network technology.
Considerations:
Fragmentation: Breaking large packets into smaller fragments for transmission.
Reassembly: Reconstructing the original packet at the destination.
6. Quality of Service (QoS):

Issue: Providing different levels of service based on factors like bandwidth, latency,
and reliability.
Considerations:
Traffic prioritization: Identifying and prioritizing packets for services like voice or
video.
Traffic shaping and policing: Managing network traffic to meet QoS requirements.
7. Inter-Networking and Interoperability:

Issue: Enabling communication between different types of networks and devices.

Considerations:
Gateways and routers: Implementing devices that facilitate communication
between networks with different protocols.
Standardization: Adhering to common networking standards for interoperability.

20/49
 8. Scalability:

Issue: Designing the network to accommodate growth in terms of the number of

devices and traffic volume.
Considerations:
Hierarchical addressing: Structuring the addressing scheme to allow for efficient
scaling.
Routing scalability: Ensuring that routing protocols can handle larger networks
without significant degradation in performance.
9. Security:

Issue: Protecting the network layer from unauthorized access, attacks, and data
breaches.
Considerations:
IPsec (Internet Protocol Security): Implementing protocols for secure
communication.
Firewalls and intrusion detection systems: Adding layers of security at the
network boundary.
10. Mobility and Mobile IP:

Issue: Supporting mobile devices that may change their point of attachment to the
network.
Considerations:
Mobile IP protocols: Allowing mobile devices to maintain connectivity while
moving between networks.
Seamless handover: Minimizing disruptions when a device switches between
network access points.

Designing the Network Layer involves addressing these issues to create a network that is efficient,
scalable, secure, and capable of meeting the communication needs of diverse applications and
devices.

example protocols (IPv4)

IPv4 (Internet Protocol version 4) is one of the foundational protocols in the Network Layer of the
OSI model. It is widely used for addressing and routing data packets across networks. Here are
some example protocols related to IPv4:

1. Internet Protocol (IPv4):

Description: IPv4 is the primary network layer protocol used for addressing and
routing packets on the Internet.
Functionality: It provides a 32-bit address space, allowing for approximately 4.3 billion
unique addresses.

21/49
2. Internet Control Message Protocol (ICMP):

Description: ICMP is used for error reporting and diagnostic functions in IP networks.
Functionality: ICMP messages include echo requests and replies (used by the "ping"
utility), destination unreachable notifications, and time exceeded notifications.
3. Address Resolution Protocol (ARP):

Description: ARP is used to map an IP address to a physical (MAC) address in a local

network.
Functionality: ARP requests are broadcast on the local network to discover the MAC
address associated with a specific IP address.
4. Internet Group Management Protocol (IGMP):

Description: IGMP is used by hosts and adjacent routers on a network to establish

multicast group memberships.
Functionality: It allows hosts to join or leave multicast groups, enabling efficient
distribution of multicast traffic.
5. Transmission Control Protocol (TCP):

Description: TCP is a transport layer protocol that works in conjunction with IPv4 to
provide reliable, connection-oriented communication.
Functionality: TCP ensures the reliable delivery of data by establishing connections,
sequencing packets, and implementing flow control.
6. User Datagram Protocol (UDP):

Description: UDP is a transport layer protocol that provides a connectionless and

lightweight communication service.
Functionality: UDP is used when speed and low overhead are more critical than
guaranteed delivery. It is commonly used for real-time applications like streaming and
online gaming.
7. Internet Group Management Protocol version 3 (IGMPv3):

Description: IGMPv3 is an extension of IGMP and is used for managing group

memberships for IPv4 multicast groups.
Functionality: It supports source-specific multicast, allowing hosts to specify the
source of a multicast stream.
8. Border Gateway Protocol (BGP):

Description: BGP is an exterior gateway protocol used for exchanging routing

information between different autonomous systems (ASes) on the Internet.
Functionality: BGP helps routers make decisions about the best paths for routing
traffic between networks.

22/49
 9. Internet Protocol Security (IPsec):

Description: IPsec is a suite of protocols that enhance the security of IP

communications.
Functionality: It provides authentication, integrity, and confidentiality for IP packets,
securing data during transmission.

These protocols work together to enable communication, addressing, and routing within and
between networks on the Internet. They play crucial roles in ensuring the reliability, security, and
efficiency of data transmission in IP-based networks.

Routing - principles/issues

Routing is a fundamental process in networking that involves determining the optimal path for data
to travel from a source to a destination across a network. Routing principles and issues are critical
considerations in designing and managing efficient and reliable communication infrastructures.
Here are the key principles and issues related to routing:

Routing Principles:
1. Destination-Based Forwarding:

Principle: Routers make forwarding decisions based on the destination address of the
data packet.
Explanation: Each router examines the destination address in the packet header to
determine the next hop on the route toward the final destination.
2. Routing Tables:

Principle: Routers maintain routing tables that contain information about available
paths and next-hop routers.
Explanation: Routing tables store network topology information, allowing routers to
make informed decisions about where to forward packets.
3. Dynamic Routing vs. Static Routing:

Principle: Routing can be dynamic, with routers exchanging routing information, or

static, with manually configured routes.
Explanation: Dynamic routing protocols (e.g., OSPF, EIGRP) allow routers to adapt to
changes in network topology, while static routing involves manually configuring routes.
4. Link State vs. Distance Vector Routing:

Principle: Routing protocols fall into either link-state or distance vector categories.
Explanation: Link-state protocols (e.g., OSPF) focus on maintaining a detailed map of
the network topology, while distance vector protocols (e.g., RIP) rely on the distance
and direction to reachable destinations.

23/49
 5. Routing Metrics:

Principle: Metrics, such as cost or hop count, are used to evaluate and compare
different routes.
Explanation: Routing algorithms consider various metrics to determine the best path,
optimizing factors like bandwidth, delay, or reliability.

Routing Issues:

1. Routing Algorithm Selection:

Issue: Choosing the appropriate routing algorithm based on network size, complexity,
and requirements.
Considerations: Scalability, convergence speed, and resource consumption are
factors in algorithm selection.
2. Routing Table Size:

Issue: Managing the size of routing tables as networks grow.

Considerations: Aggregation and summarization techniques help reduce the size of
routing tables, enhancing scalability.
3. Convergence Time:

Issue: Minimizing the time it takes for the network to converge after topology changes.
Considerations: Rapid convergence is critical for minimizing packet loss during
network changes.
4. Load Balancing:

Issue: Distributing traffic across multiple paths to optimize network resources.

Considerations: Load balancing can enhance network performance by preventing
congestion on specific links.
5. Loop Prevention:

Issue: Ensuring that routing loops do not occur in the network.

Considerations: Techniques such as split horizon, route poisoning, and hold-down
timers are used to prevent loops.
6. Security:

Issue: Securing routing protocols and preventing unauthorized access or malicious

attacks.
Considerations: Implementing authentication mechanisms (e.g., MD5, SHA) and
securing control plane communication.
7. Scalability:

Issue: Ensuring that routing protocols and architectures scale effectively as networks
grow.
Considerations: Hierarchical designs, route summarization, and efficient routing
protocols contribute to scalability.

24/49
 8. Quality of Service (QoS):

Issue: Supporting different levels of service based on factors like bandwidth, latency,
and reliability.
Considerations: Implementing QoS mechanisms to prioritize and manage traffic
based on application requirements.
9. Multipath Routing:

Issue: Utilizing multiple paths between source and destination for load balancing and
redundancy.
Considerations: Equal-cost multipath (ECMP) and multipath routing protocols enable
routers to distribute traffic across multiple paths.
10. Policy-Based Routing:

Issue: Implementing routing policies to control the flow of traffic based on specific
criteria.
Considerations: Policy-based routing allows administrators to define rules for
forwarding packets based on attributes such as source or destination address.

Effective routing is crucial for the efficient and reliable operation of networks. Addressing these
principles and issues ensures that routing protocols and strategies meet the specific needs and
goals of the network environment.

algorithms (Distance-vector, Link-state)

Distance-vector and link-state are two distinct categories of routing algorithms used in computer
networks. Let's explore each of them in more detail:

Distance-Vector Routing Algorithm:

1. Principle:

Distance-vector routing algorithms operate based on the concept of distance or cost

associated with each route.
Routers exchange information about their routing tables with neighboring routers.
2. Bellman-Ford Algorithm:

The Bellman-Ford algorithm is a classic example of a distance-vector algorithm.

It iteratively updates the distance estimates for each destination until a stable state is
reached.
3. Routing Table:

Each router maintains a routing table, which includes the distance (cost) to each
destination and the next hop router for that destination.

25/49
 4. Hop Count:

The "distance" in distance-vector algorithms is often measured in terms of hop count

(number of routers traversed to reach a destination).
5. Routing Information Protocol (RIP):

RIP is an example of a distance-vector routing protocol.

It uses the Bellman-Ford algorithm and is commonly used in small to medium-sized
networks.
6. Drawbacks:

Count-to-Infinity Problem: It may take a significant amount of time for the network to
converge if there are changes in the topology, and there is a risk of the "count-to-
infinity" problem.
Limited Scalability: Distance-vector algorithms may not scale well in large and
complex networks.

Link-State Routing Algorithm:

1. Principle:

Link-state routing algorithms focus on creating and maintaining a detailed map of the
entire network.
Each router has a complete view of the network's topology.
2. Dijkstra's Algorithm:

Dijkstra's algorithm is a classic example of a link-state algorithm.

It calculates the shortest path from one router to all other routers in the network.
3. Link-State Database:

Each router maintains a link-state database containing information about the state of
links to all other routers.
This information is flooded throughout the network to ensure all routers have a
consistent view.
4. Shortest Path Tree:

The result of running Dijkstra's algorithm is a Shortest Path Tree, which provides the
optimal paths from one router to all others.
5. Open Shortest Path First (OSPF):

OSPF is an example of a link-state routing protocol.

It uses Dijkstra's algorithm to calculate the shortest path tree and is widely used in large
and complex networks.

26/49
 6. Advantages:

Fast Convergence: Link-state algorithms generally converge more quickly to changes

in the network.
Scalability: Link-state algorithms are often more scalable in larger networks.
7. Drawbacks:

Resource Intensive: Maintaining a complete and up-to-date view of the network

requires more resources and bandwidth.
Complexity: Link-state algorithms can be more complex to implement and manage.

Choosing Between Distance-Vector and Link-State:

Network Size:
Distance-vector algorithms may be suitable for smaller networks, while link-state
algorithms are often preferred in larger, more complex networks.
Resource Constraints:
In networks with limited resources, distance-vector algorithms may be chosen due to
their lower resource requirements.
Convergence Speed:
For networks requiring fast convergence to changes, link-state algorithms are generally
favored.

Both types of routing algorithms have their strengths and weaknesses, and the choice between
them depends on factors such as the network size, topology, and performance requirements. In
many modern large-scale networks, link-state protocols like OSPF are commonly used for their
efficiency and scalability.

protocols (RIP, OSPF);

RIP (Routing Information Protocol) and OSPF (Open Shortest Path First) are two routing protocols
used in computer networks, but they belong to different categories: RIP is a distance-vector
protocol, while OSPF is a link-state protocol. Let's explore each protocol in more detail:

RIP (Routing Information Protocol):

1. Protocol Type:

Category: Distance-Vector Routing Protocol.

27/49
 2. Operation:

RIP uses the Bellman-Ford algorithm to determine the best path to a destination based
on hop count.
Routers exchange their routing tables with neighboring routers at regular intervals
(usually every 30 seconds).
3. Metric:

The metric used by RIP is hop count, indicating the number of routers a packet must
traverse to reach its destination.
4. Routing Information:

RIP routers send their entire routing table to neighbors, and each router updates its
table based on received information.
The maximum allowable hop count is 15; a route with a hop count greater than 15 is
considered unreachable.
5. Convergence:

RIP has slower convergence compared to link-state protocols, as it takes time for
routers to propagate updates and converge to a stable state.
6. Versions:

RIP has two main versions: RIP v1 (classful) and RIP v2 (classless), with v2 supporting
features like Variable Length Subnet Masking (VLSM) and route summarization.
7. Use Cases:

RIP is often used in small to medium-sized networks, such as small office or home
networks, due to its simplicity.
8. Drawbacks:

Count-to-Infinity Problem: RIP is susceptible to the "count-to-infinity" problem, where

a router might incorrectly believe that it has found a shorter path to a destination.

OSPF (Open Shortest Path First):

1. Protocol Type:

Category: Link-State Routing Protocol.

2. Operation:

OSPF uses the Dijkstra's algorithm to calculate the shortest path tree from each router
to all other routers in the network.
Routers maintain a link-state database with detailed information about the state of links
in the network.

28/49
 3. Metric:

OSPF uses a configurable metric, often based on bandwidth, to determine the cost of
each link.
4. Routing Information:

OSPF routers exchange information about their link-state database with neighboring
routers through Link State Advertisements (LSAs).
OSPF routers have a complete and consistent view of the network's topology.
5. Convergence:

OSPF has faster convergence compared to distance-vector protocols, as routers can

quickly recalculate paths based on local link-state databases.
6. Areas:

OSPF networks can be divided into areas, which helps in scaling the network and
reducing the amount of routing information that routers need to maintain.
7. Authentication:

OSPF supports authentication to secure the exchange of routing information between

routers.
8. Use Cases:

OSPF is commonly used in large, enterprise-level networks where scalability, fast

convergence, and flexibility are essential.
9. Advantages:

OSPF is well-suited for large, complex networks with varying topologies.

It supports Variable Length Subnet Masking (VLSM) and allows for route
summarization.
10. Drawbacks:

OSPF configuration and management can be more complex than RIP, and it may
require more resources.

Choosing Between RIP and OSPF:

Network Size:
RIP is suitable for smaller networks, while OSPF is preferred for larger, more complex
networks.
Convergence Speed:
If fast convergence is crucial, OSPF is generally a better choice.
Scalability:
OSPF is more scalable and flexible in terms of network design and growth.

29/49
The choice between RIP and OSPF depends on the specific requirements of the network, its size,
and the desired features. In modern networks, OSPF is often chosen for its scalability, efficiency,
and suitability for complex environments.

Transport Layer - design issues

The Transport Layer is the fourth layer of the OSI model, responsible for end-to-end
communication and ensuring the reliable and efficient delivery of data between applications on
different hosts. In the design of the Transport Layer, several key issues need to be considered to
meet the requirements of diverse applications and network conditions. Here are the design issues
associated with the Transport Layer:

1. Service Models:

Issue: Determining the level of service provided to applications.

Considerations:
Connection-oriented vs. connectionless service.
Reliable delivery, error detection, and error recovery mechanisms.
2. Multiplexing and Demultiplexing:

Issue: Managing multiple communication streams over a single network connection.

Considerations:
Port numbers: Identifying different applications on the same host.
Segmentation and reassembly: Breaking down and reconstructing messages for
transmission.
3. Flow Control:

Issue: Regulating the flow of data between sender and receiver to prevent congestion.
Considerations:
Sliding window protocols: Controlling the number of unacknowledged packets.
Buffer management: Handling incoming data to prevent overflow.
4. Error Detection and Correction:

Issue: Ensuring data integrity by detecting and correcting errors.

Considerations:
Checksums, error-checking codes, and parity bits for error detection.
Automatic Repeat reQuest (ARQ) mechanisms for error recovery.
5. Reliability:

Issue: Providing reliable data transfer, especially in the presence of network errors.
Considerations:
Acknowledgments and retransmission of lost or corrupted data.
Timers and timeouts for managing retransmission intervals.

30/49
 6. Connection Establishment and Termination:

Issue: Establishing and terminating connections between applications.

Considerations:
Three-way handshake for connection establishment.
Graceful connection termination to ensure data completeness.
7. Quality of Service (QoS):

Issue: Supporting different levels of service based on factors like bandwidth, latency,
and reliability.
Considerations:
Traffic prioritization, scheduling, and bandwidth allocation.
Differentiated services to meet application requirements.
8. Port Numbers:

Issue: Assigning and managing port numbers for application identification.

Considerations:
Well-known, registered, and dynamic port numbers.
Port number ranges for specific protocols (e.g., FTP uses ports 20 and 21).
9. Segmentation and Reassembly:

Issue: Breaking down large messages into smaller segments for transmission and
reassembling them at the destination.
Considerations:
Maximum Segment Size (MSS) and Maximum Transmission Unit (MTU).
Fragmentation and reassembly mechanisms.
10. Header Overhead:

Issue: Minimizing the overhead introduced by transport layer headers.

Considerations:
Efficient header formats to carry necessary information.
Header compression techniques to reduce data overhead.
11. UDP vs. TCP:

Issue: Choosing between User Datagram Protocol (UDP) and Transmission Control
Protocol (TCP) based on application requirements.
Considerations:
UDP for low-latency and connectionless communication.
TCP for reliable, connection-oriented communication.
12. Window Size:

Issue: Configuring the size of the sliding window for flow control.
Considerations:
Window size adjustment based on network conditions.
Balancing between throughput and responsiveness.

31/49
 13. Congestion Control:

Issue: Managing network congestion to prevent degradation of service.

Considerations:
Congestion avoidance algorithms.
Feedback mechanisms to adjust transmission rates dynamically.
14. Protocol Design for Specific Applications:

Issue: Designing transport layer protocols tailored to specific application requirements.

Considerations:
Customizing transport layer mechanisms for real-time communication, file
transfer, or other application-specific needs.

The design of the Transport Layer is crucial for providing reliable, efficient, and adaptable
communication services to applications running on different hosts across a network. The
considerations mentioned above help address the diverse requirements and challenges in various
networking scenarios.

example protocols (TCP)

TCP (Transmission Control Protocol) is a widely used transport layer protocol that provides
reliable, connection-oriented communication in computer networks. Here are some example
protocols that use TCP:

1. HTTP (Hypertext Transfer Protocol):

Description: HTTP is the foundation of data communication on the World Wide Web. It
is used for transferring web pages and associated media.
Port: Typically uses port 80 for unencrypted communication and port 443 for encrypted
communication (HTTPS).
2. FTP (File Transfer Protocol):

Description: FTP is used for transferring files between a client and a server on a
network.
Port: FTP uses ports 20 and 21. Port 20 is used for data transfer, while port 21 is used
for control.
3. SMTP (Simple Mail Transfer Protocol):

Description: SMTP is used for sending emails between servers on the internet.
Port: Typically uses port 25.

32/49
 4. POP3 (Post Office Protocol version 3):

Description: POP3 is an email retrieval protocol used by email clients to retrieve

messages from a mail server.
Port: POP3 usually uses port 110.
5. IMAP (Internet Message Access Protocol):

Description: IMAP is another email retrieval protocol that allows users to access and
manipulate their email messages on a mail server.
Port: IMAP commonly uses port 143.
6. Telnet:

Description: Telnet is a protocol used for remote terminal access to a server or

networking device.
Port: Typically uses port 23.
7. SSH (Secure Shell):

Description: SSH provides secure, encrypted communication for remote login and
command execution on network devices.
Port: SSH commonly uses port 22.
8. DNS (Domain Name System):

Description: DNS is used for translating domain names into IP addresses and vice
versa, facilitating the resolution of network addresses.
Port: DNS typically uses port 53.
9. HTTPS (Hypertext Transfer Protocol Secure):

Description: HTTPS is an extension of HTTP with added security features, using

SSL/TLS encryption for secure data transmission.
Port: HTTPS commonly uses port 443.
10. SMB (Server Message Block):

Description: SMB is a protocol for file and printer sharing between devices on a
network, commonly associated with Windows file sharing.
Port: SMB typically uses ports 137-139 and 445.
11. LDAP (Lightweight Directory Access Protocol):

Description: LDAP is a protocol used for accessing and managing directory

information services, such as directory services provided by Microsoft's Active
Directory.
Port: LDAP commonly uses ports 389 and 636 (for LDAPS).
12. SNMP (Simple Network Management Protocol):

Description: SNMP is used for managing and monitoring network devices.

Port: SNMP commonly uses ports 161 and 162 (for SNMP traps).

33/49
These protocols highlight the versatility of TCP in providing reliable, connection-oriented
communication for various applications and services in computer networks. TCP ensures that data
is delivered accurately and in the correct order, making it suitable for applications where data
integrity and reliability are crucial.

Application Layer Protocols (SMTP, DNS).

The Application Layer of the OSI model encompasses a variety of protocols that facilitate
communication between software applications and provide various network services. Here are two
prominent Application Layer protocols: SMTP (Simple Mail Transfer Protocol) and DNS (Domain
Name System).

SMTP (Simple Mail Transfer Protocol):

1. Description:

SMTP is a protocol used for the transmission of electronic mail (email) over a network.
It is part of the TCP/IP protocol suite and operates at the Application Layer.
2. Functionality:

SMTP enables the transfer of emails from a client to a server or between servers.
It is a text-based protocol that defines how messages are sent and received over the
internet.
3. Ports:

SMTP commonly uses port 25 for unencrypted communication.

Port 587 is often used for secure email transmission (SMTP with STARTTLS).
4. Communication Flow:

Communication typically involves a client (email client or application) sending an email

to a server, which then relays the email to the recipient's server for eventual delivery.
5. Authentication:

SMTP can include authentication mechanisms to verify the identity of the sender and
ensure secure communication.
6. Extensions:

There are extensions to SMTP, such as SMTPS (SMTP Secure) and Submission (using
port 587), which provide secure communication options.

DNS (Domain Name System):

34/49
 1. Description:

DNS is a distributed naming system that translates human-readable domain names into
IP addresses and vice versa.
It is a critical component of internet infrastructure, providing a hierarchical and
decentralized way to map domain names to IP addresses.
2. Functionality:

DNS resolves domain names (e.g., www.example.com) to corresponding IP addresses,

allowing users and applications to locate resources on the internet.
3. Components:

DNS Resolver: The client-side software or system component that queries DNS
servers to resolve domain names.
DNS Server: The server-side software or system that holds domain name records and
responds to DNS queries.
4. Query Types:

A Record: Resolves a domain name to an IPv4 address.

AAAA Record: Resolves a domain name to an IPv6 address.
MX Record: Specifies mail servers responsible for receiving emails for the domain.
CNAME Record: Provides an alias or canonical name for another domain.
5. Ports:

DNS uses both UDP (User Datagram Protocol) and TCP (Transmission Control
Protocol).
Port 53 is commonly used for DNS communication.
6. DNSSEC (DNS Security Extensions):

DNSSEC is a set of extensions to DNS that adds an additional layer of security by

signing DNS data with cryptographic signatures.
7. Hierarchy:

DNS operates in a hierarchical structure with top-level domains (TLDs), second-level

domains, and subdomains. Root DNS servers are at the top of the hierarchy.
8. Cache Mechanism:

DNS uses caching to store previously resolved domain names and their corresponding
IP addresses, reducing the need for repeated queries.

Both SMTP and DNS are integral to the functioning of the internet. SMTP enables the reliable
transmission of emails, while DNS facilitates the human-friendly naming of resources on the
internet, contributing to the overall usability and accessibility of online services.

Functioning of Network Devices – NIC

35/49
A Network Interface Card (NIC) is a hardware component that allows computers to connect to a
network and communicate with other devices. The NIC plays a crucial role in facilitating the
exchange of data between the computer and the network. Here's an overview of the functioning of
a Network Interface Card:

1. Physical Connection:
The NIC physically connects the computer to the network medium, which could be a wired
medium like Ethernet cables or a wireless medium like Wi-Fi.
For wired connections, the NIC typically has an Ethernet port (RJ-45) that connects to the
network using twisted-pair cables.
For wireless connections, the NIC may include antennas for sending and receiving signals
over Wi-Fi frequencies.

2. Data Link Layer Functionality:

The NIC operates at the Data Link Layer (Layer 2) of the OSI model.
It encapsulates data into frames that can be transmitted over the network medium.
The NIC adds necessary headers and trailers to the data to create a frame according to the
network protocol (e.g., Ethernet).

3. MAC Address:

Each NIC has a unique identifier known as the Media Access Control (MAC) address.
The MAC address is a hardware address assigned to the NIC, and it is used for addressing
and identifying the device on the network.
The MAC address is typically burned into the NIC's hardware during manufacturing.

4. Data Transmission:
When the computer wants to send data, the NIC takes the data from the computer's memory,
encapsulates it into frames, and transmits them onto the network medium.
The NIC uses the MAC address to specify the source and destination addresses within the
frame.

5. Data Reception:

When the computer needs to receive data, the NIC monitors the network medium for
incoming frames.
It examines the destination MAC address to determine if the frame is intended for that
specific NIC.

6. Buffering and Processing:

The NIC has a buffer or memory to temporarily store incoming and outgoing data frames.

36/49
 It processes incoming frames, checking for errors and ensuring they are addressed to the
correct MAC.

7. Collision Handling (Ethernet):

In Ethernet networks, NICs use CSMA/CD (Carrier Sense Multiple Access with Collision
Detection) to handle collisions.
If a collision is detected, the NIC stops transmitting, waits for a random backoff time, and
then retries.

8. Interrupt Handling:

The NIC generates interrupts to the computer's CPU when certain events occur, such as the
arrival of new data or the completion of a transmission.

9. Driver Software:

The NIC requires a device driver, which is software that enables the operating system to
communicate with and control the NIC.
The device driver allows the NIC to interface with the networking stack of the operating
system.

10. Configuration and Settings:

NICs often come with configurable settings, such as speed and duplex mode (half-duplex or
full-duplex), which can be adjusted based on the network environment.

11. Power Management:

Some NICs support power management features to conserve energy when network activity
is low.

In summary, a Network Interface Card is a critical component that enables computers to connect to
and communicate on a network. It handles the encapsulation and transmission of data, receives
and processes incoming frames, and plays a key role in ensuring smooth communication between
devices on the network.

Hub

A hub is a basic networking device that operates at the Physical Layer (Layer 1) of the OSI model.
Its primary function is to connect multiple network devices within the same local area network
(LAN) by providing a central point for data transmission. Hubs were widely used in the early days
of networking but have largely been replaced by more sophisticated devices like switches.

Here are key characteristics and functionalities of a hub:

37/49
1. Physical Layer Device:

Hubs operate at the Physical Layer of the OSI model, dealing with the electrical and
mechanical aspects of data transmission.
They simply pass electrical signals from one connected device to all other devices.

2. Broadcast Transmission:

When a device connected to a hub sends data, the hub broadcasts the data to all other
connected devices.
All devices on the same hub share the same collision domain.

3. Collision Domain:
In a hub-based network, all connected devices share the same collision domain.
Collisions can occur when two or more devices attempt to transmit data simultaneously.

4. Unintelligent:

Hubs are considered "dumb" or "unintelligent" devices because they do not examine the data
they transmit.
They lack the ability to make forwarding decisions based on MAC addresses (unlike
switches).

5. Signal Regeneration:

Hubs regenerate and amplify signals before sending them to all connected devices.
Signal regeneration helps overcome signal degradation over longer cable lengths.

6. Types of Hubs:
Active Hub (Repeater Hub): Contains repeaters to regenerate and amplify signals. It
requires external power.
Passive Hub: Does not contain signal regeneration components and relies on the connected
devices to maintain signal strength.

7. Limitations:

Bandwidth Sharing: Devices connected to a hub share the total available bandwidth,
leading to potential congestion in busy networks.
Collision Issues: Collisions can impact network performance, especially as the number of
connected devices increases.
Half-Duplex Operation: Hubs operate in half-duplex mode, meaning devices can either
transmit or receive at any given time, but not both simultaneously.

8. Obsolete Technology:
Hubs have become largely obsolete in modern networking environments.

38/49
 Switches, which operate at the Data Link Layer (Layer 2) and provide more intelligent packet
forwarding based on MAC addresses, have replaced hubs in most scenarios.

9. Use in Legacy Environments:

Hubs may still be found in some legacy environments or small, simple networks with minimal
traffic requirements.

10. Hub vs. Switch:

Unlike switches, hubs do not have the ability to create separate collision domains for each
port, leading to reduced network efficiency.
Switches offer improved performance, better bandwidth utilization, and enhanced collision
management compared to hubs.

In summary, hubs are basic networking devices that operate at the Physical Layer and transmit
data to all connected devices. However, due to their limitations and the evolution of networking
technology, switches have largely replaced hubs in modern network infrastructures.

Switch

A switch is a network device that operates at the Data Link Layer (Layer 2) of the OSI model. It is
designed to connect multiple devices within the same local area network (LAN) and efficiently
forward data based on the Media Access Control (MAC) addresses of the devices. Unlike hubs,
switches are more intelligent and provide several advantages in terms of performance, security,
and bandwidth management. Here are key characteristics and functionalities of a switch:

1. Data Link Layer Operation:

Switches operate at the Data Link Layer, specifically in the MAC sublayer.
They use MAC addresses to make forwarding decisions and manage traffic within a LAN.

2. MAC Address Table:

Switches build and maintain a MAC address table that associates MAC addresses with the
physical ports on the switch.
The table is used to make forwarding decisions and reduce unnecessary traffic.

3. Packet Forwarding:
Unlike hubs, switches forward data only to the specific device to which the data is addressed,
rather than broadcasting it to all devices.
Switches use the MAC address table to determine the correct port for forwarding.

4. Collision Domains:

39/49
 Switches create separate collision domains for each port, which reduces the likelihood of
collisions compared to hubs.
Devices connected to different ports can communicate simultaneously without interfering with
each other.

5. Full-Duplex Operation:

Switches support full-duplex communication, allowing devices to transmit and receive data
simultaneously.
This enhances the overall network performance and efficiency.

6. Broadcast and Multicast Handling:

Switches intelligently manage broadcast and multicast traffic, forwarding such traffic only to
the devices that need it.
This reduces unnecessary network congestion.

7. VLAN Support:

Switches often support Virtual Local Area Networks (VLANs), allowing the segmentation of a
physical network into multiple logical networks.
VLANs provide enhanced security, easier network management, and improved bandwidth
utilization.

8. Port Speed and Auto-Negotiation:

Switch ports support different speeds (e.g., 10/100/1000 Mbps) and often feature auto-
negotiation capabilities.
Auto-negotiation allows devices to automatically determine and configure the best available
speed.

9. Managed Switches:

Managed switches provide additional features, such as Quality of Service (QoS)

configuration, port mirroring, and network monitoring.
They offer greater control and customization of network settings.

10. PoE (Power over Ethernet):

Some switches support Power over Ethernet, enabling them to provide power to connected
devices such as IP cameras, phones, and access points through the Ethernet cable.

11. Security Features:

Switches may implement security features such as MAC address filtering, port security, and
802.1X authentication to enhance network security.

40/49
12. Redundancy and Link Aggregation:

Switches can support redundant links and link aggregation (using protocols like LACP) for
increased network reliability and bandwidth.

13. Interconnection of Switches:

Multiple switches can be interconnected to expand the size of the network and improve
scalability.

14. Common Protocols:

Common switch protocols include Ethernet, Fast Ethernet, Gigabit Ethernet, and 10-Gigabit
Ethernet.

In summary, switches are essential components in modern network architectures, providing

efficient and intelligent data forwarding based on MAC addresses. They offer significant
advantages over traditional hubs, including reduced collisions, improved performance, enhanced
security features, and support for advanced networking technologies.

Router

A router is a networking device that operates at the Network Layer (Layer 3) of the OSI model. Its
primary function is to connect multiple networks together and facilitate the routing of data packets
between them. Routers play a crucial role in directing traffic across networks, ensuring that data
reaches its intended destination efficiently. Here are key characteristics and functionalities of a
router:

1. Network Layer Operation:

Routers operate at the Network Layer (Layer 3) and use logical addressing, such as IP
addresses, to make routing decisions.
They examine the destination IP address in incoming packets to determine the appropriate
path for forwarding.

2. Packet Forwarding:

Routers make forwarding decisions based on the destination IP address of data packets.
They use routing tables to determine the optimal path or next-hop router for reaching the
destination.

3. Routing Tables:

Routing tables contain information about available routes and associated metrics (costs) for
reaching different networks.

41/49
 Routers use these tables to make decisions on how to forward packets.

4. Dynamic Routing Protocols:

Routers often use dynamic routing protocols (e.g., OSPF, RIP, BGP) to exchange routing
information with other routers.
Dynamic routing allows routers to adapt to changes in the network topology.

5. Static Routing:

Static routing involves manually configuring specific routes in the router's routing table.
Static routes are useful for situations where the network topology is stable and changes
infrequently.

6. Interconnecting Networks:

Routers interconnect multiple networks, such as local area networks (LANs) or wide area
networks (WANs).
They facilitate communication between devices on different networks.

7. Network Address Translation (NAT):

Routers can perform Network Address Translation, allowing multiple devices within a private
network to share a single public IP address.
NAT helps conserve public IP addresses and enhances security.

8. Firewall Functionality:

Many routers include basic firewall capabilities to control incoming and outgoing traffic based
on predefined rules.
Firewalls enhance network security by filtering unwanted or malicious traffic.

9. Quality of Service (QoS):

Routers can implement Quality of Service mechanisms to prioritize certain types of traffic,
ensuring better performance for critical applications.
QoS features help manage bandwidth and reduce latency for specific data streams.

10. Virtual LANs (VLANs):

42/49
 diff

- Some routers support VLANs, allowing the segmentation of a network into multiple
logical LANs.
- VLANs enhance network flexibility and security.

11. Wide Area Network (WAN) Connectivity:

vbnet

- Routers play a key role in connecting local networks to wide area networks (e.g.,
the internet) via various WAN technologies such as DSL, cable, fiber-optic, or
leased lines.

12. DHCP (Dynamic Host Configuration Protocol):

css

- Routers can act as DHCP servers, dynamically assigning IP addresses to devices on

the local network.
- DHCP simplifies IP address management within a network.

13. IPv4 and IPv6 Support:

43/49
 css

- Routers support both IPv4 and IPv6, enabling the transition to the newer IPv6
addressing scheme.

14. Redundancy and High Availability:

java

- Routers can be configured with redundant paths and use protocols like HSRP (Hot
Standby Router Protocol) or VRRP (Virtual Router Redundancy Protocol) for high
availability.

15. Routing between Autonomous Systems:

kotlin

- Routers in the core of the internet, often referred to as backbone routers, are
responsible for routing data between different autonomous systems (ASes).

In summary, routers are essential devices in network infrastructure, responsible for directing traffic
between different networks. They play a critical role in ensuring efficient and secure
communication across complex and diverse network environments.

WiFi Devices

44/49
WiFi devices, also known as wireless devices, utilize wireless technology to connect to a local area
network (LAN) and access the internet or other resources. These devices rely on the IEEE 802.11
family of standards to enable wireless communication. Here are some common WiFi devices:

1. Wireless Routers:

Description: A wireless router is a networking device that combines the functions of a router,
switch, and access point. It allows multiple devices to connect to the internet wirelessly.
Functionality:
Routes data between the local network and the internet.
Provides wired and wireless connectivity to devices.
Often includes firewall and network address translation (NAT) features.

2. Wireless Access Points (WAPs):

Description: A wireless access point is a device that allows wireless devices to connect to a
wired network using WiFi.
Functionality:
Extends the coverage of a wired network by providing wireless connectivity.
Connects to a wired router or switch.

3. Wireless Adapters:

Description: Wireless adapters are devices that enable non-wireless devices (e.g., desktop
computers) to connect to a WiFi network.
Functionality:
Plugs into a device's USB port or PCI slot to add WiFi capabilities.
Often used to upgrade older devices to support wireless connectivity.

4. Smartphones and Tablets:

Description: Smartphones and tablets are mobile devices equipped with built-in WiFi
capabilities.
Functionality:
Connect to WiFi networks for internet access.
Support various applications and services over WiFi.

5. Laptops and Notebooks:

Description: Laptops and notebooks come with integrated WiFi adapters, allowing them to
connect to wireless networks.
Functionality:
Provide wireless connectivity for internet access and other network resources.

6. Smart TVs:

45/49
 Description: Smart TVs are televisions with built-in internet connectivity, often featuring WiFi
capabilities.
Functionality:
Connect to home WiFi networks for streaming content, software updates, and
accessing online services.

7. Streaming Devices:

Description: Devices like streaming sticks, set-top boxes, and game consoles often include
WiFi connectivity for accessing online streaming services and multiplayer gaming.
Functionality:
Connect to WiFi to stream content or play online games.

8. Printers:

Description: Wireless printers come with built-in WiFi capabilities to allow printing from
devices over a wireless network.
Functionality:
Connect to the home WiFi network to receive print jobs wirelessly.

9. Security Cameras:
Description: WiFi-enabled security cameras use wireless connectivity for remote monitoring
and streaming of video footage.
Functionality:
Connect to the WiFi network for data transmission and remote access.

10. Smart Home Devices:

markdown

- **Description:** Various smart home devices, such as thermostats, doorbells, and

lights, often include WiFi connectivity for remote control and monitoring.
- **Functionality:**
- Connect to the home WiFi network to enable communication with a central hub or
cloud services.

11. Gaming Consoles:

46/49
 markdown

- **Description:** Gaming consoles often feature built-in WiFi for online gaming,
software updates, and accessing digital content.
- **Functionality:**
- Connect to WiFi networks for multiplayer gaming and online services.

12. IoT Devices:

markdown

- **Description:** Internet of Things (IoT) devices, such as smart appliances and

sensors, may include WiFi connectivity for data communication and remote control.
- **Functionality:**
- Connect to the WiFi network to exchange data and receive commands.

These WiFi-enabled devices contribute to the convenience and flexibility of modern networking by
allowing wireless connectivity in various settings, from homes and offices to public spaces. The
widespread adoption of WiFi technology has significantly impacted how people access information
and services in the digital age.

Network Management System and example protocol (SNMP)..

A Network Management System (NMS) is a set of hardware and software tools designed to
monitor and manage a computer network. Its primary goal is to ensure the efficient and reliable
operation of the network by collecting and analyzing data from network devices. NMS enables
administrators to monitor performance, detect and address issues, and optimize network
resources. One key protocol commonly used for network management is SNMP (Simple Network
Management Protocol).

SNMP (Simple Network Management Protocol):

47/49
 1. Description:

SNMP is an Internet standard protocol used for managing and monitoring network
devices.
It allows network administrators to manage devices such as routers, switches, servers,
printers, and more.
2. Components of SNMP:

Managed Devices: These are the network devices being monitored and controlled.
They contain SNMP agents to communicate with the NMS.
SNMP Agents: Agents are software modules embedded in managed devices. They
collect and store information about the device and can respond to SNMP queries.
Network Management System (NMS): The NMS is the central management console
that communicates with SNMP agents on managed devices. It retrieves and analyzes
data, sends commands, and generates alerts.
3. SNMP Operations:

Get: The NMS requests specific information from a managed device by sending a "Get"
request.
GetNext: Similar to "Get," but retrieves the next available piece of information.
Set: The NMS can send a "Set" request to modify configuration settings on a managed
device.
Trap: SNMP agents can send unsolicited "Trap" messages to the NMS to report events
or issues.
4. SNMP Versions:

SNMPv1: The original version of SNMP with limited security features.

SNMPv2c: An improved version with additional features and community-based
security.
SNMPv3: The most secure version, introducing encryption and authentication for
enhanced security.
5. Management Information Base (MIB):

A MIB is a structured database that defines the parameters and properties of managed
devices. It serves as a reference for both SNMP agents and the NMS.

Network Management System (NMS):

1. Components:

SNMP Manager: The main application in the NMS responsible for sending SNMP
requests and receiving traps from managed devices.
Database: Stores collected data, configuration settings, and historical information.
Graphical User Interface (GUI): Provides a user-friendly interface for administrators to
visualize and interact with network data.

48/49
 2. Functions:

Monitoring: Continuously collects data from managed devices, such as bandwidth

usage, error rates, and device status.
Configuration Management: Allows administrators to modify settings on managed
devices using SNMP Set operations.
Fault Detection and Notification: Detects issues or abnormal conditions on the
network and generates notifications (traps) for administrators.
Performance Analysis: Analyzes historical data to identify trends, predict potential
issues, and optimize network performance.
3. Example NMS Software:

SolarWinds Network Performance Monitor (NPM): A comprehensive NMS solution

that provides real-time visibility into network performance, topology mapping, and
advanced alerting features.
4. Integration with Other Tools:

NMS tools often integrate with other network management tools and systems to
provide a holistic approach to network administration.

By using SNMP and NMS tools, network administrators can efficiently manage and monitor the
health, performance, and security of their networks, ensuring optimal operation and quick
response to issues.

49/49
