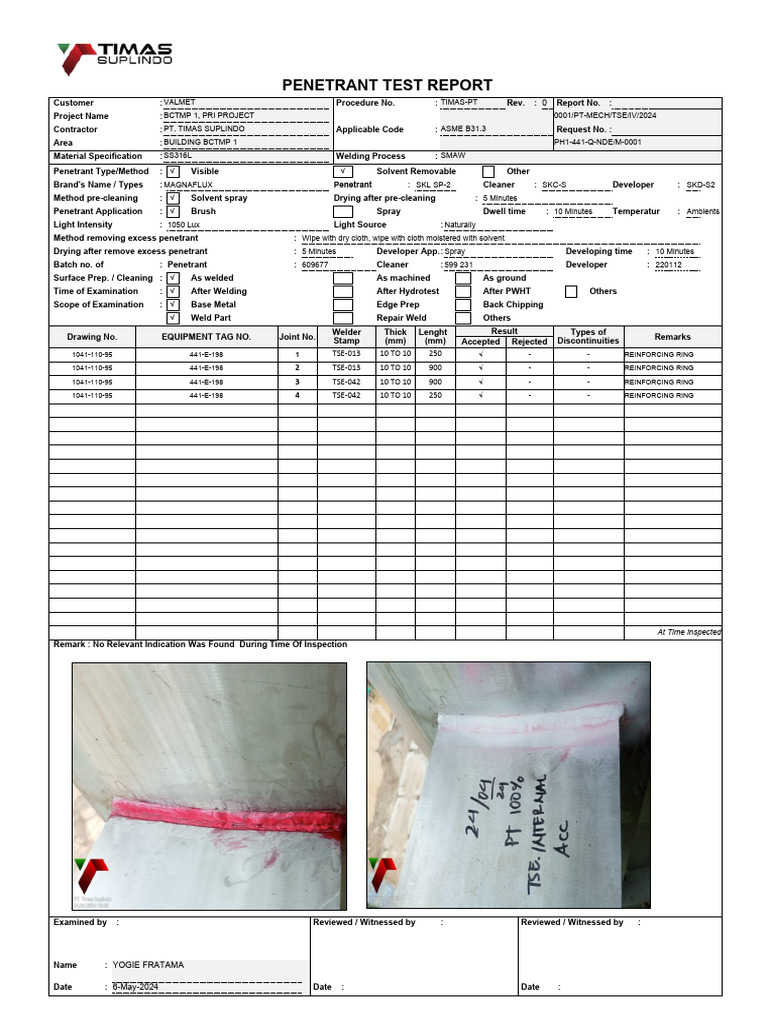

PENETRANT TEST REPORT

Customer : VALMET Procedure No. : TIMAS-PT Rev. : 0 Report No. :


Project Name : BCTMP 1, PRI PROJECT 0001/PT-MECH/TSE/IV/2024
Contractor : PT. TIMAS SUPLINDO Applicable Code : ASME B31.3 Request No. :
Area : BUILDING BCTMP 1 PH1-441-Q-NDE/M-0001
Material Specification : SS316L Welding Process : SMAW
Penetrant Type/Method : √ Visible √ Solvent Removable Other
Brand's Name / Types : MAGNAFLUX Penetrant : SKL SP-2 Cleaner : SKC-S Developer : SKD-S2
Method pre-cleaning : √ Solvent spray Drying after pre-cleaning : 5 Minutes
Penetrant Application : √ Brush Spray Dwell time : 10 Minutes Temperatur : Ambients
Light Intensity : 1050 Lux Light Source : Naturally
Method removing excess penetrant : Wipe with dry cloth, wipe with cloth moistered with solvent
Drying after remove excess penetrant : 5 Minutes Developer App.: Spray Developing time : 10 Minutes
Batch no. of : Penetrant : 609677 Cleaner : 599 231 Developer : 220112
Surface Prep. / Cleaning : √ As welded As machined As ground
Time of Examination : √ After Welding After Hydrotest After PWHT Others
Scope of Examination : √ Base Metal Edge Prep Back Chipping
√ Weld Part Repair Weld Others
Welder Thick Lenght Result Types of
Drawing No. EQUIPMENT TAG NO. Joint No. Remarks
Stamp (mm) (mm) Accepted Rejected Discontinuities
1041-110-95 441-E-198 1 TSE-013 10 TO 10 250 √ - - REINFORCING RING

1041-110-95 441-E-198 2 TSE-013 10 TO 10 900 √ - - REINFORCING RING

1041-110-95 441-E-198 3 TSE-042 10 TO 10 900 √ - - REINFORCING RING

1041-110-95 441-E-198 4 TSE-042 10 TO 10 250 √ - - REINFORCING RING

At Time Inspected
Remark : No Relevant Indication Was Found During Time Of Inspection

Examined by : Reviewed / Witnessed by : Reviewed / Witnessed by :

Name : YOGIE FRATAMA

Date : 6-May-2024 Date : Date :
