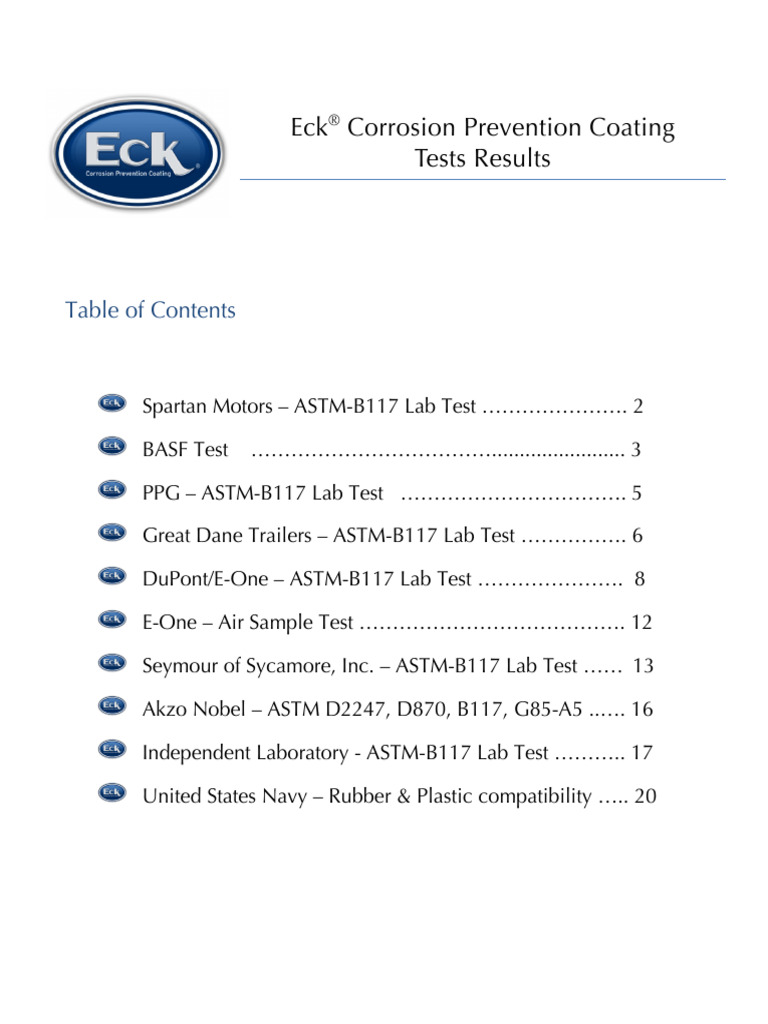

Eck® Corrosion Prevention Coating

Tests Results

Table of Contents

Spartan Motors – ASTM-B117 Lab Test …………………. 2

BASF Test ………………………………........................ 3

PPG – ASTM-B117 Lab Test ……………………………. 5

Great Dane Trailers – ASTM-B117 Lab Test ……………. 6

DuPont/E-One – ASTM-B117 Lab Test …………………. 8

E-One – Air Sample Test …………………………………. 12

Seymour of Sycamore, Inc. – ASTM-B117 Lab Test …… 13

Akzo Nobel – ASTM D2247, D870, B117, G85-A5 ..…. 16

Independent Laboratory - ASTM-B117 Lab Test ……….. 17

United States Navy – Rubber & Plastic compatibility ….. 20

ECK Salt Spray Test Results
ECK

2
CV-LWR RCVD:04/21/03 Sample RCVD:04/22/03 READY Date:04/23/03 Start Date:4/23/03 Test Date:06/04/03 COMPLETED:6/4/03
T/A Days:42 EIC TGT: 4D EIC Actual: Days KPI:6-WK EXLT KPI:ONGOING KPI Days: -- 00 Days Status: COMPLETED

CV Sales: Larry R. Chapman Priority Level : #1-High CV Lab: Michael R. Carroll Priority Level : #1-High CV TSC: Bryan W. Alcid
=========================================================================================================================================================
Sub-Classification: STP 03# 07 [03 CAN- ] Priority Assigned:#1-High Assigned to: DPV + Tech: None

CV-LWR #2003 - 056

COMMERCIAL VEHICLE / COMMERCIALIZATION LABORATORY WORK REQUEST
North American / NLR / Commercial Vehicle / Commercialization Laboratory
00

++ CV SALES REP START HERE ++ FILENAME: #[Link] + + Re:TEST ALUM/CRS DISSIMILAR METAL FOR SALT USING ECK ++
Request Date: Date Sample Sent: Shipped By: Hand Carried Sample Sent By: Customer CV Sales Rep Target Date:
01

ACCOUNT NAME: *** VAN NAY LLC CV SALES REP: *** Mike Carroll Richard Nay
Street Address:389 Sundown Road PO Box 17 TEL: FAX: CELL:
City:S Elgin State:IL ZIP:60177 US PAGER: 1-800-946-4646: PIN: VM:
Account TEL:847-931-7899 Ext: FAX:847-931-9419 Acct. Status: BASF Account National Account? NO
Contact Name:Richard A Nay E-Mail:vannay@[Link] Estimated. Annual Sales: Gallon $ K
Contact Title:CEO Others: Regional Priority Request: 1- High
02
+++ CV LAB USE -Do not write below+++CV LAB USE ++ +++ CV SALES REP CONTINUES 4 BLOCKS BELOW
LAB: WHHO LAB Assgmt: DPV E d Bench: 01 Days EIC/KPI TGT:Stretch - 4 Days Test Duration: 1-week Cycle at: Completion
03
WHHO CV LAB. WORK DONE:Prepared by VAN NAY LLC
Test ECK (Electrolysis Corrosion Kontrol) Heavy Duty Anti Seize Spray over aluminum and CRS dissimilar metal. Amount of ECK
material in between the aluminum & steel is not known. Test for salt resistance.

Systems tested: 1000 hours of Salt resistance testing

#1) Aluminum and Steel panels placed together with ECK between
#2) Aluminum and Steel panels placed together

04

TEST RESULTS: 1000 hours of Salt resistance testing

#1) Aluminum and Steel panels placed together with ECK between Looked good after 1000 hours salt resistance
#2) Aluminum and Steel panels placed together with out ECK Looked very poorly, lots of rust
05

CV LAB. RECOMMENDATION/S:The set of panels using ECK material appeared to help stop corrosion between Aluminum and steel
compared to control panels without ECK..
06

Return Shipment Info: Do Not Return Return Test Substrates Returned to: Account Contact Date Shipped: Shipped by: FedEx 2nd day
Others:
07

CV SALES REP. CONTINUES HERE ++ CV SALES REP. CONTINUES HERE ++ CV SALES REP CONTINUES HERE
08

PURPOSE /OBJECTIVE of REQUEST:

09

DETAILED REQUEST:
10
APPLICATION VARIABLES /REQUIREMENTS:
11

TEST PAINT SYSTEM: BASF Products:*** *** Competitor: Others:

Problem Film: *** *** Others: Briefly describe real problem?:
=========================================================================================================================================================
TEST - PAINT PRODUCT/S: (Must specify mix ratios for VOC compliance):
Auxiliary: Prep Cleaner: Adh. Promo: Flex: Polish/Buffing: Others:
Sealer: SLR Hardener: SLR Reducer: Mix Ratio:
Primer: PMR Hardener: PMR Reducer: Mix Ratio:
Topcoat: TC Hardener: TC Reducer: Mix Ratio:
Basecoat: BC Hardener: BC Reducer: Mix Ratio:
Clearcoat: CC Hardener: CC Reducer: Mix Ratio:
UV Coating: UV Catalyst: Reducer: Mix Ratio: Others:
12
COLOR Choice for TESTING: ANY COLOR R-M#: Color Code: Color Name: Pre-Painted
13

TEST REQUESTED: LAB TEST/S REQUIRED ALR # SPECS:Standard NO TEST REQUIRED/ DISPLAY
=======================================================================================================================================================================================================================================

Analytical:*** *** Humidity/Adhesion: *** Gravel:*** Water Soak:*** Others:

ISO9001 Controlled Document Check if submitted CV-LWR is current, if NOT, RETURN CV-LWR to Originator and attach the current form Revision Date : 04/02/2001 REV#002 [Link] p1

3
4
 Inter-Office PPG Industries
Correspondence Delaware, OH 9001

To: Mr. Mark Triplett Date: December 3, 2007

From: Tim E. Boger

Location: Delaware, OH

Subject: Corrosion Testing,

ECK Systems

This report summarizes the salt spray corrosion testing performed on the panels you sent to the lab.
The idea behind this testing is to evaluate ECK corrosion prevention coating when assembling
components for commercial vehicles. There were four mock scale assemblies sent in for 1000 hours
corrosion testing. Their variations are described below. This testing is referenced to lab notebook
RF159-56. The following information was recorded during the testing.

Assembly Variations: All painting and assembly was done on location following customer’s current
process.

1. Original procedure with no ECK. Flat aluminum panels with small access door riveted on it.
2. Same configuration as with panel one. New procedure with ECK applied under access door and
rivets.
3. Original procedure with no ECK. Steel post and aluminum grate swing door attached with
stainless steel hinge and bolts. This assembly is painted after all components are connected.
4. Same configuration as with panel three. ECK is applied under hinge and on bolts before
assembly.

Salt Spray Corrosion Test Results: 1000 hours exposure in ASTM B117.
Assembl 1000 hours Results
y
1 15mm bad blistering around access door, bad blisters at hinge and rivets, panel edges
are minimally blistered.
2 Some corrosion at access door but no blistering, blistering around hinge but not on
rivets, no blisters on panel edges.
3 Up to 5mm blistering on steel post at hinge, backside of bolts has bad blistering.
4 No blistering on steel post at hinge, bad blistering on backside of bolts.

Summary
! 1000 hours in this corrosive environment is extensive exposure.
! It’s obvious that ECK has dramatically improved assemblies 2 and 4 abilities to resist
corrosion and blistering.
! The use of ECK in this manufacturing process will improve the longevity of units it is used
on.

Cc. Mike Cooney, Richard Hagenlock, Dave Chapman

5
 Mylar%Tape%% Eck%Corrosion%Coating%

%%Pictured%above%is%a%test%that%Great%Dane%Trailers%
performed%a%number%of%years%ago.%Panel%A%–%a%Carbon%
Steel%and%Aluminum%panel%bolted%together%with%StainlessB
Steel%bolts,%using%Mylar%Tape%as%a%barrier%between%the%
dissimilar%metals.%Panel%B%–%a%Carbon%Steel%and%
Aluminum%panel%bolted%together%with%StainlessBSteel%
bolts,%using%Eck®%Corrosion%Coating%as%the%barrier%
between%the%dissimilar%metals.%Salt%spray%corrosion%test%
ASTM%B117%laboratory%test%tank.%At%250%hours,%you%can%
already%clearly%see%the%advantage%Eck®%provides%over%the%
Mylar%Tape.%Panel%C%(pictured%on%the%left)%is%an%example%
shown%prior%to%the%salt%spray%testing.%%
%

Page%|%7%%
%

6
7
Marshall Laboratory
Work Request System

Response to WR-56-REP-08: E-one Panels, Salt Spray Testing

Created by: Robert E Pennock/AE/DuPont on 06/02/2008 at 10:18 AM

Business Segment: Fire & Emergency
Customer: E one
Customer Location: FL

Chris,

Here are some pictures from the ASTM B117 Salt Spray test. We did not observe any significant change to the hinge at 250 Hours.
The 1,000hrs report shows a noticeable difference between 2 and 3 versus 1 and 4. There is more blistering on panels 1 and 4 from
the galvanic reaction where the hinge is in contact with the body.

I hope the attached pictures are helpful. Order of performance was 3>2>1>4.

Regards,

Bob Pennock

8
Panel # 1 with nothing, Tef-Gel & Eck Panel # 2 no corrosion protection

Panel # 3 with Eck Corrosion Coating Panel # 4 with Tef-Gel

9
 Panel # 1 with nothing, Tef-Gel & Eck

Top part of hinge shows corrosion paint

blisters around the hinge

Bottom part of hinge shows no signs of

corrosion or paint blisters

Panel # 2 no corrosion
protection

This panel shows

corrosion paint blisters

10
 Panel # 3 Eck Corrosion Coating

This panel show no signs of corrosion

Panel # 4 Tef-Gel

This panel shows heavy signs of corrosion on

both the body and door around the hinge

11
12
13
14
15
16
 Ec C I hb ASTM B117 e g May 15, 2007
Objective:
Test ASTM B117 salt spray corrosion resistance of “Eck” corrosion inhibitor used on fasteners for aluminum joining.
Procedure:
Prepare 12 samples each per chart below. “Eck” corrosion inhibitor to be applied to the threads of the fasteners as well as the underside of the washer.
Specimen ID may be preserved with corrosion resistant coating to ensure future readability. Assemble fasteners with washer and wipe excess “Eck” corrosion
inhibitor.
SAMPLE ID HARDWARE "ECK" TYPE
WD1-6061-01 ZINC SPRAY
WD1-6061-02 ZINC PASTE
WD1-6061-03 ZINC SPRAY
WD1-6061-04 ZINC PASTE
WD1-6061-05 ZINC SPRAY
WD1-6061-06 ZINC PASTE
WD1-6061-07 STAINLESS SPRAY
WD1-6061-08 STAINLESS PASTE
WD1-6061-09 STAINLESS SPRAY
WD1-6061-10 STAINLESS PASTE
WD1-6061-11 STAINLESS SPRAY
WD1-6061-12 STAINLESS PASTE
WD1-2195-01 ZINC SPRAY
WD1-2195-02 ZINC PASTE
WD1-2195-03 ZINC SPRAY
WD1-2195-04 ZINC PASTE
WD1-2195-05 ZINC SPRAY
WD1-2195-06 ZINC PASTE
WD1-2195-07 STAINLESS SPRAY
WD1-2195-08 STAINLESS PASTE
WD1-2195-09 STAINLESS SPRAY
WD1-2195-10 STAINLESS PASTE
WD1-2195-11 STAINLESS SPRAY
WD1-2195-12 STAINLESS PASTE

Photograph all specimens prior to start of test. Record mass of each specimen prior to start of test. Perform ASTM B117 Salt Spray testing for 1000 Hr
duration. Specimen shall be oriented such that the exposed threads at the bottom of the holes are exposed to salt spray. Photograph specimens at 500hrs. At
conclusion of 1000 hr test, photograph and record mass of each specimen. Additionally, note any pertinent observations with respect to level of corrosion
protection provided by the “Eck” corrosion inhibitor.

Conclusion:
Provide photographs and mass gain / loss along with any data / certifications required by ASTM B117.

17
18
19
20
21
 Eck® Corrosion Coating Protection

Moisture Electrolysis
Protection Protection

Barrier
Protection

Only the patented Eck® Corrosion Prevention Coating can give all three
[Link]
types of corrosion protection.
