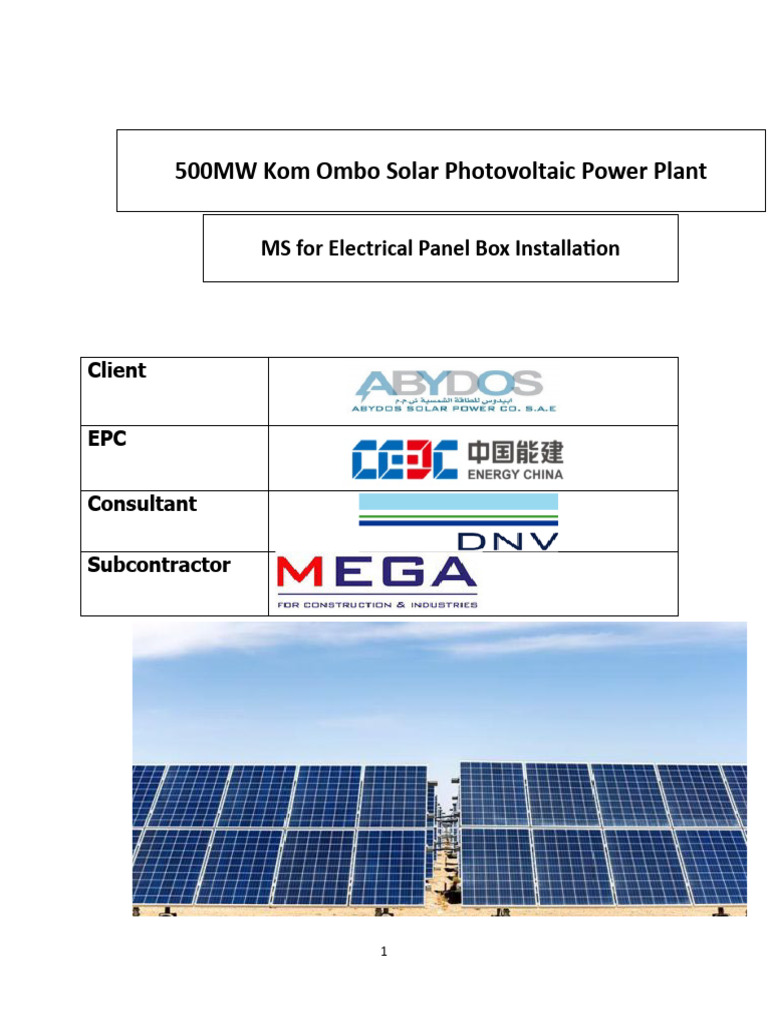

500MW Kom Ombo Solar Photovoltaic Power Plant
MS for Electrical Panel Box Installa�on
Client
EPC
Consultant
Subcontractor
1
QAR ASPC-QD-PVS-EL-MS- Issued Construction team
PTRF-001-00
REV 0 Review Quality Team
DATE 9-6-2024 Verifying
Table of Contents
1. Introduction & Purpose--------------------------------------------------------2
2. Scope-----------------------------------------------------------------------------4
3. References-----------------------------------------------------------------------5
4. Equipment & Tools--------------------------------------------------------------5
5. Manpower------------------------------------------------------------------------8
6. Responsibility--------------------------------------------------------------------8
7. General Work Procedures for Electrical Panel Box Installation-----------11
8. Electrical Panel Box installation Working Procedures Guidance----------13
9. Safety-----------------------------------------------------------------------------15
10. Quality Control---------------------------------------------------------------17
11. Environmental Considerations --------------------------------------------20
1.Introduction & Purpose: -
The installation of electrical panel boxes, also known as distribution boards
or breaker panels, is a critical component in the electrical infrastructure of
buildings and industrial facilities. These panel boxes serve as the central
hub for the distribution and control of electrical power, ensuring the safe
and reliable supply of electricity to various circuits and loads within the
building or facility.
The primary purpose of installing electrical panel boxes is to provide a
centralized point of control and protection for the electrical system. The
panel box houses the circuit breakers or fuses that safeguard the electrical
circuits against overloads, short circuits, and other electrical faults. By
isolating and disconnecting the affected circuits, the panel box helps
2
prevent potential fire hazards and other safety risks associated with
electrical malfunctions.
The installation of electrical panel boxes also serves the following key
purposes:
1. *Power Distribution*: The panel box distributes the incoming electrical
power from the utility or on-site generator to various branch circuits,
allowing for the efficient and organized allocation of electricity throughout
the building or facility.
2. *Circuit Protection*: The circuit breakers or fuses within the panel box
protect the electrical circuits and connected equipment from excessive
current flow, which could otherwise lead to damage or fire.
3. *Accessibility and Visibility*: The panel box provides a centralized and
easily accessible location for monitoring, operating, and maintaining the
electrical system, allowing for quick identification and resolution of
electrical issues.
4. *Code Compliance*: The installation of electrical panel boxes must
comply with the applicable electrical codes and safety standards, such as
the National Electrical Code (NEC) or local building codes, to ensure the
safety and proper functioning of the electrical system.
5. *Expandability and Flexibility*: Electrical panel boxes are designed to
accommodate future electrical system upgrades or modifications, enabling
the building or facility to adapt to changing power requirements or
increased electrical loads.
6. *Aesthetics and Organization*: The proper installation of electrical panel
boxes contributes to the overall aesthetics and organization of the electrical
infrastructure, as they are often located in prominent areas within the
building or facility.
- This MS Document is a live document and we can add/change anything
during the construction works as per site requirements.
3
2.Scope
The scope of an electrical panel box installation project typically encompasses the
following key elements:
1. *Panel Box Selection and Sizing*:
- Determine the appropriate size, capacity, and type of electrical panel box based on
the building's or facility's current and projected electrical load requirements.
- Ensure the panel box is rated for the correct voltage, current, and number of circuits
needed to meet the electrical system's demands.
2. *Panel Box Location and Placement*:
- Identify the optimal location for the panel box that provides easy access, adequate
workspace, and compliance with local building codes and regulations.
- Ensure the panel box is installed in a dry, well-ventilated, and secure area, away
from any potential sources of damage or interference.
3. *Electrical Wiring and Connections*:
- Install the necessary electrical wiring, conduits, and cable trays to connect the panel
box to the incoming electrical service and the various branch circuits.
- Ensure proper termination and connection of the electrical conductors to the panel
box's bus bars, circuit breakers, or other components.
4. *Circuit Labeling and Identification*:
4
- Clearly label and identify each circuit breaker or fuse within the panel box, indicating
the specific load or equipment it serves.
- Maintain accurate circuit directories or schedules within the panel box to facilitate
the identification and management of the electrical circuits.
5. *Grounding and Bonding*:
- Establish a proper grounding system for the panel box, including the connection to
the building's grounding electrode system.
- Ensure the bonding of the panel box's metallic enclosure to the grounding system,
as required by electrical safety standards.
6. *Overcurrent Protection and Circuit Breakers*:
- Select and install appropriate circuit breakers or fuses within the panel box to
provide the necessary overcurrent protection for the connected electrical circuits.
- Verify the proper coordination and selective tripping of the overcurrent protection
devices.
7. *Testing and Inspection*:
- Conduct comprehensive testing and inspection of the installed panel box and
associated electrical systems to ensure proper operation, safety, and compliance with
applicable electrical codes and standards.
- Document the test results and obtain necessary approvals from local authorities or
inspectors before energizing the panel box.
8. *Documentation and Maintenance*:
- Maintain accurate records and documentation related to the panel box installation,
including equipment specifications, wiring diagrams, and test results.
5
- Develop and implement a regular maintenance plan to ensure the panel box's
continued safe and reliable operation over time.
3.References
Documents referenced during this project include:
• Owner's Technical Specification
• Other relevant project documents (drawings, manufacturer installation guides)
• Environmental, Social and Health & Safety Plans for construction
• Quality plan
4.Equipment & Tools
The successful installation of an electrical panel box requires the use of various
equipment and tools to ensure the work is carried out efficiently, safely, and in
compliance with applicable electrical codes and standards. The following are the key
equipment and tools commonly used in an electrical panel box installation project:
1. *Personal Protective Equipment (PPE)*:
- Insulated gloves
- Safety glasses or goggles
- Hard hat (if required)
- Steel-toed boots
- High-visibility safety vest (if required)
2. *Power Tools*:
- Electric drill with various drill bits
6
- Reciprocating saw or circular saw
- Impact driver or wrench
- Angle grinder (for cutting and shaping metal)
3. *Hand Tools*:
- Screwdrivers (flathead and Phillips-head)
- Pliers (linesman, needle-nose, and wire-cutting)
- Hacksaw
- Tape measure and level
- Hammer
- Utility knife
4. *Electrical Tools*:
- Multimeter or volt-ohm meter
- Wire strippers and crimping tools
- Cable cutter and cable bender
- Electrical fish tape or pull string
- Torque wrench (for tightening connections)
5. *Installation Accessories*:
- Electrical conduit and fittings (rigid, EMT, or flexible)
- Wire, cable, and cable trays
- Cable ties and wire management accessories
7
- Anchors, screws, and other fasteners
- Silicone sealant or caulking
6. *Testing and Inspection Equipment*:
- Voltage and current testers
- Insulation resistance tester
- Ground resistance tester
- Circuit breaker tester
7. *Safety Equipment*:
- Electrical safety mats or blankets
- Voltage detector or "tic tracer"
- Lockout/tagout devices
- Fire extinguisher
It is important to ensure that all equipment and tools used during the electrical panel
box installation are in good working condition, properly maintained, and suitable for the
specific tasks at hand. Additionally, the use of appropriate PPE is crucial to protect the
installers from potential electrical hazards and comply with occupational safety
regulations.
Proper training and familiarity with the use of these tools and equipment are also
essential to ensure the safety and efficiency of the electrical panel box installation
process.
8
5.Manpower
The following personnel will be mobilized for the project:
• Project Manager
• Site Engineer
• Site Supervisor
• PTW coordinator
• QA/QC Engineer
• HSE Manager
• HSE Supervisor / Officer
• Helpers/Attendants
• HSE Personnel
• Experienced Technicians
6.Responsibilities
6.1 Project Manager
Responsible for accomplishing the stated project objectives, which include creating
clear and attainable project objectives, building the project requirements, and
managing the constraints of the project management triangle: cost, time, scope,
and quality.
6.2 Site Engineer
Supervise operations in accordance with the approved Method Statement, shop
drawings, specifications, and schedules to achieve the acceptance of the project
deliverables.
6.3 Site Supervisor
Supervise closely the activities designated to him and ensure that all instructions and
safety procedures are followed and strictly adhered to, also responsible for TBT before
starting the work.
9
6.4 PTW Coordinator
Coordinate all relevant permits and ensure they are current and up to date for the
duration of the activities. The PTW Coordinator shall check the proposed ac�vi�es are
being done as per the specified �me period.
6.5 QA/QC Engineer
Ensure the proper implementation of the Quality system and monitor that the
overall quality of the work is maintained. Conduct inspection and monitor tests.
Determine and report any non-conformance and recommended corrective actions.
Ensure that all personnel are aware of the quality requirements. Conduct
surveillance and inspection duties at various stages to ensure QA/QC Plan
compliance.
6.6 HSE Manager
The Safety Manager ensures that all safety regulations will be followed in a way to
prevent injury to personnel, or damage to the Contractor property. He shall prepare
the required risk assessment and help the team to understand and apply it.
6.7 HSE Supervisor/Officer
Ensure enforcement of safety procedures in accordance with the approved HSE Plan. Will be
closely monitoring the site engineer’s strict implementation of the MS and Risk Assessment,
the use of proper tools and equipment to maintain safety, certifications of equipment and
their adherence to safety regulations, reporting of any unsafe work or stopping work that
does not comply with ES&H procedures and monitor the implementation of the PTW system,
also responsible about ES&H TBT before starting the work.
10
7. General Work Procedures for Electrical Panel Box
Installation:
The general working procedures for installing an electrical panel box typically involve
the following steps:
1. *Planning and Preparation*:
- Review the project specifications, electrical drawings, and local code requirements.
- Determine the location and size of the panel box based on the electrical load
calculations and available space.
- Obtain all necessary permits and approvals from the local authorities.
- Coordinate with other trades, such as HVAC or plumbing, to ensure a smooth
installation process.
2. *Panel Box Mounting*:
- Identify the mounting location and ensure it provides adequate access and
clearance as per code requirements.
- Secure the panel box enclosure to the wall or other structural support using
appropriate anchors and fasteners.
- Ensure the panel box is level, plumb, and securely installed.
3. *Electrical Service Connection*:
- Establish the connection between the incoming electrical service (utility or
generator) and the panel box.
- Install the necessary electrical conduits, wiring, and terminations to bring the power
supply into the panel box.
11
- Ensure proper grounding and bonding of the electrical service.
4. *Circuit Breaker Installation*:
- Install the required circuit breakers or fuses within the panel box, ensuring they are
of the correct size and rating for the connected circuits.
- Arrange the circuit breakers or fuses in a logical and organized manner, following
code requirements and the panel directory.
5. *Branch Circuit Wiring*:
- Run the branch circuit wiring from the panel box to the various electrical loads and
devices throughout the building or facility.
- Install the necessary conduits, cable trays, and wire supports to route the branch
circuit wiring in a neat and organized manner.
- Terminate the branch circuit wiring at the panel box and the connected loads,
ensuring proper connections and load balancing.
6. *Labeling and Identification*:
- Clearly label each circuit breaker or fuse within the panel box, indicating the specific
load or equipment it serves.
- Maintain an accurate circuit directory or schedule within the panel box, providing a
clear reference for the electrical system.
7. *Testing and Inspection*:
- Conduct comprehensive testing of the installed panel box and associated electrical
systems, including:
- Voltage and current measurements
- Insulation resistance testing
12
- Circuit breaker operation and coordination
- Grounding and bonding verification
- Obtain the necessary approvals and inspections from local authorities before
energizing the panel box.
8. *Cleanup and Documentation*:
- Remove any construction debris, tools, and equipment from the work area.
- Restore the installation site to a clean and organized condition.
- Compile and maintain detailed records, including equipment specifications, wiring
diagrams, test results, and the panel box's circuit directory.
8. Electrical Panel Box Installation Working
Procedures Guidance
The following guidance provides more detailed information on the key working
procedures involved in the installation of an electrical panel box:
1. *Planning and Preparation*:
- Thoroughly review the project documents, including electrical drawings, load
calculations, and code requirements.
- Determine the appropriate panel box size, voltage, and amperage capacity
based on the electrical load demands.
- Identify the preferred location for the panel box, considering accessibility,
clearances, and any potential obstructions.
- Ensure the availability of all required materials, tools, and equipment before
starting the installation.
2. *Panel Box Mounting*:
- Verify the wall or mounting surface can support the weight of the panel box and
any associated equipment.
- Use appropriate anchors and fasteners, such as lag bolts or expansion anchors,
to securely mount the panel box enclosure.
- Ensure the panel box is level, plumb, and positioned at the correct height as per
code requirements.
13
- Provide adequate working clearance around the panel box for safe access and
maintenance.
3. *Electrical Service Connection*:
- Coordinate with the utility company or the on-site power source to establish the
incoming electrical service connection.
- Install the necessary conduits, conductors, and terminations to bring the power
supply into the panel box.
- Connect the grounding electrode system to the panel box's ground bus bar,
ensuring a robust grounding path.
- Verify the incoming voltage, phase, and amperage match the panel box's
specifications.
4. *Circuit Breaker Installation*:
- Select the appropriate circuit breakers or fuses based on the electrical load
requirements and code guidelines.
- Install the circuit breakers or fuses in the panel box, following the
manufacturer's recommended torque values and sequence.
- Arrange the circuit breakers or fuses in a logical and organized manner, allowing
for easy identification and access.
5. *Branch Circuit Wiring*:
- Plan the routing of branch circuit wiring to minimize the length of conductors
and avoid potential interference or damage.
- Install the necessary electrical conduits, cable trays, or other wire management
systems to support the branch circuit wiring.
- Pull the branch circuit conductors through the conduits or raceways, ensuring
proper conductor sizing, color coding, and labeling.
- Terminate the branch circuit wiring at the panel box and the connected loads,
using appropriate connectors and maintaining proper wire bending radius.
6. *Labeling and Identification*:
- Clearly label each circuit breaker or fuse within the panel box, indicating the
specific load or equipment it serves.
- Maintain an accurate and up-to-date circuit directory or schedule within the
panel box, providing a clear reference for the electrical system.
- Consider using standardized labeling conventions and color-coding schemes to
enhance the panel box's organization and clarity.
7. *Testing and Inspection*:
- Conduct a comprehensive visual inspection of the installed panel box and
associated electrical systems.
- Perform electrical testing, including voltage and current measurements,
insulation resistance testing, and circuit breaker operation.
14
- Verify the proper grounding and bonding of the electrical system, as well as the
coordination and selective tripping of the overcurrent protection devices.
- Obtain the necessary approvals and inspections from the local AHJ before
energizing the panel box.
8. *Cleanup and Documentation*:
- Carefully remove any construction debris, tools, and excess materials from the
work area.
- Restore the installation site to a clean and organized condition, ensuring a
professional appearance.
- Compile and maintain detailed records, including equipment specifications,
wiring diagrams, test results, and the panel box's circuit directory.
- Provide the building owner or facility manager with the complete documentation
for future reference and maintenance purposes.
Adhering to these guidance points and following best practices during the
installation process will help ensure the electrical panel box is installed safely,
efficiently, and in compliance with applicable electrical codes and standards.
9 Safety
Ensuring the safety of all personnel involved in the installation of an electrical panel box
is of paramount importance. The following safety considerations should be addressed
throughout the installation process:
1. *Personal Protective Equipment (PPE)*:
- Require all workers to wear appropriate PPE, including insulated gloves, safety
glasses, hard hats, and non-conductive footwear.
- Ensure workers are trained in the proper use and maintenance of the required PPE.
2. *Electrical Safety*:
- Verify that the electrical service is de-energized and properly locked out and tagged
out before any work begins.
- Implement a comprehensive electrical safety program, including arc flash and shock
hazard assessments.
15
- Establish safe work distances and use insulated tools when working on or near live
electrical components.
3. *Hazardous Materials*:
- Identify and properly handle any hazardous materials, such as asbestos or lead-
based paint, that may be present in the work area.
- Implement appropriate containment and disposal procedures for these materials.
4. *Work Area Preparation*:
- Maintain a clean and organized work area, free from tripping hazards and
obstructions.
- Ensure adequate lighting and ventilation are provided in the panel box installation
area.
- Establish clear access routes and emergency egress paths.
5. *Tool and Equipment Safety*:
- Inspect all tools and equipment before use to ensure they are in good working
condition.
- Utilize only tools and equipment that are rated for the electrical voltages and
currents involved.
- Secure and stabilize ladders, scaffolding, or other access equipment to prevent falls
or tip-overs.
6. *Electrical Hazard Awareness*:
- Train all workers on the recognition and avoidance of electrical hazards, such as live
parts, energized conductors, and potential for electric shock or arc flash.
- Provide clear labeling and signage to identify electrical hazards in the work area.
16
7. *Emergency Preparedness*:
- Develop and communicate an emergency response plan, including procedures for
first aid, fire safety, and evacuation.
- Ensure the availability of appropriate fire extinguishers, first aid kits, and emergency
contact information.
- Provide training on emergency procedures and response actions.
8. *Coordination and Communication*:
- Establish clear lines of communication and coordination among the various trades
involved in the panel box installation.
- Conduct regular safety meetings and toolbox talks to reinforce safety practices and
address any concerns.
- Encourage a culture of safety awareness and empowerment among all workers.
By prioritizing safety throughout the electrical panel box installation process, you can
help create a safe work environment, protect the health and well-being of the workers,
and ensure compliance with applicable safety regulations and industry best practices.
10. Quality Control:
Ensuring the quality and integrity of the electrical panel box installation is crucial to the
overall safety and performance of the electrical system. Here are the key quality control
measures to be implemented during the installation process:
1. *Pre-Installation Checks*:
- Verify that the panel box and all associated components meet the project
specifications and relevant standards.
- Inspect the panel box for any visible damage or defects before installation.
17
- Confirm the panel box's voltage, amperage, and circuit breaker/fuse compatibility
with the electrical system requirements.
2. *Installation Inspections*:
- Conduct regular inspections throughout the installation process to ensure
compliance with the project documents and applicable electrical codes.
- Verify the proper mounting and secure attachment of the panel box to the wall or
mounting surface.
- Ensure the panel box is level, plumb, and installed at the correct height as per code
requirements.
- Check the integrity of the electrical service connections, including the grounding and
bonding of the system.
3. *Wiring and Termination Checks*:
- Inspect the branch circuit wiring for proper conductor sizing, color coding, and
labeling.
- Verify the correct installation and tightness of all wire terminations and connections
within the panel box.
- Ensure the wiring is routed and secured in accordance with the project
specifications and electrical code requirements.
4. *Circuit Breaker/Fuse Installation*:
- Confirm that the installed circuit breakers or fuses match the specified amperage
ratings and interrupting capacity.
- Verify the proper installation and torque of the circuit breakers or fuses within the
panel box.
- Check the operation and functionality of each circuit breaker or fuse.
18
5. *Labeling and Identification*:
- Ensure the panel box's circuit directory or schedule is accurately labeled and up-to-
date.
- Verify the proper labeling and identification of each circuit breaker or fuse within the
panel box.
- Confirm the use of standardized labeling conventions and color-coding schemes for
clarity and consistency.
6. *Electrical Testing and Commissioning*:
- Perform a comprehensive visual inspection of the installed panel box and associated
electrical systems.
- Conduct electrical testing, including voltage and current measurements, insulation
resistance testing, and circuit breaker operation.
- Verify the proper grounding and bonding of the electrical system, as well as the
coordination and selective tripping of the overcurrent protection devices.
- Document all test results and ensure they meet the specified performance criteria.
7. *Documentation and Record-Keeping*:
- Maintain detailed records of the installation process, including equipment
specifications, wiring diagrams, test results, and the panel box's circuit directory.
- Provide the building owner or facility manager with the complete documentation for
future reference and maintenance purposes.
By implementing these quality control measures throughout the electrical panel box
installation process, you can help ensure the safety, reliability, and long-term
performance of the electrical system, while also meeting the applicable codes,
standards, and project requirements.
19
11. Environmental Considerations:
When installing an electrical panel box, it is important to consider the potential
environmental impacts and take appropriate measures to minimize any adverse effects.
Here are the key environmental considerations to address during the installation
process:
1. *Waste Management*:
- Properly dispose of any packing materials, cardboard, plastic, or other waste
generated during the installation process.
- Identify and handle any hazardous materials, such as old capacitors or fluorescent
light ballasts, in accordance with local environmental regulations.
- Recycle or repurpose materials whenever possible to reduce waste going to landfills.
2. *Hazardous Substance Containment*:
- Ensure the panel box and its components are free from any hazardous substances,
such as polychlorinated biphenyls (PCBs) or lead-based paints.
- If such substances are present, implement appropriate containment and disposal
procedures to prevent environmental contamination.
- Consult with local authorities or environmental agencies for guidance on the proper
handling and disposal of hazardous materials.
3. *Noise and Vibration Control*:
- Consider the placement and orientation of the panel box to minimize the impact of
any noise or vibrations generated by the electrical equipment.
- Utilize sound-dampening materials or enclosures, if necessary, to reduce the noise
levels and prevent disturbance to nearby occupants or sensitive environments.
20
4. *Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC)*:
- Ensure the panel box and its components are installed in a manner that minimizes
the potential for electromagnetic interference with other electronic devices or systems.
- Adhere to the manufacturer's recommendations and industry best practices for
EMI/EMC mitigation, such as proper grounding, shielding, and cable routing.
5. *Energy Efficiency and Conservation*:
- Select energy-efficient panel box components and equipment, such as high-
efficiency circuit breakers and surge protectors, to reduce the overall energy
consumption and environmental impact.
- Implement energy-saving features, such as automatic load shedding or demand
response capabilities, if available in the panel box design.
6. *Cooling and Ventilation*:
- Ensure adequate cooling and ventilation for the panel box to prevent overheating
and reduce the energy required for cooling.
- Consider the use of natural ventilation or energy-efficient cooling systems, if
applicable, to minimize the environmental impact.
7. *Environmental Regulations and Compliance*:
- Familiarize yourself with the local environmental regulations and standards that may
apply to the installation of the electrical panel box.
- Ensure the panel box and its installation comply with all relevant environmental
protection laws, including those related to waste management, air quality, and water
pollution.
- Obtain the necessary permits or approvals from the relevant environmental
authorities, if required.
21
8. *Site Restoration and Landscaping*:
- After the installation is complete, restore the work area to its original condition,
ensuring minimal impact on the surrounding environment.
- Consider the use of native or drought-resistant landscaping materials, if applicable,
to reduce the environmental footprint of the project.
By incorporating these environmental considerations into the electrical panel box
installation process, you can help minimize the project's impact on the environment,
promote sustainability, and ensure compliance with applicable environmental
regulations and best practices.
22
