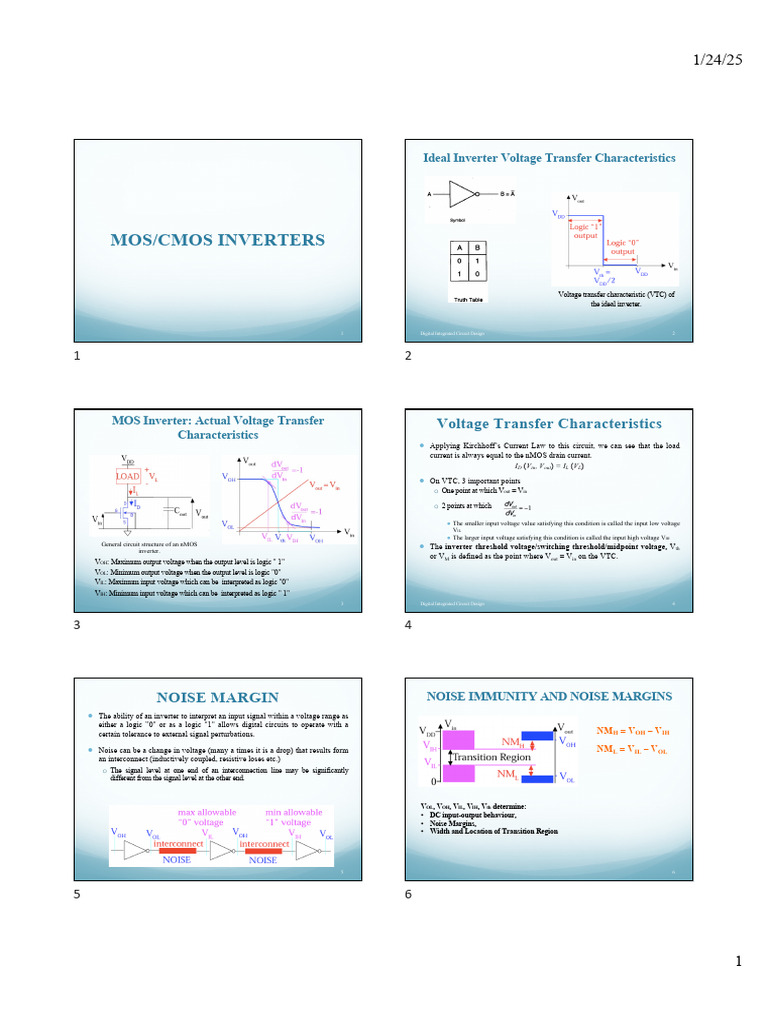

Ideal Inverter Voltage Transfer Characteristics

MOS/CMOS INVERTERS

Voltage transfer characteristic (VTC) of

the ideal inverter.

1 Digital Integrated Circuit Design 2

1 2

MOS Inverter: Actual Voltage Transfer Voltage Transfer Characteristics

Characteristics
● Applying Kirchhoff’s Current Law to this circuit, we can see that the load
current is always equal to the nMOS drain current.
ID (Vin, Vout) = IL (VL)

● On VTC, 3 important points

o One point at which Vout = Vin
o 2 points at which

● The smaller input voltage value satisfying this condition is called the input low voltage
VIL
● The larger input voltage satisfying this condition is called the input high voltage VIH
General circuit structure of an nMOS
inverter.
● The inverter threshold voltage/switching threshold/midpoint voltage, Vth
or VM is defined as the point where Vout = Vin on the VTC.
VOH: Maximum output voltage when the output level is logic " 1"
VOL: Minimum output voltage when the output level is logic "0"
VIL: Maximum input voltage which can be interpreted as logic "0"
VIH: Minimum input voltage which can be interpreted as logic " 1"
3 Digital Integrated Circuit Design 4

3 4

NOISE MARGIN NOISE IMMUNITY AND NOISE MARGINS

● The ability of an inverter to interpret an input signal within a voltage range as
either a logic ”0" or as a logic "1" allows digital circuits to operate with a
certain tolerance to external signal perturbations. NM H = V OH – V IH

● Noise can be a change in voltage (many a times it is a drop) that results form NM L = V IL – V OL
an interconnect (inductively coupled, resistive loses etc.)
o The signal level at one end of an interconnection line may be significantly
different from the signal level at the other end.

VOL, VOH, VIL, VIH, Vth determine:

• DC input-output behaviour,
• Noise Margins,
• Width and Location of Transition Region

5 6

5 6

1
 1/24/25

● Justification for VIL and VIH ● The boundaries of the valid input signal regions are the voltage points where
the magnitude of the inverter voltage gain is equal to unity
Vout = f(Vin)
● The input voltage range between VIL and VIH, may not be processed correctly
Vout’ = f(Vin+ΔVnoise) either as a logic "0" input or as a logic "1" input by the inverter. This region
is called the uncertain region or, the transition region.
● By using a simple first-order Taylor series expansion and by neglecting
higher-order terms ● Ideally, the slope of the voltage transfer characteristic should be very large
between VIL and VIH.

● A narrow uncertain (transition) region allows for larger noise margins.

o One of the most important design objectives.
Perturbed Output = Nominal Output + Gain x External Perturbation

7 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 8

7 8

POWER DISSIPATION Inverter: DC Analysis

● Since each gate on the chip dissipates power and thus generates heat, the ● DC Analysis
removal of this thermal energy, i.e., cooling of the chip, becomes an essential o DC value of a signal in static conditions
and usually very expensive task. o Voltage Transfer Characteristic (VTC)
● plot of Vout as a function of Vin
PDC = VDD.IDC ● vary Vin from 0 to VDD
● find Vout at each value of Vin

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 9 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 11

9 11

Inverters: Resistive load Inverter

Assume VSB = 0 => VT,n = VT0,n

λ=0

Input Voltage Range Operation Mode ID Calculation of VOH A

Vin < VT0,n Cut-off 0
Vout = VDD – ILRL
VT0,n ≤ Vin < Vout + VT0,n Saturation
In region A, Vin < VT0,n => nMOS Cut-off
Vin ≥ Vout+ VT0,n Linear IL = ID = 0 => V OH = VDD
Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 12 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 13

12 13

2
 1/24/25

● Calculation of VOL ● Calculation of VIL B

C

Find out Vout at Vin = VIL

Solution is with the negative sign

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 14 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 15

14 15

● Calculation of VIH C
● Calculation of Vth

Find out Vout at Vin = VIH

Substitute the expression for Vout in VIH

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 16 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 17

16 17

Summary Summary

VOH = VDD VOH = VDD

But putting a larger resistance would
also mean:
• larger resistor length
• greater switching delays

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 18 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 19

18 19

3
 1/24/25

POWER DISSIPATION Resistive load Inverter

Issues
● Large area requirements of resistor
When Vin = VOL: Driver nMOS is in cut-off
● Process variations of the resistor
● Huge chip area requirements
● Larger DC power consumption
● VIL ≠ 0
When Vin = VOH:
● Noise margins and output swing can be too low or too slow

Assuming 50% of duty cycle (input voltage is low during

50% of operation time and high during the remaining
50% of time)

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 20 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 21

20 21

Inverters: Enhancement mode n-MOSFET as

Inverters: MOSFET as load load
● Resistive-load inverter - large area occupied by the load resistor
● The main advantages of using a MOSFET as the load device
o Smaller silicon area occupied by the transistor
o Process variations can be reduced compared to resistive load inverter

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 22 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 23

22 23

Inverters: Saturated Enhancement n-MOSFET

as load
● Load à Saturation, Driver à Cutoff A VOH

VOH < VDD

VOL > 0
● Load à Saturation, Driver à Saturation B VIL

VSB,d = 0 => VT,d = VT0,n

VSB,L = Vout > 0 => VT,L ≠ VT0,n ● Load à Saturation, Driver à Linear C VIH, VOL
Load: Saturation condition is always satisfied
VGS, L = VDS, L => VDS, L > VGS, L – VT,L

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 25 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 26

25 26

4
 1/24/25

SUMMARY CMOS Inverter

● The saturated enhancement-load inverter
o A single voltage supply
• All static parameters of CMOS inverters are superior to those of NMOS
inverters
o A relative simple fabrication process
o VOH = VDD - VT,load
• CMOS is the most widely used digital circuit technology in comparison to
other logic families.
● The linear enhancement-type load • lowest power dissipation
o VOH = VDD • highest packing density
o Higher noise margins • Increased process complexity (to provide isolated transistors of both polarity
o Two separate power supply voltage (drawback) types)

● Both suffer from relatively high stand-by power dissipation

● Not used in any large-scale digital applications

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 29 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 36

29 36

CMOS Inverter CMOS Inverter

Region Vin Vout nMOS pMOS Region Vin Vout nMOS pMOS
A < VTN VOH Cut-off Linear A < VTN VOH Cut-off Linear
B VIL ≈VOH Saturation Linear B VIL ≈VOH Saturation Linear
C VTH VTH Saturation Saturation C VTH VTH Saturation Saturation
D VIH ≈VOL Linear Saturation D VIH ≈VOL Linear Saturation
E > VDD +VTP VOL Linear Cut-off E > VDD +VTP VOL Linear Cut-off

Vin = Vgsn = Vgsp + VDD Vin = Vgsn = Vgsp + VDD

Vout = Vdsn = Vdsp + VDD Vout = Vdsn = Vdsp + VDD

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 37 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 38

37 38

Calculate V OH CMOS INVERTER: ESTIMATION OF VIL

IDp = IDn

0
0 1
VGSn = Vin VGSp = Vin - VDD VDSp = Vout – VDD

Calculate V OL

0 2
0

Solve Eq: 1 and 2 for VIL and Vout

VIL depends on the output voltage
Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 39 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 40

39 40

5
 1/24/25

CMOS INVERTER: ESTIMATION OF VIH

CMOS INVERTER: ESTIMATION OF Vth
VGSn = Vin VDSn = Vout VGSp = Vin - VDD Threshold voltage of inverter, Vth = Vin = Vout

VGSn = Vin VGSp = Vin - VDD

Solve Eq: 3 and 4 for VIH and Vout

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 41 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 42

41 42

Effect of kR on Vth

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 43 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 44

43 44

POWER SUPPLY CURRENT vs VIN DESIGN OF CMOS INVERTERS

ID = 0, V in < V T0n
ID = 0, V in > V DD + V T0p
ID = Max, V in = V th
For ideal inverter:

If VT0 = VT0n = - VT0p => kR = 1 => Symmetric Inverter

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 45 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 46

45 46

6
 1/24/25

DESIGN OF CMOS INVERTERS (Cont..) Example

kn’ = 140μA/V2, VTn = 0.7V, VDD = 3V

kp’ = 60μA/V2, VTn = -0.7V

a. Find transistor size ratio, so that VM = 1.5V

b. VM if transistors are of same size.

Note: VIL + VIH = VDD

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 47 Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 48

47 48

POWER DISSIPATION

When Vin = VOL

PDC = 0
When Vin = VOH

Dr. Bindiya T. S., Assistant Professor, ECED Basics of VLSI 51
