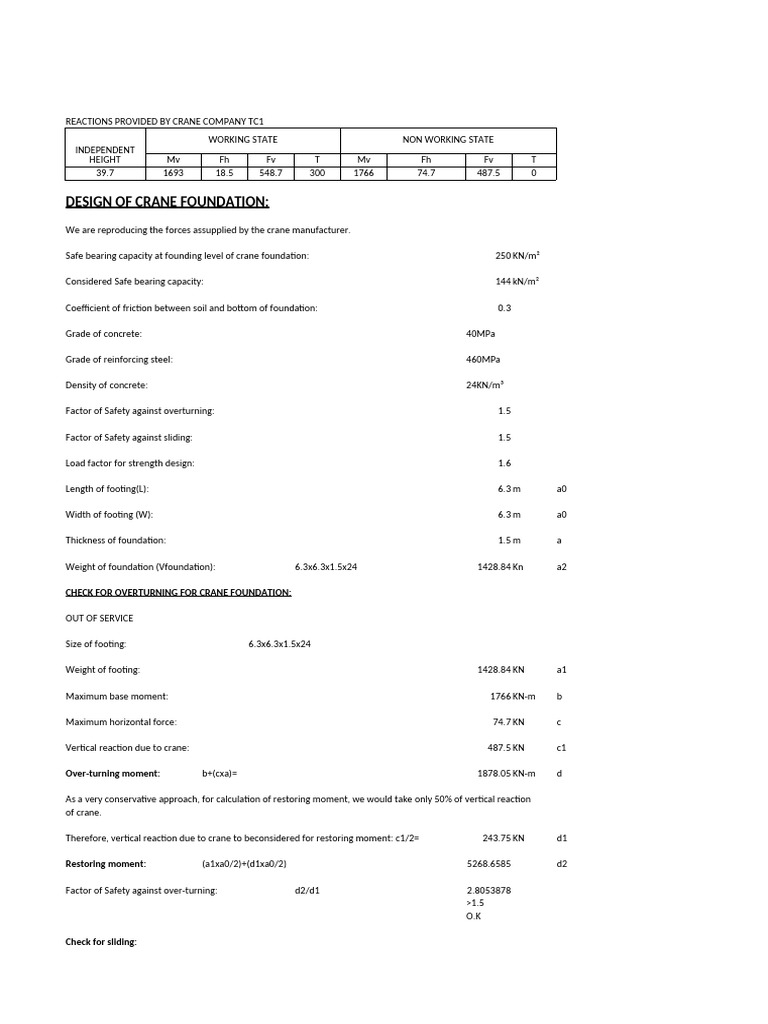

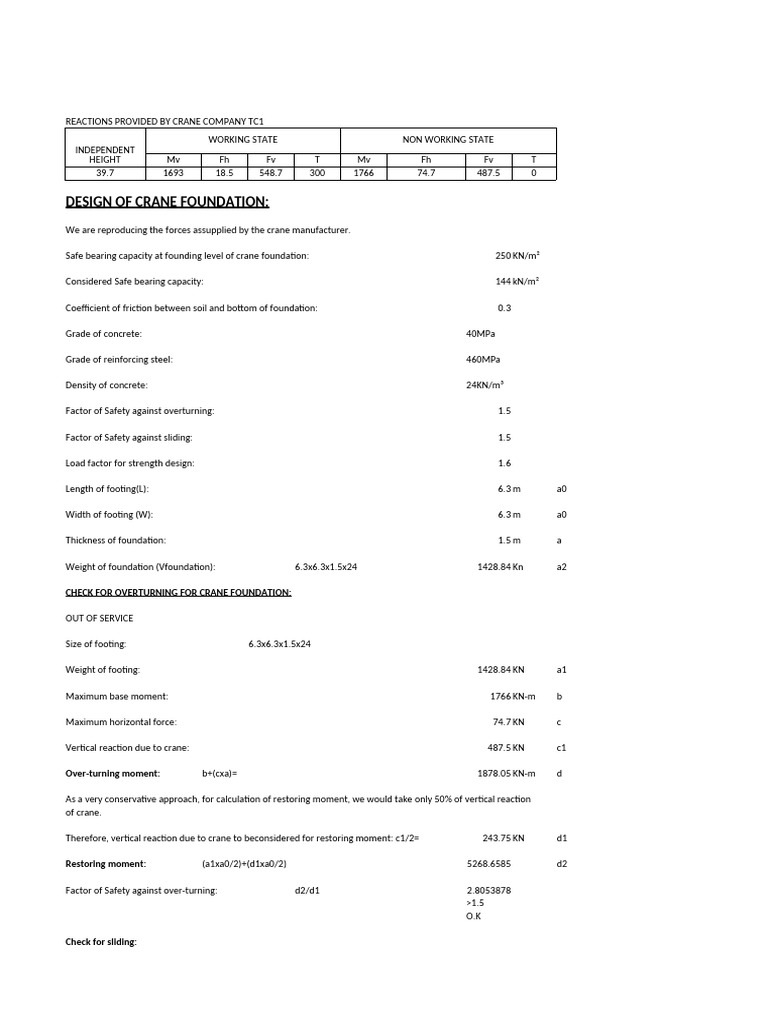

REACTIONS PROVIDED BY CRANE COMPANY TC1
WORKING STATE NON WORKING STATE
INDEPENDENT
HEIGHT Mv Fh Fv T Mv Fh Fv T
39.7 1693 18.5 548.7 300 1766 74.7 487.5 0
DESIGN OF CRANE FOUNDATION:
We are reproducing the forces assupplied by the crane manufacturer.
Safe bearing capacity at founding level of crane foundation: 250 KN/m²
Considered Safe bearing capacity: 144 kN/m²
Coefficient of friction between soil and bottom of foundation: 0.3
Grade of concrete: 40MPa
Grade of reinforcing steel: 460MPa
Density of concrete: 24KN/m³
Factor of Safety against overturning: 1.5
Factor of Safety against sliding: 1.5
Load factor for strength design: 1.6
Length of footing(L): 6.3 m a0
Width of footing (W): 6.3 m a0
Thickness of foundation: 1.5 m a
Weight of foundation (Vfoundation): 6.3x6.3x1.5x24 1428.84 Kn a2
CHECK FOR OVERTURNING FOR CRANE FOUNDATION:
OUT OF SERVICE
Size of footing: 6.3x6.3x1.5x24
Weight of footing: 1428.84 KN a1
Maximum base moment: 1766 KN-m b
Maximum horizontal force: 74.7 KN c
Vertical reaction due to crane: 487.5 KN c1
Over-turning moment: b+(cxa)= 1878.05 KN-m d
As a very conservative approach, for calculation of restoring moment, we would take only 50% of vertical reaction
of crane.
Therefore, vertical reaction due to crane to beconsidered for restoring moment: c1/2= 243.75 KN d1
Restoring moment: (a1xa0/2)+(d1xa0/2) 5268.6585 d2
Factor of Safety against over-turning: d2/d1 2.8053878
>1.5
O.K
Check for sliding:
Coefficient of friction between soil and bottom of foundation: 0.3 a3
Weight of footing: 1428.84 KN a2
Frictional force available: a2xa3 428.652 a3
Maximum horizontal force: 74.7 a4
Factor of safety against sliding: a3/a4 5.7383133
>1.5
O.K
Moment at base of crane mast (M): 1766 KN-m a5
Horizontal force (H) 74.7 KN a4
Vertical load (V): 487.5 KN
Total gravity weight (Vtotal): 1916.34 KN
Moment at base Ma= M+Horizontal forcex foundation thk.= a5+(a4xa) 1878.05 KN-m
L/6: a0/6 1.05 m
Eccentricity (e)= Mb/Vtotal= 0.9800192 a6
>1.1 m
c= L/2-e= a0/2-a6 2.1699808 m
Soil Pressure:
Safe bearing capacity: 144 kN/m²
Width of foundation (B): 6.3 m
Width of mast (B): 2m
Maximum soil pressure= 2/3 (Vtotal/Lxc)= 93.451196 kN/m² a7
<144 kN/m²
OK
Design of foundation for strength:
Size of footing: a0xa0xa
Width of crane mast (b): 2m
Cantilever Length of moment calculation (y)=(L-b)/2 2.15 m a8
Maximum Contact Pressure:
Maximum moment in foundation: 93.451196 Kpa a7
Maximum moment in foundation: a7xa8xa8/2 215.98908 KN-m/m
Effective depth: a-100 1400 mm
Load factor: 1.6
Mu/bd²: 0.1101985
ƥ: 0.0011
As: ƥbd 1550 mm²/m
Minimum reinforcement required (0.18%): 2520 mm²/m
Proposed Diameter of reinforcing bar: T20
Spacing Required: 100mm c/c
Proposed reinforcement: T20@100mm c/c
Determination of reactions for Crane out of operation
Forces in plane of crane mast:
Moment at base (M): 1766 KN.m
Vertical load (V): 487.5 KN
Width of crane mast (b): 2m
Calculations of reactions (working) as applied on top of foundation:
Reactions due to vertical loads: 121.875 KN
Reactions due to moment: ± 441.5 KN
Therefore reactions are:
A B C D
KN KN KN KN
563.375 563.375 -319.625 -319.625
Comp Comp Tensile Tensile
Forces in plane of diagonal of crane mast:
Moment at base (M): 1766 KN.m
Vertical load (V) : 487.5 KN
Diagonal length of crane mast: 2 2.8284271 m
Calculations of reactions (working) as applied on top of foundation:
Reactions due to vertical loads: 121.875
Reactions due to moment: ± 624.37529 KN
Therefore reactions are:
A B C D
KN KN KN KN
121.875 746.25029 121.875 -502.5003
Comp Comp Tensile Tensile
LOAD CASES TO APPLY ON SAFE MODEL:
LOCATION
LOAD CASE
A B C D
LOAD CASE 1 563.4 563.4 -319.6 -319.6
LC5 LC4 LC8
LOAD CASE 2 563.4 -319.6 563.4 -319.6
LOAD CASE 3 -319.6 -319.6 563.4 563.4
B D
LOAD CASE 4 -319.6 563.4 -319.6 563.4
LC1 LC3
LOAD CASE 5 121.9 746.3 -502.5 121.9
A C
LOAD CASE 6 121.9 -502.5 746.3 121.9
LOAD CASE 7 746.3 121.9 121.9 -502.5
LC7 LC2 LC6
LOAD CASE 8 -502.5 121.9 121.9 746.3
REACTIONS PROVIDED BY CRANE COMPANY TC2
WORKING STATE NON WORKING STATE
INDEPENDENT
HEIGHT Mv Fh Fv T Mv Fh Fv T
39.7 1815 36.25 721 0 2570 123.65 621 0
DESIGN OF CRANE FOUNDATION:
We are reproducing the forces assupplied by the crane manufacturer.
Safe bearing capacity at founding level of crane foundation: 250 KN/m²
Considered Safe bearing capacity: 144 kN/m²
Coefficient of friction between soil and bottom of foundation: 0.3
Grade of concrete: 40MPa
Grade of reinforcing steel: 460MPa
Density of concrete: 24KN/m³
Factor of Safety against overturning: 1.5
Factor of Safety against sliding: 1.5
Load factor for strength design: 1.6
Length of footing(L): 6.3 m
Width of footing (W): 6.3 m
Thickness of foundation: 1.5 m
Weight of foundation (Vfoundation): 6x6x1.5x24 1428.84 Kn
CHECK FOR OVERTURNING FOR CRANE FOUNDATION:
OUT OF SERVICE
Size of footing: 6.3x6.3x1.5x24
Weight of footing: 1428.84 KN
Maximum base moment: 2570 KN-m
Maximum horizontal force: 123.65 KN
Vertical reaction due to crane: 621 KN
Over-turning moment: 4560+(154x1.5)= 2755.475 KN-m
As a very conservative approach, for calculation of restoring moment, we would take only 50% of vertical reaction
of crane.
Therefore, vertical reaction due to crane to beconsidered for restoring moment: 682/2= 310.5 KN
Restoring moment: (2025x6/2)+(341x6/2) 5478.921
Factor of Safety against over-turning: 8872.5/4791 1.9883762
>1.5
O.K
Check for sliding:
Coefficient of friction between soil and bottom of foundation: 0.3
Weight of footing: 1428.84 KN
Frictional force available: 2025x0.3 428.652
Maximum horizontal force: 123.65
Factor of safety against sliding: 486/120 3.4666559
>1.5
O.K
Moment at base of crane mast (M): 2570 KN-m
Horizontal force (H) 123.65 KN
Vertical load (V): 621 KN
Total gravity weight (Vtotal): 2049.84 KN
Moment at base Ma= M+Horizontal forcex foundation thk.= 3900+(120x1.2) 2755.475 KN-m
L/6: 7.5/6 1.05 m
Eccentricity (e)= Mb/Vtotal= 1.3442391
>1.1 m
c= L/2-e= 7.5/2-2.36 1.8057609 m
Soil Pressure:
Safe bearing capacity: 144 kN/m²
Width of foundation (B): 6.3 m
Width of mast (B): 2m
Maximum soil pressure= 2/3 (Vtotal/Lxc)= 120.12348 kN/m²
<144 kN/m²
OK
Design of foundation for strength:
Size of footing: 6.3x6.3x1.5
Width of crane mast (b): 2m
Cantilever Length of moment calculation (y)=(L-b)/2 2.15 m
Maximum Contact Pressure:
Maximum moment in foundation: 120.12348 Kpa
Maximum moment in foundation: 122.8x2.3x2.3/2 277.63539 KN-m/m
Effective depth: 1500-100 1400 mm
Load factor: 1.6
Mu/bd²: 0.1416507
ƥ: 0.0011
As: ƥbd 1550 mm²/m
Minimum reinforcement required (0.18%): 2520 mm²/m
Proposed Diameter of reinforcing bar: T20
Spacing Required: 120mm c/c
Proposed reinforcement: T20@120mm c/c
Determination of reactions for Crane out of operation
Forces in plane of crane mast:
Moment at base (M): 2570 KN.m
Vertical load (V): 621 KN
Width of crane mast (b): 2m
Calculations of reactions (working) as applied on top of foundation:
Reactions due to vertical loads: 155.25 KN
Reactions due to moment: ± 642.5 KN
Therefore reactions are:
A B C D
KN KN KN KN
797.75 797.75 -487.25 -487.25
Comp Comp Tensile Tensile
Forces in plane of diagonal of crane mast:
Moment at base (M): 2570 KN.m
Vertical load (V) : 621 KN
Diagonal length of crane mast: 2 2.8284271 m
Calculations of reactions (working) as applied on top of foundation:
Reactions due to vertical loads: 155.25
Reactions due to moment: ± 908.63221 KN
Therefore reactions are:
A B C D
KN KN KN KN
155.25 1063.8822 155.25 -753.3822
Comp Comp Tensile Tensile
LOAD CASES TO APPLY ON SAFE MODEL:
LOCATION
LOAD CASE
A B C D
LOAD CASE 1 797.8 797.8 -487.3 -487.3
LOAD CASE 2 797.8 -487.3 797.8 -487.3
LOAD CASE 3 -487.3 -487.3 797.8 797.8
LOAD CASE 4 -487.3 797.8 -487.3 797.8
LOAD CASE 5 155.3 1063.9 155.3 -753.4
LOAD CASE 6 155.3 -753.4 1063.9 155.3
LOAD CASE 7 1063.9 155.3 155.3 -753.4
LOAD CASE 8 1063.9 -753.4 155.3 155.3
REACTIONS PROVIDED BY CRANE COMPANY TC1 TC5613
WORKING STATE NON WORKING STATE
INDEPENDENT
HEIGHT Mv Fh Fv T Mv Fh Fv T
38 1729.9 31.35 635.6 0 2223.95 105.71 535.6 0
DESIGN OF CRANE FOUNDATION:
We are reproducing the forces assupplied by the crane manufacturer.
Safe bearing capacity at founding level of crane foundation: 130 KN/m²
Considered Safe bearing capacity: 130 kN/m²
Coefficient of friction between soil and bottom of foundation: 0.3
Grade of concrete: 40MPa
Grade of reinforcing steel: 460MPa
Density of concrete: 24KN/m³
Factor of Safety against overturning: 1.5
Factor of Safety against sliding: 1.5
Load factor for strength design: 1.6
Length of footing(L): 5m a0
Width of footing (W): 5m a0
Thickness of foundation: 1.5 m a
Weight of foundation (Vfoundation): 5x5x1.5 900 Kn a2
CHECK FOR OVERTURNING FOR CRANE FOUNDATION:
OUT OF SERVICE
Size of footing: 5x5x1.5
Weight of footing: 900 KN a1
Maximum base moment: 2223.95 KN-m b
Maximum horizontal force: 105.71 KN c
Vertical reaction due to crane: 535.6 KN c1
Over-turning moment: b+(cxa)= 2382.515 KN-m d
As a very conservative approach, for calculation of restoring moment, we would take only 50% of vertical reaction
of crane.
Therefore, vertical reaction due to crane to beconsidered for restoring moment: c1/2= 267.8 KN d1
Restoring moment: (a1xa0/2)+(d1xa0/2) 2919.5 d2
Factor of Safety against over-turning: d2/d1 1.2253858
>1.5
O.K
Check for sliding:
Coefficient of friction between soil and bottom of foundation: 0.3 a3
Weight of footing: 900 KN a2
Frictional force available: a2xa3 270 a3
Maximum horizontal force: 105.71 a4
Factor of safety against sliding: a3/a4 2.5541576
>1.5
O.K
Moment at base of crane mast (M): 2223.95 KN-m a5
Horizontal force (H) 105.71 KN a4
Vertical load (V): 535.6 KN
Total gravity weight (Vtotal): 1435.6 KN
Moment at base Ma= M+Horizontal forcex foundation thk.= a5+(a4xa) 2382.515 KN-m
L/6: a0/6 0.8333333 m
Eccentricity (e)= Mb/Vtotal= 1.6595953 a6
>1.1 m
c= L/2-e= a0/2-a6 0.8404047 m
Soil Pressure:
Safe bearing capacity: 150 kN/m²
Width of foundation (B): 5m
Width of mast (B): 2m
Maximum soil pressure= 2/3 (Vtotal/Lxc)= 227.76328 kN/m² a7
<150 kN/m²
OK
Design of foundation for strength:
Size of footing: a0xa0xa
Width of crane mast (b): 2m
Cantilever Length of moment calculation (y)=(L-b)/2 1.5 m a8
Maximum Contact Pressure:
Maximum moment in foundation: 227.76328 Kpa a7
Maximum moment in foundation: a7xa8xa8/2 256.23369 KN-m/m
Effective depth: a-100 1400 mm
Load factor: 1.6
Mu/bd²: 0.1307315
ƥ: 0.0011
As: ƥbd 1550 mm²/m
Minimum reinforcement required (0.18%): 2520 mm²/m
Proposed Diameter of reinforcing bar: T20
Spacing Required: 150mm c/c
Proposed reinforcement: T20@150mm c/c
Determination of reactions for Crane out of operation
Forces in plane of crane mast:
Moment at base (M): 2223.95 KN.m
Vertical load (V): 535.6 KN
Width of crane mast (b): 2m
Calculations of reactions (working) as applied on top of foundation:
Reactions due to vertical loads: 133.9 KN
Reactions due to moment: ± 555.9875 KN
Therefore reactions are:
A B C D
KN KN KN KN
689.8875 689.8875 -422.0875 -422.0875
Comp Comp Tensile Tensile
Forces in plane of diagonal of crane mast:
Moment at base (M): 2223.95 KN.m
Vertical load (V) : 535.6 KN
Diagonal length of crane mast: 2 2.8284271 m
Calculations of reactions (working) as applied on top of foundation:
Reactions due to vertical loads: 133.9
Reactions due to moment: ± 786.28506 KN
Therefore reactions are:
A B C D
KN KN KN KN
133.9 920.18506 133.9 -652.3851
Comp Comp Tensile Tensile
LOAD CASES TO APPLY ON SAFE MODEL:
LOCATION
LOAD CASE
A B C D
LC5 LC4 LC8
LC1 689.9 689.9 -422.1 -422.1
LC2 689.9 -422.1 689.9 -422.1 B D
LC3 -422.1 -422.1 689.9 689.9
LC1 LC3
LC4 -422.1 689.9 -422.1 689.9 A C
LC5 133.9 920.2 -652.4 133.9
LC6 133.9 -652.4 920.2 133.9
LC7 LC2 LC6
LC7 LC2 LC6
LC7 920.2 133.9 133.9 -652.4
LC8 -652.4 133.9 133.9 920.2
REACTIONS PROVIDED BY CRANE COMPANY TC1 Tower Crane QTZ145 (H25/15)
WORKING STATE NON WORKING STATE
INDEPENDENT
HEIGHT Mv Fh Fv T Mv Fh Fv T
44.8 1729.9 31.35 635.6 0 2223.95 105.71 535.6 0
DESIGN OF CRANE FOUNDATION:
We are reproducing the forces assupplied by the crane manufacturer.
Safe bearing capacity at founding level of crane foundation: 200 KN/m²
Considered Safe bearing capacity: 200 kN/m²
Coefficient of friction between soil and bottom of foundation: 0.3
Grade of concrete: 40MPa
Grade of reinforcing steel: 460MPa
Density of concrete: 24KN/m³
Factor of Safety against overturning: 1.5
Factor of Safety against sliding: 1.5
Load factor for strength design: 1.6
Length of footing(L): 7.5 m a0
Width of footing (W): 7.5 m a0
Thickness of foundation: 2m a
Weight of foundation (Vfoundation): 2700 Kn a2
CHECK FOR OVERTURNING FOR CRANE FOUNDATION:
OUT OF SERVICE
Size of footing: 7.5x7.5x2
Weight of footing: 2700 KN a1
Maximum base moment: 2223.95 KN-m b
Maximum horizontal force: 105.71 KN c
Vertical reaction due to crane: 535.6 KN c1
Over-turning moment: b+(cxa)= 2435.37 KN-m d
for calculation of restoring moment, we would take only 100% of vertical reaction
of crane.
Therefore, vertical reaction due to crane to beconsidered for restoring moment: c1= 535.6 KN d1
Restoring moment: (a1xa0/2)+(d1xa0/2) 12133.5 d2
Factor of Safety against over-turning: d2/d1 4.9821998
>1.5
O.K
Check for sliding:
Coefficient of friction between soil and bottom of foundation: 0.3 a3
Weight of footing: 2700 KN a2
Frictional force available: a2xa3 810 a3
Maximum horizontal force: 105.71 a4
Factor of safety against sliding: a3/a4 7.6624728
>1.5
O.K
Moment at base of crane mast (M): 2223.95 KN-m a5
Horizontal force (H) 105.71 KN a4
Vertical load (V): 535.6 KN
Total gravity weight (Vtotal): 3235.6 KN
Moment at base Ma= M+Horizontal forcex foundation thk.= a5+(a4xa) 2435.37 KN-m
L/6: a0/6 1.25 m
Eccentricity (e)= Mb/Vtotal= 0.7526796 a6
>1.1 m
c= L/2-e= a0/2-a6 2.9973204 m
Soil Pressure:
Safe bearing capacity: 100 kN/m²
Width of foundation (B): 7.5 m
Width of mast (B): 1.6 m
Maximum soil pressure= 2/3 (Vtotal/Lxc)= 95.955336 kN/m² a7
<100 kN/m²
OK
Design of foundation for strength:
Size of footing: a0xa0xa
Width of crane mast (b): 1.6 m
Cantilever Length of moment calculation (y)=(L-b)/2 2.95 m a8
Maximum Contact Pressure:
Maximum moment in foundation: 95.955336 Kpa a7
Maximum moment in foundation: a7xa8xa8/2 417.52565 KN-m/m
Effective depth: a-100 1400 mm
Load factor: 1.6
Mu/bd²: 0.2130233
ƥ: 0.0011
As: ƥbd 1550 mm²/m
Minimum reinforcement required (0.18%): 2520 mm²/m
Proposed Diameter of reinforcing bar: T25
Spacing Required: 100
Proposed reinforcement: T25@100mm c/c
Determination of reactions for Crane out of operation
Forces in plane of crane mast:
Moment at base (M): 2223.95 KN.m
Vertical load (V): 535.6 KN
Width of crane mast (b): 1.6 m
Calculations of reactions (working) as applied on top of foundation:
Reactions due to vertical loads: 133.9 KN
Reactions due to moment: ± 694.98437 KN
Therefore reactions are:
A B C D
KN KN KN KN
828.884375 828.88437 -561.0844 -561.0844
Comp Comp Tensile Tensile
Forces in plane of diagonal of crane mast:
Moment at base (M): 2223.95 KN.m
Vertical load (V) : 535.6 KN
Diagonal length of crane mast: 1.6 2.2627417 m
Calculations of reactions (working) as applied on top of foundation:
Reactions due to vertical loads: 133.9
Reactions due to moment: ± 982.85633 KN
Therefore reactions are:
A B C D
KN KN KN KN
133.9 1116.7563 133.9 -848.9563
Comp Comp Tensile Tensile
LOAD CASES TO APPLY ON SAFE MODEL:
LOCATION
LOAD CASE
A B C D
LC5 LC4 LC8
LOAD CASE 1 828.9 828.9 -561.1 -561.1
LOAD CASE 2 828.9 -561.1 828.9 -561.1 B D
LOAD CASE 3 -561.1 -561.1 828.9 828.9
LC1 LC3
LOAD CASE 4 -561.1 828.9 -561.1 828.9 A C
LOAD CASE 5 133.9 1116.8 -849.0 133.9
LOAD CASE 6 133.9 -849.0 1116.8 133.9
LC7 LC2 LC6
LC7 LC2 LC6
LOAD CASE 7 1116.8 133.9 133.9 -849.0
LOAD CASE 8 -849.0 133.9 133.9 1116.8
