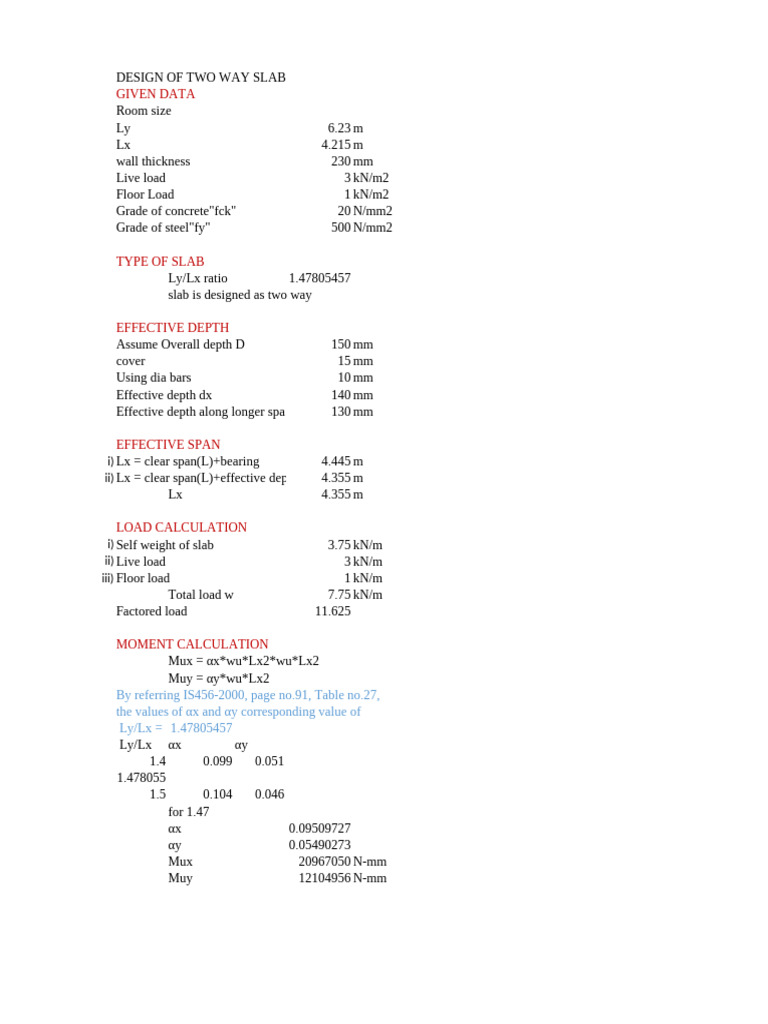

DESIGN OF TWO WAY SLAB
GIVEN DATA
Room size
Ly 6.23 m
Lx 4.215 m
wall thickness 230 mm
Live load 3 kN/m2
Floor Load 1 kN/m2
Grade of concrete"fck" 20 N/mm2
Grade of steel"fy" 500 N/mm2
TYPE OF SLAB
Ly/Lx ratio 1.47805457
slab is designed as two way
EFFECTIVE DEPTH
Assume Overall depth D 150 mm
cover 15 mm
Using dia bars 10 mm
Effective depth dx 140 mm
Effective depth along longer spa 130 mm
EFFECTIVE SPAN
i) Lx = clear span(L)+bearing 4.445 m
ii) Lx = clear span(L)+effective dep 4.355 m
Lx 4.355 m
LOAD CALCULATION
i) Self weight of slab 3.75 kN/m
ii) Live load 3 kN/m
iii) Floor load 1 kN/m
Total load w 7.75 kN/m
Factored load 11.625
MOMENT CALCULATION
Mux = αx*wu*Lx2*wu*Lx2
Muy = αy*wu*Lx2
By referring IS456-2000, page no.91, Table no.27,
the values of αx and αy corresponding value of
Ly/Lx = 1.47805457
Ly/Lx αx αy
1.4 0.099 0.051
1.478055
1.5 0.104 0.046
for 1.47
αx 0.09509727
αy 0.05490273
Mux 20967050 N-mm
Muy 12104956 N-mm
CHECK FOR DEPTH
Mux = Mulim
dx-required 88.7825982 mm take b (per meter ru 1000
dx-required < dx-provided
Design is SAFE
MAIN REINFORCEMENT ALONG SHORTER SPAN (Astx)
Mux/bd2 1.06974747
Refer SP16, Table 2 for pt value
pt 0.252
Astx 352.8 mm2
Provide 10 mm dia bars
ast 78.525 mm2
S 222.576531 mm
Providing 10 mm dia bars 150 mm c/c along shorter span
MAIN REINFORCEMENT ALONG LONGER SPAN (Asty)
Mux/bd2 0.61759978
Refer SP16, Table 2 for pt value
pt 0.1378
Asty 192.92 mm2
Provide 8 mm dia bars
ast 50.256 mm2
S 260.501762 mm
Providing 8 mm dia bars 200 mm c/c along longer span
Check for minimum reinforcement Astmin
180 mm2
OK
CHECK FOR DEFLECTION
Area of steel provided 785.25 mm2
Percentage of steel provided pt 0.56089286
Stress in steel at service loads
fs 130.292264 N/mm2
Refer IS456-2000 for kt vallue from the curve
kt 2
(l/d)max 40
(l/d)provided 31.1071429
SAFE from Deflection
DESIGN OF ONE WAY SLAB
GIVEN DATA
Room size
Ly 8.432 m 8432
Lx 2.1 m 2100
wall thickness 230 mm
Live load 3 kN/m2
Floor Load 1 kN/m2
Grade of concrete"fck" 20 N/mm2
Grade of steel"fy" 500 N/mm2
TYPE OF SLAB
Ly/Lx ratio 4.01523809524
slab is designed as one way
EFFECTIVE DEPTH
cover 15 mm
Using dia bars 10 mm
Effective depth dx 84 mm say 130 mm
Overall depth D 150
EFFECTIVE SPAN
i) Lx = clear span(L)+bearing 2.33 m
ii) Lx = clear span(L)+effective de 2.23 m
Lx 2.23 m
LOAD CALCULATION
i) Dead load 3.25 kN/m
ii) Live load 3 kN/m
iii) Floor load 1 kN/m
Total load w 7.25 kN/m
Factored load, wu 10.875 kN/m
FACTORED MOMENT
Mu = wul2/8 6.7600359375 kN-m
CHECK FOR DEPTH
Mux = Mulim
dx-required 0.97744620716 mm take b (per meter run) 1000
dx-required < dx-provided
Design is SAFE
AREA OF MAIN REINFORCEMENT
Mu/bd2 0.9580549798
Refer SP16, Table 2 for pt value
pt 0.232
Ast 194.88 mm2
Provide 8 mm dia bars
ast 50.256 mm2
Spacing, S 257.881773399 mm
Providing 8 mm dia bars @ 250 mm c/c
DISTRIBUTION REINFORCEMENT
Astmin = 0.12%bD 180
Provide 8 mm dia bars
ast 50.256 mm2
Spacing, S 279.2 mm
